SELECT EDITION

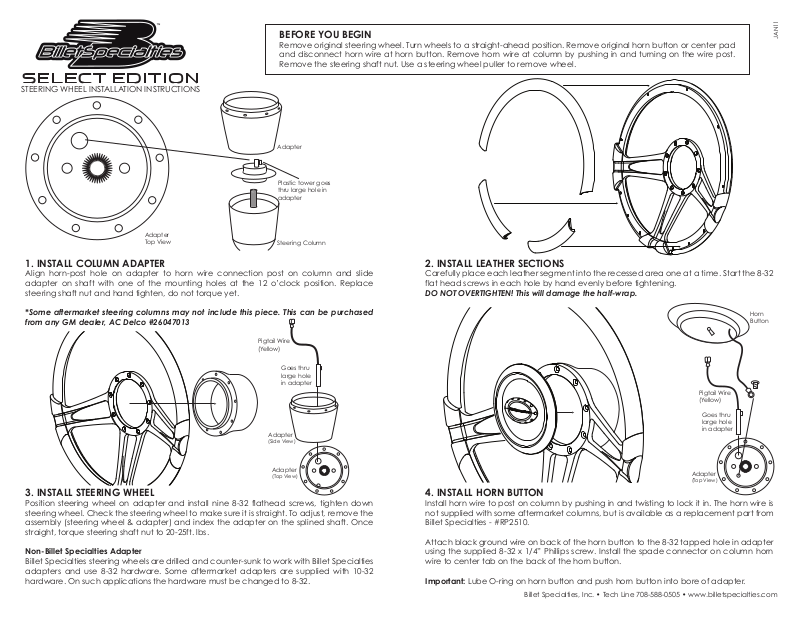

STEERING WHEEL INSTALLATION INSTRUCTIONS
Adapter
Top View
BEFORE YOU BEGIN
Remove original steering wheel. Turn wheels to a straight-ahead position. Remove original horn button or center pad
and disconnect horn wire at horn button. Remove horn wire at column by pushing in and turning on the wire post.
Remove the steering shaft nut. Use a steering wheel puller to remove wheel.
Adapter
Plastic tower goes
thru large hole in
adapter
Steering Column
JAN11
1. INSTALL COLUMN ADAPTER
Align horn-post hole on adapter to horn wire connection post on column and slide
adapter on shaft with one of the mounting holes at the 12 o’clock position. Replace
steering shaft nut and hand tighten, do not torque yet.
*Some aftermarket steering columns may not include this piece. This can be purchased
from any GM dealer, AC Delco #26047013
Pigtail Wire
(Yellow)
Goes thru
large hole
in adapter
Adapter
(Side View)
Adapter
(Top View)
3. INSTALL STEERING WHEEL
Position steering wheel on adapter and install nine 8-32 flathead screws, tighten down
steering wheel. Check the steering wheel to make sure it is straight. To adjust, remove the
assembly (steering wheel & adapter) and index the adapter on the splined shaft. Once
straight, torque steering shaft nut to 20-25ft. lbs.
Non-Billet Specialties Adapter
Billet Specialties steering wheels are drilled and counter-sunk to work with Billet Specialties
adapters and use 8-32 hardware. Some aftermarket adapters are supplied with 10-32
hardware. On such applications the hardware must be changed to 8-32.
2. INSTALL LEATHER SECTIONS
Carefully place each leather segment into the recessed area one at a time. Start the 8-32
flat head screws in each hole by hand evenly before tightening.
DO NOT OVERTIGHTEN! This will damage the half-wrap.
Horn
Button
Pigtail Wire
(Yellow)
Goes thru
large hole
in adapter
Adapter
(Top View)
4. INSTALL HORN BUTTON
Install horn wire to post on column by pushing in and twisting to lock it in. The horn wire is
not supplied with some aftermarket columns, but is available as a replacement part from
Billet Specialties - #RP2510.
Attach black ground wire on back of the horn button to the 8-32 tapped hole in adapter
using the supplied 8-32 x 1/4” Phillips screw. Install the spade connector on column horn
wire to center tab on the back of the horn button.
Important: Lube O-ring on horn button and push horn button into bore of adapter.
Billet Specialties, Inc. • Tech Line 708-588-0505 • www.billetspecialties.com
