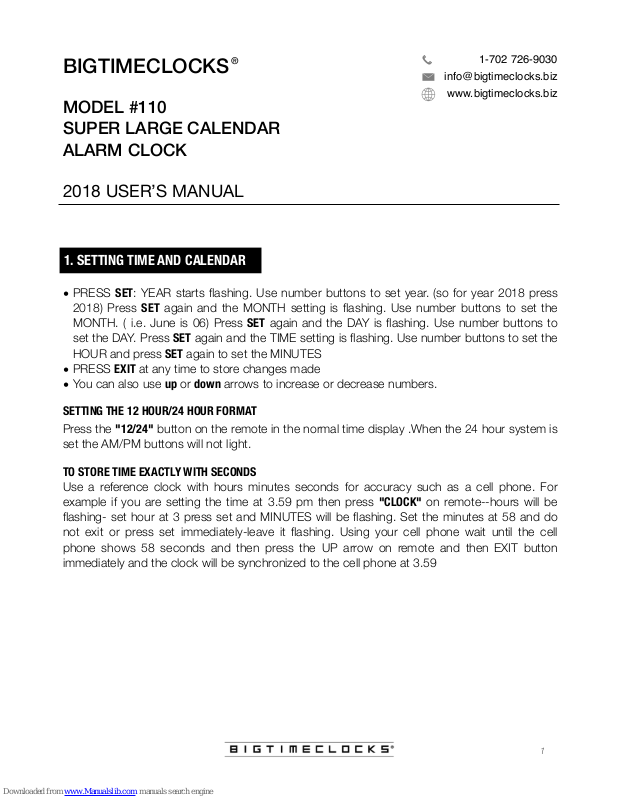

MODEL #110
SUPER LARGE CALENDAR
ALARM CLOCK
2018 USER’S MANUAL
BIGTIMECLOCKS
•
PRESS SET: YEAR starts flashing. Use number buttons to set year. (so for year 2018 press
2018) Press SET again and the MONTH setting is flashing. Use number buttons to set the
MONTH. ( i.e. June is 06) Press SET again and the DAY is flashing. Use number buttons to
set the DAY. Press SET again and the TIME setting is flashing. Use number buttons to set the
HOUR and press SET again to set the MINUTES
•
PRESS EXIT at any time to store changes made
•
You can also use up or down arrows to increase or decrease numbers.
SETTING THE 12 HOUR/24 HOUR FORMAT
Press the "12/24" button on the remote in the normal time display .When the 24 hour system is
set the AM/PM buttons will not light.
TO STORE TIME EXACTLY WITH SECONDS
Use a reference clock with hours minutes seconds for accuracy such as a cell phone. For
example if you are setting the time at 3.59 pm then press "CLOCK" on remote--hours will be
flashing- set hour at 3 press set and MINUTES will be flashing. Set the minutes at 58 and do
not exit or press set immediately-leave it flashing. Using your cell phone wait until the cell
phone shows 58 seconds and then press the UP arrow on remote and then EXIT button
immediately and the clock will be synchronized to the cell phone at 3.59
1. SETTING TIME AND CALENDAR
®
Page 2
!2
2. ALARMS
There are 16 alarms. Each alarm can be accessed by pressing F1, F2, F3 etc.
Press F1 and the HOUR is flashing, SET AM or PM by pushing the "12/24" button. Use number
buttons to set the HOUR press SET again and MINUTES are flashing. Use number buttons to
set MINUTES and press SET again then press UP arrow to turn alarm on or press DOWN arrow
to turn alarm off. When any alarm is set to "ON" the alarm icon will appear in right hand corner
of the display. When the alarm is OFF ∶―― is showing. To CANCEL any individual alarm
press the appropriate F button then press SET twice and when you see ON then press the down
arrow to turn the alarm off.
TO STOP ANY ALARM WHILE SOUNDING PRESS OK AND THE BEEPING WILL STOP
TO CANCEL ALL ALARMS.
Press F1 and then press RESET button and all alarms will be CANCELLED and turned OFF
SETTING HOURLY ALARM:
The icon at top right lights when this alarm is on. This alarm sounds in addition to regular
alarms and will not sound between 9pm and 7am
In normal display mode, PRESS EXIT to turn on/off hourly alarm. When the function is on, the
clock will sound the alarm every hour at .00mins.Such as 1:00,2:00,3:00,4:00…11:00,12:00.
The hourly alarm icon, the TOP button on the right, lights when this function is on.
3. MANUAL SETTINGS
The setting functions are the same as the remote control above.
In normal display press DOWN button to access alarms and 01 is showing press SET to change
settings using UP or DOWN buttons. After setting alarm to ON or OFF press SET again and 02
alarm shows and repeat the setting for all alarms.
In normal display press UP key to change 12/24 hour setting
In normal display press EXIT to turn the hourly alarm ON
