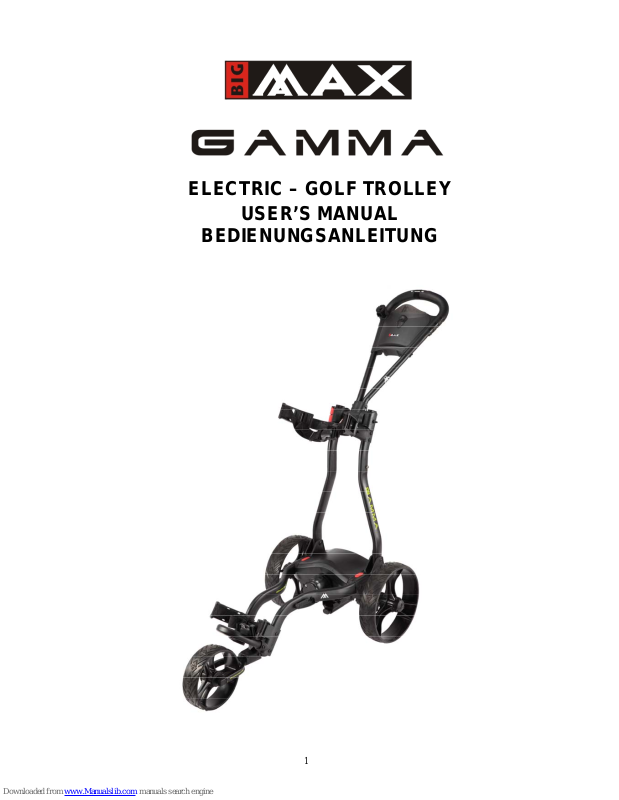

Big Max Gamma User Manual

1

ELECTRIC – GOLF TROLLEY

USER’S MANUAL

BEDIENUNGSANLEITUNG

2

Gamma E-TROLLEY USER’S MANUAL

Dear Golfer,

Thank you for choosing Gamma E-trolley, the trolley that carries your golf bag on
the golf courses. The Gamma E-trolley is specifically designed for ease of use and

reliability. However, in order to ensure proper use of Ti2000 Gamma trolley, please
take the time to read this manual.

TABLE OF CONTENT

1. SECURITY NOTES

2. MAJOR PARTS LIST

3. SET UP YOUR GAMMA TROLLEY

4. OPERATE YOUR GAMMA TROLLEY

4-1 BASIC OPERATION
4-2 LCD OPERATION
4-2-1 Using mode
4-2-2 Setting mode

5. CHARGE AND MAINTAIN THE BATTERY

6. RECHARGEABLE BATTERY PACK CARE

7. PACKING UP

8. ACCESSOIRIES

9. CLEANING & MAINTENANCE

10. PROBLEM SOLVING

10. WARRANTY

11. TECHNICAL SPECIFICATIONS

3

1. SECURITY NOTES

Improper use will render the warranty null and void!

Before traveling or transporting GAMMA trolley, the

rechargeable battery should be removed. Damages are
possible if the system is turned on accidentally.

The charger should only to be used indoors and should be
protected against moisture. The indicated main input voltage
on the charger must not be exceeded. The charger is solely

designed for use with the rechargeable GAMMA trolley battery

pack. For detail information of the charger, please see charger

We recommend using only a 25.2V

Lithium battery rechargeable

battery and charger on GAMMA trolley. Otherwise, health and

property damages may occur. Useless rechargeable batteries
should be disposed of properly.

Do not tamper with the GAMMA trolley. This may lead to a

malfunction which will cause a problem in the operation of the
trolley.

This is NOT A TOY. Having children or adults riding on the
trolley is prohibited. It’s NOT A TRUCK. Carrying cargo by the
trolley is also prohibited.

Before usage, ensure that the battery is fully charged. When the
trolley is not used for two months, we recommend that you
recharge the battery to avoid the decrease of power capacity.

When not in usage, ensure to turn off the power and keep the battery
away.

Don’t wash GAMMA trolley with water directly.

4

2. MAJOR PARTS LIST

01

Deta Chassis SET

08

FRONT WHEEL SET

15

SCORECARD HOLDER

02

LOWER BAG SUPPORT
SET

09

MAIN PCB BOX SET

16

UMBRELLA HOLDER BASE

03

Battery Box SET

10

REAL WHEEL ADAPTER

17

Scorecard holder cover

04

SUPPORT TUBE SET

11

REAL WHEEL SET

18

25.2V 11AH BATTERY

05

Motor+gear box

12

Upper Bag Support SET

19

SUPPORT TUBE ROTATE
BASE

06

4th Wheel SET

13

Folding mechanism SET

07

FRONT WHEEL ROTATE
BASE

14

TOP HANDLE SET

5

3. SET UP YOUR GAMMA Trolley

Step 1: Press the red button in order to pull

out the front wheel holder from the
back of bottom bracket

Step 4: Release the plastic lever on the

folding mechanism.

Step 2: Pull forward the front wheel and

turn 90 degree to make the front
wheel in correct and rolling

p

osition.

Step 3: Press the axle button and insert the axle

into the plastic hole in the end of rear
wheel. There are three grooves and one
plastic ring on the axle, groove 1 and 2
are provided for different wheel distance
option. Groove 3 is to stop the wheel
moving by axle when running out of the
battery, so that it will be easier to move
the wheel. Plastic ring is located into
the groove that is not on use.

Step 5: Hold the handle (c) and unfold
the trolley.

Step 6: Lift the handle frame tube to
the proper height, then push the
plastic lever down to lock it.

1.

2.

3.

6

Step 7: Downward the upper bracket to

the proper position

Step 8: Put the battery in the

Battery case.

Step 9: Snap the button of 4th wheel,

and pull out the 4th wheel.
Ensure the button lock into the

hole.

Step 10: Put the bag on the cart and

fasten the bag with upper and
lower straps.

7

4. OPERATE YOUR GAMMA TROLLEY

4-1 Basic Operation

 Press POWER button for power ON . LCD light means power is ON, and

GAMMA trolley is ready to go.

 By turning gently the Speed Turner, GAMMA trolley will move slowly. Turn it to

the proper speed, then release the Speed Turner, GAMMA trolley will go
forward automatically. Turn forward the Speed Turner, then the trolley goes
forward, and vice versa.

 Don’t turn the Speed Turner to Maximum Speed sharply to avoid GAMMA

trolley losing control on the speed.

 When there is any object or wall in front of GAMMA trolley, don’t turn on

GAMMA trolley to avoid any hurt on object or damage on the trolley.

 Don’t leave your hand on then handle when GAMMA trolley is on the progress

because GAMMA trolley won’t stop automatically until running out of the
battery.

 Speed Turner is a sensitive spare part which could turn each forward and

backward direction 105°. Don’t turn it with much strength, it will result the
damage of the Speed Turner.

 To stop GAMMA trolley, turn the Speed Turner to Minimum Speed or Press the

red button on handle。Turn off the POWER could also stop the trolley.

 However, due to gravity, please be extra cautious that the trolley might move

when it is parked on the hill.

 If you want to manoeuver the GAMMA trolley to a different direction, push down

the handle, lift up the front wheel and direct the trolley to the direction you want
to go.

8

4-2 LCD OPERATION

(1) TIME
(2) BATTERY CHECK
(3) MANU: DISPLAY SPEED, WHEEL SIZE AND SERIAL NUMBER
(4) SET FOR “TIME”. Only available on “SETTING MODE”
(5) SET FOR “SERIAL NUMBER”. Only available on “SETTING MODE”
(6) DISTANCE (4 SELECTION): Odo、Dist0、Dist1、Dist2

Odo: Total Distance
Dist0: Competition mode, No distance display

Dist1 & Dist2: Customized Distance
(7) MANU: DISPLAY DISTANCE AND SERIAL NUMBER
(8) MANU: WHEEL SIZE. Only available on “SETTING MODE”
(9) DISPLAY SPEED UNIT on “USING MODE”. There are two units –mph and

kph. Select either unit on “SETTING MODE”.

(10) There are two distance unit options under USING MODE- yards and

km/miles. In item Odo, the unit is km/mile. In item Dis1 and Dis2, the unit is
yards.

(11) 10m

Select this function in SETTING MODE. The trolley will run 10m per time.

(12) D

Select this function in SETTING MODE, to switch different distance item or

reset to zero.

(13) Power

Power on / off

(14)

M

Press this button to enter SETTING MODE or switch SETTING MODE

(15)

20m

Select this function in SETTING MODE. The trolley will run 20m per time.

1 2

3

4
5

6
7

10

8
9

11 12

14 15

13

9

4-2-1 Using mode

 The screen will not light up until you press any keys on it.

 Press to switch 'Dist1' or 'Dist2' or 'Odo' and 'Dist0'. If you want to reset

'Dist1' or 'Dist2', just need to hold 3 secs then they will start from “0”.

 Press

to make the trolley runs 20m; press to make it runs 10m.

 Press

and enter “SETTING MODEL”, press to switch four different

modes in order to set each of them.

 Press power off.

4-2-2 Setting mode

■ Under SETTING MODE, if you stop setting over 5 secs, the setting mode
will return to using mode.

10

 Press ► to search different setting mode.

Time setting

1. Press ► enter time setting.

2. Press the number +1, if you hold the number will keep on

increasing; press to finish setting the hour, then it will switch to 'minute'.

3. Press the number +1, if you hold the number will keep on

increasing; press to input the data then the number will stop flashing.

11

Distance unit setting

1. Press ►enter distance unit setting.

2. Press to switch the unit (mph/kph), press to input the data then

the unit will stop flashing.

Series number

1. Press

►show series number

Next mode

Next mode

Switch the unit

Input data

Hour number+

Input data and switch

Minute number+

Next mode

Input data

12

5. CHARGE AND MAINTAIN THE BATTERY

1. Recharge the battery one a day before or on the day it is to be used.
Please recharge it in house. Even during non-use or storage, a charged battery will
gradually discharge and lose its power.

2. When not using GAMMA trolley for more than some weeks, we
recommend that you remove the battery connector from the battery during that time
and keep the battery in house.

3. You could either recharge the battery on the trolley directly, or recharge it
separately (as show above)

4. Before carrying the trolley, charging or installing the battery into GAMMA
trolley.

5. Pease understand and comply all terms written in the battery and charger

booklet.

13

6. RECHARGEABLE BATTERY PACK CARE

Our charger is designed specifically for use with GAMMA trolley rechargeable
battery pack. Again, do not ever use a different charger! The charger supervises
the temperature of the rechargeable battery pack, the maximum input power and
the total charging time.

You can contribute to a long life of the rechargeable battery pack:

 Avoid any type of shock. For example, do not drop the GAMMA trolley, nor

the battery pack.

 Store at room temperature.
 Do not dismantle connector plug on the battery.
 Do not use the battery on other electronic devices. Without proper

protection installed on GAMMA trolley, improper use of the battery will
cause damages on the battery and other electronic products.

 During the charging process, temperature may go above or below the

acceptable range for recharging. Pull the charger immediately out of the
outlet. Wait a few hours and plug in the charger when the temperature is
acceptable. If the charger flashes again as described above, remove the
charger from the outlet and send it to an authorized contract dealer, along
with your rechargeable battery pack. Should a defect be found which is
covered by the warranty, a cost-free repair or exchange of the defective part
will be issued. Remove damaged battery packs immediately because they
can damage the caddy.

 If the battery becomes exhausted quickly even after being fully charged, the

battery has worn out, please purchase a new battery. Please be
reminded that the warranty does not cover use of other batteries besides
the stated brand name.

 For other instruction, please refer to the User’s Manual inside of the battery

and charger package.

14

7. PACKING UP

Step 1: Power off.

Step 2: Move away the battery.

Step 3: Fold the 4

t

h

wheel

Step 4: Fold the upper bracket

Step 5: Release the Plastic Lever on

the folding mechanism

Step 6: Fold the Trolley

15

Step 7: Fold the front wheel

16

8. ACCESSOIRIES

8-1 Umbrella Holder

Find umbrella base on the right side of
the handle. Fix umbrella holder on the
umbrella base using the triangle nut.

17

9.CLEANING & MAINTENANCE

1. If GAMMA trolley is dirty, clean it with a mild cleaner and warm water. Never
use a concentrated water jet or high pressure water cleaner. If GAMMA trolley
is damp after the game or after the cleaning, dry it with a towel.

ALWAYS REMOVE THE BATTERY BEFORE CLEANING YOUR GAMMA trolley.

2. If there is any dust or rain get into the bearing, clear the bearing at once and
spread some oil to maintain the bearing.

3. No need to maintain the motor. Never take apart the motor by oneself.

4. When the trolley is not used for two months, we recommend that you recharge
the battery to avoid the decrease of power capacity.

5. Store GAMMA trolley inside the house to prolong the life time.

6. When you clean the GAMMA trolley, don’t remove serial number sticker from
the cart, to assure the warranty.

18

10. PROBLEM SOLVING

If you have any problems with GAMMA trolley, please check the points below
before contacting your local resellers.

PROBLEM SOLUTION

Lcd is not on after the power on.



Make sure battery is fully charged.

 Check that the battery has been

connected properly.

 Check the battery contact beam is

not loose or broken connection.

 If motor is overheated, reboot the

motor after the motor temperature
cool down to 60

 Check if battery life time is over.

Motor axle turns but trolley does not move  Wheel may not be put on the pin

correctly. Please adjust.

 Move GAMMA trolley to flat and dry

ground and try again

Turn on the Speed Turner, motor did not
work

Check POWER is ON.

GAMMA trolley is not moving straight after
the Timer function is on

Check if both wheels are moving
simultaneously. Adjust the front wheel using
allen wrench included in the package. (See
picture demonstration below)

Powerless when going uphill Check if the uphill is too sharp

Check if the grass is over damp or it is on
sand
Check battery capacity.
Check if the motor is really hot. If the motor
is too hot (over 60°C), send GAMMA trolley
back to your local dealer.
Check if the battery is too hot. If the battery
temperature is higher than 35, wait until

battery cool.
GAMMA trolley hit obstacles accidentally
during operation

Check if the connector is properly clicked

easy on the battery . Re-start power.
Cannot finish one game after the battery is
fully charged.

Check battery life time.

19

11.WARRANTY

 We warrant that the goods will be free from defects in materials or

workmanship for a period of 2 years (from 01.01.2013 on) running from the
original date of purchase.(including battery and charger).

 Subject to clause 3, if we receive written notice from you of any breach of such

warranty and you return the goods to us within the warranty period, then we
shall at our own expense and within a reasonable time after receiving such
notice, repair or, at our option, replace the goods or such parts as are
defective or otherwise remedy such defect. You pay the return freight charges
by using your own courier facility.

Disclaimers.

 We shall be under no liability in respect of any defect arising from fair wear

and tear, willful damage, negligence, abnormal working conditions, failure to
follow our instructions (whether oral or in writing), misuse or alteration or repair
of the goods without our approval.

 We shall not be liable for situations of force majeure where any failure in the

performance of any of our obligations is caused by factors outside our control.

Communications.

 Any communication between us shall be by e-mail, fax or postal address as

set out at the end of this manual (or such other e-mail, fax or postal address
which we may subsequently notify to you) and to your e-mail, fax or postal
address which you may have notified to us.

20

12.TECHNICAL SPECIFICATIONS

Frame

Material Alum Tube

Measurement

L/W/H

1320(adjustable)/625(adjustable)/1120(adjustable)/

mm

Stow Measurement

L/W/H

860/570/390 mm

Packing L/W/H 825/590/380 mm

Weight w/o Battery 12.8kg

Front Wheel Size 8”

Rear Wheel Size 12”

Transmission

Motor 150W

Transmission

S

y

stem

Worm Gear System (with differential mechanism)

Control System

Speed tuner Controller (allow forward and

backward

)

Speed Max. 9km/hr

Battery

Battery Lithium battery 25.2V11AH or 12V24AH

Battery Weight 2.4kg

Charge Time 8 Hours

21

CONTACT DETAILS

EUROPE
Distributor Germany / Austria

Golf Tech Golfartikelvertriebs GmbH
Carlbergergasse 66
1230 Wien
Tel.: [phone]
Fax: [phone]
Email: [e-mail]
Homepage: www.golftech.at

Distributor UK & Ireland

Golftech Golftrading Ltd.
Union Mill, Vernon Street
Bolton BL1 2PT
Tel: [phone]
Fax: [phone] (UK only)
Email: [e-mail]
Homepage: www.golftech.eu

Distributor BeNeLux & France

SA BUVA Sports N.V.
Karrewegstraat 104
BE-9800 Deinze
Tel.: [phone]
Fax: [phone]
Email: [e-mail]
Homepage: www.buvasport.com

Distributor Sweden

Pro Back Up AB
Krangatan 2
SE-21124 Malmö
Tel: [phone]
Fax: [phone]
Email: [e-mail]
Homepage: www.probackup.se

Distributor Denmark

Lars Kjaer & Co A/S
Birkemosevej 32C
8361 Hasselager
Tel: [phone]Fax: [phone]
Homepage: www.lars-kjaer.dk
Email: [e-mail]

Distributor Norway

Chrisco Golf AS, PB 98
Norway, 1332 Osteras
Tel: [phone]
Fax: [phone]
Email: [e-mail]
Homepage: www.chrisco.no

Distributor Finland

Klintrade Oy
Ahjokatu 5A
15800 Lhti, Finland
Tel: [phone]
Homepage: www.klintrade.fi
Email: [e-mail]

22

Distributor Italy

Gitexpoint s.r.l., Via Montello 67
I-31031 Caerano S. Marco (TV)
Tel: [phone]
Fax: [phone]
Email: [e-mail]
Homepage: www.gitexpoint.it

Distributor Switzerland

M*Zero AG
Zurlindenstrasse 31
CH-4133 Pratteln 1
Tel.
Fax: [phone]
Email: [e-mail]
Homepage: www.mzero.ch

Distributor Czech Republic / Slovakia

REDA GOLF s.r.o.
Hviezdoslavova 55d
627 00 Brno
Tel: [phone],2
Fax: [phone]
Email: [e-mail]
Homepage: www.maxigolf.com

Distributor Cyprus

GoldenGreen Trading Co. Ltd
Michalis Thoukidides
P.O. Box 26851
CY 1648 Nicosia
Tel: [phone]
Fax: [phone]
Email: [e-mail]

Distributor Hungary

Golf Plus, Kereskedelmi KFT
Csillagstr. 13
H-1193 Budapest
Cell: 0036 20 974 3865Tel: [phone]
e-mail: [e-mail]
web: www.direktsport.com

Distributor Poland

Stelmasiak - Sport
Ul. Poprzeczna 4/13
72-500 Miedzyzdroje
Tel: [phone]
Fax: [phone]
Email: [e-mail]
Homepage: www.mmgolf.pl

Distributor Russia

Golf East | Teta Sports
8, Novinsky Boulevard
Lotte Plaza Shopping Center, 6th floor
121099 Moscow
Tel: [phone]
Cell: 007-903-9694913
Homepage: www.golfeast.ru
Email: [e-mail]

23

Distributor Slovenia

Nadler Golf & Sport d.o.o.
OIC Trzin, Blatnica 12
SL-1236 Trzin
Tel: [phone]
Fax: [phone]
Email: [e-mail]
Homepage: nadlergolfandsport.si

Distributor Lithuania / Latvia

UAB Golfera
Pakrascio g. 22-30, Kaunas
Email: [e-mail]

Distributor Crotia / Serbia

Golf Zona d.o.o.
Hribarov prilaz 2
HR 10000 Zagreb
Tel: [phone]
Homepage: www.golf-zona.com

Distributor Spain

Golf Strategies
C/Gran Via Carlos III, 58-60C
ES 08028 Barcelona
Tel: [phone]
Homepage: www.golfstrategies.com
Email: [e-mail]

ASIA / PACIFIC
Distributor New Zealand

Golf Distributors
19-21 Taonui Street
Palmerston North
New Zealand
Tel: [phone]
Fax: [phone]
Homepage: www.golfdistributors.co.nz

Distributor Australia

Golf Works
PO Box 936
Braeside, 3195 Victoria
Australia
Phone: [phone]
Fax: [phone]
Email: [e-mail]

AFRIKA
Distributor Nigeria

Hole19 Villas
9 Usuma close
Maitama, Abuja-fct
Nigeria
Tel: [phone]
Fax: [phone]
Email: [e-mail]

24

CANADA
Distributor Canada

G&G Golf Company
Unit 302 26730 56th Avenue
Langley B.C. Canada
V4W-3X5
Tel: [phone] KOSTENLOS 1-800-661-0045
Local Tel: [phone] KOSTENLOS 604-857-4969
Fax: [phone]
Homepage: www.gandg.ca
Email: [e-mail]
