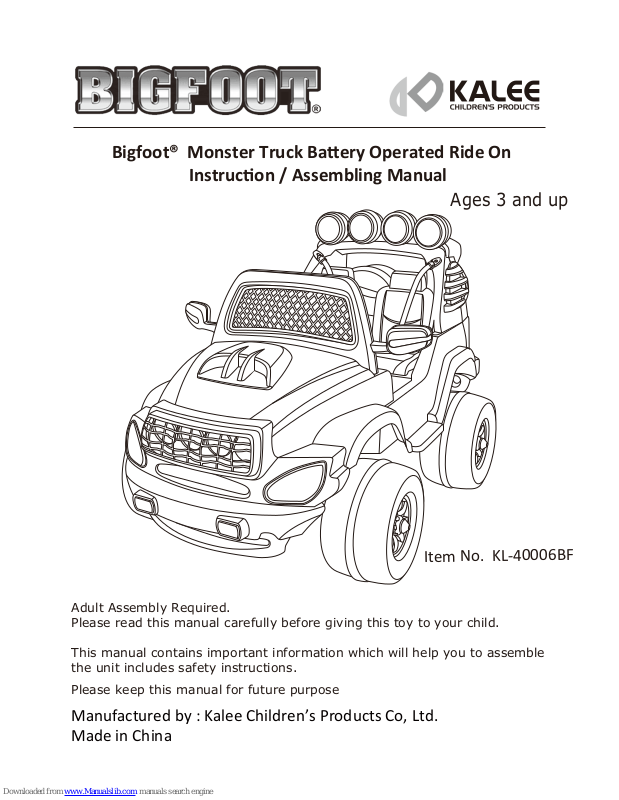

Adult Assembly Required. Please read this manual carefully before giving this toy to your child.

This manual contains important information which will help you to assemble the unit includes safety instructions.

Bigfoot® Monster Truck Baery Operated Ride On

Instrucon / Assembling Manual

Item No. KL-40006BF

Please keep this manual for future purpose

Manufactured by : Kalee Children’s Products Co, Ltd. Made in China

Ages 3 and up

Page 2

Age: Ages 3 and up Maximum Capacity: 60 kgs / 132 lbs Speed: 5.0-5.5km/h / 3.1-3.4mph Battery Type: Sealed lead-acid rechargeable, 12Volt 10Ah Charging time: Always charge the battery for 8-10 hours before first use and when recharging is needed. Never charge for more than 20 hours. Power input for Charger: A/C 100-240 Volts, 60Hz Power output to Battery: DC 14Volts, 1000mA

WARNING:

To reduce the risk of injury, adult supervision is required. Never use on roadways, near motor vehicles, on or near steep inclines or steps, swimming pools or other bodies of water. Always wear shoes and never allow more than 2 rider.

WARNING:

Contains small parts, sharp points and sharp edges. Adult assembly required.

WARNING:

Choking Hazard! Contains small

parts. Not for children under 3 years old!

Vehicle / Battery Specifications:

WARNING:

Use the toy only on flat surfaces, such as sidewalks, driveways or playgrounds. Never ride the vehicle in dangerous places such as busy streets, roads or highways. Never use/ride/play near swimming pools or other bodies of water. Never ride the vehicle in muddy or sandy areas. Never ride in hilly areas or on steep slopes. This vehicle was made to operate on dry leveled ground. Never ride in the dark or in dimly lit areas. Clean the vehicle only with a damp cloth and never submerge vehicle in water or spray with water directly from a hose. Do not exceed the recommended weight limit of 60 kgs / 132 lbs. To avoid suffocation of children please destroy all plastic bags after assembly of the vehicle. If vehicle is equipped with a forward / reverse switch, never press this switch while vehicle is in motion. Always stop the vehicle before switching directions.

WARNING:

This toy is unsuitable for children under 3 years due to its maximum speed.

WARNING:

Not to be used in traffic.

9. This toy should be used with caution since skill is required to avoid falls or collisions causing injury to the user or third parties.

Page 3

CHARGING CAUTIONS:

- The charger is not a toy. Do not allow children to play with the charger or to recharge the battery.

- Turn the power switch to “OFF” when charging.

- Before the first use, you should charge the battery for 8-10 hours. Do not charge the battery for more than 16 hours to avoid overheating the charger.

- It is normal for the charger to feel warm during charging. If the charger feels very hot, stop charging, unplug the charger and check the battery and charger.

- Use the charger in a dry location only and store in a dry location when not in use.

- Regularly check the charger, battery and their connectors for excessive wear or damage each time you charge the battery. If damage or excessive wear is detected, do not use the charger or the battery until you have replaced the worn or damaged part.

WARNING -

Risk of fire. Do not by pass fuse. Replace only with the correct amperage fuse.

BATTERY SAFETY WARNING:

- Only use the battery and charger supplied by the manufacturer.

- Do not connect the battery terminals directly together. This will cause the battery to short-circuit.

- Never short-circuit the battery terminals or modify the electrical system. Alterations may cause a fire resulting in serious injuries.

- Do not mix old and new batteries or batteries of different types.

- Remove batteries during long periods of non-use. Always remove batteries from the product. Dispose of batteries safely. Do not dispose of batteries in fires. The batteries may explode or leak.

- If removable, rechargeable batteries are used, they are only to be charged under adult supervision.

- Recharge the battery fully before storage, then charge it every 3 months to extend the life of the battery.

Caution:

This ride on vehicle is equipped with a built-in thermal circuit breaker. The thermal circuit breaker is a self-resetting safety device which automatically “trips” and shuts down the operation of the vehicle if it is overloaded or the driving conditions are too severe. Once the circuit breaker has tripped it will automatically reset itself after approximately 25 seconds and allow the rider to resume normal operation.

Caution:

Page 4

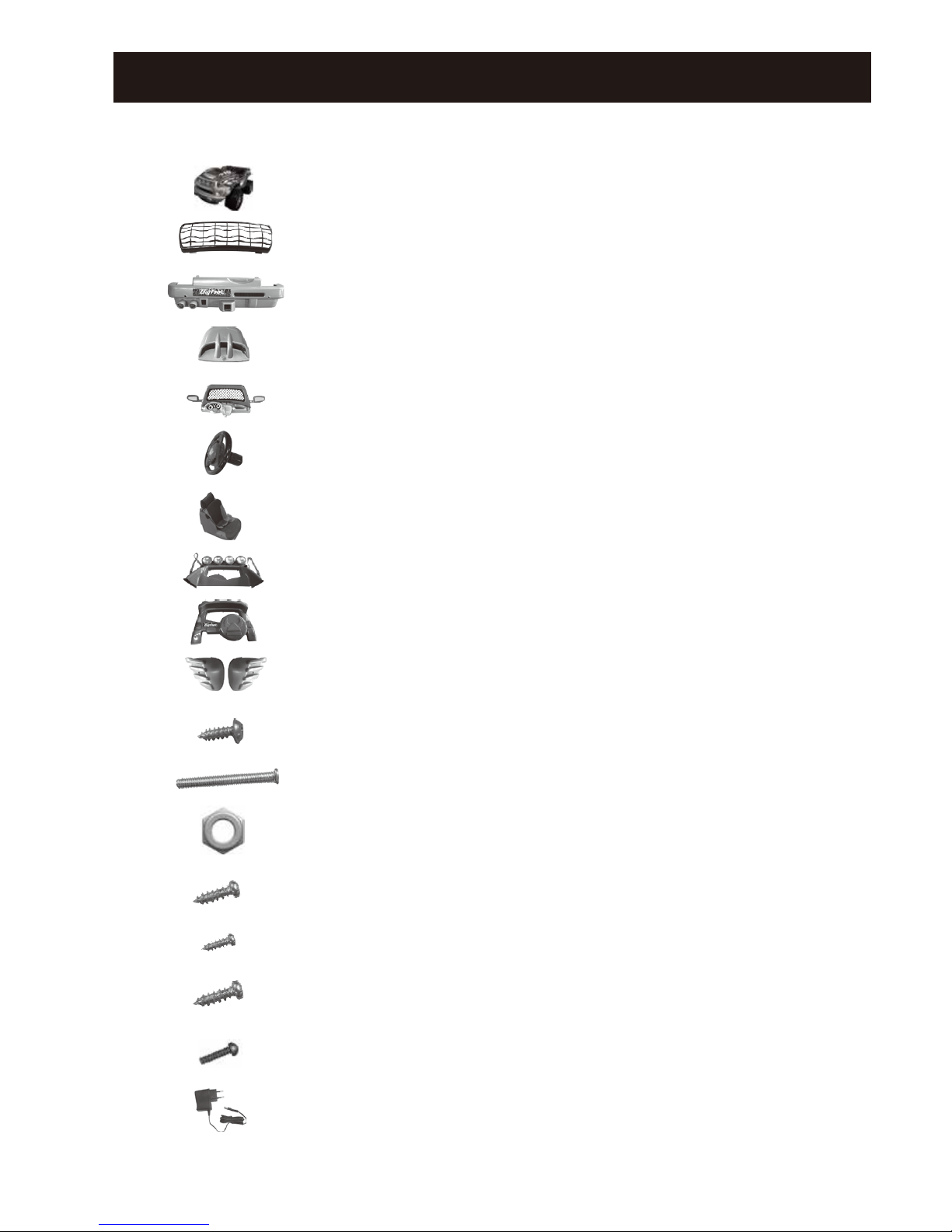

Part List:

1pc

2pcs

1pc

1pail

2pcs

1pc

3pcs

10pcs

14pcs

2pcs

1pcs

No. Description Qty

Body

Grille

Rear Bumper

Front Cover Accessory

Windshield Assembly

Steering Wheel

Seat

Rear Backrest A

Rear Backrest B

Backrest Accessory

PWA5x16x10 Screw

TM5x36x9 Screw

M5 Nut

PA5x16x7 Screw

PA3x14x5 Screw

TA5x20x9 Screw

TA3.5x16x7 Screw

Charger

Remark: all screws and nut (except PA3X14X5 Screw) are prefixed on the car.

Page 5

How to assemble the vehicle:

Step 1:

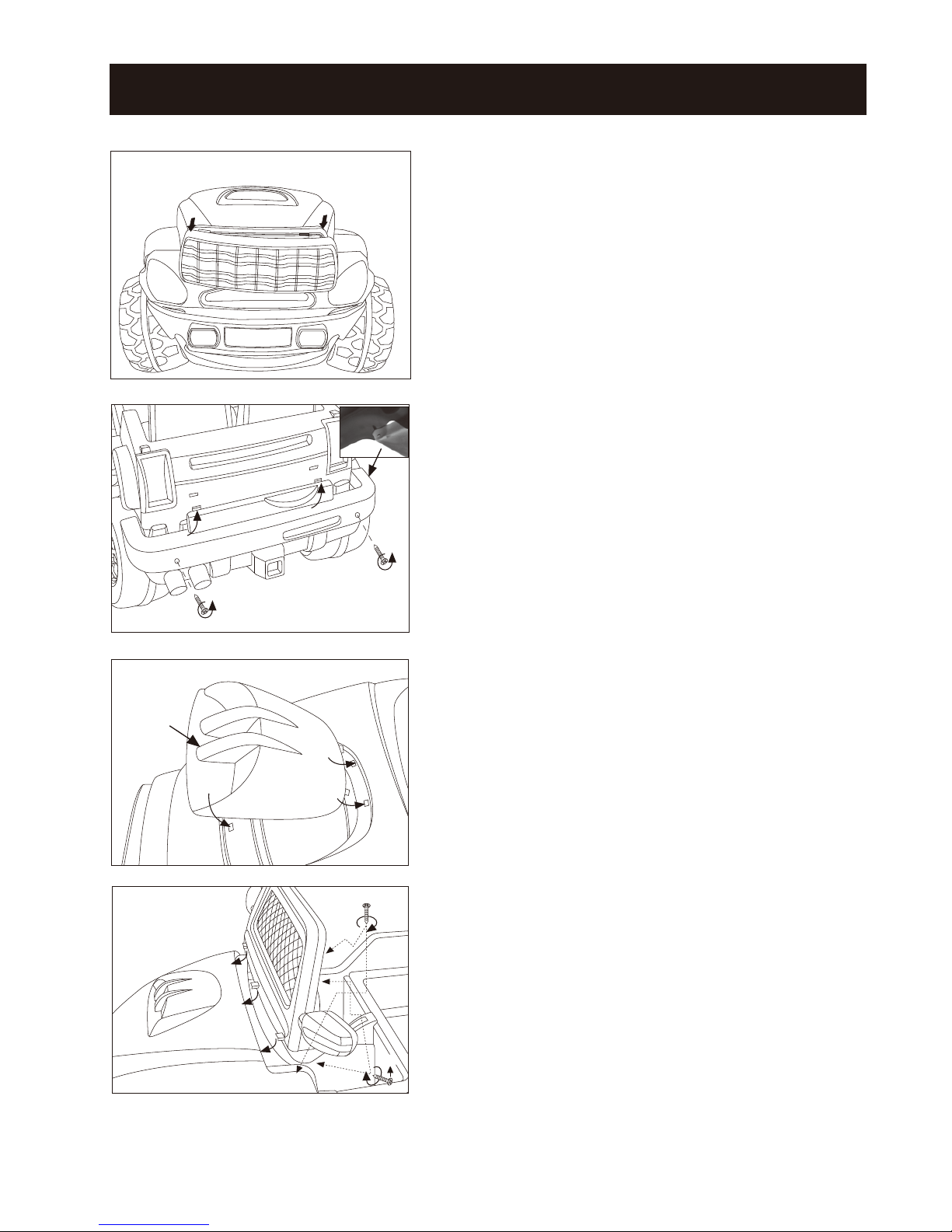

● Attach the Grille (#2) to the car.

Step 2:

● Attach the Rear Bumper (#3) onto the car.

● Insert 4xPA5x16x7 Screws (#14), then tighten

with screwdriver.

Step 3:

● Attach the Front Cover Accessory (#4) onto

the front cover of the car.

PA5x16x7 Screw

Step 4:

● Attach the Windshield Assembly (#5) on

the car.

● Insert 2xPWA5x16x10(#11) Screws and

tighten with screwdriver.

PWA5x16x10 Screw

Front Cover Accessory

Page 6

Step 5:

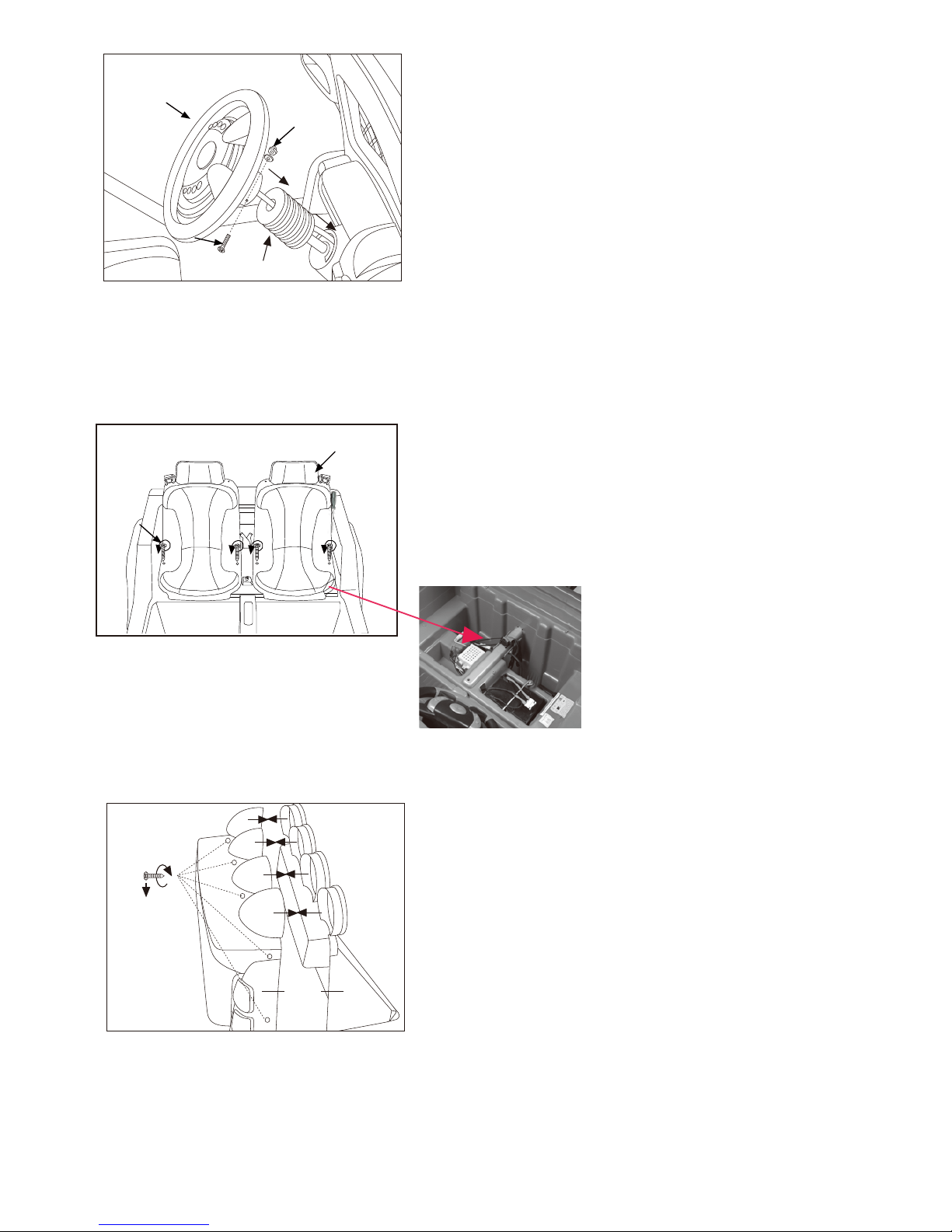

● Place the Steering Wheel (#6) onto the steering

wheel column.

● Insert the TM5x36x9 Screw (#12) across the

steering wheel column.

● Insert the M5 Nut (#13), tighten the screw with

screwdriver (not included).

● Open the battery compartment located on the

steering wheel column with screwdriver.

● Insert 3 AA batteries (not included) and close

the lid with screwdriver.

• Place the red button to turn on the IC sound.

Step 7:

● Turn the Rear Backrest A(#8) & Rear Backrest

B(#9) closed.

● Insert 14xPA3x14x5 Screws(#15), then tighten

the screws with screwdriver.

Battery Compartment

Steering Wheel

TM5x36x9 Screw

M5 Nut

Step 6:

● Place the Seats (#7) on the car, insert

6xPA5x16x7 Screws (#14), then tighten the

screws with screwdriver.

● The battery is located under the left seat.

Seat

PA5x16x7 Screw

Baery

PA3x14x5 Screw

Page 7

Step 8:

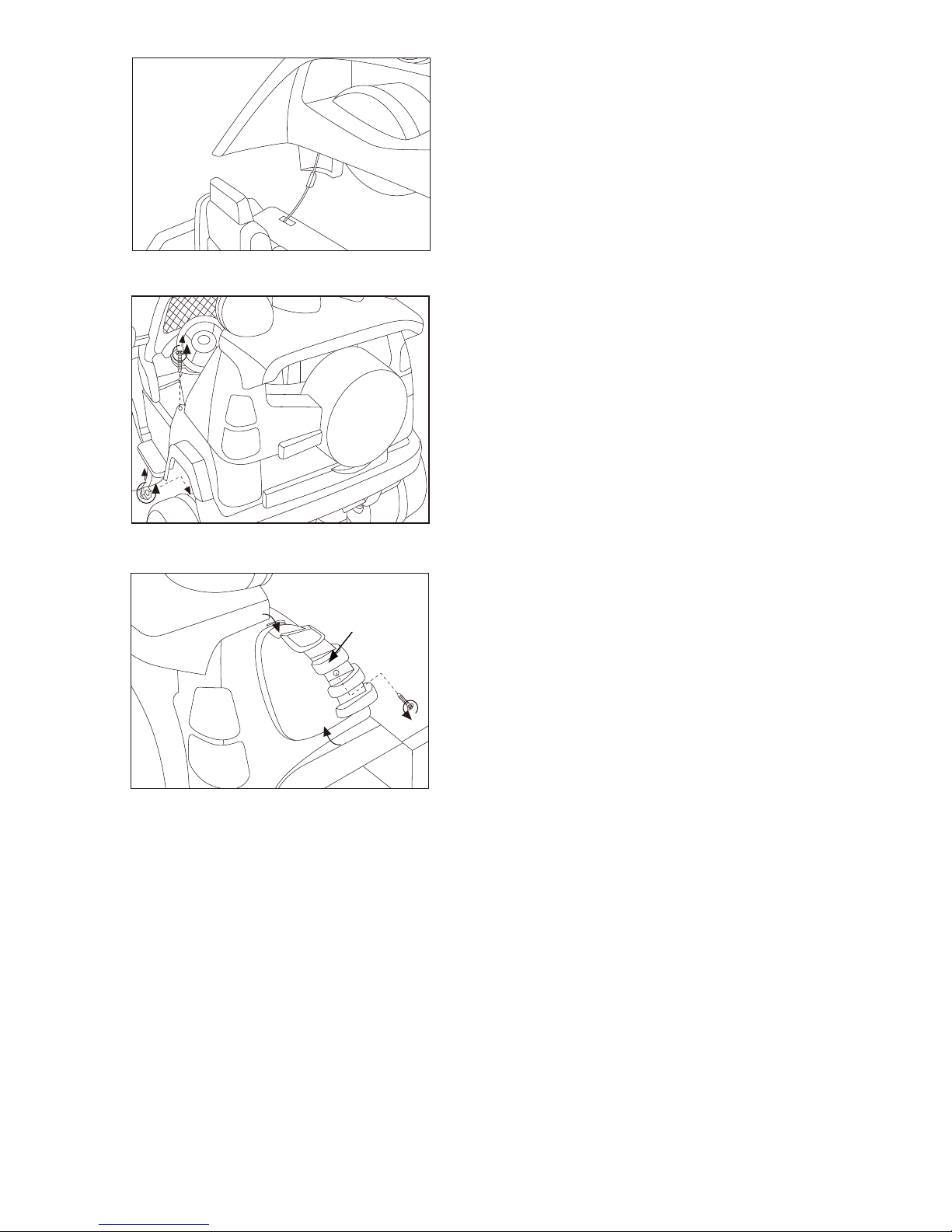

● Connect the wire for the rear light.

Step 9:

● Insert 2xTA5x20x9 Screws (#16) and

2xM5 Nuts (#13)

● Attach the rear backrest assembly to the

vehicle, tighten the screws and nuts with

screwdriver.

Step 10:

● Attach Backrest Accessory(#10) onto the car.

● Insert 2xTA3.5x16x7(#17) Screws and

tight with screwdriver.

TA5x20x9 Screw

M5 Nut

TA3.5x16x7 Screw

Backrest Accessory

Page 8

Charging the Battery:

Operation of the Vehicle:

1.Make sure the battery is fully charged and the motor plug is connected to the battery plug.

2.Before using the vehicle, please connect the plugs which located in the middle of the seat.

3.Press the direction switch to “F” and press the accelerator pedal, vehicle will move forward.

4.To stop the vehicle remove foot from accelerator pedal. When stopped, press the direction switch to “B” then press the accelerator pedal, vehicle will move backward.

5. The vehicle has 2 speeds, drive forward with 2 speed and backward with 1 speed, press the red button as shown to change into faster speed.

NOTE: Do not change directions switch while vehicle is in motion.

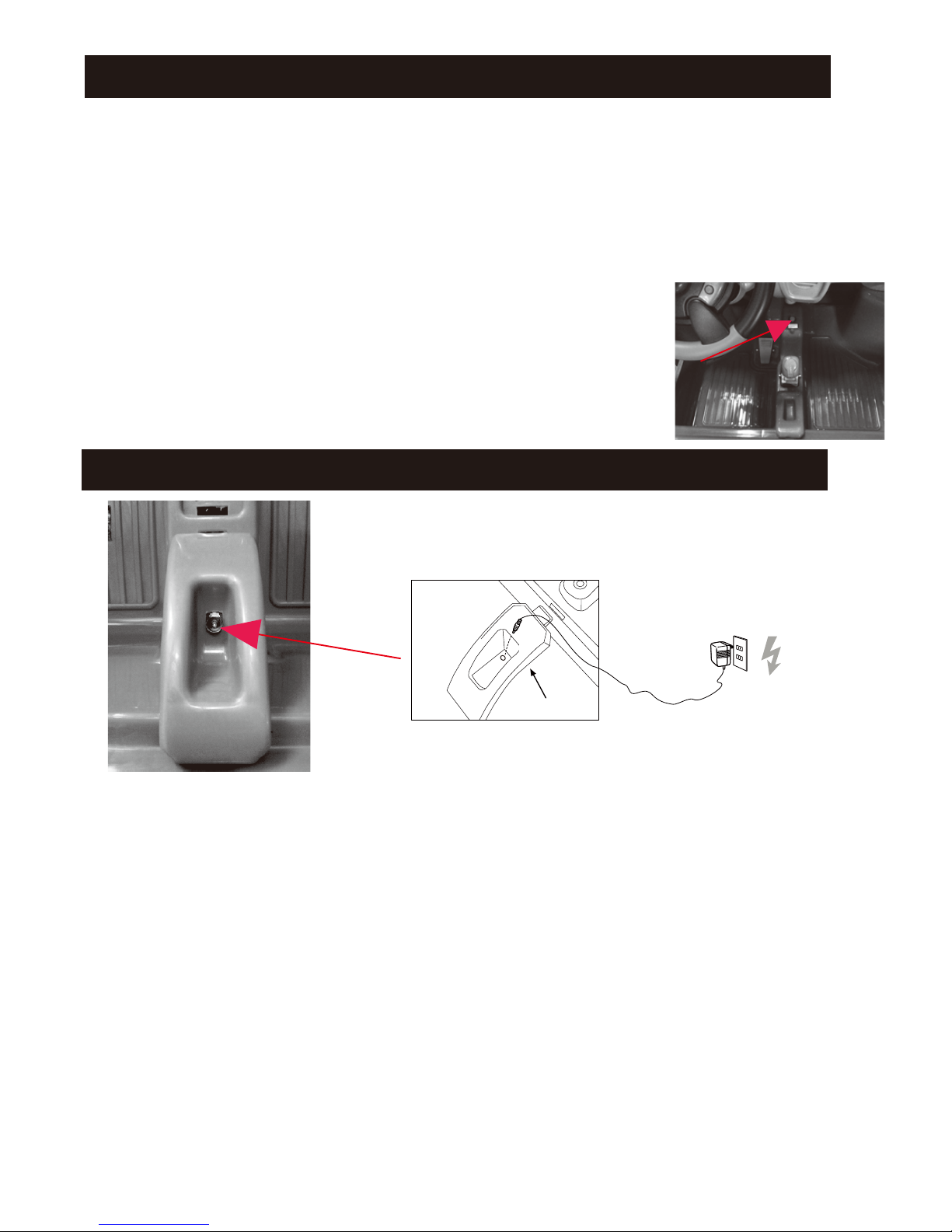

● The socket for charging the battery is located on the seat.

● Connect the charger plug into the DC jack, then plug the charger

into a household outlet.

● Charge the battery for 8-10 hours. Never charge more than 16 hours.

● When the battery is fully charged, unplug the charger and store it

in a cool and dry place.

Page 9

Maintaining your vehicle:

It is a parents responsibility to check main parts of the vehicle before use. Regularly examine the vehicle for potential hazards, such as the battery, charge cable, cord and plug. Ensure screws are tightened. If there are any damages, the vehicle must not be used until these damages have been properly repaired or replaced.

Occasionally use a lightweight oil to lubricate moving parts such as the wheels and steering linkages.

Keep the vehicle in an upturned position, do not overturn or incline it. It is recommended to store the vehicle indoors when not in use. If stored outdoors, the vehicle needs to be covered by a tarp for protection against weather elements.

This toy should be kept away from fire. Keep the vehicle away from sources of heat, such as stoves and heaters. Plastic parts may melt. While charging ensure all flammable liquids are well away from the vehicle.

ADULTS ONLY to recharge the battery after each use. Recharge the

battery at least once a month when the vehicle is not being used.

Use a soft, dry cloth to clean vehicle.

DO NOT use any chemical liquids to clean the plastic surface of the

vehicle.

DO NOT wash the vehicle with soap and water.

DO NOT drive the vehicle in rainy or snowy weather. Water will

damage the motor, electric system and battery.

When not in use all electrical sources should be turned off. Press the power switch to the "OFF" position to turn the power off. Also disconnect the battery connection under the seat.

Please do not change the structure of this product and circuit system.

DO NOT use the vehicle for other purposes except riding.

●

● To extend the battery life you should recharge the battery fully before

storage, then charge it every 2 months if not in use.

Page 10

Safety Precautions:

1. While riding, adult supervision is required at all times.

2. Always wear a helmet when riding.

3. Do not ride near roads or on the footpath.

4. It is not recommended to drive the vehicle on wet surfaces or on slopes greater than 15 degrees.

5. It is recommended to ride this vehicle on smooth surfaces only.

6. Do not use this vehicle outdoors when it is raining.

7. Make sure you come to a complete stop before changing directions from forward to reverse.

8. Don't allow children to operate the charger or play with the battery.

9. Clean the vehicle with a dry cloth only.

10. Please follow the correct weight and age limits allowed to driver this vehicle.

11. It is prohibited to change the circuit or add other electric parts.

12. Adults must teach their children about safe driving procedures.

13. Please turn the power off when not in use.

14. Check the seat to ensure it has been fitted and secured with a bolt before driving.

15. Inspect all wires and connections of the vehicle perodically.

16. Charging the battery should only be done by adults.

17. Charging plug is located the bottom of the vehicle.

18. In order to avoid accidents, please ensure the vehicle is safe before driving.

19. Do not let any child touch the wheels or be near them when the vehicle is moving.

Page 11

1. If vehicle fails to move:

a) Make sure the battery wires are connected properly.

b) Recharge the battery, if necessary.

c) Check the fuse and replace if damaged.

2. If vehicle runs slowly:

a) Recharge the battery.

3. If the battery can not recharged:

a) Battery or charger may be damaged. Replace if necessary.

Trouble-Shooting:

Manufactured by: Kalee Children’t Products Co. Ltd.

BIGFOOT®

, visit www.Bigfoot4x4.com

Licensee: Kalee Trading Company/Kalee Children’s Products Co., Ltd. Unit 816, Tower B, New Mandarin Plaza, 14 Science Museum Road, Kowloon, Hong Kong

Made in China

You can help protect the environment! Please

remember to respect the local regulaons:hand in the

non-working electrical equipments to an appriate

waste disposal center.

If you have any missing or damaged parts or need assembly assistance, please contact our service center directly. Do not return this product to the retailer, they do not stock replacement parts.

Support Website: http://support.bigtoysusa.com Support Phone: 715-955-4237
