Page 1

USER MANUAL

BIGFISH WAVE

Page 2

SAFETY WARNINGS IMPORTANT! KEEP FOR FUTURE REFERENCE

CONTENTS

2 3

It is very important that you carefully study this manual before riding your Bigﬁsh folding bike. Failure to follow these guidelines could lead to serious injury or worse. Your well-being is our highest priority, so please ensure you understand everything clearly before using your Bigﬁsh folding bike.

WARNING

Do NOT ride your Bigﬁsh folding bike if it is not in a 100% roadworthy condition. Only the correct use, maintenance and care can guarantee perfect operation and performance.

IMPORTANT

Before ﬁrst ride, it is the user’s responsibility to read the complete user manual and carefully follow all folding instructions. All folding components must be un-/folded and secured properly according to the instructions before use. If in any situation you are unsure how to correctly un-/fold the Bigﬁsh folding bike, you should seek help from us (info@bigﬁshbike.com) or your local dealer before riding. Make sure that everyone to whom you loan your Bigﬁsh folding bike understands how it works and how to fold and unfold it properly. The manufacturer cannot be held responsible for damage or injury resulting from an improperly executed folding procedure.

WARNING

Riding a bike can be hazardous even under the best of circumstances. For your safety, we recommend wearing a helmet that meets the necessary safety requirements. In any event of accident or/and hard hit take your bike to your local dealer for inspection before next ride.

Note: This manual is not intended as a comprehensive service and repair manual. Please see your local dealer or contact us (info@bigﬁshbike.com) for service and repairs.

FOLDING BIKE FOLDING BIKE

WARNING

The Bigﬁsh folding bike is designed and intended for city or smooth surface riding. It is NOT designed for tricks or jumps. It is NOT a mountain bike and is NOT ﬁt for riding on rough terrain and jumping. Do NOT use your Bigﬁsh folding bike for steep downhill rides or on routes where the wheels do not have full contact with the road surface. The manufacturer cannot be held responsible for injury and/or damage caused by improper or extreme usage of the bike. Failure to follow instructions and improper maintenance of the bike can lead to physical injury and/or property damage.

WARNING

As with all bikes, Bigﬁsh folding bike has components that are subject to wear and high stresses. Different materials and components may react to wear and stress fatigue in different ways. If the component’s lifetime has been exceeded, it may suddenly fail possibly causing injuries to the rider. Any form of crack, scratches or change of colouring in highly stressed areas indicate that the components should be replaced.

IMPORTANT

Regular cleaning with water and mild soap is advised. Any pressure cleaning

is strickly prohibited.

WARNING

Your folding bike must comply with the national legal requirements when riding on public roads in all conditions, including bad weather, night, dusk or dawn. Many countries require speciﬁc safety devices. It is your responsibility to familiarize yourself with the laws of the country where you ride and to comply with all applicable laws, including properly equipping yourself and your bike as the law requires.

WARNING

Bigﬁsh folding bike is NOT intended for children under 12 years old.

Children older than 12 years should always ride the Bigﬁsh folding bike in full supervision of adult. As a parent or guardian, you are responsible for the activities and safety of your minor child. Make sure that the Bigﬁsh folding bike is properly ﬁtted to the child; that it is in good and safe operating condition; that you and your child have learned and understand the safe operation of the Bigﬁsh folding bike; and will obey the applicable local motor vehicle, bicycle and trafﬁc laws, and the common sense rules of safe and responsible bicycling. As a parent you should read this manual, review its warnings and the Bigﬁsh folding bike’s operating and folding procedures with your child, before letting your child ride it. Bigﬁsh folding bike is NOT intended for transporting children and it is not intended to have a child seat attached to it.

WARNING

The owner is responsible for regular maintenance service in order to keep the Bigﬁsh folding bike in good working order. Any part of poorly maintained bike can break or malfunction leading to an accident. A folding bike that is damaged could decrease your control and cause you to fall. Fully examine your Bigﬁsh folding bike completely before each ride. Do NOT ride your Bigﬁsh folding bike if it does not work properly. Failure to conﬁrm compatibility, proper installment, operation and maintenance of any component and/or accessory can result in serious injury or death. Do NOT modify your Bigﬁsh folding bike frame or components in any way. Modiﬁcations can cause damage leading to failure and accident. It is recommended to use genuine replacement parts as only these can guarantee optimum function and safety while riding. Changing the components on your bike with anything other than genuine replacement parts may compromise the safety of your bike and may void the warranty. Incompatible accessories and/or poorly mounted accessories can adversely affect the performance of your Bigﬁsh folding bike and may be unsafe. The manufacturer cannot be held responsible for damage or injury caused by the use of a damaged or modiﬁed Bigﬁsh folding bike.

WELCOME

GETTING TO KNOW YOUR BIGFISH

GETTING STARTED

FOLDING INSTRUCTIONS

Dangerous areas

How to unfold

How to fold

IMPORTANT NOTES

Seat

Brakes

Wheels & tyres

Reﬂectors & lights

Gears

Chain

Handlebar

Replacement parts

MAINTENANCE & HANDLING TIPS

TRANSPORTING YOUR BIKE

TORQUE VALUES

PURCHASE RECORD CARD

Warning

This symbol contains important safety information. Pay particular attention to these messages. If you fail to follow them there is a high chance you will be involved in a serious accident, be injured or damage your bike.

Safe to ride/handle

This symbol gives you important advice to ensure that the bike is safe to ride and/ or handle.

Tip

This symbol provides you with some handy information and recommendations that will make things easier for you.

LIMITATION OF LIABILITY

Under no circumstances, including, but not limited to, negligence, shall Studio Moderna SA (Bigﬁsh), its afﬁliates or subsidiaries or Bigﬁsh distributors (sellers) be liable for any special or consequential damages that result from the use of, or the inability to use, the materials in this manual, even if Bigﬁsh has been advised of the possibility of such damages. Applicable law may not allow the limitation or exclusion or liability or incidential or consequential damages, so the above limitation or exclusion may not apply to you.

Page 3

WELCOME

GETTING TO KNOW YOUR BIGFISH

4 5

We designed Bigﬁsh folding bikes to be simple to fold, easy to transport and great to ride. We are conﬁdent you will agree Bigﬁsh folding bike is all those things. But before you start your journey we need you to do one very important thing... read this manual.

This manual is designed to give you all the information you need for the safe operation and maintenance of your new Bigﬁsh folding bike.

Everything you need to know should be here, but if you have any additional questions please contact us at info@bigﬁshbike.com, go to FAQ on our website www.bigﬁshbike.com or seek advice at your local dealer.

This manual also covers basic instructions for making small adjustments to

www.facebook.com/bigshbike

www.twitter.com/bigshbike

your bike and performing regular maintenance. Understanding and following the safety and bike care information will help you and your Bigﬁsh folding

www.pinterest.com/bigshbike

bike avoid injury or damage.

www.youtube.com/user/bigshbike

We wish you happy riding and ask you to keep in touch! Share your stories and pictures at Facebook.com/bigﬁshbike.

Greetings Bigﬁsh team

We continually upgrade and reﬁne our bikes; therefore we reserve the right to make changes to the shape, ﬁttings and technology.

www.ickr.com/photos/bigshbike

www.instagram.com/bigshbike

www.linkedin.com/company/ bigsh-folding-bike?trk=top_nav_home

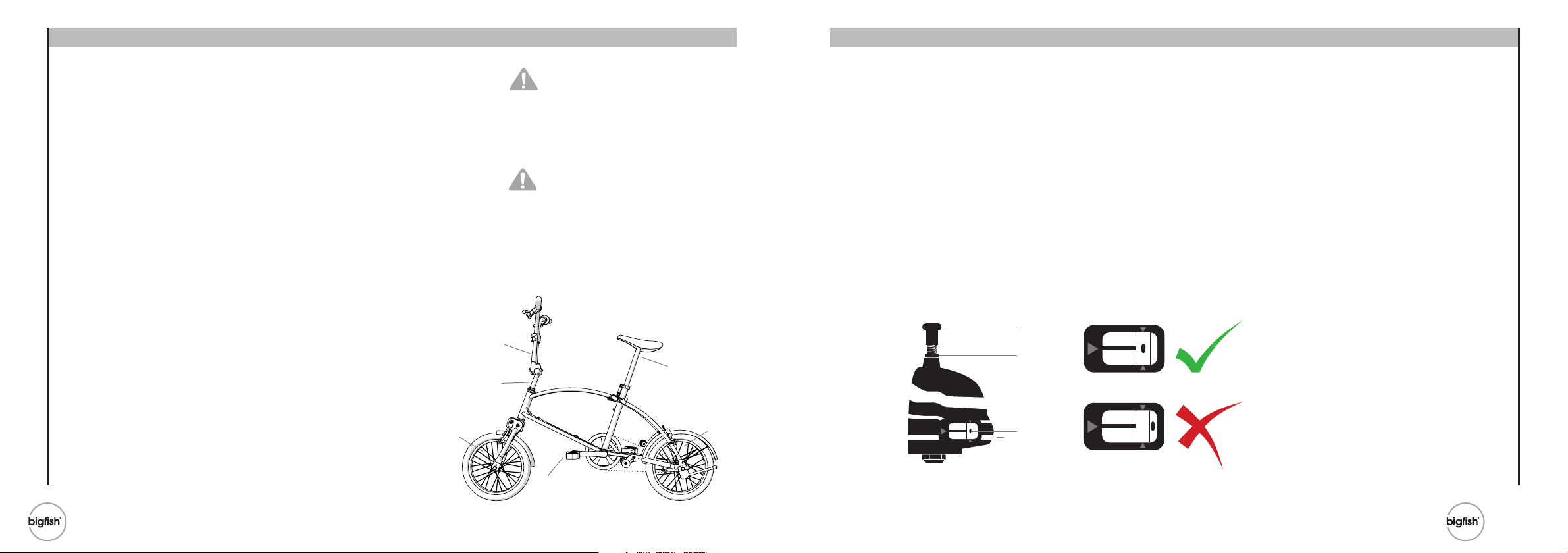

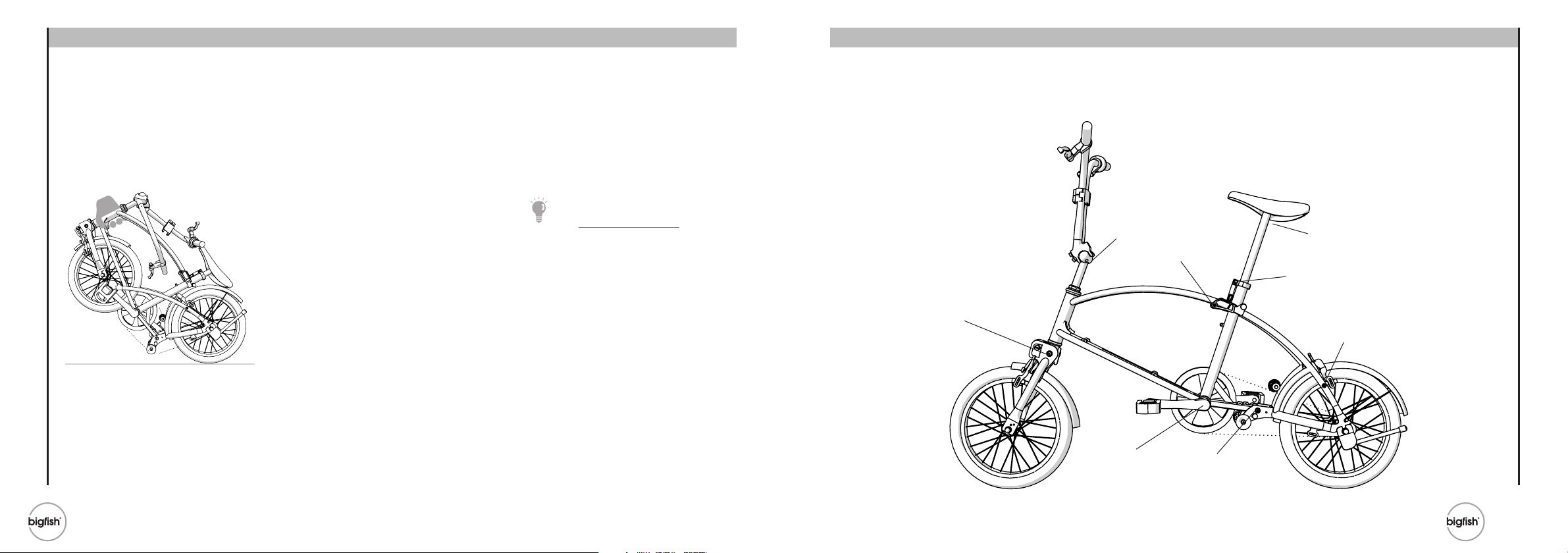

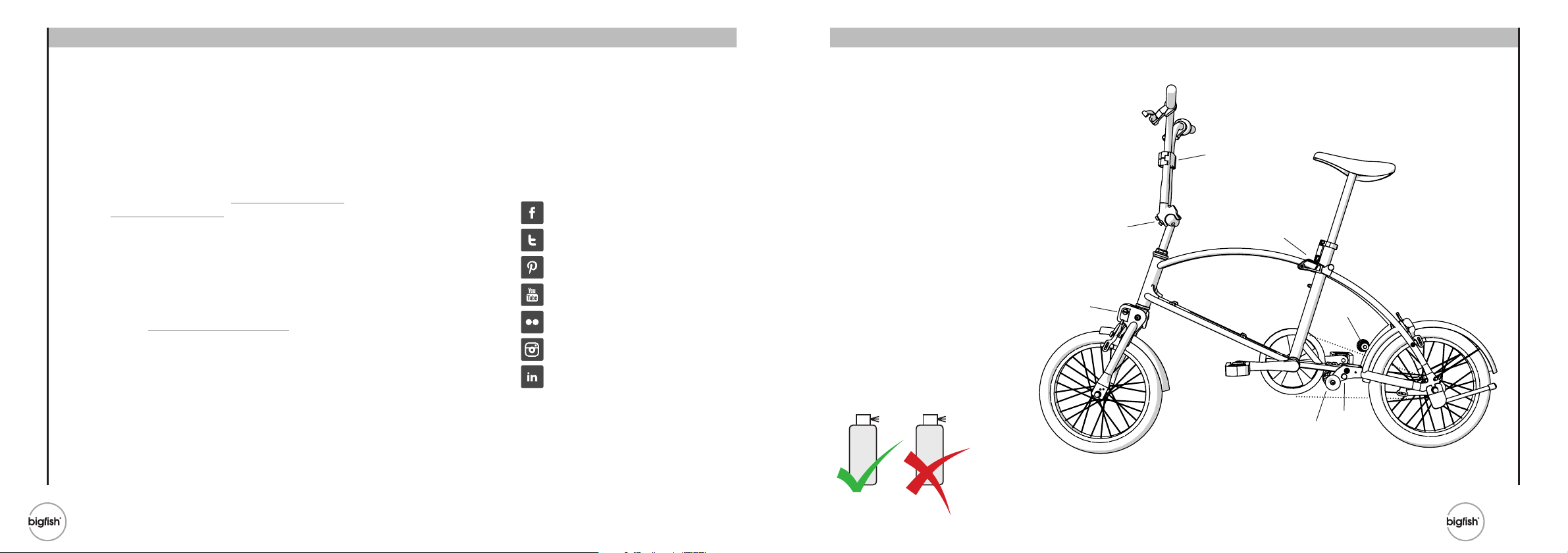

Get to know the parts of your Bigﬁsh folding bike. This will help you with the use, maintenance, and troubleshooting.

A. multi-functional handlebar bracket

B. handlebar folding buttons

C. front wheel folding buttons

D. safety cover mechanism

E. rear wheel release

F. coaster wheels/chain guide

G. chain tensioner

antistatic

teon based

lubricant

static

lubricant,

oil,

grease

*Use of any other (e.g. static) lubricant, grease or oil can cause a damage or non proper function of folding system.

FOLDING BIKE FOLDING BIKE

Page 4

GETTING STARTED

FOLDING INSTRUCTIONS

6 7

Your new Bigﬁsh folding bike was fully assembled and tuned in the factory before being sent to you or your dealer.

Remove the bike carefully from the box to avoid scratching the frame. Remove the protective wrapping. Inspect the bike, all accessories and parts for possible missing components. Check the box for loose parts before discarding. Take time to properly read the User Manual and Folding Instructions before you start using your new Bigﬁsh folding bike.

PACKING LIST

Inside your box you will ﬁnd:

Bigﬁsh folding bike, folded

fully assembled and tuned

Bigﬁsh Pocket Box which includes:

• user manual

• reﬂectors

MAKE SURE YOUR BIKE FITS

Make sure you are comfortable with your Bigﬁsh folding bike. For safe and comfortable riding there should be a clearance of at least 25 to 50 mm (1 to 2 in.) between the crotch of intended rider and top tube of the bike frame, while the rider straddles the bike with both feet ﬂat on the ground. Minimum leg length must be 675 mm (27 in.). You can adjust the seat (page 18) to offer the best comfort and performance.

Bigﬁsh folding bike is designed for a maximum total weight including bicycle, rider and luggage of 100 kg (220 lbs).

It is important for you to learn the complete folding and unfolding procedure before you start using your Bigﬁsh folding bike. Carefully follow the instructions on the following pages in order to completely adopt the folding and unfolding procedure.

CHECKS AND ADJUSTMENTS

It is important to ensure your Bigﬁsh folding bike is in perfect condition before every ride. Before each ride, inspect the folding mechanism, brakes, gears, tyres, wheels, steering, chain, fork, frame and other components to ensure your Bigﬁsh folding bike is safe to ride. If your Bigﬁsh folding bike does not operate as necessary, speak to your dealer or contact us at info@

bigﬁshbike.com.

We recommend that you have your Bigﬁsh folding bike tuned up after a short run-in period after purchase (4 to 8 weeks, or after 100 km / 60 miles). Regular check-ups on your bike guarantee reliable functioning and riding pleasure.

This manual is NOT intended to be a repair or maintenance manual. For smaller issues follow the adjustment tips in Important Notes section to ﬁx the problem. If you are unsure about adjusting your bike or have any questions about adjustments or repairs, take it to your local dealer or contact us at info@bigﬁshbike.com.

Your Bigﬁsh folding bike is equipped with Smart Folding Technology, a unique patented folding technology for folding handlebarss, front wheel. The rear wheel uses our Click Folding system with rear wheel release. Follow the instructions on the following pages to fully understand the folding/unfolding procedures.

Before your ﬁrst ride it is essential to check the functioning of the Smart Folding Technology and that the seat clamp lever is closed properly. It is important to repeat this check before each and every ride.

Smart Folding Technology (SFT) works with a simple press or pull of the buttons. The process can be completed in any order.

Improper unfolding or improper use of the Bigﬁsh folding bike can allow the bike to unexpectedly fold-up during the ride causing you to fall which may result in serious injury or death and/or bike damage. Read and follow these instructions carefully to learn and fully understand how to properly un-/fold your Bigﬁsh folding bike, to reduce your chance of serious injury or death. The manufacturer cannot be held responsible for any injuries and/or damage caused by improperly folded or unfolded bike.

Never attempt to ride the Bigﬁsh folding bike without properly unfolded Smart Folding components and/or Click Folding system! Make sure that the safety cover is closed correctly. The two frame parts must click together properly. Always close the seat clamp lever correctly. Always ensure seat clamp lever passes the mark on the safety cover.

Never attempt to carry or wheel the Bigﬁsh folding bike without properly folded Smart Folding components and/or Click Folding system.

FOLDING BIKE FOLDING BIKE

Page 5

DANGEROUS AREAS

HOW TO UNFOLD

8 9

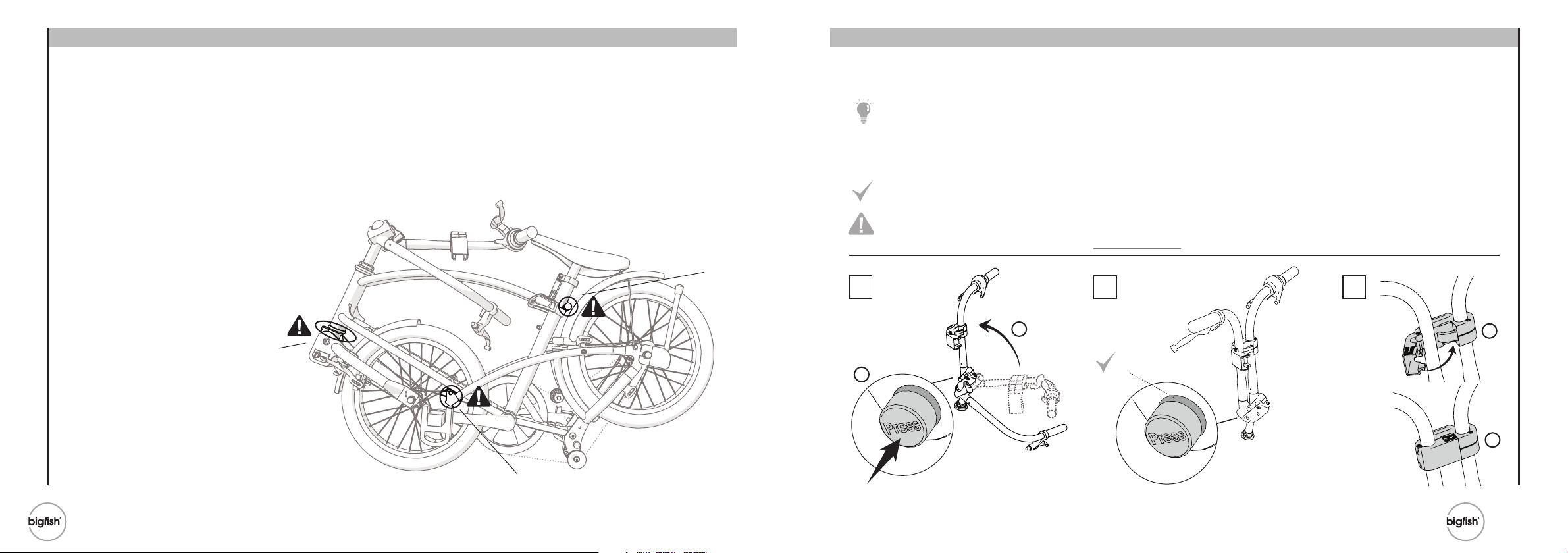

With Bigﬁ sh folding bike there is a risk of injury to your ﬁ ngers. Therefore please pay particular attention to the Folding Instructions and be aware of the areas on the bike marked with CAUTION marks below.

The following steps need to be taken in order to unfold the Bigﬁ sh folding bike properly. It can be done in any sequence. Stand on the left hand side of the bike on a level surface.

Keep ﬁ ngers away from the dangerous parts of the bike when folding or unfolding it.

1. FRONT FORK JOINT

2. MAIN FRAME PIN

3. REAR FORK WEDGE

TIP: Before starting to unfold the Bigﬁ sh folding bike, position the pedals horizontal to the ground, with the left pedal to the front.

HANDLEBARS

A: Press the button on the handlebar and move it to unfolded position. Repeat the procedure for the other handlebar. B: The button MUST jump out to its original position (green mark visible). C: Avoiding the cables, fasten the handlebars together with the handlebar bracket.

Safe to ride: Ensure the green mark on both buttons is visible. Ensure the handlebar bracket is fastened securely.

If no green safety mark on the buttons is visible, try again so that the buttons jump out to their original position and the green safety mark on the buttons is visible. If the problem persists do NOT ride the bike. If the handlebar bracket is broken or damaged in any way do NOT ride the bike. Take your bike to your local dealer to have it serviced or contact us at info@bigﬁ shbike.com.

green mark visible on both buttons

FOLDING BIKE FOLDING BIKE

Page 6

HOW TO UNFOLD

10 11

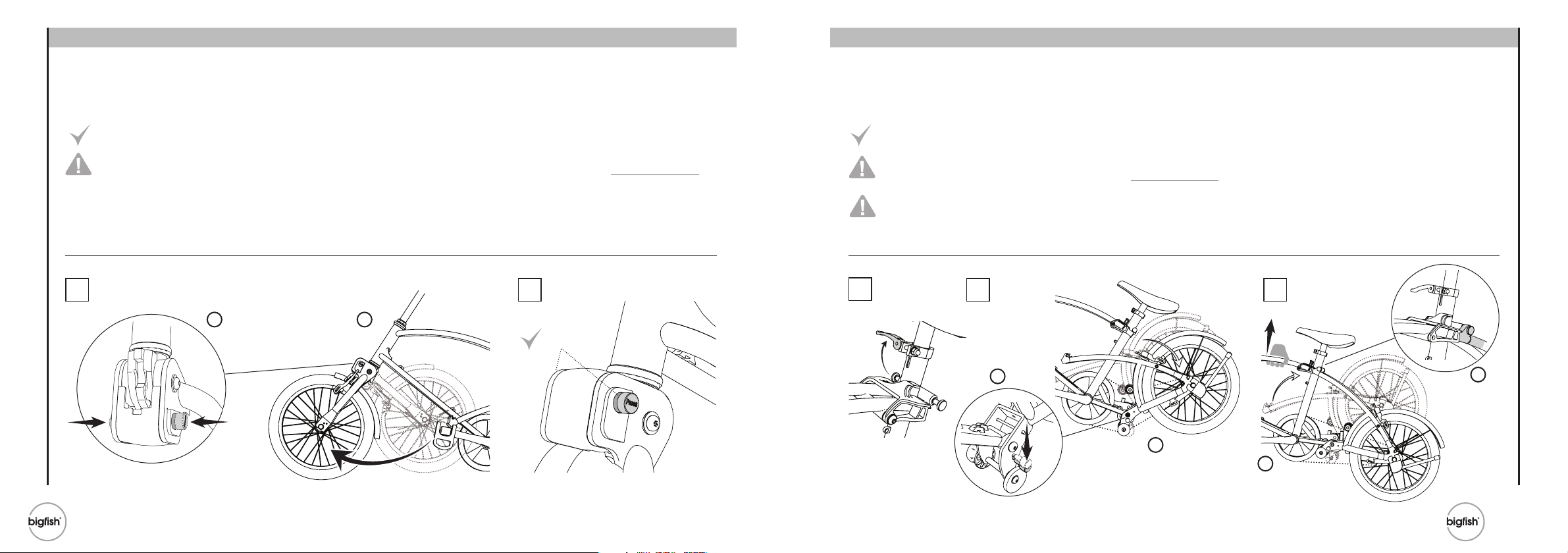

FRONT WHEEL

REAR WHEEL

A: Press both buttons on the front fork simultaneously and swing the wheel out into the riding position. B: The buttons MUST jump out to their original position with the green safety mark visible.

Safe to ride: Ensure the green mark on both buttons is visible.

If no green safety mark on the buttons is visible, try again so that the buttons jump out to their original position and the green safety mark on both buttons is visible. If the problem persists do NOT ride the bike. Take your bike to your local dealer to have it serviced or contact us at info@bigﬁshbike.com.

green mark visible on both buttons

A: Open the seat clamp lever. B: With your foot depress the rear wheel release to unclasp the rear wheel. C: Hold the upper part of the main frame and lift it up sharply so that the two frame parts click together.

Safe to ride: Ensure the fastener for main frame is closed correctly.

The two frame parts must click together properly (C2). If the two parts cannot click together properly and the seat clamp lever cannot be closed safely (passing the mark on the fastener), do NOT ride the bike. Try again unfolding the rear wheel. If the problem persists, do NOT ride the bike. Take your bike to your local dealer to have it serviced or contact us at info@bigﬁshbike.com.

When unfolding (step C), keep your hands and ﬁngers only on the top tube as it is shown in the picture below. Never place your ﬁngers between the two frame parts when unfolding the bike.

B CB

FOLDING BIKE FOLDING BIKE

Page 7

HOW TO UNFOLD HOW TO FOLD

12 13

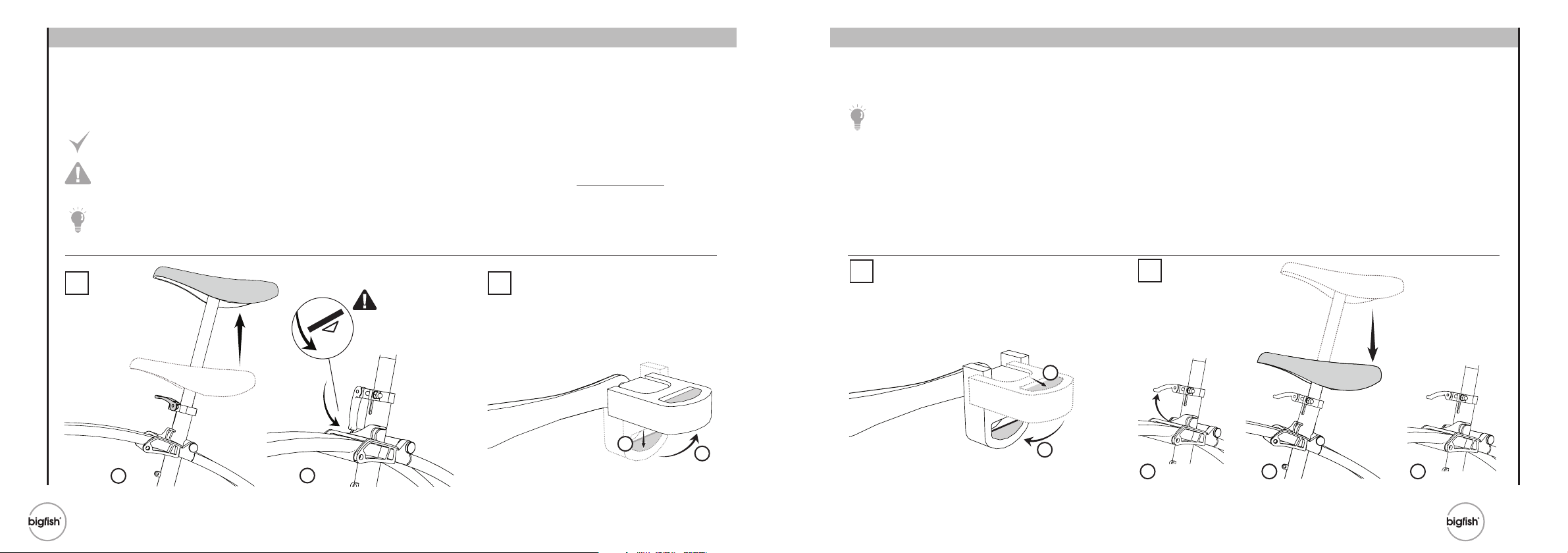

SEAT & PEDALS

A: Set the seat to your desired height and fasten it tightly, ensuring that the seat clamp lever is facing downwards and ﬂush against the safety cover. Seat clamp lever MUST pass the mark on the safety cover. B: Unfold the pedals by pulling them into the unfolded/riding position.

Safe to ride: Ensure the seat clamp lever is properly closed and is passing the mark on the safety cover.

If the seat clamp lever does not pass the mark on the safety cover, do NOT ride the bike. Try again unfolding the rear wheel and repeat the procedure. If the problem persists, do NOT ride the bike. Take your bike to your local dealer to have it serviced or contact us at info@bigﬁshbike.com.

Your bike is now completely unfolded and ready to ride. TIP: Choose your own order to do the unfolding steps. There is no prescribed order you need to follow when unfolding or folding.

The following steps need to be taken in order to fold the bike properly. It can be done in any sequence. Stand on the left hand side of the bike on a level surface.

TIP: Before starting to fold the Bigﬁsh folding bike, position the pedals horizontal to the ground, with the left pedal to the front.

PEDALS & SEAT

A: Fold the pedals. B: Release the seat clamp lever and push the seat down. Leave the seat clamp lever open!

FOLDING BIKE FOLDING BIKE

1 2 3

Page 8

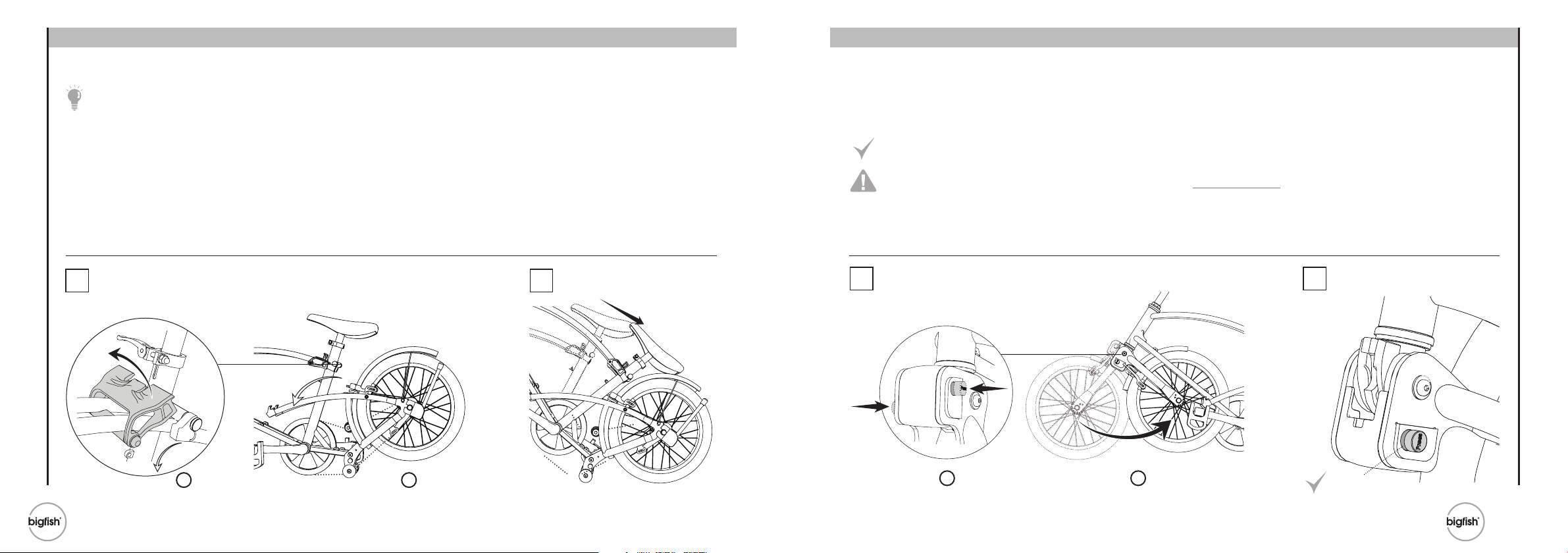

HOW TO FOLD

14 15

REAR WHEEL

FRONT WHEEL

TIP: Hold the handlebar with your left hand to help you stabilize the bike while you fold the rear wheel.

Raise the bike kickstand to its riding position. A: Lift the fastener with your index ﬁnger and hold it. Lift the rear wheel slightly (10-20 cm) from the ground. Drop it back down to free rear fork wadges from the main frame. Release the fastener back down. B: Push the seat towards the rear wheel until it stays into place.

A B

A: Press both buttons on the front fork simultaneously and swing the wheel into the frame. B: The buttons MUST jump out to the original position with the green safety mark visible.

Safe to handle: Ensure the green mark on both buttons is visible.

If no green safety mark on the buttons is visible, try again so that the buttons jump out to their original position. If the problem persists, do NOT ride the bike. Take your bike to your local dealer to have it serviced or contact us at info@bigﬁshbike.com.

A B

1 2

green mark visible on both buttons

FOLDING BIKE FOLDING BIKE

Page 9

HOW TO FOLD HOW TO FOLD

16 17

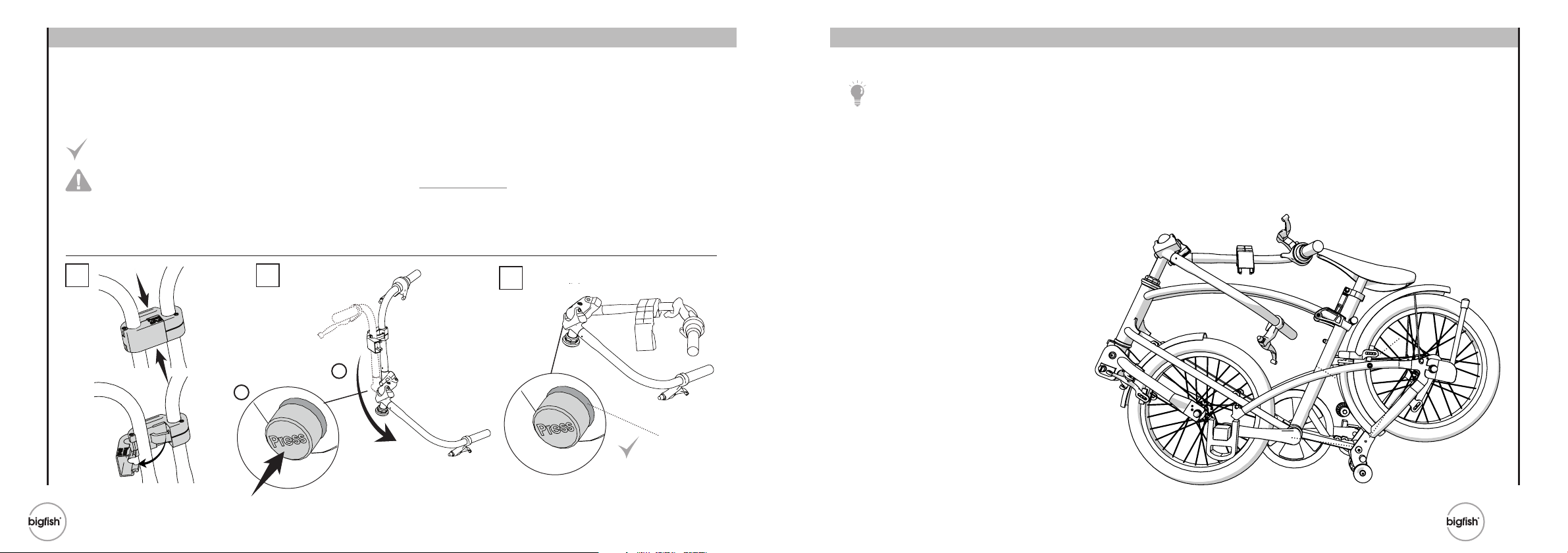

HANDLEBARS

A: Press the ‘Press and Pull’ handlebar bracket on the upper and down side simultaneously and pull it out to open it. B: Then press the buttons on the handlebar to fold it into the frame. Repeat the procedure with the other handlebar. C: The handlebars are correctly folded if the buttons jump out to their original position with the green safety mark visible.

Safe to handle: Ensure the green mark on both buttons is visible.

Your bike is now completely folded and ready for storage or transport. See pages 23-24 for storage and transporting tips.

TIP: Choose your own order for the folding steps. There is no prescribed order you need to follow when unfolding or folding.

FOLDING BIKE FOLDING BIKE

green mark visible on both buttons

Page 10

IMPORTANT NOTES IMPORTANT NOTES

18 19

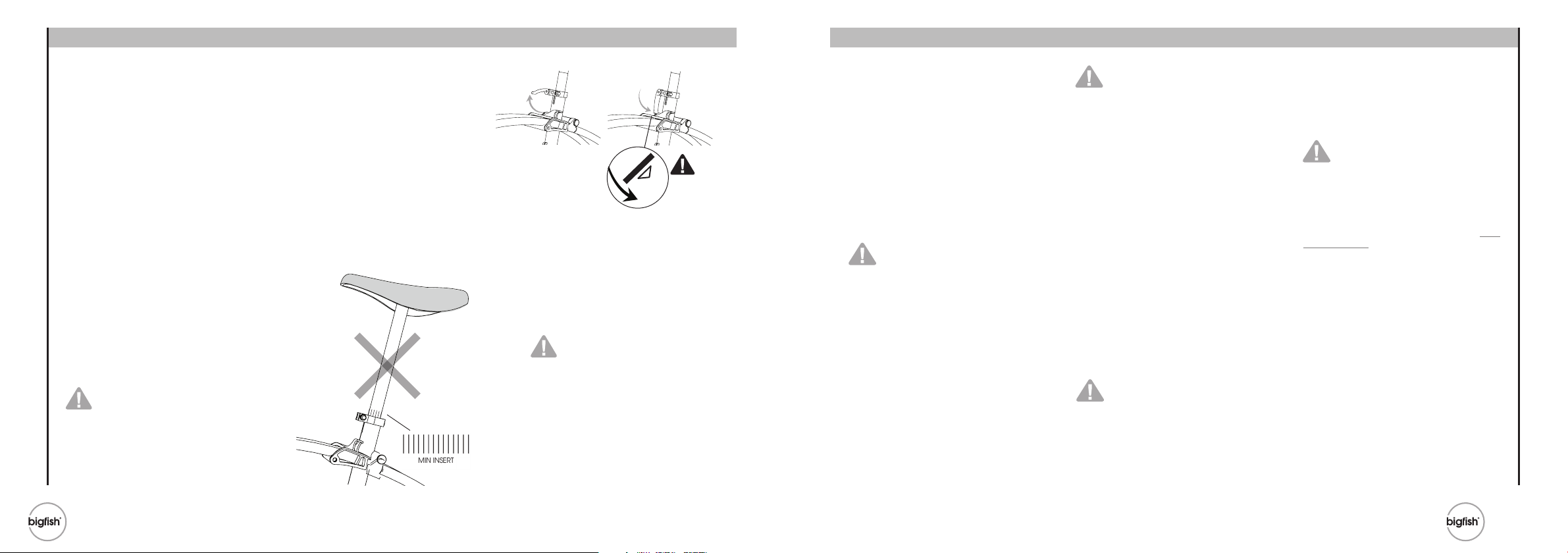

SEAT

HEIGHT

For the best ride adjust your seat to your ideal height position. In order to obtain the most comfortable riding position and offer the best possible pedaling efﬁ ciency, the seat height should be set correctly in relation to the rider’s leg length. The correct seat height should not cause leg strain from overextension, and the hips should not rock from side to side when pedaling. While sitting on the bike with one pedal at its lowest point, place the heel of your foot on that pedal. The correct seat height will allow the knee to be slightly bent in this position. Please make sure that you do not set the seatpost higher than the maximum height allowed, as marked on the seatpost. If you cannot get it high enough for you without going past the minimum insertion mark, you should buy a longer seatpost (seatpost’s diameter should be Ø 27,2 mm).

If your seatpost projects from the frame beyond the »minimum insertion« mark, the seatpost may break. Riding a bike with the seatpost above the »minimum insertion« mark is dangerous and can cause you injury and/or damage to the bike and/ or create an unstable riding position causing an

accident. Riding with an improperly tightened seatpost can allow the seat to turn or move and cause you to lose control and fall. Therefore, make sure you know how to correctly clamp your seatpost.

Understand and apply the correct technique for clamping your seatpost quick release. Before you ride the Bigﬁ sh folding bike, ﬁ rst check that the seatpost is securely clamped. If the seat clamp is broken or damaged in any way, the bike is not safe to ride. Take your bike to your local dealer to have it serviced or contact us at info@

bigﬁ shbike.com. Before ride, make sure

that the seat clamp is properly closed.

- seat hight adjustment -

ANGLE

Your seat angle should be horizontal, but you may want to play with the adjustment. To adjust the angle of the seat use a wrench (size 6) or take the bike to your dealer to adjust it properly. The correct adjustment of the seat angle is largely a matter of your personal preference.

After any seat adjustment, be sure that the seat adjusting mechanism is properly tightened before riding to prevent a sudden shift of the seat. A loose seat clamp can cause damage to the seatpost, or can cause you to lose control and fall.

Do NOT add grease to the outside of the seatpost because the seatpost shim is plastic.

BRAKES

The left brake lever operates the front brake, and the right brake lever operates the rear brake.

NOTE: If you have purchased your bike in United Kingdom, Japan or Australia, your brakes are positioned oppositely. The right lever controls the front brake while the left lever controls the rear brake. All brakes should be adjusted according to local regulations.

Be careful to use front and rear brake simultaneously, and avoid locking up the front wheel, as this can cause a loss of steering control, and possible crash. Wet weather will increase your braking distance.

Check your brakes: Press each brake lever to make sure that there is no binding and that the brake pads press hard enough on the rims to stop the bike. The brake pads should be adjusted so they are 1 to 2 mm away from the rim when the brakes are not applied. Brake pads should be centered on the rim.

Do NOT ride the Bigﬁ sh folding bike until the brakes are functioning properly. To test, apply the brakes while trying to push the bike forward to make sure the brakes will stop the bike.

WHEELS & TYRES

Fully pumped tyres improve the riding comfort, wear slower and have less chance of a puncture. The tyres lose air when standing for longer periods of time. Standing on ﬂ at tyres for a long period can damage the tyres.

Check the pressure of your tyres regularly and ﬁ ll them up with air when necessary. To pump the tyres, use a pump that is suitable for Schrader valve (car tyre valve). At least once a month ensure the air pressure in the tyres is correct (2,4 – 3,1 bar /35-45 PSI).

Ride only with the correct tyre air pressure and sufﬁ cient tyre tread depth. Riding with tyre air pressure too low and/or riding over pavements, sharp-edged obstacles etc. can damage rims

and tyres.

Examine tyres for worn areas, bulges and damage. Make sure rims are clean. Use a damp cloth to clean the rims. Take your bike to your local dealer for regular examination of the rim-wear.

In no case should rims and brake pads come into contact with a lubricant or greasy substance. Make sure there are no loose or damaged spokes. If loose or damaged spokes are found, do NOT ride the Bigﬁ sh folding bike, take it to your local dealer for repair or contact us at info@

bigﬁ shbike.com.

It is recommended to regularly replace components that are exposed to high friction (brake pads, tyres).

FOLDING BIKE FOLDING BIKE

Page 11

IMPORTANT NOTES IMPORTANT NOTES

20 21

REFLECTORS & LIGHTS

Your Bigﬁsh folding bike is supplied with front, rear and wheel reﬂectors.

Use front and rear bicycle lights and reﬂectors, particularly when riding in dark or overcast conditions.

Bicycle reﬂectors are designed to pick up and reﬂect car lights and street lights in a way that may help you to be seen and recognized as a moving bicyclist.The reﬂectors are an important safety and legal requirement, and should remain securely ﬁtted and in good, clean condition at all times.

Periodically, inspect all reﬂectors, brackets and mounting hardware for signs of wear or damage. Replace immediately if damage is found. Check regularly if they are clean and securely mounted in their correct position.

We recommend that you always have a set of lights on your Bigﬁsh bike. Riding at night without lights is dangerous and against the law.

REFLECTORS ATTACHMENT

Mount a clear front reﬂector on your handlebar stem or handlebar (A), parallel with the ground and facing directly in front of you. This allows oncoming cars to see you as they approach.

Mount a clear rear reﬂector on your seatpost (B), parallel with the ground and facing straight back. This allows cars to see you as they approach you from behind.

Place wheel reﬂectors on the front and rear wheel (C). Mount each of the wheel reﬂectors between two wheel spokes.

The reﬂectors on the pedals are already attached (D).

If you are unsure of the best mounting for your bike, consult with a professional bicycle technician for suggestions. Be sure that the reﬂectors are mounted securely on your bike.

Make sure you use lights that operate correctly and that batteries are charged.

Do NOT remove the front or rear reﬂectors or reﬂector brackets from your bicycle. They are an integral part of the bicycle’s safety system. Removing the reﬂectors reduces your visibility to others using the roadway. Being struck by other vehicles may result in serious injury or death.

Reﬂectors are NOT a substitute for required lights. Riding at dawn, at dusk, at night or at other times of poor visibility without an adequate bicycle lighting system and without reﬂectors is dangerous, often illegal, and may result in serious injury and/or death. If you choose to ride under conditions of poor visibility, check and be sure you comply with all local laws about night riding.

GEARS

(FOR MULTI SPEED MODELS)

precision of the shifting deteriorates. You can adjust the gears by centering the yellow mark (1) between two adjacent vertical

INTERNAL GEAR HUBS

Bigﬁsh folding bikes use internal gears. With internally geared bicycles, it is recommended to refrain from pedalling while you shift gears. However you can change gears while stationary or rolling. The shifter indicates a series of numbers from 1 up. “1” is the lowest gear (used for slower riding, hill climbing, or to allow for easier pedaling). Shift up and down the

lines.

First, put the revoshifter into 2nd gear. If the yellow mark is not between the vertical lines, do the following: Loosen the screw (2) using wrench 10 and manually adjust using the hand screw at (3). Finally, turn the screw clockwise to the point that the yellow mark is again optimally positioned between both vertical lines.

gears using the upper side of the grip.

AUTOMATIC INTERNAL

ADJUST GEARS

During normal use it can happen that the

SET

- gear adjustment -

GEAR HUBS

Your Bigﬁsh folding bike might use automatic internal gear hub. In this case, the gear adjustment is not needed.

SET

CHAIN

The chain should be set tight enough so that it does not come off during use. The chain tensioner keeps the chain under tension during the folding process.

ADJUST CHAIN

(FOR SINGLE SPEED & INNER GEAR MODELS)

Turn the bike upside down. As a rule of thumb there should be about 12mm (1/2’’) movement of the chain up and down at point halway between the front and rear sprockets. Push the chain downward and then pull it upward in the middle. Note the travel.

If the travel is not about 12mm (1/2’’) adjust the chain: loosen the rear axle nuts and move the wheel forward to loosen, or backward to tighten, in the frame. After setting chain tension, pedal the bike and check for any tight and loose positions as the crank arms turn.

If necessary, readjust so there is only 6mm (1/4’’) movement at the tightest point. Finally, tighten the rear axle nuts.

Make sure that the chain is positioned right, so that the chain tensioner and chain guide keep the chain under tension during the folding process.

FOLDING BIKE FOLDING BIKE

Page 12

IMPORTANT NOTES MAINTENANCE & HANDLING TIPS

22 23

HANDLEBAR

HEIGHT

The handlebars position is ﬁxed to the optimal position for the most people. It is not adjustable.

ANGLE

Due to the speciﬁcs of the folding handlebars, changing and adjusting the angle of the handlebars is not possible.

Never ride the Bigﬁsh folding bike if the stem has been raised so that the minimum insertion mark can be seen.

STEERING

Ensure handlebar and stem are correctly adjusted and tightened, and allow proper steering. Ensure that the handlebars are set correctly in relation to the forks and the direction of travel. Check that the headset locking mechanism is properly adjusted and tightened.

REPLACEMENT PARTS

Many parts of your Bigﬁsh folding bike are safety critical ones, such as the frame, forks, handlebar, handlebar stem, seat post, cranks, pedals, wheel rims, chain, brake levers, brake cables, etc. For these components we recommend only genuine replacement parts are used as only these can guarantee optimum function and safety while riding. If you are not conﬁdent about what size or type of component you require as a replacement, seek advice from your dealer or contact us at info@

bigﬁshbike.com.

MAINTENANCE

Follow the procedures below to maintain your Bigﬁsh folding bike in good condition for years. The best protection against deterioration of your Bigﬁsh folding bike is regular cleaning and upkeep.

Do NOT wash the Bigﬁsh folding bike with high pressure water spray. Do NOT clean your bike

with a steam cleaner.

Clean it with a damp cloth soaked in a mild detergent mixture. Dry with a cloth. Use soap and water to clean plastic parts and rubber tyres.

Regular cleaning and upkeep is especially important when using the Bigﬁsh folding bike in the winter or in a region where the air has an extremely high salt content. Salt and dirt can ﬁnd their way into bearings and attack the paintwork and surfaces of screws.

Riding in coastal areas exposes your folding bike to salt which is very corrosive. Wash your Bigﬁsh folding bike frequently and wipe or spray all unpainted parts with anti-rust treatment.

Make sure wheel rims are dry so braking performance is not affected. After rain, dry your folding bike and apply anti-rust treatment.

If paint has been scratched or chipped to the metal, use touch-up paint to prevent rust.

LUBRICATION

Lubrication of components is required for functioning and optimal service life for your folding bike, and for preventing corrosion of the components. Use vaseline-type oil for cables and drive train parts. It is recommendable to use a special type of oil for the chain.

If the Bigﬁsh folding bike has been exposed to water or grit, or at least every 100 km / 60 miles, clean the bike by wiping it clean and lightly oil the chain with a dry lubrication or a synthetic based chain lube. It is important to wipe off excess oil. After every cleaning, lubricate the brakes. Drop a drop of oil onto the cable end on the caliper brake and wipe off excess oil.

Immediately after washing: dry and oil the drive train components, the chain and brake pivot points.

Do NOT add grease to the outside of the seatpost because the seatpost shim is plastic. Do NOT lubricate the buttons and round ‘Pull Release’ stopper.

STORAGE

Store your Bigﬁsh folding bike under shelter, keep it in a dry location away from the weather and the sun. Avoid leaving it in the rain or exposed to corrosive materials.

Before storing your Bigﬁsh folding bike for a long period of time, clean it well. Deﬂate the tyres to half pressure and hang it off the ground. Please notice that your warranty does not cover rust, corrosion, paint damage or theft.

SPARE PARTS

It is recommended to use only appropriate spare parts (tyres, tubes, brake-friction components ...). If you are not conﬁdent about what size or type of component you require as a replacement, seek advice from your Bigﬁsh dealer or contact us at info@bigﬁshbike.com.

FOLDING BIKE FOLDING BIKE

Page 13

TRANSPORTING YOUR BIKE TORQUE VALUES

24 25

WHEELING

To make your Bigﬁsh folding bike properly mobile when folded we designed it so you can wheel it along with you as you walk. Some people wheel it upright, some pull it like a trolley. Have a try and see what suits you best.

CARRYING

Carrying a Bigﬁsh folding bike is very easy for extra short to medium distances. You will ﬁnd over a short period of time a way of carrying that suits you best.

COVER

Bigﬁsh has a durable cover (available separately) that keeps dirt away and is easy to carry and store. Some transport companies insist on your bike being covered, so this is a really simple way of doing this. It quickly folds to a compact pouch with velcro straps to attach on the bike seat.

Torque values are standard measures of how much you must tighten a certain bolt. When a torque values are given, a torque wrench should be used to ensure that the correct torque is applied.

TIP: Check our website www.bigﬁshbike.com for other accessories.

Front fork pivot screw 8-12 Nm

- wheeling -

FOLDING BIKE FOLDING BIKE

Stem screw 12-14 Nm

Pedal / Crank 37-42 Nm

Safety cover mechanism screw 19-22 Nm

Rear fork pivot screw 19-22 Nm

Seat rail screw 8-10 Nm

Seat clamp nut 3-4 Nm

Home trainer screw 8-9 Nm

Page 14

PURCHASE RECORD CARD

Fill in immediately and retain as a record of your purchase.

PLEASE RETAIN YOUR SALES RECEIPT AS PROOF OF PURCHASE AND ANY POSSIBLE WARRANTY CLAIMS.

YOUR NAME:

ADDRESS:

DATE PURCHASED:

PLACE PURCHASED:

MODEL INFORMATION:

COLOUR:

SERIAL NUMBER:

Place to put your receipt

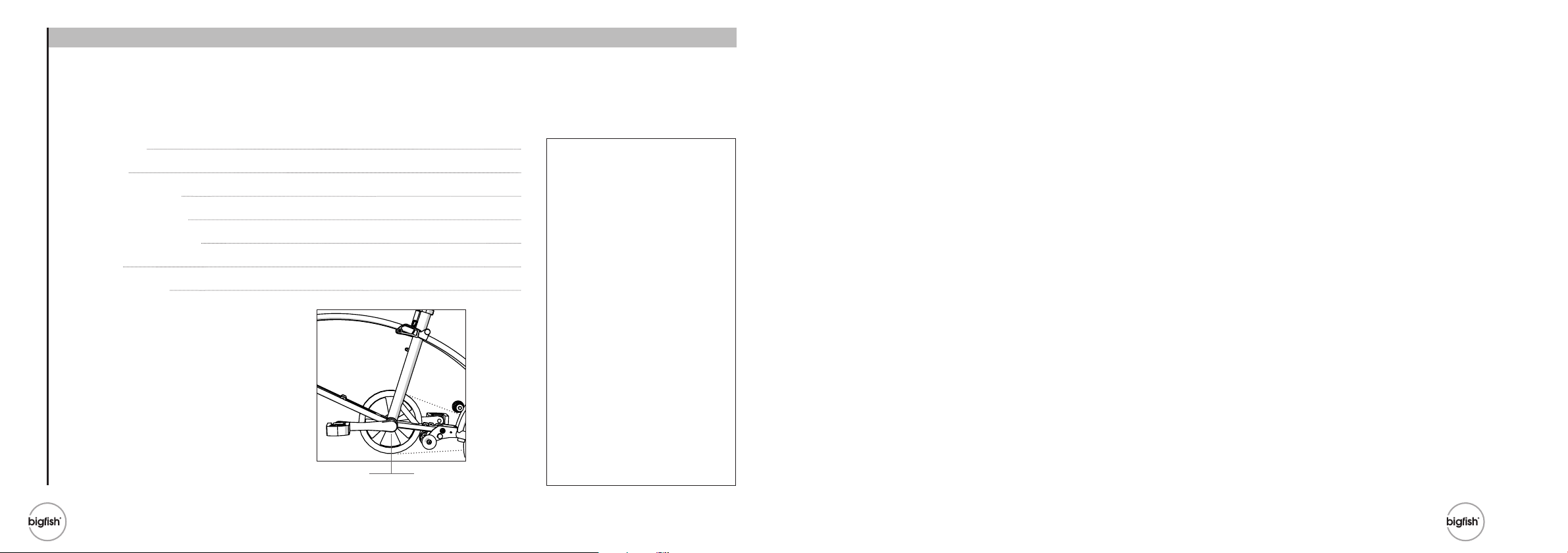

Your Bigﬁsh has its own unique serial number. It is stamped on the frame below the axis of the pedals. Record the serial number here in the event that your bike is lost or stolen.

FOLDING BIKE

Serial number location

FOLDING BIKE

Page 15

www.facebook.com/bigshbike

www.bigshbike.com info@bigshbike.com

Studio Moderna SA

Via Ferruccio Pelli 13

6900 Lugano

Switzerland

To learn more about Bigsh bikes please visit our website, download our extended catalogue and check out other goodies.

www.twitter.com/bigshbike

www.pinterest.com/bigshbike

www.youtube.com/user/bigshbike

www.ickr.com/photos/bigshbike

www.instagram.com/bigshbike

www.linkedin.com/company/ bigsh-folding-bike?trk=top_nav_home
