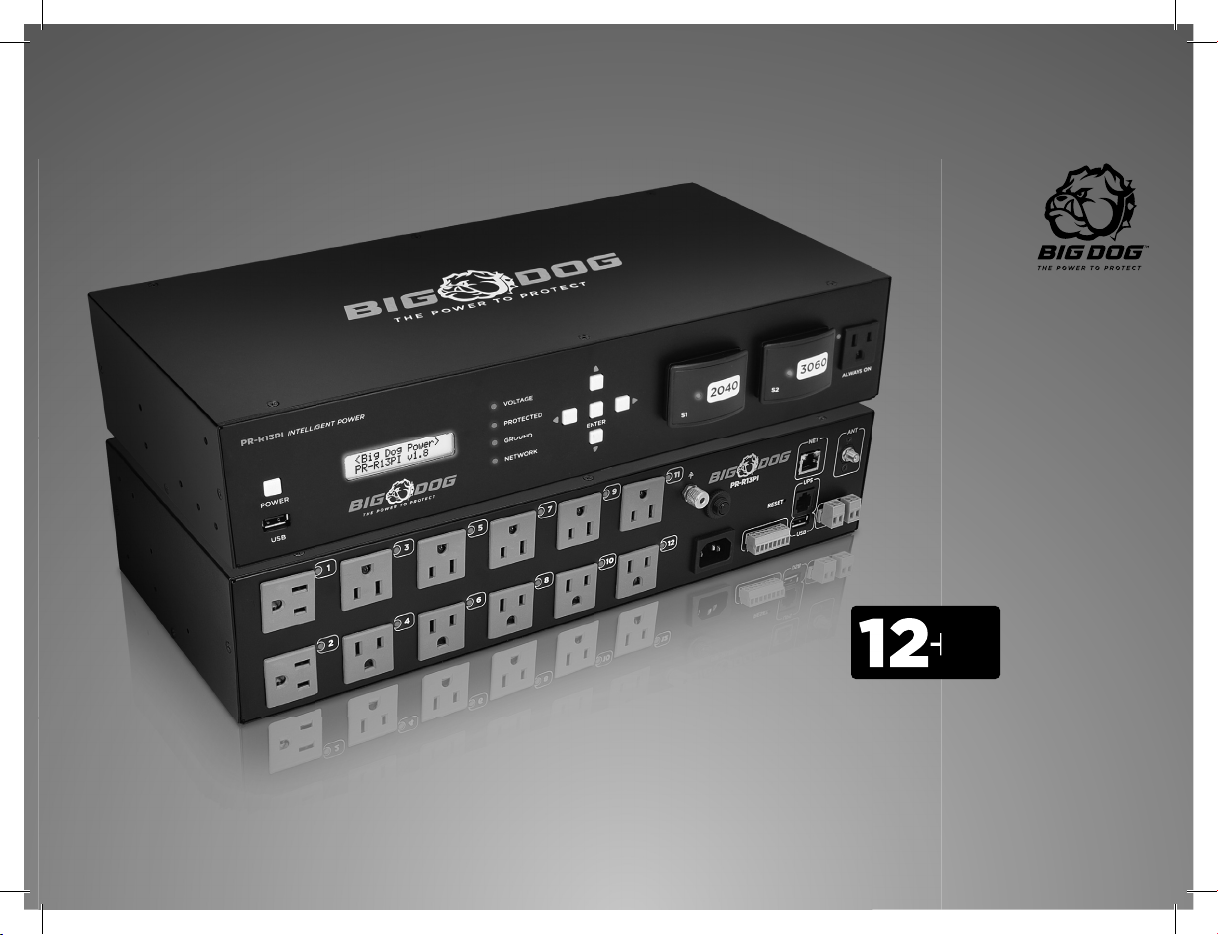

Page 1
12+1
INTELLIGENT RACK MOUNT
OUTLET
POWER DISTRIBUTION UNIT
PR-R13PI
1
Page 2
Introduction
Thank you for purchasing the PR-R13PI.
Your new Power Distribution Unit (PDU)
by Big Dog Power provides filtered AC
power to your equipment. 12 individually
controlled outlets provide up to 5100
Joules of surge Protection. Wi-Fi and Wired
LAN connections allow for flexibility with
placement and network connectivity. The
built in Self-Healing functions of the
PR-R13PI will keep your network connected
equipment going by automatically resetting
the power going to the outlet.
2
Page 3
Features
• 12 individually controlled outlets
• 1 always on Front outlet
• Rack Mountable 2U
• Self-Healing functions for network
connected equipment
• Surge Mileage: Track when a Surge Event happens and the
remaining health of the surge protection
• Replaceable Surge modules
• 2040 and 3060 Joule surge protection
• Temperature monitoring with 4 thermostats
• Web and Mobile app for remote management and notification
• I/O for additional integrations
• RS-232/Serial and IP automation integration
• Grounding Lug
• 120V/12A Rating
12
SMART OUTLETS
+1 ALWAYS ON
REPLACEABLE M.O.V.
SURGE MODULES
POWER METERIN G
INDIVIDUAL OUTLETS
MAVBASE APP
MANAGEMEN T
SELF HEALIN G
AUTO REBOOT
4 SMART
THERMISTORS
FLEXIBLE MOUNTING
OPTIONS
WIRED/WIRELESS
CONNECTIVITY
SET MULTIPL E
SCHEDULES
CONNECTED EQUIPMEN T
GUARANTE E
3
Page 4
Big Dog Power™
by Metra Home Theatre, LLC Limited Product Warranty
and Connected Equipment Limited Warranty
Valid in the United States and Canada
THIS WARRANTY DEFINES ETHEREAL
HOME THEATRE. LLC’S LIABILITY FOR ANY
AND ALL DAMAGES RESULTING FROM THE
OPERATION OR FAILURE OF THE PRODUCT.
THE WARRANTY PROVIDED IS IN LIEU
OF ANY AND ALL OTHER WARRANTIES,
EXPRESS OR IMPLIED. TO THE MAXIMUM
EXTENT PERMITTED BY APPLICABLE
LAW, METRA DISCLAIMS ANY AND ALL
OTHER WARRANTIES WHETHER EXPRESS
OR IMPLIED. TO THE MAXIMUM EXTENT
PERMITTED BY APPLICABLE LAW, ETHEREAL
HOME THEATRE. LLC HEREBY DISCLAIMS
ANY AND ALL LIABILITY FOR DIRECT,
SPECIAL, INCIDENTAL OR CONSEQUENTIAL
DAMAGES RESULTING FROM ANY PRODUCT
FAILURE, ANY BREACH OF WARRANTY OR
CONDITION, OR UNDER ANY OTHER LEGAL
THEORY, INCLUDING BUT NOT LIMITED TO
LOSS OF USE; LOSS OF REVENUE; LOSS
OF ACTUAL OR ANTICIPATED PROFITS
(INCLUDING LOSS OF PROFITS ON
CONTRACTS); LOSS OF THE USE OF MONEY;
LOSS OF ANTICIPATED SAVINGS; LOSS OF
BUSINESS; LOSS OF OPPORTUNITY; LOSS
OF GOODWILL; LOSS OF REPUTATION;
LOSS OF, DAMAGE TO, COMPROMISE OR
CORRUPTION OF DATA; OR ANY INDIRECT
OR CONSEQUENTIAL LOSS OR DAMAGE
HOWSOEVER CAUSED INCLUDING THE
REPLACEMENT OF EQUIPMENT AND
PROPERTY, ANY COSTS OF RECOVERING,
PROGRAMMING, OR REPRODUCING ANY
PROGRAM OR DATA STORED IN OR USED
WITH THE PRODUCT. FURTHER, TO THE
MAXIMUM EXTENT ALLOWED BY
APPLICABLE LAW, Ethereal Home Theatre,
LLC HEREBY EXPLICITLY DISCLAIMS ANY
WARRANTY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE.
THESE LIMITATIONS SHALL NOT APPLY TO
ANY DEATH OR PERSONAL INJURY CLAIMS,
OR ANY LIABILITY FOR INTENTIONAL ACTS
OR ACTS OF GROSS NEGLIGENCE
4
Page 5
Limited Product Warranty:
Ethereal Home Theatre, LLC warrants this
product to be free of material defects for a
period of: (1) 5 years for the PR-R13PI, PRV7PI and PR-W3PI products, (2) 3 years for
the PR-S1PI product, (3) PR-RMS1 and PRRMS2, replaceable surge modules carry a 90
Day warranty from manufacturing defects and
(4) 3 years for any other product subject to
this Warranty (referred to as the applicable
“warranty period”). If the product fails during
the warranty period, Ethereal Home Theatre,
LLC will, at its option: (1) Repair the product
in a reasonable time period, (2) Replace the
product with the same model (or a successor
model with the same or substantially similar
features), or (3) Refund the purchase price.
This Warranty applies only to an original
purchaser of the product who provides proof
of purchase at the time a claim is made.
Conditions and Limitations:
Proof of purchase is required.
Damage caused by accidents, abuse, misuse
or modification of the surge suppressor will
render this warranty null and void.
Transient Voltage Surge Suppression devices
using MOV (Metal Oxide Varistor) technology
are designed to sacrifice themselves to
protect the connected equipment. The proper
functioning of this surge suppressor during a
catastrophic surge event like lightning may
result in the depletion of the unit’s protection
capabilities. This is not a defect in design,
material, or workmanship.
Excluded Items:
This warranty does not apply to: (1)
consumable items, such as a replaceable surge
protection module, (2) cosmetic damage such
as scratches, dents, broken plastic parts, and
discoloration (unless same is the result of a
defect in materials or
workmanship), (3) damage resulting from the
failure of another product, (4) damage caused
by misuse or abuse, or (5) damage caused by
unauthorized service of the product.
5
Page 6
Connected Equipment Limited Warranty:
This is a limited warranty, subject to the
conditions, limitations and exclusions
identified herein. Ethereal Home Theatre,
LLC warrants to the original purchaser of this
surge suppressor that it will at its option, pay
the fair market value of, repair, or replace,
any home entertainment equipment which is
damaged by a transient surge while properly
connected through the Ethereal Home Theatre,
LLC surge suppressor to a properly wired and
grounded AC power line. The Ethereal Home
Theatre, LLC surge suppressor must have been
designed for the particular application.
For additional warranty information including
Connected Equipment coverage and process
visit us at metraav.com
PR-R13PI
6
Page 7

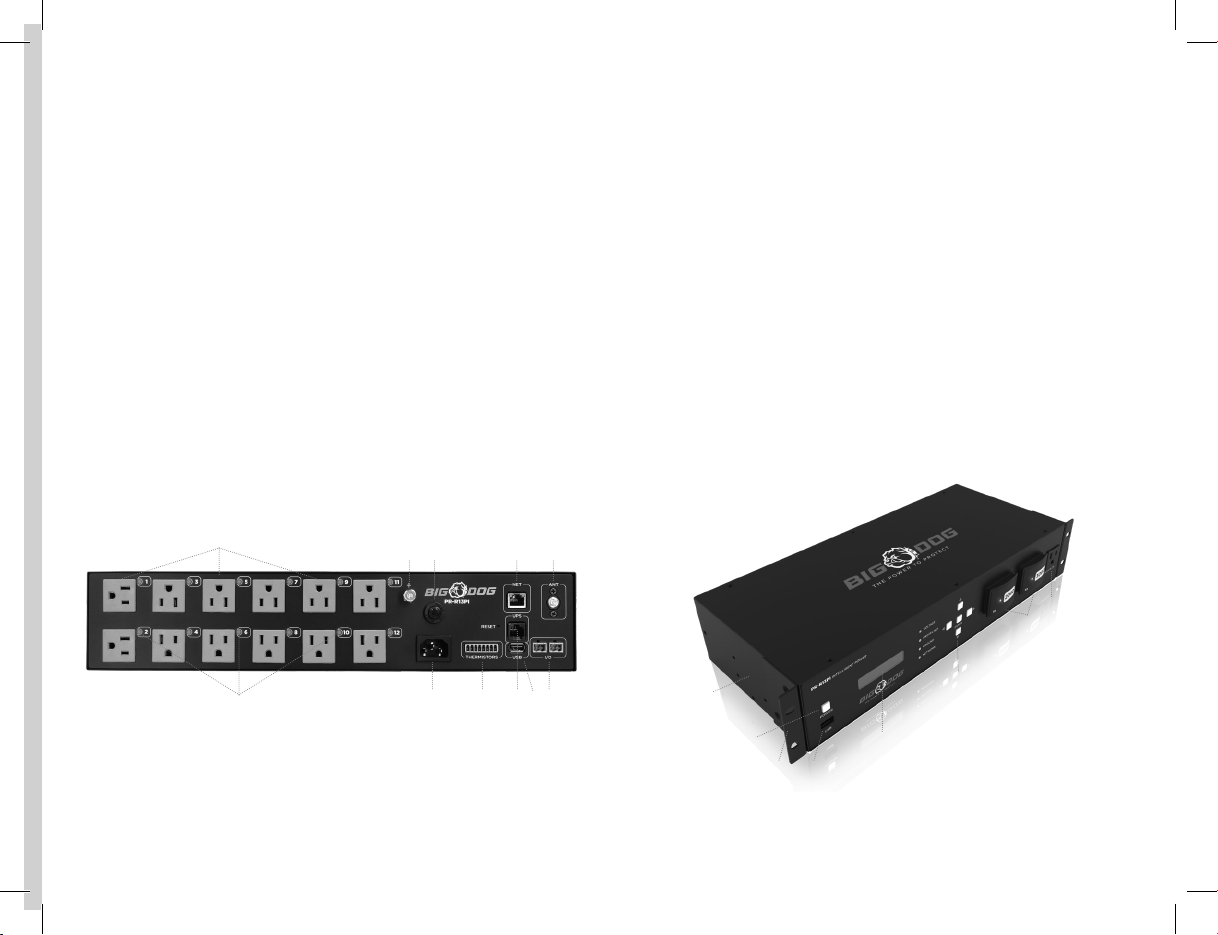

Anatomy
A. Configurable Power Button
B. LCD Display
C. Display Navigation Buttons
D. Replaceable Surge Modules
S1 – 2040 Joule Rating
S2 – 3060 Joule Rating
E. USB Power Supply
2.4 amp 5v
F. At a glance status LEDs
See LED functions for more information
G. Always On Service Outlet
H
M
H. 12 Individually controlled Outlets
I. Grounding pin
J. 15-amp Circuit Breaker
K. Ethernet Port
L. Wi-Fi Antenna
M. Outlet Status LEDs
See LED functions for more information
N. IEC Power Input 120v
O. Thermistor Inputs
P. UPS Link
For Future Use
I
K LJ
EN O QP
Q. I/O
1x Contact Sensor Input
1x Relay Output
R. Surface Mount Location for Rack Ears
S. 2U Rack Ears
G
D
R
C
A
B
ES
7
Page 8
LED Indicators
“G” or Ground
“P” or Power
“N” or Network
Outlet Status
Voltage
Always On
Surge Module
S1 and S2 LED
ON: PDU is grounded properly
OFF: PDU is not grounded
BLUE: Good / Protected and Clean power
RED: Bad / No Protection
BLINKING RED: No Network Connection
SOLID BLUE: Good Network Connection
RAPID BLINKING RED: PDU failure requires reboot or reset
ON: Outlet is On
OFF: Outlet is Off
SOLID BLUE: Normal / Good Voltage
SOLID RED: Over / Under Voltage
ON: Outlet is On
OFF: Outlet is Off
ON: Good / Protected
OFF: Bad / Not Protected
8
Page 9
Installation
Installation

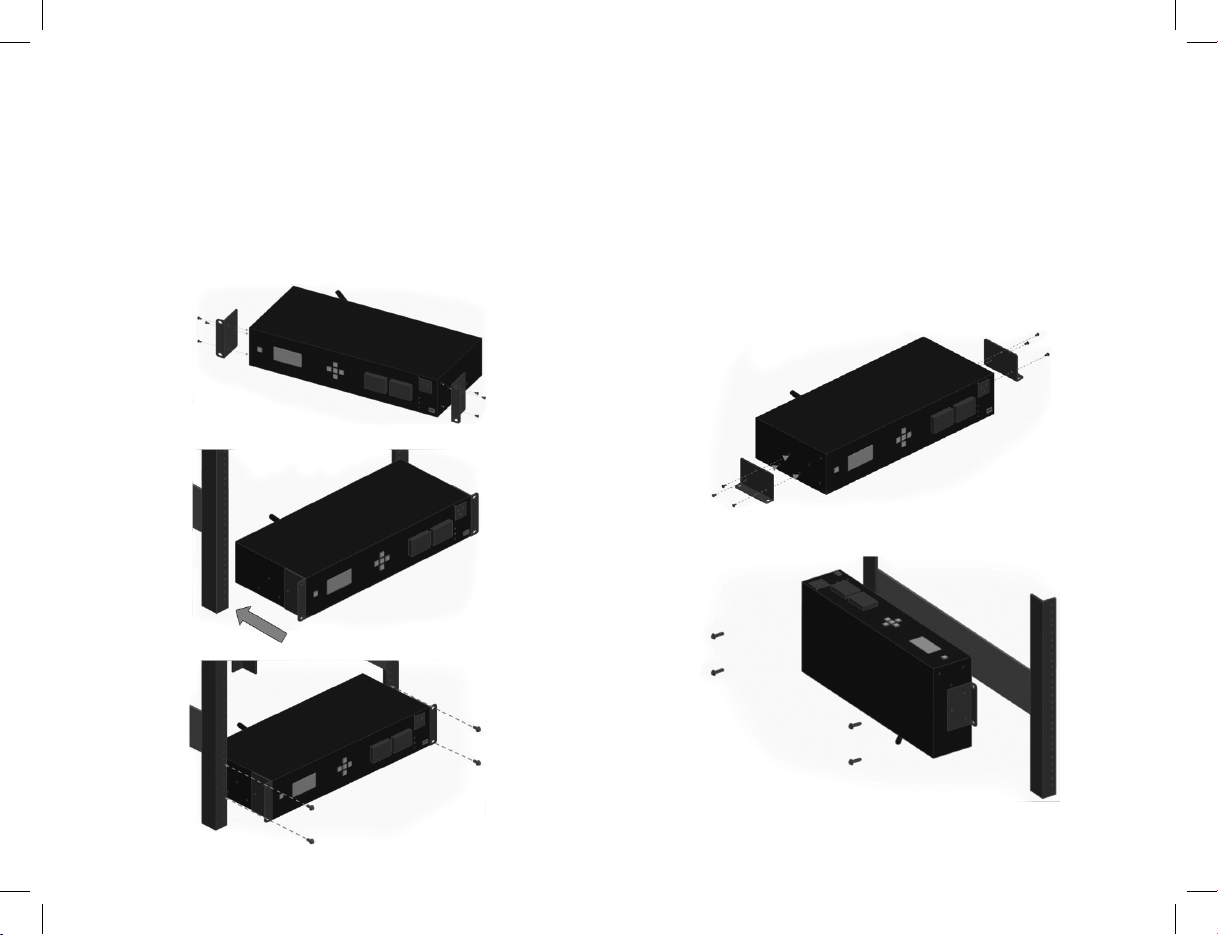

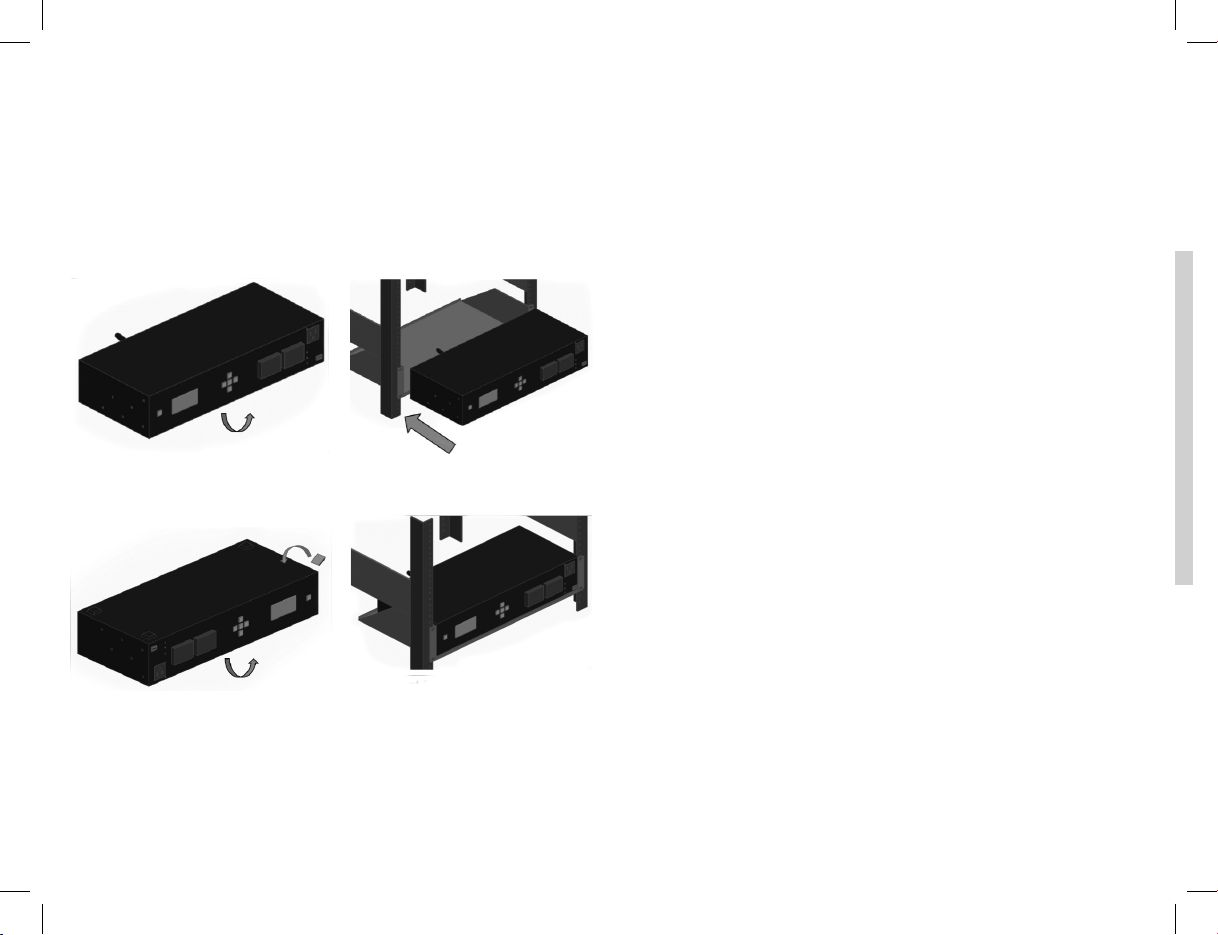

Rack Mount
1. Use the included screws to attach the Rack Mount ears to
the PDU near the face of the PDU
2. Slide the PDU into the rack where you intend to mount it
3. Secure the PDU using the appropriate screws for your rack
Step 1
Step 2
Surface Mount
1. Use the included screws to attach the included Rack Mount ears to PDU at the
secondary location
You can find the secondary mount holes halfway towards the
back of the PDU
2. Install appropriate surface mount screws (not included) through the Rack
Mount ears into the desired surface
Step 1
Step 3
Step 2
9
Page 10
Installation
Connections and Use
Shelf Mount
1. Remove the protective film over the adhesive on the included Rubber Feet
2. Apply the Rubber feet to the bottom of the PDU
3. Slide the PDU onto shelf
4. Place PDU on Shelf
Step 1
Step 3
10
Step 2
Step 4
Physical Connections
1. Screw in the Wi-Fi Antenna
2. Plug in all to be used connections Including:
Ethernet LAN (Skip the Ethernet cable if you will be using Wi-Fi)
Connected equipment power cables
3. Insert the female end of the included 6ft power cord into the PR-R13PI
4. Plug in the Male end of the included 6ft power cord into the main outlet
on your wall
Wi-Fi Setup
If using the Wi-Fi connection, follow these
instructions
1. Plug in the included power cable to the PDU and to the
AC main outlet on the wall. Wait approximately 15-30 seconds,
the power button will begin to flash
2. Scan for Wi-Fi on your Wi-Fi enabled device with a web browser
3. Connect to the Wi-Fi SSID of the PDU
The SSID of the PDU will be “Metra-xxxxxxxxxxxx” where the “x” are the MAC
address or device ID of the PDU. Verify the code of the SSID matches the MAC
address of the PDU with the sticker that is attached to the bottom of the PDU
4. In a web browser go to “192.168.4.1”
5. Go to “Network”
6. Click “SCAN NETWORKS”
The network mode can also be changed before scanning. For ease of setup
we’ll use the default DHCP settings.
7. Select the desired network SSID
NOTE: the PDU requires a 2.4Ghz Wi-Fi connection.
Page 11
8. If required enter the password for the Wi-Fi connection
9. Click “Save”
The PDU will now connect and reboot. After it has rebooted it will attempt to
connect to the Wi-Fi signal.
10. Once the PDU has been connected to the network and has access to the web,
proceed to the next steps
Surge Protection
Protected Circuit(s)
Replaceable 5100 Total Joule Protection from
the Line to Neutral to Ground circuit.
For use only with SPD Modules specified by
the manufacturer.
Replaceable Surge Modules
Remove
1. Firmly grasp the front top and bottom lip of the surge module
2. Pull the surge module from the front of the PDU
A slight side to side motion may help release the surge module from the PDU
Replace
1. Ensure the correct module is being inserted into the correct slot on the PDU
2. Gently slide the surge module into the PDU until you feel resistance
3. Firmly push the surge module into the PDU until you hear and feel a click
DO NOT: Smack the surge module into the slot
Cloud setup
1. Log in to your MAVbase.com account
2. Click the Add New button
3. Click “ADD PDU”
4. Add the PR-R13PI to your account using the MAC address of the PDU
This SPD is suitable for use only with
manufacturer’s specified Cat. No. PR-RMS1,
PR-RMS2 replaceable SPD Module. Using
this SPD with other than the manufacturer’s
specified SPD may create a risk of fire or
shock.
This equipment is not suitable for use in
locations where children are likely to be
present”
“Cet équipement ne convient pas à une
utilisation dans des lieux pouvant accueillir
des enfants”
“Equipment is intended for installation in
Restricted Access Area”
“Les matériels sont destinés à être installés
dans des EMPLACEMENTS À ACCÈS
RESTREINT”
11
Page 12
Important Safety Instructions
Read and observe the following safety points
at all times.
Notice
For indoor use only. Internal components are
not sealed from the environment. The device
can only be used in a fixed location such as
a telecommunication center, or a dedicated
computer room. When you install the device,
ensure that the protective earthing connection
of the socket-outlet is verified by a skilled
person. Suitable for installation in Information
Technology Rooms to power ITE equipment
such as Monitors, Computers, Etc. Only use
brackets/attachments/accessories specified
by the manufacturer. Do not place the device
in an unstable position where it might fall and
cause injuries. This equipment is not suitable
for use in locations where children are likely
to be present. Do not cover this device with a
cloth. Do not install it on a carpet or rug.
Caution
Potential injury
Do not use this product with extension
cords, multi-outlet power strips, multi-outlet
extenders, or UPS devices (other than a Big
Dog Power UPS). The power capacity of these
12
accessories can be overloaded by this product
and may result in a risk of fire, or property
damage.
Exposure to Heat
Do not expose the PDU to direct sunlight or
place it near wall heaters, space heaters, or
in an enclosed space prone to temperature
increase. Do not use the device in a confined,
poorly-ventilated location; this can overheat
the unit, possibly even causing a fire. If used in
a small space other than an EIA-standard rack,
ensure that there is adequate space around the
device.
Proper Cleaning
In general, the only cleaning necessary for is
light dusting. Unplug the PDU from the wall
outlet before cleaning it. Do not use liquid or
aerosol cleaners.
Warning
Power sources, grounding, and polarization
This plug is designed to be inserted into a
NEMA 5-15 (three-prong grounded) outlet
only. Do not force the plug into an outlet that
is not designed to accept it. Never dismantle
the plug or to alter the power cord, and do
not attempt to defeat the grounding feature
by using a 3-to-2 prong adapter. If you have
Page 13
questions about grounding, consult your local
power company or a qualified electrician.
This PDU requires a properly grounded outlet
for safety. If you’re not sure if your home’s
electrical wiring is properly grounded, have it
checked by a qualified electrician. If a rooftop
device such as a satellite dish connects to the
PDU, ensure that the device’s wires are also
properly grounded.
Liquid: avoiding electrical shocks
Do not operate the PDU if liquid of any kind is
spilled onto or inside the unit. Do not operate
it near rain or water, even water that is
contained (for example, bathtub or sink).
Power cord safety
Do not place the power cord near areas with
heavy foot traffic (for example, hallways). Do
not create a trip hazard with the power cord.
If the power cord’s protective jacket rips or
frays, exposing the internal wiring or shielding,
disconnect it from the power source and
replace the power cord immediately. See the
warranty section of the owner’s manual for
details.
No User-Serviceable Parts Inside
If the PDU is not operating properly, do not
remove any part of the unit (cover, etc.)
for repair. Unplug the unit and consult the
warranty section of the owner’s manual.
FCC Warning
WARNING!! Changes or modifications to this
unit not expressly approved by the party
responsible for compliance could void the
user’s authority to operate the equipment.
This equipment has been tested and found
to comply with the limits for a Class B Digital
Device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide
reasonable protection against harmful
interference in residential installation. This
equipment generates, uses and can radiate
radio frequency energy and, if not installed
and used in accordance with the instruction
manual, may cause harmful interference
to radio communications. However, there
is no guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful interference
to radio or television reception, which can
be determined by turning the equipment
off and on, the user is encouraged to try to
correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the
equipment and receiver.
• Connect the equipment into an outlet on
a circuit different from that to which the
receiver is connected.
13
Page 14
• Consult the dealer or an experienced
radio/TV technician for help.
Notice: (1) An unshielded-type power cord is
required in order to meet FCC emission limits
and also to prevent interference to the nearby
radio and television reception. It is essential
that only the supplied power cord by used.
(2) Use only shielded cables to connect I/O
devices to this equipment.
Note: THE MANUFACTURER IS NOT
RESPONSIBLE FOR ANY RADIO OR TV
INTERFERENCE CAUSED BY UNAUTHORIZED
MODIFICATIONS TO
THIS EQUIPMENT. SUCH MODIFICATIONS
COULD VOID THE USER’S AUTHORITY TO
OPERATE THE EQUIPMENT.
The Class B digital apparatus meets all
requirements of the Canadian InterferenceCausing Equipment Regulation
Cet appareil numerique de la class B respecte
toutes les exigencies du Reglement sur le
materiel brouilleur du Canada.
FCC Part15C+RSS247
To assure continued FCC compliance:
1. Any changes or modifications not expressly
approved by the grantee of this device could
void the user’s authority to operate the
equipment.
2. This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled
environment.
This equipment should be installed and
operated with minimum distance 20cm
between the radiator & your body.
This radio transmitter [27941-PRW3PI] has
been approved by Innovation, Science and
Economic Development Canada to operate
with the antenna types listed below, with the
maximum permissible gain indicated. Antenna
types not included in this list that have a gain
greater than the maximum gain indicated for
any type listed are strictly prohibited for use
with this device.
NO.
Antenna Type
Model Name
14
Gain (Peak)
1
Dipole
Q0211
2dBi
Page 15
IC
This device complies with Industry Canada
license-exempt RSS standard(s). Operation
is subject to the following two conditions:
(1) this device may not cause interference,
and (2) this device must accept any
interference, including interference that
may cause undesired operation of the
device. This equipment complies with IC
radiation exposure limits set forth for an
uncontrolled environment. This equipment
should be installed and operated with
minimum distance 20cm between the
radiator and your body.
IC French:
Cet appareil radio est conforme au CNR247d’Industrie Canada. L’utilisation de ce
dispositif est autorisée seulement aux deux
conditions suivantes : (1) il ne doit pas
produire de brouillage, et (2) l’utilisateur
du dispositif doit être prêt à accepter tout
brouillage radioélectrique reçu, même si ce
brouillage est susceptible de compromettre
le fonctionnement du dispositif.
Cet équipement est conforme aux limites
d’exposition aux rayonnements IC établies
pour un environnement non contrôlé. Cet
équipement doit être installé et utilisé avec
un minimum de 20 cm de distance entre la
source de rayonnement et votre corps.
UL Safety:
• Type 1, Operating Control
• External Pollution Situation:
Pollution Degree 2
• Rated Impulse Voltage:1500 V
© Copyright 2022 Ethereal Home Theater, LLC.
An online purchase registration is available
at www.metraav.com. Registering your surge
protector at the time of purchase can make the
process a lot easier if you ever need to file a
claim.
Please contact the Ethereal Home Theatre,
LLC Customer Service Department at 386-2571186 if you have any questions regarding the
product warranty or the connected equipment
warranty.
Ethereal Home Theatre, LLC
460 Walker Street
Holly Hill, FL 32117
Phone:386-257-1186
E-Mail: [email protected]
15
Page 16
INTELLIGENT
POWER
We’ve combined all of the features
integrators need into one unique power
distribution unit to deliver surge protection,
remote control, smart home integration,
rack temperature management, and more.
The 12 individually controllable outlets have
power metering, self-healing and automatic
reboot capabilities for smarter remote
management of your connected devices.
An additional service outlet allows direct
access for programming and setup without
an Internet connection.
Specifications:
Operating Temperature: 14˚F-104˚F (-10˚C-40˚C )
Surge Protection: 5100 Joule (Replaceable)
External Antenna: Yes
Outlets (Total): 13 outlets
Always-On Outlet: 1 (front) service outle t
Switched Outlets: 12 (rear )
AC Input Outlet: IEC C14, 15A circuit, product UL rating 12A
Circuit Breaker (COP): Yes (rear)
Cord Length: 6ft
Safety Certifications :
UL/CUL, FCC. UL 62368-1+UL 498+1449 with CSA 269.3+UL 1283, FCC
Part15B+ICES-003, FCC ID/ISED (wireless de vice FCC)
Warranty: 5 Year Limited
Metra Electronics Corp.
BigDogPower.com
APP: MAVbase.com
386-255-0234
16
Loading...
