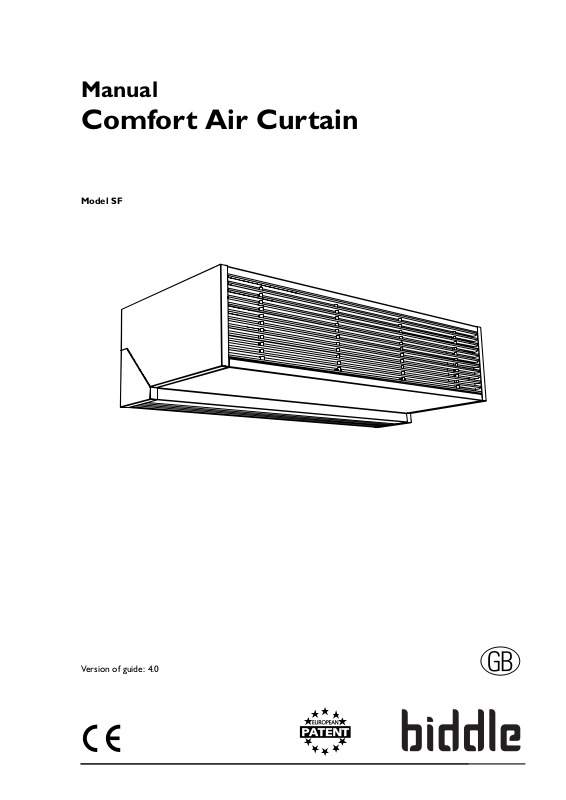

Manual
Comfort Air Curtain
Model SF
Version of guide: 4.0 R
a
Copyright and trademarks
All the information and drawings in this manual are the property of Biddle and may not be used (other than for the
actual operation of the device), photocopied, duplicated, translated and/or be brought to the attention of third
parties without Biddle’s prior written permission.
The name Biddle is a registered trademark.
Warranty and Liability
Please refer to Biddle’s Terms of Sales and Delivery for warranty and liability conditions.
Biddle excludes liability for consequential loss at all times and under all circumstances.
Liability for the contents of this guide
However much care might have been taken in ensuring the correctness and, where necessary, completeness of the
description of the relevant parts, Biddle disclaims all liability for damage resulting from any inaccuracies and/or
deficiencies in this guide.
Should you detect any errors or ambiguities in this guide then we would be pleased to hear from you: it helps us to
improve our documentation even further.
Biddle retains the right to change the specifications stated in this guide.
For more information
If you have any comments or questions about specific topics relating to this product, please do not hesitate to
contact Biddle.
Biddle bv
P. O . Bo x 1 5
NL-9288 ZG Kootstertille
The Netherlands
tel: +31 512 33 55 55
fax: +31 512 33 55 54
e-mail: export@biddle.nl
internet: www.biddle.info
2
MANUAL
. . . Table of contents
1 Introduction 5
1.1 About this manual 5
1.1.1 General 5
1.2 How to use this manual 5
1.2.1 References in the manual 5
1.2.2 Symbols used on the unit and in the manual 6
1.2.3 Related documentation 6
1.3 About the unit 6
1.3.1 Applications 6
1.3.2 Working 7
1.3.3 Models and type references 7
1.3.4 Type plate 8
1.3.5 Components and accessories 8
1.4 Safety instructions 9
1.4.1 Operation 9
1.4.2 Installation, maintenance and service 9
2 Installation 10
2.1 Safety instructions 10
2.2 Delivery check 10
2.3 General working method 10
2.4 Mounting the unit 11
2.4.1 Positioning the unit 11
2.4.2 Suspending and securing the unit 12
2.5 Connecting the unit to the central heating system 13
2.5.1 Particulars 13
2.5.2 Units without water-side control 13
2.5.3 Units with water-side control 13
2.6 Connecting the unit to the power supply 15
2.6.1 Connecting water-heated models 15
2.6.2 Connecting electrically-heated models 15
2.7 Setting a unit as master (SFi , optional) 17
2.7.1 Working 17
2.7.2 Setting the unit 17
2.8 Connecting external controls (SFi , optional) 18
2.8.1 Input for external control 18
2.8.2 Output for fault signal indication 18
2.9 Installing the controller 19
2.9.1 Mounting and connecting the touchpad controller (SFi )19
2.9.2 Mounting and connecting the three-speed switch (SFs )20
2.10 Integrating the unit 21
2.10.1 Mounting the telescopic discharge grille 21
2.10.2 Mounting the integrated intake grille (option) 21
2.11 Applying the edge finishing 22
2.12 Switching On and checking operation 22
Version: 4.0 (09-10-2008) 3
COMFORT AIR CURTAIN
3 Operation 23
3.1 Three-speed switch (SFs )23
3.1.1 Setting the air curtain strength 23
3.2 Touchpad controller (SFi )23
3.2.1 Switching the air curtain On and Off 24
3.2.2 Setting the air curtain strength 24
3.2.3 Enabling or disabling heating 24
3.2.4 Enabling or disabling Automatic restart 25
4 Maintenance 26
4.1 Cleaning the unit 26
4.2 Scheduled maintenance 26
5 Faults 27
5.1 Safety instructions 27
5.2 Fault-finding by the user 27
5.3 Fault-finding by the installer 27
6Service 32
6.1 Safety instructions 32
6.2 Access to the interior of the unit 32
6.3 PCB (SFi ) 33
6.3.1 Introduction 33
6.3.2 Removing the PCB (SFi W) 33
6.3.3 Removing the PCB (SFi E) 33
6.3.4 DIP switches on the PCB 34
6.4 Fuses (SFi ) 34
6.5 Resetting the high-limit thermostat (SFi E) 34
6.6 Composition of Biddle control cable 35
Declaration of conformity 36
4
MANUAL INTRODUCTION
1 . . Introduction
1.1 About this manual
1.1.1 General
This manual describes the installation, operation and maintenance of the Comfort Air Curtain model SF. The manual also
provides instructions and information on service works.
The manual provides important directions for the correct and
safe operation of the air curtain, and for the prevention of
accidents and damages.
So, read this manual carefully before starting to handle the unit
in any way.
1.2 How to use this manual
c If you do not perform this procedure or action correctly,
If you are unfamiliar with the Comfort Air Curtain, read this
manual section by section.
If you are familiar with the device, you may use this manual as
a reference. Refer to the table of contents for looking up
information.
1.2.1 References in the manual
In this manual the following marginal symbols are used:
Note:
n Draws your attention to an important part of the text.
Read this part of the text carefully.
Caution:
you may damage the device.
Follow the instructions carefully.
Warning:
w If you do not perform this procedure or action cor-
rectly, you may cause damage and/or bodily injury.
Follow the instructions strictly.
Version: 4.0 (09-10-2008) 5
INTRODUCTION COMFORT AIR CURTAIN
Danger:
d This indicates actions which are not permitted.
Ignoring this warning may lead to serious damage
ICON DESCRIPTION
War nin g: You are entering an area which contains ‘live’ components.
Accessible to qualified maintenance staff only.
ê
Exert caution.
or accidents which may involve bodily injury.
The action may be carried out only by qualified
staff performing maintenance or repair works.
1.2.2 Symbols used on the unit and in the manual
The symbols in Table 1-1 warn against potential risks and/or
dangers. The symbols can be found opposite the text discussing risk-entailing operations. The same icons will also be found
on the device.
Table 1-1 Symbols
ç
1.3 About the unit
War nin g: This surface or part can be hot. There is a risk of burns on con-
tact.
1.2.3 Related documentation
Besides this manual, the following document comes with the
unit:
• wiring diagram for installation and service purposes.
1.3.1 Applications
The comfort air curtain is designed to separate the climates
between two rooms. The unit is installed above the doorway,
across its full width.
By installing multiple units side by side, openings of unlimited
width can be screened off in steps of 50 cm.
The model is designed for free, visible installation above doors
as well as for integration into coves or suspended ceilings.
6
MANUAL INTRODUCTION
1.3.2 Working
The air curtain blows a stream of either heated or unheated
air straight down, achieving the following:
• The exchange of air between two rooms due to temperature differences (convection) is stopped.
• For heated air: the air entering across the floor due to
draught is heated.
• For unheated air: warm outside air is kept outside to support the air-conditioning in the room.
The air curtain is designed such that there is no need for air
filters.
1.3.3 Models and type references
Table 1-2 on page 7 provides an overview of the available
models of the comfort air curtain and the corresponding type
references. Combined, the type references constitute the type
code, for instance: SFi
SP-100-W-F.
If some part of the manual applies to certain models only,
these will be indicated using the corresponding type refer
ence, for instance:
-SFi : models with touchpad controller
-SFs : models with three-speed switch
-SF W: water-heated models
- SF E: electrically-heated models
- SF A: models without heating (ambient)
Table 1-2 Type code explained
TYPE CODE ELE-
MENT
REFERENCE MEANING
product series SF general reference for the series
control i or s touchpad controller or three-speed switch
capacity SP or HP installation height 2.20-2.40 m or 2.80-3.00 m
unit length 100, 150 of 200 unit length in cm
heating W water heating
E electric heating
A without heating (ambient)
mounting method F free-hanging model, also fit as recessed model
-
Version: 4.0 (09-10-2008) 7
INTRODUCTION COMFORT AIR CURTAIN
Biddle bv
Markowei 4
NL-9288 HA Kootstertille
Type SFs HP-200-W-F
Code U 230 V 1N~ 50 Hz
Nº 123456/1-1 04-53 I
M66kg I
Medium LPHW P
p
1400 kPa P
max
max
I
max
max
motor
heating
L1 6.18 A
L2 -
L3 -
1.42 kW
-
1.3.4 Type plate
The type plate can be found on the top of the unit.
This manual refers to the following data on the type plate:
• Type : full type code of the unit.
• M: weight of the unit.
• p
• U, I
: maximum permissible operating pressure in the hot
max
water circuit (at 110
, P
max
motor
and P
ºC).
: maximum load on the electrical
heating
system by the unit.
1.3.5 Components and accessories
Components
The following components are delivered separately but are
always required:
• touchpad controller or three-speed switch.
Accessories
The following accessories are available as options:
• water-side control for connection with touchpad controller.
• water-side control for fixed discharge temperature.
• Biddle control cable, available in various lengths, to link
multiple units to one single touchpad controller.
• door contact switch.
• suspended ceiling finishing kit.
• Telescopic discharge grille for recessed model.
• Intake grille for recessed model.
8
MANUAL INTRODUCTION
1.4 Safety instructions
1.4.1 Operation
Warning:
w It is not allowed to install air filters in the air cur-
tain.
Warning:
w Do not put any objects in the in- and outlets.
Warning:
w Do not block the in- and outlets.
Warning:
w The upper surface of the unit becomes hot during
ç
operation.
ê
ç
1.4.2 Installation, maintenance and service
Danger:
d The unit may be opened by qualified technical staff
only.
Warning:
w Perform the following actions before opening the
unit:
1. Switch the unit Off using the controller.
2. Wait until the fans have stopped.
3. Allow the unit to cool down.
The heat exchanger or, as the case may be, the heating elements can get very hot. Moreover, the fans may keep on
rotating for a while.
4. Disconnect the power supply (pull plug from socket or
move isolation switch, if any, to Off).
5. For water-heated models: close central heating supply (if possible).
Warning:
w The fins of the heat exchanger are sharp.
Version: 4.0 (09-10-2008) 9
INSTALLATION COMFORT AIR CURTAIN
2. . Installation
2.1 Safety instructions
Danger:
d Installation works on the unit may be performed by
qualified technical staff only.
Warning:
w Before opening the unit, follow the safety instruc-
tions in section 1.4.
2.2 Delivery check
2.3 General working method
1. Check the unit and its packaging for correct delivery.
Immediately report any transport damage to the driver
concerned and to the supplier.
2. Make sure that all components have been supplied. Immediately report any defects to the supplier.
Working method
Biddle recommends the following working method for the
installation of the comfort air curtain:
1. Mount the unit (section 2.4).
2. For water-heated models: connect the unit to the central
heating system (section
3. Connect the unit to the power supply (section 2.6).
2.5).
10
4. Install the controller and (any optional) connections to
external controls (sections
5. Finish the unit (section 2.11).
6. Turn on the power supply and check the working of the
unit (section
2.12).
2.7, 2.8, and 2.9).
MANUAL INSTALLATION
General instructions
Some parts of this section are applicable only to certain
models. Where this is the case, it will be indicated. If no spe
cific model is referred to, the description applies to all models.
Note:
-
n Make sure you perform all installation operations that are
required for your unit.
Check the type plate and refer to section1.3.3 if you are
not sure about the model or type of your unit.
Note:
n Protect the unit from damage and ingress of dust, cement,
etc. throughout the installation. You can, for instance, use
the packaging for protection.
2.4 Mounting the unit
x
b
h
ç
2.4.1 Positioning the unit
• Make sure that the structure from which the unit is about
to be suspended can bear the weight of the unit. The
weight is specified on the type plate (see section
• Note the following dimensions:
- The unit must be at least as wide as the doorway
(dimension b).
- Position the unit as near to the doorway as possible.
- The maximum mounting height of the unit (dimension
h, measured from the floor to the discharge grille)
depends on the unit type (see
Warning:
Table 2-1).
1.3.4).
w The minimum mounting height (dimension h) is
1.8
m.
Warning:
w The top of the unit may get hot. Mount the unit at
a minimum of 25 mm from the ceiling (dimension x
on
page 11).
Version: 4.0 (09-10-2008) 11
INSTALLATION COMFORT AIR CURTAIN
Table 2-1 Mounting height of unit
TYPE MAXIMUM MOUNTING HEIGHT H
SF SP 2.40 m
SF HP 3.00 m
• These heights apply under normal circumstances. If not
sure, ask Biddle for advice on the correct height.
Note:
n Mounting the unit at a height exceeding the maximum
height may affect the proper working of the unit.
2.4.2 Suspending and securing the unit
1. Fix four M8 threaded rods according to the dimensions in
Table 2-2. Make sure that the threaded rods are perpendicular.
2. Apply a lock nut 1 to each threaded rod.
3. Fix the unit to the threaded rods.
4. Secure the unit to the suspension rods by tightening the
1
a
c
b
d
lock nuts
Table 2-2 Dimensions for suspending the unit
REFERENCE TYPE DIMENSIONS
a all models as needed
b all models 35 mm
c all models 228 mm
d SF 100 896 mm
1.
SF 150 1396 mm
SF 200 1896 mm
12
MANUAL INSTALLATION
2.5 Connecting the unit to the central heating system
Water-heated models only
2.5.1 Particulars
1
Caution:
c The supply and return pipes of the central heating system
1
must be connected to the appropriate corresponding
connections
unit using arrows.
Caution:
1 (G1"). The directions are indicated on the
c When connecting the pipes, hold the connections 1 in
place using pliers.
Caution:
c Biddle recommends the inclusion of a valve and a relief
valve in both pipes, near the unit.
The maximum permissible operating pressure in the hot
water circuit is specified on the type plate (see
section
1.3.4). This pressure applies at a water tempera-
ture of 110 ºC.
2.5.2 Units without water-side control
1. Connect the unit to the central heating system.
2. Fill and bleed the system.
3. Check the connections for leaks.
2.5.3 Units with water-side control
Control for connection with touchpad controller.
1. Open the unit (see section 6.2).
2. Connect the unit and valve to the central heating system
according to the opposite diagram.
Version: 4.0 (09-10-2008) 13
INSTALLATION COMFORT AIR CURTAIN
3. Connect the valve to connector 1 according to the wir-
ing diagram.
4. Close the unit.
1
2
5. Manually open the valve using handle 2.
6. Fill and bleed the system.
7. Check the connections for leaks.
8. Place handle 2 back to its starting position.
Control for fixed discharge temperature
1. Open the unit (see section 6.2)
2. Connect the unit and valve to the central heating system
according to the opposite diagrams.
3. Mount the thermostatic control to the valve.
14
1
4. Make crosswise cuts in grommet 2.
5. Insert sensor 1 into the unit.
2
MANUAL INSTALLATION
6. Mount sensor 1 to the heat exchanger using the spring
clips
3.
7. Close the unit.
1
3
8. Set the thermostatic control to the desired discharge tem-
1
3
n Biddle recommends a discharge temperature of 35°C.
perature.
Note:
9. Fill and bleed the system.
10. Check the connections for leaks.
2.6 Connecting the unit to the power supply
2.6.1 Connecting water-heated models
1. Ensure that an (earthed) power point is available at a maximum of 1.5 m from the right-hand side of the unit.
Caution:
c Do NOT yet switch the mains supply on.
Warning:
w The unit must be earthed.
2.6.2 Connecting electrically-heated models
Danger:
d Do not perform the connection work unless you
are qualified to work with three-phase current.
Particulars
• Connect the unit to the power supply with a 5-core cable
(not supplied). The maximum load data are specified on
the type plate (see section
Version: 4.0 (09-10-2008) 15
1.3.4).
INSTALLATION COMFORT AIR CURTAIN
contact clearance
123N
RS TN
1
• An isolation switch (not supplied) must be fitted between
the unit and the power supply. This switch must:
- be all-pole;
- have a minimum contact clearance of 3 mm;
- be positioned within 4 m from the right side of the unit.
Warning:
w The unit must NOT be switchable using the power
supply cable – use the touchpad controller for that.
Warning:
w The unit must be earthed.
Warning:
w Connect the unit in accordance with the applicable
local requirements.
Performing the connection
Warning:
w Make sure that the power supply you are working
on is switched off.
2
1. Fit the isolation switch and connect it to the power supply.
2. Open the unit (see section 6.2).
3. Lead the mains supply cable through the cable gland 1.
4. Connect the cable to the terminal 2 in the unit according
to the wiring diagram.
5. Put back and screw down the inspection panel and grille.
6. Connect the mains supply cable to the isolation switch.
Caution:
c Do NOT yet switch the mains supply on.
16
MANUAL INSTALLATION
2.7 Setting a unit as master (SFi , optional)
With multiple units operated from one control panel
only
2.7.1 Working
On delivery, each unit comes set as equal. If you apply multiple units with one control panel, the units work independently:
• If you connect an external control (see section 2.8.1), only
the unit to which it is connected to will respond to it.
• With the automatic temperature control (see section
3.2.3), the temperature is regulated independently in each
unit.
You may choose to set one unit as master. By this, the working of the units will be linked:
• If you connect an external control to the master unit, the
other units will respond to it in the same way.
• With the automatic temperature control, all units are regulated from the master unit.
2.7.2 Setting the unit
With the unit that is to be set as master:
1. Open the unit. (see section 6.2)
2. Take out the PCB if necessary (see section 6.3)
3. Set DIP switch no. 3 on the PCB into the ’ON’ position.
Warning:
w NEVER change the settings of the other DIP
switches.
4. Close the unit.
With the other units, leave this setting unchanged.
Version: 4.0 (09-10-2008) 17
INSTALLATION COMFORT AIR CURTAIN
2.8 Connecting external controls (SFi , optional)
2.8.1 Input for external control
To the input, you may connect a door contact switch and/or a
BMS system.
The connector is located in the top of the unit. It comes with
a bridge in it on delivery. The connector is wired to the PCB
(connector INHIBIT).
The input is fit for potential-free switch contacts. It is operated as follows:
• contact closed (or with a bridge): The unit works normally.
• contact open: The unit remains switched off.
• with a resistance across the contact (3,3 kΩ): The unit works,
but the heating remains switched off (Summer setting).
Multiple units operated from one control panel
To let all connected units respond to the external control in
the same way:
1. Set one unit as master. (see section 2.7)
2. Connect the door contact switch to the master unit.
Note:
n Do NOT remove the bridges from the other units.
2.8.2 Output for fault signal indication
To the output, you may connect a BMS system.
The connector is located on the PCB (connector HEALTHY).
The output works as follows:
• 24V DC: The unit is working normally.
• no potential: Either the high-limit thermostat has switched
INHIBITHEALTHY
off the heating, or no power is supplied to the unit.
18
MANUAL INSTALLATION
2.9 Installing the controller
2.9.1 Mounting and connecting the touchpad
controller (SFi
)
Note:
n Take the following into account, otherwise faults may
occur:
- Keep control cables away from electromagnetic fields
and interference sources such as high-voltage cables
and fluorescent-light starters.
- Stretch control cables out or wind them bifilarly.
1. Drive two screws into the wall at a centre distance of 80
80 mm
mm Keep a clearance of approx. 2 mm between screw
head and wall.
2. Hook the control panel on the screws using the key holes.
1
3. Connect the controller cable to socket 1 in the top of the
unit.
SFi
2
2
1
touchpad controller
Multiple units operated from one control panel
•Only SFi -type units can be simultaneously operated using
one single control panel.
• Up to 100 units can be connected to one single control
panel. The units must be interlinked using special control
cable from Biddle.
• The total length of the control cables is not to exceed
100m.
• If a unit has been set as master: the control panel may be
connected to any unit.
Note:
n Use only control cables from Biddle. Standard modular
telephone cable is not suitable.
1
12
SFi
2
SFi
1. Interlink the units: Connect the control cable of the unit to
which the controller is linked to socket 2, and that of the
next unit to socket
1.
Version: 4.0 (09-10-2008) 19
INSTALLATION COMFORT AIR CURTAIN
2.9.2 Mounting and connecting the three-speed switch
(SFs
)
Fix the three-speed switch to the wall or to a standard socket.
1. Open the unit (see section 6.2).
2. Connect a 4-core cable to terminal strip 1 according to
the wiring diagram.
3. Open the three-speed switch by:
- pulling knob 1 out;
- loosening screws 2 and removing cover 3;
- loosening screws 4 and removing switch 5.
1
4. Make a hole in the switch casing 6 and lead the feeder
cable through it. Mount the switch casing to the wall or
install a standard power socket.
6
5
4
3
2
5. Connect the 4-core cable to switch 5 according to the
wiring diagram.
6. Mount switch 5 to the switch casing or to the power
socket.
7. Replace cover 3 and knob 1.
1
Caution:
c Make sure that the switch indicates the correct speed on
the cover.
Warning:
w Never connect more than one unit to a three-speed
switch.
20
MANUAL INSTALLATION
4
2.10 Integrating the unit
The SF is as standard fit for integration into coves or above
2
1
suspended ceilings. To that end, the discharge section pro
trudes 24mm from the bottom of the unit. If that is not
enough, the unit can be supplied with a loose telescopic dis
charge grille instead of the standard mounted discharge grille.
Optionally, an air intake grille for integration can be supplied.
2.10.1 Mounting the telescopic discharge grille
1. Make a hole in the ceiling for the discharge section (see
Ta b le
2-3 for the dimensions).
2. Using the supplied screws, fix the two angle profiles 1 to
the unit, along the edges of the discharge opening.
3. Slide the telescopic discharge grille 2 into the unit's dis-
charge opening until you reach the desired height.
4. Fix the discharge duct to the angle profiles 1 using the
supplied screws.
-
-
4
Table 2-3 Dimensions of hole for discharge section
REFERENCE TYPE DIMENSIONS
a
b
3
4
a
b
a SF S-R 90 mm
b SF 100-R 970 mm
SF 150-R 1470 mm
SF 200-R 1970 mm
2.10.2 Mounting the integrated intake grille (option)
1. Make a hole in the ceiling for the integrated intake grille
(see Table
2. Hang up the integrated intake grille 3. To do so, use the
screw eyes
Table 2-4 Dimensions of hole for the integrated intake grille
REFERENCE TYPE DIMENSIONS
a SF -R 205 mm
b SF 100-R 970 mm
2-4).
4 or four threaded rods M6.
SF 150-R 1470 mm
SF 200-R 1970 mm
Version: 4.0 (09-10-2008) 21
INSTALLATION COMFORT AIR CURTAIN
2.11 Applying the edge finishing
This only applies if you integrate the unit into a cove or a suspended ceiling.
1. Fix the edge finishing strips to the discharge section of the
unit.
Caution:
c For the unit to work properly, the cove or ceiling must
have enough openings through which the unit can take air
in.
2.12 Switching On and checking operation
1. Check the following connections:
- power supply;
- control cable(s) between controller and unit(s);
- external control components (if used).
2. Only SF W:
- Check if the heat exchanger is connected correctly.
- Make sure the central heating system is turned on.
3. Switch the mains power on and/or plug in all connected
units.
4. Switch the air curtain on using the controller (see
sections
5. Make sure heating is enabled in the controller (only SFi ,
see section
6. Feel whether the discharged air stream is getting warm
(not for SF A). This may take some time.
3.1 and 3.2.1).
3.2.3).
22
MANUAL OPERATION
3 . . Operation
This section describes the functions you should know for the
day-to-day use of the comfort air curtain.
3.1 Three-speed switch (SFs )
The three-speed switch of the SFs allows you to switch the air
curtain On and Off and to set the strength of the air curtain.
The three-speed switch is used for units without heating
(SFs
A) as well as for water-heated units (SFs W) either with-
out discharge temperature control or with a fixed discharge
1
temperature.
3.2 Touchpad controller (SFi )
3.1.1 Setting the air curtain strength
• Turn knob 1 to the desired mode:
0 = Off
1 = Low
2 = Medium
3 = High
Recommended air curtain strength
To achieve maximum climate separation with minimum energy
consumption, Biddle recommends to select the lowest
strength at which no draught occurs.
All functions of the SFi can be operated from the touchpad
controller. The controller allows you to:
• switch the air curtain On and Off;
• set the strength of the air curtain;
• enable and disable heating;
• regulate the desired room temperature;
• control the desired heating capacity.
Version: 4.0 (09-10-2008) 23
OPERATION COMFORT AIR CURTAIN
Multiple units operated from one control panel
If multiple units are connected to one control panel, its settings will be the same for all units.
2 4 6
1 3 5
LEDs
3.2.1 Switching the air curtain On and Off
You can switch the air curtain On and Off manually.
• Press key 1 briefly to switch the air curtain On or Off.
Upon switching off the unit, the heat and air-flow settings are
retained. If heating is enabled, the unit will keep on running at
low speed for another minute.
3.2.2 Setting the air curtain strength
You can set the strength of the air curtain by choosing from 3
fan speeds.
• Press key 4 to increase the air curtain strength by one
step.
• Press key 3 to decrease the air curtain strength by one
step.
LEDs on the controller indicate the air curtain strength.
Recommended air curtain strength
To achieve maximum climate separation with minimum energy
consumption, Biddle recommends to select the lowest
strength at which no draught occurs.
3.2.3 Enabling or disabling heating
Depending on the type of the unit, the heating of the air curtain can be controlled automatically and manually. This only
applies for the types SFi
sponding water-side control.
E and for the types SFi W with corre-
Note:
n With the types SFi W without water-side control or with
fixed discharge temperature and with the types SFi
heating is indicated on the controller but has no function.
You can disable heating to achieve climate separation without
heating the air if, for instance, the air is cooled inside and is
colder than outside.
A,
24
MANUAL OPERATION
LED
2 6
5
6
Automatic temperature control
In the Automatic mode, the unit reads the air inlet temperature and automatically selects the heating level required to
reach or maintain the preset air temperature level.
• Press key 2 to enable or disable automatic temperature
control.
If automatic temperature control is enabled, the LED next
to the text “AUTO” on the controller will be lit.
•Keys 5 and 6 allow you to regulate the desired room
temperature.
If the first LED is lit, heating is disabled. The next LEDs
24°C18°Coff
indicate the temperature setting from 18°C to 24°C. This
temperature is read in the unit’s air intake section and may
slightly differ from the real room temperature.
Setting heating manually
In the Manual mode, you can set the heating at full or half
capacity or you can disable heating.
2
1 3
5
• Press key 6 to increase heating by one step.
• Press key 5 to decrease heating by one step.
LEDs on the controller indicate the unit’s heating level.
3.2.4 Enabling or disabling Automatic restart
When the supply power is interrupted, you can have the unit
operate in either of the following ways:
100%50%off
• Automatic restart (default setting): The control panel retains
all settings, and the unit will continue to work in the same
way when the power is restored.
• Manual restart: The unit remains off when the power is
restored.
To change this setting:
1. Switch the unit on with key 1.
2. Hold down key 2 until the LED next to “AUTO” flashes.
3. Press key 3 to toggle the setting.
Version: 4.0 (09-10-2008) 25
MAINTENANCE COMFORT AIR CURTAIN
4. . Maintenance
4.1 Cleaning the unit
You may clean the exterior of the unit with a damp cloth and a
domestic cleaner. Do not use any solvents.
Caution:
c Make sure no water runs into the unit.
4.2 Scheduled maintenance
Biddle recommends to have the following inspection and maintenance works performed by an installer or other technical
expert each year.
• Check if the heat exchanger or the electric heating elements are clean. Settled dust may cause unpleasant smells.
• Gently remove dust with a vacuum cleaner.
Caution:
c The fins of the heat exchanger are delicate parts.
Warning:
w The fins of the heat exchanger are sharp.
• Check the operation of the fans.
26
MANUAL FAULTS
5 . . Faults
5.1 Safety instructions
Danger:
d Work on the unit’s interior shall be performed by
qualified technical staff only.
Warning:
w Before opening the unit, follow the safety instruc-
tions in section 1.4.
5.2 Fault-finding by the user
If you suspect a fault, first try to resolve the problem using
Table 5-1. You need not be an expert for this.
5.3 Fault-finding by the installer
If table 5-1 does not provide the solution to the problem,
table 5-2 can be used to investigate the fault further. Contact
the supplier if table 5-2 does not provide the solution either
c First run through table 5-1 before considering the actions
d The actions in table 5-2 may be performed by quali-
.
Caution:
in table 5-2.
Danger:
fied staff only
Version: 4.0 (09-10-2008) 27
FAULTS COMFORT AIR CURTAIN
Table 5-1 Resolving simple problems
PROBLEM LIKELY CAUSE WHAT TO DO
There’s a draught. The air curtain is Off. Switch the air curtain On.
The strength of the air curtain is
too low.
The strength of the air curtain is
too high.
Switch the air curtain to a higher
strength.
Switch the air curtain to a lower
strength.
The unit’s heating is disabled(SFi ). Enable heating.
The heating level is too low (SFi ). Switch heating to a higher level.
It is too hot. Together, the room heating and
the air curtain produce too much
heat.
• Reduce the room heating.
• Switch the unit to a lower
strength.
• Switch heating to a lower
It is too cold. The heating in the room is insuffi-
cient.
level (SFi
• Increase room heating.
• Switch the unit to a higher
).
speed.
• Switch heating to a higher
It is too noisy The unit is operating at the high-
est strength.
The unit does not work, and the
controller display is blank.
The unit is Off. Switch On the unit.
No power is supplied to the unit. Check the mains power supply:
level (SFi
Switch the unit to a lower
strength.
).
• is the unit plugged in?
• is the isolation switch
switched On?
• is the mains power supply
switched On?
The air curtain is switched Off
but is still working.
The unit is cooling down automatically (SFi ).
This is not a fault. Normally, the
unit will automatically shut down
within 1 minute.
28
MANUAL FAULTS
Tabel 5-2 Remedying faults by the installer
PROBLEM LIKELY CAUSE WHAT TO DO
The controller
works normally but
the unit does not
respond.
The unit does not
work and the LEDs on
the controller are not
lit.
One fan does not
work.
The fans do not
operate at a certain
strength.
Not all connected
units are working.
The fans are dead. 1. Check the fuse on the PCB.
2. Check the wiring between the PCB and the fans.
The connection
between the control
ler and the PCB is
1. Check the control cable.
-
2. Check the wiring between the connectors 1 and 2
(see section
2.9.1) and the PCB in the unit.
not correct.
The contact on the
input for external
controls is open.
If no external control component has been connected:
1. Check the bridge on the input.
If an external control is present (door contact switch or
BMS):
2. Check the operation of the control component.
3. Check the wiring and the connection of the control
component to the input. (see section
2.8).
4. Check the wiring between the input and the PCB (connector INHIBIT).
The unit is dead 1. Check the power connections, wiring and fuses.
The PCB does not
work.
1. Check the fuse on the PCB.
2. Check the feeder cable.
3. Replace the PCB.
The controller is
defective.
The fan is dead or
defective.
The connection for
1. Check the controller by connecting it to another unit.
Replace the controller if it does not work.
1. Check the wiring of the fan.
2. Replace the fan.
1. Check the wiring of the fans.
the relevant strength
is not correct.
The controller does
not communicate
with one or more
connected units.
1. Check if mains power is supplied to all connected units.
2. Check the control cables:
- are they properly connected and free from breaks?
- are they either stretched out or wound bifilarly?
- are they shielded from magnetic fields?
3. Check PCB fuses in all connected units.
4. Check the wiring between the connectors 1 and 2
(see section
2.9.1) and the PCB.
Version: 4.0 (09-10-2008) 29
FAULTS COMFORT AIR CURTAIN
Tabel 5-2 Remedying faults by the installer
P
ROBLEM LIKELY CAUSE WHAT TO DO
Multiple units connected to one: control panel:
The units do not
respond to the
external control
(door contact switch
or BMS) in the same
way.
The unit blows cold
air.
The unit blows cold
air.
The air discharged is
not hot enough.
The unit continues
discharging hot air.
The master unit has
not been set prop
-
erly.
The contact to the
input for external
controls is open.
SF W:
No hot water is supplied to the unit.
SF E:
The high-limit thermostat switched the
unit Off: this is to
protect against over
heating.
SF W:
The thermostat was
wrongly set.
SF W:
The supplied water
temperature is too
low.
SF E:
One or more power
supply phases fail.
SFi W:
The valve was
opened manually.
1. Check if the unit to which the external control has
been connected has been set as master. (see section
2.7)
1. Check the bridges on the inputs of the units that have
not been connected to the external control.
• Check the central heating system.
SFi W:
1. Check if the valve lets hot water pass through.
2. Check the wiring and connectors of the valve drive and
the intake air temperature sensor.
3. Take the drive from the valve, and check the interior
for mechanical operation and defects.
This fault may occur: if the unit has been temporarily dead,
e.g., due to a power failure.
In other cases, there may be a serious defect that
may pose a risk to persons.
-
1. Check and reset the high-limit thermostat (see section
6.5).
2. Check the fans. If one or more fans do not work,
check:
- the fan wiring;
- the connections to the PCB;
- the PCB fuses.
If these are OK, replace the fan.
Set the control thermostat at the desired discharge temperature.
Increase the water temperature of the central heating system.
Check the fuses of the power supply and the electrical
connections.
Put valve handle 2 of the valve actuator back to the left
(see section
2.5.3)
30
MANUAL FAULTS
Tabel 5-2 Remedying faults by the installer
P
ROBLEM LIKELY CAUSE WHAT TO DO
The unit always
blows cold air in the
Automatic mode.
Multiple units connected to one control panel:
The units heat unequally in the Automatic mode.
The temperature
sensor is not work
ing.
The temperature is
controlled independ
ently in each unit.
1. Check connection J3 on the PCB.
-
2. Replace the sensor.
1. Set one unit as master. (see section 2.7)
-
Version: 4.0 (09-10-2008) 31
SERVICE COMFORT AIR CURTAIN
6. . Service
6.1 Safety instructions
Danger:
d Service work on the unit may be performed by
qualified technical staff only.
Warning:
w Before opening the unit, follow the safety instruc-
tions in section 1.4.
6.2 Access to the interior of the unit
For all models
1. Switch the unit Off using the controller.
Warning:
w Disconnect the power supply (pull plug from socket
or move isolation switch to Off).
2. Detach the inlet grille from the unit:
- Only for SF E and SF A: remove the screws 1 from the
grille.
- Pull the grille 2 forward using the white clamps 3 at
the bottom.
Warning:
3
2
1
w The heat exchanger or heating elements may be
ç
hot.
3. Remove the inspection panel:
32
4
- Remove the screws 4.
- Pull the panel a little forward and take it away.
Caution:
c The whole panel will come loose when you pull it for-
ward: take care it does not fall down.
MANUAL SERVICE
6.3 PCB (SFi )
6.3.1 Introduction
The unit has one fused PCB.
The SFi E and the SFi W house the PCB at different locations.
Note:
n The PCB in your unit may look different from the PCB
illustrated opposite.
1
1
6.3.2 Removing the PCB (SFi W)
1. Switch the unit Off using the controller.
Warning:
w Disconnect the power supply (pull plug from socket
or move isolation switch to Off).
2. Remove the inspection panel (see section 6.2).
3. Remove the screws 1 at the upper side of the unit.
4. Remove the PCB 2.
5. Disconnect all unit-connected connectors and earth connections from the PCB.
2
6.3.3 Removing the PCB (SFi E)
1. Switch the unit Off using the controller.
Warning:
w Disconnect the power supply (pull plug from socket
or move isolation switch to Off).
2. Remove the inspection panel (see section 6.2).
3. Disconnect all unit-connected connectors and earth connections from the PCB 1.
1
Version: 4.0 (09-10-2008) 33
4. Remove the PCB.
SERVICE COMFORT AIR CURTAIN
6.3.4 DIP switches on the PCB
Warning:
w NEVER change the settings of the DIP switches,
unless instructed otherwise.
Caution:
c If you replace the PCB: set the DIP switches on the new PCB
in the same positions as the old PCB.
6.4 Fuses (SFi )
The unit’s PCB has 2 fuses. Their values are indicated on the
PCB.
6.5 Resetting the high-limit thermostat (SFi E)
The electrically-heated units come with a high-limit thermostat to protect against overheating.
1. Open the unit.
2. Push back the pin of the high-limit thermostat 1.
3. Check the unit’s connections.
4. Close the unit.
1
5. Check the operation of the fans.
34
MANUAL SERVICE
6.6 Composition of Biddle control cable
The control cable for Biddle units is different from standard
modular telephone cables.
The connectors are of the RJ-11 type but the connections are
‘straight’ at both ends of the cable, the core is connected to
the same pin.
Table 6-1 Colour codes of Biddle cables
PIN COLOUR
165432
1 (not used)
2 black
3 red
4 green
5 yellow
6 (not used)
Version: 4.0 (09-10-2008) 35
Declaration of Conformity
Manufacturer: Biddle BV
Address: Markowei 4
9288 HA Kootstertille
THE NETHERLANDS
We declare that the following product.
Product description: Comfort Air curtain
Brand: Biddle
Model: SF
Type: SF
SF
SF
In accordance with the following Directives:
73/23/EEC the Low Voltage Directive
89/336/EEC the Electromagnetic Compatibility Directive
has been designed and manufactured to the following specifications:
- EN 61000-6-2
- EN 50081-2
- EN 60335-2-30
I hereby declare that the equipment named above has been designed to comply with the relevant
sections of the above referenced specifications. The unit complies with all essentials requirements of
the directives.
Signed by : P. Stoelwinder, Managing Director, 30-03-2004
SP-100-A/E/W-F ; SFi SP-150-A/E/W-F ; SFi SP-200-
i
A/E/W-F
HP-100-A/E/W-F ; SFi HP-150-A/E/W-F ; SFi HP-200-
i
A/E/W-F
SP-100-A/W-F ; SFs SP-150-A/W-F ; SFs SP-200 A/W-F
SF
s
HP-100-A/W-F ; SFs HP-150-A/W-F ; SFs HP-200-A/W-F
s
ce declaration sf.doc
Loading...
