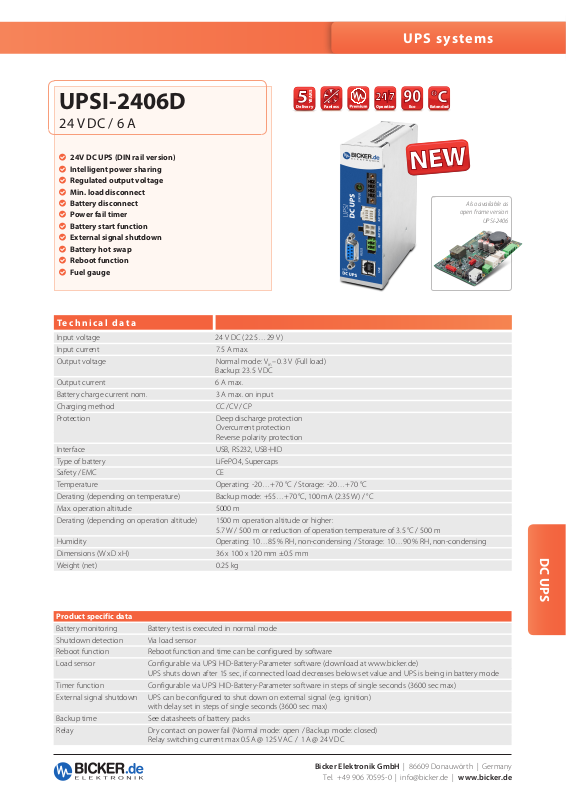

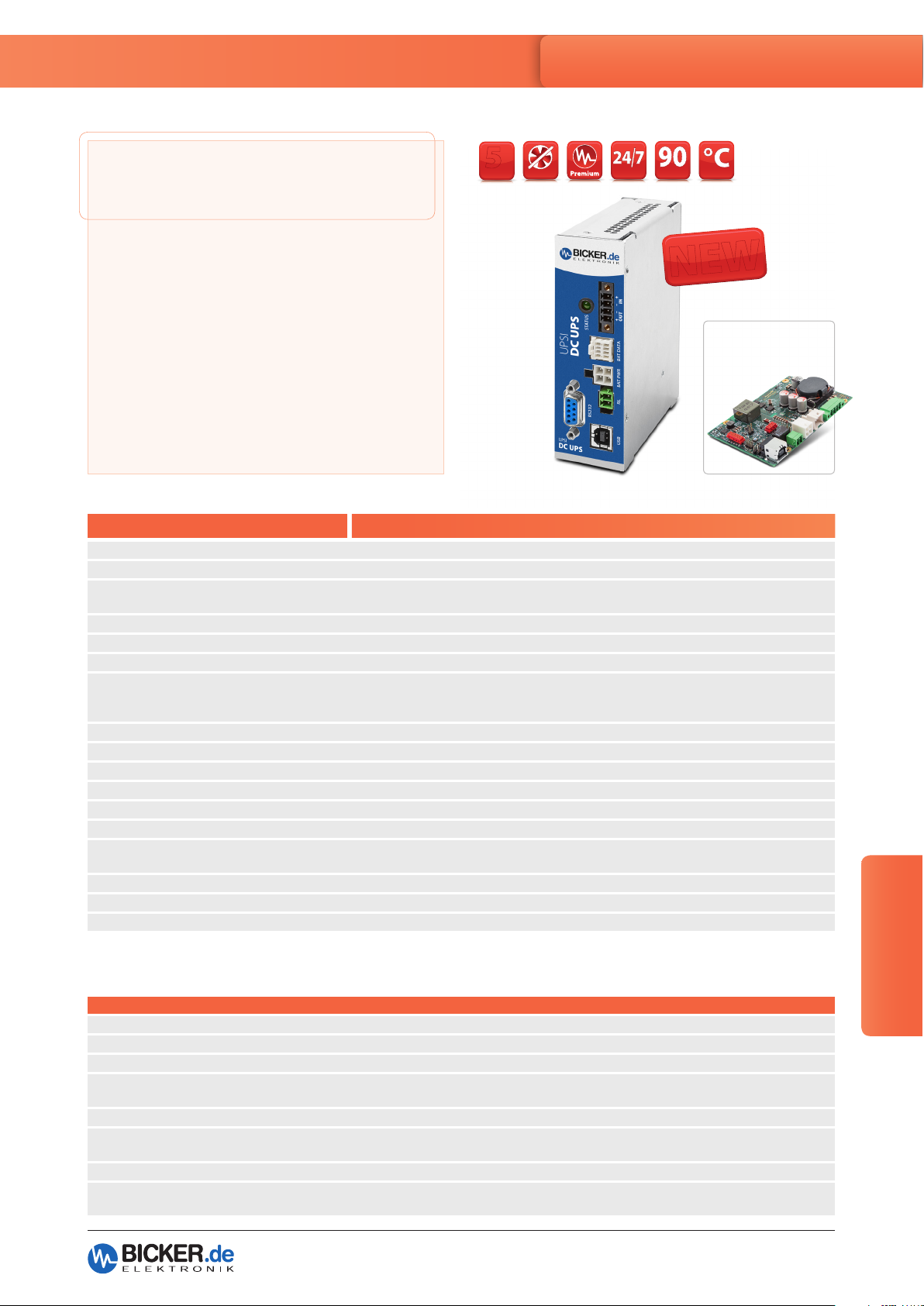

UPSI-2406D
Delivery
YEARS
Fanless
Operation
Eco
Extended
24 V DC / 6 A
24V DC UPS (DIN rail version)
Intelligent power sharing
Regulated output voltage
Min. load disconnect
Battery disconnect
Power fail timer
Battery start function
External signal shutdown
Battery hot swap
Reboot function
Fuel gauge
Technical data
Input voltage 24 V DC (22.5…29 V)
Input current 7.5 A max.
Output voltage Normal mode: V
Backup: 23.5 V DC
Output current 6 A max.
Battery charge current nom. 3 A max. on input
Charging method CC / CV / CP
Protection Deep discharge protection
Overcurrent protection
Reverse polarity protection
Interface USB, RS232, USB-HID
Type of battery LiFePO4, Supercaps
Safety / EMC CE
Temperature Operating: -20…+70 °C / Storage: -20…+70 °C
Derating (depending on temperature) Backup mode: +55…+70 °C, 100 mA (2.35 W) / °C
Max. operation altitude 5000 m
Derating (depending on operation altitude) 1500 m operation altitude or higher:
5.7 W / 500 m or reduction of operation temperature of 3.5 °C / 500 m
Humidity Operating: 10…85 % RH, non-condensing / Storage: 10…90 % RH, non-condensing
Dimensions (W x D x H) 36 x 100 x 120 mm ±0.5 mm
Weight (net) 0.25 kg
– 0.3 V (Full load)
in
Also available as
open frame version
UPSI-2406
DC UPS
Product specific data
Battery monitoring Battery test is executed in normal mode
Shutdown detection Via load sensor
Reboot function Reboot function and time can be configured by software
Load sensor Configurable via UPSI HID-Battery-Parameter software (download at www.bicker.de)
UPS shuts down after 15 sec, if connected load decreases below set value and UPS is being in battery mode
Timer function Configurable via UPSI HID-Battery-Parameter software in steps of single seconds (3600 sec max)
External signal shutdown UPS can be configured to shut down on external signal (e.g. ignition)
with delay set in steps of single seconds (3600 sec max)
Backup time See datasheets of battery packs
Relay Dry contact on power fail (Normal mode: open / Backup mode: closed)
Relay switching current max 0.5 A @ 125 V AC / 1 A @ 24 V DC
Bicker Elektronik GmbH | 86609 Donauwörth | Germany
Page 2
UPSI
DC UPS
BAT PWR USB
RS232
RL
BAT DATA
STATU S
UPSI
DC UPS
– +
IN
+ –
OUT

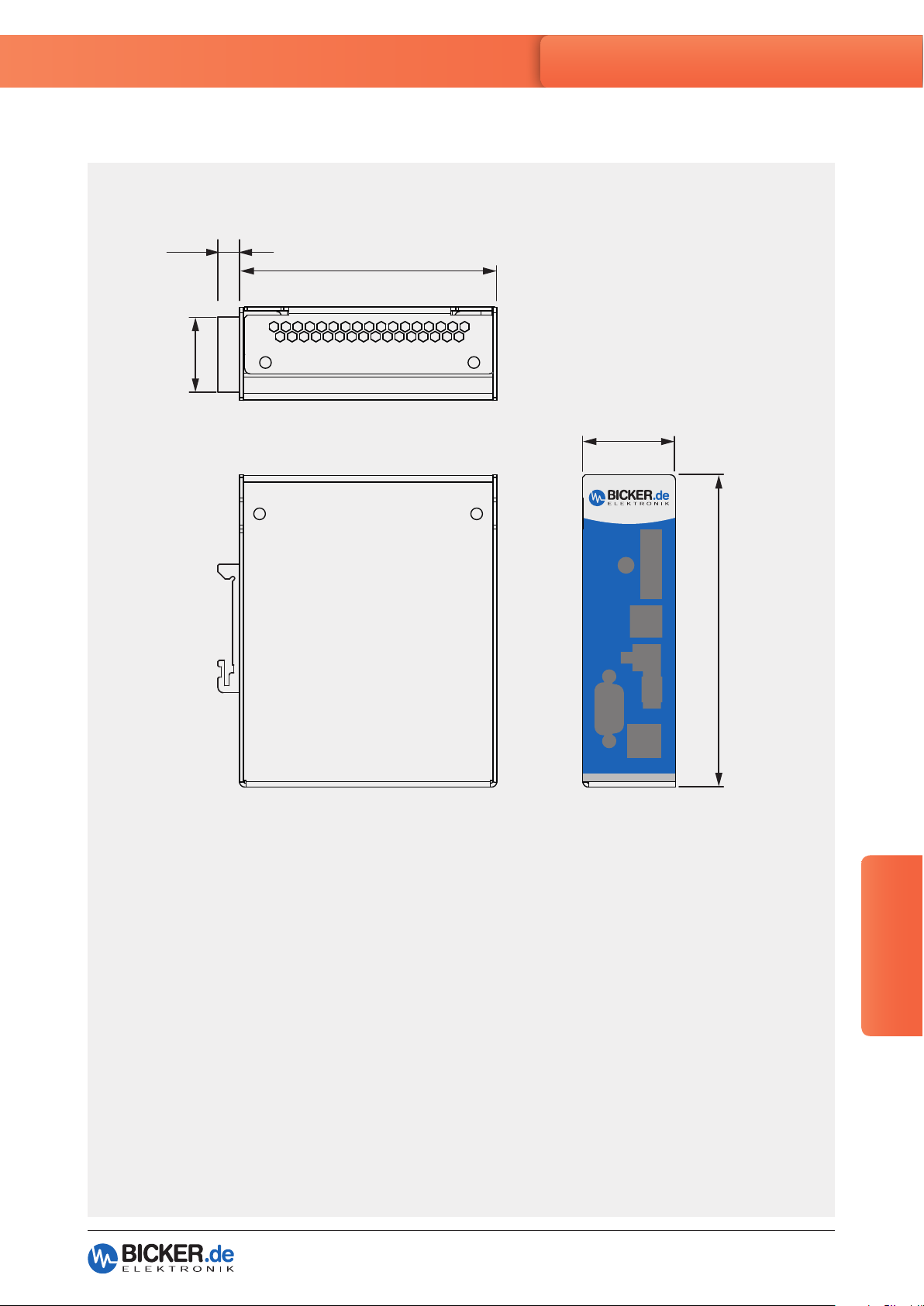

Drawing UPSI-2406D
9 mm
29 mm
UPS systems
Tolerance ±0.5 mm
100 mm
36 mm
120 mm
DC UPS
Bicker Elektronik GmbH | 86609 Donauwörth | Germany
Page 3
Battery packs for UPSI-2406D
UPS systems
Technology P/N Description V
out
regulated
LiFePO4 BP-LFP-1325D LiFePO4, 1p4s, 2.5 Ah,
EDLC
(Supercaps)
33 Wh, 13.2 V
26650
BP-SUC-1615D EDLC, 1p6s 15.6 V
100 F,
nom
18.6…30 V 140 W 45 x100 x 120 mm -20…+55 °C ~ 33 min @ 50 W
,
,
18.6…30 V 140 W 63 x 100 x 120 mm -20…+70 °C ~ 29 s @ 50 W
nom
2.7 kJ (useful 1.5 kJ)
,
BP-SUC-2120D EDLC, 1p8s 20.8 V
100 F,
nom
22…30 V 140 W 63 x 100 x 120 mm -20…+70 °C ~ 39 s @ 50 W
3.6 kJ (useful 2 kJ)
Larger capacities on request
P/N explanation battery packs
BP – XXX – YYZZD
Battery Pack LFP = LiFePO4 YY Approx. nom. V
SUC = Supercaps ZZ Capacitance (LiFePO4 in 10
D DIN rail casing
Dimensions
out
approx.
P
WxDxH
Temperature
(charging &
backup)
Nominal
backup time
~ 16 min @ 100 W
~ 12 min @ 140 W
~ 14 s @ 100 W
~ 10 s @ 140 W
~ 19 s @ 100 W
~ 14 s @ 140 W
-1
Ah) or useful energy (Supercaps in 10-1 kJ)
Example:
BP-LFP-1325D
BP Battery Pack
LFP Storage medium: LiFePO4
13 13.2 V
25 2.5 Ah
D DIN rail casing
nom
DC UPS
Specification is subject to change without notice. Errors excepted. Status as at: 09.07.2018
Bicker Elektronik GmbH | 86609 Donauwörth | Germany
Tel. +49 906 70595-0 | [email protected] | www.bicker.de
