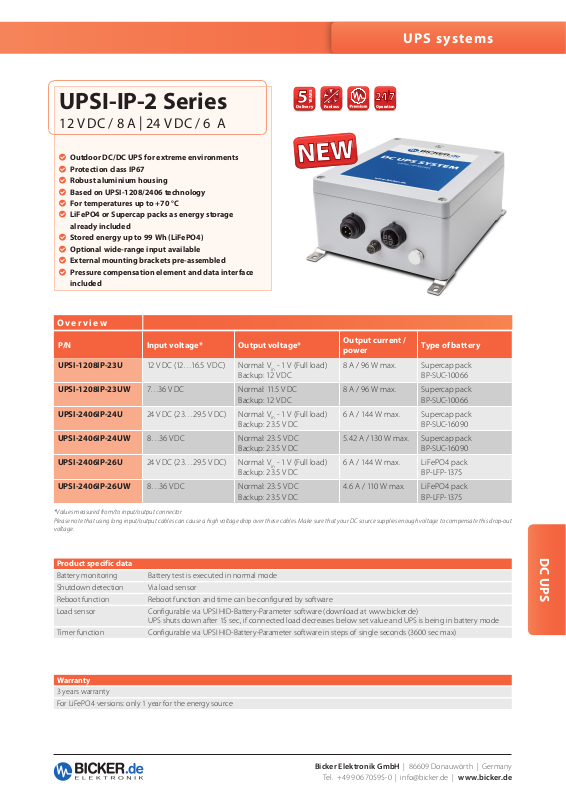

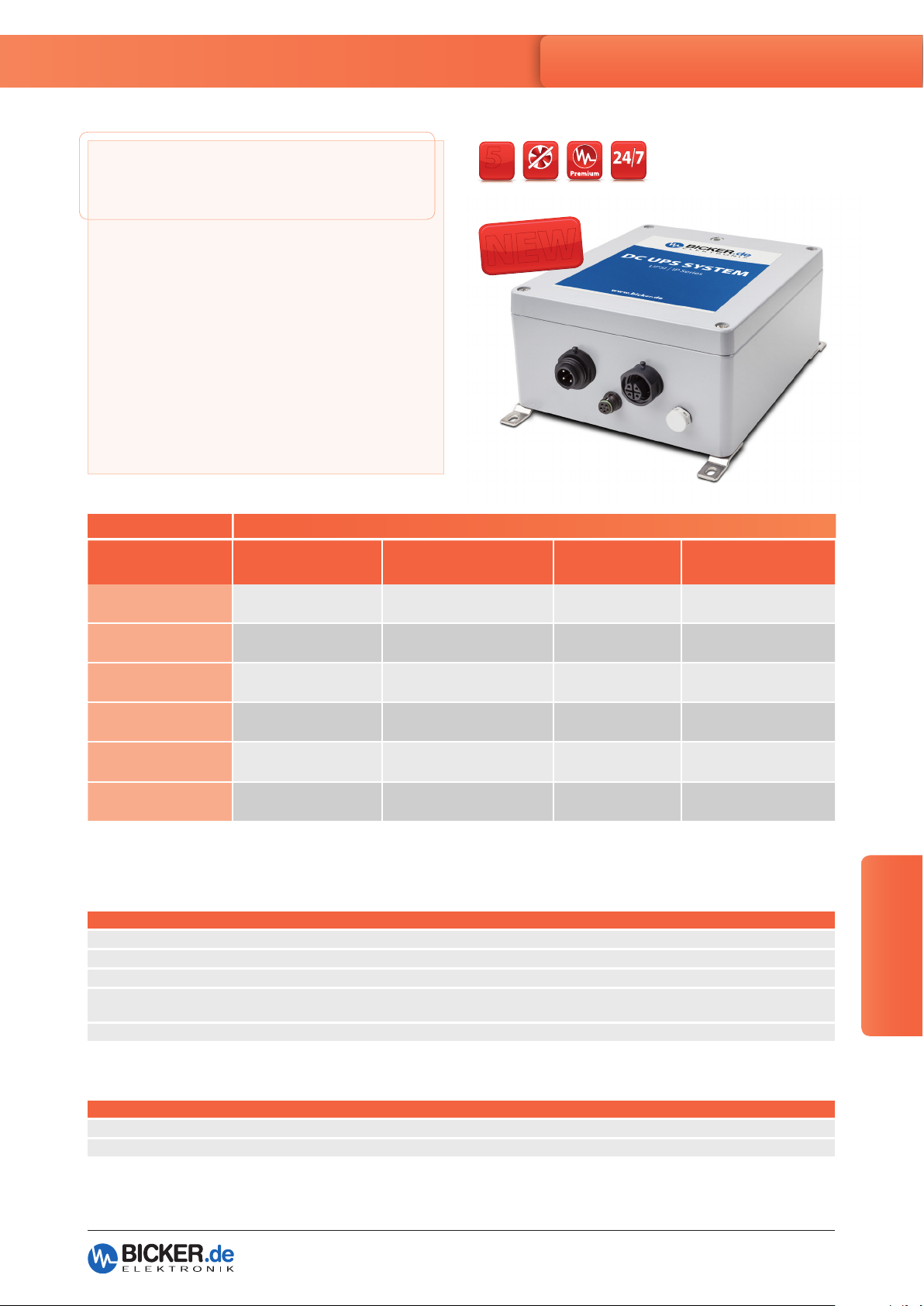

Page 1
Operation
Fanless
UPS systems
NEW
5
Delivery
5
YEARS
UPSI-IP-2 Series
Delivery
YEARS
Fanless
Operation
12 V DC / 8 A | 24 V DC / 6 A
Outdoor DC/DC UPS for extreme environments
Protection class IP67
Robust aluminium housing
Based on UPSI-1208/2406 technology
For temperatures up to +70 °C
LiFePO4 or Supercap packs as energy storage
already included
Stored energy up to 99 Wh (LiFePO4)
Optional wide-range input available
External mounting brackets pre-assembled
Pressure compensation element and data interface
included
Overview
P/N Input voltage* Output voltage*
UPSI-1208IP-23U 12 V DC (12…16.5 V DC) Normal: V
Backup: 12 V DC
UPSI-1208IP-23UW 7…36 V DC Normal: 11.5 V DC
Backup: 12 V DC
UPSI-2406IP-24U 24 V DC (23…29.5 V DC) Normal: V
Backup: 23.5 V DC
UPSI-2406IP-24UW 8…36 V DC Normal: 23.5 V DC
Backup: 23.5 V DC
UPSI-2406IP-26U 24 V DC (23…29.5 V DC) Normal: V
Backup: 23.5 V DC
UPSI-2406IP-26UW 8…36 V DC Normal: 23.5 V DC
Backup: 23.5 V DC
*Values measured from/to input/output connector
Please note that using long input/output cables can cause a high voltage drop over these cables. Make sure that your DC source supplies enough voltage to compensate this drop-out
voltage.
- 1 V (Full load)
in
- 1 V (Full load)
in
- 1 V (Full load)
in
Output current /
power
8 A / 96 W max. Supercap pack
8 A / 96 W max. Supercap pack
6 A / 144 W max. Supercap pack
5.42 A / 130 W max. Supercap pack
6 A / 144 W max. LiFePO4 pack
4.6 A / 110 W max. LiFePO4 pack
Type of battery
BP-SUC-10066
BP-SUC-10066
BP-SUC-16090
BP-SUC-16090
BP-LFP-1375
BP-LFP-1375
Product specific data
DC UPS
Battery monitoring Battery test is executed in normal mode
Shutdown detection Via load sensor
Reboot function Reboot function and time can be configured by software
Load sensor Configurable via UPSI HID-Battery-Parameter software (download at www.bicker.de)
UPS shuts down after 15 sec, if connected load decreases below set value and UPS is being in battery mode
Timer function Configurable via UPSI HID-Battery-Parameter software in steps of single seconds (3600 sec max)
Warranty
3 years warranty
For LiFePO4 versions: only 1 year for the energy source
Bicker Elek tronik GmbH | 86609 Donauwörth | Germany

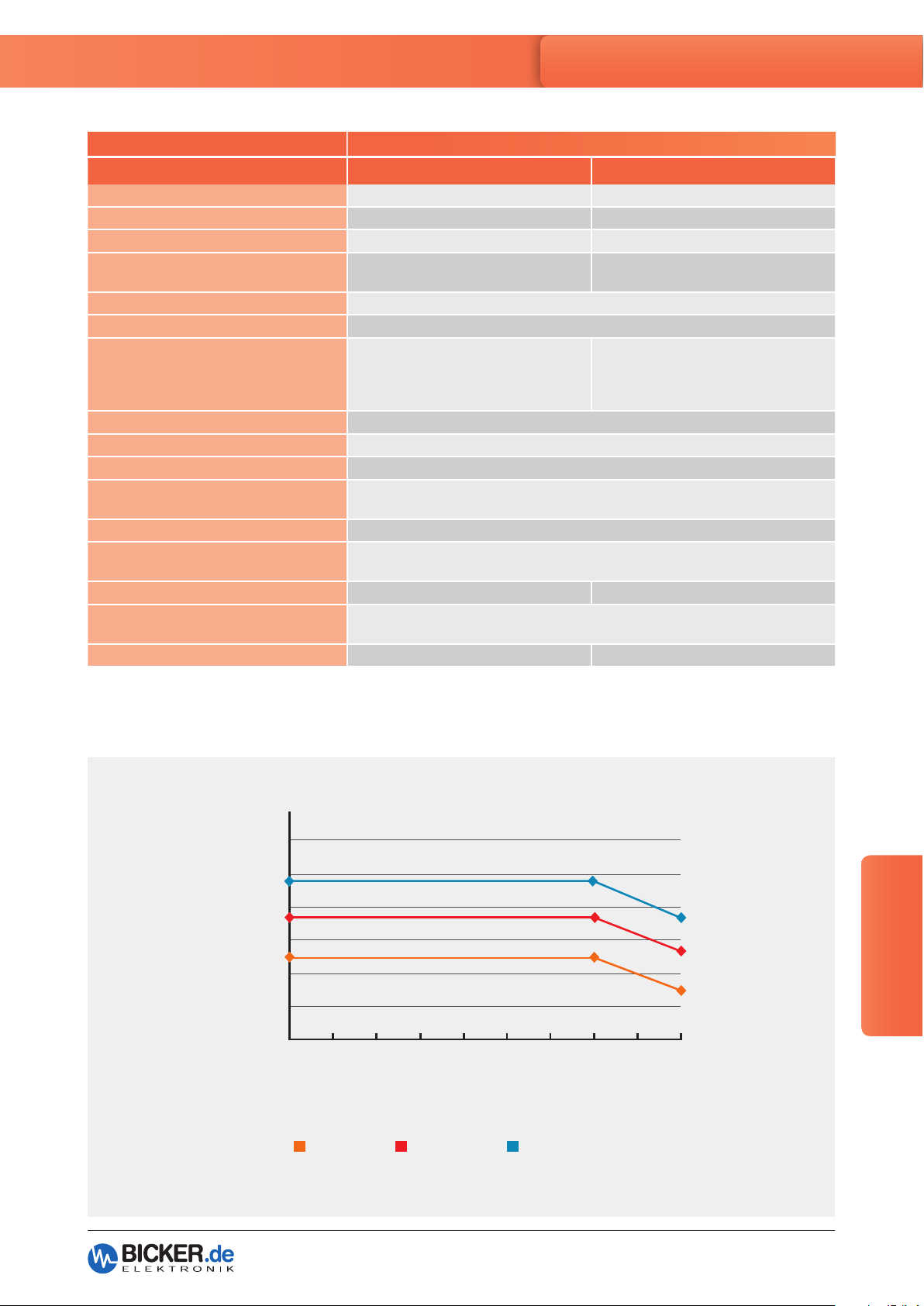

Page 2
UPS systems
Technical data
P/N UP SI-120 8IP-23U UPSI-1208IP-23UW
UPS version UP SI-1208 UP SI-1208
Input voltage* 12 V DC (12…16.5 V DC) 7…36 V DC (see diagram)
Input current 9.5 A max. 16 A max.
Output voltage* Normal: V
Backup: 12 V DC
Output current / power 8 A max. / 96 W max.
Charging method CC / CV / CP (dynamic)
Protection Deep discharge protection
Interface USB, USB-HID
Type of battery / storage Supercap pack BP-SUC-10066
Energy of storage pack 9.8 kJ (useful 6.6 kJ)
Temperature Operating: -20…+70 °C
Max. operation altitude 5000 m
Derating (depending on operation altitude) 1500 m operation altitude or higher:
Derating (depending on temperature) – See diagram
Dimensions (Wx D x H) 202 x 267 x 117 mm ±0.5 m (inclusive mounting brackets)
Weight (net) ~3.45 kg ~3.55 kg
*Values measured from/to input/output connector
- 1 V (full load)
in
Overcurrent protection
Reverse polarity protection
Storage: -20…+70 °C
3.5 W / 500 m or reduction of operation temperature of 3.5 °C / 500 m
202 x 232 x 110 mm ±0.5 mm (housing without brackets or connectors)
Normal: 11.5 V DC (full load)
Backup: 12 V DC
Deep discharge protection
Overcurrent protection
Over temperature protection: depends
on ambient temperature and load
Derating UPSI-1208IP-23UW
120
100
80
60
40
[W]
Out
P
20
0
-20 -10 0 10 20 30 40 50 60 70
Vin:
7–8 VDC 8–9 VDC 9–36 VDC
DC UPS
Ambient temperature [°C]
Bicker Elek tronik GmbH | 86609 Donauwörth | Germany
Page 3

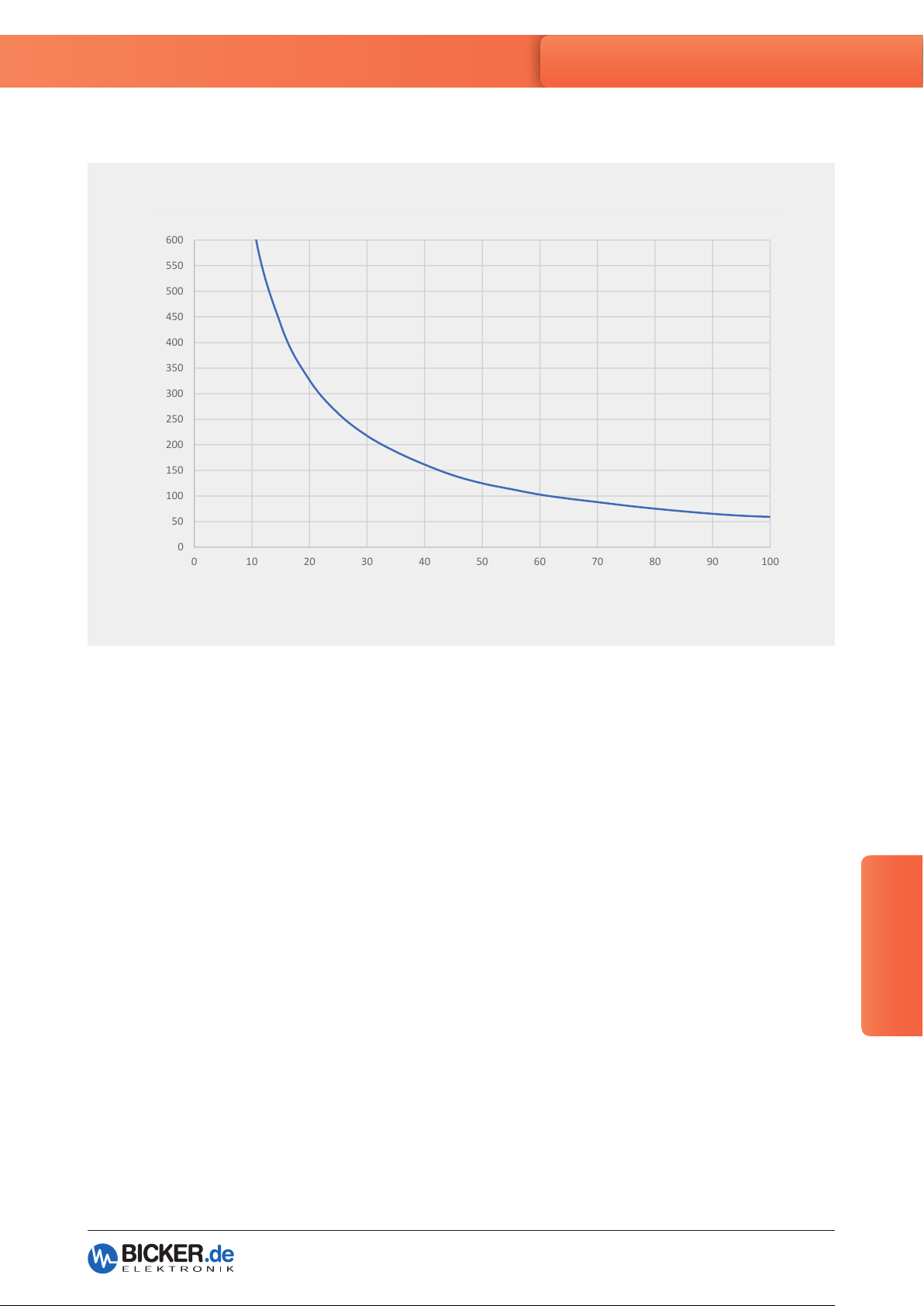

Backup time UPSI-1208IP-23U/-23UW
0
50
100
150
200
250
300
350
400
450
500
550
600
0 10 20 30 40 50 60 70 80 90 100
Nominal backup me vs. P
OUT
UPS systems
Nominal backup time vs. P
Backup time [s]
P
, calculated, 21 °C
out
[W]
out
Bicker Elek tronik GmbH | 86609 Donauwörth | Germany
DC UPS

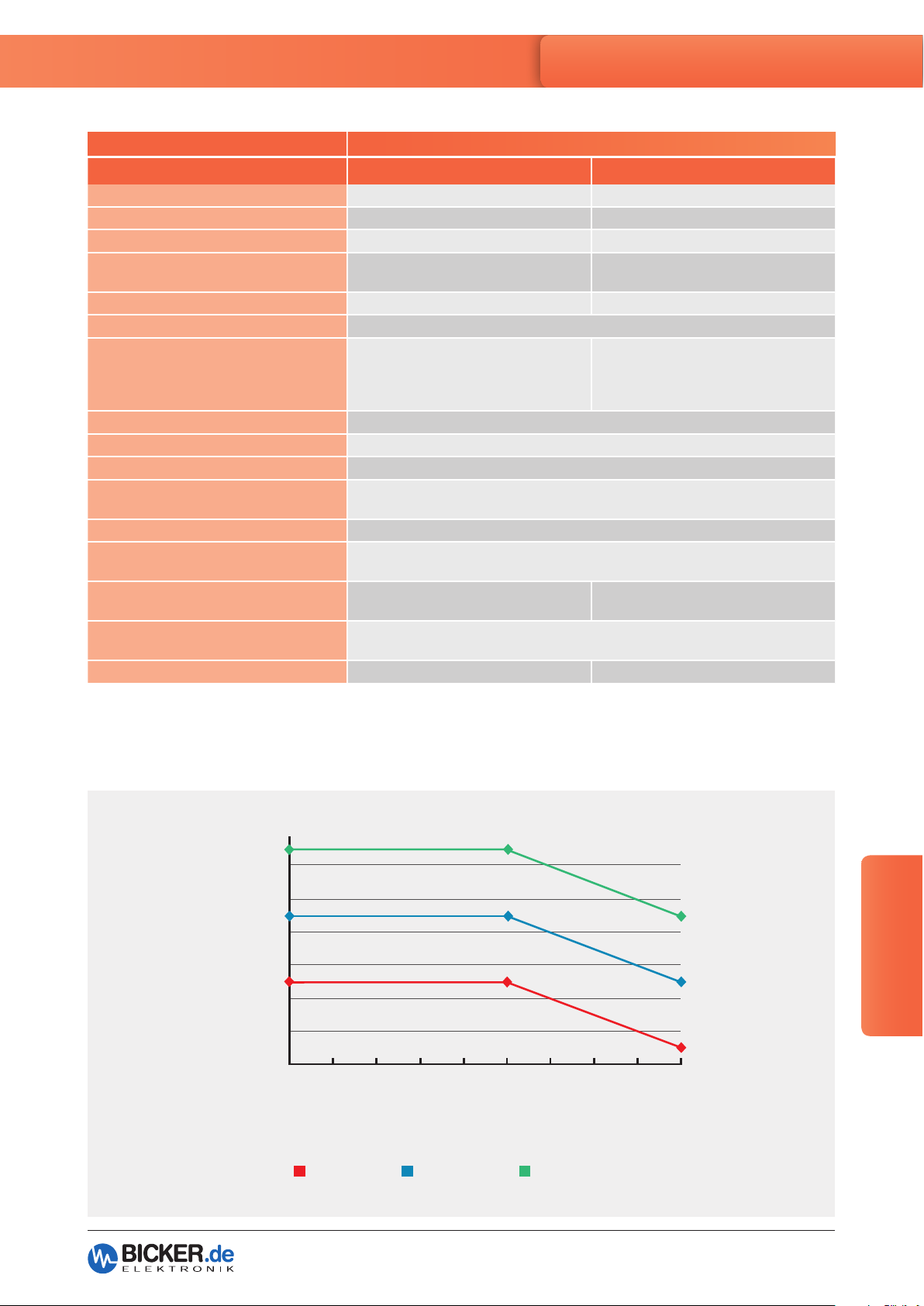

Page 4
UPS systems
Technical data
P/N UPSI-240 6IP-24U UPSI-240 6IP-24UW
UPS version UPSI-2406 UPSI-2406
Input voltage* 24 V DC (23…29.5 V DC) 8…36 V DC (see diagram)
Input current 7.5 A max. 16 A max.
Output voltage* Normal: V
Backup: 23.5 V DC
Output current / power 6 A max. / 144 W max. 5.42 A max. / 130 W max.
Charging method CC / CV / CP (dynamic)
Protection Deep discharge protection
Interface USB, USB-HID
Type of battery / storage Supercap pack BP-SUC-16090
Energy of storage pack 13.5 kJ (useful 9.0 kJ)
Temperature Operating: -20…+70 °C
Max. operation altitude 5000 m
Derating (depending on operation altitude) 1500 m operation altitude or higher:
Derating (depending on temperature) Backup mode:
+50…+70 °C, 100 mA (2.4 W)/°C
Dimensions (Wx D x H) 202 x 267 x 117 mm ±0.5 mm (inclusive mounting brackets)
Weight (net) ~3.69 kg ~3.79 kg
*Values measured from/to input/output connector
- 1 V (full load)
in
Overcurrent protection
Reverse polarity protection
Storage: -20…+70 °C
5.7 W / 500 m or reduction of operation temperature of 3.5 °C / 500 m
202 x 232 x 110 mm ±0.5 mm (housing without brackets or connectors)
Normal: 23.5 V DC (full load)
Backup: 23.5 V DC
Deep discharge protection
Overcurrent protection
Over temperature protection: depends
on ambient temperature and load
See diagram
Derating UPSI-2406IP-24UW
120
100
80
60
40
[W]
Out
P
20
0
-20 -10 0 10 20 30 40 50 60 70
Vin:
8–10 VDC 10–12 VDC 12–36 VDC
DC UPS
Ambient temperature [°C]
Bicker Elek tronik GmbH | 86609 Donauwörth | Germany
Page 5

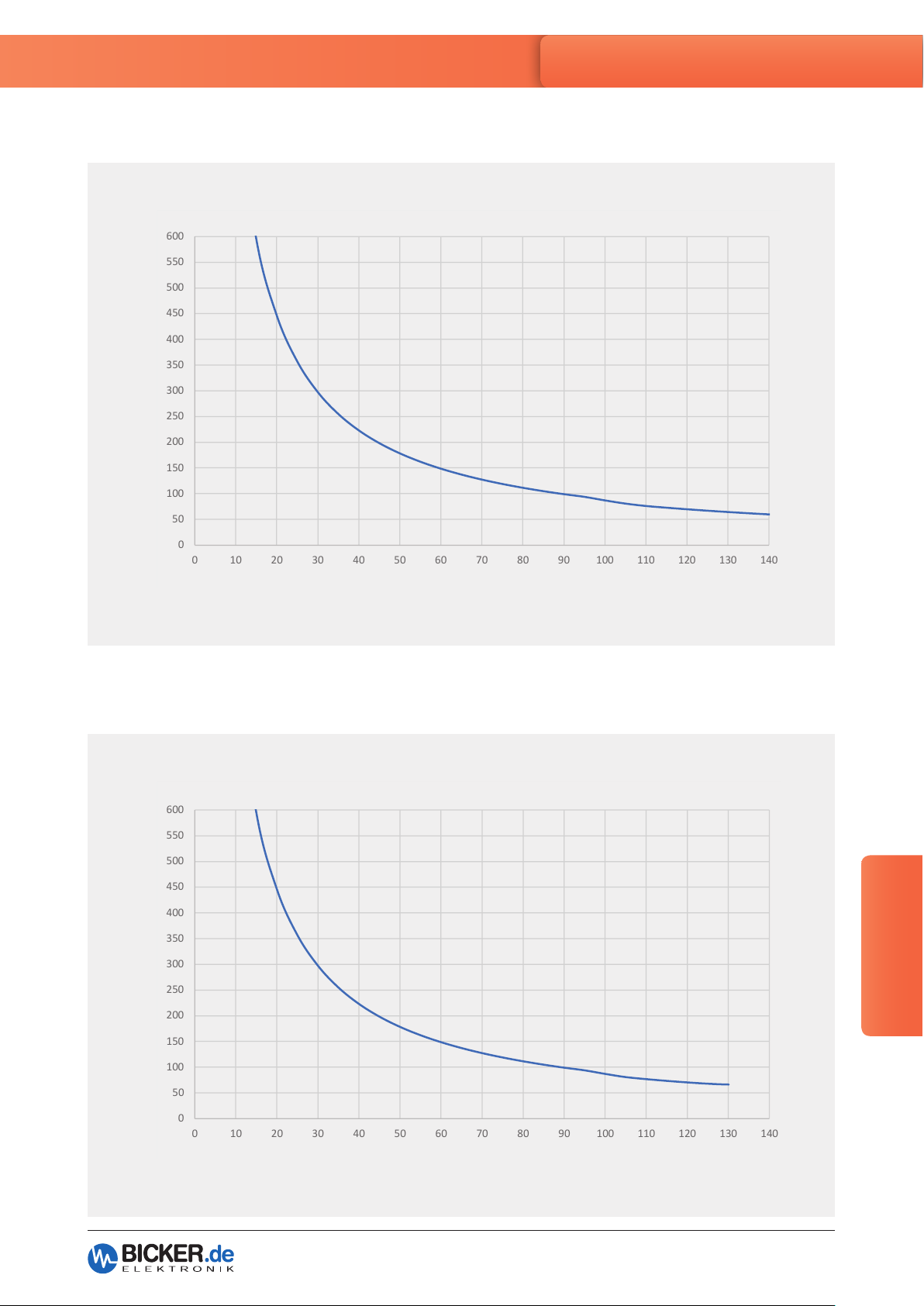

Backup time UPSI-2406IP-24U
0
50
100
150
200
250
300
350
400
450
500
550
600
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140
Nominal backup me vs. P
OUT
0
50
100
150
200
250
300
350
400
450
500
550
600
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140
Nominal backup me vs. P
0
50
100
150
200
250
300
350
400
450
500
550
600
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140
Nominal backup me vs. P
OUT
UPS systems
Nominal backup time vs. P
, calculated, 21 °C
out
Backup time [s]
P
[W]
out
Backup time UPSI-2406IP-24UW
Nominal backup time vs. P
Backup time [s]
P
, calculated, 21 °C
out
[W]
out
Bicker Elek tronik GmbH | 86609 Donauwörth | Germany
DC UPS

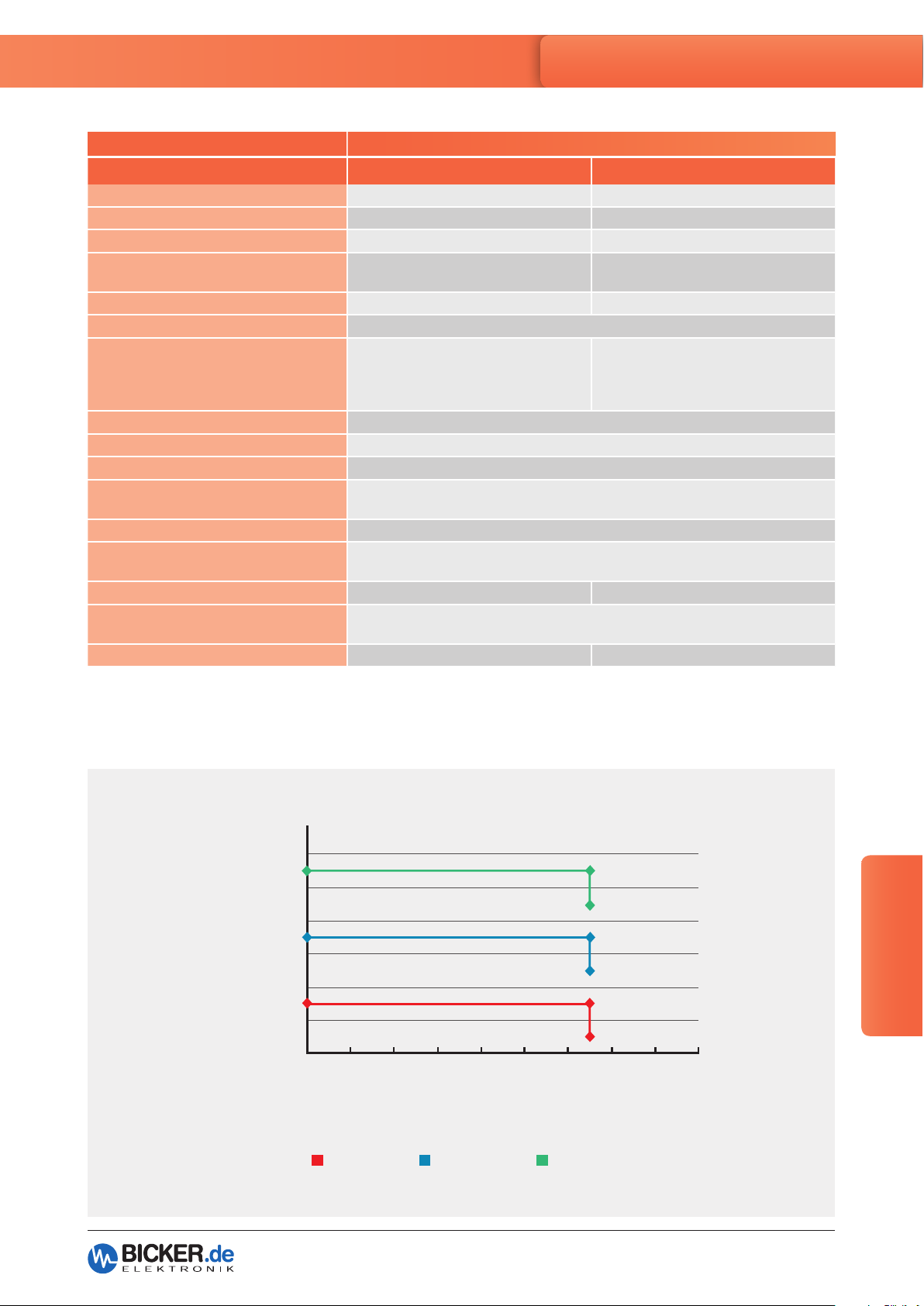

Page 6
UPS systems
Technical data
P/N UPSI-240 6IP-26U UPSI-240 6IP-26UW
UPS version UPSI-2406 UPSI-2406
Input voltage* 24 V DC (23…29.5 V DC) 8…36 V DC (see diagram)
Input current 7.5 A max. 16 A max.
Output voltage* Normal: V
Backup: 23.5 V DC
Output current / power 6 A max. / 144 W max. 4.6 A max. / 110 W max.
Charging method CC / CV / CP (dynamic)
Protection Deep discharge protection
Interface USB, USB-HID
Type of battery / storage LiFePO4 pack BP-LFP-1375
Energy of storage pack 99 Wh
Temperature Operating: -20…+45 °C
Max. operation altitude 5000 m
Derating (depending on operation altitude) 1500 m operation altitude or higher:
Derating (depending on temperature) – See diagram
Dimensions (Wx D x H) 202 x 267 x 117 mm ±0.5 mm (inclusive mounting brackets)
Weight (net) ~3.72 kg ~3.82 kg
*Values measured from/to input/output connector
- 1 V (full load)
in
Overcurrent protection
Reverse polarity protection
Storage: -20…+55 °C
5.7 W / 500 m or reduction of operation temperature of 3.5 °C / 500 m
202 x 232 x 110 mm ±0.5 mm (housing without brackets or connectors)
Normal: 23.5 V DC (full load)
Backup: 23.5 V DC
Deep discharge protection
Overcurrent protection
Over temperature protection: depends
on ambient temperature and load
Derating UPSI-2406IP-26UW
120
100
80
60
40
[W]
Out
P
20
0
-20 -10 0 10 20 30 40 50 60 70
Vin:
8–10 VDC 10–12 VDC 12–36 VDC
DC UPS
Ambient temperature [°C]
Bicker Elek tronik GmbH | 86609 Donauwörth | Germany
Page 7

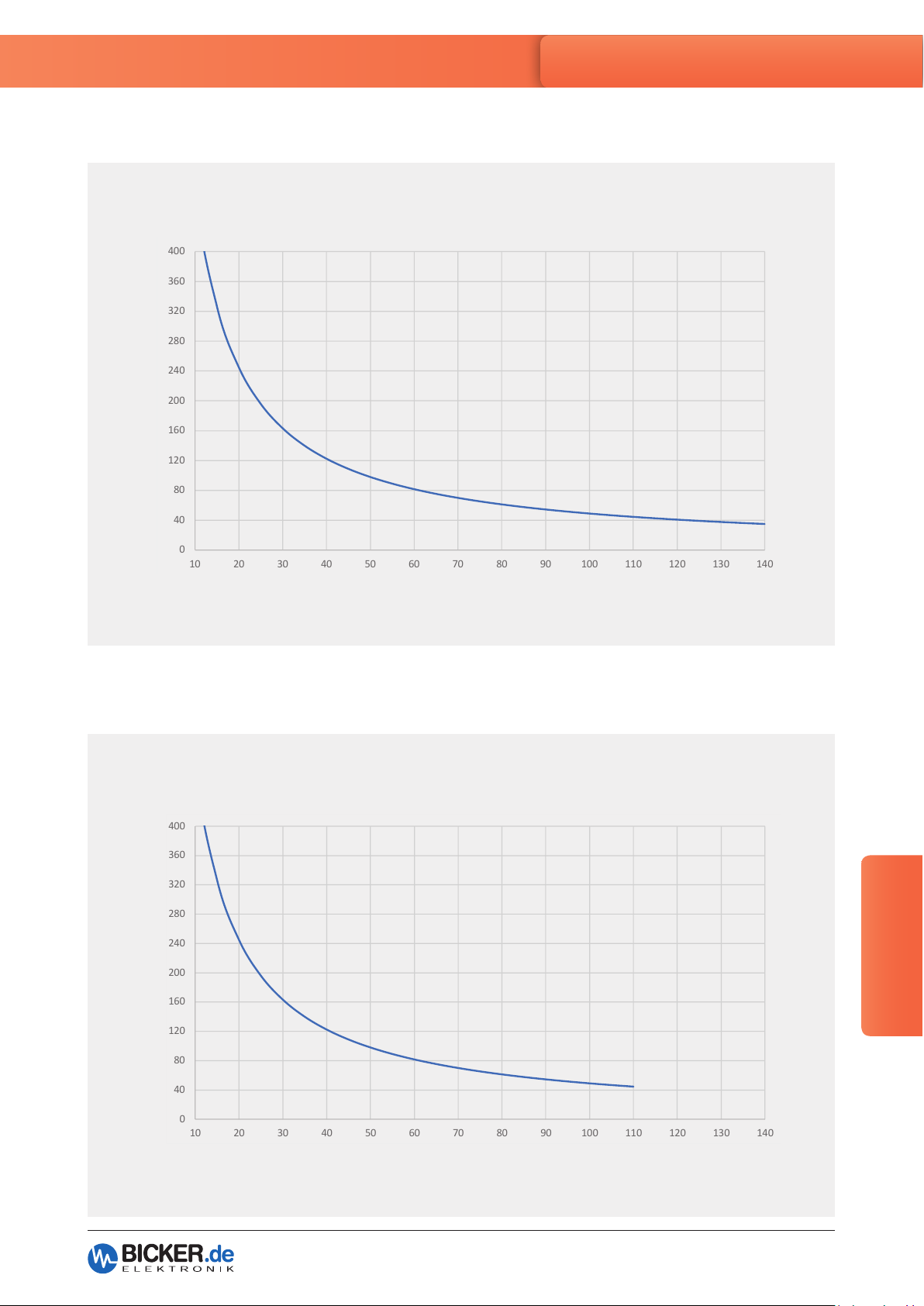

Backup time UPSI-2406IP-26U
0
40
80
120
160
200
240
280
320
360
400
10 20 30 40 50 60 70 80 90 100 110 120 130 140
Nominal backup time vs. P
OUT
0
40
80
120
160
200
240
280
320
360
400
10 20 30 40 50 60 70 80 90 100 110 120 130 140
Backup time [min]
Nominal backup time vs. P
OUT
0
40
80
120
160
200
240
280
320
360
400
10 20 30 40 50 60 70 80 90 100 110 120 130 140
Nominal backup time vs. P
OUT
UPS systems
Nominal backup time vs. P
, calculated, 21 °C
out
Backup time [min]
P
[W]
out
Backup time UPSI-2406IP-26UW
Nominal backup time vs. P
Backup time [min]
P
, calculated, 21 °C
out
[W]
out
Bicker Elek tronik GmbH | 86609 Donauwörth | Germany
DC UPS
Page 8
Connection
IN– (black 2) OUT– (black 2)
IN+ (black 1) OUT+ (black 1)
USB interface connector
DC connector 1 DC connector 2
1
4
2
3 3
12
345
USB
4
1
2
UPS systems
DC connector 1
1 Input (+)
2 Input (–)
3 n.c.
4 FG
DC connector 2
1 Output (+)
2 Output (–)
3 n.c.
4 FG
USB interface connector
1 Data (–)
2 +5 V
3 GND
4 Shielding
5 Data (+)
Connector Description Manufacturer Part No.
DC connector 1 (case side) for V
DC connector 2 (case side) for V
RD24 flange plug, poles 3+PE Binder Connector 09 4223 150 04
IN
RD24 flange socket, poles 3+PE Binder Connector 09 4224 00 04
OUT
USB interface connector (case side) Snap-in flange socket, 5 poles Binder Connector 99 9116 00 05
DC counter connector 1 (cable side) RD24 cable socket, poles 3+PE Binder Connector 99 0210 00 04
DC counter connector 2 (cable side) RD24 cable plug, poles 3+PE Binder Connector 99 0209 00 04
USB interface counter connector (cable side) Snap-in cable plug, 5 poles Binder Connector 99 9113 02 05
DC UPS
Bicker Elek tronik GmbH | 86609 Donauwörth | Germany
Page 9

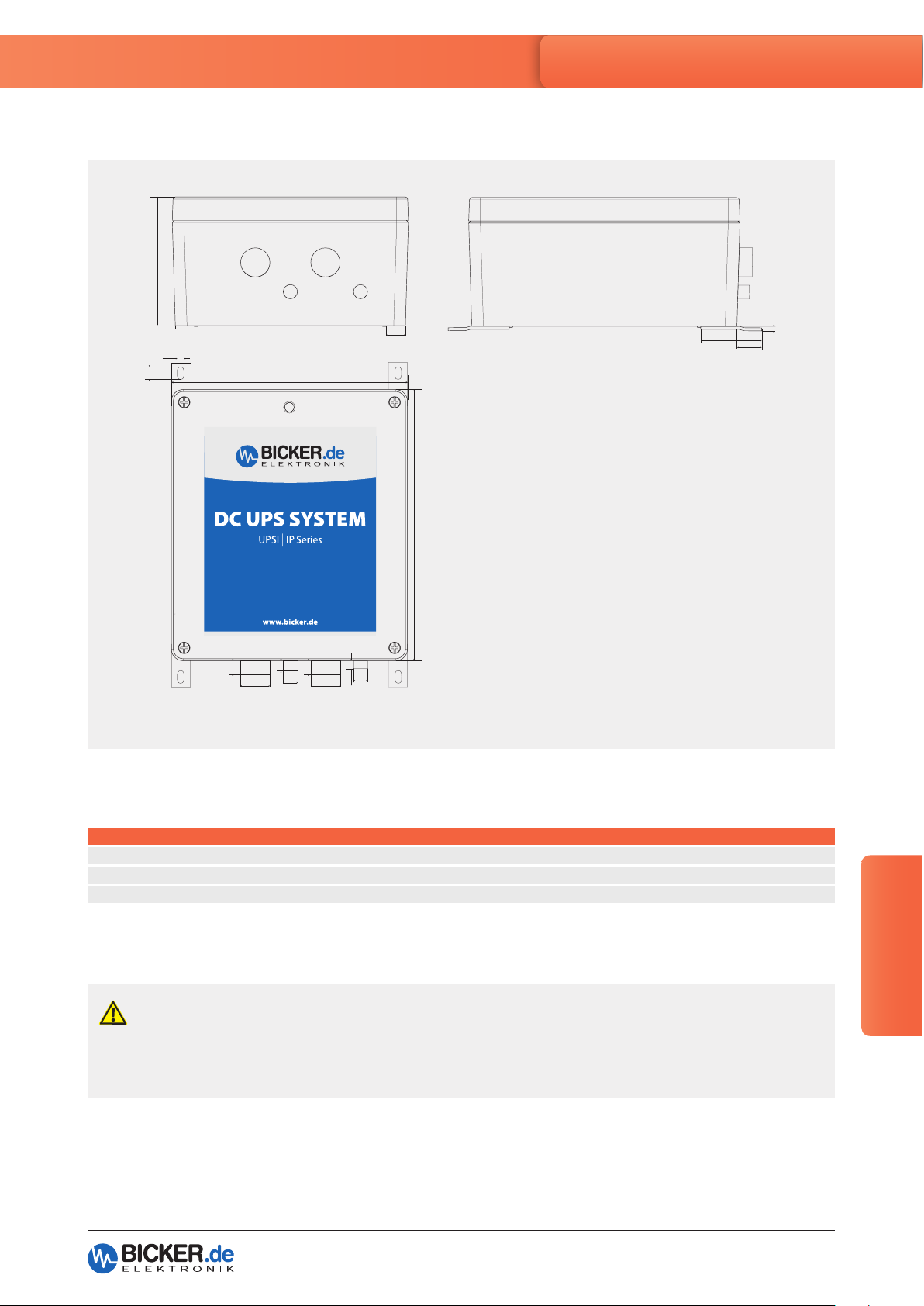

Drawing
110.0
UPS systems
7.0
10.0
6.5
202.0
18.0
12.0
18.0
16.0
29.0 29.0
15.0
232.0
8.0
16.0
50.0
21.0
Tolerance ±0.5 mm
Scope of delivery
Quantity Description
1x Input cable, 3m, open end, 2.5 mm
1x Output cable, 3m, open end, 2.5 mm2
1x USB/USB-HID interface cable, 3 m, USB type A plug
2
Safety information and notes
Please consider to each country’s own regulation about recycling and disposal of used batteries etc. in hazardous waste or
resending to any recycling organization. The device including the battery pack should not be exposed to fire, immersed under
water, opened, short-circuited, reversed or overheated. During storage it should not be exposed to temperatures outside the
specification and should not be pushed too heavy and not exposed to high pressure.
For detailed information about the LiFePO4 and Supercap storage packs please see also the separate datasheets.
Specification is subject to change without notice. Errors excepted. Status as at: 23.10.2019
DC UPS
Bicker Elek tronik GmbH | 86609 Donauwörth | Germany
Tel. +49 90 6 70595-0 | [email protected] | www.bicker.de
