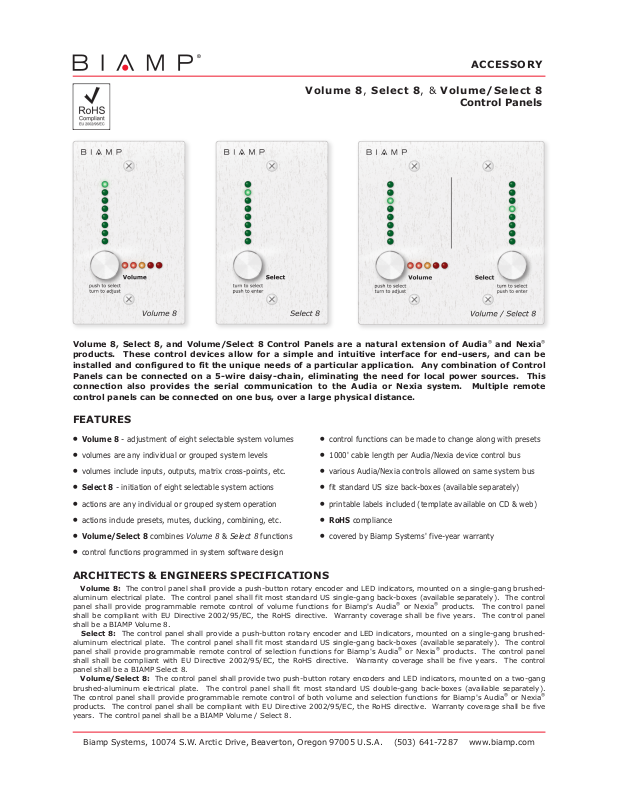

Page 1
®
ACCESSORY
Volume 8, Select 8, & Volume/Select 8
Control Panels
Volume 8, Select 8, and Volume/Select 8 Control Panels are a natural extension of Audia® and Nexia®
products. These control devices allow for a simple and intuitive interface for end-users, and can be
installed and configured to fit the unique needs of a particular application. Any combination of Control
Panels can be connected on a 5-wire daisy-chain, eliminating the need for local power sources. This
connection also provides the serial communication to the Audia or Nexia system. Multiple remote
control panels can be connected on one bus, over a large physical distance.
FEATURES
Volume 8 - adjustment of eight selectable system volumes
volumes are any individual or grouped system levels
volumes include inputs, outputs, matrix cross-points, etc.
Select 8 - initiation of eight selectable system actions
actions are any individual or grouped system operation
actions include presets, mutes, ducking, combining, etc.
Volume/Select 8 combines Volume 8 & Select 8 functions
control functions programmed in system software design
control functions can be made to change along with presets
1000' cable length per Audia/Nexia device control bus
various Audia/Nexia controls allowed on same system bus
fit standard US size back-boxes (available separately)
printable labels included (template available on CD & web)
RoHS compliance
covered by Biamp Systems' five-year warranty
ARCHITECTS & ENGINEERS SPECIFICATIONS
Volume 8: The control panel shall provide a push-button rotary encoder and LED indicators, mounted on a single-gang brushedaluminum electrical plate. The control panel shall fit most standard US single-gang back-boxes (available separately). The control
panel shall provide programmable remote control of volume functions for Biamp's Audia
shall be compliant with EU Directive 2002/95/EC, the RoHS directive. Warranty coverage shall be five years. The control panel
shall be a BIAMP Volume 8.
Select 8: The control panel shall provide a push-button rotary encoder and LED indicators, mounted on a single-gang brushedaluminum electrical plate. The control panel shall fit most standard US single-gang back-boxes (available separately). The control
panel shall provide programmable remote control of selection functions for Biamp's Audia
shall shall be compliant with EU Directive 2002/95/EC, the RoHS directive. Warranty coverage shall be five years. The control
panel shall be a BIAMP Select 8.
Volume/Select 8: The control panel shall provide two push-button rotary encoders and LED indicators, mounted on a two-gang
brushed-aluminum electrical plate. The control panel shall fit most standard US double-gang back-boxes (available separately).
The control panel shall provide programmable remote control of both volume and selection functions for Biamp's Audia
products. The control panel shall be compliant with EU Directive 2002/95/EC, the RoHS directive. Warranty coverage shall be five
years. The control panel shall be a BIAMP Volume / Select 8.
®
or Nexia® products. The control panel
®
or Nexia® products. The control panel
®
or Nexia®
Biamp Systems, 10074 S.W. Arctic Drive, Beaverton, Oregon 97005 U.S.A. (503) 641-7287 www.biamp.com
Page 2
APPLICATIONS
®
room combining
A/V conferencing
paging / music
restaurant / bar
SPECIFICATIONS
Dimensions (H x W x D)
Volume 8
Select 8
1-gang surface back-box
Volume / Select 8
2-gang surface back-box
power consumption
Volume 8
Select 8
Volume / Select 8
-
remote selection of room combinations, based on preset configurations
or moveable partitions, with automatic combining of volume functions
-
individual source volume control and selection of room mode presets
(i.e. conferencing or video playback)
-
zone page routing and music source selection, with page-over-music
ducking and independent page/music volume control
-
music source selection and room volume control, independent per
zone, with centralized hostess page routing and volume control
-
4.5" x 2.75" x 1.15" (114.3mm x 69.85mm x 29.21mm)
-
4.5" x 2.75" x 1.15" (114.3mm x 69.85mm x 29.21mm)
-
4.625" x 2.875" x 1.375" (117.48mm x 73.03mm x 34.93mm)
-
4.5" x 4.55" x 1.15" (114.3mm x 115.57mm x 29.21mm)
-
4.75" x 4.75" x 1.375" (120.65mm x 120.65mm x 34.93mm)
-
600mW @ 12~24 Volts DC (from Audia/Nexia device)
-
650mW @ 12~24 Volts DC (from Audia/Nexia device)
-
800mW @ 12~24 Volts DC (from Audia/Nexia device)
-
controls per system device
control cable requirements
32 (Audia); 12 (Nexia); any combination of RCB controls
-
5-wire data grade (95~120 ohm nominal impedance)
(16 pF/ft. max. capacitance) (65% min. velocity of prop.)
recommended cables: Gepco 18/22AXL, Liberty AXLINK,
Liberty CRESNET, or equivalent
-
control cable length
control bus wiring
control programming
1000 feet / 300 meters (overall per Audia/Nexia device)
-
single daisy-chain (system device in center or at one end)
-
each control configured for specific operation by means of
drag & drop icons within the system design software
-
compliance
Biamp Systems, 10074 S.W. Arctic Drive, Beaverton, Oregon 97005 U.S.A. (503) 641-7287 www.biamp.com
EU Directive 2002/95/EC, the RoHS directive
18Dec06
