Biamp SPM522D User Manual

SPM522D

Digitally Controlled

Stereo Preamp/Mixer

Operation Manual

5/26/98

®

Biamp Systems, 10074 S.W. Arctic Drive, Beaverton, Oregon 97005 U.S.A. [phone] http://www.biamp.com

an affiliate of Rauland-Borg Corp.

SPM522D

TABLE OF CONTENTS

Front & Rear Panel Features
Remote Controls
Setup / Options
Configuration - PC Control Software
Computer Control
Applications
Block Diagram
Specifications
Warranty

pgs. 2 & 3

pg. 4
pg. 6

pg. 7
pg. 15
pg. 18
pg. 22
pg. 23

INTRODUCTION

The ADVANTAGE®
mic/line inputs, and two independent stereo outputs. With complete
programmability and remote control, including input source selection for each
output, page-zone routing of mic/line inputs, automatic page-over ducking, and
storage of 8 non-volatile memory presets, the SPM522D is ideally suited for
applications such as meeting rooms, restaurants, bars, and aerobics studios.
The SPM522D is extremely versatile, allowing the contractor to customize set­up for each specific application.

SPM522D features include:

five stereo line inputs, with trim controls for level adjustment

♦

fifth input 30dB pad for input from distributed speaker lines

♦

fifth input 'override' via contact-closure or signal activation

♦

two balanced mic/line inputs, including inserts for processing

♦

40dB trim, 30dB pad, and peak indicator on mic/line inputs

♦

+24 volt phantom power switchable on each mic/line input

♦

mic/line 'page-over' via contact-closure or signal activation

♦

independent stereo main & stereo zone balanced outputs

♦

stereo limiters with threshold control for each stereo output

♦

rear panel switches convert main or zone outputs to mono

♦

remote control selection of stereo source for each output

♦

remote control of tone and balance for each stereo source

♦

remote control of levels and muting for each mic/line input

♦

remote control of levels and muting for each stereo output

♦

four memory presets for each output, with levels and source

♦

'combined' mode selectable for room combining applications

♦

remote control via infrared, wall-mount, and/or custom panel

♦

computer control and configuration via RS-232 serial port

♦

PC control software for Windows® 95 & serial cable included

♦

remote translator input for third-party 'serial' controllers

♦

front panel display of presets, source selections, and levels

♦

external remote display panels available as an option

♦

incorporates

♦

marked and UL /

♦

covered by Five-Year "Gold Seal" Warranty

♦

SPM522D

AES

provides five stereo line inputs, two mono

recommended grounding practices

listed power source

C-UL

?

After reading this manual, if you have any questions or need technical

assistance, please call Biamp Systems toll-free

1-800-826-1457

.

☎

1

main

zone

ABC

EFG

D

H

FRONT & REAR PANEL FEATURES

zone

main

max

micchannelpreset

1234

512

(1) (2)(3)(4) (5) (6) (7)

mute

min

Setup

Error IR on

ADVANTAGE SPM522D

Stereo Preamp Mixer

FRONT PANEL FEATURES

(4) IR Indicator:

has been received via remote control (see Remote Controls on pg.

(1) Front Panel Display:

which affect the Main and Zone outputs. Settings are changed via
Remote Controls (pg. 4), Setup (pg. 6), or Configuration (pg. 7).

This LED display indicates settings

4). If the IR and Error LEDs flash simultaneously, this may be an
indication of improper installation. Check location and wiring of all

infrared receivers.
The Main Preset (A~D) and Zone Preset (E~H) LEDs indicate
which preset is currently active for each output. A preset contains
all of the source and level settings for an output, which are stored
in non-volatile memory for future recall. Presets can be used to
simply change inputs and levels, or to completely re-configure
system operation. When the SPM522D is in 'Room-Combining
Mode', only one Preset LED will be lit (Main or Zone). The
Channel (1~5) LEDs indicate which stereo input channel is
selected for each output. Each channel selection may include its
own customized tone and balance settings. The Mic (1 & 2) LEDs
indicate which mic/line inputs are assigned to each output. When
a mic/line input is set for 'gated' operation, the associated LEDs
will light only when the input is active (gate open). The Main and
Zone (min~max) LED ladders indicate the relative level setting for

(5) Internal Infrared Receiver:

detector receives commands from optional hand-held Infrared

Transmitters (see Remote Controls on pg. 4). A transmitter will

operate up to 30 feet from the receiver. For best results, there

should be an unobstructed line-of-sight from transmitter to

receiver. When infrared commands are received, the IR LED will

flash. If the IR and Error LEDs flash simultaneously, this may be

an indication of improper installation. The Internal Infrared

Receiver should not be located in direct sunlight, or pointed

directly at fluorescent lighting. Internal Infrared Receiver control

functions are assignable during Configuration (see Configuration

on pg. 10). If desired, the Internal Infrared Receiver may be

manually bypassed (see Options on pg. 6).
each output. These are not signal level meters. Only one LED in
each ladder will be on, indicating the overall level ('fader') setting
for that output. The Mute LEDs indicate when either output is
muted. When an output is muted, the associated level LED will
also remain on. Decreasing the level setting of a muted output
only reduces the level that output will return to when it is un-muted.
However, increasing the level setting of a muted output will
automatically un-mute that output. Similar external Remote
Display Panels are optional (see Remote Controls on pg. 5).

(6)(7) Power Switch & Indicator:

turned on, the Power LED will light. When power is turned off, all

'current mix' settings (presets, sources, & levels) will be stored in

non-volatile memory and recalled when power is turned back on.

NOTE: The 'current mix' settings are stored only after 5 seconds

of inactivity. If an adjustment to a setting is made less than 5

seconds before power is turned off, the last adjustments that were

followed by a 5 second pause will be the settings stored for recall.

Any adjustments made, without a full 5 second pause before

(2) Setup Button:

Setup Mode (see Setup on pg. 6). Setup Mode allows preset
mixes to be defined and stored in non-volatile memory for future
recall. Setup Mode may be disabled during Configuration (see

This momentary push-button is used to enter

power off, will be lost (not stored in non-volatile memory).

During Configuration the SPM522D may instead be set to always

recall Main Preset A and Zone Preset E when power is turned

back on (see Configuration on pg. 11).
Configuration on pg. 11). The Setup button is also used to return
the SPM522D to factory default settings (see Setup on pg. 6).

This red LED indicates when any information

This green infrared photo

When the Power switch is

REAR PANEL FEATURES

(3) Error Indicator:

This red LED indicates when unusable
information has been received via remote control (see Remote
Controls on pg. 4). If an error in transmission/reception of a
command occurs, the Error LED will flash. The Error LED will also
flash if a command is received that has been user defined as
having ‘no action’ (see Configuration on pg. 9).

(1) Mic 1 & Mic 2:

These plug-in barrier strips provide the

balanced mono mic/line inputs for Mic 1 & Mic 2. For balanced

ý

input, wire high to (+), low to (-), and ground to (
unbalanced input, wire high to (+), and ground to both (-) & (

). For

ý

).
Additional terminals are provided for 'page-over' ducking of the
stereo input signals. By wiring (signal present) to (mute),
automatic ducking will occur whenever signal is present at the Mic
Input. Manual ducking utilizes a switch or contact-closure wired

ý

between (mute) & (

). Mic 1 & Mic 2 functions are assignable

during Configuration (see Configuration on pg. 7 and pgs. 11~13).

2

FRONT & REAR PANEL FEATURES

(12) (11) (10) (7) (5) (4) (3) (2) (1)

27V ~
15 Watts
50/60 Hz

class 2 wiring

serial port

BIAMP SYSTEMS

Portland, Oregon

an affiliate of

Rauland-Borg Corp.

MADE IN U.S.A.

chassis gnd

DC
out

outputs

L

R

zone out main out

R

remote display

2

L

limit

limit limit

2

1

gnd

gnd

IR3

IR2

IR3

IR2

translator

remote

zone main

limit

stereo
mono

high

gnd

override

low

sig pres

gnd

override

main

zone

3

level

override

sensitivity

010

level

-20dB 0dB-20dB 0dB

5

level

-20dB 0dB

level

-20dB 0dB

level

-20dB 0dB

(17) (16) (15) (14) (13) (9) (8) (6)

(2) Phantom Power:

+24 Volts to the respective Mic Inputs.

When depressed, these switches supply

CAUTION: Use only with

For best performance, set Limit Threshold so the Limit Indicator
lights when the maximum desired output level is reached.

condenser microphones. Turn levels down before switching.

(12) Main & Zone Outputs:

(3) Trim, Pad, & +10 Indicator:

the respective Mic Inputs to compensate for different signal levels.
For best performance, set Trim so the +10 Indicator is activated
only by occasional peaks in signal level. Depress the Pad switch
when input signal levels exceed normal operating range of the
Trim control, or when line-level input is desired.

The Trim controls adjust gain at

the balanced stereo line-level Main & Zone Outputs. For balanced
output, wire high to (+), low to (-), and ground to (
unbalanced output (-6dB gain), wire high to (+) and ground to (
leaving (-) unconnected. Main & Zone Outputs include optional
internal 20dB pads. These pads are useful in applications where
the amplifiers have no level controls. Two pair of jumpers (J6 & J7
for Main; J4 & J5 for Zone) are located on the right edge of the

(4) Mic 1 & Mic 2 Patch:

These 3-conductor 1/4" phone jacks
are for connection of other Advantage products (or signal
processors) to the respective Mic Inputs. Patch jacks are wired

upper circuit board. To activate either 20dB pad, move both
jumper straps backward one pin, toward the rear panel (see

diagrams below). For access instructions, see Options on pg. 6.
with Tip as send (output), Ring as return (input), and Sleeve as a
common ground.

1

4

inputs

231

4

5

RLRL

override

MAIN

-20dB

mic 1
patch

L

R

mic 2
patch

pad

0dB
30dB

+10

pad

0dB
30dB

+10

phtm

power

trim

phtm

power

trim

mic 1

signal present

mute

on

mic 2

signal present

mute

on

These plug-in barrier strips provide

ý

). For

ý

ZONE

-20dB

),

(5) Stereo Inputs 1~3:

These RCA connectors provide the

unbalanced stereo line-level inputs for Channels 1~3.

(6) Stereo Inputs 4 & 5:

unbalanced stereo line-level inputs for Channels 4 & 5. Channel 5
includes an optional internal 30dB pad (see Options on pg. 6).

This plug-in barrier strip provides the

(13) Translator:

certain third-party remote controls, which use the 'serial' protocol.

The Low input is for controls with low idle (-15VDC ~ +2VDC). The

High input is for controls with high idle (+2VDC ~ +15VDC).

(7) Level 1~5:

Stereo Inputs to compensate for different signal levels. For best

These controls adjust gain at the respective

Translator control functions are assignable during Configuration

(see Configuration on pg. 10).
performance, reduce gain only on channels having higher levels.

(14) Remote 1 & Remote 2:
(8) Override Sensitivity:

at which Channel 5 Override will occur, when being triggered by
signal present at the Channel 5 Input (see Override below).

This control adjusts the threshold level

optional remote controls (see Remote Controls on pg. 4). Remote

controls may be infrared, wall-mount, and/or customized, and may

be wired up to 2000 feet away from the unit. Remote 1 & Remote

2 control functions are assignable during Configuration (see

(9) Override:

These plug-in barrier strip terminals provide

Configuration on pg. 10).
Channel 5 Override, which is a priority selection of the Channel 5

input over all other stereo inputs. Wiring (sig pres) to (override)
causes automatic override whenever signal is present at the
Channel 5 Input. Manual override uses a contact-closure wired

(15) Remote Display:

provides an output for optional Remote Display Panels (see

Remote Controls on pg. 5).
between (override) & (gnd). Override functions are assignable

during Configuration (see Configuration on pg. 14).

(16) DC Out:

max., for powering external accessory devices.

(10) Stereo/Mono:

the respective stereo signals into a mono sum, which is then fed
equally to both the Left & Right outputs.

When depressed, these switches combine

(17) Serial Port:

RS-232 Serial Port. PC Control Software and a serial cable are

provided (see Configuration on pg. 7). The Serial Port also allows

(11) Limit Threshold & Indicator:

threshold level at which the respective stereo limiters will activate.

These controls adjust the

remote control via computer, or via third-party controllers which

use the 'RS-232' protocol (see Computer Control on pg. 15).

J6

0dB

J7

J4

0dB

J5

These plug-in barrier strip terminals accept

This plug-in barrier strip accepts two

This 5-pin DIN (female) connector

This 6-pin Modular jack supplies ±12 VDC @ 10mA

This 9-pin Sub D (male) connector provides an

3

REMOTE CONTROLS

InfraRed Receiver

External Receiver

(Biamp #909-0030-00)

MAIN

MIC 1 MIC 2 ZONE MAIN

ZONE

A

1234

B C D 5

MUTE

VOL

VOL

MUTE

VOL

VOL

MUTE

VOL

VOL

MUTE

VOL

VOL

1234

E F G H 5

preset

preset

SPM 522D

Infrared Transmitter

(Biamp #909-0064-00)

The type and quantity of remote controls is optional for the SPM522D. Remote control affects source selections, preset selection, mic/line
input levels, and main/zone output levels. Remote controls may be added at any time, and do not require the SPM522D to be modified,
opened, or removed from a rack. There are five types of remote controls available: The Infrared Transmitter, the Infrared Receiver, the
Wall-Mount Panel, the Remote Interface Kit, and the Remote Display Panel. The SPM522D may also be controlled via computer and
certain third-party controllers.

Remote controls come with complete instructions.

NOTE:

Infrared Receiver

(Biamp #909-0030-00): The Receiver consists of a black plastic box, containing an infrared
photo detector, an LED indicator, and five screw terminals. To install Receiver, first take off front cover by
removing four screws. Mount Receiver to wall or other surface, using two screw holes on back cover (screws
not included). Receiver should not be mounted in direct sunlight, or pointed directly at fluorescent lighting. For
best results, there should be an unobstructed line-of-sight from Transmitter to Receiver. The Receiver may be
wired up to 2000 feet from the SPM522D, using 2-conductor shielded cable (not included). Route cable through
access hole on bottom of Receiver. Three screw terminals inside the Receiver ("GND", "IR2", & "IR3")
correspond to "Remote" terminals on rear of SPM522D. Connect cable shield to "GND" terminals at each end.
Use conductors to connect "IR2" to "IR2" & "IR3" to "IR3". Replace Receiver front cover. The LED indicator
inside Receiver lights when infrared information is detected.

The Infrared Receiver also includes two

NOTE:

'Remote Translator' terminals ("GND" & "XLATE"), which allow remote control of the SPM522D via third-party
'serial' controllers. Complete instructions are included with the Infrared Receiver.

InfraRed Transmitter

(Biamp #909-0064-00): The Transmitter is a hand-held controller, which transmits
infrared codes unique to Biamp. Therefore, the Transmitter should not affect any other infrared controlled
equipment (such as TVs or VCRs). Likewise, other infrared controllers will not provide proper control of Biamp
equipment. The Transmitter requires two AAA batteries, which are included with the unit (user installed). The
Transmitter has twenty-eight buttons. Main (1~5) buttons select which stereo input channel (plus tone & balance
settings) is routed to the Main output. Main (A~D) buttons select the desired preset for the Main output. Zone
(1~5) buttons select which stereo input channel (plus tone & balance settings) is routed to the Zone output.
Zone (E~H) buttons select the desired preset for the Zone output. From the factory, button D/5 (Main) and H/5
(Zone) select stereo input channel #5 to be routed to the respective outputs. However, during Configuration
each of these buttons may be re-defined to instead recall the respective D & H presets (see Configuration on pg.

9). During Setup Mode the Main (A~D) and Zone (E~H) buttons are used to store the respective presets (see
Setup on pg. 6). The MUTE buttons (Mic 1, Mic 2, Zone, & Main) turn off the respective mic/line input or stereo
output signals. The Vol

& Vol ▼ buttons (Mic 1, Mic 2, Zone, & Main) adjust the level setting of the respective

▲

mic/line input or stereo output signals. Decreasing the level setting of a muted input/output only reduces the
level that input/output will return to when it is un-muted. However, increasing the level setting of a muted
input/output automatically un-mutes that input/output. When a mic/line input is set for 'gated' operation, level
settings can be adjusted only when the input is active (gate open). The way in which an SPM522D responds to
remote control buttons may be completely re-defined during Configuration (see Configuration on pg. 9) For best
results, there should be an unobstructed line-of-sight from Transmitter to receiver. The Transmitter will operate
up to 30 feet from a receiver. In addition to the Infrared Receiver described above, receivers are also included
on the SPM522D, the Wall-Mount, and the Remote Display Panel.

4

REMOTE CONTROLS

e

s

Wall-Mount

(Biamp #909-0074-00): The Wall-Mount is a "hard-wired" control, which is powered
by the SPM522D. There are no batteries to wear out, and it is not easily lost or stolen. The wall­mount may be wired up to 2000 feet from the SPM522D, using 2-conductor shielded cable (not
included). To install Wall-Mount, first remove mounting box from front panel. Route cable
through "knock-out" hole on rear of mounting box. Install mounting box in wall or panel. Three
screw terminals on circuit board ("GND", "IR2", & "IR3") correspond to "Remote" terminals on
rear panel of SPM522D. Connect cable shield to "GND" terminals at each end. Use conductors
to connect "IR2" to "IR2" & "IR3" to "IR3". Install front panel on mounting box. The Wall-Mount
has twenty-eight buttons. Main (1~5) buttons select which stereo input channel (plus tone &
balance settings) is routed to the Main output. Main (A~D) buttons select the desired preset for
the Main output. Zone (1~5) buttons select which stereo input channel (plus tone & balance
settings) is routed to the Zone output. Zone (E~H) buttons select the desired preset for the Zone
output. From the factory, button D/5 (Main) and H/5 (Zone) select stereo input channel #5 to be
routed to the respective outputs. However, during Configuration each of these buttons may be
re-defined to instead recall the respective presets D & H (see Configuration on pg. 9). During
Setup Mode the Main (A~D) and Zone (E~H) buttons are used to store the respective presets
(see Setup on pg. 6). The MUTE buttons (Mic 1, Mic 2, Zone, & Main) turn off the respective
mic/line input or stereo output signals. The Vol

& Vol ▼ buttons (Mic 1, Mic 2, Zone, & Main)

▲

adjust the level setting of the respective mic/line input or stereo output signals. Decreasing the
level setting of a muted input/output only reduces the level that input/output will return to when it

MUTE

VOL

VOL

MIC 1 MIC 2 ZONE MAIN

Wall-Mount Panel

(Biamp #909-0074-00)

is un-muted. However, increasing the level setting of a muted input/output automatically un­mutes that input/output. When a mic/line input is set for 'gated' operation, level settings can be
adjusted only when the input is active (gate open). The way in which an SPM522D responds to
remote control buttons may be completely re-defined during Configuration (see Configuration on
pg. 9) The green LED will light when the Wall-Mount receives power from the SPM522D. The
red LED will flash whenever the Wall-Mount is transmitting information. The Wall-Mount
includes an infrared detector, which allows it to operate as an Infrared Receiver, as well. The
infrared detector may be disabled via an internal circuit board jumper strap (labelled "IR RECV").

SPM 522D

MAIN

1234

preset

A

B C D 5

ZONE

1234

preset

E F G H 5

MUTE

MUTE

MUTE

VOL

VOL

VOL

VOL

VOL

VOL

Remote Interface Kit

(Biamp #909-0041-00): The Remote Interface Kit allows the user to create a customized control panel, using his
own switches, enclosure, and panel. It can provide up to 40 buttons (12 more than standard remote controls), which are supported by the
SPM522D. The Remote Interface Kit is a tested circuit board assembly, which includes two wiring harnesses. The circuit board connects
to the SPM522D in exactly the same way the Infrared Receiver or Wall-Mount does, using 2-conductor shielded cable (not included ), and
may be wired up to 2000 feet from the SPM522D. The circuit board is 2.27"W by 2.65"H, with four mounting holes (2" centers) an d #6
mounting hardware provided.

Remote Display Panels

(Biamp #909-0082-00): Remote Display Panels provide the same LED
indicators as those found on the Front Panel Display. Remote Display Panels may be
connected to an SPM522D via a separate

Remote Display Controller

The Remote Display Controller provides power and connection for up to two Remote Display
Panels. Remote Display Panels are similar to the Wall-Mount remote control in that they are

(Biamp #909-0080-00).

IR receiver

max

hard-wired, wall-mount panels, which can be located up to 2000 feet from the SPM522D.
Remote Display Panels also include an infrared detector, which can be wired separately to a
Remote input on the SPM522D, and will operate as an Infrared Receiver. Remote Display
Panels are wired to a Remote Display Controller using 4-conductor shielded cable (not
included). To install Remote Display Panels, first remove mounting box from front panel. Route
cable through "knock-out" hole on rear of mounting box. Install mounting box in wall or panel.
Five screw terminals on circuit board ("POWER GROUND", "+10v", "SHIELD", "DATA+", &
"DATA-") correspond to terminals inside Remote Display Controller. Connect cable shield to

SPM522D Remote Display Panel

zone main

main

ABCD

preset

EFGH

zone

12345 1 2

12345 1 2

min

mute

main

micchannel

zone

"SHIELD" terminals at each end. Use conductors to connect "POWER GROUND" to "POWER
GROUND", "+10V" to "+10V", "DATA+" to "DATA+", & "DATA-" to "DATA-".

CAUTION: Th
combined resistance of the 'POWER GROUND' & '+10V' conductors must not exceed 32 ohm
(16 ohms per conductor).

Install front panel on mounting box.

Remote Display Panel

(Biamp #909-0082-00)

5

SETUP / OPTIONS

IR RECV
OPT.W
OPT.X
OPT.Y

X1

C66 C68

VR401 VR501

C402

C401

C506

C505

P502P501

SETUP

Setup Mode allows presets to be defined and stored in non-volatile memory, without the need to use the PC Control Software for
Configuration via computer. Setup Mode may also be used to return the SPM522D to the factory default settings.

To enter Setup Mode: While power is on, press and hold the front panel Setup button for 5 seconds (until the currently lit Front Panel
Display LEDs begin flashing). The Front Panel Display LEDs are the only indication that the SPM522D is in Setup Mode, and they will
continue flashing as long as Setup Mode is active.

During Setup Mode: The Remote Control buttons which were assigned to recall presets are temporarily re-defined to store those presets.
All other Remote Control buttons will function normally. This allows a preset to be created by first adjusting the various source and level
settings for the respective output, then pressing the appropriate 'store' button.

Example: From the factory, six buttons are assigned to recall presets (Main Preset A~C and Zone Preset E~G). During Setup Mode,
these six buttons would become their own respective store buttons. Once the desired stereo input channel, mic/line input levels, and Main
output level settings were made, pressing the Main Preset A button would store those settings. After exiting Setup Mode, those same
settings could easily be recalled from the non-volatile memory by simply pressing the Main Preset A button.

To exit Setup Mode: Press the front panel Setup button momentarily. The Front Panel Display LEDs will quit flashing and the SPM522D
will immediately exit Setup Mode. The SPM522D will also

NOTE: Configuration may be used to assign the Main Preset D and Zone Preset H buttons to recall presets (instead of selecting stereo
input channel #5). Configuration may also be used to disable the Setup Mode functions described above. See Configuration on pg. 7.

NOTE: Remote Display Panel LEDs will not flash during Setup Mode.

automatically

exit Setup Mode after 1 minute of inactivity (no button entries).

To return to factory default settings: While power is off, press and hold the front panel Setup button. While holding the Setup button, turn
power on. Continue holding the Setup button for 2 seconds (until the Error LED flashes once). The SPM522D will begin setting all 'button
definitions' to their factory defaults (see Configuration on pg. 9). If the Setup button is held another 7 seconds (until the Error LED flashes
twice), the SPM522D will begin setting all "preset mixes' to their factory defaults (see Configuration on pg. 7). If the Setup button is held
another 2 seconds (until the Error LED flashes three times), the SPM522D will begin setting all 'Configuration Options' to their factory
defaults (see Configuration on pgs. 11~14). Whenever the Setup button is released the SPM522D will return to normal operation. The
Setup button may be released at any time, depending upon which factory defaults are desired.

OPTIONS

To access internal modifications, first disconnect power to the unit. Then lay the unit on a flat surface with the front panel facing

NOTE:

forward and the top panel facing up. Remove the top panel (eight screws along the sides and rear; one screw centered behind the front
panel). The following modifications occur on the lower circuit board (see diagrams below). These modifications require no soldering.

Internal Infrared Receiver Bypass:

A bank of four DIP switches is located toward the right­center of the circuit board. The far right switch ('IR RECV') is used to activate or bypass the
Internal Infrared Receiver. From the factory, the Internal Infrared Receiver is activated, with the
switch toward the front panel. To bypass the Internal Infrared Receiver, push the switch back,
toward the rear panel.

Channel 5 Internal 30dB Pad:

Two jumper straps ('P501' & 'P502') are located toward the rear­center of the circuit board (underneath the upper circuit board). These jumper straps are used to
activate or bypass a 30dB pad at the Channel 5 input. The 30dB pad allows Channel 5 to accept
greater input signal levels, such as those produced by a 70.7V 'constant voltage' distributed
speaker system. From the factory, the 30dB pad is bypassed, with both jumper straps toward
the left. To activate the 30dB pad, move both jumper straps over one pin, toward the right.

6

CONFIGURATION

All Configuration parameters are adjustable using the Windows® 95 'PC Control Software' and serial cable provided with the SPM522D.
The PC Control Software provides programs for various ADVANTAGE® products, including the SPM522D. The SPM522D program
includes multiple control screens, which are described on the following pages. Factory default settings are shown on each scre en. Once
the software is started (and Comm Port Configuration is set), various screens are accessible through the drop-down menus at the top of
the opening screen. The Mix screen appears whenever an SPM522D file is opened. Additional control screens are then available from the
Configure SPM522D menu. The File menu provides functions such as open, close, save, etc. The Settings menu recalls the Comm Port
Configuration screen. The Window menu arranges the active product screens. The Help menu explains the available adjustments.
To install the Windows® 95 PC Control Software Package: Select ‘
’OK’. System Requirements: Windows® 95 with 8M of RAM & 2M of available hard disk space (serial port required for ‘on-line’ operation).

’ from the Windows® 95 ‘

Run

’ menu, then type

Start

A:\SETUP

and click

MIX SCREEN

The Mix screen is divided into two sections. The left section affects the Main Output and the right section affects the Zone Output.
Adjustments are made with the computer mouse (or keyboard). Levels are adjusted by dragging the corresponding ‘
Each fader provides thirty-two volume steps. Output level range is -70dB~+11dB in

-66dB~+11dB in
Left-clicking
associated output. Left-clicking
Left-clicking Channel

1.2dB steps (bottom step ≈42dB). Mic 1 & Mic 2 each have independent level adjustment to the Main & Zone Outputs.

≈

toggles the corresponding signal off & on. Left-clicking

mute

toggles assignment of which mic/line input (if any) will override the other, at the associated output.

priority

selects which Stereo Line Input is assigned to the associated output. Left-clicking

1~5

toggles enabling of Channel 5 Override to the associated output (see Override on pg. 3). Left-clicking Preset
preset is recalled for the associated output. Left-clicking Preset
output section to any of the four associated presets. Left-clicking

provides a pop-up menu for storing the current settings at that

Store

combine

causes the SPM522D to enter a ‘room combining’ mode, where

Main & Zone sections both recall Preset D, and adjustments made to either Main or Zone settings will affect both

1.4dB steps (bottom step ≈40dB). Mic level range is

≈

toggles assignment of that mic/line input to the

enable

ch.5 override allowed

or

A~D

outputs. All eight presets

’ up or down.

faders

selects which

E~H

(A~H) are available in ‘room combining’ mode, and each will affect both outputs. When ‘room combining’ is turned off, Main Preset A &
Zone Preset E are recalled, and adjustments can again be made independently for each output. The title bar at the top of the Mix screen
shows Device #, custom Device Name, & model of product being controlled. The PC Control Software can operate ‘off-line’ (no pr oduct
connected) by opening a ‘new’ file for the desired product. The Device # for ‘off-line’ files is assigned sequentially as a negative number.

7

CONFIGURATION

TONE and BALANCE SCREENS

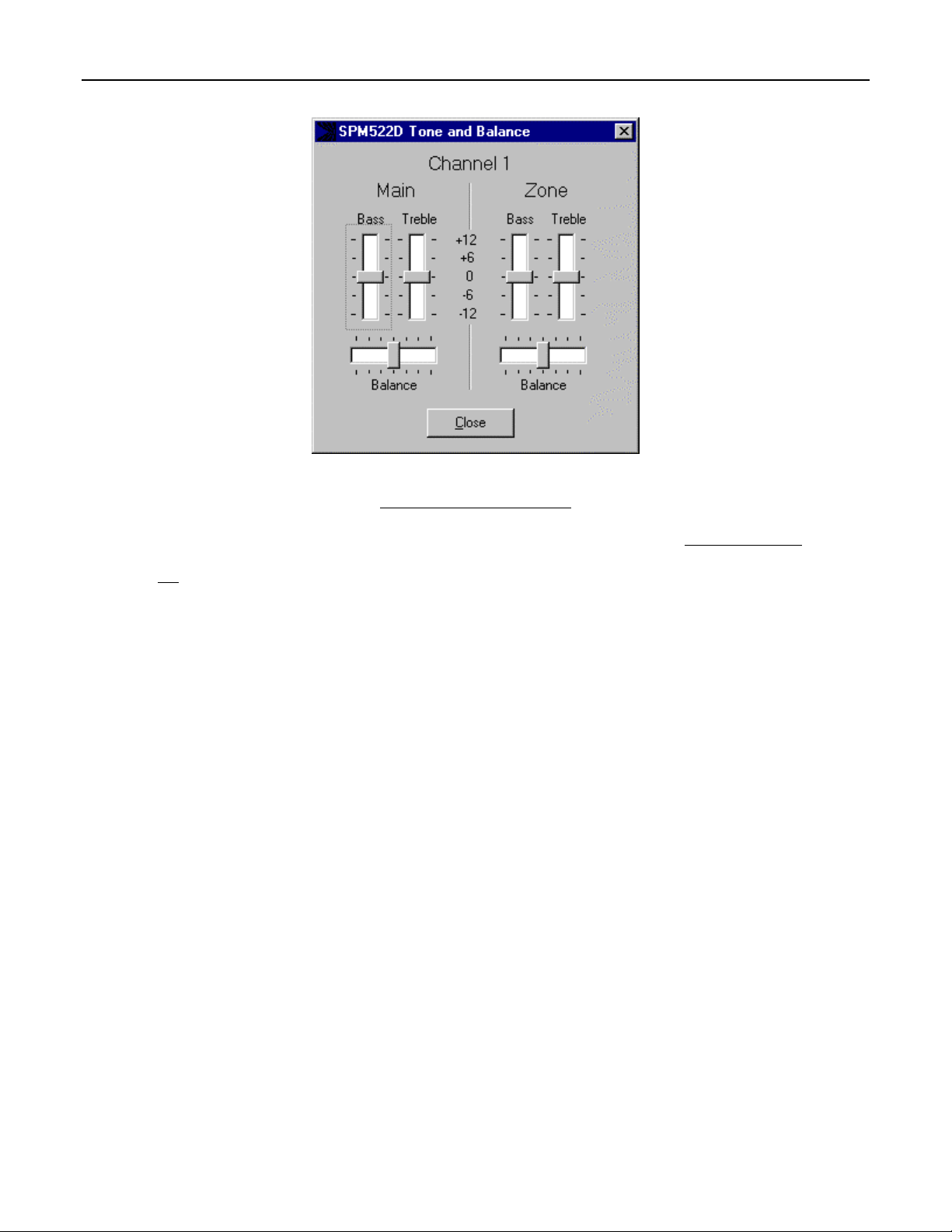

Tone and Balance screens are available for all five Stereo Line Inputs. They are accessed through the Configure SPM522D drop-down
menu (or by right-clicking on the Mix screen). Also, double-clicking on a Channel (1~5), within the Mix screen, will simutaneously select
that channel and open its specific Tone and Balance screen. Tone and Balance screens allow each of the Stereo Line Input channels to
have its own Treble, Bass, and Balance settings for the Main & Zone Outputs independently. Tone and Balance settings for each Stereo
Line Input are stored in non-volatile memory, and are automatically recalled whenever that Stereo Line Input is selected for the associated
output. Tone and Balance screens are divided into two sections. The left section affects the Main Output and the right sectio n affects the
Zone Output. Adjustments are made by dragging the corresponding ‘
adjustment is made. Treble has a gain range of ±12dB @ 15kHz, adjustable in 2dB steps. Bass has a gain range of ±12dB @ 50Hz,
adjustable in 2dB steps. Balance has a shift range of 48dB, adjustable in 2dB steps. Left-clicking

’. Settings are immediately stored in memory whenever any

faders

will return you to the Mix screen.

Close

8

CONFIGURATION

BUTTON DEFINITION SCREEN

The Button Definition screen is used to assign specific ‘actions’ to remote control buttons. ADVANTAGE® infrared & wall-mount remote
controls have twenty-eight buttons. However, the SPM522D supports twelve additional buttons, which are only available when using
Remote Interface Kit or RS-232 control (see Remote Controls on pg. 5 & Computer Control on pg. 15). From the factory, the SPM522D is
programmed as follows: Buttons 1~12 provide volume up, volume down, & mute actions for Mic 1, Mic 2, Zone Output, & Main Output;
Buttons 13~28 provide preset & channel select actions for Zone Output & Main Output; Buttons 29~40 provide no defined actions.
However, using the Button Definition screen, each button may be assigned various, different actions (button definition). There are eight
types of actions available for both the Main & Zone Outputs. Each action type
have one of each type of action assigned to it, thereby performing multiple functions. A button may also be assigned no actions at all,
thereby making that button inoperable. This is an effective way of limiting user access to certain settings or functions. Left-clicking a

Remote Control Bu tton

drop-down menu of the specific actions (of that type) which are available for the associated output. Left-clicking the desired action will then
assign that action to the currently selected button.

will select that button to be defined. Left-clicking on a particular type of

Preset Actions

allows the selection of a more specific action. A button may

or

Main

includes various store, recall, & combine actions.

action will then open a

Zone

NOTE: Preset

Actions called ‘temp’ use the current settings for that output as a temporary preset, which will allow those settings to be restored later.

Program Select

also affect the ‘page-over’ ducking functions of that mic, at that output.

actions.

includes various channel select, override, & enable mic actions.

Program Volu me

NOTE: Program Select actions called ‘enable Mic’ will

includes various volume, mute, duck, & balance

CAUTION: Program Volume actions affect the VCA which controls only the Stereo Line Input signals. This VCA also provides the
‘page-over’ ducking functions for Mic 1 & Mic 2, as well as a ‘ramp’ function for Override (see Front & Rear Panel Features on pgs. 2 & 3).
To avoid conflicts, do not

Program Bass

volume & mute actions. Multiple actions may be assigned to a single button. Likewise, a particular action may be assigned to multiple
buttons. To un-assign a particular action from a button, left-click on the blank space at the top of the drop-down menu for that type action.
Left-clicking
buttons. Left-clicking
selected button, or for all buttons. Left-clicking
Left-clicking
are those described for standard remote controls (see Remote Controls on pgs. 4 & 5). When a button is selected, its Equivalent ASCII
Character appears on the screen. ASCII characters can be used via RS-232 to emulate control buttons (see Computer Control on pg. 15).

&

Clear

Help

use Program Volume actions simultaneously with ‘page-over’ ducking or Override functions, at the same output.

Program Treble

opens a pop-up menu, which allows button definitions (actions) to be cleared from the selected button, or from all

Default

provides additional instruction. Left-clicking

include cut, boost, & flat actions.

opens a pop-up menu, which allows button definitions (actions) to be set back to the factory default for the

Remote Configuration

Mic 1 Volume, Mic 2 Volume

opens the Remote Port Configuration screen (see next page).

will return you to the Mix screen. Factory default button definitions

Close

, &

Output Volume

include various

9

CONFIGURATION

REMOTE PORT CONFIGURATION SCREEN

The Remote Port Configuration screen is accessed by opening the Button Definition screen and left-clicking on
The Remote Port Configuration screen determines which types of actions
inputs on the SPM522D (see Button Definition on previous page).
panel of the SPM522D (see Front & Rear Panel Features on pg. 3).
Translator terminals, and the front panel Internal Infrared Receiver (see Front & Rear Panel Features on pg. 2), which are treated as if they
were a single remote control input. The Remote Port Configuration screen allows the SPM522D to be customized, with regards to which
functions can be controlled from different locations. For example: When the SPM522D is used in an application with two separate rooms,
a remote control can be provided for each room, which has control of functions affecting only that room. Main actions could be assigned
only to Remote 1, with Zone actions assigned only to Remote 2. Remote Translator and Front Panel could then be assigned ‘universal’
control of all actions, or no control access at all. Another example: When the SPM522D is used in an application having a cen tral control
location and a subordinate control location, ‘system-wide’ functions can be controlled from the central location, while only restricted control
is allowed from the subordinate location. All Preset actions could be assigned to Remote 1, for system configuration from the central
location. Zone Program Select actions could be assigned to Remote 2, for stereo source selection within the subordinate location. All
other actions could be un-assigned, thereby limiting user access. Left-clicking on on a certain type action, for a particular remote control
input, will toggle that assignment on & off. Left-clicking
inputs (factory default). Left-clicking

provides additional instruction. Left-clicking

Help

Restore Defaults

will be recognized by each of the three possible remote control

Remote 1

&

Remote 2

Remote Translator and Front Panel

re-assigns ‘universal’ control of all actions from all remote control

refer to the corresponding terminals on the rear

will return you to the Button Definition screen.

Close

Remote Configuration

refers to the rear panel

.

10

CONFIGURATION

MISCELLANEOUS SCREEN

The Miscellaneous screen is accessed by opening the Configuration Options screen and left-clicking the
Miscellaneous screen is used to select options which customize the operation of the SPM522D. At the top of the Miscellaneous screen,
the

Serial Number

(with no product connected) by opening a ‘new’ file for the desired product. The Serial Number & Firmware Version are not displayed for
‘new’ (off-line) files. Left-clicking
The Device Name will be stored in the SPM522D memory, and will be displayed on the title bar of the Mix screen whenever that SPM522D
is accessed with the software. Left-clicking
(1~8) to the SPM522D, for computer control of multiple units. Left-clicking
access Setup Mode (but not Factory Defaults) via the front panel Setup button (see Setup/Options on pg. 6).
what settings the SPM522D will automatically recall whenever power is turned on. From the factory, the SPM522D is set to recall the
settings which existed prior to power being shut off. Left-clicking
SPM522D to recall these specific presets at power-up.
attenuation applied to Stereo Line Input signals, and how quickly they return to normal level, when ducking is triggered via Mic 1 & Mic 2
page-over (see Front & Rear Panel Features on pg. 2). Left-clicking
(0dB~80dB). Left-clicking

input must be enabled (assigned) to an output before it can trigger page-over ducking at that output.

a pop-up menu, which allows the Miscellaneous options (or all Configuration Options) to be set back to their factory defaults. Left-clicking

provides additional instruction. Left-clicking

Help

and

Firmware Ve rsion

ramp rate

of the particular SPM522D will be displayed. The PC Control Software can operate ‘off-line’

Device Name

opens a drop-down menu of 256 return rate choices (0dB~200dB per second).

allows a custom name to be given to the SPM522D, by entering up to 30 characters of text.

device number

Close

opens a drop-down menu which allows assignment of an ‘address’ number

Disable front panel setup mode

recall preset A for Main and preset E for Zone

Main page-over ducking

duck amount

will return you to the Mix screen.

and

Zone page-over ducking

opens a drop-down menu of 41 attenuation choices

Left-clicking

Miscellaneous

toggles off & on the ability to

Power-up status

will instead cause the

determine the amount of

Restore Defaults

tab. The

determines

NOTE: A mic/line

opens

11

CONFIGURATION

MUTE 1 / MIC 1 SCREEN

The Mute 1 / Mic 1 screen is accessed by opening the Configuration Options screen and left-clicking the
Mic 1 screen is used to select options which customize the function of the Mic 1 Mute terminal (see Front & Rear Panel Features on pg. 2).
Left-clicking
input signal to remain off, until triggered on either manually (via contact-closure) or automatically (via signal present) at the Mute 1 terminal.
Left-clicking
Left-clicking
Ducking is a temporary attenuation of the Stereo Line Input signal at that output, which is triggered manually (via contact-clo sure) or
automatically (via signal present) at the Mute 1 terminal.

trigger page-over ducking at that output.

seconds).

Mute 1 input causes gated operation of Mic 1

Mute 1 input causes page-over duck of Main program source

Mute 1 input causes page-over duck of Zone program source

Left-clicking

NOTE: Hold Time determines how long mute functions remain in effect after triggering (manual or automatic) is released. Hold

toggles assignment of gating to the Mic 1 signal. Gating allows that mic/line

toggles assignment of ducking at the Main Output.

toggles assignment of ducking at the Zone Output.

NOTE: A mic/line input must be enabled (assigned) to an output before it can

Mute 1 Hold time

opens a drop-down menu of 256 hold time choices (0~63.75

Mute 1 / Mic 1

Time is not the same as Ramp Rate, which determines how fast a signal returns to normal after Hold Time has elapsed.

Mute 1 behaves like a programmable logic input

terminal to be used as a logic input, which can then be programmed like a remote control button (see Configuration on pg. 9). However, a
logic input can have two ‘button definitions’, one for when the circuit is ‘closed’ (activated) and another for when the circuit is ‘opened’
(released). Therefore, drop-down menus of the forty possible control buttons are provided for both the ‘closing’ & the ‘opening’ of the logic
input circuit. The logic input can still be triggered manually (via contact-closure) or automatically (via signal present). Left-clicking

Restore Defaults

factory defaults. Left-clicking

opens a pop-up menu, which allows the Mute 1 / Mic 1 options (or all Configuration Options) to be set back to their

provides additional instruction. Left-clicking

Help

will disable the Mute 1 functions described above, and instead allow the Mic 1 Mute

will return you to the Mix screen.

Close

tab. The Mute 1 /

Left-clicking

12

CONFIGURATION

MUTE 2 / MIC 2 SCREEN

The Mute 2 / Mic 2 screen provides the same functions as the Mute 1 / Mic 1 screen, except that it affects the Mic 2 Mute terminal instead.
The Mute 2 / Mic 2 screen is accessed by opening the Configuration Options screen and left-clicking the
Mic 2 screen is used to select options which customize the function of the Mic 2 Mute terminal (see Front & Rear Panel Features on pg. 2).
Left-clicking
input signal to remain off, until triggered on either manually (via contact-closure) or automatically (via signal present) at the Mute 2 terminal.
Left-clicking
Left-clicking
Ducking is a temporary attenuation of the Stereo Line Input signal at that output, which is triggered manually (via contact-clo sure) or
automatically (via signal present) at the Mute 2 terminal.

trigger page-over ducking at that output.

seconds).

Mute 2 input causes gated operation of Mic 2

Mute 2 input causes page-over duck of Main program source

Mute 2 input causes page-over duck of Zone program source

Left-clicking

NOTE: Hold Time determines how long mute functions remain in effect after triggering (manual or automatic) is released. Hold

toggles assignment of gating to the Mic 2 signal. Gating allows that mic/line

toggles assignment of ducking at the Main Output.

toggles assignment of ducking at the Zone Output.

NOTE: A mic/line input must be enabled (assigned) to an output before it can

Mute 2 Hold time

opens a drop-down menu of 256 hold time choices (0~63.75

Mute 2 / Mic 2

Time is not the same as Ramp Rate, which determines how fast a signal returns to normal after Hold Time has elapsed.

Mute 2 behaves like a programmable logic input

terminal to be used as a logic input, which can then be programmed like a remote control button (see Configuration on pg. 9). However, a
logic input can have two ‘button definitions’, one for when the circuit is ‘closed’ (activated) and another for when the circuit is ‘opened’
(released). Therefore, drop-down menus of the forty possible control buttons are provided for both the ‘closing’ & the ‘opening’ of the logic
input circuit. The logic input can still be triggered manually (via contact-closure) or automatically (via signal present). Left-clicking

Restore Defaults

factory defaults. Left-clicking

opens a pop-up menu, which allows the Mute 2 / Mic 2 options (or all Configuration Options) to be set back to their

provides additional instruction. Left-clicking

Help

will disable the Mute 2 functions described above, and instead allow the Mic 2 Mute

will return you to the Mix screen.

Close

tab. The Mute 2 /

Left-clicking

13

CONFIGURATION

CHANNEL 5 OVERRIDE SCREEN

The Channel 5 Override screen is accessed by opening the Configuration Options screen and left-clicking the
The Channel 5 Override screen is used to select options which customize the function of the Override terminal (see Front & Rear Panel
Features on pg. 3). When Channel 5 Override is released, the previously selected Stereo Line Input for each output will again be selected.
However, these signals will initially be attenuated, and will then return to their normal levels as determined by the following parameters.
Left-clicking
input signal at the associated output. Left-clicking
rate choices (0dB~200dB per second) for the stereo line input signal at the associated output. Left-clicking
drop-down menu of 256 hold time choices (0~63.75 seconds).

Main duck amount

or

Zone duck amount

Main duck ramp rat e

opens a drop-down menu of 41 attenuation choices (0dB~80dB) for the stereo line

or

Zone duck ramp rate

opens a drop-down menu of 256 return

NOTE: Hold Time determines how long override remains in effect after

Channel 5 Override

Override Hold time

tab.

opens a

triggering (manual or automatic) is released. Hold Time is not the same as Ramp Rate, which determines how fast a signal returns to
normal after Hold Time has elapsed.

Channel 5 Override functions described above, and instead allow the Override terminal to be used as a logic input, which can then be
programmed like a remote control button (see Configuration on pg. 9). However, a logic input can have two ‘button definitions’, one for
when the circuit is ‘closed’ (activated) and another for when the circuit is ‘opened’ (released). Therefore, drop-down menus of the forty
possible control buttons are provided for both the ‘closing’ & the ‘opening’ of the logic input circuit. The logic input can still be triggered
manually (via contact-closure) or automatically (via signal present). Left-clicking
Channel 5 Override options (or all Configuration Options) to be set back to their factory defaults. Left-clicking
instruction. Left-clicking

Close

Left-clicking

will return you to the Mix screen.

Ch.5 Override input behaves like a programmable logic input

Restore Defaults

opens a pop-up menu, which allows the

Help

will disable the

provides additional

14

COMPUTER CONTROL

The SPM522D has an RS-232 compatible serial interface, which allows it to be controlled by a computer (see Rear Panel Features on
page 3). In addition to the PC Control Software, the SPM522D offers two other methods of computer control.

Control Button Emulation:

This method allows the computer to emulate the operation of the infrared transmitter or wall-mount control
panel. Using this method, the computer outputs ASCII characters, which are equivalent to the commands generated by the standard
control buttons. The SPM522D is unable to tell whether these commands come from the computer or from a standard control. However,
Control Button Emulation allows the computer to utilize up to forty button definitions (unlike standard controls, which have only twenty-eight
buttons). When using up to

four SPM522Ds in a system, Control Button Emulation also allows the computer to designate which device or

devices should react to each control button command.

Advanced Computer Control:

This method provides advanced commands, which allow the computer to retrieve or edit preset mixes,
retrieve or edit control button definitions, perform preset & volume actions, and a variety of other functions. The computer may also
emulate control buttons. Using this method, the computer may designate up to

eight devices, and may create unlimited preset mixes and

control button definitions. The computer may also provide "real-time" display of various settings.
This manual only describes the Control Button Emulation method of computer control. For complete details about using the SPM522D with

a computer, including Advanced Computer Control, contact Biamp Systems for manual "Computer Control of SPM522D".
Each control button on the infrared transmitter or the wall-mount control panel corresponds to one character in the standard ASCII

character set. The character equivalents are summarized in the following table. This table includes all forty of the possible buttons, their
button numbers, their ASCII code equivalents, and their factory default button definitions (functions).

button 01 B Volume Down Mic 1 button 15 P Recall Zone Preset G button 29 ^ no button definition assi gned
button 02 C Volume Down Mic 2 button 16 Q Select Channel 5 Zone button 30 _ no button definition assigned
button 03 D Volume Down Zone button 17 R Select Channel 1 Zone button 31 ' no button definition as signed
button 04 E Volume Down Main button 18 S Select Channel 2 Zone button 32 b no button definition assigned
button 05 F Volume Up Mi c 1 button 19 T Select Channel 3 Zone button 33 c no button definit i on assigned
button 06 G Volum e Up M i c 2 button 20 U Select Channel 4 Zone button 34 d no button definition assigned
button 07 H Volume Up Zone button 21 V Recall Main Preset A button 35 e no button definition assigned
button 08 I Vol um e Up M ai n button 22 W Recall Main Pres et B button 36 f no button definition assigned
button 09 J Toggle Mute Mic 1 button 23 X Recall Main Preset C button 37 g no button defi ni tion assigned
button 10 K Toggle Mute Mic 2 button 24 Y Select Channel 5 Main button 38 h no button definition assigned
button 11 L Toggle Mute Zone button 25 Z Select Channel 1 Main button 39 i no button def i ni tion assigned
button 12 M Toggle Mute Main button 26 [ Sel ect Channel 2 Main button 40 j no button definition assigned
button 13 N Recall Zone Preset E button 27 \ Select Channel 3 Main
button 14 O Recall Zone P reset F button 28 ] Sel ect Channel 4 Main

When a control button is first pressed, the SPM522D receives the character which corresponds to that button. If the control bu tton is
pressed longer than 110 milliseconds, the SPM522D receives a "repeat code", indicating the control button is still being pressed. The
SPM522D continues to receive the repeat code (approximately nine times per second) until the control button is released. The A SCII
character which corresponds to the repeat code is @ (the "commercial at" sign).

The "receive data" (RxD) signal at the SPM522D Serial Port is combined with signals from any standard controls, before being se nt to the
main microprocessor. The computer can initiate any functions or actions that a standard control can, by simply transmitting the equivalent
control button ASCII character. When interfacing the SPM522D to a computer, the computer must be aware that the SPM522D will "echo"
all characters it receives (both from computer and standard controls) via the Serial Port 'transmit data' (TXD) signal.

Up to four SPM522Ds may be connected together, and addressed individually, when using Control Button Emulation. When multiple units
are used, each unit should be assigned a unique "Device Number" (see Configuration on pg. 11). Normally, all of the SPM522Ds would
react to control button commands. However, the computer can send commands to specific units, by preceding each command with a
"device select prefix" character (see following table). Only those SPM522Ds whose Device Numbers are specified will respond to the
command which follows. Those specific devices will also react to any repeat codes which immediately follow the command. If a command
is not immediately preceded by a device select prefix character, then all SPM522Ds in the system will react to that command.

Select Device 1 l Select Devices 2 & 3 q Select Devices 1 & 2 & 4 v
Select Device 2 m Select Devices 1 & 2 & 3 r Select Devices 3 & 4 w
Select Devices 1 & 2 n Select Device 4 s Select Devices 1 & 3 & 4 x
Select Device 3 o Select Devices 1 & 4 t Select Devices 2 & 3 & 4 y
Select Devices 1 & 3 p Select Devices 2 & 4 u Select Devices 1 & 2 & 3 & 4 z

15

COMPUTER CONTROL

Serial Interface Electrical Connections & Cabling:

The 9-pin Subminiature D (male) connector on the SPM522D rear panel provides
the RS-232 compatible serial interface signals used for computer control. The SPM522D transmits serial data on pin 3 (TxD) and receives
serial data on pin 2 (RxD). The serial interface ground is on Pin 5. The DTR & RTS signals are connected to the +12 Volt power supply
(each through its own resistor) and are always asserted when the SPM522D power is on. Most IBM compatible PCs use either 25-pin or 9­pin (male) connectors for their serial ports. The following table summarizes the pin assignments for the SPM522D serial interface, and for
the standard IBM compatible 9-pin and 25-pin serial ports.

SIGNAL NAME DIRECTION SPM522D 9-P IN IBM-PC 9-PIN IBM-PC 25-PIN

CD (carrier detect) input n/a pin 1 pin 8
RxD (receive data) input pin 2 pin 2 pin 3
TxD (transmit data) output pin 3 pin 3 pin 2
DTR (data terminal ready) output pin 4 pin 4 pin 20
signal ground n/a pin 5 pin 5 pin 7
DSR (data set ready) input n/a pin 6 pin 6
RTS (request to send) output pin 7 pin 7 pin 4
CTS (clear to send) input n/a pin 8 pin 5
RI (ring indicator) input n/a pin 9 pin 22

The SPM522D only requires receive data (pin 2), transmit data (pin 3), and signal ground (pin 5) to be connected for successful data
communications. However, the PC may require that signals be present on the data set ready, clear to send, or carrier detect inputs, as
well as the receive data, transmit data, and signal ground pins. The diagrams on the following page show cables for interfacing to a PC
with either a 9-pin or a 25-pin serial port connector. In most cases, one or the other of these cables will work. However, success or failure
depends entirely on the actual computer hardware and software being used. When trying to solve an interfacing problem, the most
important thing to remember is that an output of one device should connect to one or more inputs of the other device, and that two outputs
should never be connected together. Also, keep in mind that the RS-232 specification calls for the cable length to be no great er than 50
feet (although it is not unusual to be able to operate over distances of 150 to 250 feet), and the connectors must be of the appropriate
gender (male or female) to mate properly. For best results, a shielded cable should be used, with the shield connected to signal ground.
Since the SPM522D serial interface ground is also tied (indirectly) to the analog signal ground, undesirable ground loops may occur when
the SPM522D is connected to a PC (if the system grounding is not carefully designed). For best performance, the PC ground and the
chassis ground of the SPM522D should be at the same potential, and the PC should get AC power from the same source as the SPM522D
(and any other audio equipment which is connected to the SPM522D).

Serial Interface Data Communications Parameters:

The SPM522D communicates through the serial interface at a rate of 9600 bits per
second, with 8 data bits, 1 stop bit, and no parity. The SPM522D utilizes a subset of the standard 7-bit ASCII character set. The eighth
data bit of each character (the most significant bit) should always be 0. The computer should not echo the characters it receives. The
computer should not be set for either hardware (DTR) or software (XON/XOFF) flow control. The baud rate may be changed to 2400 bits
per second by means of an internal DIP switch labelled ‘Opt. W’ (for access instructions and switch diagram see Options on pg. 6). The
‘Opt. W’ DIP switch is located on the right-center of the lower circuit board, adjacent to the microprocessor (U2). To select 2400 baud rate:

1) Disconnect power from the SPM522D. 2) Remove top panel. 3) Move ‘Opt. W’ DIP switch towards the rear panel, to the ‘off’ position.

16

COMPUTER CONTROL

SPM522D

n/a
RxD
TxD

DTR

ground

n/a

RTS

n/a

n/a

SPM522D

n/a
RxD
TxD

DTR

ground

n/a

RTS

n/a

n/a

9-pin

male female

1
2
3
4
5
6
7
8
9

male female

1
2
3
4
5
6
7
8
9

1
2
3
4
5
6
7
8
9

9-pin

1
2
3
4
5
6
7
8
9

SPM522D to PC 9-Pin Connector

(shield)

These connections
may not be required:
DTR to CD;
DTR to DSR;
or RTS to CTS.

SPM522D to PC 25-Pin Connector

(shield)

These connections
may not be required:
DTR to CD;
DTR to DSR;
or RTS to CTS.

9-pin

female male

1
2
3
4
5
6
7
8
9

female male

8
3
2

20

7
6
4
5

22

1
2
3
4
5
6
7
8
9

25-pin

8
3
2

20

7
6
4
5

22

PC

CD
RxD
TxD
DTR
ground
DSR
RTS
CTS
RI

PC

CD
RxD
TxD
DTR
ground
DSR
RTS
CTS
RI

SPM522D

n/a
RxD
TxD

DTR

ground

n/a

RTS

n/a

n/a

#4

SPM522D

n/a
RxD
TxD

DTR

ground

n/a

RTS

n/a

n/a

#3

9-pin

male female

1
2
3
4
5
6
7
8
9

male female

1
2
3
4
5
6
7
8
9

1
2
3
4
5
6
7
8
9

9-pin

1
2
3
4
5
6
7
8
9

Four SPM522Ds Connected to a PC

SPM522D

n/a

RxD

TxD

DTR

ground

n/a

RTS

n/a
n/a

#1

SPM522D

n/a

RxD

TxD

DTR

ground

n/a

RTS

n/a
n/a

#2

9-pin

male female

1
2
3
4
5
6
7
8
9

male female

1
2
3
4
5
6
7
8
9

1
2
3
4
5
6
7
8
9

9-pin

1
2
3
4
5
6
7
8
9

9-pin

female male

1
2
3
4
5
6
7
8
9

These connections
may not be required:
DTR to CD;
DTR to DSR;
or RTS to CTS.

When connecting
four SPM522Ds to a
PC 25-pin connector,
refer to "SPM522D to
PC 25-pin connector"
diagram above for
pin assignments.

1
2
3
4
5
6
7
8
9

PC

CD
RxD
TxD
DTR
ground
DSR
RTS
CTS
RI

17

APPLICATIONS

Retail Bookstore plus Music Department with Paging and Remote Control

CPA650

peak peak

12

level level

micro
EQ152

boost/cut
12 dB

boost
6 dB
12dB

0

6dB

peak

out

cut

in

SPM522D

BIAMP SYSTEMS

Portland, Oregon

an affiliate of

Rauland-Borg Corp.

MADE IN U.S.A.

27 VAC

18W max

serial port

music dept.

foreground

music

system

Commercial Power Amplifier

boost

0

cut

channel Bchannel A

R

zone out main out

DC
out

ADVANTAGE

CPA 650

gain

boost

0

cut

BA

outputs

L

remote display

bookstore

background

music

music dept.

paging

mic

system

CPA130

peak peak

12

Commercial Power Amplifier

level level

ADVANTAGE

CPA 130

bookstore

0dB
30dB

+10

0dB
30dB

+10

trim

trim

paging

mic

phtm

power

mute

on

phtm

power

mute

on

mic 1

signal present

mic input

mic 2

signal present

mic input

micro

boost/cut16K10K6.3K4K2.5K1.6K1K63040025016010063402516K10K6.3K4K2.5K1.6K1K630400250160100634025

12 dB

micro

EQ152

6 dB
12dB
6dB

peak

out

in

zone

L

R

limit

limit limit

2

1

IR2

remote

gnd

gnd

IR3

IR3

IR2

translator

gnd

EQ152

boost/cut
12 dB

boost

6 dB

12dB

0

6dB

peak

out

cut

in

main
limit

high

low

override

gnd

override

zone

sig pres

stereo

mono

main

3

level

override

sensitivity

010

boost

0

cut

2

level

010010

5

level

010

channel Bchannel A

level

010

level

010

1

4

inputs

boost/cut16K10K6.3K4K2.5K1.6K1K63040025016010063402516K10K6.3K4K2.5K1.6K1K630400250160100634025

gain

12 dB

micro

EQ152

boost

6 dB

12dB

0

6dB

peak

out

cut

BA

in

L

R

RLRL

override

231

4

5

mic 1
patch

mic 2
patch

pad

pad

customized control panel

(Remote Interface Kit plus

momentary push-buttons)

MUSIC DEPARTMENT

SOURCE

CD-1 CD-2 TAPE

VOLUME

VOL

VOL

MUTE

music dept. sources

(remote control of

source selection)

bookstore sources

(satellite music with

message repeater

automatic override)

18

CD player #1

COMPACT

DIGITAL AUDIO

1

0:00

CD player #2

COMPACT

DIGITAL AUDIO

2

2:50

cassette tape deck

satellite music service

CHANNEL 5

digital message repeater

room #2

ceiling

speakers*

APPLICATIONS

Two Hotel Meeting Rooms with Room Combining and Remote Control

room #2 microphones

301e

DT-1A

xfmr

DT-1A

xfmr

room #1

ceiling

speakers*

27 VAC

18W

BIAMP SYSTEMS

Portland, Oregon

an affiliate of

Rauland-Borg Corp.

MADE IN U.S.A.

pad

outin

main outputpatch

--+com

C+10V gnd

stack inputremote

mic/line 3

pad pad

--+--+

comcom--+com

600 / ch. 2

mic/line 1

--+com

SPM522D

BIAMP SYSTEMS

Portland, Oregon

an affiliate of

Rauland-Borg Corp.

MADE IN U.S.A.

27 VAC

18W max

serial port

CPA650

peak peak

12

level level

EQ282M

DC
out

Commercial Power Amplifier

outputs

L

R

R

zone out main out

remote display

Remote

Display

Controller

room #1 microphones

ADVANTAGE

CPA 650

301e

BIAMP SYSTEMS

Portland, Oregon

an affiliate of

27 VAC

Rauland-Borg Corp.

18W

ADVANTAGE EQ282M

Digitally Controlled EQ

channel

preset

clear

select

select

onIRError214321

MADE IN U.S.A.

outin

+

patch

main output

--+com

C+10V gnd

stack inputremote

pad

mic/line 3

pad pad

--+--+

comcom--com

600 / ch. 2

mic/line 1

--+com

*main out & zone out

set for mono

4

mic 1
patch

mic 2
patch

pad

0dB
30dB

phtm

power

trim

+10

pad

0dB
30dB

phtm

power

trim

+10

mic 1

signal present

mute

on

mic input

mic 2

signal present

mute

on

mic input

main

zone

L

limit

zone

limit

stereo
mono

limit limit

2

1

high

IR2

remote

gnd

IR2

IR3

translator

override

low

sig pres

gnd

override

gnd

IR3

gnd

main

3

level

override

sensitivity

010

level

010010

5

level

010

level

010

4

level

010

inputs

L

R

5

RLRL

override

231

1

2

satellite music service

CHANNEL 5

AM/FM tuner

3

101.9

FM

remote control selection of presets

affects room combining (SPM522D)

and room equalization (EQ282M)

IR receiver

zone main

main

ABCD

preset

EFGH

zone

main

12345 1 2

12345 1 2

zone

SPM522D Remote Display Panel

max

min
mute

micchannel

room #1 display panel
with infrared receiver

SPM 522D

preset

preset

MAIN

ZONE

B C D 5

1234

1234

A

E F G H 5

MIC 1 MIC 2 ZONE MAIN

MUTE

VOL

VOL

MUTE

VOL

VOL

MUTE

VOL

VOL

MUTE

VOL

VOL

MIC 1 MIC 2 ZONE MAIN

VOL

VOL

VOL

VOL

room #2 display panel

with infrared receiver

MUTE

VOL

E F G H 5

A

1234

preset

B C D 5

ZONE

preset

1234

MAIN

SPM 522D

MUTE

VOL

MUTE

VOL

MUTE

VOL

IR receiver

max

zone main

main

ABCD

preset

mute

EFGH

zone

main

12345 1 2

12345 1 2

zone

SPM522D Remote Display Panel

min

micchannel

19

APPLICATIONS

Restaurant plus Bar with Paging and Remote Control

CPA130

peak peak

12

level level

micro
EQ152

boost/cut
12 dB

boost
6 dB
12dB

0

6dB

peak

out

cut

in

SPM522D

BIAMP SYSTEMS

Portland, Oregon

an affiliate of

Rauland-Borg Corp.

MADE IN U.S.A.

27 VAC

18W max

serial port

lounge

stereo

speaker

system

Commercial Power Amplifier

boost

0

cut

DC
out

ADVANTAGE

CPA 130

boost/cut16K10K6.3K4K2.5K1.6K1K63040025016010063402516K10K6.3K4K2.5K1.6K1K630400250160100634025

gain

12 dB

micro

EQ152

boost

6 dB

12dB

0

6dB

peak

out

cut

channel Bchannel A

BA

in

outputs

L

RR

zone out main out

remote display

D60EQ

+15

0

-15
64 125 250 500 1K 2K 4K 8K 16K

*main out set for mono

main

zone

L

limit

2

1

gnd

gnd

IR3

IR2

IR3

IR2

remote

translator

limit

limit limit

high

gnd

override

low

override

gnd

zone

sig pres

stereo
mono

main

peak

+15

signal

present

0

-15

level

override

sensitivity

ADVANTAGE D60EQ

Amplifier/Equalizer

on

3

level

010

2

level

010010

5

level

010

restaurant
ceiling
speaker
system*

1

L

level

R

010

inputs

4

level

010

231

4

5

RLRL

override

mic 1
patch

mic 2
patch

lounge only

paging

mic

restaurant & lounge

priority paging

mic

pad

0dB
30dB

+10

pad

0dB
30dB

+10

phtm

power

trim

trim

phtm

power

mute

on

mute

on

mic 1

signal present

mic input

mic 2

signal present

mic input

IR receiver

zone main

main

ABCD

preset

EFGH

zone

main

12345 1 2

12345 1 2

zone

SPM522D Remote Display Panel

satellite music service

CHANNEL 5

Remote

Display

Controller

juke box relay wired
for manual override
in lounge area only

lounge juke box

A1
B1A2B2A3B3A4B4A5B5A6B6A7B7

remote control selection of presets

affects volume & paging settings

for alternate usage of rooms

max

min
mute

micchannel

restaurant display panel
with infrared receiver

preset

preset

ZONE

B C D 5

1234

A

MUTE

MUTE

MUTE

E F G H 5

MUTE

SPM 522D

MAIN

1234

VOL

VOL

VOL

VOL

VOL

VOL

VOL

VOL

MIC 1 MIC 2 ZONE MAIN

lounge wall-mount

control panel and

display panel

SPM 522D

MAIN

1234

preset

A

B C D 5

ZONE

1234

preset

E F G H 5

MUTE

MUTE

MUTE

VOL

VOL

VOL

VOL

VOL

VOL

MIC 1 MIC 2 ZONE MAIN

IR receiver

max

zone main

main

ABCD

min

preset

mute

EFGH

zone

MUTE

VOL

VOL

main

12345 1 2

12345 1 2

zone

SPM522D Remote Display Panel

micchannel

20

APPLICATIONS

outputs

expansion

logic

outputs

ONONONONONONONON

ON

pad

ungated

phantom

aux off

patch pre

slave

-12db
hp filter

last mic

aux post

pad

ungated

phantom

duck ch8

patch pre

pad

ungated

phantom

duck ch8

patch pre

pad

ungated

phantom

duck ch8

patch pre

pad

ungated

phantom

duck ch8

patch pre

pad

ungated

phantom

duck ch8

patch pre

pad

ungated

phantom

duck ch8

patch pre

pad

ungated

phantom

duck ch8

patch pre

BIAMP SYSTEMS

Portland, Oregon

an affiliate of

Rauland-Borg Corp.

±12VDC

DC out

15 watts

class 2 wiring

50/60 Hz

~

27V

main aux stack in

main patch

patch

8

input

patch

7

input

patch

6

input

patch

5

input

patch

4

input

patch

3

input

patch

2

input

patch

1

input

Boardroom Sound System with Teleconference Feed & Remote Control

DC
out

30dB

trim

mic 1
patch

30dB

0dB

pad

mic 2
patch

0dB

trim

pad

R

L

mic 2

231

phtm
power

on

phtm
power

level

010

4

5

4

RLRL

010

010010

level

010

5

sensitivity

010

override

inputs

mono

stereo

zone

main

main

limit

zone

limit

zone out main out

outputs

27 VAC

18W max

MADE IN U.S.A.

BIAMP SYSTEMS

Portland, Oregon

an affiliate of

Rauland-Borg Corp.

translator

override

1

level

2

level

3

level

limit limit

serial port

on

mic input

remote

override

mic input

+10

+10

remote display

high

low

gnd

IR3

IR2

gnd

1

IR3

IR2

gnd

2

mute

signal present

mute

sig pres

gnd

override

logic inputs

Video Switcher

ADVANTAGE VSX41

gnd

remote 2

remote

translator

IR2 IR3 gnd low high gnd IR2 IR3

remote 1

gnd IR2 IR3

output

BIAMP SYSTEMS

Portland, Oregon

an affiliate of

Rauland-Borg Corp.

input 4 input 3 input 2 input 1

autoONE

SPM522D

logic inputs

Video Switcher

ADVANTAGE VSX41

gnd

remote 2

remote

translator

IR2 IR3 gnd low high gnd IR2 IR3

remote 1

gnd IR2 IR3

output

BIAMP SYSTEMS

Portland, Oregon

an affiliate of

Rauland-Borg Corp.

input 4 input 3 input 2 input 1

remote
output

VSX41

video output for

teleconferencing

audio output for

teleconferencing*

ceiling
speakers*

stereo

speakers

*zone out set for mono

mic 1

signal present

R

L

R

L

level

0

+15

-15

0

+15

-15

on

signal

present

peak

Amplifier/Equalizer

ADVANTAGE D60EQ

64 125 250 500 1K 2K 4K 8K 16K

D60EQ

peak peak

level level

12

CPA 650

ADVANTAGE

Commercial Power Amplifier

CPA650

EQ282/8

VHS

2:50

1

COMPACT

DIGITAL AUDIO

CD player

audio cassette deck

video tape player

multi-media

computer

video
monitor

VSX41

remote
output

'third-party'

remote control

touch screen

onbypasspeakbypasspeak

Digitally Controlled EQ

ADVANTAGE EQ 282/8

Channel 1

preset

Channel 2

preset

21

Stereo Program Inputs

Program Source Selection & Outputs

22

Stereo
Input 1

Stereo
Input 2

Stereo
Input 3

Stereo
Input 4

Stereo

Input 5
(Override
Channel)

Mic 1

Mic 2

L
R

L
R

L
R

L
R

out in

L

30dB

R

PAD

level

level

level

level

level

override sensitivity

L

Stereo
Source 1

R

L

Stereo
Source 2

R

L

Stereo
Source 3

R

L

Stereo
Source 4

R

L

Stereo

R

Source 5

Stereo
Source 5
Signal
Present

Stereo Inputs
Input 1
Input 2
Input 3
Input 4
Input 5

Mic 1

Mic 2

Main Source

Selector

Zone Source

Selector

Mono Mic/Line Inputs

+24V

Phantom

Power

+24V

Phantom

Power

30dB

PAD

30dB

PAD

Trim

(40 dB)

Trim

(40 dB)

Signal
Detect

Signal
Detect

Peak

Peak

Mic 1
Patch

Mic 2
Patch

Mic 1
Signal
Present

Mic 1
Source

Mic 2
Signal
Present

Mic 2
Source

Channel 5

Override

Mic 1 Mute

(Talkover)

Mic 2 Mute

(Talkover)

Remote 1

Remote 2

Remote

Translator

Serial Port

(RS-232)

Infrared

Receiver

bass treble

L

Main

R

bass treble

L

Zone

R

Volume to Main

Volume to Main

Remote
Control

Decoder

Main Program

Volume

EQ

Zone Program

Volume

EQ

Volume to Zone

Volume to Zone

CPU & Logic

Balance

Balance

Microprocessor

Main

Volume

Limit

Threshold

Zone

Volume

Limit

Threshold

out in

20dB
PAD

Limiter

Limiter

* internal jumpers for
optional 20dB pad at
Main & Zone Outputs

Non-Volatile

Memory

Limit

mono

Limit

mono

Internal Control
Signals to Digital
Potentiometers
and Switches, etc.

Front Panel

Display

Remote
Display

Main

Output

*

*

Zone

Output

*

*

Left

Right

Left

Right

BLOCK DIAGRAM

SPECIFICATIONS

Frequency Response
Total Harmonic Distortion
Output Noise
Equivalent Input Noise
Maximum Gain
Input Trim Gain Range:

Mic/Line Inputs (30dB pad out)
Stereo Line Inputs (30dB pad out - Input 5)

Input Impedance:

Mic/Line Inputs (balanced)
Mic Patch (unbalanced)
Stereo Line Inputs (unbalanced)
Stereo Line Input 5 (30dB pad in)

Maximum Input:

Mic/Line Inputs (balanced)
Mic Patch (unbalanced)

(20Hz-20kHz @ nominal levels)

(20Hz-20kHz @ +4dBu)

(20Hz-20kHz @ +4dBu)

(20Hz-20kHz, 150

(Mic/Line Input to Main/Zone Outputs)

:

:

:

termination @ Mic/Line Input)

Ω

:

+0/-2dB

< 0.05%

< -75dBu

:

-127dBu
75dB

+52dB to +14dB

+10dB to -50dB

2k ohms

5.4k ohms
7k ohms

20k ohms

+33dBu

+18dBu
Stereo Line Inputs (unbalanced)
Stereo Line Input 5 (30dB pad in)

Output Impedance:

Main Out (balanced)
Zone Out (balanced)
Mic Patch (unbalanced)

Maximum Output:

Main Out (balanced)
Zone Out (balanced)
Mic Patch (unbalanced)

Stereo Limiter Threshold Range
Phantom Power
DC Out:
Power Requirements:
Power Consumption:
Dimensions:

(Mic/Line Inputs only)

(Main/Zone balanced)

:

:

+27dBu

+39.2dBu (70.7V)

100 ohms
100 ohms
100 ohms

+24dBu

+24dBu

+18dBu

+24dBu to +9dBu

+24 Volts DC

±12 Volts DC @ 20mA max.

10 Watts max.

110/240VAC 50/60Hz

Height (1 rack space)
Width
Depth

Weight:

3.5 inches (89mm)

19 inches (483mm)

7.5 inches (191mm)

8.5 lbs. (3.86kg)

23

WARRANTY

BIAMP SYSTEMS IS PLEASED TO EXTEND THE FOLLOWING 5-YEAR

LIMITED WARRANTY TO THE ORIGINAL PURCHASER OF THE

PROFESSIONAL SOUND EQUIPMENT DESCRIBED IN THIS MANUAL.

BIAMP Systems expressly warrants this product to be
free from defects in material and workmanship for a
period of 5 YEARS from the date of purchase as a
new product from an authorized BIAMP Systems
dealer under the following conditions.

1. The Purchaser is responsible for completing and
mailing to BIAMP Systems, within 10 days of
purchase, the attached warranty application.

2. In the event the warranted BIAMP Systems product
requires service during the warranty period, BIAMP
Systems will repair or replace, at its option, defective
materials, provided you have identified yourself as the
original purchaser of the product to any authorized
BIAMP Systems Service Center. Transportation and
insurance charges to and from an authorized Service
Center or the BIAMP Systems factory for warranted
products or components thereof to obtain repairs shall
be the responsibility of the purchaser.

3. This warranty will be VOIDED if the serial number
has been removed or defaced; or if the product has
been subjected to accidental damage, abuse, rental
usage, alterations, or attempted repair by any person
not authorized by BIAMP Systems to make repairs; or
if the product has been installed contrary to BIAMP
Systems's recommendations.

4. Electro-mechanical fans, electrolytic capacitors,
and the normal wear and tear of appearance items
such as paint, knobs, handles, and covers are not
covered under this warranty.

5. BIAMP SYSTEMS SHALL NOT IN ANY EVENT BE
LIABLE FOR SPECIAL, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES, INCLUDING LOST
PROFITS, LOSS OF USE, PRO PERTY DAM AGE, IN JURY
TO GOODWILL, OR OTHER ECONOMIC LOSS OF ANY
SORT. EXCEPT AS EXPRESSLY PROVIDED HEREIN,
BIAMP SYSTEMS DISCLAIMS AL L OTHER LIABILIT Y TO
PURCHASER OR ANY OTHER PERSONS ARISING OUT
OF USE OR PERFORMANCE OF THE PRODUCT,
INCLUDING LIABILITY FOR NEGLIGENCE OR STRICT
LIABILITY IN TORT.

6. THIS WARRANTY IS IN LIEU OF ALL OTHER
WARRANTIES EXPRESSED OR IMPLIED. BIAMP
SYSTEMS EXPRESSLY DISCLAIMS ALL IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE. THE REMEDIES SET
FORTH HEREIN SHALL BE THE PURCHASER'S SOLE
AND EXCLUSIVE REMEDIES WITH RESPECT TO ANY
DEFECTIVE PRODUCT. THE AGENTS, EMPLOYEES,
DISTRIBUTORS, AND DEALERS OF BIAMP SYSTEMS
ARE NOT AUTHORIZED TO MODIFY THIS WARRANTY
OR TO MAKE ADDITIONAL WARRANTIES BINDING O N
BIAMP SYSTEMS. ACCORDINGLY, ADDITIONAL
STATEMENTS SUCH AS DEALER ADVERTISEMENTS
OR REPRESENTATIONS DO NOT CONSTITUTE
WARRANTIES BY BIAMP SYSTEMS.

7. No action for breach of this warranty may be
commenced more than one year after the expiration of this
warranty.

Thank you for purchasing BIAMP SYSTEMS...

AMERICAN SOUND CRAFTSMANSHIP

Biamp Systems

10074 S.W. Arctic Drive

Beaverton, Oregon 97005

[phone]

http://www.biamp.com

585.0121.00
