SMS200
Sound Masking
System
operation manual
®
Biamp Systems, 10074 S.W. Arctic Drive, Beaverton, Oregon 97005 U.S.A. (503) 641-7287 http://www.biamp.com
an affiliate of Rauland Borg Corp.
Print Update
April 11, 2000
Sound Masking System provides a digitally controlled
tant filter bandwidth at any setting. The SMS200 is
TABLE OF CONTENTS
Front Panel
Rear Panel
Setup
Logic Inputs
RS-232 Control

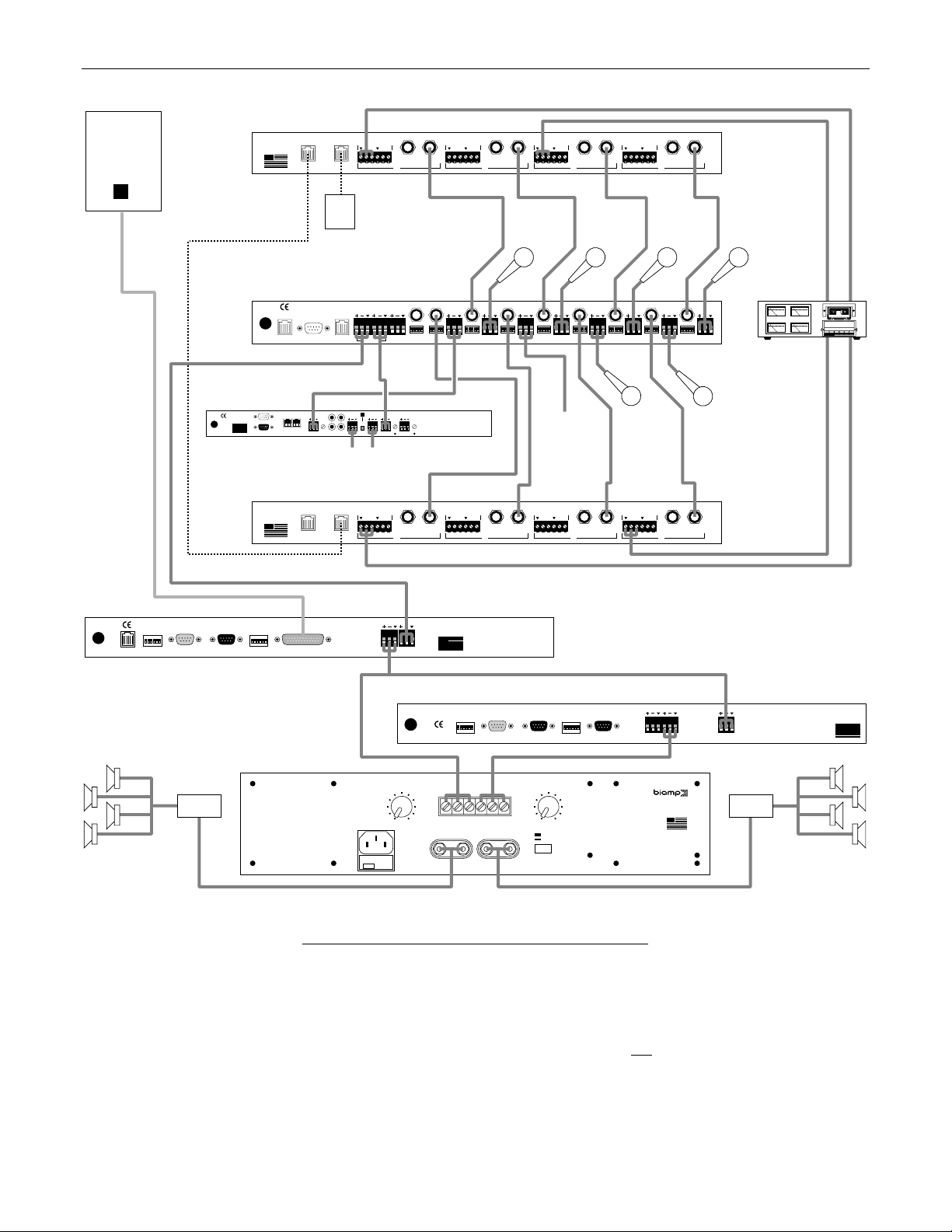

Applications
Specifications & Block Diagram
Warranty
pg. 2
pg. 3
pgs. 4~6
pg. 7
pgs. 8~9
pgs. 10~11
pg. 12
SMS200
INTRODUCTION
ADVANTAGE
1/3-octave equalizer, with a digital noise source in a single rack-space unit.
Input, noise, and 28 filter bands, as well as high-pass & low-pass filters, are all
adjusted via computer. Eight presets are recalled via contact-closures, thirdparty controllers, or computer. Filter design utilizing Constant-Q technology
guarantees precise system tuning with less filter interaction, better filter
combining, and cons
covered by a five-year warranty.
SMS200 features include:
♦ 1/3-octave equalizer with built-in sound masking generator
♦ white-noise generator spectral purity (±0.1dB @ 0Hz~20kHz)
♦ precision pink-noise filtering (-3dB per octave low-pass)
♦ extended ‘non-apparent’ repeat time of noise (200 minutes)
♦ 28 digitally controlled filters on ISO center frequencies
♦ Constant-Q technology provides precision system tuning
♦ filters adjustable ±12dB in 1dB steps or
♦ noise & input levels adjustable ±12dB in 1dB steps (plus off)
♦ high-pass filter (12dB per octave) adjustable 9.1Hz~171.9Hz
♦ low-pass filter (12dB per octave) adjustable 1.9kHz~34.7kHz
♦ eight non-volatile memory presets available (levels & filters)
♦ logic inputs allow selection of presets via contact-closures
♦ RS-232 serial port for computer or third-party controllers
♦ software for Windows
♦ device number switch & link port for controlling multiple units
♦ baud rate switch provides choice of communications rates
♦ front panel indicators for peak, bypass, & selected preset
♦ balanced input and output on plug-in barrier strip terminals
♦ modular ±12 Volt DC Out jack for powering external devices
♦ incorporates AES recommended grounding pratices
♦
marked and UL / C-UL listed power source
♦
covered by Five-Year "Gold Seal" Warranty
®
SMS200
±6dB in 0.5dB steps
®
95/98/NT & serial cable included
1
FRONT PANEL
Preset: This seven segment LED display indicates which
preset is currently selected. There are eight presets available,
which can be recalled from non-volatile memory via RS-232 or
Logic Input control. Each preset stores settings for input level,
noise level, 28 filter bands, a high-pass filter, and a low-pass
filter. These settings are adjusted, and presets are stored, via
RS-232 control, using the PC Control Software and serial cable
provided with the SMS200 (see Setup on pg. 4). The SMS200
may also be controlled via RS-232 from third-party controllers.
ADVANTAGE SMS200
preset
Sound Masking System
onbypasspeak
Peak: This red LED indicates output level has reached +14dBu
balanced (+8dBu unbalanced). When the Peak indicator lights,
10dB of headroom remains before clipping. If increased signal
levels or equalizer adjustments cause the Peak indicator to light
frequently, reduce the SMS200 input & noise levels to avoid
distortion caused by overdriving the output section.
Bypass: This red LED indicates the SMS200 equalizer has
been bypassed via RS-232 control. When bypassed, all filters
are temporarily set flat, the high-pass & low-pass filters are set
to their extremes (9.1Hz & 34.7kHz respectively), and the input
level is set to unity gain. From the factory, noise level is not
affected by Bypass (see Setup on pg. 6).
On: This red LED indicates power is applied to the equalizer.
2
REAR PANEL
27V
~
50/60 Hz
15 watts
class 2 wiring
AC Power Cord: The power transformer provides 27 Volts AC
to the SMS200, and is detachable via a 5-pin DIN connector.
The SMS200 has two internal ‘self-resetting’ fuses (there are no
user servicable parts inside the unit). If the internal fuses blow,
they will attempt to re-set after a short period. However, this
may be an indication that the SMS200 requires service.
DC Out: This 6-pin Modular jack supplies ±12 Volts DC, for
powering external accessory devices. The SMS200 DC Out
provides up to 100mA maximum current.
Device #: This 6-gang DIP switch allows an SMS200 to be
assigned a specific device number. Up to 64 different device
numbers (0~63) may be assigned to allow RS-232 control of
multiple ADVANTAGE
the factory, an SMS200 is assigned Device # 1.
Serial Port: This 9-pin Sub-D (male) connector provides an
RS-232 Serial Port for remote control via computer or third-party
controllers. The Serial Port has the following pin assignments
(left-to-right & top-to-bottom): Pin 1) not used; Pin 2) Receive
Data (RxD) input; Pin 3) Transmit Data (TxD) output; Pin 4)
Data Terminal Ready (DTR) output; Pin 5) Ground; Pin 6) not
used; Pin 7) Request To Send (RTS) output; Pin 8) not used;
Pin 9) not used. PC Control Software and a serial cable are
provided for programming via Windows
4). NOTE: The Serial Port can also transmit commands which
are received via the Logic Inputs (see Setup on pg. 5).
Link Port: This 9-pin Sub-D (female) connector provides a Link
Port for RS-232 control of multiple ADVANTAGE
Link Port of one device simply connects to the Serial Port of the
next device (and so forth). Link cables are available as an
option (Biamp #909-0057-00). NOTE: All but the final device in
a system should have its ‘last
The Link Port has the following pin assignments (right-to-left &
top-to-bottom): Pin 1) not used; Pin 2) Transmit Data (TxD)
input; Pin 3) Receive Data (RxD) output; Pin 4) not used; Pin
5) Ground; Pin 6) not used; Pin 7) not used; Pin 8 ) not
used; Pin 9) not used. NOTE: The Link Port can also transmit
commands which are received via the Logic Inputs (see Setup
on pg. 5).
DC out
16
32
124
8
device #
serial port
®
products in a common system. From
link port
®
95 (see Setup on pg.
2400
last
19200
9600
baud rate
®
products. The
’ switch down (see Baud Rate).
logic inputs
output
input
BIAMP SYSTEMS
Portland, Oregon
an affiliate of
Rauland-Borg Corp.
MADE IN U.S.A.
Baud Rate: This 6-gang DIP switch allows an SMS200 to be
assigned a specific communications baud rate. Baud rates
available are 2400, 9600, & 19200 bps. The factory default is
9600 bps. Only one baud rate should be selected at a time, by
raising the corresponding switch. The two switches on the far
right are not used. The switch on the far left (labelled ‘last’) is
used when connecting multiple devices in a ‘Link Port to Serial
Port’ configuration (see Link Port). From the factory, the ‘last’
switch is up. When connecting multiple devices, the ‘last’ switch
must be switched down on all devices except
the final (‘last’)
device in the system (the device with no Link Port connection).

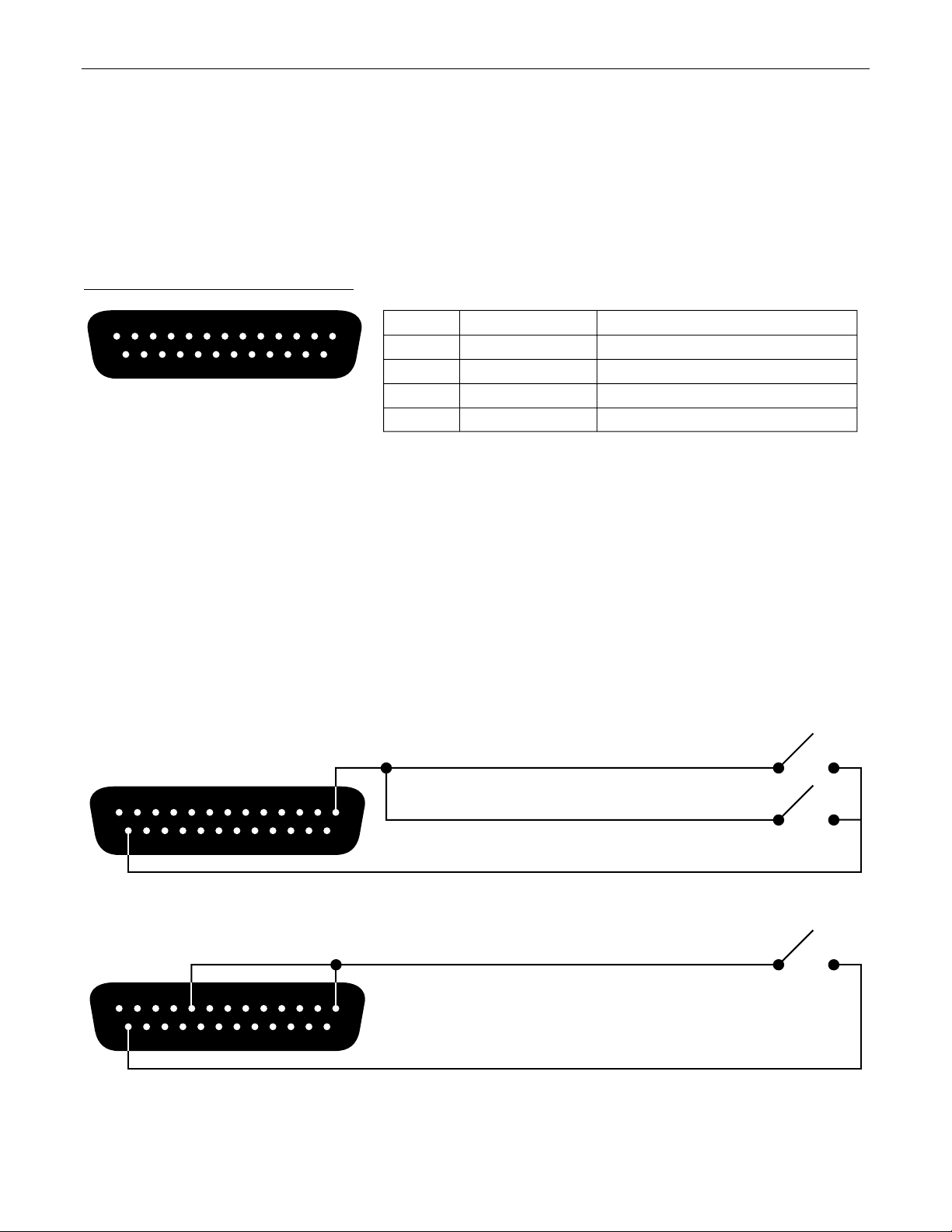

Logic Inputs: This 25-pin Sub-D (female) connector provides
16 logic input terminals, plus 9 ground terminals (see Logic
Inputs on pg. 7). Once SMS200 settings are adjusted (and
presets are stored) via RS-232 control, the Logic Inputs can be
used to recall presets from non-volatile memory using simple
switches or contact-closures. Logic Inputs have the following pin
assignments (right-to-left & top-to-bottom): Pins 1~8) recall
Presets 1~8; Pins 9~16) no operation; Pins 17~25) switch
ground points. Logic Input functions may be programmed using
the PC Control Software and serial cable provided with the
SMS200 (see Setup on pg. 4).
Output: These plug-in barrier strip terminals provide a
balanced line-level output. For balanced connection, wire high
to (+), low to (-), and ground to (
wire high to (+) and ground to (
ý
). For unbalanced connection,
ý
), leaving (-) unconnected.
Signal level will be reduced by 6dB when outputs are wired
unbalanced.
Input: These plug-in barrier strip terminals provide a balanced
line-level input. For balanced connection, wire high to (+), low to
(-), and ground to (
(+), and ground to both (-) & (
ý
). For unbalanced connection, wire high to
ý
). Input level is adjustable via RS-
232, and has a range of ±12dB in 1dB steps, plus off.
3
SETUP
All SMS200 parameters are adjustable using the Windows
Control Software provides programs for for various ADVANTAGE
different control screens (Main
, Button Definition, & Configuration Options), which are described on the following pages. Once the software
is started (and Comm Port Configuration is set), the three control screens are accessable through the drop-down menus at the top of the
opening screen. The Main
then available from the Configure SMS200
copy/paste & flat-curve functions. The Settings
product screens. The Help
and enter A:\SETUP. System Requirements
screen appears whenever an SMS200 file is opened. Button Definition & Configuration Options screens are
menu. The File menu provides functions such as open, close, save, etc. The Edit menu allows
menu recalls the Comm Port Configuration screen. The Window menu arranges the active
menu explains the available adjustments. To install PC Control Software: Select ‘Run’ from the ‘Start’ menu,
: Windows® 95/98/NT with 16M RAM & 5M of available hard disk space (serial port required
for ‘on-line’ operation).
®
95/98/NT ’PC Control Software’ and serial cable provided with the unit. The PC
®
products, including the SMS200. The SMS200 program includes three
MAIN SCREEN
The Main Screen is used to adjust the SMS200 signal level, noise level, 28 filter bands, high-pass filter, and low-pass filter settings, as well
as to store & recall eight memory presets. Adjustments are made with the computer mouse (or keyboard). Settings are adjusted by
dragging the corresponding ‘faders
(±12dB). Left-clicking on +/-12 dB
’ (or left-clicking the arrow buttons). Each filter band fader provides 25 gain steps, in 1 dB increments
will instead select 0.5 dB increments (±6dB). Left-clicking above or below a fader will adjust the gain
three steps at a time. High Pass & Low Pass filters provide 16 frequency steps. Left-clicking to the left or right of the fader will adjust the
frequency 4 steps at a time. The Level faders each provide 26 gain steps (±12dB, plus off). Right-clicking in the filter band area opens a
drop-down menu, which allows copy/paste & flat curve functions. Left-clicking a Preset
non-volatile memory (presets are stored automatically). Left-clicking the Bypass
button will recall the corresponding preset from
button will temporarily bypass filter & level settings (see
Configuration Options screen on pg. 6). The title bar across the top of the Main screen will indicate the Device #, the custom Device
Name, and the model of product being controlled. The PC Control Software can operate ‘off-line’ (with no product connected) by opening a
‘new’ file for the desired product. The Device # for ‘off-line’ files is assigned sequentially as a negative number.
4
SETUP
BUTTON DEFINITION SCREEN
The Button Definition screen is used to assign specific ‘recall preset actions’ to the Logic Inputs (and remote control buttons). Logic Inputs
allow remote control of preset selection via external circuits, such as switches, contact-closures, active driver circuits, and/or ‘opencollector’ logic outputs (see Logic Inputs on pg. 7). From the factory, Logic Inputs 1~8 are programmed to recall presets 1~8 respectively.
Logic Inputs 9~15 are programmed to do nothing. Logic Input 16 is programmed to decrement (step down) from the currently selected
preset to the next lower numbered preset (until reaching Preset 1). However, using the Button Definition screen, each Logic Input may be
assigned different ‘recall preset actions’. Left-clicking on a numbered button will select that Logic Input to be defined. Left-clicking on
Action
will open a drop-down menu of the available recall preset actions. Left-clicking the desired recall preset action will then assign that
action to the currently selected Logic Input. Since Logic Inputs are controlled by switches, contact-closures, etc., each Logic Input may be
assigned a recall preset action to perform when the switch is ‘opened
‘closed
’. The Button Definition screen also includes the ability to assign a specific recall preset action to be performed each time the
equalizer is powered up. Left-clicking Power Up Actions
selects this function to be defined. A Power Up Action is then assigned in exactly
’, and a different recall preset action to perform when that switch is
the same way as they would be for a Logic Input. From the factory, the SMS200 has no Power Up Action assigned. When the SMS200 is
powered up, and no Power Up Action has been assigned, the SMS200 will automatically recall the last settings which existed before it was
powered off. Left-clicking on Echo Character
opens a drop-down menu, which allows the ‘echo’ character for the selected Logic Input to
be changed. This is the RS-232 equivalent ASCII character which will be transmitted via the Serial Port, whenever that Logic Input is
switched. From the factory, no echo characters are assigned to Logic Inputs 1~16. Changing the echo character is used primarily for
customizing remote control commands amongst various RS-232 controlled products within a system (see RS-232 Control on pg. 8).
NOTE: . Unlike other remote controls, the SMS200 Logic Inputs do not include a ‘repeat’ function. Therefore, a Logic Input in an ‘opened’
or ‘closed’ state will not continuously repeat an echo character via RS-232. Although the SMS200 does not accept infrared or wall-mount
remote controls itself, it can still receive echo characters (via RS-232) from other ADVANTAGE
remote controls. From the factory, Remote Control Buttons
have equivalent ASCII characters permanently assigned to them (see RS-232
®
products which are utilizing these types of
Control on pg. 8). Therefore, recall preset actions can be assigned to Remote Control Buttons in the same way they are assigned to Logic
Inputs. Left-clicking on Clear
all Logic Inputs). Left-clicking on Default
for the selected Logic Input (or all Logic Inputs). Left-clicking on Try It
Logic Input to be performed by the SMS200. Left-clicking on Help
opens a drop-down menu, which allows recall preset actions to be cleared from the selected Logic Input (or
opens a drop-down menu, which allows recall preset actions to be set back to the factory default
causes the recall preset action currently assigned to the selected
provides additional instruction. Left-clicking on Close will close the
Button Definition screen.
5
SETUP
CONFIGURATION OPTIONS SCREEN
The Configuration Options screen is used to select options which customize the operation of the SMS200. At the top of the Configuration
Options screen, the Serial Number
(with no product connected) by opening a ‘new’ file for the desired product. The Serial Number and Firmware Version are not displayed for
‘new’ (‘off-line’) files. Left-clicking on Device Name
characters of text. The Device Name will be stored in the SMS200 memory, and will be displayed on the title bar of the Main screen
whenever that SMS200 is accessed with the software. Left-clicking on Bypass mode also sets the level control to unity gain
the check-mark, and thereby prevent Bypass from changing any current signal level settings. Left-clicking on Bypass mode also sets the
high-pass and low-pass filters to their extremes will remove the check-mark, and thereby prevent Bypass from changing any high-pass
filter or low-pass filter frequency settings. Left-clicking on Bypass mode also sets the pink-noise level to unity gain
and thereby allow Bypass to change the noise level setting to unity gain. From the factory, Bypass is programmed to affect the signal level
and high-pass & low-pass filters (as well as the 28 filter bands), but not to affect the noise level. Left-clicking on Restore Defaults
all Configuration Options back to their factory defaults.
and Firmware Version of the SMS200 will be displayed. The PC Control Software can operate ‘off-line’
allows a custom name to be given to the particular SMS200, by entering up to 30
will remove
will add the check-mark,
will set
6
LOGIC INPUTS
Sixteen Logic Inputs are available on a rear panel 25-pin Sub-D (female) connector. Logic Inputs allow remote control of preset selection
via external circuits, such as switches, contact-closures, active driver circuits, and/or ‘open-collector’ logic outputs. From the factory, Logic
Inputs 1~8 are programmed to recall presets 1~8 respectively. Logic Inputs 9~15 are programmed to do nothing. Logic Input 16 is
programmed to decrement (step down) from the currently selected preset to the next lower numbered preset (until reaching Preset 1).
However, Logic Inputs may be individually programmed to perform other functions, using the PC Control Software and serial cable
provided with the SMS200 (see Setup on pg. 4). Since Logic Inputs are controlled by switches, contact-closures, etc., each Logic Input
may be assigned two functions (one for switch ‘closed’ and one for switch ‘open’). Logic Inputs may be programmed to have no effect on
the SMS200, but instead trigger ASCII characters which affect other ADVANTAGE
Logic Inputs have the following pin assignments
(right-to-left & top-to-bottom): Pins 1~16) Logic Inputs 1~16; Pins 17~25) Ground.
12345
141516176187198209211022112312241325
logic inputs
Pins Functions Factory Programming
#1~8 Logic Inputs 1~8 Preset Select 1~8
#9~15 Logic Inputs 9~15 NOP (no operation)
#16 Logic Input 16 Preset Decrement (step down to Preset 1)
#17~25 common ground switch ground points (not programmable)
When nothing is connected to a Logic Input, an internal pull-up resistor keeps it at a ‘high’ idle state (+5.0 VDC). The Logic Input is
activated when its input goes ‘low’ (less than +0.8 VDC), and is de-activated when its input goes ‘high’ (greater than +2.4 VDC). A Logic
Input is controlled in one of three ways: 1) Use an NPN style ‘open-collector’ logic output from an external device (such as an
ADVANTAGE
®
PMX84 or DRC4+4) to short the Logic Input to ground. 2) Use a switch, relay, or other contact-closure (such as from a
third-party controller) to short the Logic Input to ground. 3) Use an active TTL output driver circuit (such as from a third-party controller) to
actively drive the Logic Input to a ‘high’ or ‘low’ state.
Multiple contact-closures or ‘open-collector’ logic outputs or may be wired in parallel to a single Logic Input (see diagram below). Likewise,
a single contact-closure or ‘open-collector’ logic output may be wired in parallel to multiple Logic Inputs. However, these circumstances
may be rare, since the Logic Inputs can be individually programmed for specific preset selections. Logic Outputs and contact-closures
should be rated for at least 5 Volts / 1mA operation. Low-current / dry-contact closures are recommended for reliability. Active output
driver circuits should not exceed a signal range of 0~5 Volts DC, and should have a minimum pulse width of 100 milli-seconds. Logic Input
impedances are approximately 10k ohms.
®
products via RS-232 (see RS-232 Control on pg. 8).
multiple switches to single Logic Input
(momentary switches recommended)
single switch to multiple Logic Inputs
7
RS-232 CONTROL
The SMS200 has an RS-232 compatible Serial Port, which allows it to be controlled by a computer (see Rear Panel: Serial Port on pg. 3).
In addition to the PC Control Software, the SMS200 offers two other methods of computer control.
Control Button Emulation: This method allows the computer to emulate the operation of an ADVANTAGE
button remote control. Using this method, the computer outputs ASCII characters, which are equivalent to pressing ‘buttons’ on a remote
control. Control Button Emulation allows the computer to utilize up to forty button definitions (see Setup on pg. 5). When using up
devices in a system, Control Button Emulation also allows the computer to designate which device or devices should react to each control
button command. NOTE: Although the SMS200 does not accept infrared or wall-mount remote controls, it can still receive the
corresponding ASCII characters from other ADVANTAGE
®
products which are utilizing these types of remote controls.
Advanced Computer Control: This method provides advanced commands, which allow the computer to retrieve or edit level & equalizer
settings, presets, control button definitions, and a variety of other functions. The computer may also emulate control buttons. Using this
method, the computer may designate up
to sixty-four devices, and may create unlimited presets. The computer may also provide ‘real-
time’ display of equalizer settings.
This manual only describes the Control Button Emulation method of computer control. For complete details about using the equalizers with
a computer, including Advanced Computer Control, contact Biamp Systems for the manual "Computer Control of ADVANTAGE
EQ282/8, & SMS200".
Each push-button on an ADVANTAGE
®
infrared or wall-mount remote control corresponds to one character in the standard ASCII
character set. The character equivalents are summarized in the following table. This table includes all forty of the possible buttons, their
button numbers, their ASCII code equivalents, and their factory default button definitions (see Setup on pg. 5). NOTE: From the factory,
there are no functions assigned to any of the control buttons.
button 01 B NOP (no operation) button 15 P NOP (no operation) button 29 ^ NOP (no operation)
button 02 C NOP (no operation) button 16 Q NOP (no operation) button 30 _ NOP (no operation)
button 03 D NOP (no operation) button 17 R NOP (no operation) button 31 ’ NOP (no operation)
button 04 E NOP (no operation) button 18 S NOP (no operation) button 32 b NOP (no operation)
button 05 F NOP (no operation) button 19 T NOP (no operation) button 33 c NOP (no operation)
button 06 G NOP (no operation) button 20 U NOP (no operation) button 34 d NOP (no operation)
button 07 H NOP (no operation) button 21 V NOP (no operation) button 35 e NOP (no operation)
button 08 I NOP (no operation) button 22 W NOP (no operation) button 36 f NOP (no operation)
button 09 J NOP (no operation) button 23 X NOP (no operation) button 37 g NOP (no operation)
button 10 K NOP (no operation) button 24 Y NOP (no operation) button 38 h NOP (no operation)
button 11 L NOP (no operation) button 25 Z NOP (no operation) button 39 i NOP (no operation)
button 12 M NOP (no operation) button 26 [ NOP (no operation) button 40 j NOP (no operation)
button 13 N NOP (no operation) button 27 \ NOP (no operation)
button 14 O NOP (no operation) button 28 ] NOP (no operation)
The computer can initiate any functions that are assigned to a control button or Logic Input, by simply transmitting the equivalent control
button ASCII character. When interfacing the SMS200 to a computer, the computer must be aware that the SMS200 will ‘echo’ all
characters it receives (both from computer and Logic Inputs) via the Serial Port Transmit Data (TXD) output signal.
When using Control Button Emulation, up
to four ADVANTAGE® products may be connected together, and addressed individually,. When
multiple units are used, each unit is assigned a unique "Device #" (see Rear Panel: Device # on pg. 3). Normally, all units would react to
control button commands. However, a computer can send commands to specific units, by preceding each command with a "device select
prefix" character (see following table). Only those units whose Device #s are specified will respond to the command which follows. If a
command is not immediately preceded by a device select prefix character, then all units in the system will react to that command.
Select Device 1 l Select Devices 2 & 3 q Select Devices 1 & 2 & 4 v
Select Device 2 m Select Devices 1 & 2 & 3 r Select Devices 3 & 4 w
Select Devices 1 & 2 n Select Device 4 s Select Devices 1 & 3 & 4 x
Select Device 3 o Select Devices 1 & 4 t Select Devices 2 & 3 & 4 y
Select Devices 1 & 3 p Select Devices 2 & 4 u Select Devices 1 & 2 & 3 & 4 z
®
infrared or wall-mount push-
to four
®
EQ281/8,
8
RS-232 CONTROL
Serial Port: The 9-pin Sub-D (male) connector on the SMS200 rear panel provides the RS-232 compatible serial interface signals used for
computer control. The Serial Port transmits serial data on pin 3 (TxD), receives serial data on pin 2 (RxD), and provides a ground on Pin 5.
The Data Terminal Ready (DTR) & Request To Send (RTS) output signals are connected to a positive voltage source (through a resistor)
and are always asserted when the SMS200 power is on. NOTE: The Serial Port will also transmit commands which are received via the
Logic Inputs
54321
pin #1 = not used
pin #2 = Receive Data (RxD) input
pin #3 = Transmit Data (TxD) output
9876
pin #4 = Data Terminal Ready (DTR) output
pin #5 = ground
pin #6 = not used
pin #7 = Request To Send (RTS) output
pin #8 = not used
pin #9 = not used
serial port
The SMS200 only requires receive data (pin 2), transmit data (pin 3), and signal ground (pin 5) to be connected for successful data
communications (see cable diagram below). However, the PC may require that signals be present on the data set ready, clear to send, or
carrier detect inputs, as well as the receive data, transmit data, and signal ground pins. Success or failure depends entirely on the actual
computer hardware and software being used. When trying to solve an interfacing problem, the most important thing to remember is that an
output of one device should connect to one or more inputs of the other device, and that two outputs should never be connected together.
Also, keep in mind that the RS-232 specification calls for the cable length to be no greater than 50 feet (although it is not unusual to be
able to operate over distances of 150 to 250 feet), and the connectors must be of the appropriate gender (male or female) to mate
properly. For best results, a shielded cable should be used, with the shield connected to signal ground. Since the SMS200 serial interface
ground is also tied (indirectly) to the analog signal ground, undesirable ground loops may occur when the SMS200 is connected to a PC (if
the system grounding is not carefully designed). For best performance, the PC ground and the chassis ground of the SMS200 should be
at the same potential, and the PC should get AC power from the same source as the SMS200 (and any other audio equipment which is
connected to the SMS200).
Serial Port Data Co mm uni cati ons Param eters : The SMS200 communicates through the Serial Port at the factory selected rate of 9600
bits per second, with 8 data bits, 1 stop bit, and no parity. The SMS200 utilizes a subset of the standard 7-bit ASCII character set. The
eighth data bit of each character (the most significant bit) should always be 0. The computer should not echo the characters it receives.
The computer should not be set for either hardware (DTR) or software (XON/XOFF) flow control. The baud rate may be changed to either
2400 or 19,200 bits per second by means of the rear panel Baud Rate DIP switches.
Link Port Connections: The 9-pin Sub-D (female) connector on the SMS200 rear panel provides the RS-232 compatible serial interface
signals used for linking multiple ADVANTAGE
®
products within a system. The Link Port of one device simply connectes to the Serial Port
of the next device, and so forth (see diagram below). Link cables are available as an option (Biamp #909-0057-00). NOTE: All but the
final device in a system should have its ‘last
’ switch down (see Rear Panel: Baud Rate on pg. 3). The Link Port will also transmit
commands which are received via the Logic Inputs.
12345
pin #1 = not used
pin #2 = Transmit Data (TxD) output
pin #3 = Receive Data (RxD) input
6789
pin #4 = not used
pin #6 = not used
pin #7 = not used
pin #8 = not used
pin #9 = not used
pin #5 = ground
link port
PC
CD
RxD
TxD
DTR
gnd
DSR
RTS
CTS
RI
male female
serial port
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
Serial Cable
(shield)
serial port
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
female male
SMS
n/a
RxD
TxD
DTR
gnd
n/a
RTS
n/a
n/a
SMS
n/a
TxD
RxD
n/a
gnd
n/a
n/a
n/a
n/a
female male
link port
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
Link Cable
(shield)
serial port
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
female male
unit 2
n/a
RxD
TxD
DTR
gnd
n/a
RTS
n/a
n/a
9
CMA120
120watt
output
BIAMP SYSTEMS
an affiliate of
Rauland-Borg Corp
USE ONLY WITH
250V FUSE
115/230V AC 50/60 Hz 375 VA
directxfmr
PRECEDENCE
is a registered
trademark of
Rauland-Borg
Corp
CAUTION:
replace with
same type
fuse.
6A - 115V
3A - 230V
com
8
50V
70V
APPLICATIONS
send/return
max
chime
4
25V
level
line
out
remote
level
+10V c gnd
rec
out
min
max
threshold adjust
min
mute/
chime
amp
in
stacking in
com
+
phantom pwr
auto mute
manual mute
mute
-40
level
priority
+
-20
a
n
i
m
o
n
trim
on
off
line
mic
com
pre
out
auto mutecompressor
max
min
phantom pwr
auto mute
manual mute
mute
-40
level
-20
n
i
priority
+
m
o
n
trim
on
off
line
mic
com
max
min
phantom pwr
auto mute
manual mute
mute
-40
level
priority
-20
n
i
m
o
n
trim
on
off
line
mic
com
+
a
max
min
phantom pwr
auto mute
manual mute
mute
-40
level
priority
-20
a
n
i
m
o
n
trim
on
off
line
mic
com
+
a
max
min
phantom pwr
auto mute
manual mute
mute
-40
level
-20
a
n
i
priority
m
o
n
trim
on
off
line
mic
tel
com
+
max
min
distributed
speaker
system
paging
mic
paging from
telephone system
channel 1channel 2channel 3channel 4channel 5channel 6
phantom pwr
auto mute
manual mute
mute
-40
level
-20
a
n
i
priority
m
max
o
n
trim
min
on
off
line
mic
tel
com
+
max
min
SMS200
27V
~
50/60 Hz
15 watts
class 2 wiring
DC out
16
32
8
device #
input
124
serial port
link port
2400
last
9600
baud rate
19200
logic inputs
BIAMP SYSTEMS
Portland, Oregon
an affiliate of
Rauland-Borg Corp.
MADE IN U.S.A.
output
momentary
push-button
Computer
(Logic Input 16)
Programming
(Presets 1~8
noise levels)
Decrements Presets 8~1
(gradual noise introduction)
Small Office Facility with Noise Masking and Paging Combined
This application shows a PRECEDENCE
system. This could be any mixer/amplifier system. The SMS200 provides noise and
®
CMA120 providing page & noise input mixing to a common amplifier and distributed speaker
equalization of the noise, before it is sent to the
CMA120. In addition, the SMS200 provides up to eight selectable presets, which include both equalization and
level settings. This allows
Presets 8~1 to be stored with gradually increasing noise levels, and appropriate equalization. The SMS200 also provides a preset
decrement function on Logic Input 16. Therefore, a single momentary switch may be used to cycle down through the presets (one a day).
This allows the noise to be introduced into the system slowly and, therefore, inconspicuously to the office personnel. Noise levels and
equalization are programmed via RS-232, while only preset decrementation (noise introduction) is controlled via a momentary switch.
10
judge's
sidebar/
masking
switch
DMD
BIAMP SYSTEMS
Portland, Oregon
an affiliate of
Rauland-Borg Corp.
MADE IN U.S.A.
autoONE
27V
~
50/60 Hz
DC out
15 watts
class 2 wiring
±12VDC
DC out DC in
12V
PS
BIAMP SYSTEMS
Portland, Oregon
an affiliate of
Rauland-Borg Corp.
logic
expansion
outputs
out in
--++
main aux stack in
outputs
APPLICATIONS
out in
--++
patch in/out
4
main patch
slave
patch
ON
pad
-12db
aux off
hp filter
last mic
ungated
aux post
phantom
patch in/out
3
patch
input
8
patch pre
patch
input
pad
pad
ungated
ungated
phantom
phantom
7
duck ch8
duck ch8
patch pre
patch pre
defense
input
6
out in
--++
patch
input
pad
ungated
phantom
5
duck ch8
patch pre
patch in/out
2
patch
pad
ungated
phantom
duck ch8
patch pre
input
4
out in
--++
prosec.
patch
input
pad
ungated
phantom
3
duck ch8
patch pre
patch
pad
ungated
phantom
patch in/out
1
input
2
duck ch8
patch pre
sidebar
patch
input
ONONONONONONONON
pad
ungated
phantom
1
duck ch8
patch pre
judge
4-track
court
recorder
VOICECRAFTER
BIAMP SYSTEMS
27V
~
Portland, Oregon
50/60 Hz
an affiliate of
Rauland-Borg Corp.
12 watts
class 2 wiring
MADE IN U.S.A.
phone line
setup
2-wire interface
control
main out
0dB
-20dB
codec
level
aux inaux out
codec out codec in mic 1
trimlevel
trim
VOICECRAFTER
+10
+10
mic 2
evidence
playback
witness
jury
conferencing feeds
DMD
BIAMP SYSTEMS
SMS200
27V
~
50/60 Hz
15 watts
DC out
class 2 wiring
32
device #
Portland, Oregon
an affiliate of
Rauland-Borg Corp.
DC out DC in
MADE IN U.S.A.
16
124
8
serial port
link port
last
baud rate
2400
19200
9600
logic inputs
out in
--++
output
patch in/out
4
input
out in
--++
BIAMP SYSTEMS
Portland, Oregon
an affiliate of
Rauland-Borg Corp.
MADE IN U.S.A.
patch in/out
3
out in
--++
patch in/out
2
out in
--++
patch in/out
1
DDL12
27V
~
50/60 Hz
15 watts
class 2 wiring
214816
32
device # serial port link port
19200
9600
2400
last
baud rate logic inputs
output 2 output 1
input
DDL12
BIAMP SYSTEMS
Portland, Oregon
an affiliate of
Rauland-Borg Corp.
MADE IN U.S.A.
CPA130
input 1
bench area
speakers
level 2
input 2
gnd---+ + gnd---
DT-2A DT-2A
USE ONLY WITH
250V FUSE
110V
115V: 3A SB
230V: 1.5A SB
115/230 VAC
50/60 Hz
300 Watts max
output 2
--- + + ---
output 1
level 1
stereo
mono bridge
ADVANTAGE
CPA 130
MADE IN U.S.A.
audience area
speakers
Courtroom with Noise Masking of Sidebar Conversations
This application shows an ADVANTAGE
teleconferencing systems. Two ADVANTAGE
Voicecrafter provides echo cancellation and interface for teleconferencing. An ADVANTAGE
speakers. An ADVANTAGE
®
CPA130 and two ADVANTAGE® DT-2As provide amplification and interface to two distributed speaker
®
autoONE providing automatic mixing & mix-minus feeds to sound reinforcement and
®
DMDs provide interface of signals to a 4-track court recorder. An ADVANTAGE®
systems. The SMS200 provides up to eight selectable presets, which include both equalization and
®
DDL12 provides delay for the audience
level settings. In this application, the
SMS200 is programmed with two presets: one provides equalization & level for the sound reinforcement signal, and one provides
equalization & level for noise masking. A switch, connected to a logic input on the SMS200, is pressed by the judge when having ‘sidebar’
(private) conversations with the attorneys. This switch temporarily selects the noise masking preset, which turns off the sound
reinforcement level, turns on the noise level, and provides proper equalization for noise masking. This preset effectively masks the
‘sidebar’ conversation from being overheard. The system returns to normal when the switch is released. Equalization, levels, & presets are
programmed via RS-232, while only preset selection is controlled via the ‘sidebar’ switch.
11
SPECIFICATIONS & BLOCK DIAGRAM
Frequency Response (20Hz~20kHz @ +4dBu) :
THD + Noise (20Hz~20kHz @ +4dBu) :
Intermodulation Distortion (SMPTE):
Hum & Noise (20Hz~20kHz @ unity, filters flat, noise off):
Dynamic Range (20Hz~20kHz):
Input Impedance (balanced):
Maximum Input Level:
Output Impedance (balanced):
Maximum Output Level (balanced i nto 600
Filter Frequencies (ISO centers):
Filter Gain Range (programmable):
Input Gain Range (programmable) :
Ω):
+0/-0.5dB
<0.01%
<0.01%
-85dBu
109dB
>10k ohms
+19dBu
200 ohms
+24dBu
31.5Hz~16kHz
±12dB in 1dB steps or
±6dB in 0.5dB steps
±12dB & off
SMS200
Block Diagram
High-Pass Filter (12dB/ octave - programmable):
Low-Pass Filter (12dB/octave - programmable):
Noise Purity (0Hz~20k Hz - white-noise):
Noise Filtering (low-pass - pink-noise):
Noise Repeat Time (non-apparent)
Noise Gain Range (programmable / -3dBu nominal):
Power Requirements:
Power Consumption:
Dimensions:
Height (1 rack space)
Width
Depth
Weight:
9.1Hz~171.9Hz
1.9kHz~34.7kHz
±0.1dB
-3dB/octave
200 minutes
±12dB & off
120/240VAC
15 watts max.
1.75 inches (44mm)
19 inches (483mm)
7 inches (178mm)
7 lbs. (3.18kg)
input
+
−
gnd
internal
pink-noise
generator
logic inputs
(preset select)
receive
send
link
port
level
level
RS-232
serial
port
LPF HPF
31.5Hz 16kHz
1/3 octave
Constant-Q
filters
microprocessor
peak
detect
baud rate DIP switch
device # DIP switch
output
non-volatile
RAM
memory
+
−
gnd
12
WARRANTY
BIAMP SYSTEMS IS PLEASED TO EXTEND THE FOLLOWING 5-YEAR
LIMITED WARRANTY TO THE ORIGINAL PURCHASER OF THE
PROFESSIONAL SOUND EQUIPMENT DESCRIBED IN THIS MANUAL.
BIAMP Systems expressly warrants this product to be
free from defects in material and workmanship for a
period of 5 YEARS from the date of purchase as a
new product from an authorized BIAMP Systems
dealer under the following conditions.
1. In the event the warranted BIAMP Systems product
requires service during the warranty period, BIAMP
Systems will repair or replace, at its option, defective
materials, provided you have identified yourself as the
original purchaser of the product to any authorized
BIAMP Systems Service Center. Transportation and
insurance charges to and from an authorized Service
Center or the BIAMP Systems factory for warranted
products or components thereof to obtain repairs shall
be the responsibility of the purchaser.
2. This warranty will be VOIDED if the serial number
has been removed or defaced; or if the product has
been subjected to accidental damage, abuse, rental
usage, alterations, or attempted repair by any person
not authorized by BIAMP Systems to make repairs; or
if the product has been installed contrary to BIAMP
Systems’s recommendations.
3. Electro-mechanical fans, electrolytic capacitors,
and the normal wear and tear of appearance items
such as paint, knobs, handles, and covers are not
covered under this warranty.
4. BIAMP SYSTEMS SHALL NOT IN ANY EVENT BE
LIABLE FOR SPECIAL, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES, INCLUDING LOST
PROFITS, LOSS OF USE, PROPERT Y DAMAGE, INJURY
TO GOODWILL, OR OTHER ECONOMIC LOSS OF ANY
SORT. EXCEPT AS EXPRESSLY PROVIDED HEREIN,
BIAMP SYSTEMS DISCLAIMS ALL OT HER LIABILITY TO
PURCHASER OR ANY OTHER PERSONS ARISING OUT
OF USE OR PERFORMANCE OF THE PRODUCT,
INCLUDING LIABILITY FOR NEGLIGENCE OR STRICT
LIABILITY IN TORT.
5. THIS WARRANTY IS IN LIEU OF ALL OTHER
WARRANTIES EXPRESSED OR IMPLIED. BIAMP
SYSTEMS EXPRESSLY DISCLAIMS ALL IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE. THE REMEDIES SET
FORTH HEREIN SHALL BE THE PURCHASER’S SOLE
AND EXCLUSIVE REMEDIES WITH RESPECT TO ANY
DEFECTIVE PRODUCT. THE AGENTS, EMPLOYEES,
DISTRIBUTORS, AND DEALERS OF BIAMP SYSTEMS
ARE NOT AUTHORIZED TO MODIF Y THIS WARRANTY
OR TO MAKE ADDITIONAL WARRANTIES BINDING ON
BIAMP SYSTEMS. ACCORDINGLY, ADDITIONAL
STATEMENTS SUCH AS DEALER ADVERTISEMENTS
OR REPRESENTATIONS DO NOT CONSTITUTE
WARRANTIES BY BIAMP SYSTEMS.
6. No action for breach of this warranty may be
commenced more than one year after the expiration of this
warranty.
Thank you for purchasing BIAMP SYSTEMS...
AMERICAN SOUND CRAFTSMANSHIP
Biamp Systems
10074 S.W. Arctic Drive
Beaverton, Oregon 97005 U.S.A.
(503) 641-7287
http://www.biamp.com
585.0133.00
Loading...
