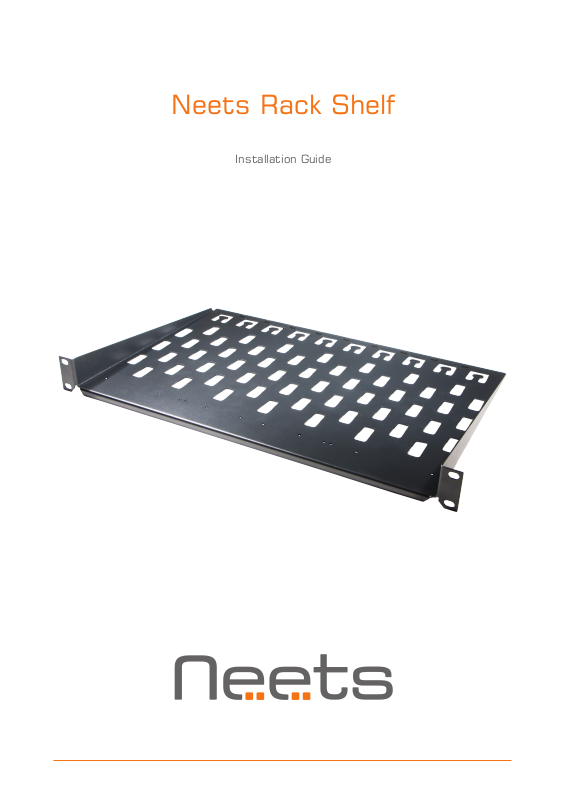

Neets Rack Shelf
Installation Guide
Foreword
This document describes how to mount units and install Neets Rack Shelf into a rack cabinet
COPYRIGHT - All information contained in this manual is the intellectual property and copyrighted
material of Neets. All rights are reserved. You may not allow any third party access to content,
information or data in this manual without Neets’ express written consent.
CHANGES - Neets reserve the right to change the specification and functions of this product
without prior notice.
Questions, AFTER reading this guide, can be addressed to your local distributor or:
Neets A/S
Langballe 4
8700 Horsens
Denmark
by E-Mail: Support@Neets.dk
or you may use our contact form at www.neets.dk
Revision list
This document (no: 230-028-306-0017) has the following revision changes:
Author: Date Description Pages
MH: 27-04-2016
First release. All
Rev
1.00
What is in the box?
When you open the box it will contain the following items:
1 x 19” Neets Rack shelf - Base unit
1 x Cover plate for rack shelf - 1/2 rack
1 x Cover plate for rack shelf - 1/3 rack
1 x Cover plate for rack shelf - 1/4 rack
1 x Cover plate for rack shelf - 1/6 rack
19” rack mount kit (Screw,washer,nut)
Cable tie 200mm x 4,6mm
Screw, M4x10, Panhead, Black
Installation guide for 19” rack shelf
About Neets Rack Shelf
Neets Rack Shelf is a 1U rack shelf designed to fit the Neets Audio Amplifier – 2:25 and Neets
Audio Preamplifier. The Neets Rack Shelf has a great usability, with a depth of only 30 cm offering
easy mounting of non-standard equipment into standard 19” rack systems. Holds combinations of
1U, 1U half-rack, one-third-rack, or quarter-rack width units.
Available in: Black powder coating
Weight Capacity: 5 kg
Dimensions: 300 mm x 439 mm x 44 mm
Page 2 of 4
Features
• Fixing holes for exible mounting
Multiple xing holes to suit most
equipment including Neets Audio
products
• Easy Mounting
Mounting is easy as all parts needed
for mounting is included in the box,
as well as the Neets Rack Shelf has
dedicated plate cutouts for cable
relief
Installation
The Neets Rack Shelf can accomodate 2 half rack units such as Neets Audio Amplier 2:25 and
Neets Audio Preamplier or various rack unit sizes. You can also install 1 half rack unit and a
cover plate to close the unused area on the front of the Neets Rack Shelf.
When you are installing the units on the Neets Rack Shelf you can use the supplied screws and
arrange the cables underneath the Neets Rack Shelf with cable ties for optimal performance.
2 Neets half rack units installed
1 unit installed with a cover plate
Page 3 of 4
Before installing the Neets Rack
Shelf into a rack cabinet make
sure that all units are mounted
and that all cables has been
correctly installed.
Installing the Neets Rack Shelf into a cabinet
Use the supplied 19” rack mount kit (Screw, washer, nut) to install the Neets Rack Shelf into the
rack cabinet.
When the Neets Rack Shelf is mounted, you can continue the installation by connecting the input,
output, and power cables. Make sure all the cables are connected properly.
Page 4 of 4
Neets Rack Shelf being installed into a rack cabinet with the supplied screws.
