Biamp HVS User guide

I SERIES

BalancePoint™ Flyware

For Point Source and
Subwoofer loudspeakers
models IP8, IP6, IS8, and IS6

HVS

Horizontal/Vertical Splay Bracket Extension Kit

(for 2-way 12"/15" models)

The BalancePoint™ Flyware Accessory Guide (a complete set of instructions for all
of the BalancePoint™ Flyware Kits) is available on the Community website.

Community Professional Loudspeakers

333 East Fifth Street, Chester, PA 19013-4511 USA
Phone [phone] • Fax [phone]
communitypro.com • [e-mail]

CAUTION: Installation of loudspeakers should only be
performed by trained and qualified personnel. It is strongly
recommended that a licensed and certified professional
structural engineer approve the mounting design.

IMPORTANT SAFETY INSTRUCTIONS

Always follow these basic safety precautions when using or installing I SERIES loudspeakers and
accessories:

• Read these instructions prior to assembly.

• Keep these instructions for reference.

• Heed all warnings.

• Follow all instructions, particularly those pertaining to rigging, mounting, hanging and electrical
connections.

• Do not use this apparatus near water.

• Clean only with dry cloth.

• Do not block any ventilation openings. Install in accordance with the manufacturer’s instruction.

• Do not install near any heat sources such as radiators, heat registers, stoves,light fixtures, or
other apparatus (including amplifiers) that produce heat.

• Only use attachments and accessories that are specified and approved by the manufacturer.

Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been
damaged in any way, such as liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

The terms CAUTION, WARNING, and DANGER may be used in this manual to alert the reader to
important safety considerations. If you have any questions or do not understand the meaning
of these terms, do not proceed with installation. Contact your local dealer, distributor, or call
Community directly for assistance. These terms are defined as:

CAUTION: describes an operating condition or user action that may expose the
equipment or user to potential damage or danger.

WARNING: describes an operating condition or user action that will likely cause damage
to the equipment or injury to the user or to others in the vicinity.

DANGER: describes an operating condition or user action that will immediately damage
the equipment and/or be extremely dangerous or life threatening to the user or to others
in the vicinity.

These installation instructions are for use by qualified personnel only. To reduce the risk of fire or
electric shock do not perform any servicing other than that contained in the operating instructions
unless you are qualified to do so.

UNPACKING / INSPECTION

Community I SERIES loudspeakers are
engineered and manufactured to be rugged
and they are carefully packed in sturdy cartons.
However, it is recommended to thoroughly
inspect each unit after it has been removed from
the packaging, as damage could occur during
shipping.

Please note that once the shipment has left
your dealer or the Community factory, the
responsibility for damage is always borne by
the freight company. If damage has occurred
during shipping, you must file a claim directly
with the freight company. It’s very important to
contact the freight company as soon as possible
after receiving your shipment, as most freight
companies have a short time limit within which
they will investigate claims. Make sure to save
the carton and the packing material, as most
claims will be denied if these materials are
not retained. Your Community dealer and the
factory will try to help in any way they can, but
it is the responsibility of the party receiving the
shipment to file the damage claim.

It is always a good idea to retain the carton and
packing materials, if possible, in the event that
the unit may need to be returned to your dealer
or distributor for repair in the future.

CAUTION: Installation of
I SERIES loudspeakers should

only be performed by trained
and qualified personnel. It is strongly
recommended that a licensed and
certified professional structural
engineer approve the mounting. Severe
injury and/or loss of life may occur if
this product is improperly installed.

RIGGING SAFETY / IMPORTANT NOTES

There are three primary areas of responsibility
for rigging loudspeakers. The first is the
building structure. Always consult with the
building architect or structural engineer to
assure the ability of the structure to support
the loudspeaker system. The second area
of responsibility is the loudspeaker itself.
Community certifies its loudspeaker systems
and rigging accessories for suspension
when they are properly installed according
to our published guidelines. The third area
of responsibility is everything between the
loudspeaker and the building structure and the
actual process of installation. The installing
contractor assumes this responsibility.
Loudspeaker rigging should be performed only
by certified rigging professionals using certified
rigging hardware chosen for the specific
application. Prior to installation, the contractor
should present a rigging plan, with drawing
and detailed parts list, to a licensed structural
engineer (P.E.) or architect for written approval.

Page 2 BalancePoint™ Flyware I SERIES

IMPORTANT: I SERIES loudspeakers are designed and intended to be mounted to
diering building surfaces using a variety of rigging hardware, means and methods.
Installation of loudspeakers should only be performed by trained and qualified
personnel. All electrical connections must conform to applicable city, county, state, and
national (NEC) electrical codes.

DANGER: All rigging fittings must be fully tightened and secured. Any missing fasteners
or parts will compromise the structural integrity of the enclosure and constitute a safety
hazard. Over-tightening (crushing the wood) should be avoided as well. Do not suspend
the loudspeaker unless all fasteners are securely in place!

IMPORTANT: The flat head bolts that come installed in each enclosure must remain in
place or be replaced by a threaded fastener from an array bracket. The bolts attach to
internal metal brackets that are critical to the structural integrity and rated Safe Working
Load (SWL) of each point and each array assembly. Failure to include a fastener in every
location could lead to serious injury, or even death.

DANGER: I SERIES rigging fittings are rated at a Working Load Limit (WLL) of 150 lbs
(68 kg) with a 10:1 safety margin. No single rigging fitting should ever be subjected to a
load that is greater than this stated limit. Failure to heed this warning could result in
injury or death!

ARRAY ACCESSORIES

HVS - Horizontal/Vertical Splay Bracket Extension Kit (2-way)

APPLICATION: Add an additional enclosure to a full-range loudspeaker in a
2-way Horizontally or Vertically Splayed configuration.

ASSEMBLY:
This kit includes the (4) 8mm bolts that may need to be threaded into the

adjacent full r ange cabinet 's corner br ackets before they are at tach ed to that
cabinet. There are several configurations possible and the specific bolt locations
in the cabinet brackets are shown. Follow the instructions and general order of
assembly accompanying the kit that you are adding the third cabinet to.

When at taching the hinges t o the cabinet br ackets i t will be easier to remove
the 6mm hardware and allow the hinge to move. After the hinge is attached, set
the hinge angle and secure with the 6mm hardware.

Parts:

1

PB-3

PH (preassembled)

PB-3 : 2-way Cabinet Brackets (4)
PH: Preassembled Hinges (2)

Hardware:

Qty

Code Description

4 HH6 6 x 25 mm Hex Hd Bolts
4 HN6 M6 Locknuts
8 HW6 6mm Flat Washers
8 HF8-3 8 x 30 mm Flat Hd Bolts

HN8 M8 Locknuts

8
8 HW8 8mm Flat Washers
8 HF 1-3 10 x 35 mm Flat Hd Bolts
2 HH1-12 10 x 120 mm Hex Hd Bolt

HW1 10 mm Flat Washers

4
2 HN1 M10 Locknuts

Some of the hardware listed above may be
included in plate and hinge preassemblies.

Kit Weight: 15.0 lb (6.8 kg)
If attaching to a HSB or VSB kit, there will

be (2) cabinet brackets (PB-3) and some
hardware not used. If necessary, remove
the flat head bolts pre-installed in the
extra PB-3s and use on the middle cabinet.

For VAB-BFR38

For BFR22 or SBR54

(2 HVS kits needed)

Corner brackets placed on

all full-range cabinets

(Top middle cabinet must

have bolts at top for rail

attachment [see arrows])

For VSB-BFR22 or

VSB-SBR54

Corner brackets placed

on all full-range

cabinets

Corner brackets

placed on both

full-range cabinets

Figure 1. 8mm flat head bolt positions in cabinet brackets by kit

application. (Lightly shaded outlined items are included in the HVS kit)

Brackets are shown in their orientation on the full-range cabinets.

2

HF8-3

HF8-3

Figure 2. Confirm bolt placement and thread bolts into cabinet brackets in

locations as needed for your specific kit.

HF8-3

WARNING: Do NOT exceed three (3 )
full-range cabinets in a single
array. More than three will exceed
the maximum safe working load.

I SERIES BalancePoint™ Flyware Page 3

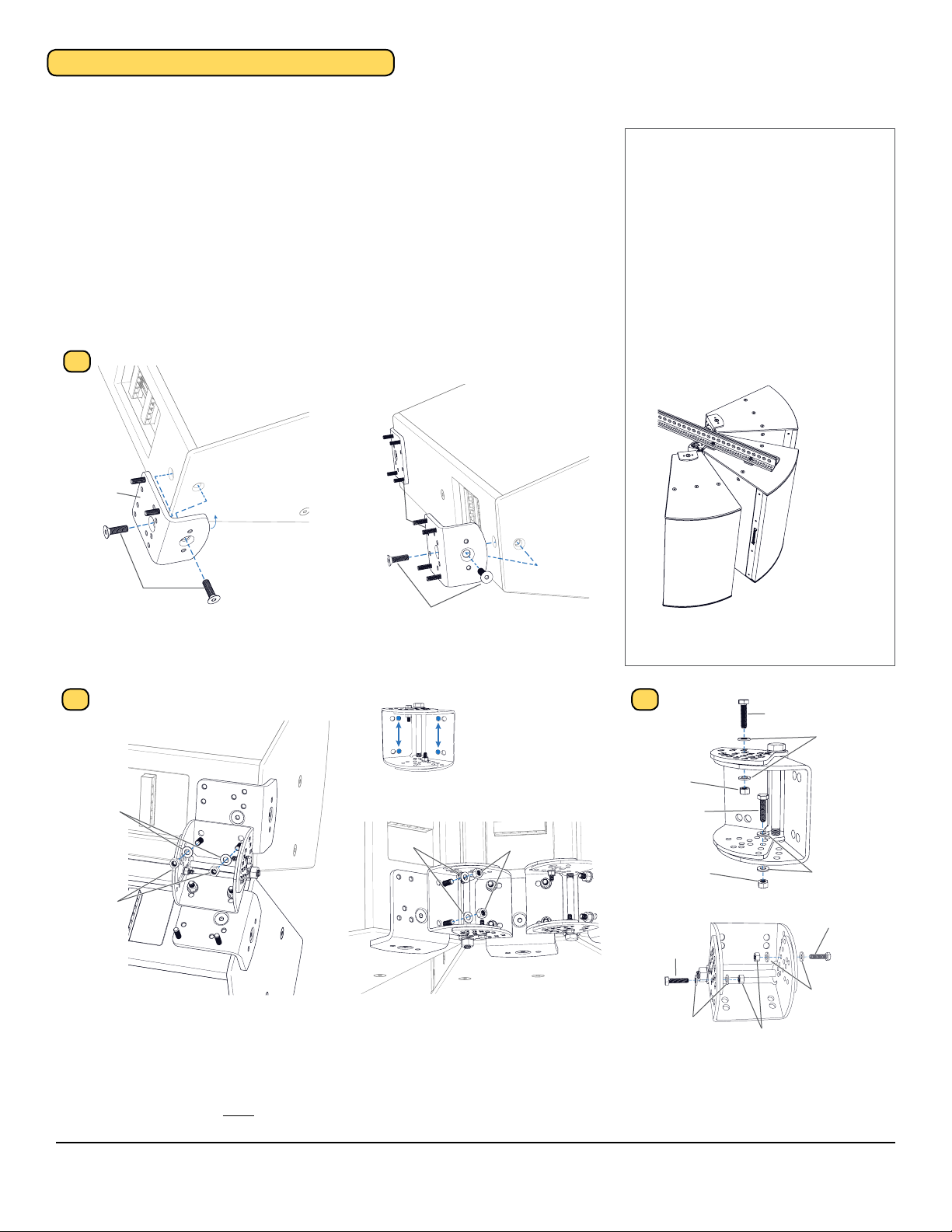

ARRAY ACCESSORIES

HVS (continued)

Best practices:

Orient hinges so that the nut securing the long bolt (hinge pivot) is at the bottom
(direction of gravity) when mounted to a vertically oriented loudspeaker.

Horizontal arrays can be fully assembled on the ground or lifting surface.

It is easier to assemble vertical arrays from the upper cabinet down, lifting each
cabinet into position and then attaching the lower one to it. Smaller models can
be assembled horizontally on the ground and then carefully lifted with proper
support. Hinge angles should be set after each loudspeaker is secured to the

upper cabinet.

3

PB-3

HF1-3

Figure 3. Attach the cabinet brackets with installed bolts on each cabinet

Outer cabinet Triple array

lowest cabinet/VSB

lowest cabinet on VAB

2nd / middle cabinet HSB/VSB

PB-3

HF1-3

Triple horizontal full-range 2-way array
can be accomplished two ways:
HSB-BFR22 / HSB-SBR54 + (1) HVS kit
or BFR22V / SBR54 + (2) HVS kits.

Remove (2) 8mm flat head bolts from
the PP-2 (or PP-1) and thread them
into the top of what will be the middle
cabinet top bracket. Attach all cabinet
brackets and mounting plates to the
cabinets. Attach the hinges. Attach
the rails and fully tighten all rail and
cabinet connections. Set the angles on
the hinges - they must be symmetrical
to balance evenly.

SBR54 with (2) HVS kits
(subwoofer not shown)

The PP-2 will not be used, and there will
be hardware and a few parts left over.

1st / outside cabinet (additional
hardware to upper rails or other

brackets not shown)

HW8

HN8

2nd / middle cabinet

HW8

Typical hinge attachment to the cabinet

brackets on a 3-cabinet array

Use (inside) marked
mounting points

HN8

Figure 4. Remove the 6mm hardware from the hinges and connect the cabinets by

attaching the hinge assemblies to the cabinet brackets

(build from the top > down, or inside > outside)

Reserve 6mm hardware to secure the splay angle

after the cabinets have been connected.

54

HN6

HH6

HN6

HH6

HW6

HH6

HW6

HW6

HH6

HW6

HN6

Figure 5.

Set the desired angle

Page 4 BalancePoint™ Flyware I SERIES

TECHNICAL DRAWINGS

3.10" [78.7]

4.31" [109.5]

.31" [8.0]

4.20" [106.8]

1.69" [43.0]

2.10" [53.4]

CL

DRILL & C'SK FOR

M10 FLAT HEAD SCREW

(FAR SIDE)

DRILL, TAP & C'SK FOR

M8 FLAT HEAD SCREW

(10 PLACES NEAR SIDE)

.95" [24.0]

CL

1.35" [34.2]

2.52" [64.0]

1.98" [50.3]

.76" [19.3]

1.67" [42.5]

1.26" [32.0]

3.25" [82.6]

(TYP)

3.62" [92.02]

2.08" [52.85]

2.24" [56.85]

1.18" [30.03]

1.34" [33.98]

1.97" [50.01]

.76" [19.25]

.46" [11.64]

(4 PLACES)

Ø1.00" [Ø25.4]

2.74" [69.59]

.34" [8.7]

15°

.24" [6.09]

LEG

2.08" [52.85]

DIMENSIONS TYPICAL FOR BOTH LEGS

(TYP)

.16" [4]

Ø.39" [Ø10]

Ø.24" [Ø6]

Ø.24" [Ø6]

LEG

HINGE (ROTATIONAL ARRAY) BRACKET [PH]

0

10

17.5

20

2.5

30

15

12.5

7.5

Ø.35" [Ø9]

CABINET CORNER BRACKET (2-WAY) [PB-3]

40

35

5

25

45

27.5

22.5

32.5

37.5

42.5

Drilled / countersunk for

DRILL & C'SK FOR

10mm at head bolt

M10 FLAT HEAD SCREW

DRILL, TAP & C'SK FOR

Drilled / tapped / countersunk

M8 FLAT HEAD SCREW
(2 PLACES NEAR SIDE)

(far side) 1 place

(FAR SIDE)

for 8mm at head bolt

(near side) 2 places

Drilled / tapped / countersunk

for 8mm at head bolt (far side) 10

places

Drilled / countersunk for

10mm at head bolt
(far side) 1 place

I SERIES BalancePoint™ Flyware Page 5

ROTATIONAL (HINGE) BRACKET

ROTATIONAL (HINGE) BRACKET ANGLE EXPLAINED

The I SERIES f ull-range loudspeaker s are in trapezoid al enclosures . The hinge
bracket is used in many of the array kits to precisely set the angle between two
loudspeakers . The hinges are shipped pr eassembled wit h the 6mm fas teners
already in place. They will need to be removed to set your desired splay angle.

IMPORTA NT: The splay angle s printed on the rotational bracket indicate the
angle between adjacent encl o sure s urfaces, n ot (in mos t ca se s) the center-to­center (C-C) loudspeaker aiming angles. For most horizontal and vertical arrays,
the long trapezoidal sides of the enclosures will be adjacent. The total included
trapezoidal cabinet angles are 30° therefore, the C-C loudspeaker aiming angles
will be 30° grea ter than the encl osure splay angl e indicated on t he rotational
bracket.

For example, i f a C-C l oudspeaker ar ray ang le of 45° is desire d, the 6 mm angl e
select ion fastener s should be pl aced in the “15°” ang le selec tion holes on t he
rotation b ra cket s . 45° (C- C spl ay ang l e) – 30° (trapezoidal cabinet ang l es) = 15°
(splay between adjacent enclosure surfaces).

When using the DVS-BFR22 or DFS kits, the non-angled top and/or bottom
panels are adjacent, therefore, the loudspeaker aiming angle and adjacent
enclosure surface splay angles are ident ical. For these kits, the angle selected
on the rotational bracket is the same thing as the loudspeaker aiming angle.

30°

30° hole is aligned with

the "darker" hole set

15°

between

sides

45°

30°

0° hole is aligned with

"lighter" hole set

= 0° between cabinets

30° hole is aligned with

the "darker" hole set

= 30° center-to-center splay

15° hole is aligned with

"lighter" hole set

= 15° between cabinets

45° hole is aligned with

the "darker" hole set

= 45° center-to-center splay

DFS kit shown with IP8-1153 and IP8-1151
30° splay shown which also equals the
center-to-center measurement

= #

= # + 30°

Inner

Outer

= # + 30°

To set angle:
For most applications, and to achieve
center-to-center (C-C) angles greater than
45° you align the "lighter" set of holes with
the marked degree. This number equals the
angle between the loudspeakers, and you
should add 30 to get the C-C measurement.
To achieve 62.5°, 67.5°, or 72.5° (C-C) splay,
the circled outside holes only align with the
holes in the "darker" marked area.

Aligning the "darker" set of holes with the
marked degree hole equals that angle
between centers, and should be used for
downfill (DVS-BFR22, DFS) kits.

Basic cabinet geometry and aiming angles

Page 6 BalancePoint™ Flyware I SERIES

ROTATIONAL (HINGE) BRACKET (continued)

GENERAL ROTATIONAL (HINGE) BRACKET INFORMATION

Figures showing the basic assembly and how to secure the angles are
shown below.

IMPORTA NT: Each hinge is shipped preassembled with a 10mm hinge
bolt and locknut fastened to allow some movement. Once the angle is
permanently set (and confirmed by commissioning the system), the locknut
should be tigh tened t o prev ent any mov ement . Do not rem ove the l ock nut
or hinge bolt for any reason.

Each hinge assembly al so has two 6mm fasteners with finger-tight lock
nuts inserted into angle selection holes on each side of the hinge. Both 6mm
fastener sets may be removed for assembly but must all be re-inserted and
fully tightened in accordance with each kit’s specific assembly instructions.

Angles may be adjusted in 2.5° increments from 0° to 45° in any array
configuration. Although it is possible in some configurations, do not exceed
a splay angle of 45° (between adjacent sides).

HH6

HW6

HN6

Best practices: Orient the fasteners in
the hinges to follow the direction of
gravity; i.e. if the hinge will be used
with the hinge bolt vertically oriented,
position the hinge with the nut at the
bottom to prevent the bolt from falling
out if the nut should loosen.

Use the four inner
attachment points for HSB,
HVS, or VSB kits

HH1-12

HW1

HW1

HN1

PH

Hinge (rotational bracket)
assembly exploded
(shipped preassembled)

HH6

HN6

Horizontal arrays

PH

HH6

HW6

HN6

Vertical arrays

HW6

Secure angle with 6mm fasteners.
The hinge is shipped with the
fasteners in the 45° holes.

Use the four outer attachment points in

DFS and DVS-BFR22 configurations

The hinge brackets have 2 sets of holes
to attach the hinges to the cabinets. Bolt
placement diagrams showing connection
to the cabinet brackets are in each of the
individual kit instructions.

I SERIES BalancePoint™ Flyware Page 7

HELPFUL INSTALLATION TIPS

• Assemble the horizontal arrays on the ground (or lifting surface) and then lift the entire assembly into
place. Large vertical arrays should be assembled top down - lifting each component and attaching it in
order. Smaller vertical arrays can be assembled on the ground and then flown.

• Many brackets and plates come preassembled with the 8mm flat head hardware installed. Some of the
corner brackets have diering bolt patterns and we preinstall them in the most common configuration for
that kit. Refer to the diagrams on install pages to confirm that the bolts are in the correct position for your
cabinet size.

• Assemble the array with the diering models (horn/coverage patterns) in the correct configuration.

• If the cabinets are horizontal, keep the input panels all on the same side for wiring ease, whenever
possible.

• To determine the approximate splay or array angles prior to installation, use simulation software such as
EASE®. Document those values, and set the angles on the hinges and splay brackets as they are attached
to the cabinets.

• When attaching corner brackets, thread both bolts in finger tight first, then continue to tighten equally with
hex wrenches (helps avoid misalignment issues).

• Fully tighten the connections as each assembly is finished without crushing the wood fibers.

• The U-Brackets, Vertical Yokes and Isometric Frames have hole patterns compatible with third party
manufacturers' adapter plates for 1-1/2" NPT rigid pole mounting systems (such as Chief CMA105 UL listed
Ceiling mounting systems, with a SWL rating of 500 lbs [226.7 kg]). See manufacturer's website for details.

• Contact our Technical Assistance Group (TAG) for additional guidance by phone: [phone] or email:
[e-mail].

GENERAL ASSEMBLY INFORMATION

The BalancePoint™ Flyware kits for the I SERIES loudspeakers are modular

and can be combined in a number of ways. T he m o st common configuration of

each kit is shown along with instructions for assembly.
Hardware and Parts: There is a key at the beginning of each instruction that

shows the parts, their quantity and abbreviation. We also use a shortened
code for the hardware that oers an easy reference to the type, diameter and
approximate length.
ex: HW6 = Hardware Washer 6mm;
HF1-2 = Hardware, Flat head bolt, 10 x 25mm

Several par ts have underside coun tersunk holes that are t hreaded for 8mm
flat head bolt s. They should be fully sea ted (at or below the surf ace of the
piece) before attaching the plate/bracket to the enclosure. Bolt placement
diagrams are show n f o r the cabinet br ac kets that have multiple holes. Several
of the bracke ts are shippe d with th e 8mm flat hea d bolts alr eady inst alled in
the most common configuration for that kit.

IMPORTA NT: The fl at head bolts t hat come instal led in each enclosure
must remain in place or be replaced by a threaded fastener from an array
bracket . The bolts at tach to int ernal metal br ackets that ar e critical to

the str uctur al integrit y and ra ted Safe Work ing Load (SWL) of each point and
each array ass embly. Failure to include a fast ener in ever y lo cation co uld lead
to serious injury, or even death.

TOOLS NEEDED FOR ASSEMBLY:

• Metric socket and ratchet set

• Metric wrench set

• Metric hex key set

Typical bolt placement

diagram for 2-way Cabinet

(angle) Bracket (PB-3)

The loudspeaker enclosure must

have fasteners in all threaded holes

Page 8 BalancePoint™ Flyware I SERIES

GENERAL ASSEMBLY INFORMATION (continued)

SAFETY CABLES

IMPORTA NT: Attac h a safet y cable to one of the unused m ounting points on t he
loudspeaker (and/or the bracket assembly). Safety cables must be secured to a

suitable load-bearing point separate from the loudspeaker mounting point, w ith as
lit tle slack as possib le, oriented to minimize dy namic swinging of the l oad, so as not to
develop undue sho ck or kin et ic force i f the l oudsp eaker mount wer e to fail . S af ety cable s
and hardware ar e not included. Pl ease consult a str uctural eng ineer for the appr opriate
cables, hardware, and location(s) for the load and application.

BALANCEPOINT™ FLY RAILS

Positioning:

• The fly rails may be mounted in any position required as long as all
attachment points are used.

• For the best aesthetics, the fly rails should not extend beyond the front edge
of the front cabinet.

• The fly rails can extend beyond the back of the cabinet.

• The rails should be attached to the cabinets using all of the connections
shown in the instructions for each assembly. This will ensure that the
cabinets don't rotate on the rigging and that the rigging is securely attached
to the cabinets.

• In "Subwoofer Behind" configurations, the general rule of thumb is that there
shouldn't be less than 6" (152mm) between the face of the subwoofer and
the rear of the cabinet in front of it (allows sucient air movement from the
subwoofer cones and parts).

Flying:

• Optimally, each array should be lifted from the hole(s) on the fly rails that
produce the desired tilt angle using gravity alone (the "Balance Point").

• A second cable may be used to fine-tune the exact aiming angle and/or
stabilize the array from rotation as necessary.

Typical placement for

safety cable and hardware

(eyebolt not included)

1

2

1) Rails do not extend behind
subwoofer (best aesthetics)

2) Ample distance between the
subwoofer and full-range cabinets

3) Fly rails well behind cabinet face

3

1) Not enough distance
between cabinets

2) Poor aesthetic choice

1 2

I SERIES BalancePoint™ Flyware Page 9

LOUDSPEAKER WEIGHTS

FULL-RANGE 600 Level [lbs (kg)] 800 Level [lbs (kg)] SUBWOOFER 600 Level [lbs (kg)] 800 Level [lbs (kg)]

IP6/8-1122 65.0 (29.5) 55.0 (24.9) IP6/8-112 64.0 (29.0) 58.0 (26.3)
IP6/8-1152 79.0 (35.8) 68.0 (30.8) IP6/8-115 78.0 (35.4) 72.0 (32.7)
IP8-1153 - 105.0 (47.6) IP6/8-118 97.0 (44.0) 98.0 (44.5)
IP8-0002 - 63.0 (28.6) IP6/8-212 101.0 (45.8) 89.0 (40.4)
IP8-1151 - 54.0 (24.5) IP6/8-215 126.0 (57.2) 14.0 (51.7)

IP6/8-218 170.0 (77.1) 172.0 (78.0)

Community Professional Loudspeakers

communitypro.com

I SERIES

HVS Manual 14AUG2015
