DATA SHE ET

DESONO™ C-IC6
CONFERENCING LOUDSPEAKER

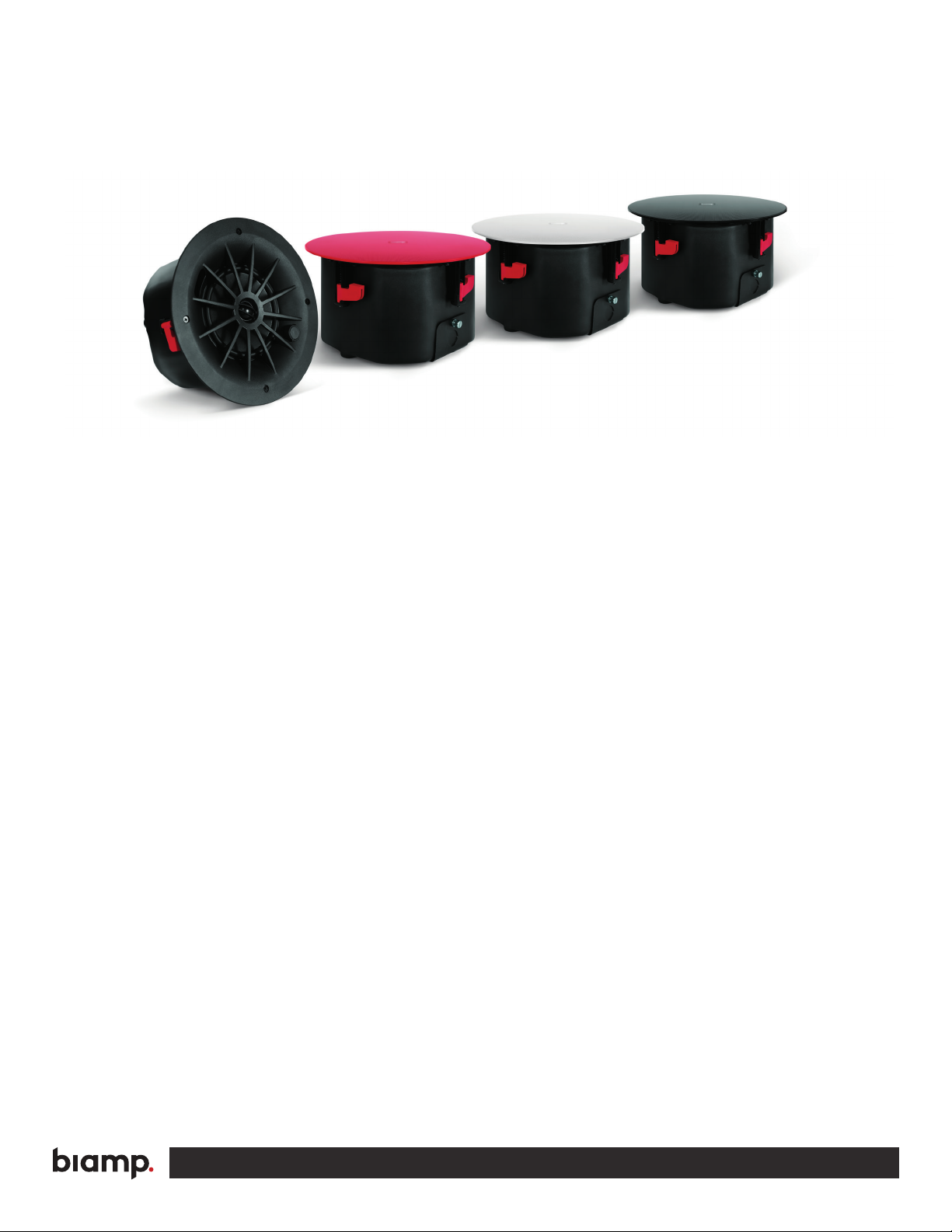

The desono™ C-IC6 is a low-profile, two-way passive coaxial loudspeaker optimized for speech reproduction in
conferencing applications. Designed with the installer in mind, the C-IC6 loudspeaker supports audio connections
via either standard category cable or traditional speaker cable. They can be blind-mounted from below the ceiling,
and feature a magnetic grill for easy toolless installation and removal. The grill plates are available in white, black, or
red, or can be painted to match the room decor. The C-IC6 also directly integrates with the Tesira® AMP-450BP—a
four-channel “backpack” PoE+ amplifier—which reduces wiring requirements and installation time. The desono C-IC6
loudspeakers are an ideal choice for any conferencing space that demands superior speech reproduction.

FEATURES

• 60W with a peak power of 120W

• Low profile passive loudspeaker, less than 6 inches
(151mm) total depth

• 8-ohm nominal impedance

• 130° coverage angle optimized for low ceilings

• Supports both standard category cables and traditional
speaker wiring for audio connections

• Directly integrates with the AMP-450BP (PoE+ amplifier)

• Bridge-mounted 1 inch (25mm) soft dome tweeter

• 6.5 inch (165mm) treated paper woofer mechanically isolated
from the high frequency driver

• Integrated flex conduit knockouts

• Evaluated to the requirements of UL 1480a and UL 2043 and is
suitable for use in air handling spaces

• Complete EASE, CLF, and CAD information available on
biamp.com

• CE marked, UL listed, and RoHS compliant

• Covered by Biamp Systems’ seven-year warranty

ARCHITECTS & ENGINEERS SPECIFICATIONS

The loudspeaker shall be a two-way, passive coaxial design intended for in-ceiling mounting. The loudspeaker shall be equipped
with a 6.5 inch (165mm) treated paper low frequency transducer (“woofer”), a 1 inch (25mm) soft dome high frequency transducer
(“tweeter”), and a passive crossover/protection circuit network. The high frequency transducer shall be physically separate from the
low frequency transducer and shall be bridge-mounted above the low frequency transducer. The loudspeaker shall have a ported
architecture and a nominal impedance of 8 ohms. The loudspeaker shall have a coverage angle of 130° from 1kHz to 6kHz. The
loudspeaker enclosure shall be constructed of formed steel and UL94V-0 fire rated plastic. The loudspeaker shall include a terminal
box that shall interface with conduit having an inside diameter of either 0.5 inches (13mm) or 0.875 inches (22mm). The loudspeaker
shall be equipped with a four-position, 0.2 inch (5.08mm) pluggable Euroblock connector and two RJ-45 connectors for audio signal
connections. The loudspeaker shall be suitable for blind-mounting from below the ceiling and shall support a magnetically-attached
grill. The loudspeaker shall have an attachment point for connection via chain or wire to building structure as a secondary support
point. The loudspeaker shall include mounting points for direct attachment of a Tesira® AMP-450BP amplifier. The loudspeaker shall
comply with the requirements of UL Standard 1480a and UL Standard 2043. The loudspeaker shall be UL listed, CE marked, and shall
be compliant with the RoHS directive. Warranty shall be seven years. The loudspeaker shall be desono™ C-IC6.

A: 9300 S.W. Gemini Drive Beaverton, OR 97008 USA T: +1 503.641.7287 W: www.biamp.com

DESONO C-IC6 SPECIFICATIONS

Connectors: 4-pole Euroblock connector for

two pair of parallel connections
[up to 16AWG];
Two RJ-45 connectors

Nominal Impedance: 8Ω

Transducers:

Low Frequency: 6.5 inch (165mm) treated

paper cone woofer

High Frequency: 1 inch (25mm) soft dome

bridge-mounted tweeter

Frequency Range (-10dB): 60Hz — 20kHz

Output Power Rating
(3dB compression, pink noise): 60W continuous;

120W peak

Sensitivity (1W @ 1m): 87dB S PL

Maximum SPL: 106dB

Nominal Coverage Angle (1-6kHz): 130°

Operating Environment: Designed for indoor use in

climate-controlled environments

Included Accessories: C Ring

Product Dimensions:

Overall Diameter: 11.2 inches (284mm)
Depth: 5.9 inches (151mm)
Weight : 7.8 lbs (3.5kg)

Cutout Diameter: 9.75 inches (248mm)

Compliance:

UL and C-UL listed (USA and Canada)

suitable for use in air handling spaces

DIMENSIONS FREQUENCY RESPONSE

Tile Bridge

Paintable Metal Grill

CE Marked (Europe)

RoHS Directive (Europe)

Evaluated to the requirements

of UL 1480a and UL 2043 and is

SPL (dB) 1W @ 1m

Frequency (Hz)

A: 9300 S.W. Gemini Drive Beaverton, OR 97008 USA T: +1 503.641.7287 W: www.biamp.com

IMPEDANCE / PHASE

0°

30°

60°

90°

120°

150°

180°

210°

240°

270°

300°

330°

-36

-30

-24

-18

-12

-6

0

80Hz Horizontal Vertical

0°

30°

60°

90°

120°

150°

180°

210°

240°

270°

300°

330°

-36

-30

-24

-18

-12

-6

0

125Hz Horizontal Vertical

0°

30°

60°

90°

120°

150°

180°

210°

240°

270°

300°

330°

-36

-30

-24

-18

-12

-6

0

20kHz Horizontal Vertical

0°

30°

60°

90°

120°

150°

180°

210°

240°

270°

300°

330°

-36

-30

-24

-18

-12

-6

0

10kHz Horizontal

Vertical

0°

30°

60°

90°

120°

150°

180°

210°

240°

270°

300°

330°

-36

-30

-24

-18

-12

-6

0

8kHz Horizontal Vertical

0°

30°

60°

90°

120°

150°

180°

210°

240°

270°

300°

330°

-36

-30

-24

-18

-12

-6

0

4kHz Horizontal Vertical

0°

30°

60°

90°

120°

150°

180°

210°

240°

270°

300°

330°

-36

-30

-24

-18

-12

-6

0

2kHz Horizontal Vertical

0°

30°

60°

90°

120°

150°

180°

210°

240°

270°

300°

330°

-36

-30

-24

-18

-12

-6

0

1kHz Horizontal Vertical

0°

30°

60°

90°

120°

150°

180°

210°

240°

270°

300°

330°

-36

-30

-24

-18

-12

-6

0

500Hz Horizontal Vertical

0°

30°

60°

90°

120°

150°

180°

210°

240°

270°

300°

330°

-36

-30

-24

-18

-12

-6

0

250Hz Horizontal Vertical

Ohms

Impedance Phase

DIRECTIVITY INDEX

dB

POLAR PLOTS

Phase (Degrees)

Frequency (Hz)

Frequency (Hz)

HORIZONTAL BEAMWIDTH

Degrees

Frequency (Hz)

-3dB angle (deg) -6dB angle (deg) -9dB angle (deg)

VERTICAL BEAMWIDTH

Degrees
