Biamp C4, C6, C8 User guide

Download

C SERIES

Coaxial Ceiling Loudspeakers

Installation and Operation Manual

MODELS

C4: 4.5" Full-Range

C6: 6.5" Full-Range

C8: 8" Full-Range

Safety Agency Compliance

4001450

Conforms to UL1480 Standard

Conforms to UL2043 Standard

Certiﬁed to CSA C22.2 No. 60065 Standard

Additional Compliance Information

Suitable for use in air handling spaces per NFPA70 National Electrical Code 2008 Article 300.22(c)(2) and NFPA 90 Installation of Air Conditioning and Ventilation Systems 2009 Article 4.3.11.2.6.5.

SUITABLE FOR USE IN AIR HANDLING SPACES

EC Statement of Conformity

Community Professional Loudspeaker products bearing the CE label meet all the requirements in the EMC directive 2014/30/EU laid down by the Member States Council for adjustment of legal requirements, furthermore the products comply with the rules and regulations referring to the electromagnetic compatibility of devices from 16 April 2016.

The Communit y Professional Loudspeaker produc ts bearing the CE label comply with the Low Voltage Directive 2014/35/EU and the Waste from Electrical Equipment Directive 2002/96/EC RoHS.

The Declaration of Conformity statement is available upon request.

Technical speciﬁcations for products can be found at www.communitypro.com.

The responsible manufacturer s the company:

Community Light & Sound, Inc. 333 East Fifth Street Chester, PA 19013 USA Ph: 1+610-876-3400 Fax: 1+610-874-0190

Page 2 Installation and Operation Manual C SERIES Ceiling Loudspeakers

Introduction

Table of Contents

Thank you for selecting the Community C SERIES of ceiling loudspeakers. Whether you chose them because they deliver exceptionally high quality sound, because they have predictable, uniform coverage so spaces are easy to lay out, because they are easy to install and save time, or because they are very competitively priced for such a high-performance loudspeaker, you can have conﬁdence you made the right choice.

The C SERIES is built to satisfy safety agency standards, with quality assured by Community’s long history of building high-performance, durable loudspeakers for sound reinforcement and contracting applications. Each model is delivered as a pair of loudspeakers, fully assembled, and including everything needed for standard installations.

These are true coaxial loudspeakers. This means they have a real compression driver concentrically arranged so that the upper frequencies emerge through the center of the low-frequency driver’s magnetic structure and cone via a precisely tapered Tru-Phase™ high-frequency waveguide. This special construction provides consistent, wide dispersion right up to 16 kHz, all but eliminating high-frequency narrowing. You don’t have the reﬂection and diraction problems at multiple frequencies found with “straight tube” coaxial loudspeakers, simple “whizzer-cone” loudspeakers, or front-mounted soft dome high frequency loudspeakers (typically found in ceiling speakers at this price point) that attempt to emulate a true coaxial design.

Community does not use OEM or o-the-shelf utility loudspeakers in the C SERIES. We designed these units from the coil formers to the back cans. We expended g reat eor t to achieve a uniform voicing a cross all models in t his series so that you can mix sizes to optimize the layout without having disconcerting changes in sound quality. If you require deeper low frequency response, you can add D10SUB subwoofer from Community's C SERIES loudspeakers.

Their high power handling, high sensitivity, and therefore higher overall output capacity allows this series of loudspeakers to deliver cleaner sound since they avoid drive-level related distortion.

The C SERIES saves you money in several ways. (a) Their powerful magnetic structures and ecient coils ensure high output, which gives you more headroom per power ampliﬁer so you can use a smaller amp that will save you money. (b) These loudspeakers are very competitively priced and (c) Community designed this series with place-through-the-cutout Tile Support Bridge Rails and their snap-on spacers, and Drop-Stop™ installation assistant tabs.

Since the loudspeaker is pre-assembled in the back-can with its crossover network, and pre-wired to an external Euro connector, the installer simply inserts the units into the ceiling in one smooth push of the hand and they snap in place. They cannot then fall out, thus leaving both hands free to tighten the two clamp actuator screws, adjust the front-face power setting dial, and snap on the grille. The wiring cover plate also serves to clamp non-conduit carried wires, and the cover does not need to be removed for access... it just swings clear. Because one person on a ladder is easily able to install the loudspeaker in the ceiling, redundant labor is eliminated. Overall, this saves a tremendous amount of time and labor during the installation.

All models in this series accommodate 8-ohm as well as 70V/100V applications.

We urge you to read these instructions carefully and familiarize yourself with the features and installation methods before you begin the job. If you have any questions or concerns, please contact Community.

Safety Agency Compliance .....................................2

Introduction .................................................................3

Important Safety Instructions ...............................4

L’information de Sûreté Importante ...................4

Packing List and Product Identiﬁcation ............. 5

Component Identiﬁcation ....................................... 6

Installation and Wiring ............................................ 7

Installation in the Ceiling ........................................9

Attach Grille Safety Cable ..................................... 12

Loudspeaker Tap Setting ....................................... 12

Painting the Loudspeaker ..................................... 13

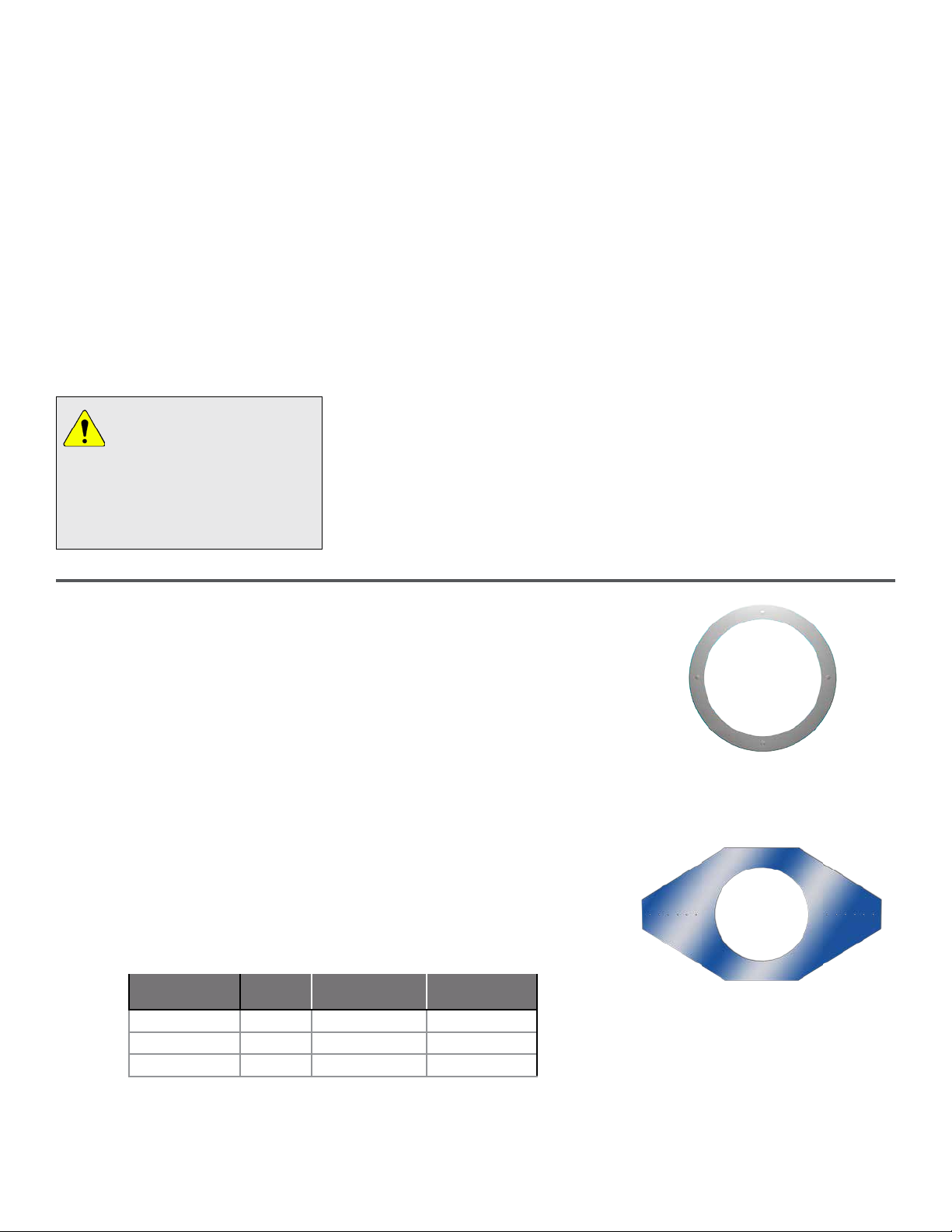

Optional Accessories .............................................. 13

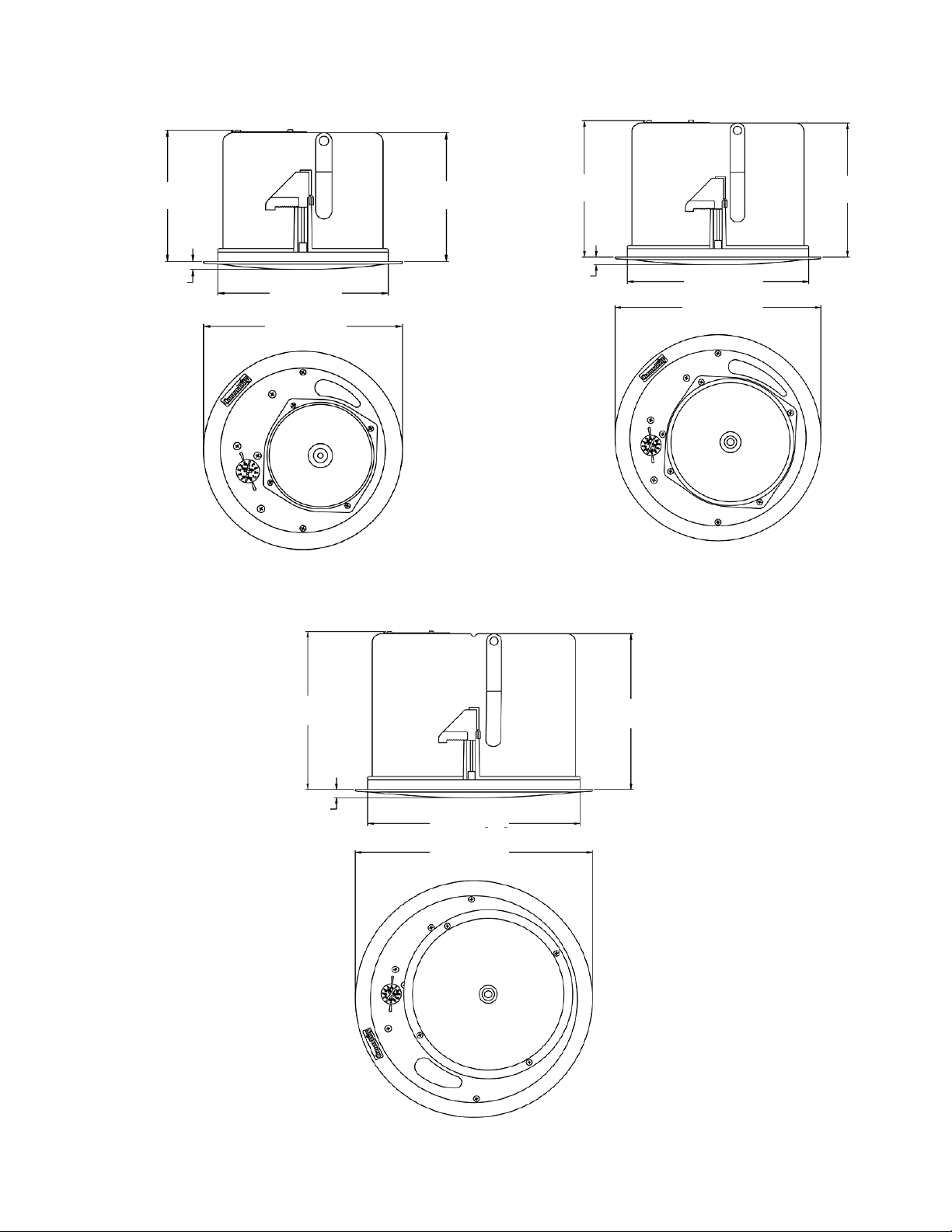

Drawings / Dimensions ......................................... 14

Warranty Information and Service ....................15

Notes ............................................................................ 15

C SERIES Ceiling Loudspeakers Installation and Operation Manual Page 3

Important Safety Instructions

Always follow these basic safety precautions when using or installing C SERIES Ceiling Loudspeakers and accessories:

• Read and keep these instructions.

• Heed all warnings.

• Follow all instructions, particularly those pertaining to rigging, mounting, hanging and electrical connections.

• Do not use this apparatus near water.

• Clean only with dry cloth.

• Do not block any ventilation openings. Install in accordance with the manufacturer’s instruction.

• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliﬁers) that produce heat.

• Only use attachments/accessories that are speciﬁed and approved by the manufacturer.

• Refer all servicing to qualiﬁed service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

The terms caution, warning, and danger may be used in this manual to alert the reader to important safety considerations. If you have any questions or do not understand the meaning of these terms, do not proceed with installation. Contact your local dealer, distributor, or call Community directly for assistance. These terms are deﬁned below:

CAUTION: describes an operating condition or user action that may expose the equipment or user to potential damage or danger.

WARNING: describes an operating condition or user action that will likely cause damage to the equipment or injury to the user or to others in the

vicinity.

DANGER: describes an operating condition or user action that will immediately damage the equipment and/or be extremely dangerous or life threatening to the user or to others in the vicinity.

WARNING: To reduce the risk of ﬁre or electric shock, do not expose this apparatus to rain or moisture.

These servicing instructions are for use by qualiﬁed service personnel only. To reduce the risk of ﬁre or electric shock do not perform any servicing other than that contained in the operating instructions unless you are qualiﬁed to do so.

L’information de Sûreté Importante

Respectez toujours ces précautions de sécurité de base lors de l’utilisation ou lors de l’installation des haut-parleurs C SERIES Ceiling et de ces accessoires :

• Lisez et gardez les instructions.

• Observez tous les avertissements.

• Suivez toutes les instructions, particulièrement ceux concernant le calage, support, montage et raccordements électriques.

• Ne pas utiliser cet appareil près de l’eau.

• Nettoyez seulement avec un tissu sec.

• Ne pas bloquer les ouvertures de ventilation. Installer conformément aux instructions du fabricant.

• Ne pas installer près des sources de chaleur comme les radiateurs, les cuisinières, foyers ou autres appareils (y compris les ampliﬁcateurs) qui peuvent produire de la chaleur.

• Utilisez seulement les accessoires qui sont spéciﬁés et approuvés par le fabricant.

• Référez tout entretient au personnel qualiﬁé de service. Ceci est exigé quand l’appareil a été endommagé de quelque façon, incluant le ﬁl d’alimentation et ou l’embout du ﬁl a été endommagé, des liquides ont été renversés ou des objets sont tombé à l’intérieur de l’appareil, l’appareil a été exposé à la pluie ou l’humidité, l’appareil ne fonctionne pas normalement ou a été échappé.

Les termes attention, avertissement, et danger peut être utilises dans ce manuel pour alerter le lecteur aux considérations importantes de sûreté. Si vous avez des questions ou ne comprenez pas la signiﬁcation de ces termes, ne procédez pas à l’installation. Contactez votre détaillant, distributeur, ou Community directement pour assistance. Les termes sont déﬁnies ci-dessous:

ATTENTION: décrit une condition de fonctionnement ou une action d’utilisateur qui peuvent exposer l’équipement ou l’utilisateur aux dommages potentiels ou au danger.

AVERTISSEMENT: décrit une condition de fonctionnement ou une action d’utilisateur qui peuvent causer des dommages probable à l’équipement et/ou à l’utilisateur et à ceux se trouvant à proximité.

DANGER: décrit une condition de fonctionnement ou une action d’utilisateur qui endommageront immédiatement l’équipement et/ou seront extrêmement dangereuses et qui peut représenter un danger pour la vie à l’utilisateur et à ceux se trouvant à proximité.

AVERTISSEMENT : Pour réduire le risque de feu ou de décharge électrique, ne pas exposer cet appareil à la pluie ou l’humidité.

Ces instructions d’entretient sont pour l’usage d’un personnel de service qualiﬁé seulement. Pour réduire le risque de feu ou de décharge électrique n’exécutez aucun entretient autrement que ce qui est contenu dans les instructions d’opérations à moins que vous êtes qualiﬁé pour le faire.

Page 4 Installation and Operation Manual C SERIES Ceiling Loudspeakers

Packing List and Product Identiﬁcation

Community C SERIES Ceiling Loudspeakers are engineered and manufactured to be rugged and they are carefully packed in sturdy cartons. However, it is wise to thoroughly inspect each unit after it has been removed from the packaging, as damage could occur during shipping.

Please note that once the shipment has left your dealer or the Community factory, the responsibility for damage is always borne by the freight company. If damage has occurred during shipping, you must ﬁle a claim directly with the freight company. It’s very important to contact the freight company as soon as possible after receiving your shipment, as most freight companies have a short time limit within which they will investigate claims. Make sure to save the carton and the packing material, as most claims will be denied if these materials are not retained.

All C SERIES ceiling loudspeakers are shipped in pairs. Below is a representation of what is included.

Box Contents

Models: C4, C6, C8

• Loudspeakers secured in their back cans (2)

• Grilles (2)

• Tile bridge support rails (4)

• Bridge Rail Spacers (4)

• Cutout template (1)

• Paint Masks (2)

• Small Flat screwdriver (1)

Loudspeakers

Support Bridge Rail Spacers

Paint Masks

Grilles

24" (610mm) Tile Bridge Support Rails

Flat Screwdriver

Cutout Template

C SERIES Ceiling Loudspeakers Installation and Operation Manual Page 5

Component Identiﬁcation

Combination terminal block cover and cable strain relief clamp

Input terminal block

Seismic

Saf ety Tabs

3/4" knockout strain relief

on terminal block cover (with conduit installed)

Can-Locking Clamp (x2)

(shown deployed)

Drop-Stop™ Installation Assistant Tabs (x2)

U-Channel Tile Support Bridge Rails

Locking Clamps (x2)

shown retracted

Low impedance / 70V & 100V transformer tap switch

Under the grille on the loudspeaker face

Metal safety clip and high-impact mono ﬁlament

nylon loops that secure grille to loudspeaker face

Bridge Rail Spacer Bars (x2)

Grille (shown snapped onto loudspeaker face)

Mounting screw holes on

optional can adapter/trim ring

Figure 1. Component part identiﬁcation

Page 6 Installation and Operation Manual C SERIES Ceiling Loudspeakers

Installation and Wiring

This manual will serve to assist in wiring and physically mounting C SERIES loudspeakers. The directions include assistance to those installers using a complete Community package of loudspeakers and accessories, including the integral back cans, grilles, tile rails and so forth. We include instructions for use of optional Community C SERIES retroﬁt adapters so that Community C SERIES loudspeakers can be mounted in other manufacturer’s cutouts. If accessory products from a dierent manufacturer are used, please refer to the installation manuals supplied with those products.

Power Determination

As detailed subsequently, there is no need to specially select dierent wire terminals for 8-ohms or for various 70V and 100V power taps. Instead, a facemounted tap switch allows you to make this selection. Once the loudspeaker is mounted correctly in the ceiling, set the tap switch to the appropriate tap setting before any audio is passed through the loudspeaker. Do not change the setting on the tap switch while the loudspeaker is in use.

Installation in back cans without conduit

The only tool required is a screwdriver, which is provided in the loudspeaker package. Commercial Design integral back cans include a swivel-out terminal access cover that also serves as a cable clamp when tightened in place. The terminal block in the can’s outer recess has two (+) connections and two (-) connections. If you are only connecting one (dual conductor) cable, you can use either (+) and (-) terminal. If yo u’re daisy-chaining a cable t o the next loudspeaker, you may connect the next cable to the remaining (+) and (-) terminals. There is no need to connect jumpers or try to stu two wires into one terminal block port because each pair of (+) and each pair of (-) terminals is directly jumpered together on the input connector.

Wiring: single cable (example)

Wiring: daisy-chained to next unit

Terminal Block

Terminal Block showing wire connections to the block for a single cable (not daisy-chained)

Figure 2. Non-conduit guided wiring to can and wire restraint

(Only use this method when permitted by applicable building and electrical codes!)

Cover/strain relief plate swiveled closed and secured to clamp the cable

3/4 inch (19 mm) knockout in the cover can be used for conduit

Built-in cable strain relief

C SERIES Ceiling Loudspeakers Installation and Operation Manual Page 7

Installation and Wiring (continued)

Note: All electrical and mechanical installation connections for loudspeaker lines are subject to all applicable governmental building

and ﬁre codes. The selection of appropriate electrical and mounting hardware to interface with C SERIES Ceiling Loudspeakers lies solely with the installation professional. Community recommends that an appropriately licensed engineer, electrician, or other professional identify and select the appropriate conduit, ﬁttings, wire, etc. for the installation.

Installation of conduit to the loudspeaker

Required tools:

• (1) Hammer and knockout punch tool

• (1) Step-bit for adjusting knockout diameter (optional)

• Safety glasses, gloves and other personal safety gear are recommended as this process involves striking metal parts and chipping away debris around the knockouts.

1. All C SERIES loudspeaker back cans have a dual-diameter knockout strain relief ﬁtting on the top cover.

2. The knockout strain relief port is opened with a hammer and punch using the same techniques for removing knockouts in standard electrical boxes.

3. Insert appropriate ﬁttings and tighten suciently for wire path concealment and strain relief, in accordance with applicable codes.

You can use ﬂexible or rigid conduit (as required by local electrical codes).

Conduit ﬁtted to the top cover plate

of the can, which has a knockout

strain relief for this purpose.

Figure 3. Conduit for protected wiring to back can

Page 8 Installation and Operation Manual C SERIES Ceiling Loudspeakers

Installation in the Ceiling

General

Lay out the loudspeaker locations according to the requirements of the speciﬁc installation and in compliance with applicable safety and building codes. It is beyond the scope of this manual to provide guidance in this area. Community oers our Forecaster HD ceiling system software to assist you in distributed loudspeaker system design. Please visit the Products/Software page of the Community website for this software.

We also suggest that you use the provided seismic safety tabs to secure the back cans to the building structure. Again, please be guided by applicable building codes here; we cannot provide detailed rigging instructions due to the wide global variations in such codes and practices.

Procedure (for suspended ceiling)

Note: The optimum situation for installation is into a ceiling where the suspension grid is installed and the tiles have not yet been placed. We designed this series to facilitate installation into an already-placed ceiling, and these instructions conform to this more restrictive condition. So when we say something like, "insert the tile bridge support rails through the can cutout," and the adjacent space is unobstructed, you should use the more sensible alternative and just drop the rails into place.

1. Mark the hole location on the ceiling tiles and, using the cutout template provided with your C SERIES loudspeakers, cut a hole to the precise size (Figure 4).

2. Insert the Tile Bridge Support Rails through the can cutout and position them across the rails on either side of the cutout, approximately as far apart as the Bridge Rail Spacer Bars. Then insert the pair of spacer bars and clip them over the tile bridge support rails as shown in Figure 5.

Figure 4. Cutout template dimensions

Ø 0.12" (Ø 3) Center Hole

Ø 10.35" (Ø 26 3)

Ø 8.86" (Ø 22 5)

Ø 7.36" (Ø 187)

Bridge Rail

Spacer Bars

Tile Bridge Support Rails

Figure 5. Tile bridge and spacer rail layout

C SERIES Ceiling Loudspeakers Installation and Operation Manual Page 9

Installation in the Ceiling (continued)

3. Make sure mounting clamps are tight against sides of back can before sliding the loudsp eaker into the hole, aligning i t so that the mounting cl amps are nearest to the two bridge support rails, labels on the loudspeaker face indicate the position of the mount clamps and the required alignment. Before sliding the back can into the ceiling hole, slightly bend each DropStop™ tab outward from the back can 0.5" (12 mm). When you press the can fully into place, the two spring-loaded Drop-Stop™ tabs will spread atop the bridge support rails, and you may hear them “snap” into position; you can now continue without having to hold the loudspeaker in place. The Drop-Stop™ tabs are designed to drop into the Tile Bridge support rails channels, they will not work properly if misaligned. See the note and Figures 6 and 7 below.

Note: If you’re using loose wires, rather than conduit, ﬁrst connect the wires to the terminal block atop the loudspeaker assembly, and secure them with the top cover/ strain relief, before installing the can.

4. Locate the two Phillips-head actuators around the perimeter of the loudspeaker’s front ﬂange (see Figure 8). Using a #2 Phillips screwdriver twist each actuator clockwise until you feel resistance as the clamps press against the support rails (Figure 9).

5. Repeat for as many loudspeakers as you need to install.

Important: Always attach a safety cable to

one or both seismic safety tabs (at the top of the Drop-Stop™ tabs) in all installations. Failure to do so could result in injury or even death in the event of a failure of the primary mounting support system.

Figure 6. Position of loudspeaker relative to bridge

support rails during installation

Align the ﬂat sides of the can with the tile support rails

Figure 8. Turning the two loudspeaker clamp actuators

clockwise securely locks the unit into the ceiling.

bridge rails after the clamp actuators have been tightened.

Figure 7. Drop-stop tabs (highlighted) snap out over

bridge support rails

(Temporarily holds unit in place even before you secure

it with the mounting clamps)

Figure 9. Mounting clamps shown gripping tile support

Page 10 Installation and Operation Manual C SERIES Ceiling Loudspeakers

Installation in the Ceiling (continued)

Dry-Wall Ceiling Installation

There are three basic ways to install a Community C SERIES loudspeaker assembly into a drywall ceiling (a.k.a. sheet rock or gypsum board). Some are for new construction, others for retroﬁt to existing construction. We recommend some methods over others and of course the choice is yours.

1. The preferred method for new installations is to use the optional New Construction Bracket, pre-installing it directly to the supporting beams before the sheet rock is applied. Multiple small holes on wings to either side of the main cutout hole allow the installer to use screws or nails to secure the ring to the straddling beams. See the following subsection for step-bystep details and variations.

2. An alternative method for new installations – where the ceiling has already been completed – is to use the Tile Bridge Support Rails. While there are no truss members across which the rails ﬁt, nonetheless they will distribute the weight of the loudspeaker assembly across a greater area and will thus avoid sagging or having the mounting clamps cut into the ceiling that might otherwise occur over time. You can cut the hole using the provided template or using a New Construction Bracket as a cutting guide, even though this bracket won’t be used for the actual installation. It’s then easy to pass the Tile Bridge Support Rails through the cutout, then the Spacers, and align the loudspeaker mounting clamps so they rest top of the rails. Refer to Figures 9 and 10.

3. Retroﬁt an entire Community C SERIES Loudspeaker Assembly into an existing oversized ceiling cutout using a corresponding C SERIES CATR Can Adapter Trim Ring.

Figure 10. New installation in an existing

drywall ceiling Use the tile bridge

support rails & spacers

Important: Do not mount the loudspeaker into any material

without using either the New Construction Bracket or the Bridge Support Rails

Pre-Installation in a New Drywall Ceiling

Optional New Construction Brackets are available for installing loudspeakers in new construction before drywall or plaster is put in place. Refer to the chart on page 13 for sizes and model numbers.

The New Construction Brackets support the loudspeakers in plaster/dry wall ceilings. Multiple holes in the bracket’s two “ears” permit convenient attachment to nearby ceiling beams. The drywall typically is cut with a routertype tool, in which case the bracket central hole will serve as a cutout guide for the router bit.

Inserting the Loudspeaker Assembly into the Drywall Ceiling

1. Bring the wiring from the ceiling to the top of the can and attach it to the terminal block (see the Wiring Section and Figure 2). Secure the wiring with the top plate/strain relief clamp.

2. Before sliding the back can into the ceiling hole, slightly bend each

Drop-Stop™ installation assistant tab outward from the back can 1/2 inch (12mm). Slide the loudspeaker into the hole. When pressing the unit fully into

place, the two Drop-Stop™ tabs will spread atop the tile support bridge rails, and you may hear them “snap” into position; you can now continue without having to hold the back can in place. The illustration in Figure 7 shows how the Drop-Stop™ tabs work, and is equally applicable with New Construction Bracket installations in drywall ceiling

3. Locate the two Phillips-head can clamp actuators around the perimeter of the front ﬂange, and using a #2 Phillips screwdriver twist each actuator clockwise until you feel tension as the clamps securely lock the loudspeaker into the ceiling (Figures 8 and 9 on page 10). These clamps open fully to 2.35” (59.6 mm), but we allow at least 0.60” (15.2mm) to grab the Tile Bridge Support Rail atop the ceiling. Loudspeakers leave the Community factory with these

clamps fully open so that approximately 1.75” (44.4 mm) thick ceilings can be accommodated.

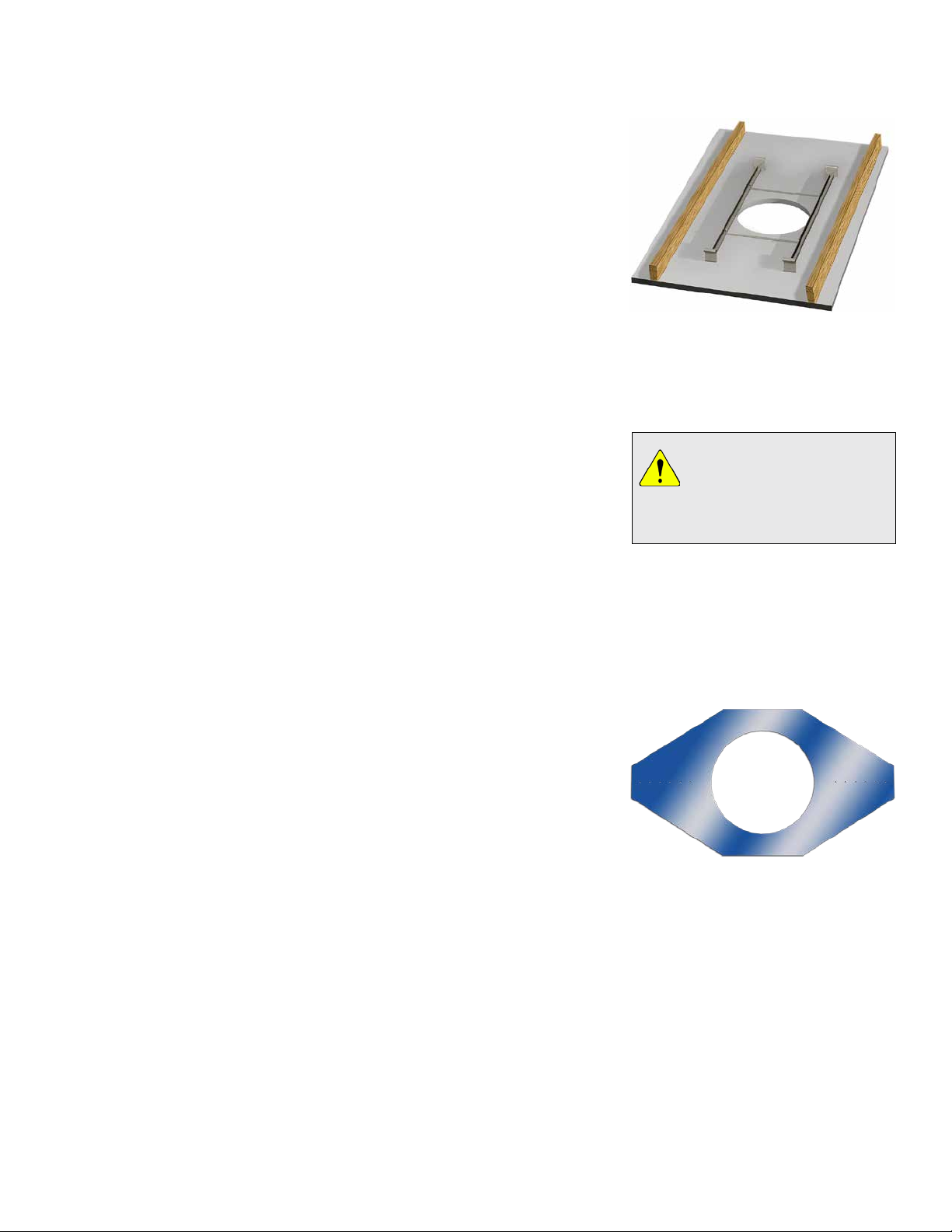

Figure 11. New construction bracket for

drywall or lath-and-plaster installations

C SERIES Ceiling Loudspeakers Installation and Operation Manual Page 11

Attach Grille Safety Cable

Note: Some codes now require that the grille have a safety cable. Your local

codes may vary. Community makes it easy to comply with an included security cable system, as detailed below.

1. Once the loudspeaker is secured in the back can, you can attach the safety cable between the grille and loudspeaker. There is a nylon mono ﬁlament loop attached to the grille and looped through a metal clip. Another mono ﬁlament line is located inside the bass reﬂex port of the face of the loudspeaker. Use the metal clip to link these two mono ﬁlament loops (Figure 12).

2. Carefully lower the grille until the cable holds it, and let go. It should hang harmlessly from the mono ﬁlament line.

3. If you’re proceeding with setup, you can leave the grille hanging so you can adjust the power setting as noted below. Otherwise, snap the grille into position on the face of the loudspeaker bae.

Figure 12. Grille safety clip and line

(left) should look like this (right) when

attached.

Loudspeaker Tap Setting

Use a standard #2 or #3 Phillips or a medium slot-blade screwdriver (not the one provided with the loudspeaker kit), or just press thumb ﬁrmly, and twist to adjust the power control dial on the front face of the loudspeaker bae. As shown below, you can make any of ﬁve dierent settings, although the dial has dual calibrations so at ﬁrst glance it appears to have ten settings. The 8-ohm position is the same on both sides and is for a low impedance connection. On the lower-left side of the power tap control shown in the close-up in Figure 13 are the power values for 100V connections, and on the upper right side are the power values for 70V connections.

Caution: Set the tap control initially prior to applying audio, and only change the dial setting while the audio ampliﬁer is shut o.

This control makes it very easy and fast to balance an installation since there is no need to drop the loudspeakers out of their back cans and move wires to dierent terminals.

Power / voltage

tap control (dial)

Note: The letters NC mean "no-connect" but they do not

actually break a connection. DO NOT USE this setting if you’re using a 100V distribution scheme as the loudspeaker may draw excessive power; it corresponds to the highest power that can be drawn with a 70V source.

Enlarged detail of tap control

(Available settings vary with model.)

Figure 13. Setting loudspeaker tap

Page 12 Installation and Operation Manual C SERIES Ceiling Loudspeakers

Painting the Loudspeaker

The loudspeakers’ textured white ﬁnish complements most decors and does not require further painting. However, if the interior design requires a custom loudspeaker ﬁnish, these loudspeakers are easy to paint.

It is best to paint the bae before installation. In cases where it needs to be ﬁnished along with the ceiling, the loudspeaker bae can be painted after mounting in the ceiling.

Note: The paint masks provided by Community are intended to PREVENT the loudspeakers from receiving any paint.

Caution: NEVER use abrasives, gasoline, kerosene, acetone,

methyl ethyl ketone (MEK), paint thinner, harsh detergents or other chemicals. These chemicals and agents may permanently damage the ﬁnish. Some are also toxic and highly ﬂammable.

Type of Paint

The loudspeaker’s ABS plastic bae accepts almost any type of latex or oil based paint. We recommend application of two coats.

Painting Process (to obtain the best results):

1. Clean the bae with a light solvent such as mineral spirits, rubbing the bae with a lightly dampened cloth. Do not use abrasives such as sandpaper or steel wool.

2. Mask the loudspeaker so that the surround, cone and center area will not receive any paint. If the loudspeaker is already in the ceiling, you may wish to mask the ceiling as well. Use a low-tack painter’s tape. We advise against using conventional masking tape and NEVER use duct tape in this application; these kinds of tape generally leave adhesive residue that can be dicult to remove and that may actually cause damage.

3. After cleaning, apply two or more two thin coats of either latex or oil-based paints. Latex paint will adhere better if an oil-based primer is used ﬁrst. Apply the paint with a roller or brush, or spray it on.

4. The grille should be painted separately, and not in place on the loudspeaker. We further recommend that you remove the grille’s internal cloth mesh, then spray paint the grille assembly. Avoid using a roller or brush to paint the grille as its metal perforated holes may become clogged with paint, which degrades sound quality and also may attenuate the sound. Reinstall the internal cloth mesh (or if damaged install a new cloth mesh).

Optional Accessories

Community oers helpful optional accessories that are not included with the basic packages. Please be sure to order these parts separately if you need them.

Can Adapter Trim Rings allow you to mount an entire C SERIES loudspeaker assembly into an existing industry back can that is already in the ceiling from a previous installation. If you’re performing a retroﬁt, you will want to order the type of adapter you need in the size suitable for the loudspeaker.

The Can Adapter Ring can be used as a Trim Ring, allowing you to mount a C SERIES loudspeaker assembly into an existing but over-size ceiling cutout hole. When used as a trim ring, white rubber hole plugs (included) ﬁll the four countersink indents.

A New Construction Bracket is available for installing loudspeakers in new construction before drywall or plaster is put in place. The drywall typically is cut with a router-type tool or laser guided cutter in which case the bracket hole will serve as a cutout guide.

Model Size

C4 4.5" C4-CATR C4-NCB

C6 6.5" C6-CATR C6-NCB

C8 8" C8-CATR C8-NCB

Can Adapter/

Trim Ring

New

Construction

Can Adapter/Trim Ring

(shown with rubber hole plugs)

New Construction Bracket

Figure 14. Optional accessories

C SERIES Ceiling Loudspeakers Installation and Operation Manual Page 13

Drawings / Dimensions

5.50" (14 0)

0.3 3" (8) Ø7.13 " (181 )

Ø8.31" (211)

Figure 15. C4 loudspeaker dimensions

5.39" (137)

6.49" (165)

0.3 6" (9)

6.38 " (162)

Ø8.62" (21 9)

Ø9. 80" ( 249)

Figure 16. C6 loudspeaker dimensions

7.5 5" (192)

0.3 9" (10) Ø10 .12" (257)

Ø11.30" (287)

Figure 17. C8 loudspeaker dimensions

7.44" (18 9)

Page 14 Installation and Operation Manual C SERIES Ceiling Loudspeakers

Warranty Information and Service

Transferable warranty “(Limited)” valid in the USA only

The C SERIES Loudspeaker Systems are designed and backed by Community Professional Loudspeakers. For complete warranty information within the USA please refer to Community website. Please call 610-876-3400 to locate your nearest Authorized Field Service Station.

For Factory Service call 610-876-3400. You must obtain a Return Authorization (R/A) number prior to the return of your product for factory service.

Warranty information and Service for countries other than the USA

To obtain speciﬁc warranty information, visit the website at communitypro.com/warranty. To obtain available service locations for countries other than the United States of America, contact the authorized Community Distributor for your speciﬁc country or region.

Shipping damage

If the product is damaged during transit you must ﬁle a damage claim directly with the freight company. Be sure to save the carton and packing materials, as damage claims can be denied if these materials are not retained. If evidence of physical damage exists upon arrival, be cautious before signing a delivery acceptance receipt. Often, the ﬁne print will waive your right to ﬁle a claim for damage or loss after you sign it. Make sure that the number of cartons shown on the freight documents have actually been delivered.

Find the latest online

The latest version of this manual and the most recent product information is always available at Community’s website: www.communitypro.com

Notes

C SERIES Ceiling Loudspeakers Installation and Operation Manual Page 15

Community Professional Loudspeakers

333 East Fifth Street, Chester, PA 19013-4511 USA Phone: (610) 876-3400 • Fax: (610) 874-0190 www.communitypro.com

16FEB2017
