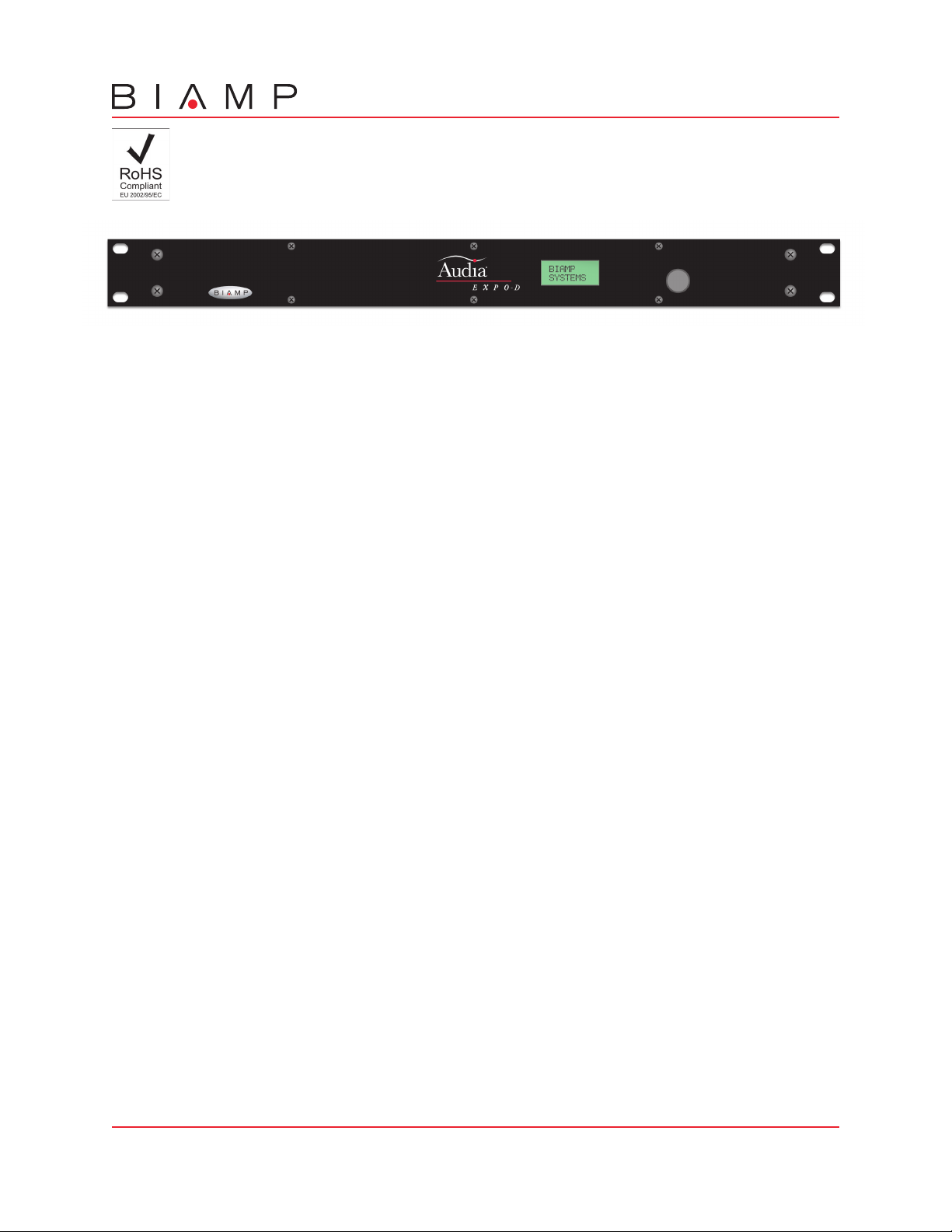

AudiaEXPO-D
Digital Output Expander
AudiaEXPO-D is a digital output expander for Audia®, the benchmark in digital audio systems for
demanding professional sound installations. AudiaEXPO-D accepts eight digital audio input signals via
CobraNet® and provides eight channels of digital audio output. AudiaEXPO-D can simply add outputs
to a centralized system, or it can extend system boundaries by providing outputs in remote locations.
AudiaEXPO-D is represented as a block in Audia software, for easy inclusion into any system design.
AudiaEXPO-D may also be used to provide outputs from other CobraNet compliant systems or devices.
FEATURES
8 channels of digital audio input via CobraNet
4 AES3 digital outputs on XLR (xfmr coupled)
2 SPDIF outputs (available channels 1-2 & 3-4)
2 TOSLINK outputs (available channels 5-6 & 7-8)
Word Clock output on BNC connector
rotary encoder with LCD for programming/setup
logic inputs for recalling preset configurations
included as block in AUDIA system design software
may be used with any CobraNet compliant system
RoHS compliance and AES grounding practices
CE marked and UL listed power source
covered by Biamp Systems' five-year warranty
ARCHITECTS & ENGINEERS SPECIFICATION
The Digital Output Expander shall provide eight channels of digital audio input via CobraNet®, on two rear panel RJ45 connectors.
Four pairs of AES3 transformer coupled digital audio outputs shall be provided on XLR connectors. Two of these pairs shall be
available also as SPDIF outputs on RCA connectors, and the other two pairs shall be available also as TOSLINK outputs. A word
clock output shall be provided on BNC connector. A rotary encoder and LCD screen shall be provided on the front panel for
programming and setup. Logic Inputs shall be provided for recalling preset configurations.
The Digital Output Expander shall be represented as a functional block within Audia
designs. The Digital Output Expander shall also be capable of providing digital audio outputs from other CobraNet compliant
systems or devices. The Digital Output Expander shall be CE marked with a UL / C-UL listed power source, and shall incorporate
AES48-2005 Grounding & EMC practices. The Digital Output Expander shall be compliant with EU Directive 2002/95/EC, the RoHS
directive. Warranty shall be 5 years.
The Digital Output Expander shall be AudiaEXPO-D.
®
software, for easy inclusion into system
Biamp Systems, 10074 S.W. Arctic Drive, Beaverton, Oregon 97005 U.S.A. (503) 641-7287 www.biamp.com
Page 2
)
esolutio
)
:
d
d
t
:
e
:
C
/O:
8/96kHz
00
t
)
s:
s
)
)
)
g)
s
e
C
d
e
®
AudiaEXPO-D SPECIFICATIONS
Sample Rate (determined by CobraNet
Bit R
n (determined by CobraNet
4
up to 24 bits
Audio Output Signal Characteristics / Connectors
AES3 compliant, transformer couple
SPDIF compliant, single ended, AC couple
TOSLINK complian
Clock Output Signal Characteristics / Connector
single ended, TTL compatibl
Logic Input Signal Characteristics
obraNet I
TTL or contact-closure
Mb etherne
1
AudiaEXPO-D REAR PANEL DIAGRAM
secondary
27V
50/60 Hz
12 watts
class 2 wiring
BIAMP SYSTEMS
designed and assembled in the USA
~
123456 78
www.biamp.com
logic inputs
primary
CobraNet® connections only
in use / conductor
link / activity
LEDs
U.S. pat. no. 4,922,536
-D
word clock out
AudiaEXPO-D BLOCK DIAGRAM
Cobranet In
XLR
RCA
Optical
BNC
Power Consumption(115/230VAC 50/60Hz
Dimension
height
width
depth
Weight:
Compliance:
AES48-2005 Grounding & EMC practice
EU Directive 2002/95/EC, RoHS directiv
TOSLINK AES3
outputs
7-8
Logic In
outputs
5-6
Rotary
Encoder
Barrier Strip
< 12 watt
1.75 inches (44.5mm
19 inches (483mm
5.75 inches (146mm
4.3 lbs. (2k
E marke
UL listed power sourc
outputs
3-4
SPDIF AES3SPDIF AES3TOSLINK AES3
LCD
outputs
1-2
Cobranet
Module
Cobranet clock
(48 / 96 kHz)
word clk out
audio
AES3
Encoder
Driver
Driver
match
circuit
BNC TOSLINKXLR
uP
control
AES3
Encoder
Driver
Z
Z
match
circuit
TOSLINKXLR
AES3 digital audio out
AES3
Encoder
Driver
Z
match
circuit
XLR RCA
Z
match
circuit
AES3
Encoder
Driver
Z
match
circuit
XLR RCA
Z
match
circuit
Biamp Systems, 10074 S.W. Arctic Drive, Beaverton, Oregon 97005 U.S.A. (503) 641-7287 www.biamp.com
13Mar07
