INSTRUCTIONS MANUAL
WP08/10/12/15/215
2 Way Professional Passive Speaker Cabinet
WP10
WP08
WP215
WP15
WP12
2
En
g
lish
Explanation of Graphical Symbols
The lightning flash with arrowhead symbol within an equilateral
triangle is intended to alert the user to the presence of
uninsulated ‘dangerous voltage’ within the product’s enclosure
that may be of sufficient magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature
accompanying the product.
IMPORTANT SAFETY INSTRUCTIONS
1
2
3
4
5
6
7
8
9
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.
Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that
produce heat.
Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades with one
wider than the other. A grounding type plug has two blades
and a third grounding prong. The wide blade or the third prong
are provided for safety. If the provided plug does not fit into
your outlet, consult an electrician for replacement of the
obsolete outlet.
10
11
12
13
14
Protect the power cord from being walked on or pinched particularly
at plugs, convenience receptacles, and the point where they exit
from the apparatus.
Only use attachments/accessories specified by
the manufacturer.
Use only with the cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold with
the apparatus. When a cart is used, use
caution when moving the cart/apparatus
combination to avoid injury from tip-over.
Unplug this apparatus during lightning storms or when unused for
long periods of time.
Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way, such
as power-supply cord or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been
dropped.
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.
PLEASE READ CAREFULLY BEFORE PROCEEDING
Please keep this manual in a safe place for future reference.
WARNING
Always follow the basic precautions listed below to avoid the possibility of serious injury or even death from electrical shock, short-circuiting, damages,
fire or other hazards. These precautions include, but are not limited to, the following:
Power supply/Power cord
Water warning
•Only use the voltage specified as correct for the device. The
required voltage is printed on the name plate of the device.
•Do not expose the device to rain, use it near water or in damp
or wet conditions, or place containers on it containing liquids
which might spill into any openings.
•Use only the included power cord.
•Never insert or remove an electric plug with wet hands.
If you notice any abnormality
•Do not place the power cord near heat sources such as heaters or
radiators, do not excessively bend or otherwise damage the cord,
place heavy objects on it, or place it in a position where anyone
could walk on, trip over, or rollanything over it.
Do not open
•If the power cord or plug becomes frayed or damaged, there is
a sudden loss of sound during use of the device, or any
unusual smells or smoke should appear, turn off the power
switch, disconnect the electric plug from the outlet immediately ,
and have the device inspected by qualified service personnel.
•Do not open the device or attempt to disassemble the internal parts
or modify them in any way. The device contains no user-serviceable
parts. If it should appear to be malfunctioning, discontinue use
immediately and have it inspected by qualified service personnel.
•If this device is dropped or damaged, immediately turn off the
power switch, disconnect the electric plug from the outlet, and
have the device inspected by qualified service personnel.
•Do not open the device or attempt to disassemble the internal parts
or modify them in any way. The device contains no user-serviceable
parts. If it should appear to be malfunctioning, discontinue use
immediately and have it inspected by qualified service personnel.
PRECAUTIONS
BEFORE OPENING
PULL MAIN PLUG
CAUTION VORSICHT
V
OR DEM OFFNEN
NETZSTECKER ZIEHEN
CAUTION: TO REDUCE THE RISK OF FIRE REP LACE WITH ONLY SAME
TYPE AND RATING OF FUSE
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRICS DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
3
English
WARNING
Always follow the basic precautions listed below to avoid the possibility of physical injury to you or others, or damage to the device or other property.
These precautions include, but are not limited to, the following:
Power supply/Power cord Connections
•Remove the electric plug from the outlet when the devices is not to
be used for extend periods of time, or during electrical storms.
•Before connecting the device to other devices, turn off the
power for all devices. Before turning the power on or off for all
devices, set all volume levels to minimum.
When removing the electric plug from the device or an outlet, always
hold the plug itself and not the cord. Pulling by the cord can damage
it.
For the SPEAKERS jacks, Use only the included speakers and
speakers cables. Use of other types of speakers and cables
may result in damage to the device(s), or even fire.
Location Handling Precautions
When transporting or moving the device, always use two or more
people. Attempting to lift the device by yourself may damage your
back, result in other injury, or cause damage to the device itself.
Before moving the device, remove all connected cables.
When setting up the device, make sure that the AC outlet you are
using is easily accessible. If some trouble or malfunction occurs,
immediately turn off the power switch and disconnect the plug from
the outlet.
Do not use the device in a confined, poorly ventilated location. Make
sure that there is adequate space between the mixer and
surrounding walls or other devices: at least 1’ ft. at the side, 1’ ft.
behind and 1’ ft. above. If the mixer is to be used installed into the
speaker cabinet, make sure to allow adequate space between the
speaker and the surrounding walls or other devices: at least 1’ ft.
at the sides, 1’ ft. behind and 1’ ft. above. Inadequate ventilation
can result in overheating, possibly causing damage to the device(s),
or even fire.
Do not use the speaker’s handles for suspended installation. Doing
so could result in damage or personal injury.
Avoid setting all equalizer controls and faders to their maximum.
Depending on the condition of the connected devices, doing so may
cause feedback and may damage the speakers.
Do not expose the device to excessive dust or vibrations, or extreme
cold or heat (such as in direct sunlight, near a heater, or in a car
during the day) to prevent the possibility of panel disfiguration or
damage to the internal components.
Do not place the device in an unstable position where it might
accidentally fall over.
Do not block the vents. This mixer has ventilation holes at the top to
prevent the internal temperature from becoming too high. In
particular, do not place the device on its side or upside down.
Inadequate ventilation can result in overheating, possibly causing
damage to the device(s), or even fire.
Do not use the device in the vicinity of a TV, radio, stereo equipment,
mobile phone, or other electric devices. Doing so may result in
noise, both in the device itself and in the TV or radio next to it.
When turning on the AC power in your audio system, always
turn on the device LAST, to avoid speaker damage. When
turning the power off, the device should be turned off FIRST for
the same reason.
Do not insert your fingers or hands in any gaps or openings on
the device (vents, ports, etc.).
Avoid inserting or dropping foreign objects (paper, plastic, metal,
etc.) into any gaps or openings on the device (vents, ports, etc.).
If this happens, turn off the power immediately and unplug the
power cord from the AC outlet. Then have the device inspected
by qualified service personnel.
Do not use the device for a long period of time at a high or
uncomfortable volume level, since this can cause permanent
hearing loss. If you experience any hearing loss or ringing in the
ears, consult a physician immediately.
Do not operate the device if the sound is distorting. Prolonged
use in this condition could cause overheating and result in fire.
Do not rest your weight on the device or place heavy objects on
it, and avoid use excessive force on the buttons, switches or
connectors.
Protective Circuit (poly switch)
All full-range loudspeakers are fitted with a self-resetting poly
switch that protects the high-frequency driver from damage
caused by excessive power. If a loudspeaker cabinet loses
high-frequency output, immediately remove power from the unit
and wait for two to three minutes. This should be long enough to
allow the poly switch to reset. Reapply power and check the
performance of the high frequency driver before continuing, with
the power reduced to a level that does not cause the poly switch
to interrupt the signal.
Interference From Cell Phone
Using a cell phone near the speaker system can induce noise. If
this occurs, move the cell phone further away from the speaker
system. Air blowing out of the bass reflex ports is normal, and
often occurs when the speaker is handing program material with
heavy bass content.
Always turn the power off when the device is not in use. The
performance of components with moving contacts, such as
switches, volume controls, and connectors, deteriorates over
time. Consult qualified service personnel about replacing
defective parts.
The manufacturer will not be responsible for damage
caused by improper use or modification to the device.
IMPORTANT
Please record the serial number of this unit in the space below.
Model:Serial
No.:
The serial number is located on the bottom or rear of the unit.
Retain this Owner’s Manual in a safe place for future
reference.
4
En
g
lish

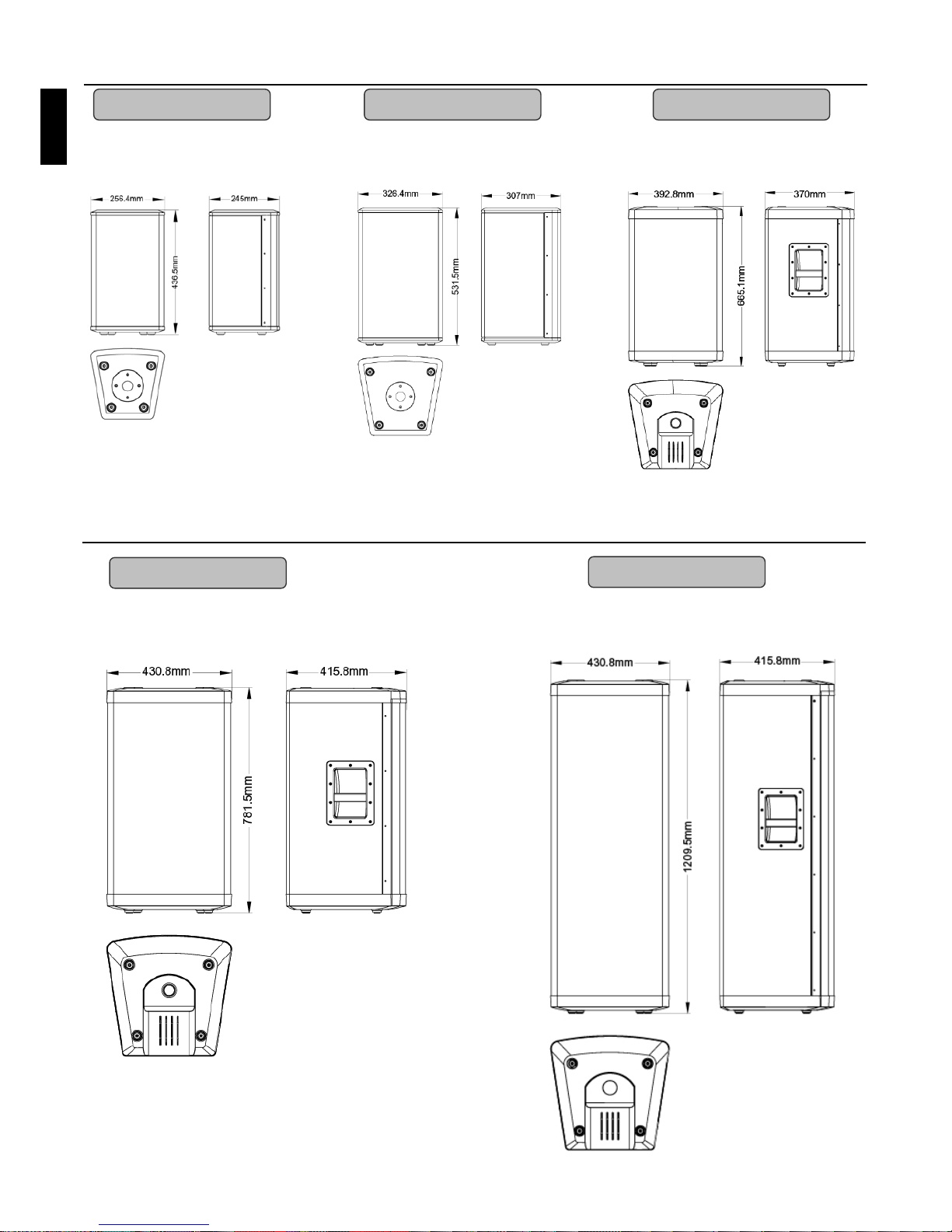

Dimensions
WP215
Dimensions: 430.8*415.8*1209.5mm
Net Weight: 40KG
WP15
Dimensions: 430.8*415.8*779.50mm
Net Weight: 24.5KG
WP12
Dimensions: 392.8*370*665.1mm
Net Weight: 20.5KG
WP10WP08
Dimensions: 256.4*245*436.5mm
Net Weight: 9.1KG
Dimensions: 326.4*307*531.5mm
Net Weight: 12.5KG
5
English
Specifications
WP08 WP10 WP12 WP15 WP215
Type 8 inch passive 10 inch passive 12 inch passive 15 inch passive Dual15 inch passive
Frequency
response
80-20K Hz 70-20K Hz 50-20K Hz 45-20K Hz 40-20K Hz
Impedance 8 ohm 8 ohm 8 ohm 8 ohm 4 ohm
Sensitivity 93 dB 94 dB 95 dB 96 dB 98 dB
Power handing 150W 150W 250W 250W 350W
Max output SPL 116 dB 116 dB 119 dB 120 dB 123 dB
Driver 1 inch 1 inch 1.35 inch 1.35 inch 1.75 inch
Woofer 8 inch woofer 2”VC 10 inch woofer 2”VC 12 inch woofer 2.5”VC 15inch woofer 2.5”VC
Dual15 inch woofer
2.5”VC
Cabinet MDF painted cabinet MDF painted cabinet MDF painted cabinet MDF painted cabinet MDF painted cabinet
Grill 1.2mm steel 1.2mm steel 1.2mm steel 1.2mm steel 1.2mm steel
Connector Speakon Speakon Speakon Speakon Speakon
35mm stand pole 35mm stand pole 35mm stand pole 35mm stand pole 35mm stand pole
Features
1 rear handle 1 rear handle 2 side handle 2 side handle 2 side handle
Loading...
