Bg radia Z-62, Z-92 Specification Sheet

High-Performance Loudspeakers

Z-62

planar technology

Z-92 and Z-62 High Performance Loudspeakers BG, the world leader in planar ribbon loudspeaker technology, announces

two exciting new models from its critically-acclaimed Z-Series. The three-way oorstanding Z-92 ($1249.50 ea. MSRP) and

the versatile LCR Z-62 ($999 ea. MSRP) form the heart of an aordable audiophile system that combines stunning looks and

craftsmanship with lifelike clarity and detail.

Reecting BG’s latest design technology, both models utilize an advanced three-way

design with unique, coaxially-mounted mid and high frequency planar ribbon drivers.

This unique approach delivers an ideal solution for accurate sound reproduction with

exibility in placement. The driver’s wide yet controlled dispersion is especially critical

for center channel applications to ensure smooth, even coverage for all listeners.

Complementing the three-way design are twin 6.5” black aluminum cone woofers

featuring double-gap motors and neodymium magnets. This high performance design

delivers high power handling, excellent dynamics and tight, clean bass to rival the

Z-92

Z SERIES

amazing clarity of BG’s innovative planar ribbon driver.

The Z-92 and Z-62 are available in choice of two real wood nishes — Black Ash and

Light Maple — both designed to beautifully complement a broad range of interiors

and Home Theater furnishings. Backing up the speaker’s promise of performance and

quality is BG’s lifetime warranty which covers parts and labor.

Patented planar-ribbon drivers provide amazing detail and lifelike clarity

>

Aluminum woofer cones provide quick response and compatible resolution

>

Patented double-gap motor technology provides much lower distortion

>

Available in choice of two real wood nishes: Light Maple and Black Ash

>

Lifetime parts and labor warranty

>

The Power of Clarity

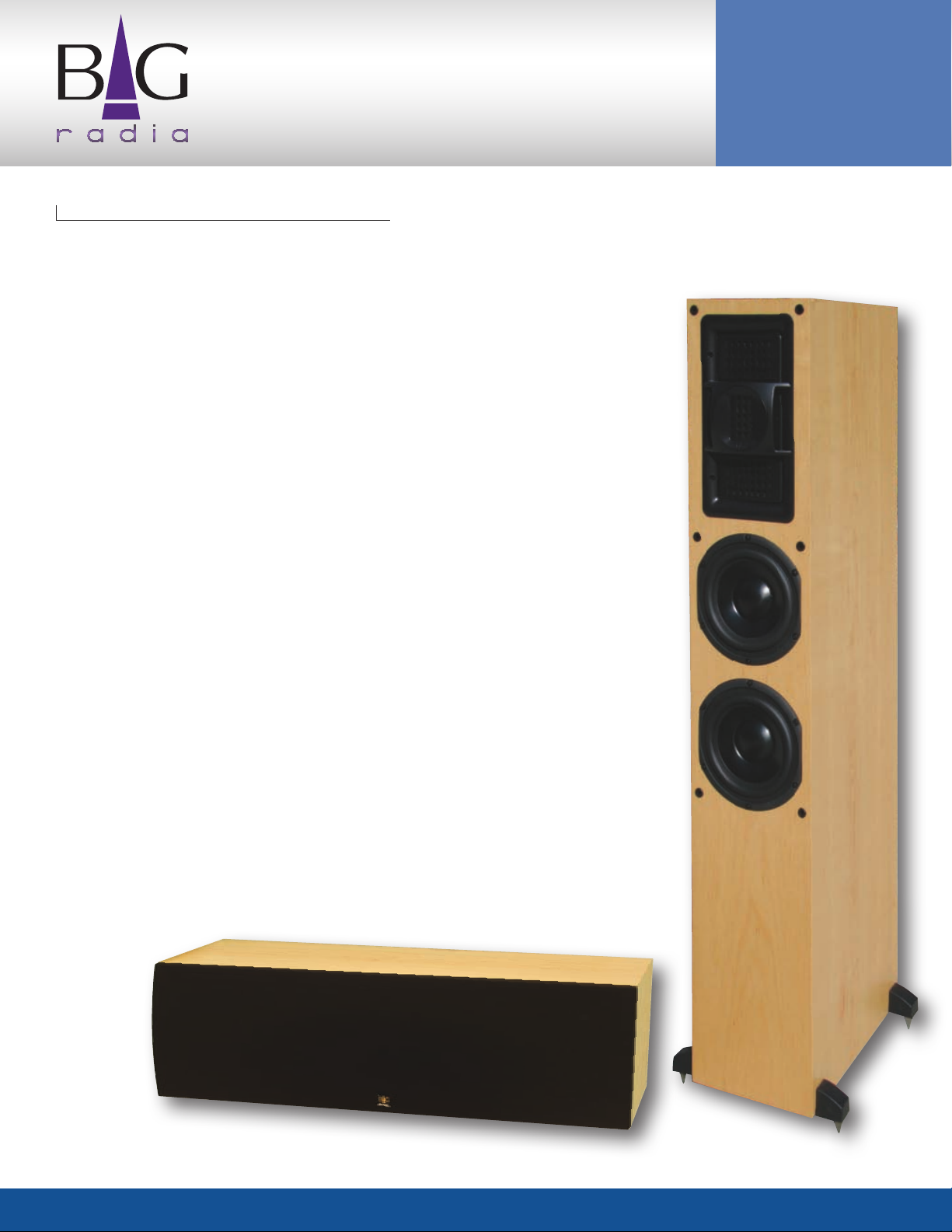

Z-92 Shown without grille
in Light Maple.

High-Performance Loudspeakers

Z-62

planar technology

Z-92

Z SERIES

General SpecificationS

>

Design Three-way, vented enclosure

Woofer Two 6.5”, black anodized aluminum cones

Neo motor with double-gap geometry

Midrange 10” x 5” Neo10 planar panel

Tweeter 2.5” x 3.5” Neo3PDR planar ribbon coaxially mounted

in front of Neo10

Crossover frequencies

Sensitivity, 2.83V, 1m 91 dB

Nominal impedance 4 ohm

Power handling 200W, RMS

Cabinet finish,
real wood veneer

500 Hz, 2.3 kHz

Light Maple or Black Ash

SpecificationS z-92 z-62

>

Application Floorstanding loudspeaker LCR (left-center-right)

Frequency response* 32 Hz - 25 kHz 50 Hz - 25 kHz

Weight 70 lbs. (32 kg) 40 lbs. (32 kg)

Dimensions
HxWxD inch (mm)

*Measured @-6dB from SPL averaged in 100Hz-8kHz range

44.25 x 7.7 x 14
(1016 x 173 x 355)
without detachable feet

7.7 x 26.8 x 11.5
(173 x 680 x 292)

Z-92 Shown without grille
in real Black Ash.
