Nexus Grid
Nexus Grid

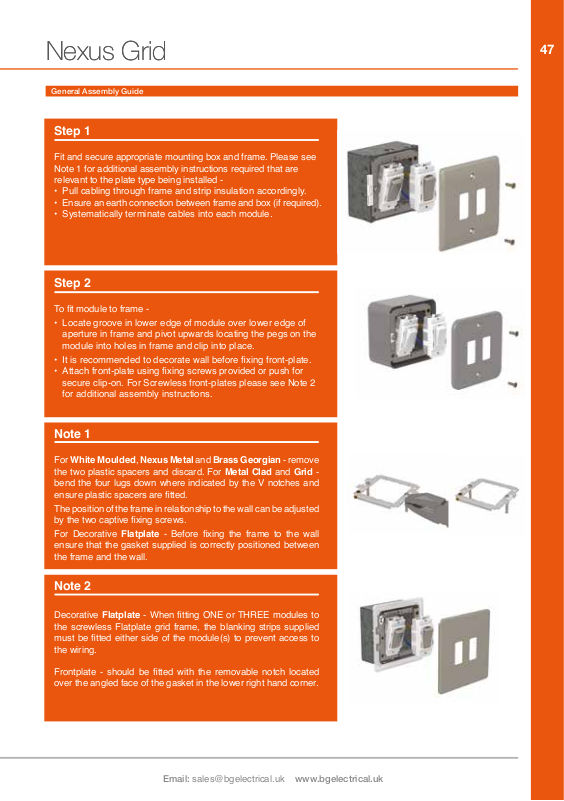

General Assembly Guide
Step 1
Fit and secure appropriate mounting box and frame. Please see Note 1 for additional assembly instructions required that are relevant to the plate type being installed -
• Pull cabling through frame and strip insulation accordingly.
• Systematically terminate cables into each module.
Step 2
To t module to frame -
• Locate groove in lower edge of module over lower edge of aperture in frame and pivot upwards locating the pegs on the module into holes in frame and clip into place.
It is recommended to decorate wall before xing front-plate.
Attach front-plate using xing screws provided or push for secure clip-on. For Screwless front-plates please see Note 2 for additional assembly instructions.
Note 1
47
For White Moulded, Nexus Metal and Brass Georgian - remove the two plastic spacers and discard. For Metal Clad and Grid ­bend the four lugs down where indicated by the V notches and
ensure plastic spacers are tted.
The position of the frame in relationship to the wall can be adjusted
by the two captive xing screws.
For Decorative Flatplate - Before xing the frame to the wall ensure that the gasket supplied is correctly positioned between the frame and the wall.
Note 2
Decorative Flatplate - When tting ONE or THREE modules to the screwless Flatplate grid frame, the blanking strips supplied
must be tted either side of the module(s) to prevent access to
the wiring.
Frontplate - should be tted with the removable notch located
over the angled face of the gasket in the lower right hand corner.
