BEZZERA Mitica
cod. 9942050.02 rev.00
POS CODE DESCRIPTION
TABLE 1 Mod. S - TOP
1 5074469SG GROUP FRONTAL
2 7816002 SCREW TCEI M4X12
3 7474217 ADHESIVE FEET
4 5074616LW CUPS-HEATER GRID
5 5961602.01 ASSEMBLY CUPS-HEATER
6 5344025.01 BODY STAINLESS STEEL POLISHED
7 7809804 PLAIN WASHER D4
8 7474218 FOOT
9 5340003.05LL CHASSIS BLACK (tank version)
9 5340011LL CHASSIS BLACK (TOP version)
10 5074617LW DRIP TRAY GRID STAINLESS STEEL POLISHED
11 5340503DL DRIP TRAY STAINLESS STEEL POLISHED
Page 3
Dal 1901
3
BEZZERAMitica
cod. 9942050.02 rev.00
TABLE 1
Mod. S - TOP
5
32
4
3
1
10
11
8 9
7
2 6
Page 4
Dal 1901
4
BEZZERA Mitica
cod. 9942050.02 rev.00
POS CODE DESCRIPTION
TABLE 1A Mod. R
1 5074470SG GROUP FRONTAL
2 7819901 SCREW TTEI M4X12
3 5056330LW CUPS-HEATER
4 5074620LW CUPS-HEATER GRID
5 7819911 SCREW TTEI M4X25
6 5344025.01 BODY STAINLESS STEEL POLISHED
7 7809804 PLAIN WASHER D4
8 7816002 SCREW TCEI M4X12
9 7474218 FOOT
10 5340003.05LL CHASSIS BLACK
11 5074617LW DRIP TRAY GRID STAINLESS STEEL POLISHED
12 5340503LL DRIP TRAY STAINLESS STEEL POLISHED
13 7611502 CLAMP D14
14 7303502 HOSE D14 L=1.5M PLASTIC
15 5224403 RUBBER-HOLDER D11 OT
16 5492022 GASKET D25 X 17 X 2
17 5225230 FITTING 3/8”G
Page 5
Dal 1901
5
BEZZERAMitica
cod. 9942050.02 rev.00
TABLE 1A
Mod. R
54
3 2
1
2
8
6
9
7
8
10
11
12
14
13
15
16
17
Page 6
Dal 1901
6
BEZZERA Mitica
cod. 9942050.02 rev.00
POS CODE DESCRIPTION
TABLE 2 Mod. S
1 5374505 TANK
2 7496073 OR GASKET 115 EP856
3 5471509 BALL 7/32” AISI 304
4 5302065 REDUCTION GEAR 1/4”G X M10
5 7374002 FILTER 1/4”G H43,5 PLASTIC
6 5471521.01 COUPLING SPRING
7 7812601 NUT M4 STAINLESS STEEL
8 7374004 WASHER D4 NYLON
9 7819908 SCREW TTEI M4X8
10 5224617 GASKET-HOLDER D14.5
11 7496076 OR GASKET 112 EPDM
12 5224414 RUBBER-HOLDER
13 5194540 HOSE 8X5 L=300 SILICONE
14 5221830 NUT M20 H5 OT
15 5225228 FITTING M20X1,25
16 7826206 SCREW TCI M3X30 OT
17 5225246 FITTING 1/8”G CONIC
18 5471535 TANK SPRING
19 7400902 PUMP PRESSURE GAUGE CAPILLARY
20 7432523 PRESSURE GAUGE D40 16BAR
21 5162237.01LL BOILER LOAD HOSE
22 5194590 HOSE
23 5301504TR UNION ELBOW 1/8”G X M12
24 7701111 SOLENOID VALVE 2 WAY 115V PARKER
24 7702310 SOLENOID VALVE 2 WAY 230V PARKER
24 7702409 SOLENOID VALVE 2 WAY 240V PARKER
25 7630327 SOLENOID VALVE COIL 110V PARKER
25 7630328 SOLENOID VALVE COIL 220/230V PARKER
25 7630329 SOLENOID VALVE COIL 240V PARKER
26 5221844 NUT 1/8”G H3
27 7304001TR UNION 1/8”G
28 7303034TR UNION ELBOW 1/8”G
29 7303036TR STRAIGHT FITTING 1/8”G OT
30 7731011 VIBRATION PUMP EX5 120V
30 7731009 VIBRATION PUMP EX5 230V
30 7731014 VIBRATION PUMP EX5 240V
31 7470602 VIBRATION-DAMPING
32 7303006 RUBBER-HOLDER FITTING
33 5194592 DRAIN HOSE SURPRESSION VALVE
34 5162236.01LL SURPRESSION VALVE - HEAT EXCHANGER HOSE
35 7611512 CLAMP
36 5194529 CRISTAL HOSE D6 X 9 L=150MM
37 7809806 SCREW TC M 3,5X8 PLASTITE
38 5963009.03 TANK SUPPORT
39 7805009 PLAIN WASHER D5 X 11 X 1
40 7816004 SCREW TCEI M4 X 16
Page 7
Dal 1901
7
BEZZERAMitica
cod. 9942050.02 rev.00
TABLE 2
Mod. S
5
4
3
2
1
38
18
17
41
36
35
42
32
31
30
34
33
29
20
19
27 28 26
25
24 22 21
23
16
40
39
15
18
37
14
11
10
9
8
7
6
12
13
TAV. 3
43
44
Page 8
Dal 1901
8
BEZZERA Mitica
cod. 9942050.02 rev.00
POS CODE DESCRIPTION
TABLE 2 Mod. S
41 7816009 SCREW TCEI M4X10
42 7634816 THERMIC SAFETY DEVICE 100°C AUTOMATIC
43 5963070.01 ASSEMBLY TANK WITH FILTER
44 5963071.01 ASSEMBLY TANK WITH RUBBER-HOLDER
Page 9
Dal 1901
9
BEZZERAMitica
cod. 9942050.02 rev.00
TABLE 2
Mod. S
5
4
3
2
1
38
18
17
41
36
35
42
32
31
30
34
33
29
20
19
27 28 26
25
24 22 21
23
16
40
39
15
18
37
14
11
10
9
8
7
6
12
13
TAV. 3
43
44
Page 10
Dal 1901
10
BEZZERA Mitica
cod. 9942050.02 rev.00
POS CODE DESCRIPTION

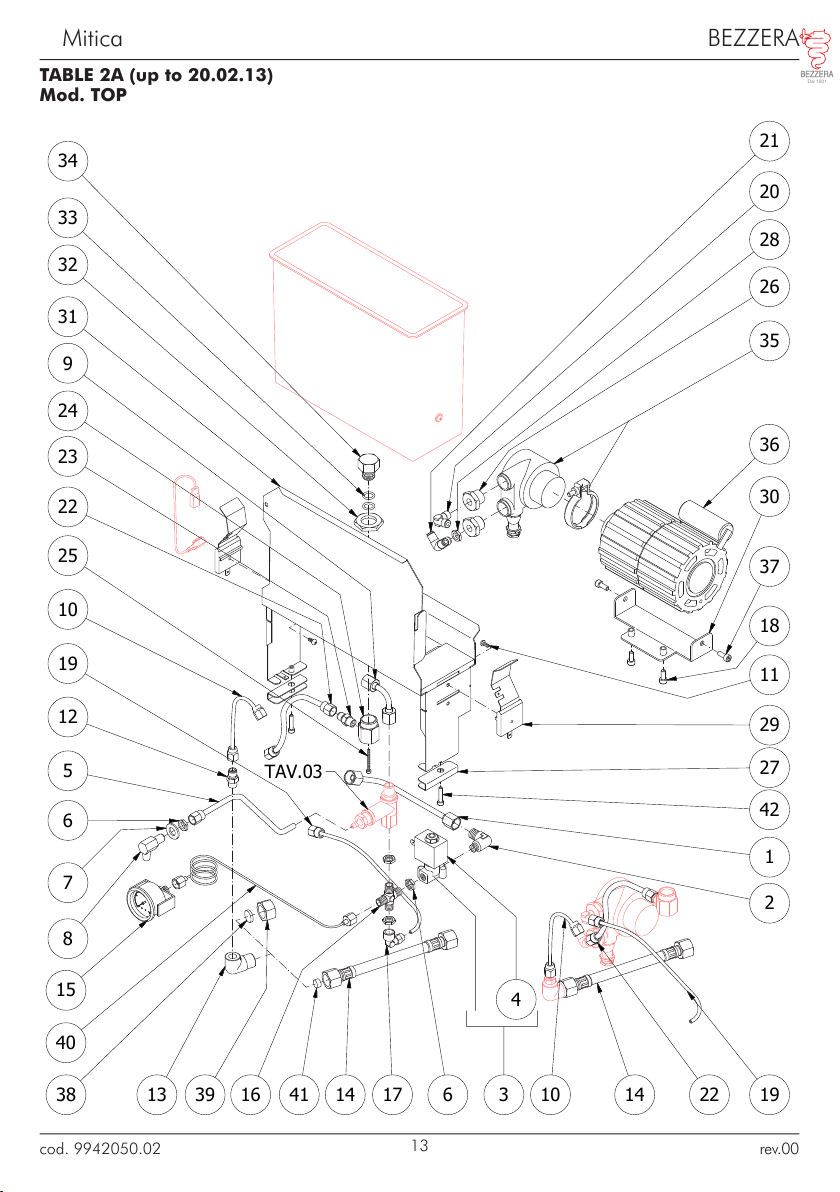

TABLE 2A (up to 20.02.13) Mod. TOP
1 5162237.01LL BOILER LOAD HOSE
2 5301504TR UNION ELBOW 1/8”G X M12
3 7701111 SOLENOID VALVE 2 WAY 115V PARKER
3 7702310 SOLENOID VALVE 2 WAY 230V PARKER
3 7702409 SOLENOID VALVE 2 WAY 240V PARKER
4 7630327 SOLENOID VALVE COIL 110V PARKER
4 7630328 SOLENOID VALVE COIL 220/230V PARKER
4 7630329 SOLENOID VALVE COIL 240V PARKER
5 5194508.01LL DRAIN HOSE
6 5221844 NUT 1/8”G H3
7 7815001 WASHER D10 UNI 6592 A2
8 5283018CM DRAIN FITTING FOR SURPRESSION VALVE 1/8”G CHROMED
9 5162236.01LL SURPRESSION VALVE - HEAT EXCHANGER HOSE
10 5194597LL PUMP LOAD HOSE
11 7809806 SCREW TC M 3,5X8 PLASTITE
12 7304502TR STRAIGHT FITTING 1/8”G OT
13 5301519 UNION ELBOW 3/8”G
14 7200512 FLEXIBLE HOSE
15 7432523 PRESSURE GAUGE D40 16BAR
16 7304001TR UNION 1/8”G
17 7303034TR UNION ELBOW 1/8”G
18 7816001 SCREW TCEI M5X12
19 5194601LL HOSE
20 7303001TR UNION ELBOW 1/8”G
21 7304505 FITTING 3 WAY 1/8”
22 5194602.01LL HOSE
23 7304502TR STRAIGHT FITTING 1/8”G OT
24 5225228 FITTING M20X1,25
25 7826206 SCREW TCI M3X30 OT
26 5302057 FITTING 1/8” X 3/8”G OT
27 5057859LW TANK SQUARE
28 5221844 NUT 1/8”G H3
29 5471535 TANK SPRING
30 5037837LL PUMP SQUARE
31 5963009.03 TANK SUPPORT
32 5221830 NUT M20 H5 OT
33 7496076 OR GASKET 112 EPDM
34 5226416 PLUG
35 7730509 PUMP 50-70L/H+CLAMP+JOINT
36 7741005 ELECTRIC MOTOR 110V
36 7742404 ELECTRIC MOTOR 220/240V 50/60HZ
37 7816027 SCREW TCEI M5X8
38 5492011 GASKET D15X3
39 5221819 CAP NUT 3/8”G
40 7400902 PUMP PRESSURE GAUGE CAPILLARY
41 5471032 FILTER
Page 11
Dal 1901
11
BEZZERAMitica
cod. 9942050.02 rev.00
TABLE 2A (up to 20.02.13)
Mod. TOP
34
33
32
31
9
24
23
22
10
12
5
6
8
15
19
41 14
391338
17
6
4
3 10
14
22 19
25
2
1
42
27
29
16
11
18
37
30
36
35
26
28
20
21
7
40
TAV.03
Page 12
Dal 1901
12
BEZZERA Mitica
cod. 9942050.02 rev.00
POS CODE DESCRIPTION
TABLE 2A (up to 20.02.13) Mod. TOP
42 7816005 SCREW TCEI M4X20
Page 13
Dal 1901
13
BEZZERAMitica
cod. 9942050.02 rev.00
TABLE 2A (up to 20.02.13)
Mod. TOP
34
33
32
31
9
24
23
22
10
12
5
6
8
15
19
41 14
391338
17
6
4
3 10
14
22 19
25
2
1
42
27
29
16
11
18
37
30
36
35
26
28
20
21
7
40
TAV.03
Page 14
Dal 1901
14
BEZZERA Mitica
cod. 9942050.02 rev.00

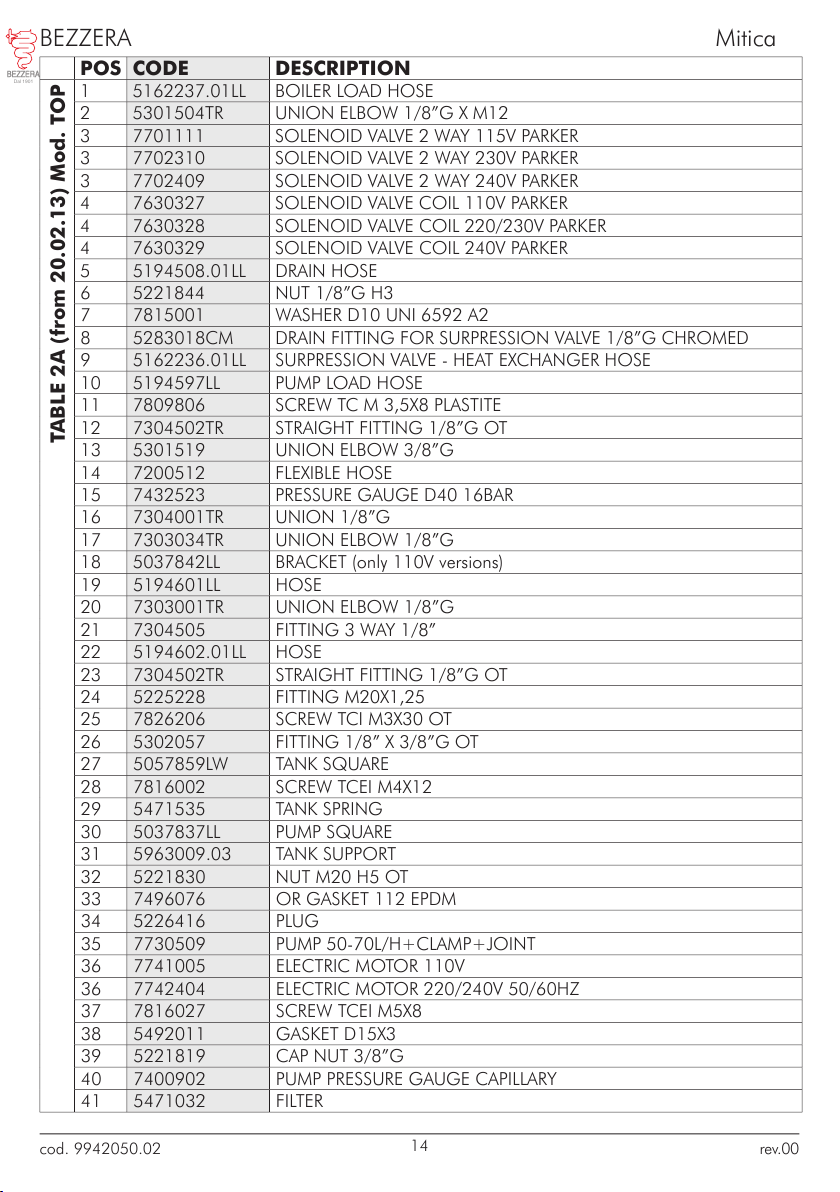

POS CODE DESCRIPTION

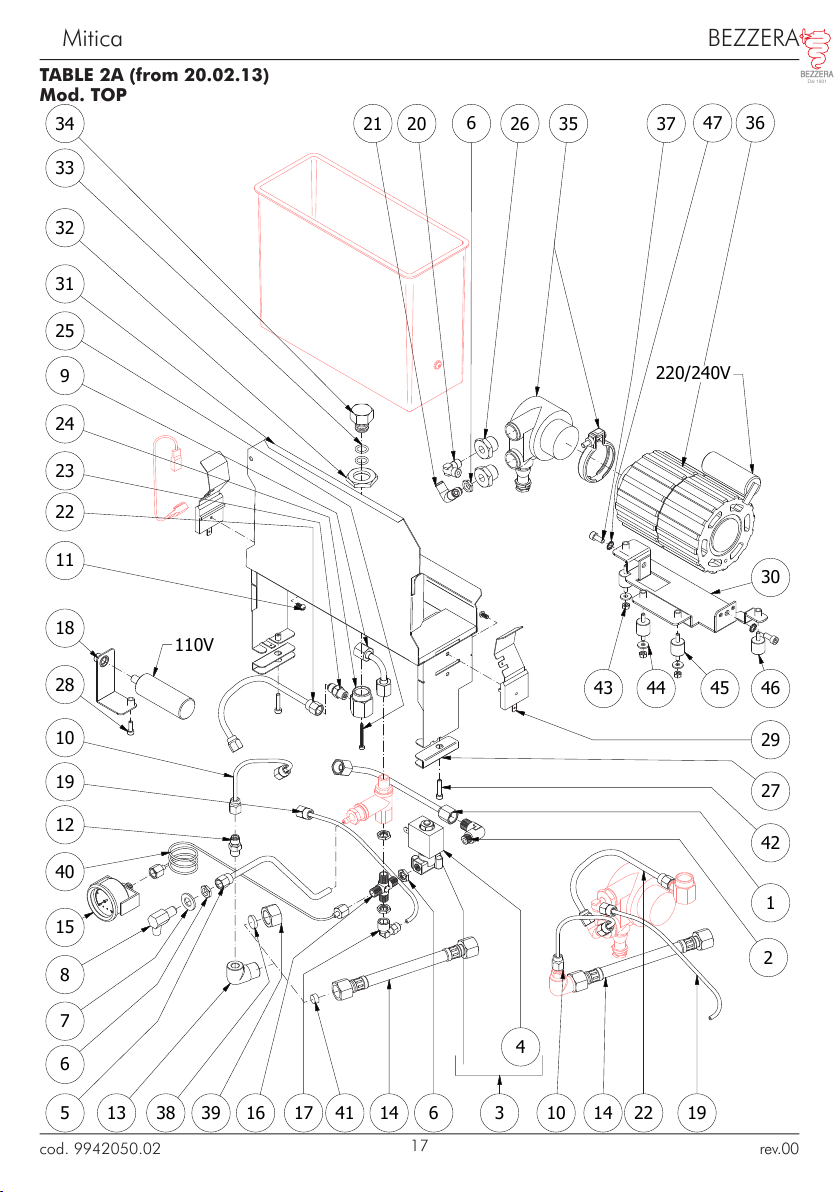

TABLE 2A (from 20.02.13) Mod. TOP
1 5162237.01LL BOILER LOAD HOSE
2 5301504TR UNION ELBOW 1/8”G X M12
3 7701111 SOLENOID VALVE 2 WAY 115V PARKER
3 7702310 SOLENOID VALVE 2 WAY 230V PARKER
3 7702409 SOLENOID VALVE 2 WAY 240V PARKER
4 7630327 SOLENOID VALVE COIL 110V PARKER
4 7630328 SOLENOID VALVE COIL 220/230V PARKER
4 7630329 SOLENOID VALVE COIL 240V PARKER
5 5194508.01LL DRAIN HOSE
6 5221844 NUT 1/8”G H3
7 7815001 WASHER D10 UNI 6592 A2
8 5283018CM DRAIN FITTING FOR SURPRESSION VALVE 1/8”G CHROMED
9 5162236.01LL SURPRESSION VALVE - HEAT EXCHANGER HOSE
10 5194597LL PUMP LOAD HOSE
11 7809806 SCREW TC M 3,5X8 PLASTITE
12 7304502TR STRAIGHT FITTING 1/8”G OT
13 5301519 UNION ELBOW 3/8”G
14 7200512 FLEXIBLE HOSE
15 7432523 PRESSURE GAUGE D40 16BAR
16 7304001TR UNION 1/8”G
17 7303034TR UNION ELBOW 1/8”G
18 5037842LL BRACKET (only 110V versions)
19 5194601LL HOSE
20 7303001TR UNION ELBOW 1/8”G
21 7304505 FITTING 3 WAY 1/8”
22 5194602.01LL HOSE
23 7304502TR STRAIGHT FITTING 1/8”G OT
24 5225228 FITTING M20X1,25
25 7826206 SCREW TCI M3X30 OT
26 5302057 FITTING 1/8” X 3/8”G OT
27 5057859LW TANK SQUARE
28 7816002 SCREW TCEI M4X12
29 5471535 TANK SPRING
30 5037837LL PUMP SQUARE
31 5963009.03 TANK SUPPORT
32 5221830 NUT M20 H5 OT
33 7496076 OR GASKET 112 EPDM
34 5226416 PLUG
35 7730509 PUMP 50-70L/H+CLAMP+JOINT
36 7741005 ELECTRIC MOTOR 110V
36 7742404 ELECTRIC MOTOR 220/240V 50/60HZ
37 7816027 SCREW TCEI M5X8
38 5492011 GASKET D15X3
39 5221819 CAP NUT 3/8”G
40 7400902 PUMP PRESSURE GAUGE CAPILLARY
41 5471032 FILTER
Page 15
Dal 1901
15
BEZZERAMitica
cod. 9942050.02 rev.00
TABLE 2A (from 20.02.13)
Mod. TOP
34
33
32
31
9
24
23
22
25
10
19
12
28
18
40
15
8
7
6
5
13 38 39 16
17 41 14
6
4
3 10
14
22 19
2
1
42
27
29
21 20
6
26 35
47
37
36
46
30
4544
43
11
110V
220/240V
Page 16
Dal 1901
16
BEZZERA Mitica
cod. 9942050.02 rev.00
POS CODE DESCRIPTION

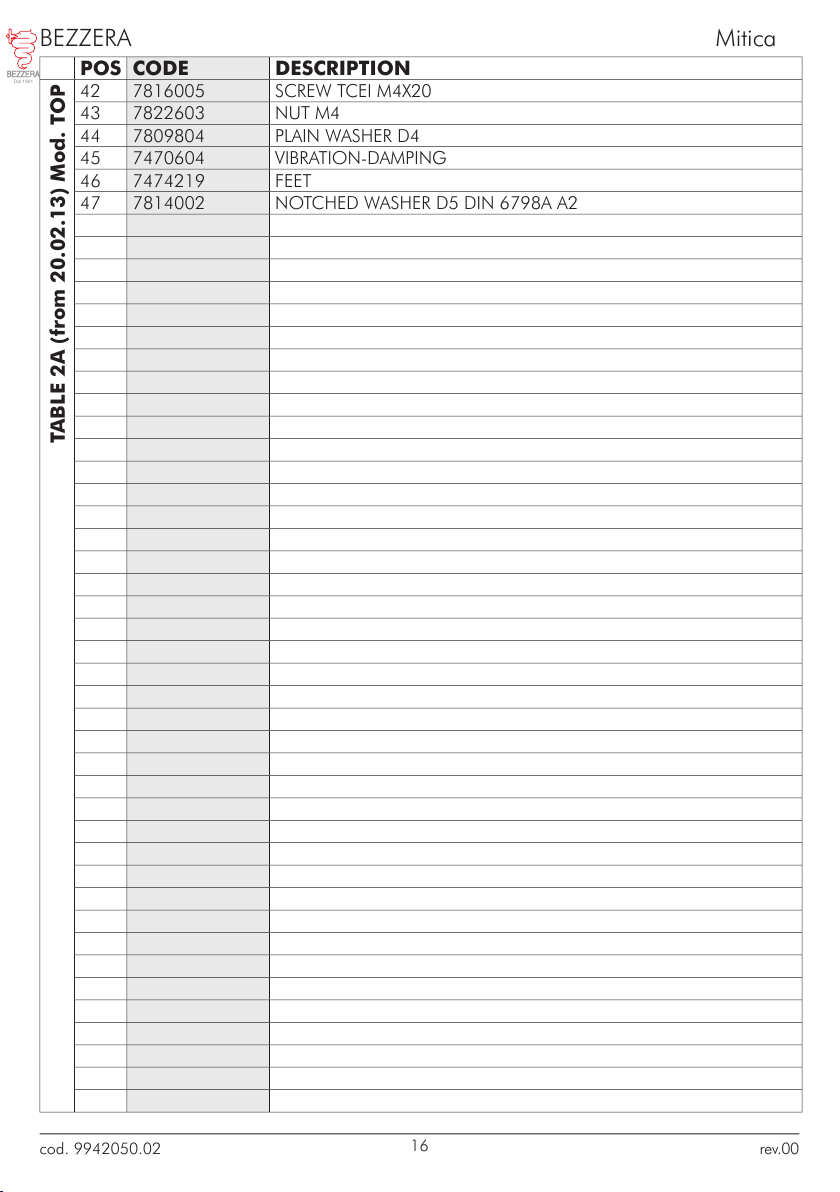

TABLE 2A (from 20.02.13) Mod. TOP
42 7816005 SCREW TCEI M4X20
43 7822603 NUT M4
44 7809804 PLAIN WASHER D4
45 7470604 VIBRATION-DAMPING
46 7474219 FEET
47 7814002 NOTCHED WASHER D5 DIN 6798A A2
Page 17
Dal 1901
17
BEZZERAMitica
cod. 9942050.02 rev.00
TABLE 2A (from 20.02.13)
Mod. TOP
34
33
32
31
9
24
23
22
25
10
19
12
28
18
40
15
8
7
6
5
13 38 39 16
17 41 14
6
4
3 10
14
22 19
2
1
42
27
29
21 20
6
26 35
47
37
36
46
30
4544
43
11
110V
220/240V
Page 18
Dal 1901
18
BEZZERA Mitica
cod. 9942050.02 rev.00

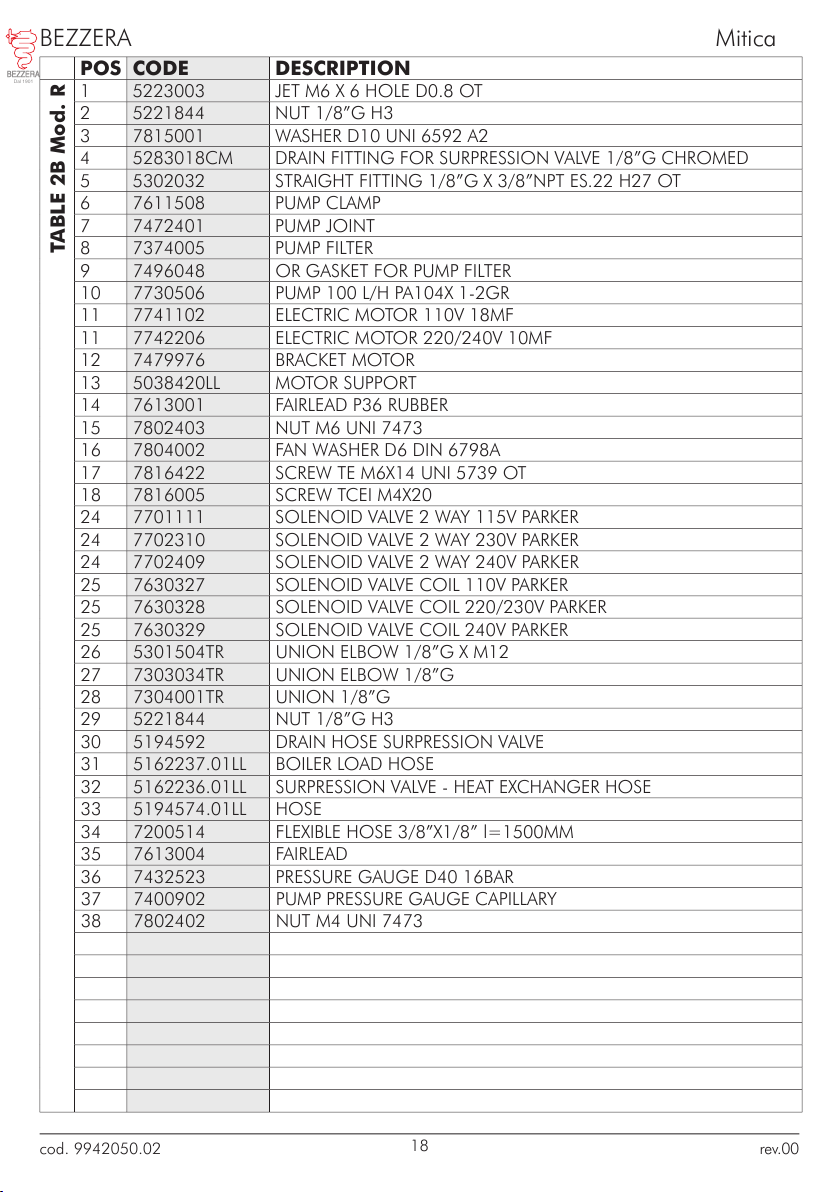

POS CODE DESCRIPTION

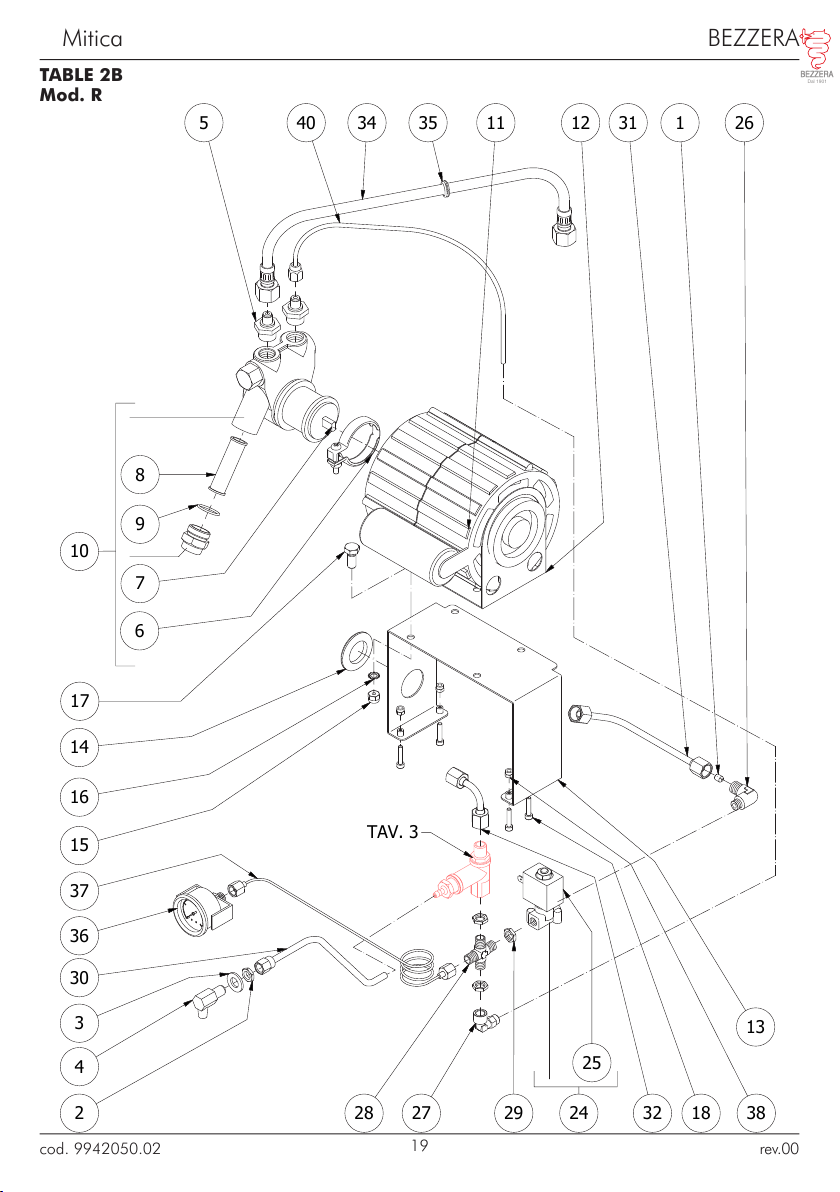

TABLE 2B Mod. R
1 5223003 JET M6 X 6 HOLE D0.8 OT
2 5221844 NUT 1/8”G H3
3 7815001 WASHER D10 UNI 6592 A2
4 5283018CM DRAIN FITTING FOR SURPRESSION VALVE 1/8”G CHROMED
5 5302032 STRAIGHT FITTING 1/8”G X 3/8”NPT ES.22 H27 OT
6 7611508 PUMP CLAMP
7 7472401 PUMP JOINT
8 7374005 PUMP FILTER
9 7496048 OR GASKET FOR PUMP FILTER
10 7730506 PUMP 100 L/H PA104X 1-2GR
11 7741102 ELECTRIC MOTOR 110V 18MF
11 7742206 ELECTRIC MOTOR 220/240V 10MF
12 7479976 BRACKET MOTOR
13 5038420LL MOTOR SUPPORT
14 7613001 FAIRLEAD P36 RUBBER
15 7802403 NUT M6 UNI 7473
16 7804002 FAN WASHER D6 DIN 6798A
17 7816422 SCREW TE M6X14 UNI 5739 OT
18 7816005 SCREW TCEI M4X20
24 7701111 SOLENOID VALVE 2 WAY 115V PARKER
24 7702310 SOLENOID VALVE 2 WAY 230V PARKER
24 7702409 SOLENOID VALVE 2 WAY 240V PARKER
25 7630327 SOLENOID VALVE COIL 110V PARKER
25 7630328 SOLENOID VALVE COIL 220/230V PARKER
25 7630329 SOLENOID VALVE COIL 240V PARKER
26 5301504TR UNION ELBOW 1/8”G X M12
27 7303034TR UNION ELBOW 1/8”G
28 7304001TR UNION 1/8”G
29 5221844 NUT 1/8”G H3
30 5194592 DRAIN HOSE SURPRESSION VALVE
31 5162237.01LL BOILER LOAD HOSE
32 5162236.01LL SURPRESSION VALVE - HEAT EXCHANGER HOSE
33 5194574.01LL HOSE
34 7200514 FLEXIBLE HOSE 3/8”X1/8” l=1500MM
35 7613004 FAIRLEAD
36 7432523 PRESSURE GAUGE D40 16BAR
37 7400902 PUMP PRESSURE GAUGE CAPILLARY
38 7802402 NUT M4 UNI 7473
Page 19
Dal 1901
19
BEZZERAMitica
cod. 9942050.02 rev.00
TABLE 2B
Mod. R
353440
5
8
9
7
6
10
17
14
16
15
37
36
30
3
4
2 28 27 29
25
24 32 18
13
11
12 2631
1
TAV. 3
38
Page 20
Dal 1901
20
BEZZERA Mitica
cod. 9942050.02 rev.00
POS CODE DESCRIPTION
TABLE 3 (up to 30.10.12)
1 5302017TP STRAIGHT FITTING M12
2 5471505 CALIBRATED SPRING D0.45
3 5224615TP GASKET-HOLDER
4 7496018 GASKET OR 105
5 5283049 SURPRESSION VALVE BODY
6 5493001 GASKET D8 X 4 EPT
7 5224619 GASKET-HOLDER
8 5471506.01 CALIBRATED SPRING D1.1
9 7496052 OR GASKET 114
10 5302072 RUBBER-HOLDER FITTING
11 5965165 ASSEMBLY SURPRESSION VALVE
Page 21
Dal 1901
21
BEZZERAMitica
cod. 9942050.02 rev.00

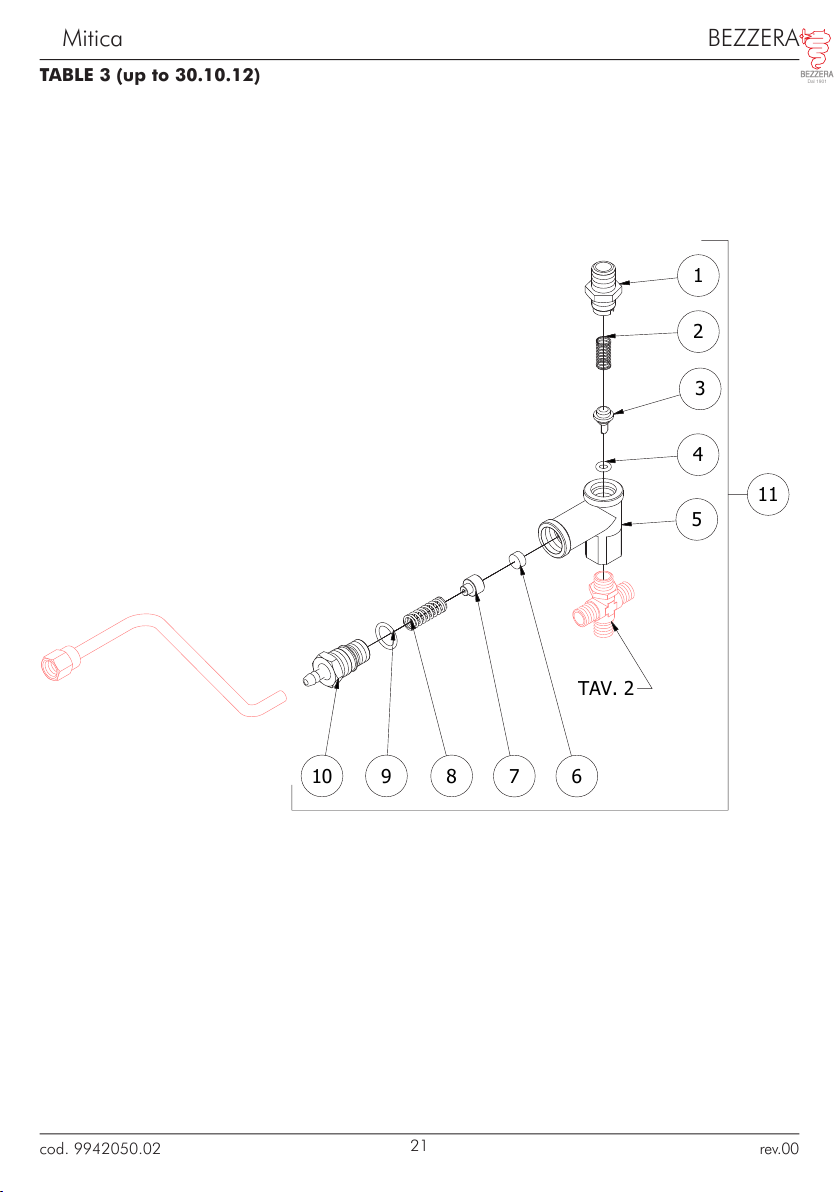

TABLE 3 (up to 30.10.12)
2
1
3
4
5
6
7
8910
11
TAV. 2
Page 22
Dal 1901
22
BEZZERA Mitica
cod. 9942050.02 rev.00

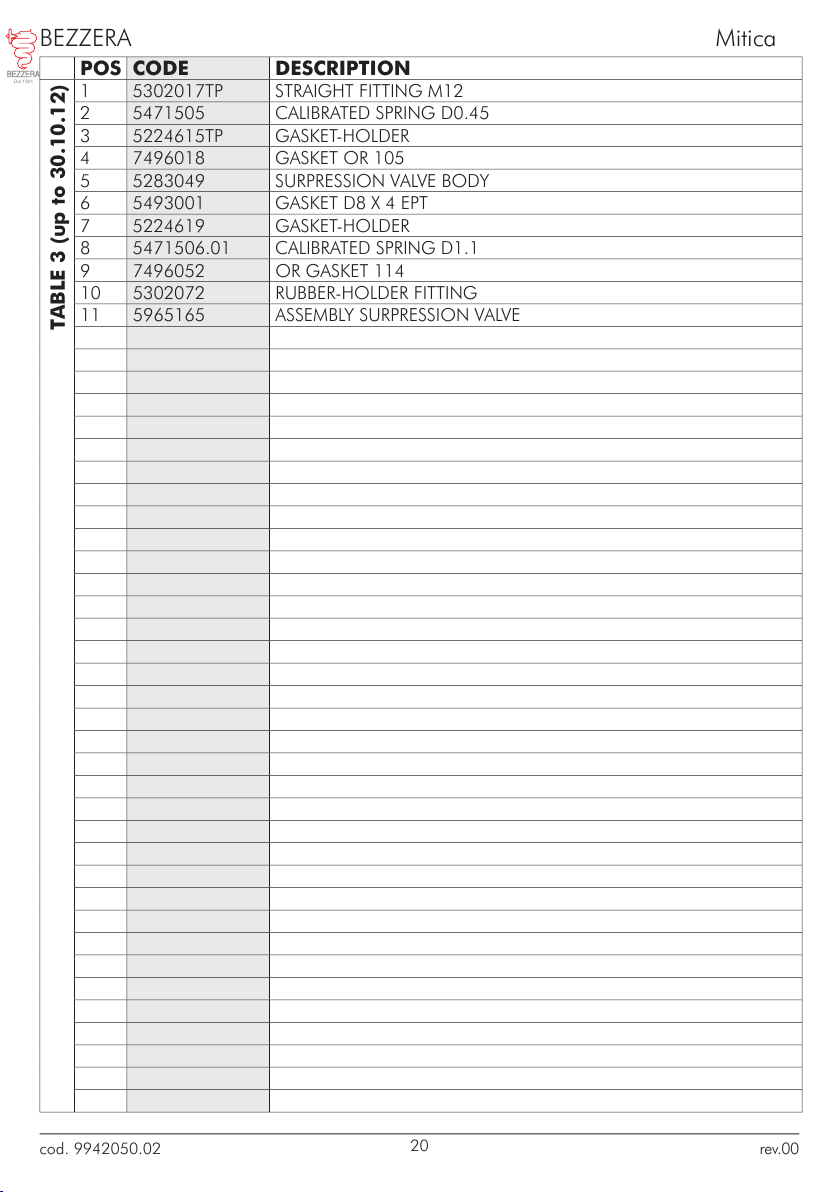

POS CODE DESCRIPTION
TABLE 3 (from 31.10.12)
1 5302017TP STRAIGHT FITTING M12
2 5471505 CALIBRATED SPRING D0.45
3 5224615TP GASKET-HOLDER
4 7496018 GASKET OR 105
5 5283053TP SURPRESSION VALVE BODY
6 5493042 GASKET D.11X3
7 5224620TP GASKET-HOLDER
8 5471539 CALIBRATED SPRING D.1,6
9 7496052 OR GASKET 114
10 5302077TP RUBBER-HOLDER FITTING
11 5965212AL ASSEMBLY SURPRESSION VALVE 12BAR
Page 23
Dal 1901
23
BEZZERAMitica
cod. 9942050.02 rev.00

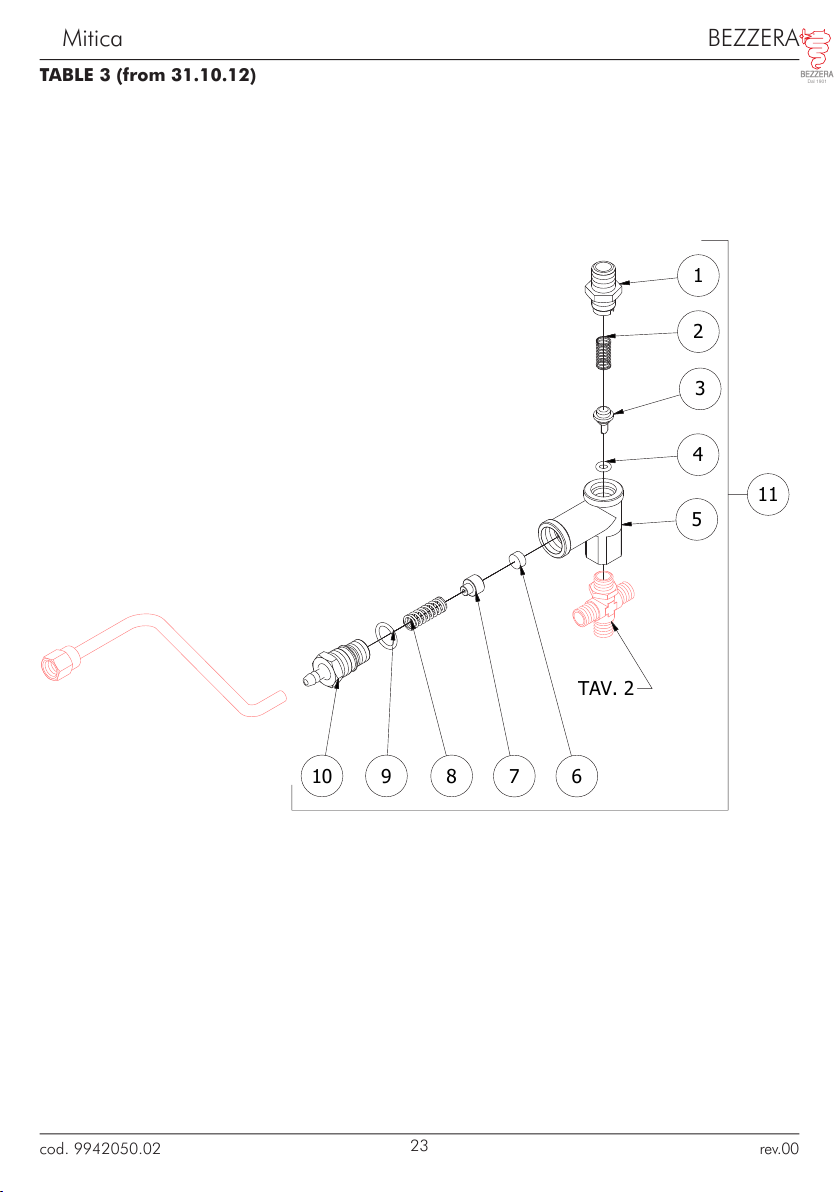

TABLE 3 (from 31.10.12)
2
1
3
4
5
6
7
8910
11
TAV. 2
Page 24
Dal 1901
24
BEZZERA Mitica
cod. 9942050.02 rev.00

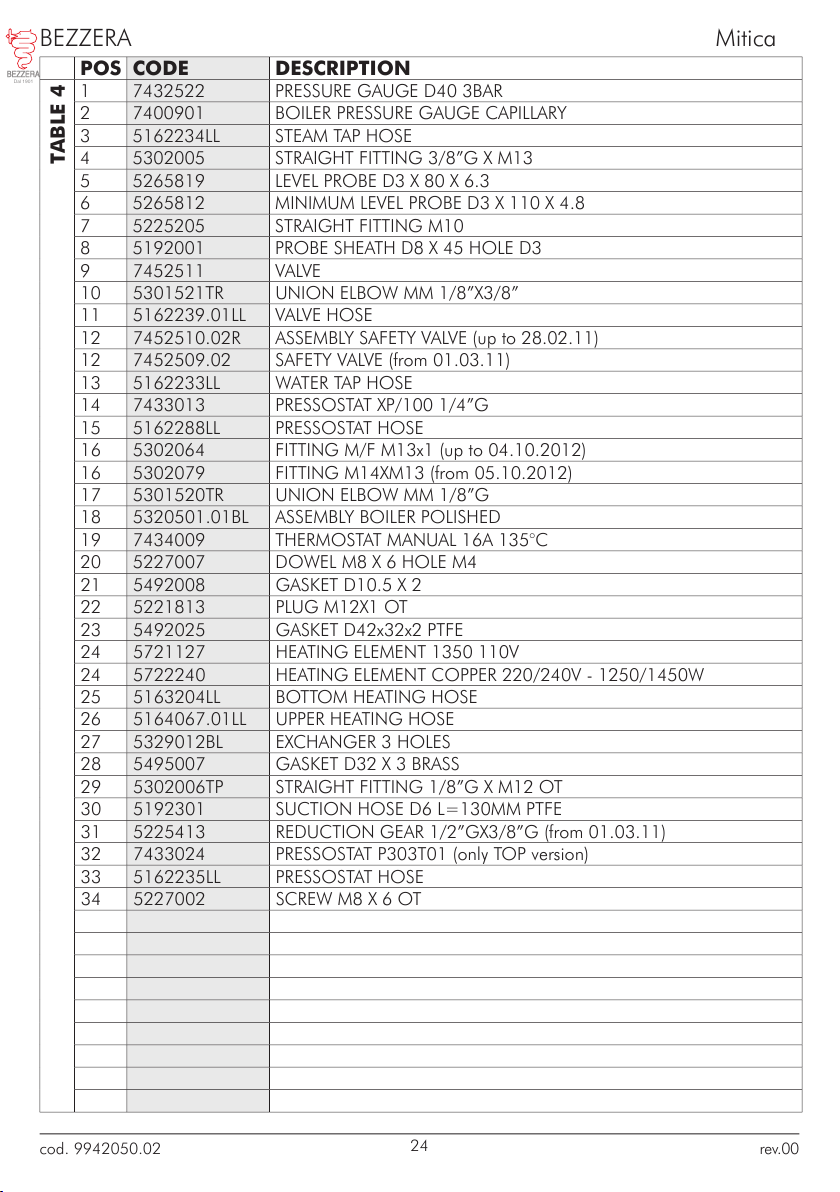

POS CODE DESCRIPTION
TABLE 4
1 7432522 PRESSURE GAUGE D40 3BAR
2 7400901 BOILER PRESSURE GAUGE CAPILLARY
3 5162234LL STEAM TAP HOSE
4 5302005 STRAIGHT FITTING 3/8”G X M13
5 5265819 LEVEL PROBE D3 X 80 X 6.3
6 5265812 MINIMUM LEVEL PROBE D3 X 110 X 4.8
7 5225205 STRAIGHT FITTING M10
8 5192001 PROBE SHEATH D8 X 45 HOLE D3
9 7452511 VALVE
10 5301521TR UNION ELBOW MM 1/8”X3/8”
11 5162239.01LL VALVE HOSE
12 7452510.02R ASSEMBLY SAFETY VALVE (up to 28.02.11)
12 7452509.02 SAFETY VALVE (from 01.03.11)
13 5162233LL WATER TAP HOSE
14 7433013 PRESSOSTAT XP/100 1/4”G
15 5162288LL PRESSOSTAT HOSE
16 5302064 FITTING M/F M13x1 (up to 04.10.2012)
16 5302079 FITTING M14XM13 (from 05.10.2012)
17 5301520TR UNION ELBOW MM 1/8”G
18 5320501.01BL ASSEMBLY BOILER POLISHED
19 7434009 THERMOSTAT MANUAL 16A 135°C
20 5227007 DOWEL M8 X 6 HOLE M4
21 5492008 GASKET D10.5 X 2
22 5221813 PLUG M12X1 OT
23 5492025 GASKET D42x32x2 PTFE
24 5721127 HEATING ELEMENT 1350 110V
24 5722240 HEATING ELEMENT COPPER 220/240V - 1250/1450W
25 5163204LL BOTTOM HEATING HOSE
26 5164067.01LL UPPER HEATING HOSE
27 5329012BL EXCHANGER 3 HOLES
28 5495007 GASKET D32 X 3 BRASS
29 5302006TP STRAIGHT FITTING 1/8”G X M12 OT
30 5192301 SUCTION HOSE D6 L=130MM PTFE
31 5225413 REDUCTION GEAR 1/2”GX3/8”G (from 01.03.11)
32 7433024 PRESSOSTAT P303T01 (only TOP version)
33 5162235LL PRESSOSTAT HOSE
34 5227002 SCREW M8 X 6 OT
Page 25
Dal 1901
25
BEZZERAMitica
cod. 9942050.02 rev.00

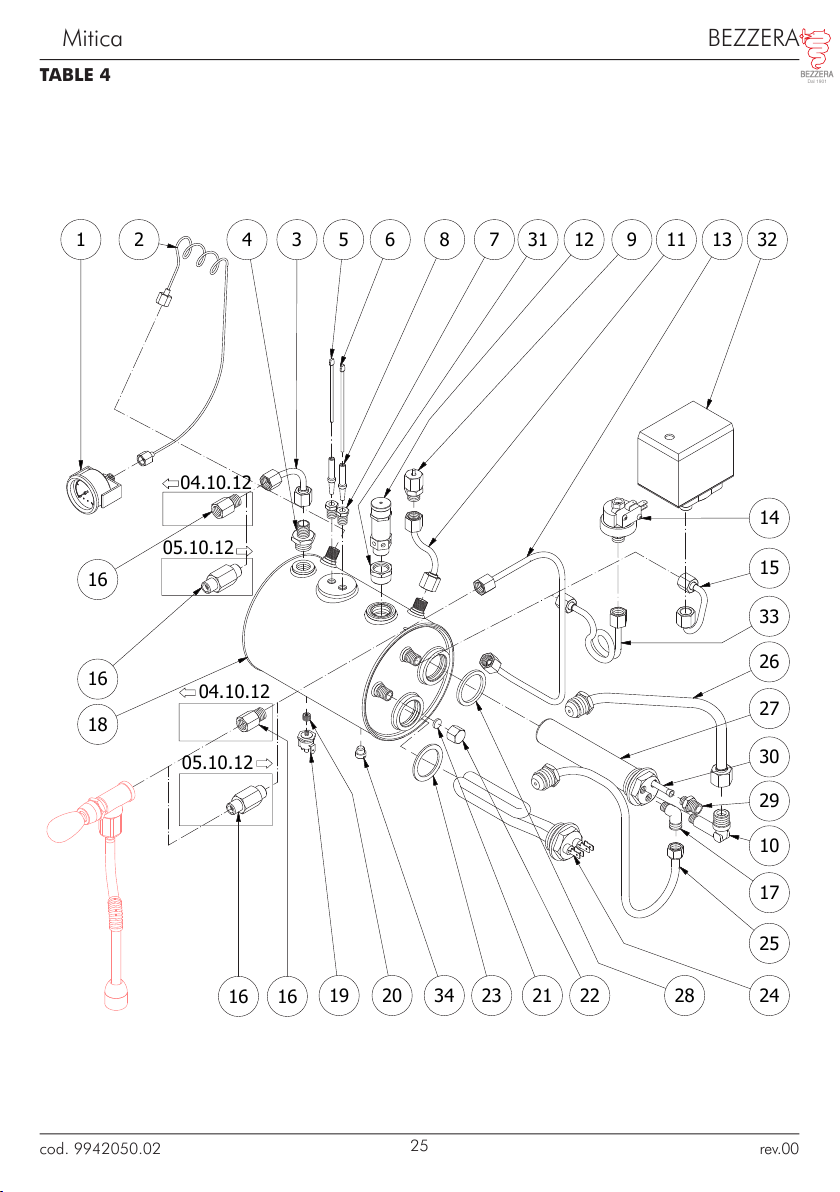

TABLE 4
1
2
16
4
3
5
6
8
7
31 12 9
11
13 32
14
15
33
26
27
30
29
10
17
25
2428222123342019
16
18
16
16
04.10.12
05.10.12
04.10.12
05.10.12
Page 26
Dal 1901
26
BEZZERA Mitica
cod. 9942050.02 rev.00
POS CODE DESCRIPTION

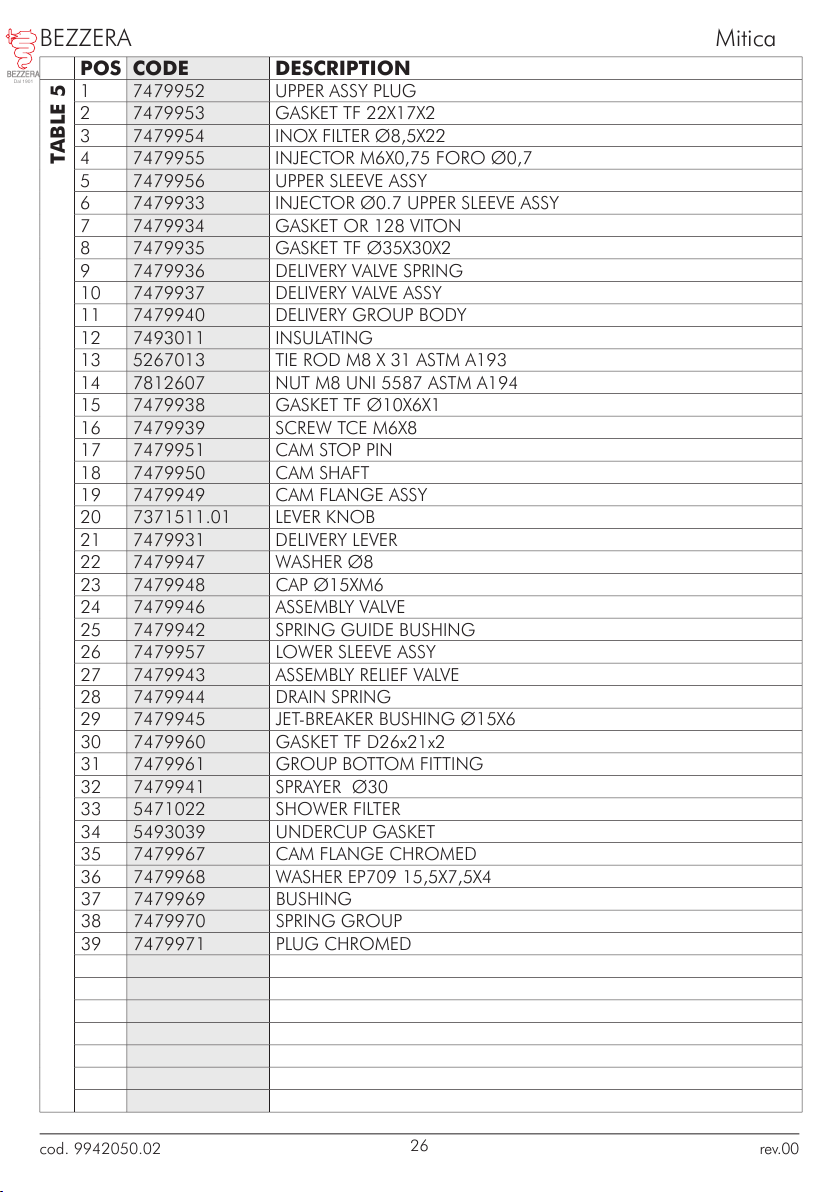

TABLE 5
1 7479952 UPPER ASSY PLUG
2 7479953 GASKET TF 22X17X2
3 7479954 INOX FILTER Ø8,5X22
4 7479955 INJECTOR M6X0,75 FORO Ø0,7
5 7479956 UPPER SLEEVE ASSY
6 7479933 INJECTOR Ø0.7 UPPER SLEEVE ASSY
7 7479934 GASKET OR 128 VITON
8 7479935 GASKET TF Ø35X30X2
9 7479936 DELIVERY VALVE SPRING
10 7479937 DELIVERY VALVE ASSY
11 7479940 DELIVERY GROUP BODY
12 7493011 INSULATING
13 5267013 TIE ROD M8 X 31 ASTM A193
14 7812607 NUT M8 UNI 5587 ASTM A194
15 7479938 GASKET TF Ø10X6X1
16 7479939 SCREW TCE M6X8
17 7479951 CAM STOP PIN
18 7479950 CAM SHAFT
19 7479949 CAM FLANGE ASSY
20 7371511.01 LEVER KNOB
21 7479931 DELIVERY LEVER
22 7479947 WASHER Ø8
23 7479948 CAP Ø15XM6
24 7479946 ASSEMBLY VALVE
25 7479942 SPRING GUIDE BUSHING
26 7479957 LOWER SLEEVE ASSY
27 7479943 ASSEMBLY RELIEF VALVE
28 7479944 DRAIN SPRING
29 7479945 JET-BREAKER BUSHING Ø15X6
30 7479960 GASKET TF D26x21x2
31 7479961 GROUP BOTTOM FITTING
32 7479941 SPRAYER Ø30
33 5471022 SHOWER FILTER
34 5493039 UNDERCUP GASKET
35 7479967 CAM FLANGE CHROMED
36 7479968 WASHER EP709 15,5X7,5X4
37 7479969 BUSHING
38 7479970 SPRING GROUP
39 7479971 PLUG CHROMED
Page 27
Dal 1901
27
BEZZERAMitica
cod. 9942050.02 rev.00

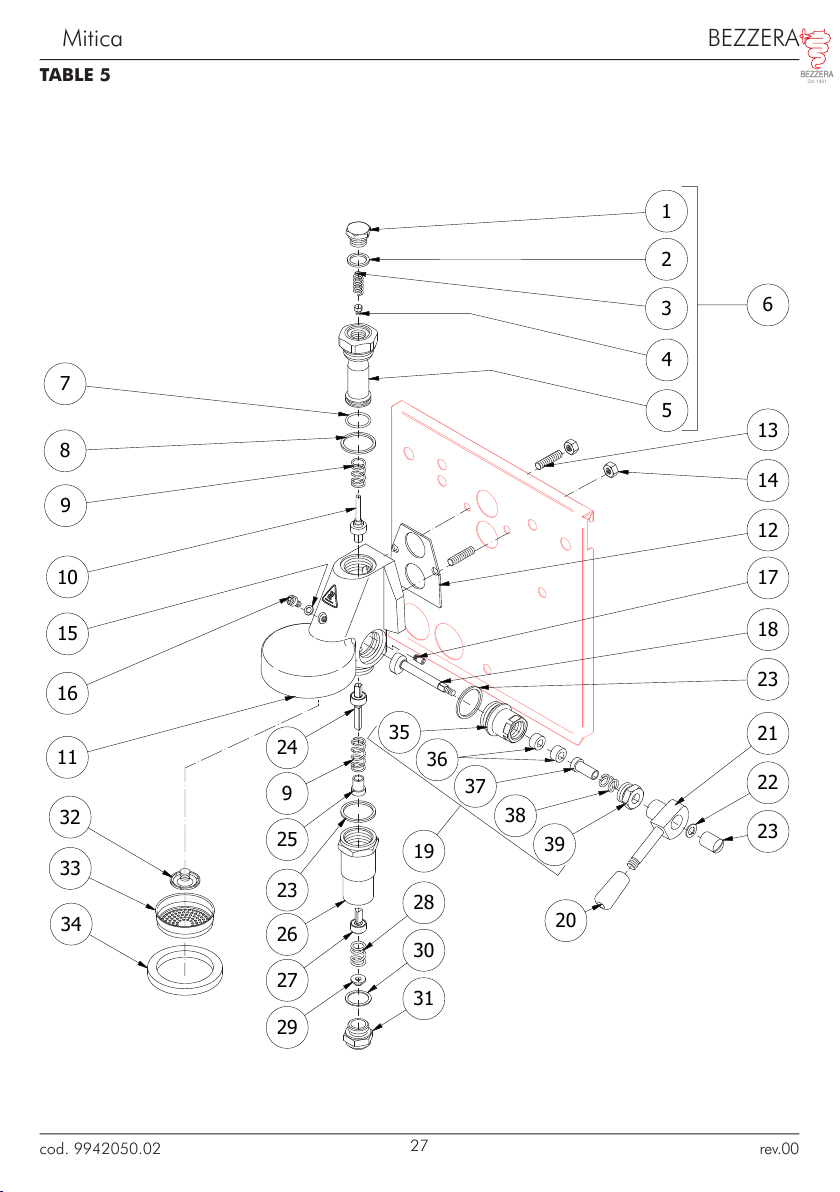

TABLE 5
17
18
23
39
38
37
36
35
19
24
9
25
23
26
27
28
30
31
29
32
4
3
2
1
5
6
13
14
7
8
9
10
12
16
15
11
20
21
22
23
34
33
Page 28
Dal 1901
28
BEZZERA Mitica
cod. 9942050.02 rev.00
POS CODE DESCRIPTION
TABLE 5A (up to 20.09.11)
1 7371511.01 LEVER KNOB
2 5222823EC RING NUT 3/8”G H17
3 5221826EC NUT 3/8”G ES.22X5
4 5225610 ARTICULATION M8 INOX
5 5260204DL SHAFT D12X47
6 5471513 SPRING D8 H17
7 5261801 WASHER D11
8 5494004 GASKET D12 X 6 PTFE GRAPHITIZED
9 5283047TW TAP BODY OT
10 5496042 GASKET D11X4X4 EPT 70
11 5224603TP GASKET-HOLDER
12 5225410TP FITTING M14XM13 H26 (up to xx.xx.xxxx)
12 5302079 FITTING M14XM13 (from 05.10.2012)
13 5964085AL ASSEMBLY TAP
14 7496072 OR GASKET 121
15 5471532 SPRING
16 5220606TP COMPLETE CUP
17 7496073 OR GASKET 115 EP856
18 5221872TW NUT 3/8”G
19 7371003 INSULATING
20 7496083 OR GASKET D4,5X1,5 NBR70
21 7305010 TERMINAL 4 HOLES
22 7479958 ASSEMBLY STEAM HOSE TERMINAL 4 HOLES
23 5225608 ARTICULATION M8 INOX
24 5260203DL SHAFT D12X47
25 7496084 OR GASKET D6,4X1.9 NBR70
26 7479959 ASSEMBLY WATER HOSE
27 5964084AL ASSEMBLY TAP
28 7305013 TERMINAL 2 HOLES
29 7479975 ASSEMBLY STEAM HOSE TERMINAL 2 HOLES
30 5302064 FITTING M/F M13x1 (up to 04.10.2012)
Page 29
Dal 1901
29
BEZZERAMitica
cod. 9942050.02 rev.00

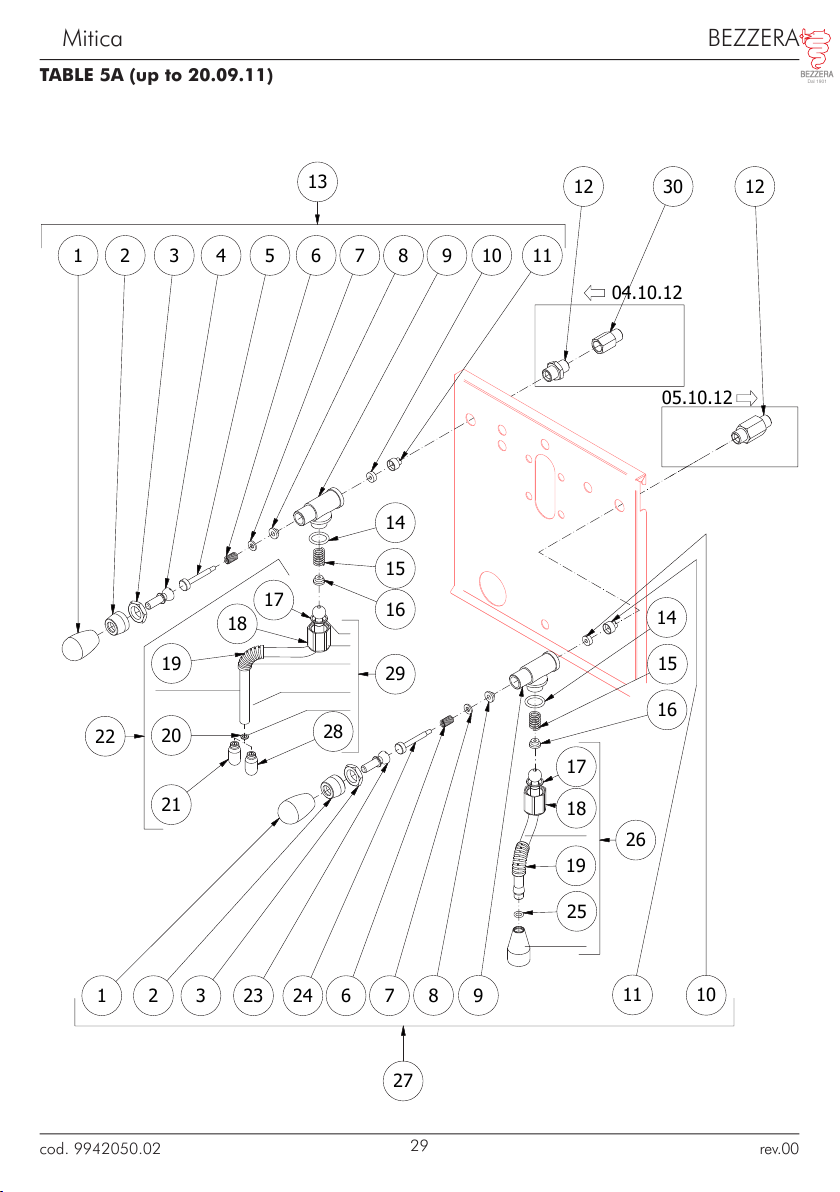

TABLE 5A (up to 20.09.11)
11
17
8 9
7
14
15
16
106
54
32
1
19
20
21
12
22
19
25
26
1
7
15
16
8 9
2 3 23 24 6
13
14
27
18
17
18
28
11
10
29
30 12
04.10.12
05.10.12
Page 30
Dal 1901
30
BEZZERA Mitica
cod. 9942050.02 rev.00
POS CODE DESCRIPTION

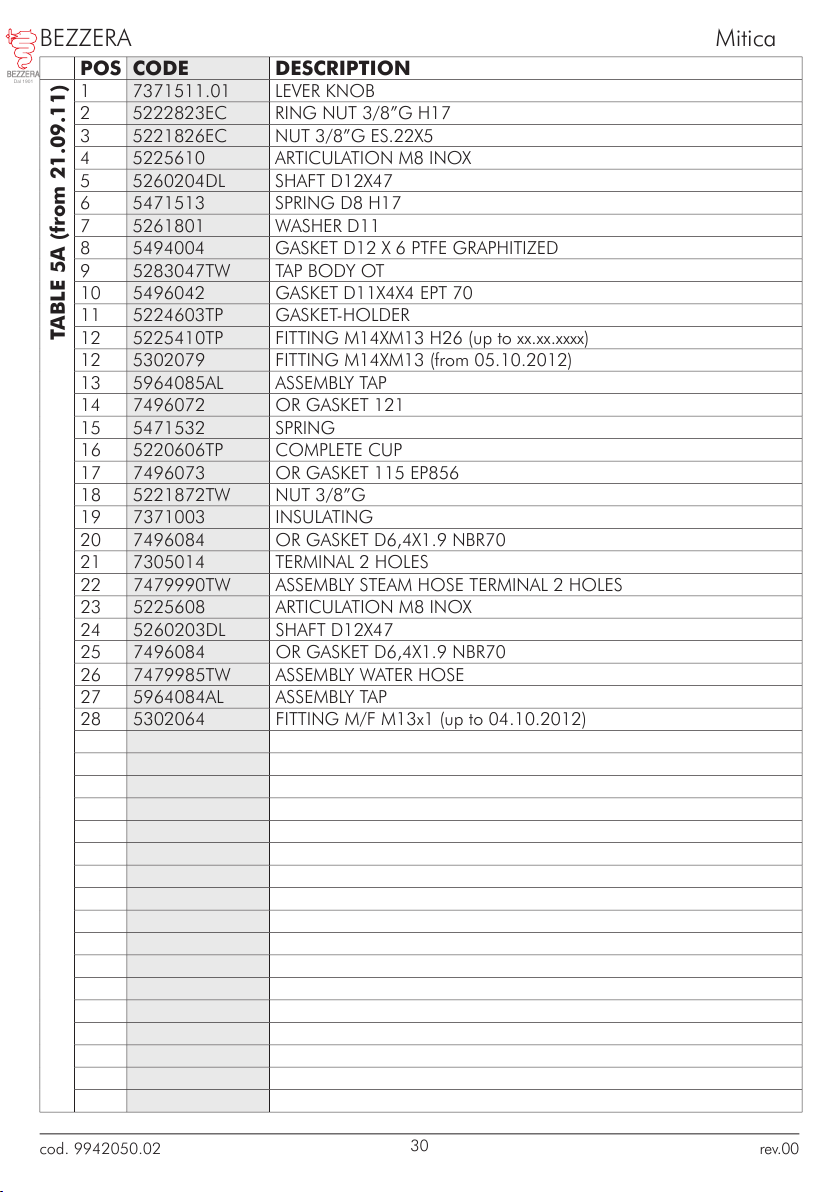

TABLE 5A (from 21.09.11)
1 7371511.01 LEVER KNOB
2 5222823EC RING NUT 3/8”G H17
3 5221826EC NUT 3/8”G ES.22X5
4 5225610 ARTICULATION M8 INOX
5 5260204DL SHAFT D12X47
6 5471513 SPRING D8 H17
7 5261801 WASHER D11
8 5494004 GASKET D12 X 6 PTFE GRAPHITIZED
9 5283047TW TAP BODY OT
10 5496042 GASKET D11X4X4 EPT 70
11 5224603TP GASKET-HOLDER
12 5225410TP FITTING M14XM13 H26 (up to xx.xx.xxxx)
12 5302079 FITTING M14XM13 (from 05.10.2012)
13 5964085AL ASSEMBLY TAP
14 7496072 OR GASKET 121
15 5471532 SPRING
16 5220606TP COMPLETE CUP
17 7496073 OR GASKET 115 EP856
18 5221872TW NUT 3/8”G
19 7371003 INSULATING
20 7496084 OR GASKET D6,4X1.9 NBR70
21 7305014 TERMINAL 2 HOLES
22 7479990TW ASSEMBLY STEAM HOSE TERMINAL 2 HOLES
23 5225608 ARTICULATION M8 INOX
24 5260203DL SHAFT D12X47
25 7496084 OR GASKET D6,4X1.9 NBR70
26 7479985TW ASSEMBLY WATER HOSE
27 5964084AL ASSEMBLY TAP
28 5302064 FITTING M/F M13x1 (up to 04.10.2012)
Page 31
Dal 1901
31
BEZZERAMitica
cod. 9942050.02 rev.00

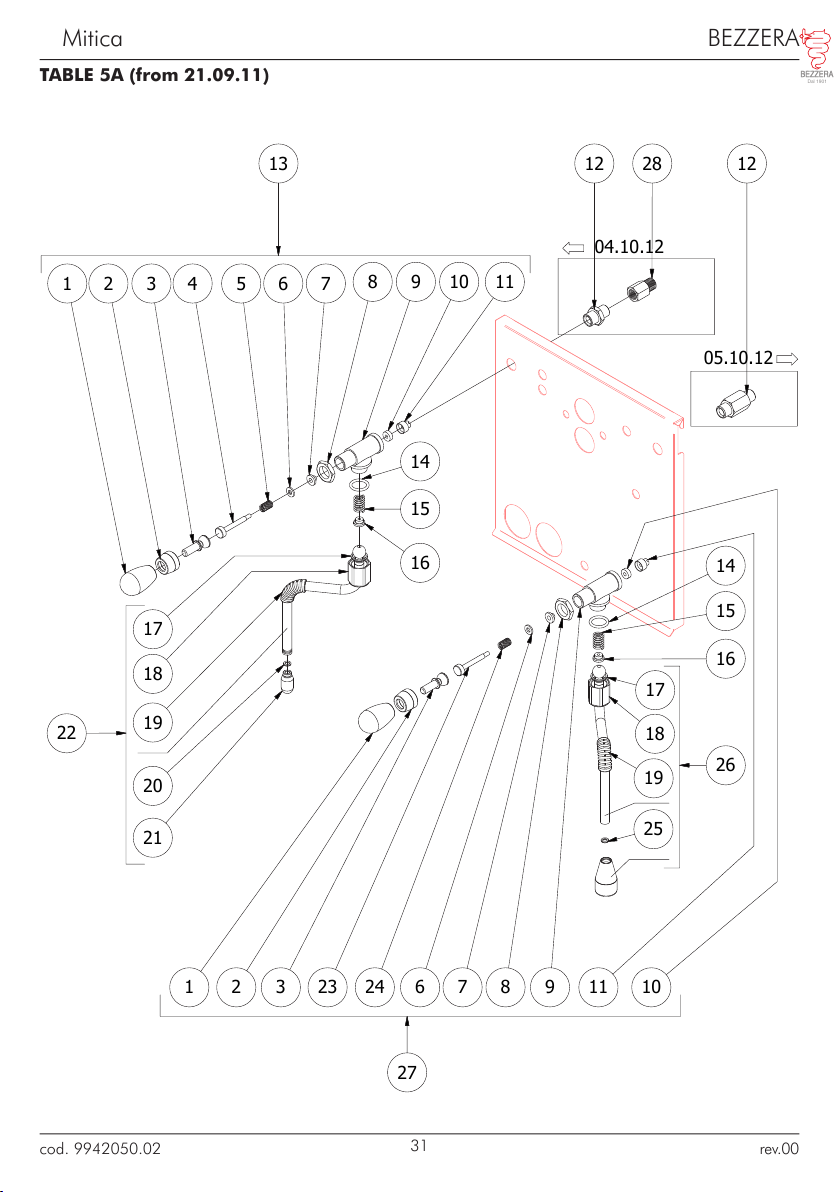

TABLE 5A (from 21.09.11)
1
2 3
4 5
6
8 9 10
12 2813
1
2 3 23 24 6
7
8 9
14
16
15
17
18
19
20
21
22
14
15
16
18
19
25
26
11
7
12
17
11
10
27
04.10.12
05.10.12
Page 32
Dal 1901
32
BEZZERA Mitica
cod. 9942050.02 rev.00
POS CODE DESCRIPTION

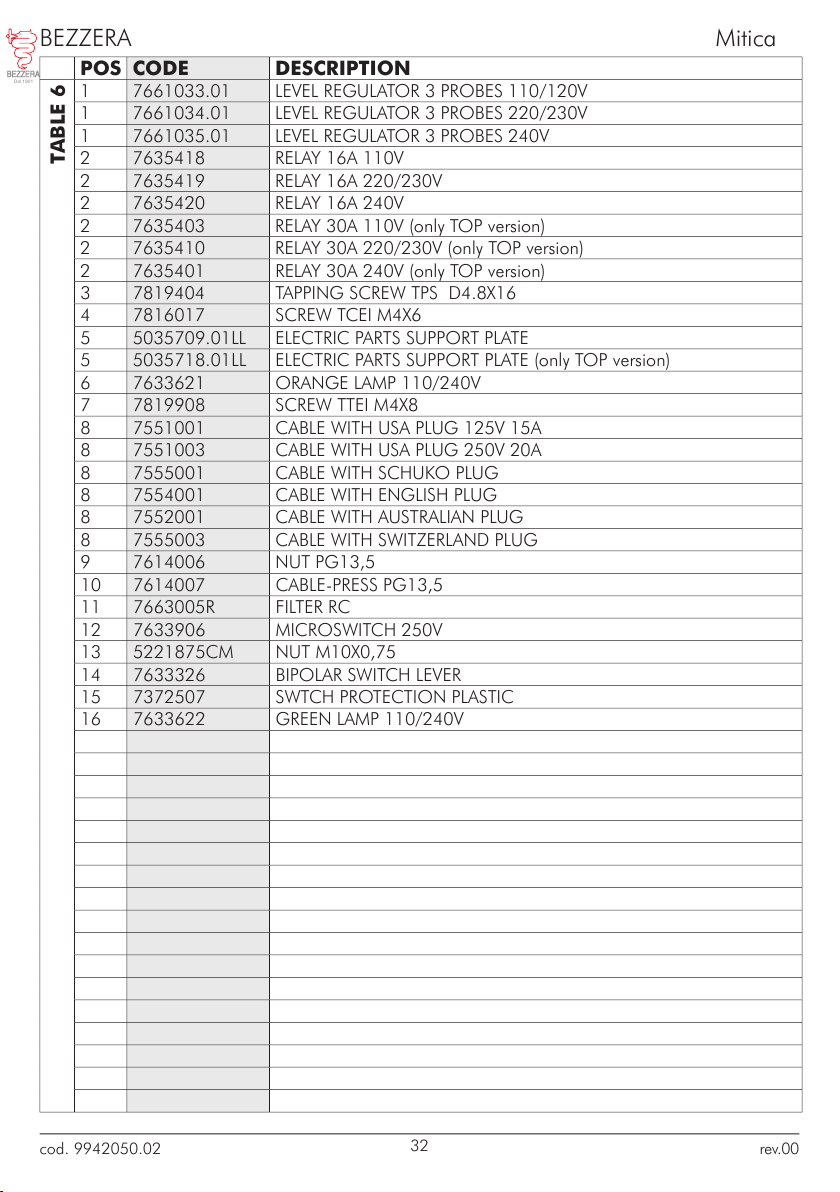

TABLE 6
1 7661033.01 LEVEL REGULATOR 3 PROBES 110/120V
1 7661034.01 LEVEL REGULATOR 3 PROBES 220/230V
1 7661035.01 LEVEL REGULATOR 3 PROBES 240V
2 7635418 RELAY 16A 110V
2 7635419 RELAY 16A 220/230V
2 7635420 RELAY 16A 240V
2 7635403 RELAY 30A 110V (only TOP version)
2 7635410 RELAY 30A 220/230V (only TOP version)
2 7635401 RELAY 30A 240V (only TOP version)
3 7819404 TAPPING SCREW TPS D4.8X16
4 7816017 SCREW TCEI M4X6
5 5035709.01LL ELECTRIC PARTS SUPPORT PLATE
5 5035718.01LL ELECTRIC PARTS SUPPORT PLATE (only TOP version)
6 7633621 ORANGE LAMP 110/240V
7 7819908 SCREW TTEI M4X8
8 7551001 CABLE WITH USA PLUG 125V 15A
8 7551003 CABLE WITH USA PLUG 250V 20A
8 7555001 CABLE WITH SCHUKO PLUG
8 7554001 CABLE WITH ENGLISH PLUG
8 7552001 CABLE WITH AUSTRALIAN PLUG
8 7555003 CABLE WITH SWITZERLAND PLUG
9 7614006 NUT PG13,5
10 7614007 CABLE-PRESS PG13,5
11 7663005R FILTER RC
12 7633906 MICROSWITCH 250V
13 5221875CM NUT M10X0,75
14 7633326 BIPOLAR SWITCH LEVER
15 7372507 SWTCH PROTECTION PLASTIC
16 7633622 GREEN LAMP 110/240V
Page 33
Dal 1901
33
BEZZERAMitica
cod. 9942050.02 rev.00

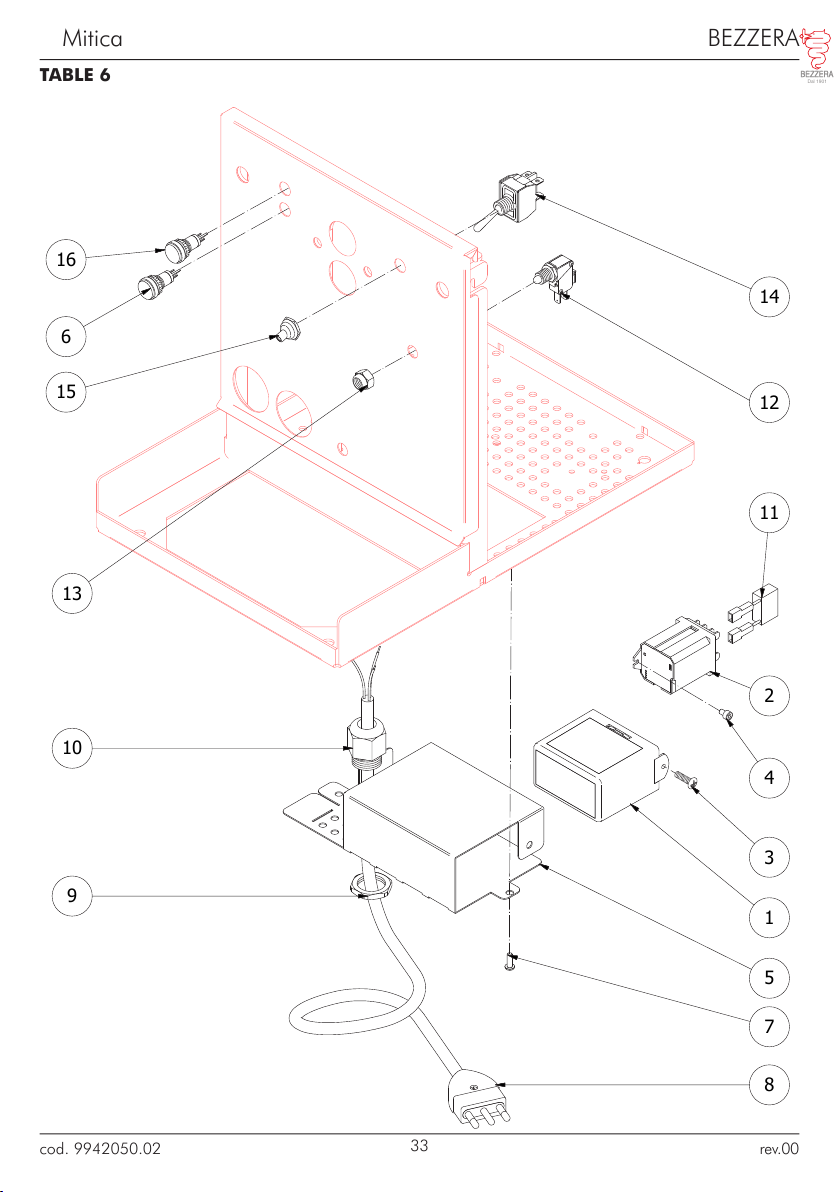

TABLE 6
1
2
3
4
5
7
8
11
9
10
13
15
6
16
12
14
Page 34
Dal 1901
34
BEZZERA Mitica
cod. 9942050.02 rev.00
POS CODE DESCRIPTION

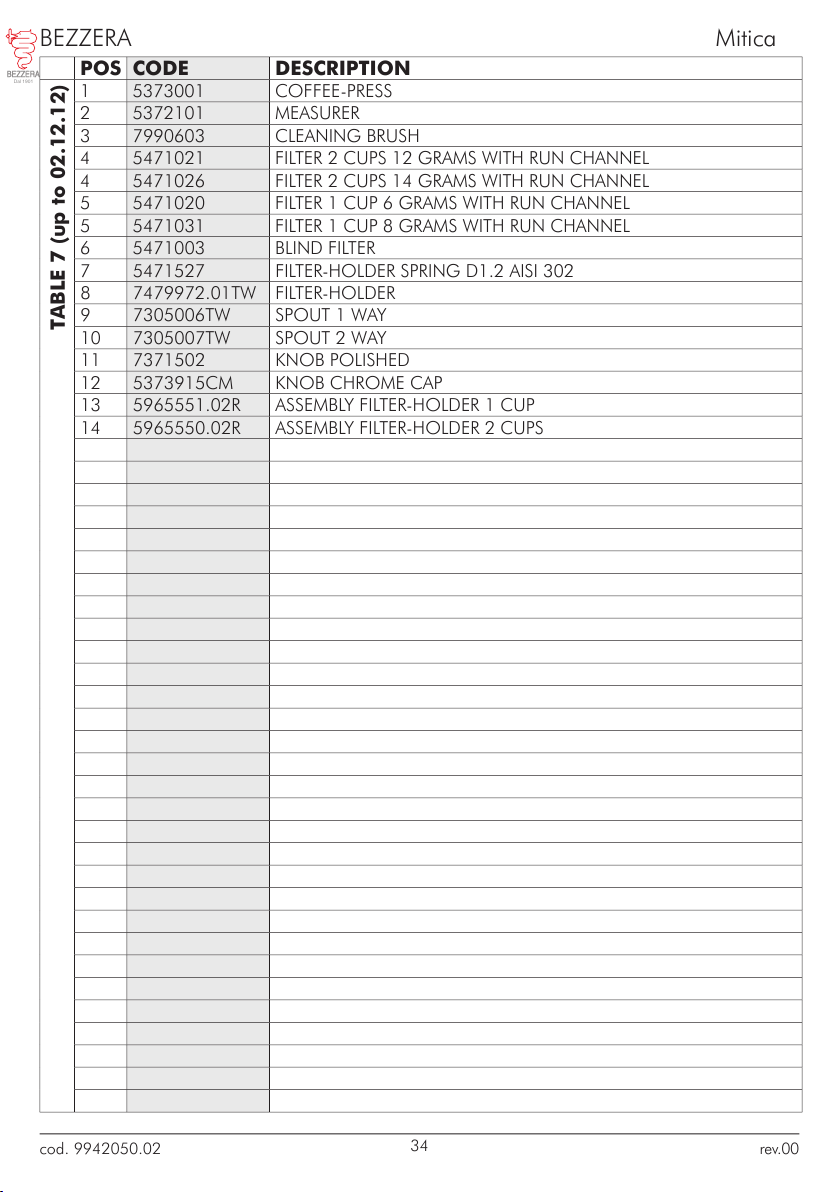

TABLE 7 (up to 02.12.12)
1 5373001 COFFEE-PRESS
2 5372101 MEASURER
3 7990603 CLEANING BRUSH
4 5471021 FILTER 2 CUPS 12 GRAMS WITH RUN CHANNEL
4 5471026 FILTER 2 CUPS 14 GRAMS WITH RUN CHANNEL
5 5471020 FILTER 1 CUP 6 GRAMS WITH RUN CHANNEL
5 5471031 FILTER 1 CUP 8 GRAMS WITH RUN CHANNEL
6 5471003 BLIND FILTER
7 5471527 FILTER-HOLDER SPRING D1.2 AISI 302
8 7479972.01TW FILTER-HOLDER
9 7305006TW SPOUT 1 WAY
10 7305007TW SPOUT 2 WAY
11 7371502 KNOB POLISHED
12 5373915CM KNOB CHROME CAP
13 5965551.02R ASSEMBLY FILTER-HOLDER 1 CUP
14 5965550.02R ASSEMBLY FILTER-HOLDER 2 CUPS
Page 35
Dal 1901
35
BEZZERAMitica
cod. 9942050.02 rev.00

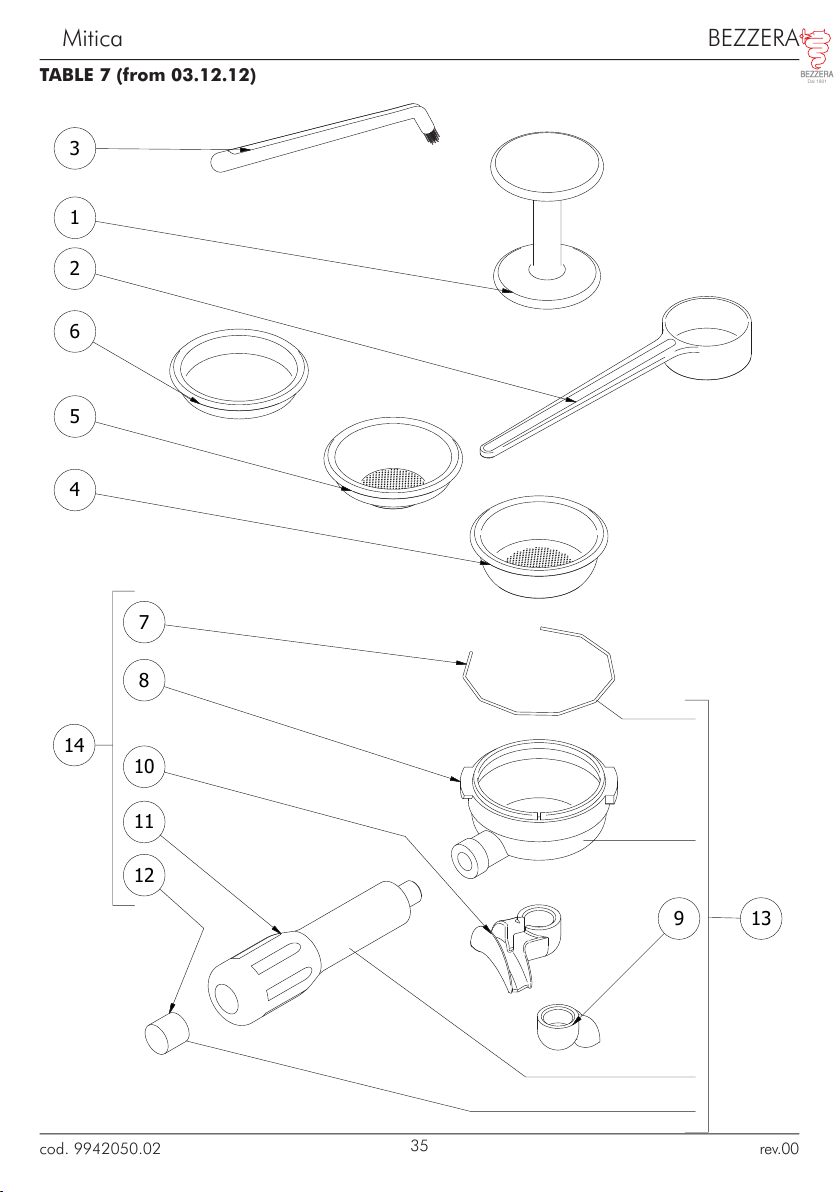

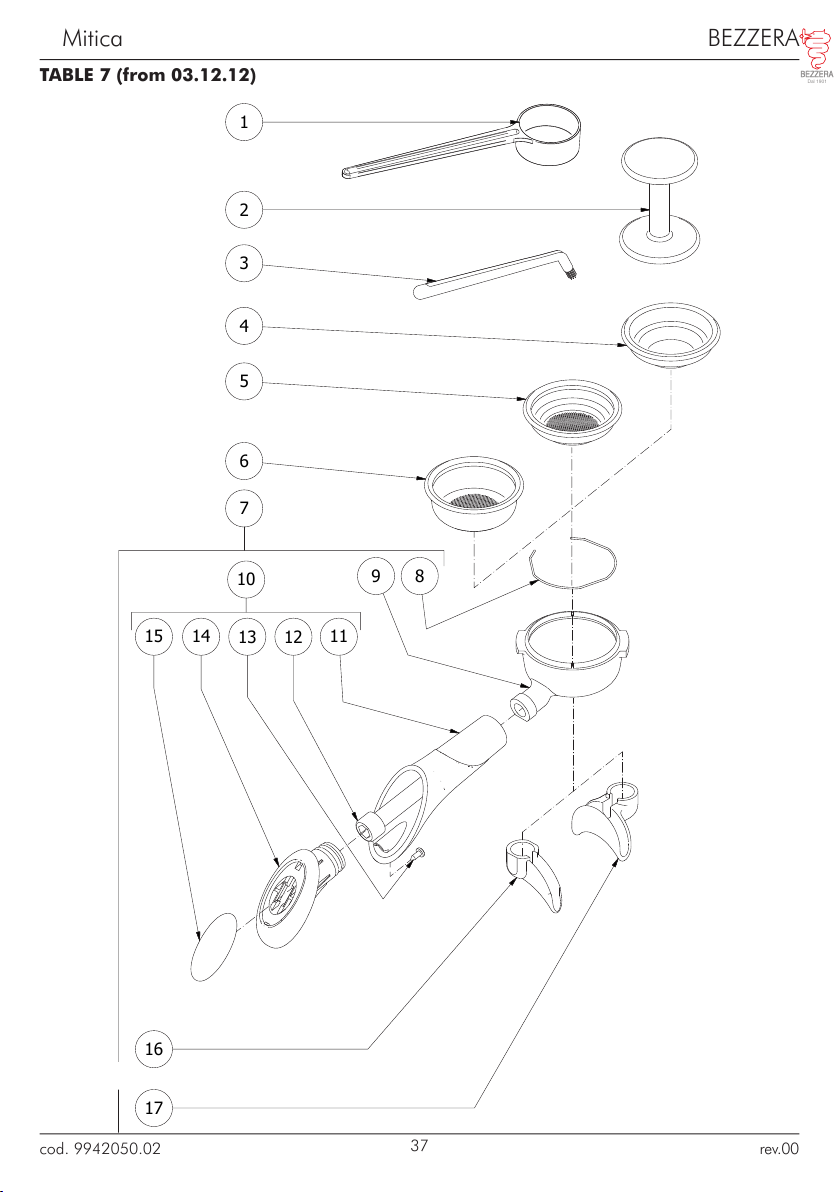

TABLE 7 (from 03.12.12)
3
1
2
6
5
4
7
8
10
11
12
9
14
13
Page 36
Dal 1901
36
BEZZERA Mitica
cod. 9942050.02 rev.00

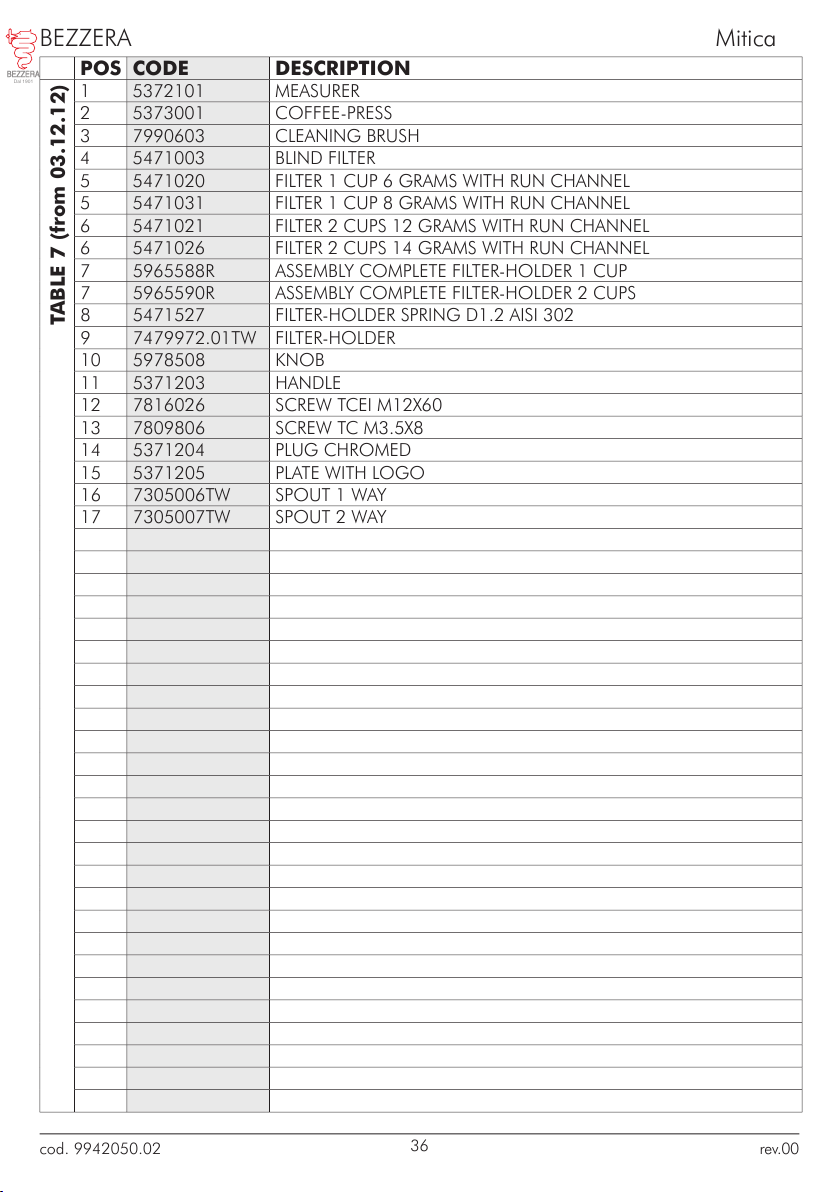

POS CODE DESCRIPTION
TABLE 7 (from 03.12.12)
1 5372101 MEASURER
2 5373001 COFFEE-PRESS
3 7990603 CLEANING BRUSH
4 5471003 BLIND FILTER
5 5471020 FILTER 1 CUP 6 GRAMS WITH RUN CHANNEL
5 5471031 FILTER 1 CUP 8 GRAMS WITH RUN CHANNEL
6 5471021 FILTER 2 CUPS 12 GRAMS WITH RUN CHANNEL
6 5471026 FILTER 2 CUPS 14 GRAMS WITH RUN CHANNEL
7 5965588R ASSEMBLY COMPLETE FILTER-HOLDER 1 CUP
7 5965590R ASSEMBLY COMPLETE FILTER-HOLDER 2 CUPS
8 5471527 FILTER-HOLDER SPRING D1.2 AISI 302
9 7479972.01TW FILTER-HOLDER
10 5978508 KNOB
11 5371203 HANDLE
12 7816026 SCREW TCEI M12X60
13 7809806 SCREW TC M3.5X8
14 5371204 PLUG CHROMED
15 5371205 PLATE WITH LOGO
16 7305006TW SPOUT 1 WAY
17 7305007TW SPOUT 2 WAY
Page 37
Dal 1901
37
BEZZERAMitica
cod. 9942050.02 rev.00
TABLE 7 (from 03.12.12)
3
4
5
6
89
7
10
11
1213
1415
16
17
1
2
Page 38
G.BEZZERA
MACCHINE PER CAFFE’ ESPRESSO
Via Luigi Bezzera,1
20088 Rosate - Milano - Italy
Tel. 02 90848102 r.a. - Telefax 02 90870287
Web: www.g.bezzera.it
e-mail: [email protected]
Dal 1901
Cod.9942050.02 ed.02/13 rev.00
Loading...
