Unpacking
When you receive your USB phone SX-06, please check to make sure that
your package contains the following items:
One USB handset
One installation CD
One mini USB cable
One user manual*
One earphone
Note:
This user manual is written for the USB phone driver (Version 0.9.2.0)
Page 3
User Manual USB Phone SX-06
- 3 - Version 0.9.1.1 2005-8-18
Your Phone

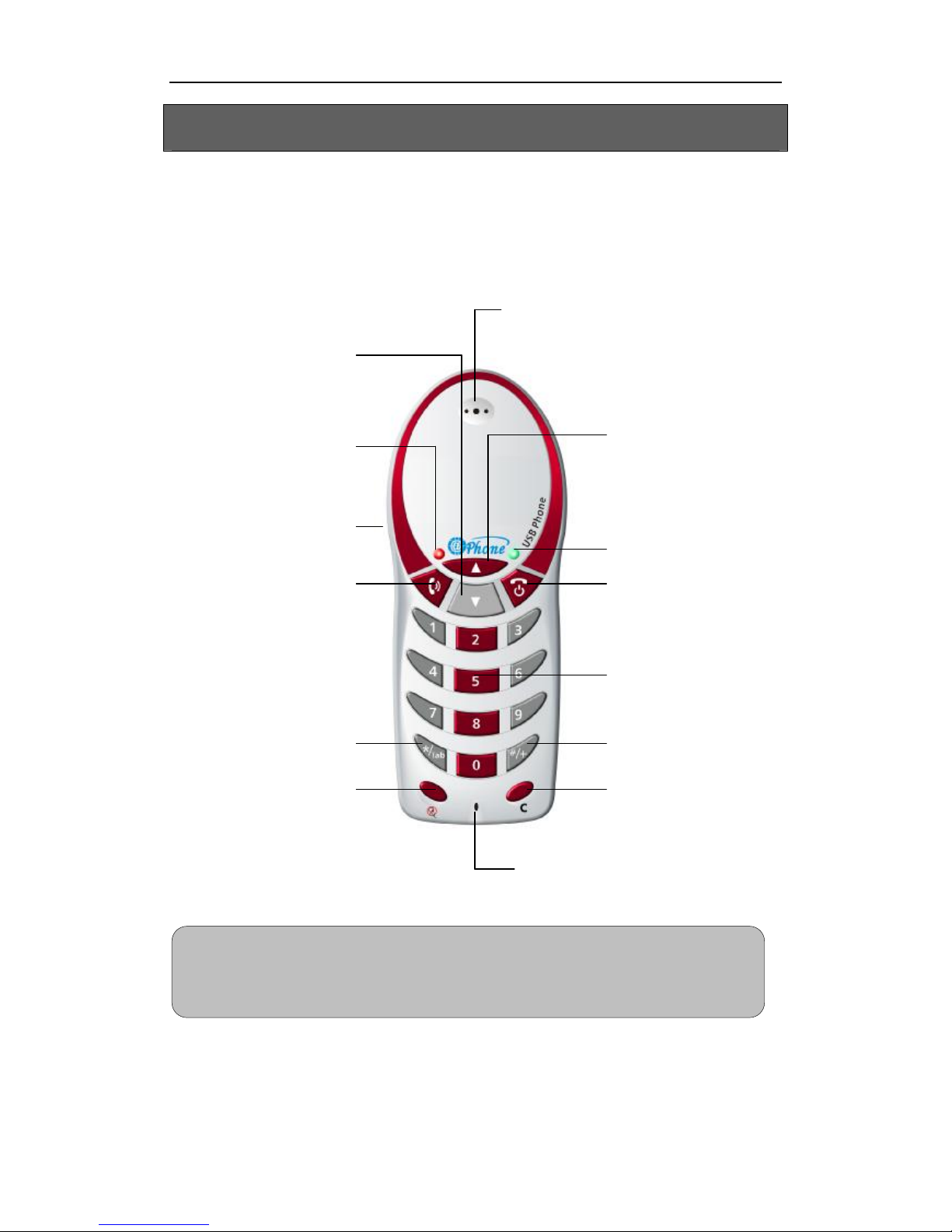

² Phone Layout
Earpiece
Up:
Scroll up Skype Contacts/Call
List; increase volume for
earpiece.
Status LED*
End Key: End/Cancel calls;
return to the standby mode
Numbers: Input digit numbers
#/+: Input “+” i
n standby mode;
input “#” during a call
Clear
: Clear a number in
the screen.
Microphone
Mute:
Set the phone mute on/off
during a call.
*/Tab
:
Input “*”
during a call; switch
between
Skype Contacts &
Call List in standby mode
Dial/Answer
:
Receive
calls; call the
selected contacts.
Earphone Connector
Power LED
Down
:
Scroll down Skype Contacts/
Call List; decrease volume for
earpiece
Notes:
Flash quickly when there is an incoming call. Status LED:
Flash slowly when the USB Phone has been set mute during a call.
Page 4
User Manual USB Phone SX-06
- 4 - Version 0.9.1.1 2005-8-18
Your Phone
² Overview
SX-06 is a high quality USB hand phone with 4-polyphonic ring tones. Its
fashionable appearance, easy-to-use design and euphonious melody will set
you apart from others. Just plug it into your PC or laptop, and then you can
enjoy the full features of SkypeTM.
Features:
ü 12 classical 4-polyphonic ring tones catering to different tastes.
ü Rings loudly on an incoming call.
ü Fully functional keypad enables you to make/receive calls even easier.
ü Power LED and Status LED.
ü Mic. mute button to protect your privacy.
ü Supplied earphone for hands-free operation.
ü Acoustically isolated earpiece and microphone to eliminate echo.
ü Full-duplex communication with crystal clear sound.
ü USB interface PnP. No external power/sound card needed.
² Host System Requirements
ü Microsoft Windows 2000/XP
ü Pentium 400MHz above processor/128MB RAM/16MB free hard disk
capacity.
ü One USB port available
ü Internet connection (ADSL, Cable Modem, Dial-Up, Wireless LAN)
² Specifications
Weight 85g
Dimensions 48mm*120mm*24mm
USB Port Mini USB A-type
Earphone Connector 2.5mm
Voltage 4~5.25 V
Operating Humidity 5~95%RH
Operating Temperature
0~40℃
Page 5
User Manual USB Phone SX-06
- 5 - Version 0.9.1.1 2005-8-18
Getting Started
Step 1: Connect the USB Phone to PC
The hardware installation is very simple. All you need to do is to connect the
USB phone to the USB port on your PC with the mini USB cable. The red
Status Power LED on the phone will be on.
Step 2: Install the Latest SkypeTM
The USB phone must work with SkypeTM Rev. 1.3.0.55 or later. If your
SkypeTM is outdated, please download the latest version of SkypeTM software
from its official website www.skype.com.
However, how to use SkypeTM is not included in this manual. For more
detailed information about SkypeTM, please visit its official website
www.skype.com
Step 3: Install the USB Phone Driver: Skype@phone
You can insert the supplied installation CD into your PC or download the
latest version of driver “Skype@phone” from www.phoneskype.com
After the installation, please RESTART WINDOWS.
Page 6
User Manual USB Phone SX-06
- 6 - Version 0.9.1.1 2005-8-18
Getting Started

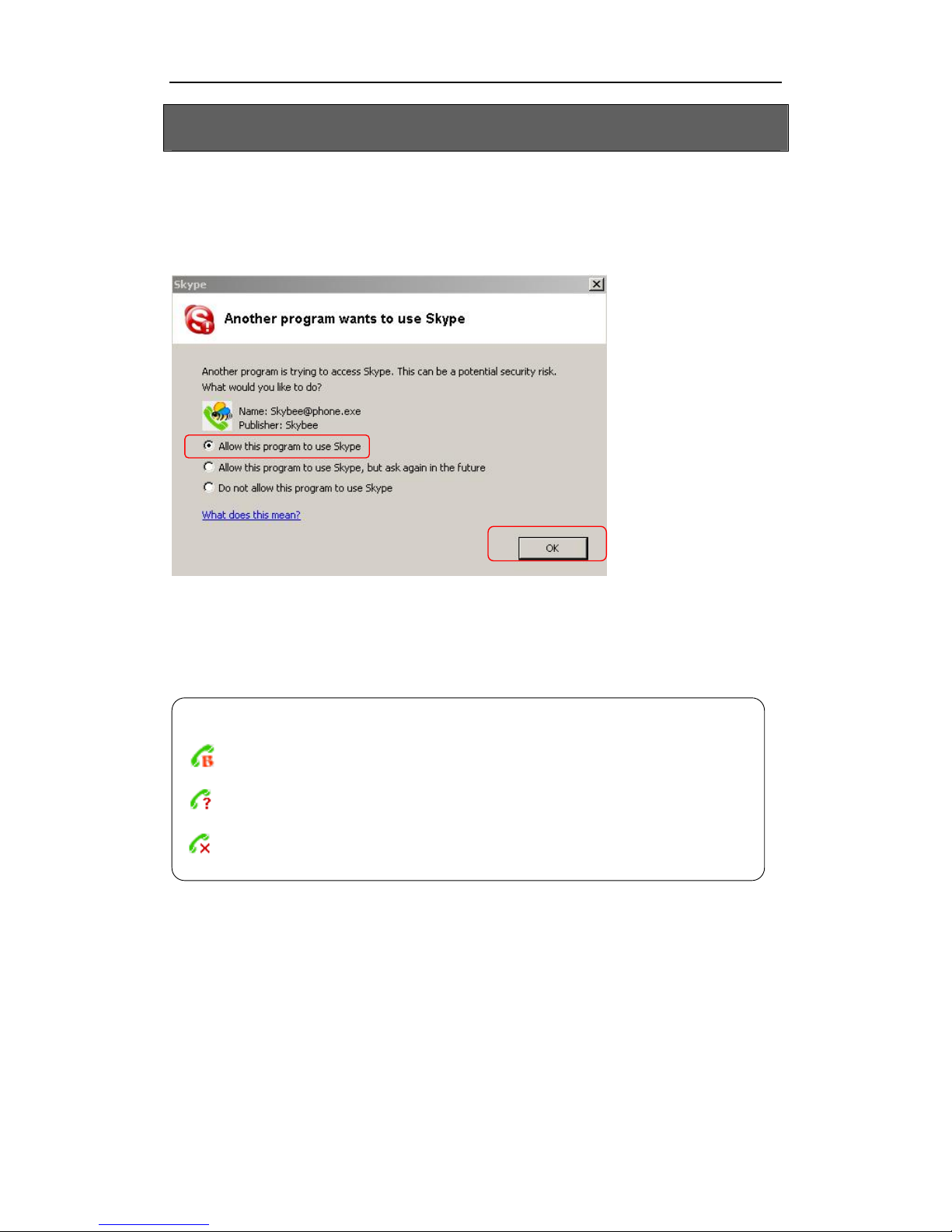

If Skype@phone is run for the first time, Skype™ will pop up the following
window. Please select “Allow this program to use Skype” as the
illustration shown below:
Now you are ready to make/receive calls with the USB phone.
The indications of tray icon for USB phone driver
The USB Phone works normally.
The USB phone fails to communicate with SkypeTM. (Please refer to “Trouble Shooting
in this manual”)
The USB phone fails to communicate with your computer. (Please refer to “Trouble
Shooting” in this manual.)
Page 7
User Manual USB Phone SX-06
- 7 - Version 0.9.1.1 2005-8-18
USB Phone Test

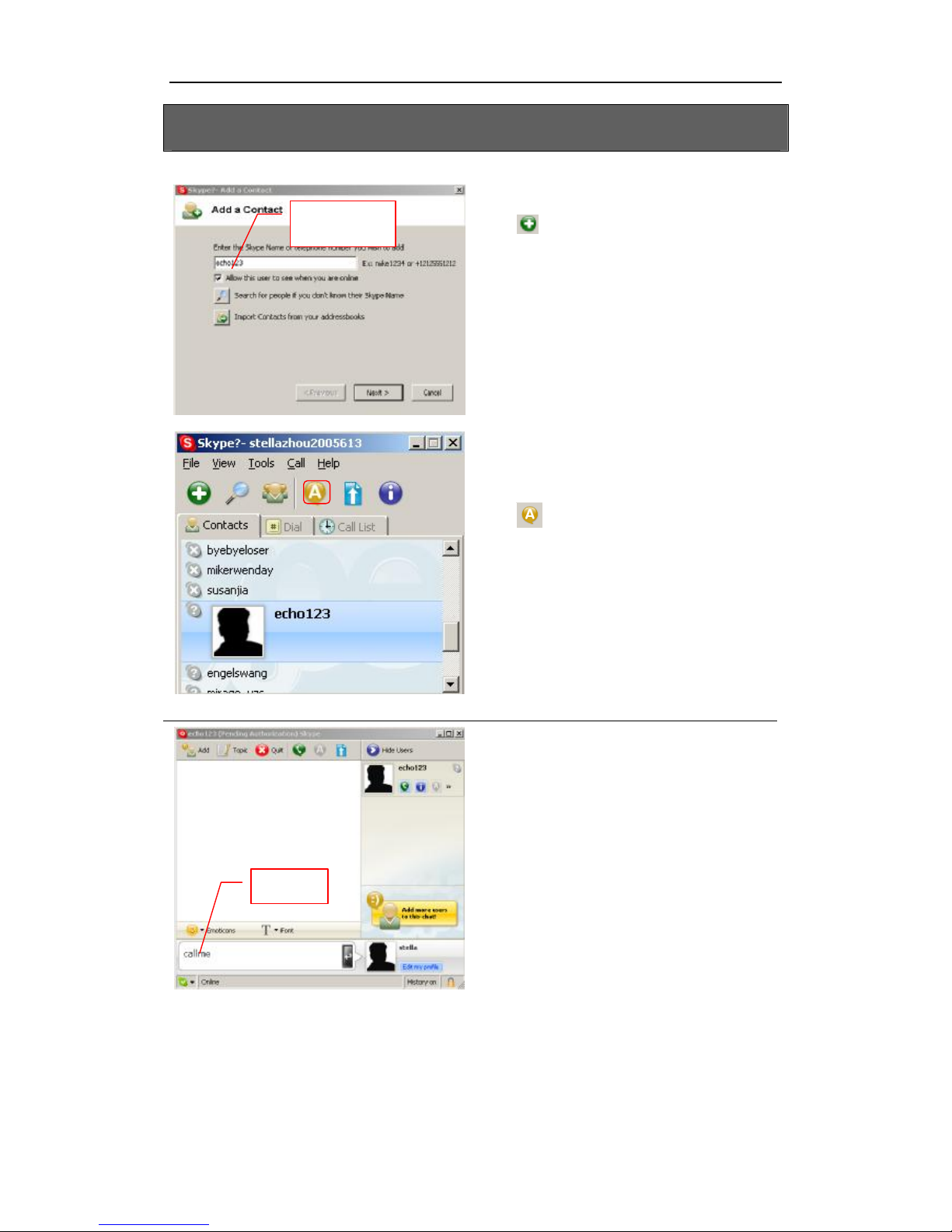

To test your USB phone, please click the
icon to add echo123 to your Skype
Contacts.
After adding Echo123 to your Skype
Contacts, start chat with him by clicking the
icon .
Input “callme” and press “Enter” on your
keyboard.
echo123
callme
Page 8
User Manual USB Phone SX-06
- 8 - Version 0.9.1.1 2005-8-18
USB Phone Test

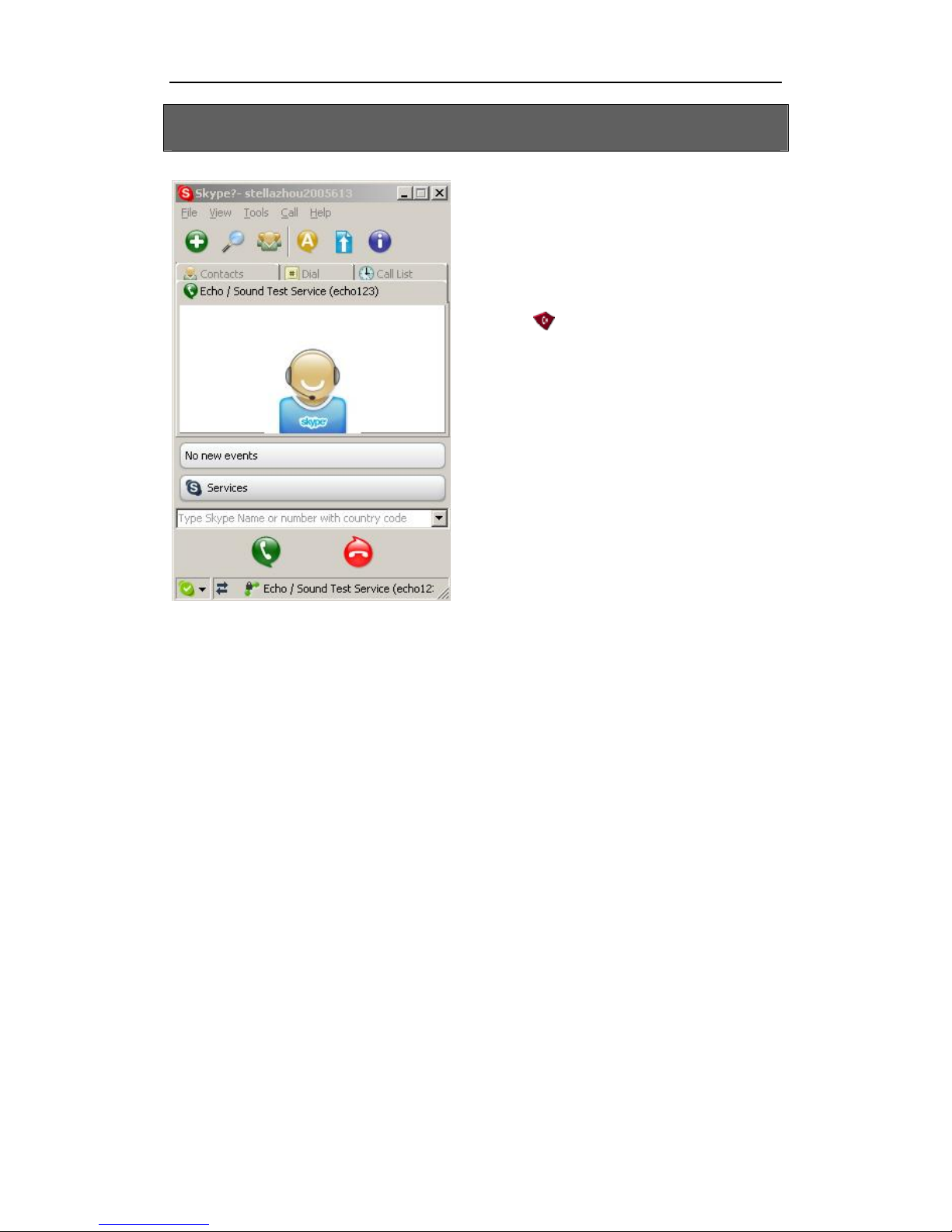

Wait for a moment and echo123 will call you
soon.
If the USB Phone has been correctly
connected to the PC, you will hear the melody
ring tone. You can receive this call by
pressing (“Dial/Answer”).
Page 9
User Manual USB Phone SX-06
- 9 - Version 0.9.1.1 2005-8-18
Update the USB Phone Driver
Please remember to update the USB phone driver regularly. You can
follow this guideline here:

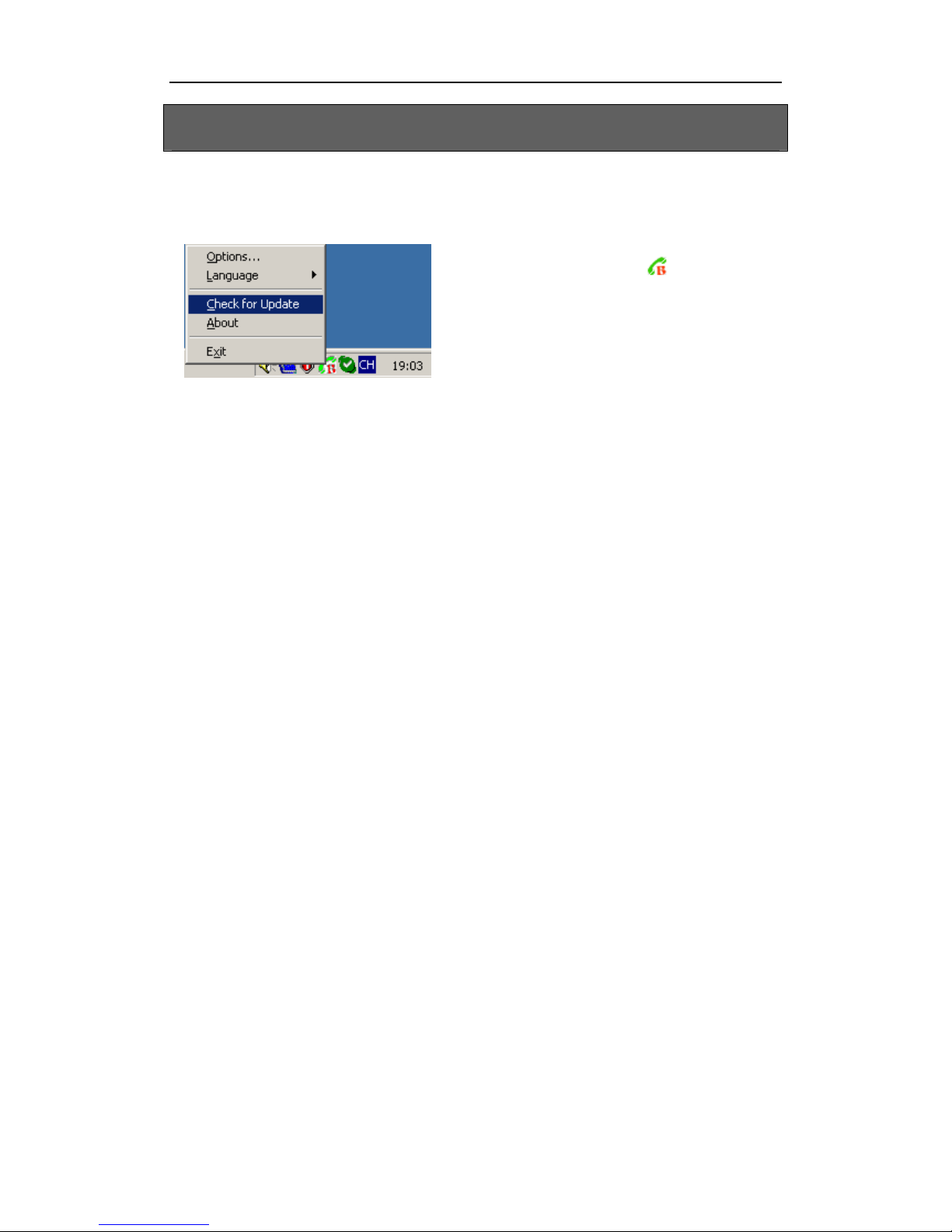

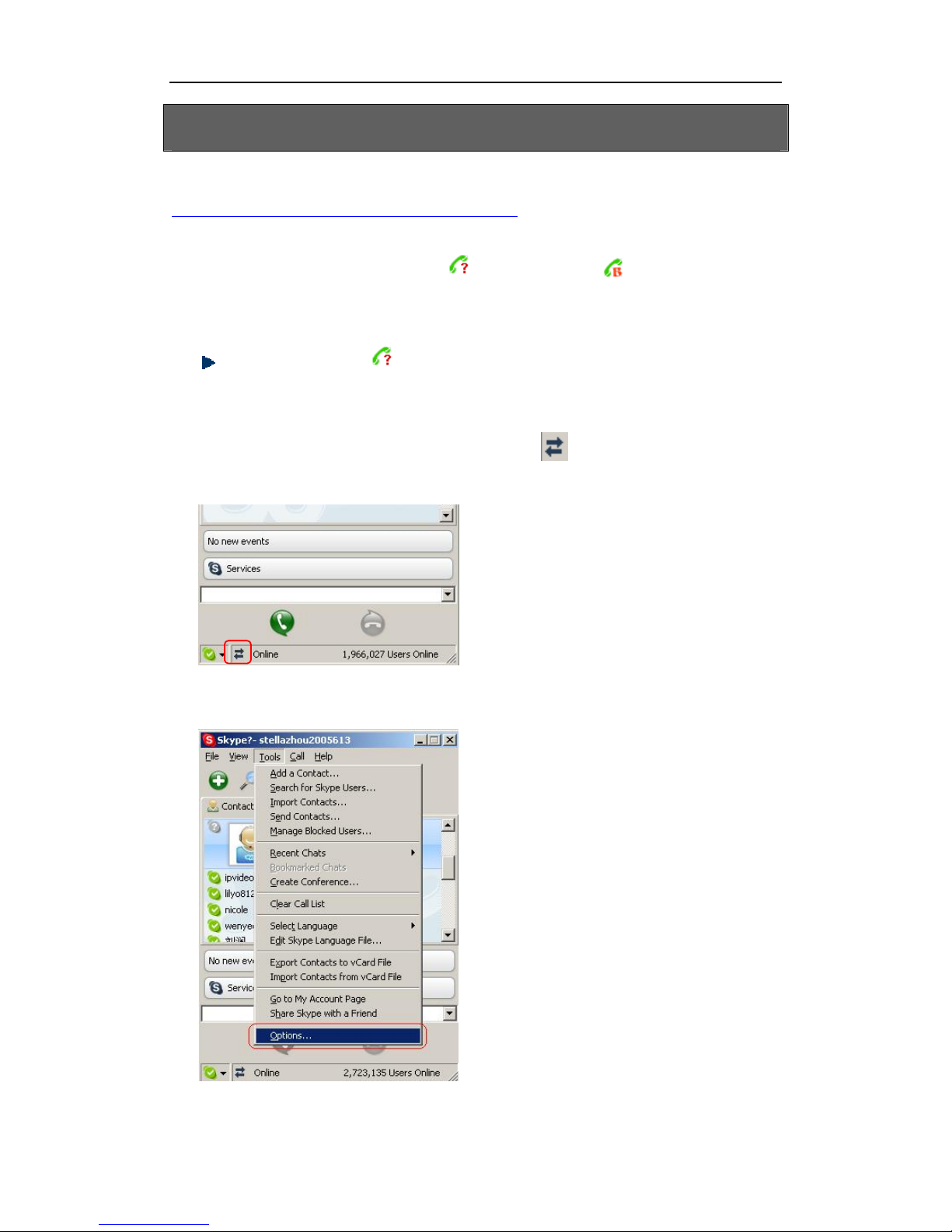

Right click the icon and choose
“Check for Update”.
Page 10
User Manual USB Phone SX-06
- 10 - Version 0.9.1.1 2005-8-18
General Functions
² Make a Skype call
Use / (“Up/Down”) on your phone to scroll up/down and select the
contact that you wants to call, and then press (“Dial/Answer”).
² Make a SkypeOut call
Directly press (“#/+”) + “country code” + “city code” + “phone
number”.
Examples:
(Here we use the country code "1" for calling USA): +1 555 1234567
If you dial a wrong number, please press
C
(“Clear”) to clear it.
If you input a wrong number, please press to clear it.
² Receive a Skype call
Press (“Dial/Answer”) to receive calls.
² End a call
Press (“End Calls”) to end a call.
² Set the USB phone Mute
Press (“Mute”) to set the phone mute during a call. (When the phone
has been set mute, the green Status LED will flash slowly.)
Note: For more detailed usages of making a SkypeOut call, please visit Skype’
s official
website: http://www.skype.com.
Page 11
User Manual USB Phone SX-06
- 11 - Version 0.9.1.1 2005-8-18
General Functions
² Select your favorite melody

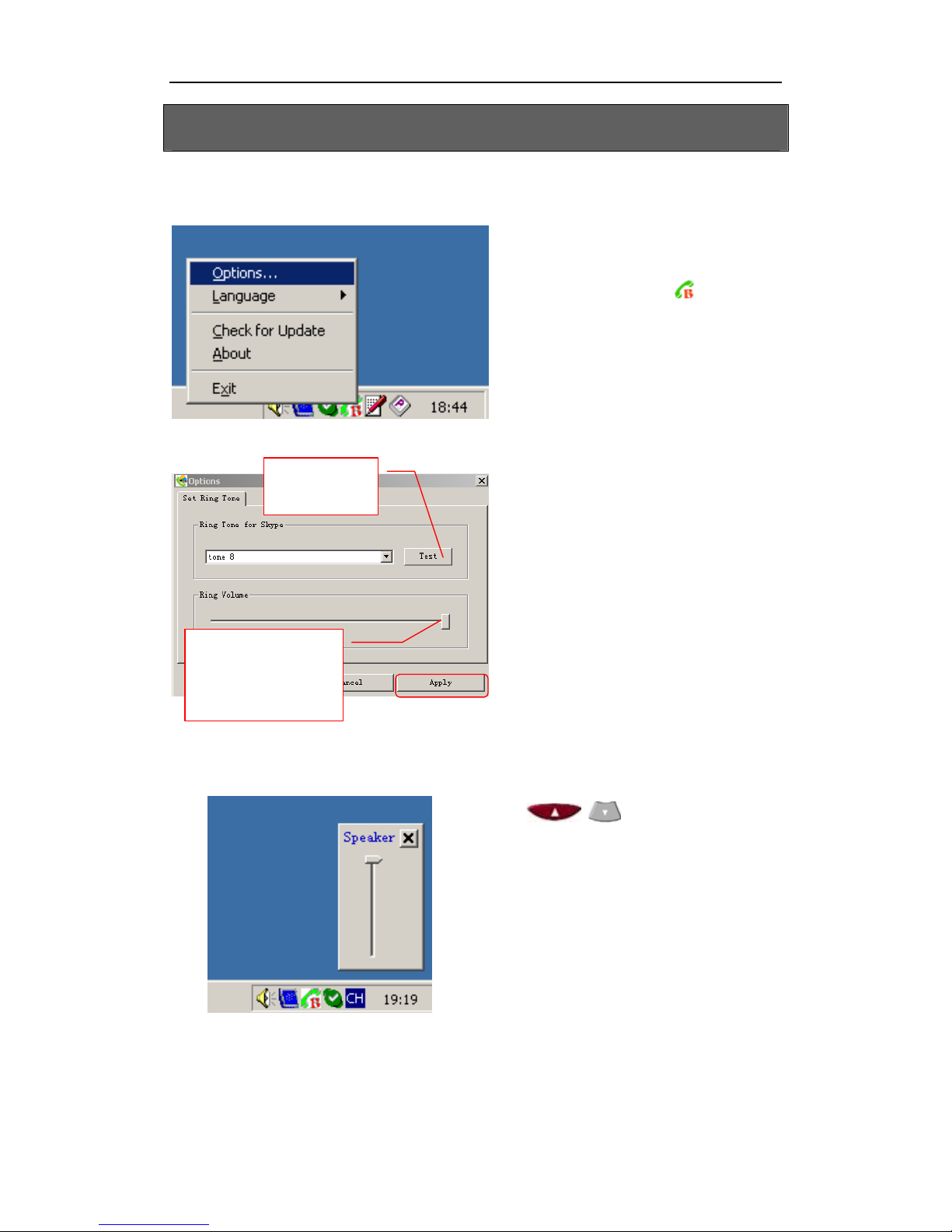

To select your favorite melody, please
right click the tray icon and choose
“Options”.
Then, you will see this window in which
you can select or test melodies, as well as
adjust the volume of melody.
² Adjust the Volume
Press / (“Up”/”Down”) to turn
up/down the volume for the USB phone
during a call.
Click here to
test melody
Move the indicator
bar to adjust the
volume for ringer.
Page 12
User Manual USB Phone SX-06
- 12 - Version 0.9.1.1 2005-8-18
Trouble Shooting
For latest information about the Trouble Shooting and the FAQ, please visit
http://www.phoneskype.com/support.htm
Q1: Why did I see the icon rather than in the taskbar?
What’s wrong with the driver software?
If you see the icon ,
1) please check whether SkypeTM is running at the moment. If not so, please
run SkypeTM;
2) please check whether you can see the icon in the SkypeTM Windows
if SkypeTM is running.
But if you cannot see this icon, please follow the steps:
Step1: “Tools” —“Options”.
Page 13
User Manual USB Phone SX-06
- 13 - Version 0.9.1.1 2005-8-18
Trouble Shooting

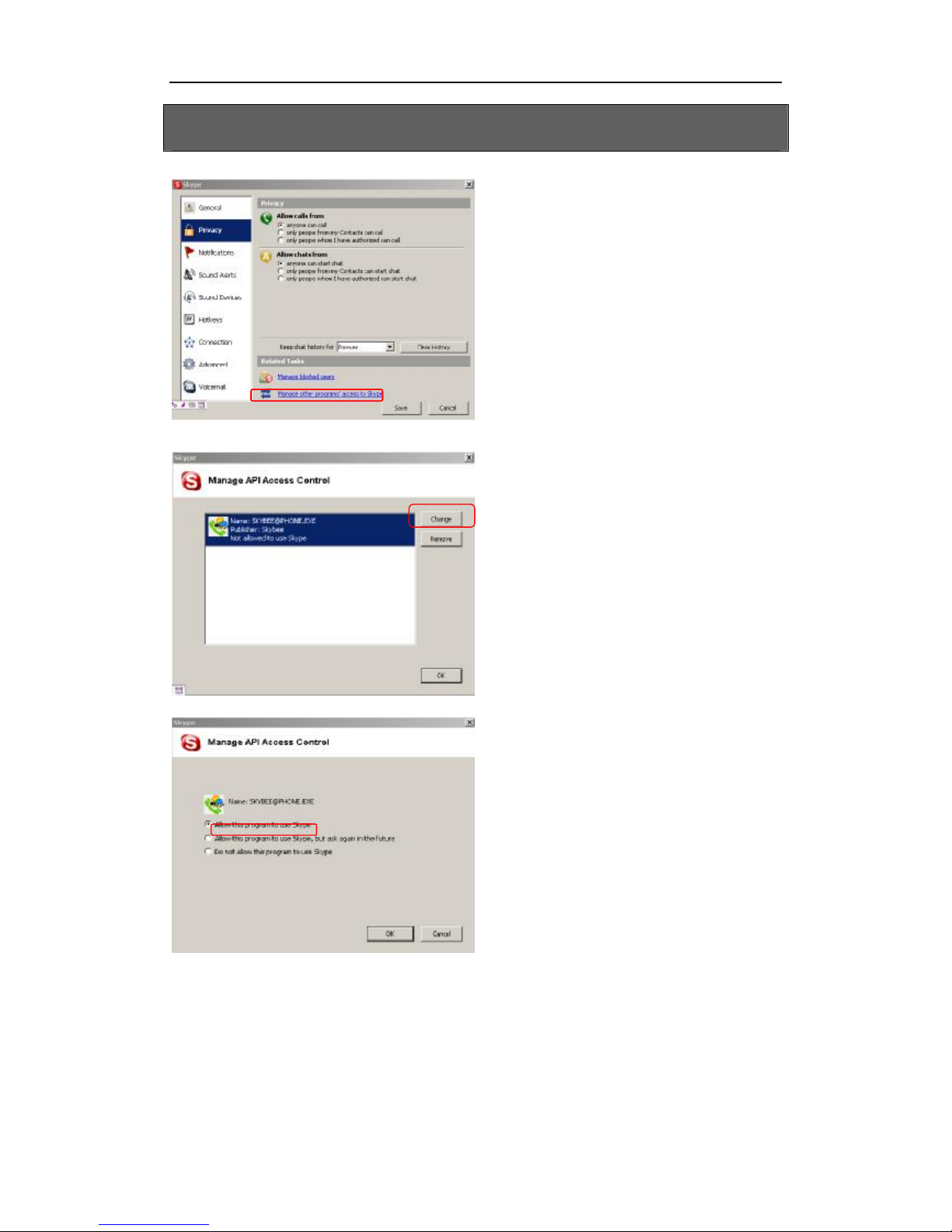

Step 2: “Privacy”--“Related Task:
Manage other program’s access to
Skype”.
Step 3: Choose “Change”
Step 4: Choose “allow this program to
use Skype”
Page 14
User Manual USB Phone SX-06
- 14 - Version 0.9.1.1 2005-8-18
Q2: After turning on the computer, I see the icon . Why?
There are two possible causes if you see the icon :
1) The USB phone fails to communicate with your PC. Please check whether the
USB port is in a normal state.
2) The USB phone fails to work normally in Windows. You may need to reinstall
the device driver. Please follow the steps below:
“Start”—“Setting”—“Control Panel”—“System”—“Hardware”—“Device Manager”

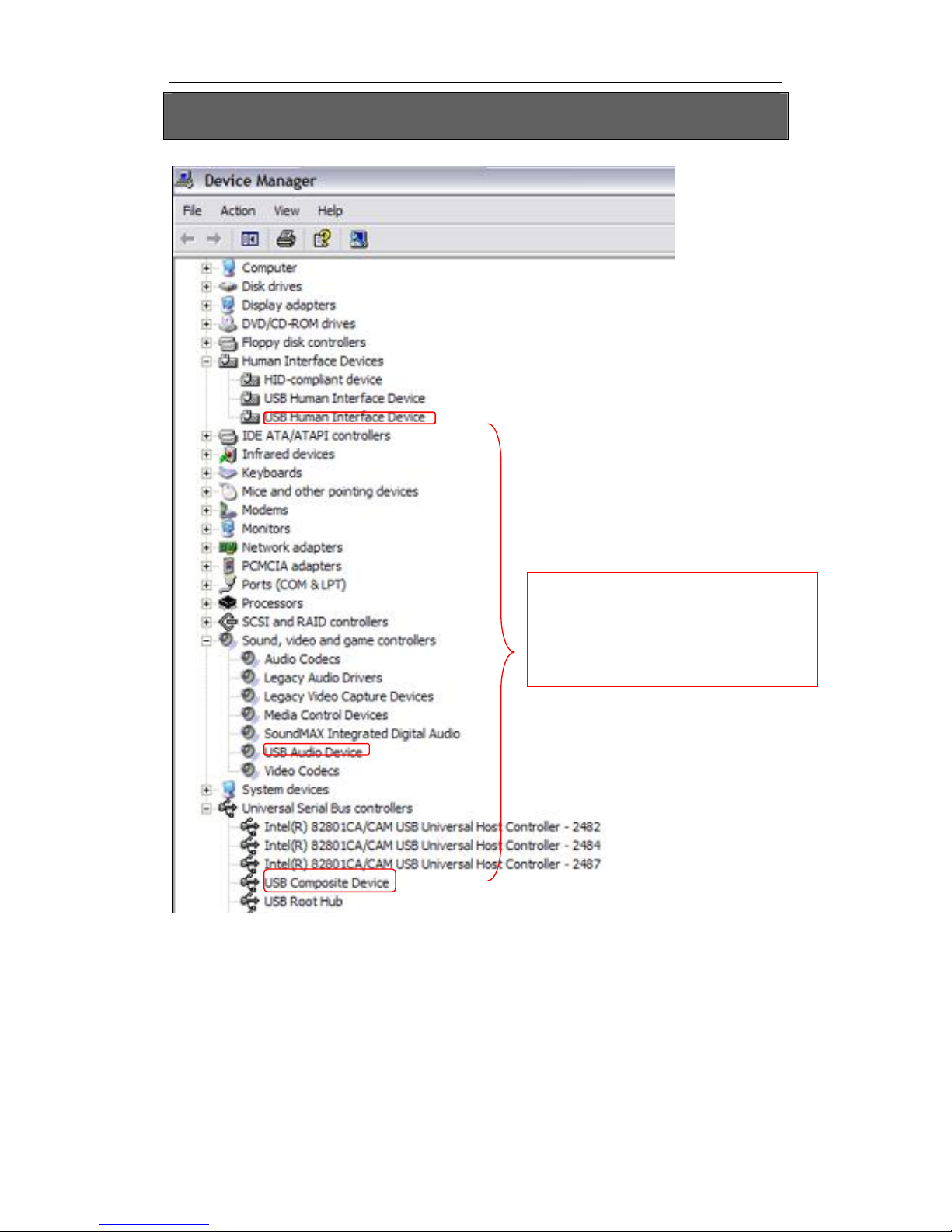

Then, you will see the following window. Please check whether these three
devices below are in a normal state.
“USB Human Interface Device”,
“USB Audio Device”
“USB Composite Device”
Trouble Shooting
Page 15
User Manual USB Phone SX-06
- 15 - Version 0.9.1.1 2005-8-18
Trouble Shooting
If there is
a question mark or an
exclamation mark
with one of these
devices, please follow the guideline
below.
Page 16
User Manual USB Phone SX-06
- 16 - Version 0.9.1.1 2005-8-18
Trouble Shooting

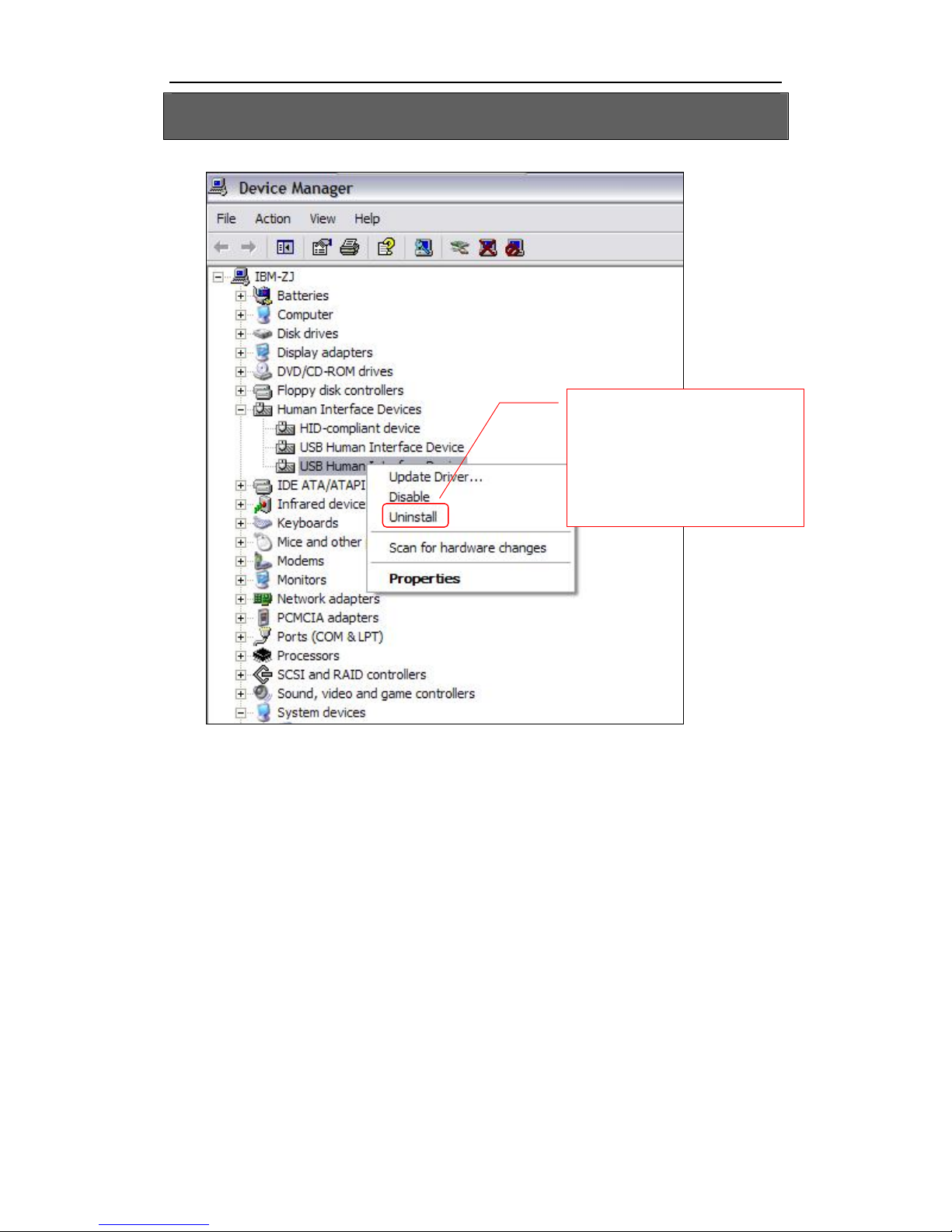

Right click the device and
choose “Uninstall”
. Then
REPLUG THE USB PHONE
into
the USB port. Windows will
reinstall the device driver.
