User Manual for USB Phone with LCD
- 1 - Version 2.0.0.0 2006-11-27
Unpacking 2
Learn About Your Phone 3
Overview 3
Host System Requirements 3
Specifications 3
Phone Layout 4
Keypad Instructions 5
LCD Icons Instructions 5
Getting Started 6
Step 1: Install the Latest VoIP Applications 6
Step 2: Install the Latest SkyU2M Driver 6
Step 3: Connect the USB Phone to PC 7
Step 4: Activate a Needed VoIP Application 7
Step5: Set the Intelligent Router for SkypeOut 8
Update the USB Phone Driver 10
The Call Functions 11
Make a VoIP call 11
Make a SkypeOut call 11
Receive a VoIP call 12
End a call 12
Other Functions 12
Select a Chord Music Ring Tone 12
Adjust Volume for Speaker 12
Set LCD Display 13
Trouble Shooting 14
User Manual for USB Phone with LCD
- 2 - Version 2.0.0.0 2006-11-27
Unpacking
When you receive your USB phone, please check to make sure that your
package contains the following items:
One USB handset
One installation CD
Note:
This user manual is written for the SkyU2M driver version 2.0.0.3.
User Manual for USB Phone with LCD
- 3 - Version 2.0.0.0 2006-11-27
Learn About Your Phone
Overview
This is a high quality USB hand phone with LCD and chord music ring tones. The fully
functional keypad and the LCD screen enable you to make/receive Skype calls
without using mouse and keyboard. Just plug it into your PC or laptop, and then you
can enjoy the full features of Skype and many other popular VoIP applications such
as VoipButser, VoipStunt, VoIPCheap, VoipDiscount, SparVoip, Internetcalls, poivY,
WebCallDirect, VoipCheapCom, FreeCall and NetAppel.
Features:
l Seamlessly integrated with Skype, VoipButser, VoipStunt, VoIPCheap,
VoipDiscount, SparVoip, Internetcalls, poivY, WebCallDirect,
VoipCheapCom, FreeCall and NetAppel.
l Monochrome 128*64 pixel LCD supports all kinds of languages
l VoIP Contact List, Call List, time, and Call status displayed on LCD screen
l Various chord music ring tones catering to different tastes.
l Fully functional keypad and LCD screen enables you to make/receive calls
without using keyboard and mouse.
l Intelligent router for SkypeOut.
l Rings loudly on an incoming call.
l Acoustically isolated earpiece and microphone to eliminate echo.
l Full-duplex communication with crystal clear sound.
l USB interface PnP. No external power/sound card needed.
Host System Requirements
ü Microsoft Windows 2000/XP.
ü Pentium 400MHz above processor/128MB RAM/16MB free hard disk capacity.
ü One USB port available.
ü Internet connection (ADSL, Cable Modem, Dial-Up, Wireless LAN).
Specifications
Weight 155g
Dimensions 125mm* 50mm* 26mm
Physical Connection USB 1.1
LCD 29mm*13.5mm 128*64 Pixel
Voltage 4~5.25 V
Operating Humidity 5~95%RH
Operating Temperature
0~40℃
User Manual for USB Phone with LCD
- 4 - Version 2.0.0.0 2006-11-27

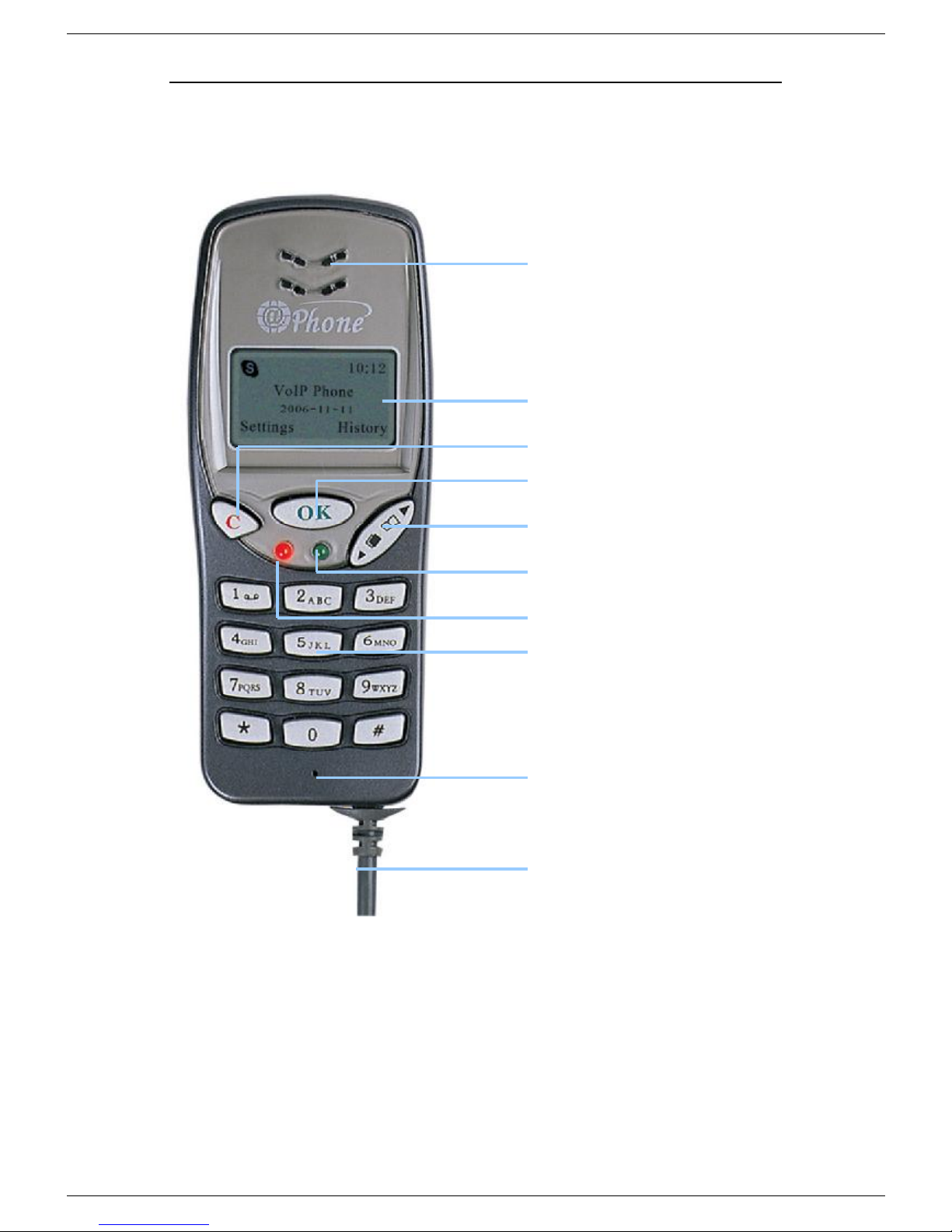

Phone Layout
Speaker
Microphone
Numbers
Up/Down Key
LCD Screen
USB Cable
Cancel/End Key
Ok/Answer Key
Status LED
Power LED
User Manual for USB Phone with LCD
- 5 - Version 2.0.0.0 2006-11-27
Keypad Instructions
Key Instructions
Scroll up/down a list; Adjust volume for speaker during a call
Answer/Make a VoIP call
End/Cancel a VoIP call; back to the standby mode

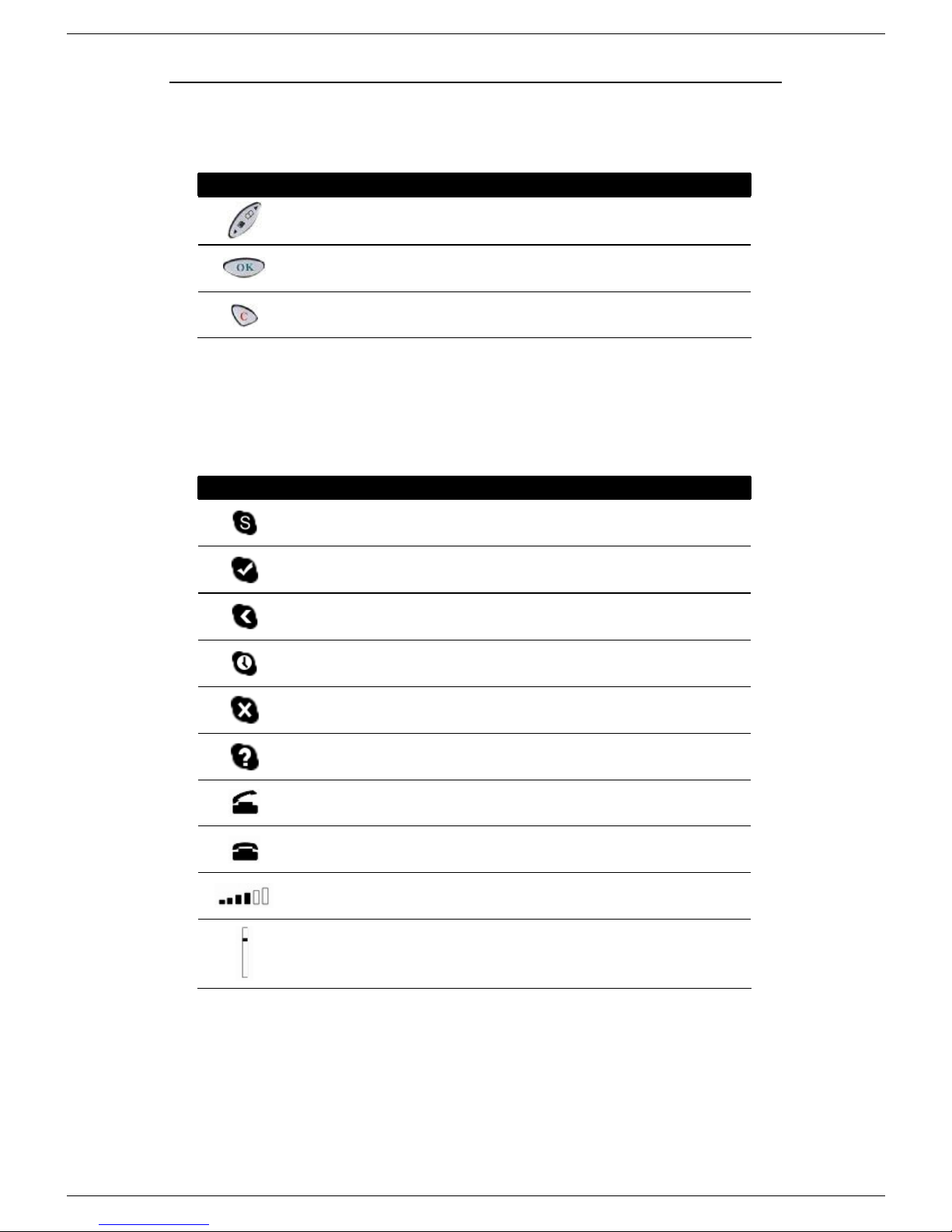

LCD Icons Instructions
Icons Instructions
Skye Contact
Online status
Unavailable status
Away status
Offline status
Not sharing contact details
The call has been connected
The call has been disconnected
Volume value
The black bar shows the browsing position in the menu
User Manual for USB Phone with LCD
- 6 - Version 2.0.0.0 2006-11-27
Getting Started
Step 1: Install the Latest VoIP Applications
The latest version of Skype (Version 2.0 or above) is strongly recommended. You
can download it from Skype’s official website:
http://www.skype.com/download/skype/windows/
Other VoIP applications can be downloaded in the following websites:
VoipBuster http://www.voipbuster.com/en/download.html
VoipStunt http://www.voipstunt.com/en/download.html
VoIPCheap http://www.voipcheap.co.uk/en/download.html
VoipDiscount http://www.voipdiscount.com/en/download.html
SparVoip http://www.sparvoip.de/de/download.html
Internetcalls http://www.internetcalls.com/en/download.html
NetAppel http://www.netappel.fr/fr/download.html
FreeCall http://www.freecall.com/en/download.html
WebCallDirect http://www.webcalldirect.com/en/download.html
VoipCheapCom http://www.voipcheap.com/en/download.html
Poivy http://www.poivy.com/en/download.html
Step 2: Install the Latest SkyU2M Driver
You can insert the supplied installation CD into your PC or download the latest
version of SkyU2M driver from www.SkyU2M.com .
When the SkyU2M driver runs for the first time, Skype will pop up the following
window. Please select “Allow this program to use Skype” as the illustration shown
below:
User Manual for USB Phone with LCD
- 7 - Version 2.0.0.0 2006-11-27
Step 3: Connect the USB Phone to PC
The hardware installation is very simple. All you need to do is to connect the USB
phone to the USB port on your PC. The LCD screen will show as below:
Now can see a green icon in the task bar which indicates you are ready to
make/receive calls with the USB phone.
Driver Icons
Indications
The USB Phone works normally.
The USB phone fails to communicate with Skype. (Please
refer to “Trouble Shooting” Q1 in this manual)
The USB phone fails to communicate with your computer.
(Please refer to “Trouble Shooting” Q2 in this manual.)
Step 4: Activate a Needed VoIP Application
① Right click the driver icon and “Active VoIP”, and choose the application
that you want to use.
User Manual for USB Phone with LCD
- 8 - Version 2.0.0.0 2006-11-27
Step5: Set the Intelligent Router for SkypeOut
There are some other famous VoIP applications except Skype providing cheaper or
free VoipOut service for subscribers. The “Intelligent Router for SkypeOut” is
designed for you to enjoy this cheaper or free VoipOut services when you make a
SkypeOut calls. You can set the “Intelligent Router for SkypeOut” as follows:

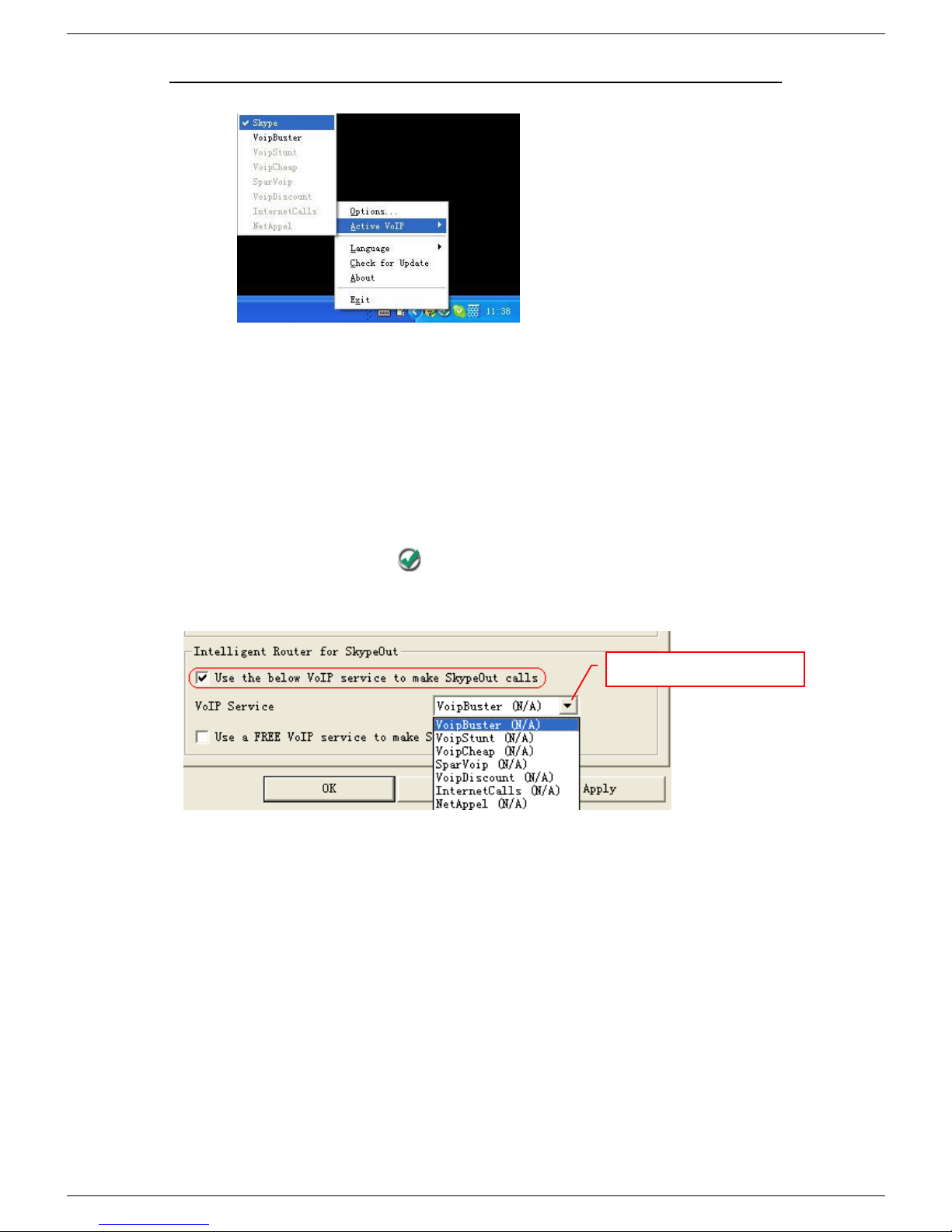

Right click on the driver icon , choose “Options” and go to “VoIP Application”
panel.
Now whenever you make a SkypeOut call, the call will be routed to the selected
VoIP service automatically.
To make a free VoIP calls, you can click “Use a FREE VoIP service to make
SkypeOut calls”. If the free VoIP service is unavailable, the SkypeOut calls will be
made thru SkypeOut service.
Select a VoIP service
User Manual for USB Phone with LCD
- 9 - Version 2.0.0.0 2006-11-27

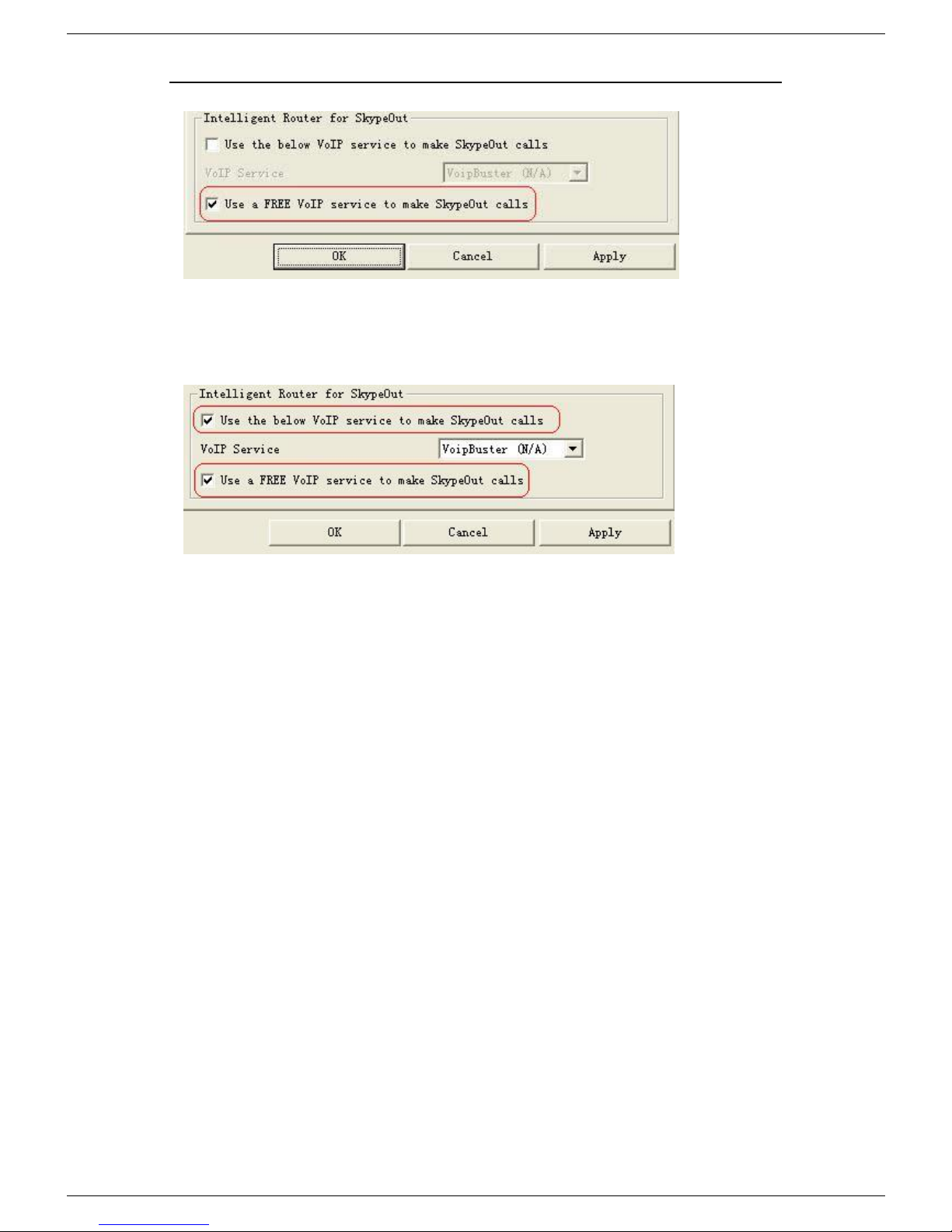

If you click both “Use a FREE VoIP service to make SkypeOut calls” and “Use the
below VoIP service to make SkypeOut calls”, the SkypeOut calls will be routed to
the selected VoIP service if the free VoIP service is unavailable.
User Manual for USB Phone with LCD
- 10 - Version 2.0.0.0 2006-11-27
Update the USB Phone Driver
Please remember to update the USB phone driver regularly. You can follow this
guideline here:

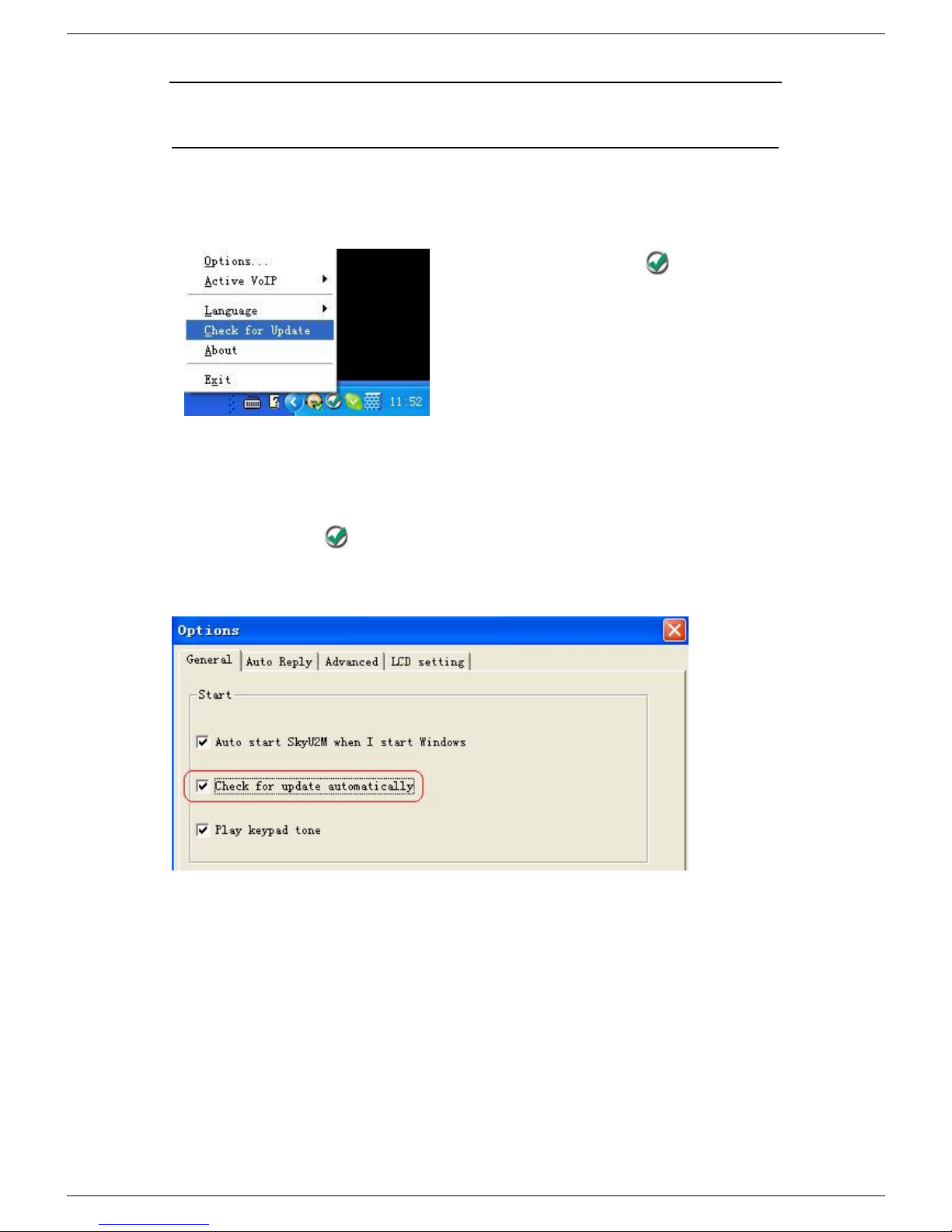

Right click the icon and choose
“Check for Update”.
Or you can enable your driver to check for update automatically in the driver ’s
panel as follows:
① Right click the icon , and choose “Options”.
② Go to “General” panel and choose “Check for update automatically”.
User Manual for USB Phone with LCD
- 11 - Version 2.0.0.0 2006-11-27
The Call Functions
Make a VoIP call

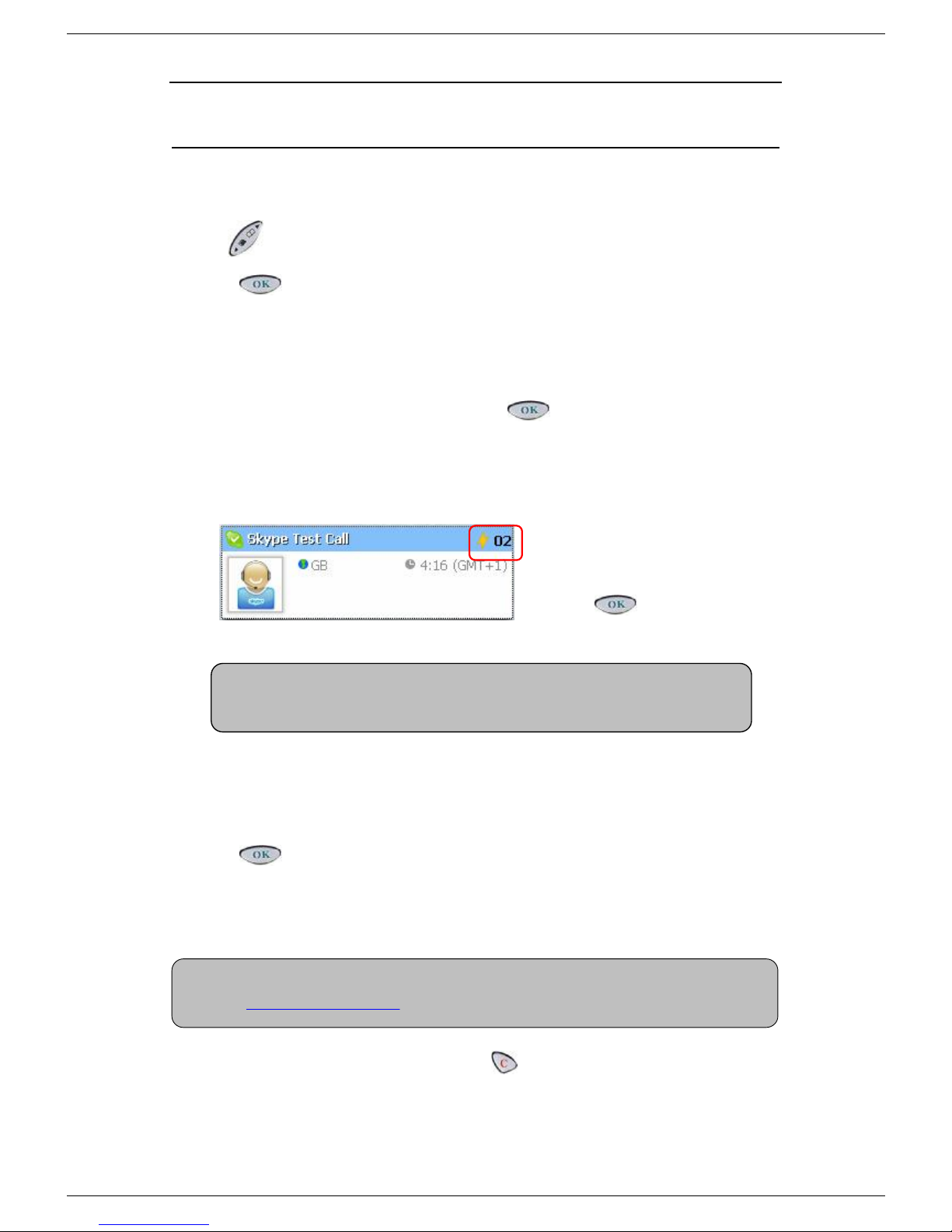

① Use on your phone to scroll up/down and select the contact.
② Press to make the call.
Note:
Or you can use Speed-dial number to make calls.
Dial the Speed-dial number and press on the phone keypad to make
the call.
Example:
Supposed you want to make
calls to this Skype contact.
Please dial:
“02” +
Make a SkypeOut call
① Directly press “00” + “country code” + “city code” + “phone number”.
② Press to make the call.
Examples:
(Here we use the country code "1" for calling USA): 00 1 555 1234567
If you dial a wrong number, please press
C
(“Clear”) to clear it.
If you input a wrong number, please press to clear it.
Note: For more detailed usages of making a SkypeOut call, please visit Skype’s official
website: http://www.skype.com.
Note: For how to assign Speed Dial for your contacts, please refer to “Trouble
Shooting” Q4 in this manual.
User Manual for USB Phone with LCD
- 12 - Version 2.0.0.0 2006-11-27
Receive a VoIP call
Press to receive calls.
End a call
Press to end a call.
Other Functions
Select a Chord Music Ring Tone

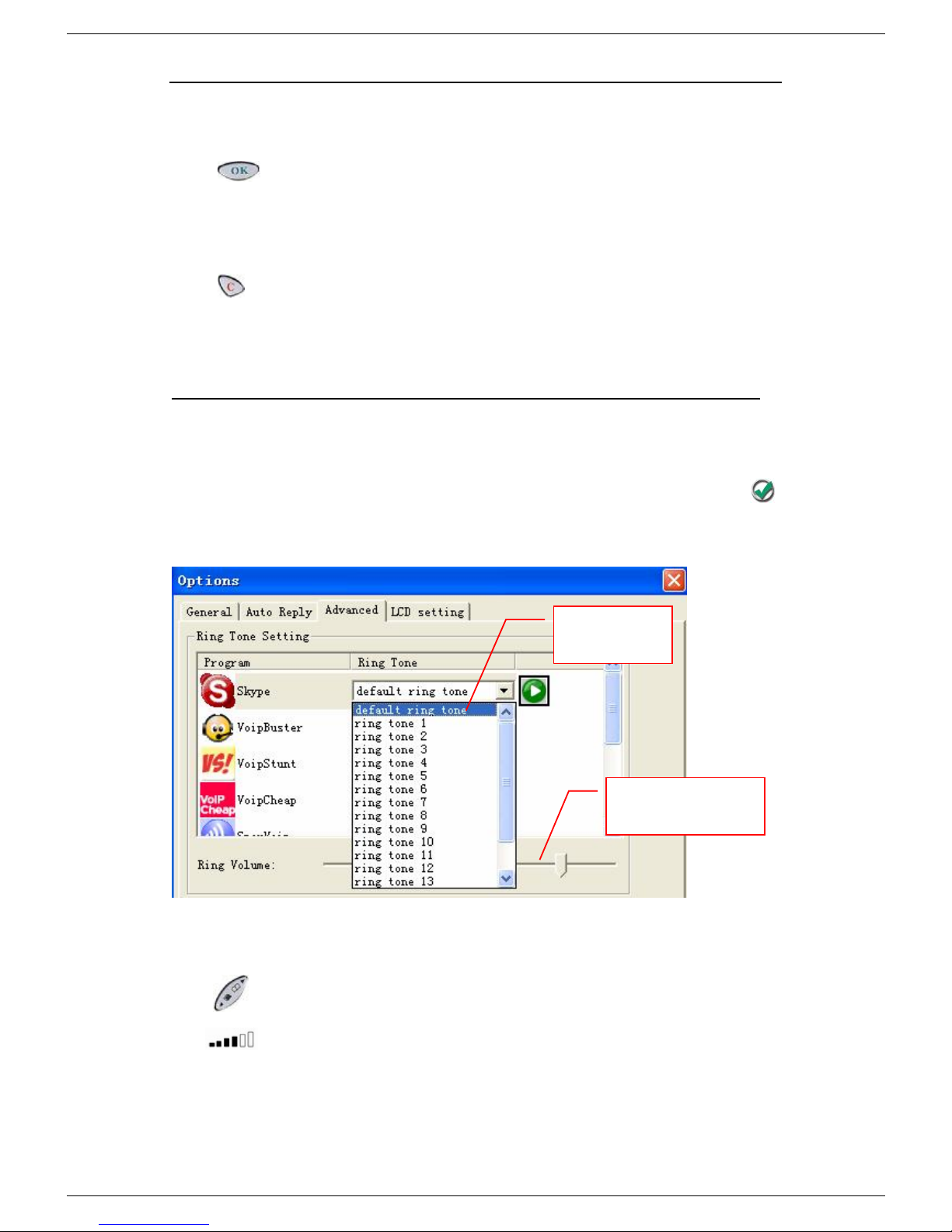

To select your favorite chord music ring tone, please right click the tray icon ,
choose “Options” and go to “Advanced” panel.
Adjust Volume for Speaker
Press to adjust the volume for speaker during a call. You can see the volume status
icon in the LCD screen on your phone
Select a ring
tone here
Adjust the volume
for ring tone here
User Manual for USB Phone with LCD
- 13 - Version 2.0.0.0 2006-11-27
Set LCD Display

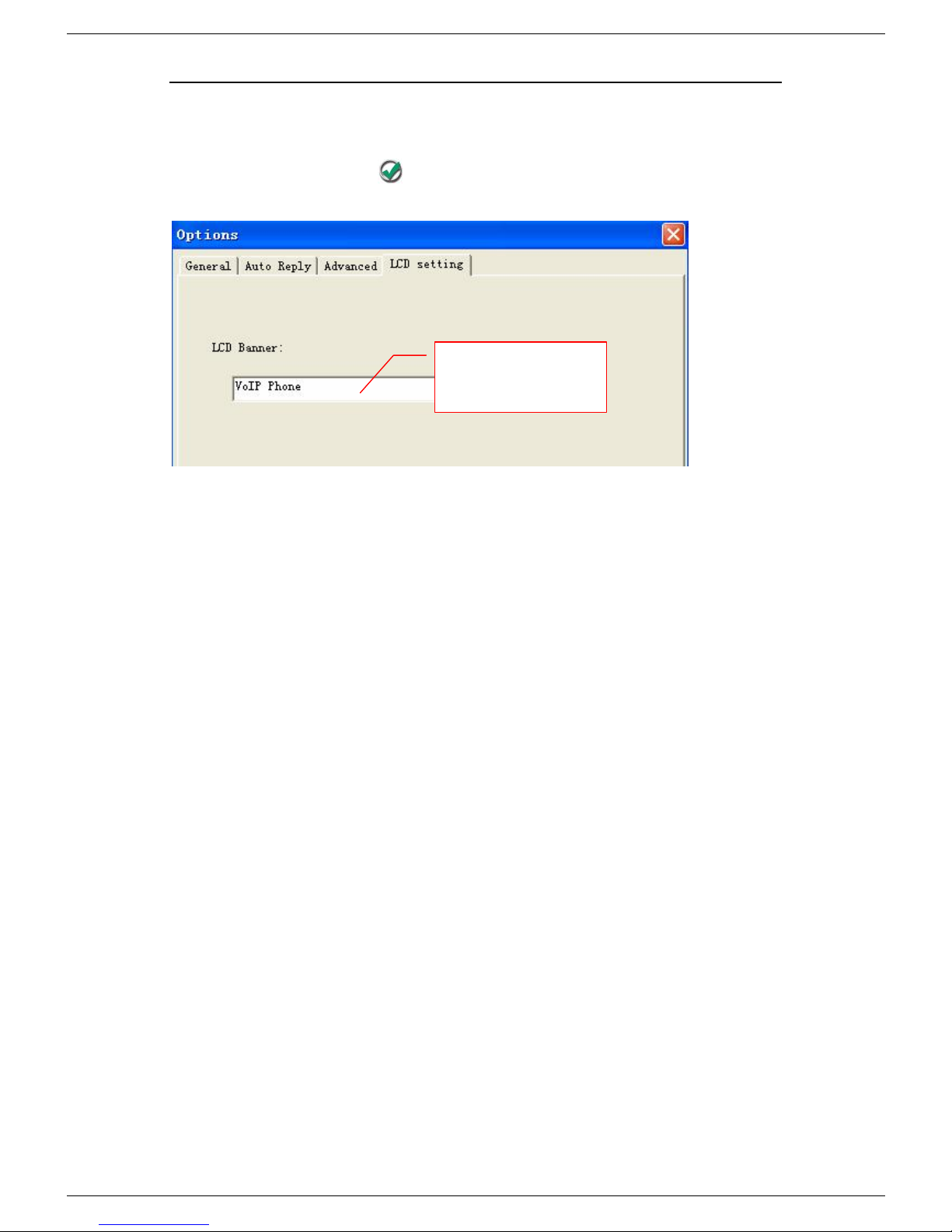

Please right click the tray icon , and choose “Options…”
Input the LCD greeting
information.
User Manual for USB Phone with LCD
- 14 - Version 2.0.0.0 2006-11-27
Trouble Shooting
For latest information about the Trouble Shooting and the FAQ, please visit
http://www.skyu2m.com/support.htm

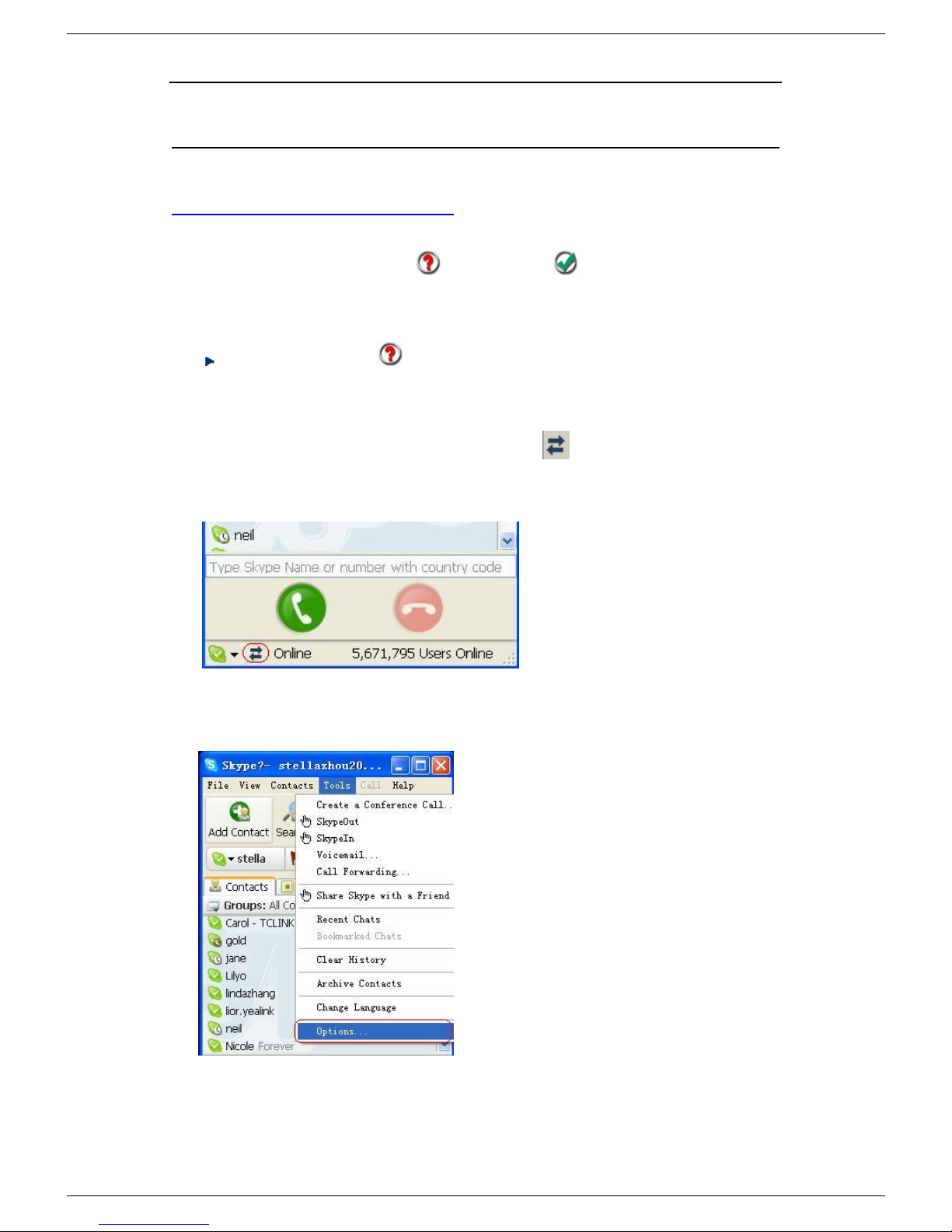

Q1: Why did I see the icon rather than in the taskbar? What’s
wrong with the driver software?
If you see the icon ,
1) please check whether you have run any VoIP software at the moment. If
not so, please run at least one VoIP software;
2) please check whether you can see the icon in the Skype Windows if
Skype is running.
But if you cannot see this icon, please follow the steps:

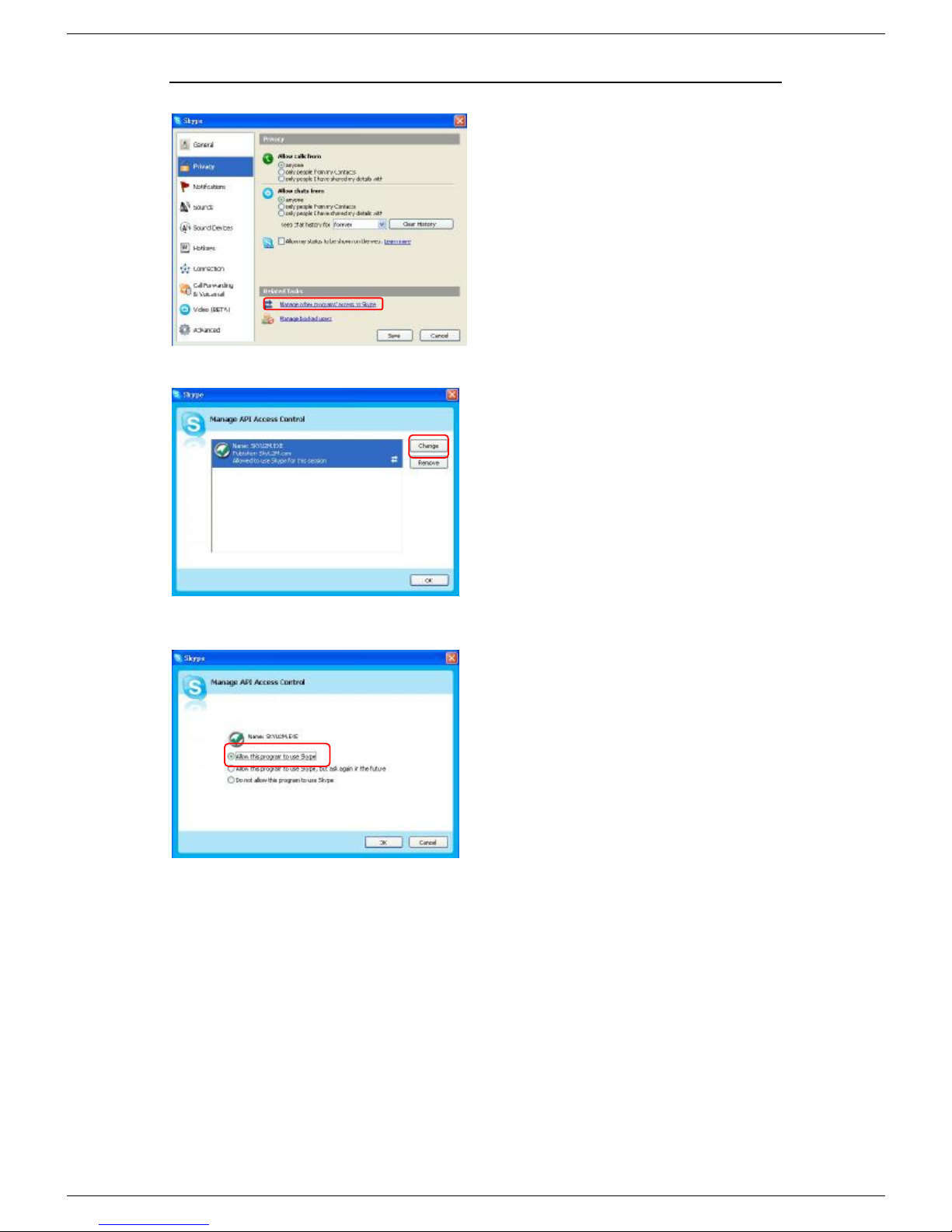

Step1: “Tools” —“Options”.
User Manual for USB Phone with LCD
- 15 - Version 2.0.0.0 2006-11-27
Step 2: “Privacy”--“Related Task:
Manage other program’s access to
Skype”.
Step 3: Choose “Change”
Step 4: Choose “allow this program to
use Skype”
User Manual for USB Phone with LCD
- 16 - Version 2.0.0.0 2006-11-27
Q2: After turning on the computer, I see the icon . Why?
There are two possible causes if you see the icon :
1) The USB phone fails to communicate with your PC. Please check whether the
USB port is in a normal state.
2) The USB phone fails to work normally in Windows. You may need to reinstall
the device driver. Please follow the steps below:
“Start”—“Setting”—“Control Panel”—“System”—“Hardware”—“Device Manager”

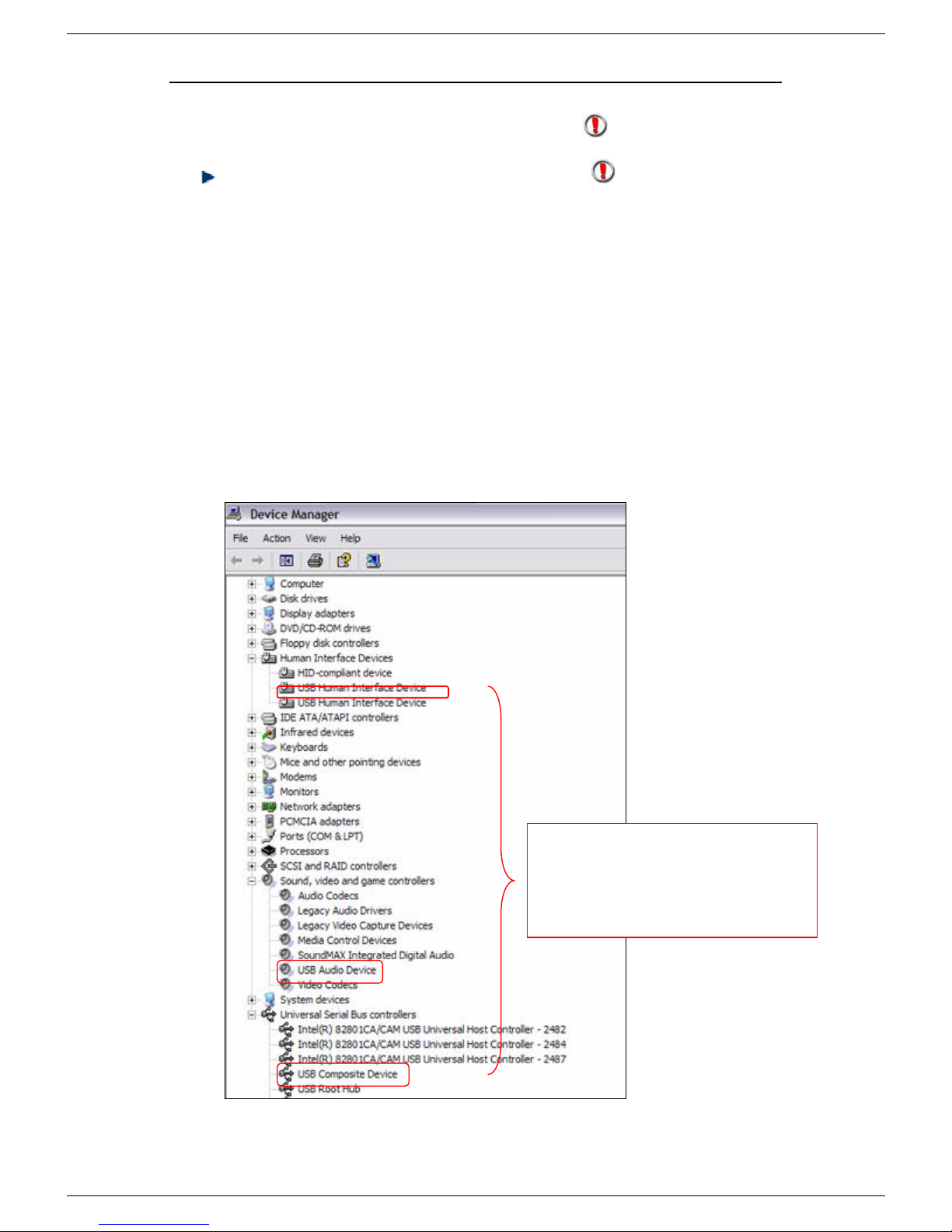

Then, you will see the following window. Please check whether these three
devices below are in a normal state.
“USB Human Interface Device”,
“USB Audio Device”
“USB Composite Device”
If there is a question mark or an
exclamation mark with one of these
devices, please follow the guideline
below.
User Manual for USB Phone with LCD
- 17 - Version 2.0.0.0 2006-11-27
Q3: When I plug in the USB phone, the music was played from the phone
also rather than from the PC's speaker. What should I do?
In this case, you must set your PC's sound card as the preferred audio
device by following the steps below:
"Start"---"Setting"---"Control Panel"---"Sound and Multimedia
Properties"---"Audio"---"Sound Playback"---select your PC's sound card to be
the preferred audio device.

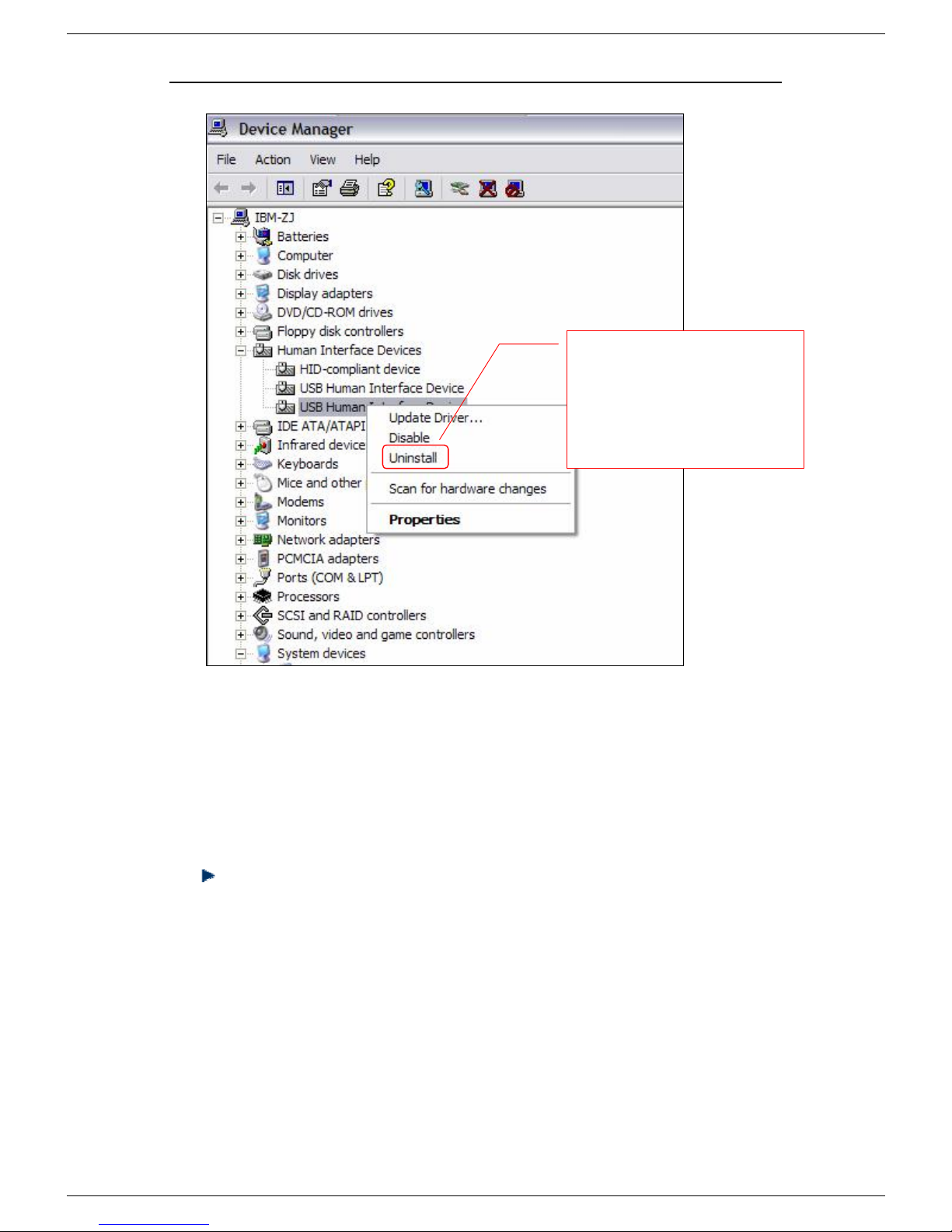

Right click the device and
choose “Uninstall”. Then
REPLUG THE USB PHONE into
the USB port. Windows will
reinstall the device driver.
User Manual for USB Phone with LCD
- 18 - Version 2.0.0.0 2006-11-27
Q4: How to assign a Speed-dial number for my contact?
You can assign Speed Dial number for the contacts directly on the related
VoIP application’s panel. Here we take Skype for example.

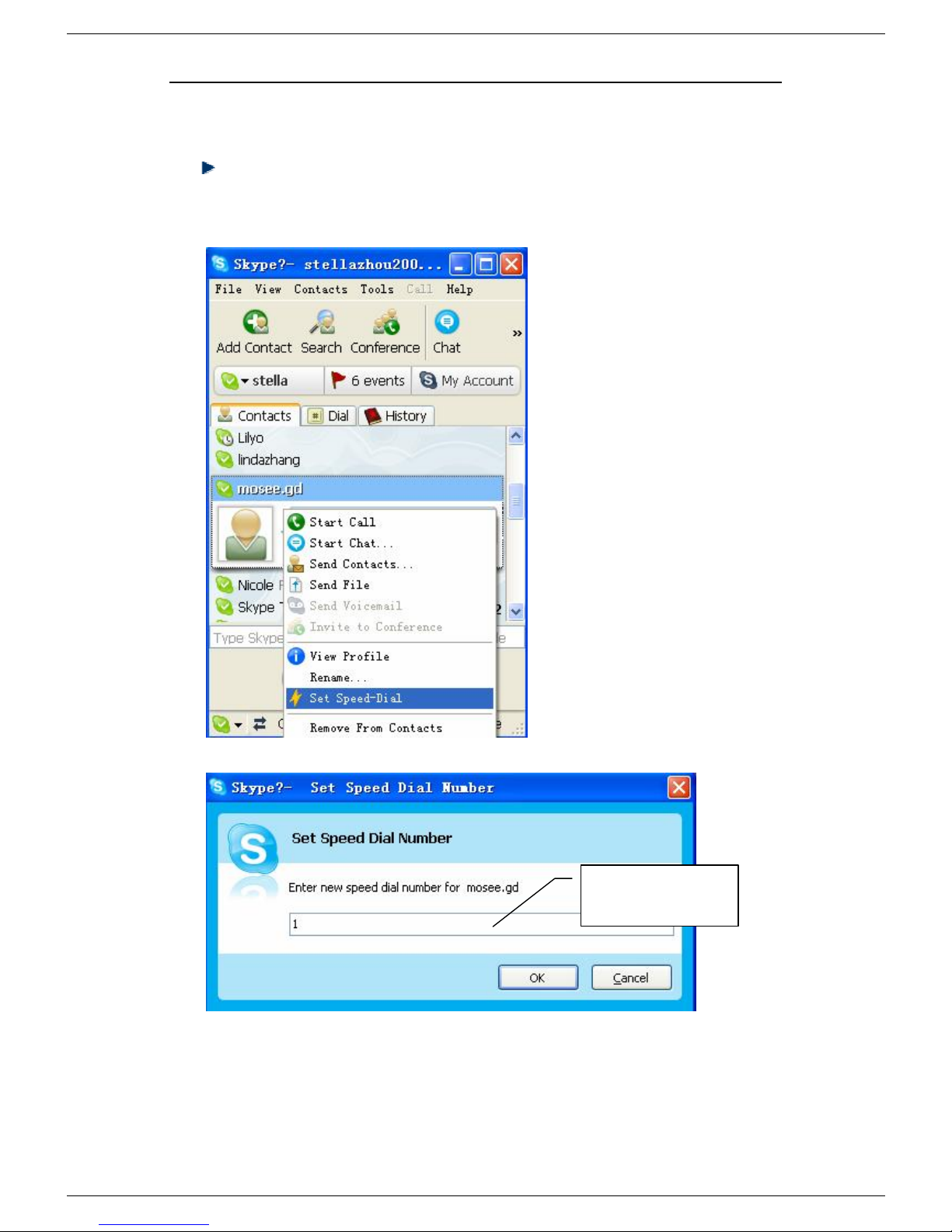

Right click on the selected
Skype contact and choose
“Set Speed-Dial”
Now you can use the Speed Dial number to make Skype calls.
Input the Speed
Dial number
Loading...
