SOLAR WALL PACK
TM
LUNE

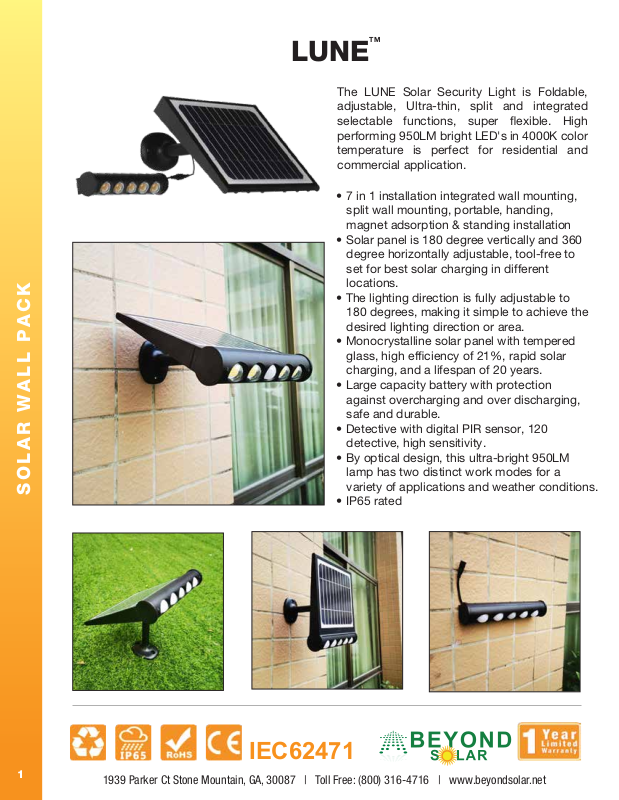

The LUNE Solar Security Light is Foldable,
adjustable, Ultra-thin, split and integrated
selectable functions, super flexible. High
performing 950LM bright LED's in 4000K color
temperature is perfect for residential and
commercial application.
• 7 in 1 installation integrated wall mounting,
split wall mounting, portable, handing,
magnet adsorption & standing installation
• Solar panel is 180 degree vertically and 360
degree horizontally adjustable, tool-free to
set for best solar charging in different
locations.
• The lighting direction is fully adjustable to
180 degrees, making it simple to achieve the
desired lighting direction or area.
• Monocrystalline solar panel with tempered
glass, high efficiency of 21%, rapid solar
charging, and a lifespan of 20 years.
• Large capacity battery with protection
against overcharging and over discharging,
safe and durable.
• Detective with digital PIR sensor, 120
detective, high sensitivity.
• By optical design, this ultra-bright 950LM
lamp has two distinct work modes for a
variety of applications and weather conditions.
• IP65 rated
IEC62471
1
1939 Parker Ct Stone Mountain, GA, 30087 | Toll Free: (800) 316-4716 | www.beyondsolar.net
Page 2
Specifications
TM
LUNE
Model # SKU # Power PV Type Solar Panel
AVS-SLS-
8W4
Model #. AVS-SLS-8W4
Power
Solar Panel
LED Type
Beam Angle
Charging Time
By Solar
IP Class
Solar Panel Cable
790107 8W MONO 4.5W 4000 mAH 950 LM 4000K
8W Lumens
4.5Wp, 5.5V Mono with
Tempered Glass
SMD2835*64pcs
120º
5~6 hours strong sunshine
to fully charge
IP65
9.8ft long
Lithium
Battery
Dimension 10.54 x 8.42 x 2.99 (Inches)
Battery Pack
CCT
RIP Sensor Range
Lighting Time
Working Temp
Housing Material
Lumens CCT Sensor
PIR
MOTION
950LM (Clear Lens)
18650/4000mAh/3.7V/14.8Wh,
replaceable
4000K
Detection angle: 120°
Detection area: 24ft
Mode A: 3~5 Nights
Mode B: 2~3 Nights
-4F - 122F
ABS+PC housing, Anti-UV,
V0 material for fire-proof
Beam
Angle
120° IP65
IP Rating
SOLAR WALL PACK
Installation Height
Packing
Dimension
Less than 13ft
Colorbox (1PC * Lamp, 2PCS * Screws with Flat & Spring Washers, 2PCS * Screws,
2PCS * Tape, 1PC*User Manual)
Warranty
2 years(battery 1 year warranty)
IEC62471
1939 Parker Ct Stone Mountain, GA, 30087 | Toll Free: (800) 316-4716 | www.beyondsolar.net
2
Page 3
Geometric Smart Design
Geometric Foldable Ultra-thin
TM
LUNE
180º
SOLAR WALL PACK
Adjustable
Bracket
3
1939 Parker Ct Stone Mountain, GA, 30087 | Toll Free: (800) 316-4716 | www.beyondsolar.net
IEC62471
Page 4
TM
LUNE
Multifunctional With Different Working Modes
Please rotate the lamp head and press the button to select working mode.
1. Press the button 1st time,the lamp turns on and enter Mode A.
2. Press the button 2
3. Press the button 3
nd
time,lamp shines once and turns to Mode B.
rd
time, lamp turns off
SOLAR WALL PACK
Mode A
When battery power is more than 30% :
Lamp automatically lights up at night and turns to
100% brightness when motion is detected in the
range ≤8mtrs, then dim to 5% brightness after 20
seconds of no motion.
When battery power is less than 30%:
Lamp automatically lights up at night and turns to
full brightness when motion is detected in the
range ≤8mtrs and then turn off after 20 seconds
of no motion
Mode B
Lamp automatically light up at night and keep 100% brightness, after 5 hours or when battery capacity is less than
30%, lamp turns to energy saving mode: Lamp automatically turns to 100% brightness when motion is detected
in the range ≤8mtrs, then turns off after 10 seconds of no motio
Kind Remind: When the lamp is not connected with solar panel, the light sensor
IEC62471
1939 Parker Ct Stone Mountain, GA, 30087 | Toll Free: (800) 316-4716 | www.beyondsolar.net
4
Page 5
TM
LUNE
GONIOPHOTOMETERS SYSTEM TEST REPORT
LUMINAIRE PHOTOMETRIC TEST REPORT
Test:U:0V I:0A P:0W PF:0 Freq:0Hz Lamp Flux:911.175x1 lm
NAME: Solar LED Security Light
TYPE:Talent
WEIGHT:
SPEC.:
MFR.:
-150
-120
-90
-60
90
0.00 0.03 0.08 0.16 0.24 0.24 0.20 0.15 0.09 0.08 0.14 0.18 0.22 0.22 0.14 0.07 0.03 0.00
80
0.00 0.03 0.10 0.18 0.28 0.42 0.62 0.83 0.99 0.97 0.79 0.56 0.36 0.24 0.15 0.09 0.03 0.00
70
0.00 0.04 0.09 0.28 0.83 1.60 2.43 3.16 3.63 3.60 3.07 2.30 1.44 0.69 0.22 0.08 0.03 0.00
60
0.00 0.03 0.15 0.80 1.97 3.37 4.61 5.51 5.98 5.94 5.38 4.40 3.12 1.78 0.65 0.12 0.03 0.00
50
0.00 0.03 0.35 1.51 3.21 4.93 6.35 7.33 7.81 7.75 7.17 6.17 4.70 2.95 1.33 0.26 0.03 0.00
40
0.00 0.04 0.62 2.19 4.28 6.16 7.62 8.69 9.24 9.18 8.51 7.33 5.88 4.04 1.98 0.49 0.03 0.00
30
0.00 0.05 0.87 2.75 5.09 6.97 8.55 9.70 10.4 10.3 9.45 8.26 6.71 4.83 2.53 0.73 0.04 0.00
-/+180
0
80
160
240
-30
320
400
AVERAGE BEAM ANGLE(50%):110.0 DEG
0
150
120
90
60
UNIT:cd/klm
UNIT:cd/klm
V 0.0DEG PLAN
54.1,55.2
H 0.0DEG PLAN
55.1,55.5
30
0.00 0.07 1.06 3.17 5.54 7.53 9.21 10.5 11.1 11.0 10.1 8.93 7.31 5.29 2.95 0.90 0.04 0.00
SOLAR WALL PACK
0.00 0.08 1.14 3.40 5.77 7.85 9.70 11.0 11.5 11.4 10.7 9.48 7.64 5.57 3.15 0.97 0.04 0.00
0.00 0.08 1.14 3.40 5.75 7.82 9.62 10.8 11.4 11.6 10.8 9.52 7.67 5.60 3.16 0.97 0.04 0.00
0.00 0.07 1.06 3.16 5.50 7.44 9.04 10.1 10.9 11.0 10.3 9.08 7.40 5.37 2.97 0.90 0.04 0.00
VERTICAL(DEG)
0.00 0.05 0.87 2.73 5.04 6.83 8.35 9.48 10.2 10.3 9.61 8.45 6.90 4.92 2.57 0.73 0.04 0.00
-30
0.00 0.04 0.62 2.18 4.23 6.04 7.43 8.55 9.18 9.21 8.64 7.60 6.10 4.13 2.01 0.49 0.03 0.00
-40
0.00 0.03 0.35 1.51 3.15 4.85 6.25 7.19 7.70 7.73 7.26 6.31 4.85 3.02 1.35 0.26 0.03 0.00
-50
0.00 0.03 0.15 0.80 1.97 3.32 4.54 5.45 5.94 5.94 5.44 4.48 3.18 1.80 0.66 0.12 0.03 0.00
-60
0.00 0.03 0.09 0.28 0.83 1.60 2.41 3.12 3.56 3.54 3.04 2.30 1.46 0.71 0.22 0.08 0.03 0.00
-70
0.00 0.03 0.09 0.16 0.27 0.41 0.61 0.82 0.97 0.96 0.78 0.56 0.36 0.24 0.16 0.09 0.03 0.00
-80
0.00 0.03 0.08 0.15 0.23 0.23 0.19 0.14 0.08 0.08 0.14 0.18 0.21 0.21 0.14 0.07 0.03 0.00
-90
-90 -80 -70 -60 -50 -40 -30 -20 HORIZONTAL(DEG) 20 30 40 50 60 70 80 90
0.07
0.82
8.89
28.8
54.2
52.5
77.6
76.1
t
Φ
a
Φ
0.00
0.00
7.17
27.2
97.7
96.4
DIM.:
SUR.:
DATA OF LAMP PHOTOMETRIC DATA
MODEL
NOMINAL POWER(W)
RATED VOLTAGE(V)
NOMINAL FLUX(lm)
LAMPS INSIDE
TEST VOLTAGE(V)
112
121
120
111
120
119
LD-SSL-8W-Talent
8
911.175
1
111
96.1
75.5
51.6
110
94.8
74.0
50.0
SERIAL No.:
Shielding Angle:
Imax(cd/klm)
AVAILABILITY(%)
Avai. FLUX(lm/klm)
LOR(%)
TOTAL FLUX(lm/klm)
@50%(H,V)
θ
UNIT:lm/klm
26.4
7.42
0.60
24.8
5.46
0.00
109,111DEG
0.07
0.00
394.3
96.9
969.1
100.0
1000
Φ Φ
2.27 0.00
6.66 2.05
23.5 21.8
43.8 43.0
61.9 61.4
76.3 75.9
87.1 86.8
94.7 94.4
99.4 99.2
99.4 99.2
94.3 94.0
87.1 86.8
76.5 76.1
61.9 61.3
43.9 43.1
23.3 21.7
6.55 2.09
2.21 0.00
991 ---
a t MARGAID XULF AERA
969---
one-half-peak spread: U:55.8,D:51.4 , L:56.3,R:53.3 NEMA Beam Type: Type 7
IEC62471
5
1939 Parker Ct Stone Mountain, GA, 30087 | Toll Free: (800) 316-4716 | www.beyondsolar.net
Page 6
TM
LUNE
GONIOPHOTOMETERS SYSTEM TEST REPORT
ISOCANDELA DIAGRAM
80
70
60
50
40
30
20
10
0
-10
VERTICAL(DEG)
-20
-30
-40
-50
-60
-70
-80
-90
-90
-80
-70
-60
-50
-40
-30
-20
-10
0
HORIZONTAL(DEG)
10
50
40
20
30
70
60
Imax:394.3(H1.0,V0.0)
(At:C=90.0,Gamma=4.0)
UNIT: cd/klm
809090
10% 39.43
20% 78.87
30% 118.3
40% 157.7
50% 197.2
60% 236.6
70% 276.0
80% 315.5
90% 354.9
SOLAR WALL PACK
ISOLUX DIAGRAM
67.1' 20.46m
53.7' 16.37m
40.3' 12.27m
26.8' 8.18m
13.4' 4.09m
0.0' 0.00m
13.4' 4.09m
26.8' 8.18m
40.3' 12.27m
53.7' 16.37m
67.1' 20.46m
53.7'
16.37m
26.8'
8.18m
MOUNTING HEIGHT: 33ft
0.0'
0.00m
26.8'
8.18m
53.7'
3% 0.1183lx/klm 0.01099fc/klm
5% 0.1971lx/klm 0.01832fc/klm
10% 0.3943lx/klm 0.03663fc/klm
30% 1.183lx/klm 0.1099fc/klm
50% 1.971lx/klm 0.1832fc/klm
16.37m
IEC62471
1939 Parker Ct Stone Mountain, GA, 30087 | Toll Free: (800) 316-4716 | www.beyondsolar.net
6
Page 7
TM
LUNE
GONIOPHOTOMETERS SYSTEM TEST REPORT

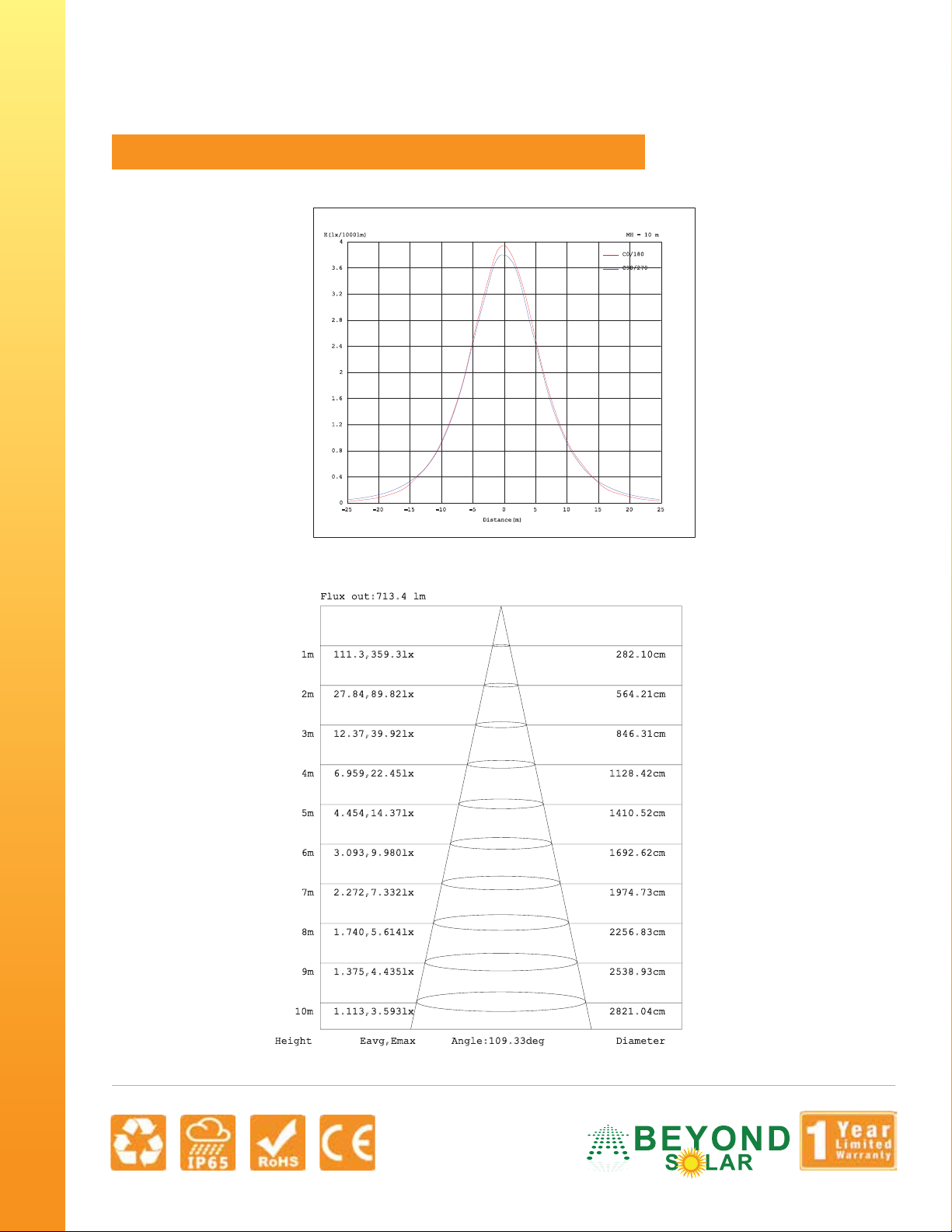

Planar Illuminance Curve
AAI Figure
E(lx/1000lm) MH = 10 m
4
3.6
3.2
2.8
2.4
2
1.6
1.2
0.8
0.4
0
-25 -20 -15 -10 -5 0 5 10 15 20 25
Flux out:713.4 lm
1m 282.10cm111.3,359.3lx
Planar Illuminance Curve
Distance(m)
C0/180
C90/270
2m 564.21cm27.84,89.82lx
3m 846.31cm12.37,39.92lx
SOLAR WALL PACK
4m 1128.42cm6.959,22.45lx
5m 1410.52cm4.454,14.37lx
6m 1692.62cm3.093,9.980lx
7m 1974.73cm2.272,7.332lx
8m 2256.83cm1.740,5.614lx
9m 2538.93cm1.375,4.435lx
10m 2821.04cm1.113,3.593lx
Height Eavg,Emax DiameterAngle:109.33deg
Note:The Curves indicate the illuminated area and the average
illumination when the luminaire is at different distance.
IEC62471
7
1939 Parker Ct Stone Mountain, GA, 30087 | Toll Free: (800) 316-4716 | www.beyondsolar.net
Page 8
Package Content
Installations
TM
LUNE
SOLAR WALL PACK

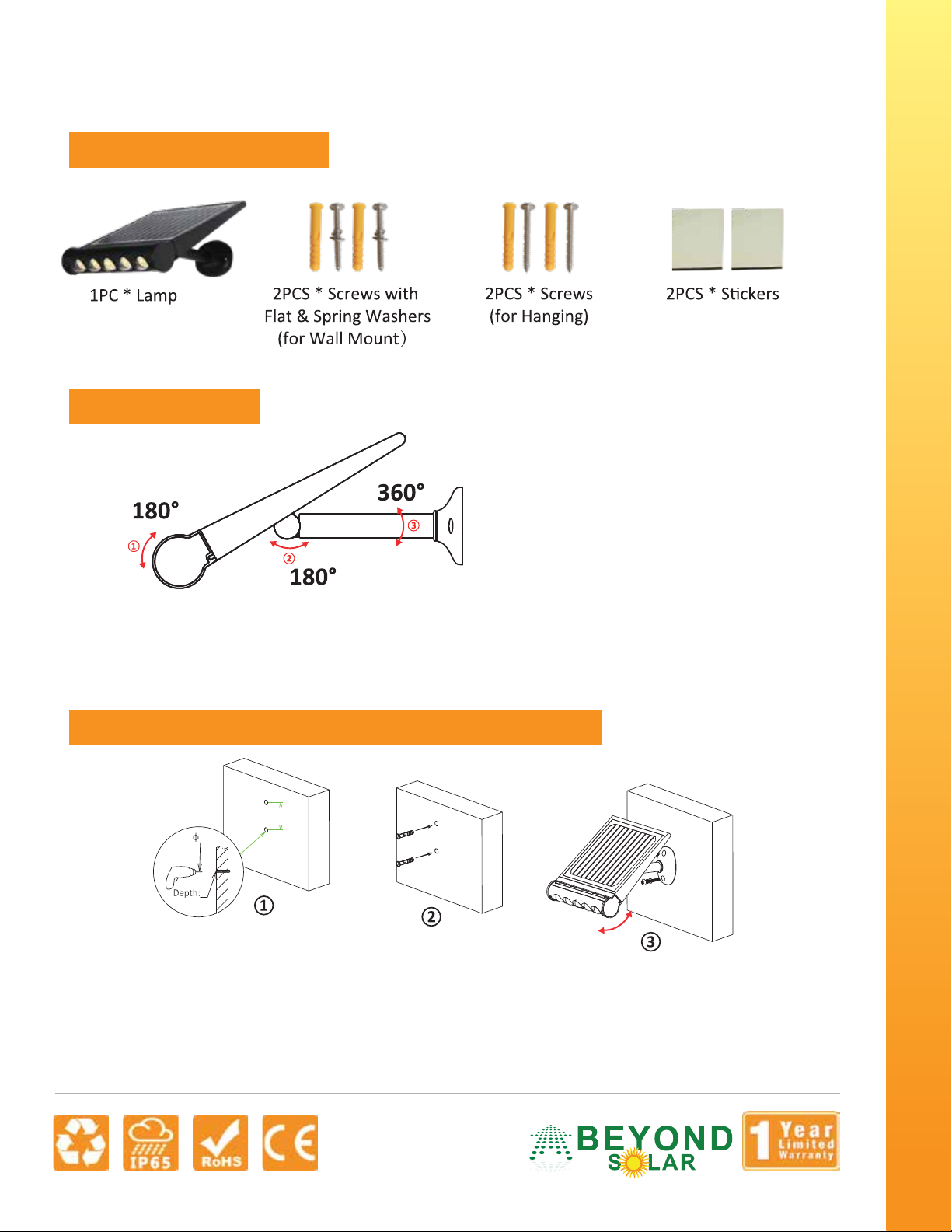

1. Rotate the lamp head to adjust lighting directions,180° adjustable.
2. Rotate the screw to adjust solar panel vertically,180° adjustable.
3. Hold the lamp base and rotate the lamp post to adjust whole lamp angle, 360° adjustable

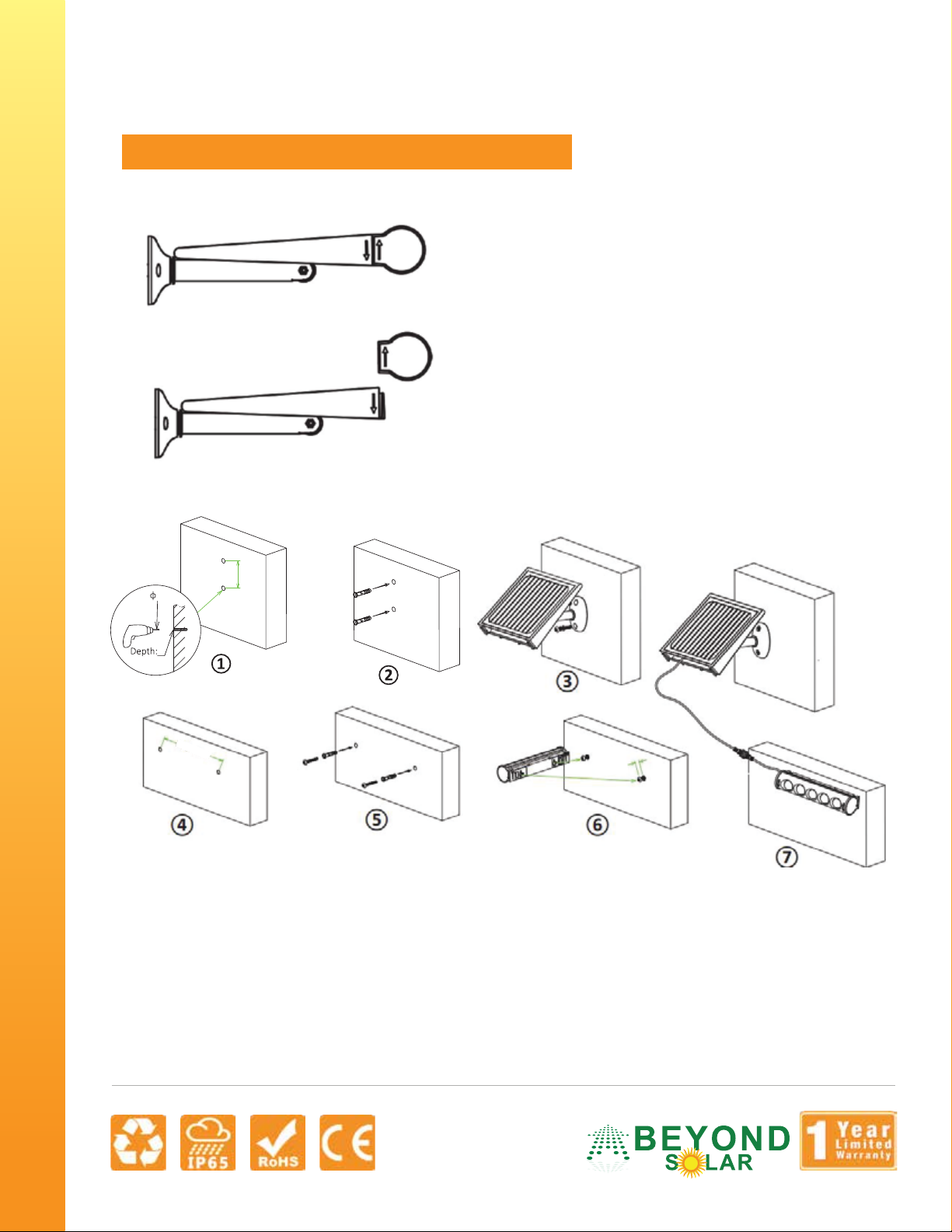

Installation A: Integrated Wall Mount
0.24”
1.96”
The recommended mounting height is 6.5ft - 13ft
1. Please use the measure card to drill 2 holes (φ0.24”, depth 1.96”) with a spacing of 2.28”.
2. Fix the expansion plugs in the holes.
3. Use screws with flat & spring washers to fix the lamp on the wall. Adjust solar panel angle and lighting
direction as needed.
2.28”
IEC62471
1939 Parker Ct Stone Mountain, GA, 30087 | Toll Free: (800) 316-4716 | www.beyondsolar.net
8
Page 9
LUNE
Installation B: Split Wall Mount
1. The lamp head can be removed according to
the arrows on the side of the lamp for split
installation.
2. The connection cable is 3m long, please
confirm the installation position of the solar panel
and the lamp before installation
TM
0.24”
1.96”
1.73”
2.28”
SOLAR WALL PACK
1. Drill 2 holes (φ0.24”, depth 1.96”) with a spacing of 2.28”.
2. Fix the expansion plugs in the holes.
3. Use screws with flat & spring washers to fix the lamp on the wall.
4. Drill 2 holes (φ0.24”, depth 1.96”) with a spacing of 4.72”.
5. Fix the expansion plugs in the holes,then fix the screws into the expansion plugs, keeping the screws
protruding 0.19”-0.31.
6. Hang the lamp on the screws.
7. Connect the cable of solar panel to lam
0.19” - 0.31”
IEC62471
9
1939 Parker Ct Stone Mountain, GA, 30087 | Toll Free: (800) 316-4716 | www.beyondsolar.net
Page 10
TM
LUNE
More Optional Installations
When the lamp is used as a split type, the lamp can also be installed in the following ways:
Installation C:
There is a magnet on the back of the lamp, lamp can be attached to a flat metal surface.
Installation D:
The lamp can be also directly pasted on the wall or other flat surface with provided 3M tape.
Installation E:
The lamp can be hung in 2 different directio
Notice
1. This is a solar powered lamp, please install the solar panel in a location where can get enough sunlight.
2. Please note the lighting time depends on sunshine duration & work mode.
3. Please connect the lamp to solar panel to get solar charging.
4. Built-in intelligent IC is with over-charge, over-discharge and over-voltage protection, safe and durable.
5. The lamp is equipped with an internal battery pack, which is replaceable. If any need, please contact
the seller for correct new battery pack.
6. Non-professionals please do not disassemble the lamp.
7. Please do not dispose the battery with household garbage to a
SOLAR WALL PACK
IEC62471
1939 Parker Ct Stone Mountain, GA, 30087 | Toll Free: (800) 316-4716 | www.beyondsolar.net
10
Page 11
TM
LUNE
Wide Applications
Widely used for Roof, Doorway, Pathway, Swimming Pool, Yard, Resort, Stairs, Entrance, Patio,
Pavilion, Garage, Parking Lot, Campus etc.
Integrated Installation
SOLAR WALL PACK
11
1939 Parker Ct Stone Mountain, GA, 30087 | Toll Free: (800) 316-4716 | www.beyondsolar.net
IEC62471
Loading...
