LED Post Top Garden Light
AV Series
LED AREA LIGHTS
1
AV Series
Beyond LED Technology’s AV Series Circular Post Top Garden Light is another great option
when it comes to replacing multiple lights. Due to its circular design, this light gives you 120°
of lighting rather than lights that can only be directed in one direction. This makes this light
perfect for parking lots and sidewalks etc.
• Up to 120 lumens per watt
• Replaces exiting HID fixtures up to 400 watts
• Dusk-to-dawn photocell option
• Die-Cast aluminum housing
Beyond LED Technology | 1939 Parker Ct, Stone Mountain, GA, 30087
Due to continuous product improvement, information in this document is subject to change.
• Heat resistant polycarbonate optical lens
• 120 degree beam angle
• IP65 Waterproof Rated
• Universal 100-277Vac
LED Post Top Garden Light
LED GARDEN LIGHT
Page2of
4
SPECIFICATIONS
OPTICAL
Input Power
150W
Lumen
17700-19200LM
Lumen Efficacy
118-128 LM/W
Color Temperature
4000K,4500K, 5000K, 5700K
CRI
>80
Viewing Angle
90Degree
ELECTRICAL
Input Voltage
100-277VAC 50/60Hz
PF
≥0.9
THD
≤20%
Driver Model
China Brand Driver
MATERIALS
LED Type
SMD2835 (0.5W)
LED QTY
465 PCS
Housing
Aluminum Alloy
Housing Color
Black、White、Brown、or Customized
Cover
PC lens
Waterproof Rating
WET（IP65）
OTHERS
Operating Temperature
-40℃ TO 45℃
Operating Humidity
10％-90％ RH
Storage Temperature
-40℃ TO 85℃
Storage Humidity
10％-95％ RH
Warranty Time
5 Years
Dimmable
1-10V
Page2of
4
150W
17700-19200LM
118-128 LM/W
4000K,4500K, 5000K, 5700K
>80
90Degree
100-277VAC 50/60Hz
≥0.9
≤20%
China Brand Driver
SMD2835 (0.5W)
465 PCS
Aluminum Alloy
Black、White、Brown、or Customized
PC lens
WET（IP65）
-40℃ TO 45℃
10％-90％ RH
-40℃ TO 85℃
10％-95％ RH
5 Years
1-10V
AV Series
AV Series - Post Top Circular Garden Light
SKU # Model # Watts Lumens CCT IP Input Voltage Certifications
151236 BLT-GS02-150WSAT2A1-abcde 150W 18724Lm 5000K IP65 100-277Vac UL & DLC
151237 Optional Photocell
Specifications
5000K
120°
Beyond Brand Driver
Bronze
CORRELATED COLOR
TEMPERATURE (CCT)
LED AREA LIGHTS
(866) 786-1117 • www.BeyondLEDTechnology.com
Due to continuous product improvement, information in this document is subject to change.
-40°F to 113°F
-40°F to 185°F
2
LED Post Top Garden Light
LED GARDEN LIGHT Page
2of4
SPECIFICATIONS
OPTICAL
Input Power
150W
Lumen
17700-19200LM
Lumen Efficacy
118-128 LM/W
Color Temperature
4000K,4500K, 5000K, 5700K
CRI
>80
Viewing Angle
90Degree
ELECTRICAL
Input Voltage
100-277VAC 50/60Hz
PF
≥0.9
THD
≤20%
Driver Model
China Brand Driver
MATERIALS
LED Type
SMD2835 (0.5W)
LED QTY
465 PCS
Housing
Aluminum Alloy
Housing Color
Black、White、Brown、or Customized
Cover
PC lens
Waterproof Rating
WET（IP65）
OTHERS
Operating Temperature
-40℃ TO 45℃
Operating Humidity
10％-90％ RH
Storage Temperature
-40℃ TO 85℃
Storage Humidity
10％-95％ RH
Warranty Time
5 Years
Dimmable
1-10V
PACKAGE
LED GARDEN LIGHT Page
3of4
Dimensions
AV Series
150W
20.82”
LED AREA LIGHTS
Packing
ø17.71”
23.62”
1.97-2.95”
Outer box 835 x 585 x155 mm 1 PCS 6.5 KG 8.5 KG
3
Size Qty / Carton Net Weight / Carton Gross Weight / Carton
32.88” X 23.04” X 6.11”32.88” X 23.04” X 6.11” 14.33LB14.33LB 18.74LB18.74LB
Beyond LED Technology | 1939 Parker Ct, Stone Mountain, GA, 30087
Due to continuous product improvement, information in this document is subject to change.
LED Post Top Garden Light
LED GARDEN LIGHT Page
3of4
LIGHT DISTRIBUTION TESTING PARAMETERS
LED GARDEN LIGHT Page
3of4
LIGHT DISTRIBUTION TESTING PARAMETERS
Distribution Diagram
AV Series
LED AREA LIGHTS
(866) 786-1117 • www.BeyondLEDTechnology.com
Due to continuous product improvement, information in this document is subject to change.
4
LED Post Top Garden Light
Installation
AV Series
LED AREA LIGHTS
5
Beyond LED Technology | 1939 Parker Ct, Stone Mountain, GA, 30087
Due to continuous product improvement, information in this document is subject to change.
LED Post Top Garden Light

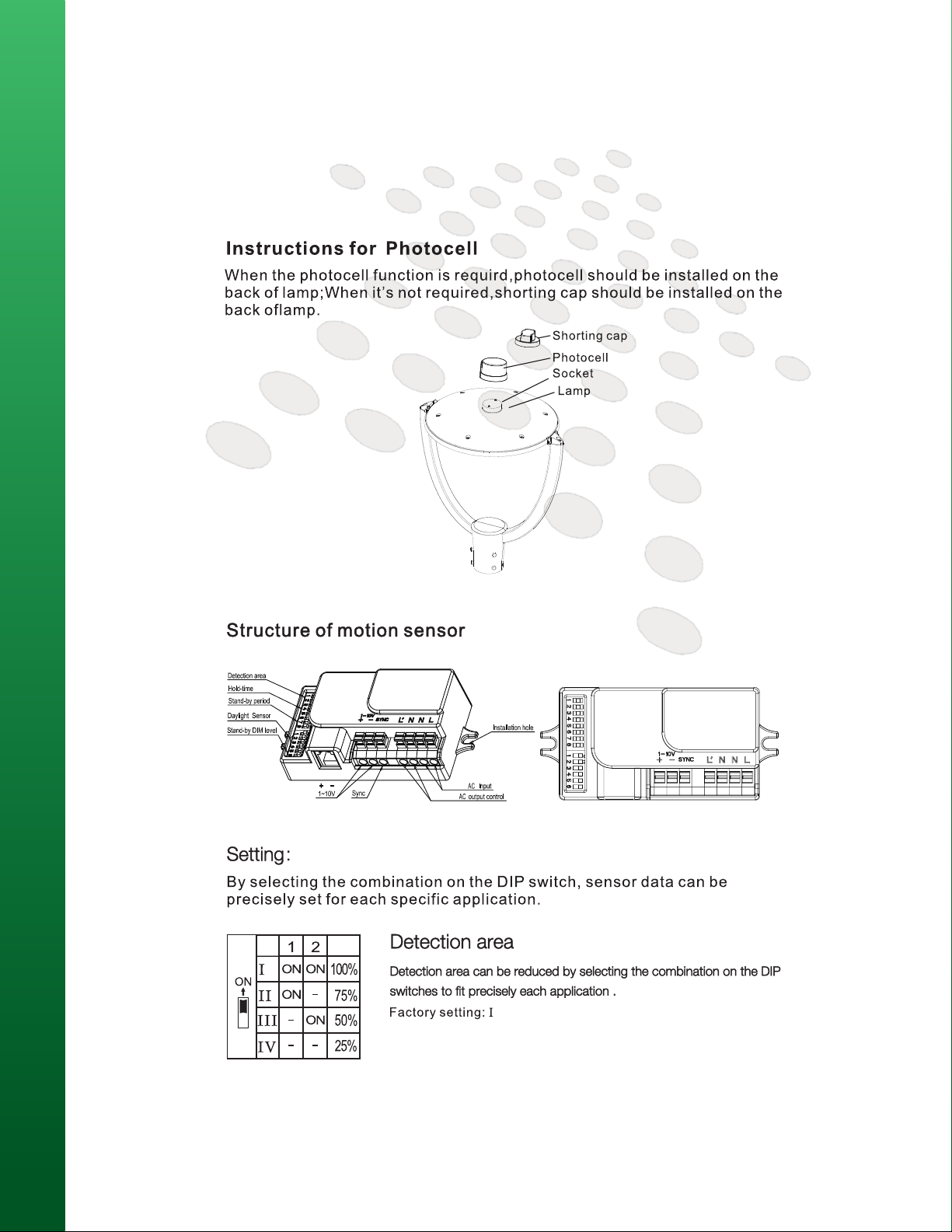

Installation
AV Series
LED AREA LIGHTS
(866) 786-1117 • www.BeyondLEDTechnology.com
Due to continuous product improvement, information in this document is subject to change.
6
LED Post Top Garden Light

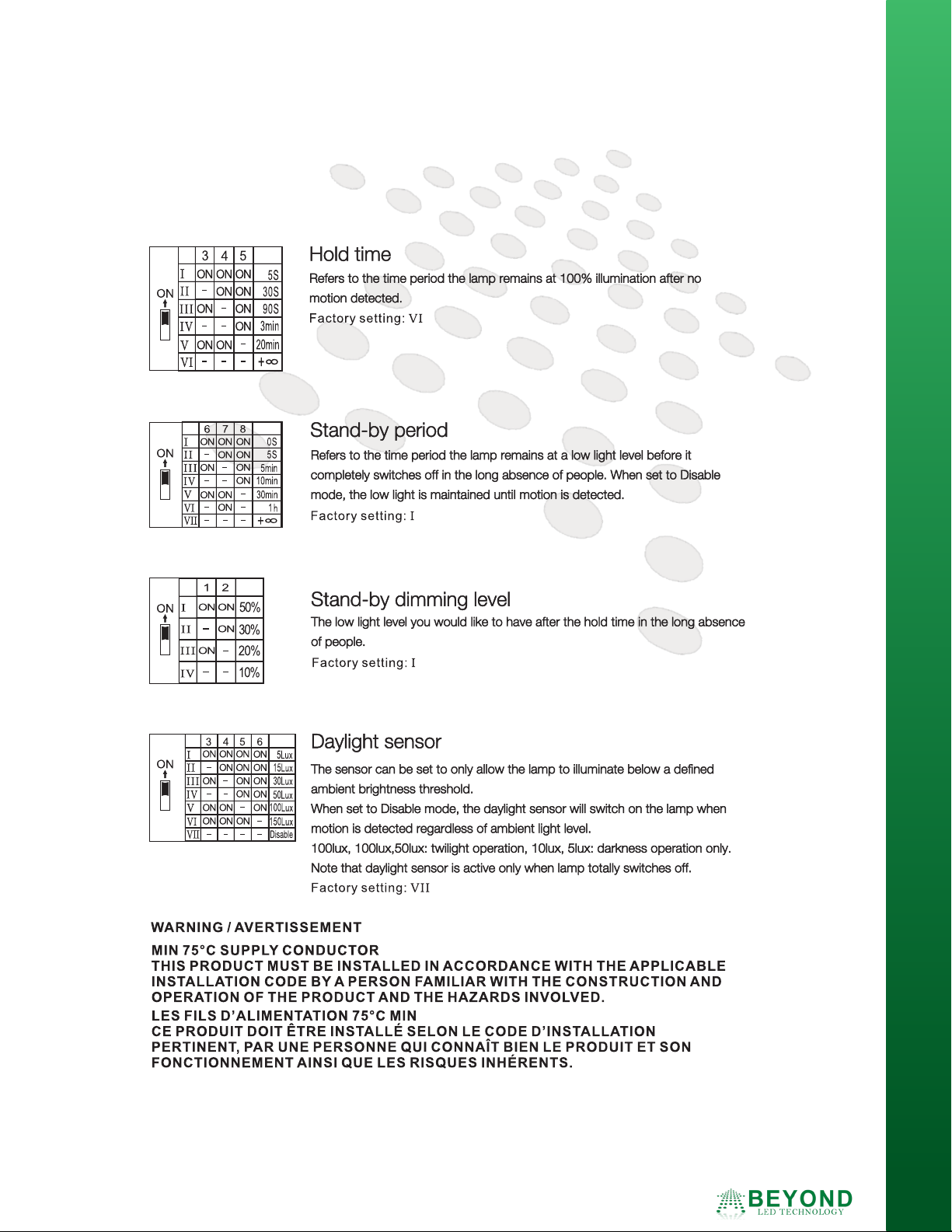

Installation
AV Series
LED AREA LIGHTS
7
Beyond LED Technology | 1939 Parker Ct, Stone Mountain, GA, 30087
Due to continuous product improvement, information in this document is subject to change.
LED Post Top Garden Light
Installation
AV Series
LED AREA LIGHTS
(866) 786-1117 • www.BeyondLEDTechnology.com
Due to continuous product improvement, information in this document is subject to change.
8
LED Post Top Garden Light
Application
AV Series
LED AREA LIGHTS
9
Beyond LED Technology | 1939 Parker Ct, Stone Mountain, GA, 30087
Due to continuous product improvement, information in this document is subject to change.
LED Post Top Garden Light
Application
AV Series
LED AREA LIGHTS
(866) 786-1117 • www.BeyondLEDTechnology.com
Due to continuous product improvement, information in this document is subject to change.
10
