LED Flat Head Corncob Bulb
HD 1.2 Series
HD 1.2 Series
LED CORNCOB BULBS
1
Beyond LED Technology’s HD 1.2 Series Flat Head Corncob high wattage LED retrofits are
designed to reduce the power consumed, in fixtures traditionally used with metal halide or
high-pressure sodium lamps, while still producing a high Lumen output. This 2019 version
is has a noiseless fan, and it’s the smallest, and shortest of its kind to fit such a wide range
of fixtures. Suitable for use in enclosed fixtures, these high output LEDs are an excellent
choice for post top lights, shoebox fixtures, and other HID fixtures. The rotatable base allows
you to aim the light where you need it. With 180 degree beam angle it saves 20-30% energy
compared to a 360 bulb.
• Up to 130 lumens per watt
• Built-in Noise less High quality fan for best
heat dissipation
• 4KV built-in surge protector
Beyond LED Technology | 1939 Parker Ct, Stone Mountain, GA, 30087
Due to continuous product improvement, information in this document is subject to change.
• IP54 dust proof rating
• High-reliability internal driver
• Universal 100-277Vac
• Can safely be used in enclosed fixtures
LED Flat Head Corncob Bulb
HD 1.2 Series
HD 1.2 Series
SKU # Model # Base Watts Lumens CCT Input Voltage Certifications
110684 BLTCLH54WE3957KF E39/E40 54W 6900Lm 5700K 100-277Vac 50/60Hz UL & DLC
110668 BLTCLH75WE3957K E39/E40 75W 8900Lm 5700K 100-277Vac 50/60Hz UL & DLC
110692 BLTCLH95WE3957K E39/E40 95W 11200Lm 5700K 100-277Vac 50/60Hz UL & DLC
110700 BLTCLH115WE3957K E39/E40 115W 13100Lm 5700K 100-277Vac 50/60Hz UL & DLC
Covered Outdoor UseRotatable baseLED Retrofit Bulb
Dimensions
5.43”
CORRELATED COLOR
TEMPERATURE (CCT)
3.42”
LED CORNCOB BULBS
11.69”
(866) 786-1117 • www.BeyondLEDTechnology.com
Due to continuous product improvement, information in this document is subject to change.
2
LED Flat Head Corncob Bulb
TECHNICAL DATA SHEET
TECHNICAL DATA SHEET
Package
LED Retrofit Kit
Into PE bag
Into EPE
TECHNICAL DATA SHEET
Into PE bag
Into EPE
Into EPE
L
N
Ballast
Capacitor
Ignitor
HPS
L
N
Ballast
Capacitor
Ignitor
LED
lamp
Replace MHL / HPS
CFL
LED
lamp
MHL
Into inner box
Net Weight/
Carton
Gross Weight/
Carton
1.55 KG
10.5 KG 13.4 KG
Turn off the power and turn on again in 3 minutes. If
same phenomena occur, then call agencies
L
N
Ballast
Capacitor
Ignitor
HPS
L
N
Ballast
Capacitor
Ignitor
LED
lamp
Replace MHL / HPS
L
N
CFL
Replace CFL
L
N
LED
lamp
MHL
Into inner box
Cover inner box
Size
Qty/
Carton
Net Weight/
Carton
Gross Weight/
Carton
340*160*110 MM 1 PC 1.31 KG
1.55 KG
660*355*240 MM 8 PCS
10.5 KG 13.4 KG
Tel: +86-755-29683009 Fax: +86-755-29684853
www.snc-lighting.com E-mail:sales@snc-led.com
Trouble Shootings
Troubles Check points
Flickering of the lamps
Turn off the power and turn on again in 3 minutes. If
same phenomena occur, then call agencies
Out of working Please check the connection
Notice For User
L
N
Ballast
Capacitor
Ignitor
HPS
L
N
Ballast
Capacitor
Ignitor
LED
lamp
Replace MHL / HPS
L
N
CFL
Replace CFL
L
N
LED
lamp
MHL
Into inner box
Cover inner box
Into outer box
Joint sealing
HD 1.2 Series
54W - Specifications
PRODUCT SPECIFICATIONS
Product name
Part No
Lamp Base
Dimension
11.6929” X 5.43307” X 3.4252”
E39
297*138*87 MM 300*138*87 MM
Technical Characteristic
Color temperature
CRI
Lumen-In Luminaires
Lumen Efficacy-In Luminaires
Input Power
Viewing Angle
Input Voltage
PFC
Equivalent
Waterproof Rating
MATERIALS
LED Brand
LED Type
LED QTY
Housing
Housing color
OTHERS
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
LED CORNCOB BULBS
Application
Replacement Lamps for Outdoor Pole/Arm-mounted Area and Roadway Luminaires
Safety Certification
Warranty Time
LED Retrofit Kit
4000K、5000K、5700K
5700K
＞70
6200-6600 LM
6900Lm
115-120 LM/W
Up to 130 lumens per watt
54W
90*150degree(TypeⅢ)
AC100-277V 50/60Hz
>0.9
120W CFL，175W MHL/HPS/HID
IP51
PHILIPS LUMILEDS
LUXEON 3030 2D（1.5W）
112 PCS
Magnesium Alloy+AL+PC
Black+Silver
-20℃ TO 45℃
-4°F to 113°F
20％-70％ RH
-30℃ TO 80℃
-22°F to 176°F
10％-75％ RH
UL、CUL、DLC
5 Years
SNC-CLH-54W1A1-EXSNC-CLH-54W1A1-E
EX39
3
Packaging
SKU # Model # Pcs/Box Dimensions Weight Pallet Quantity Pallet Weight Pallet Dimensions
110684 BLTCLH54WE3957KF 1
Into PE Bag Into EPE Into Inner Box Cover Inner Box Into Outer Box Joint SealingLED Retrofit Kit
Beyond LED Technology | 1939 Parker Ct, Stone Mountain, GA, 30087
Due to continuous product improvement, information in this document is subject to change.
14” X 7” X 5”
3 Lb
LED Flat Head Corncob Bulb
TECHNICAL DATA SHEET
Remark: The testing data comes from the product in luminaires.
HD 1.2 Series

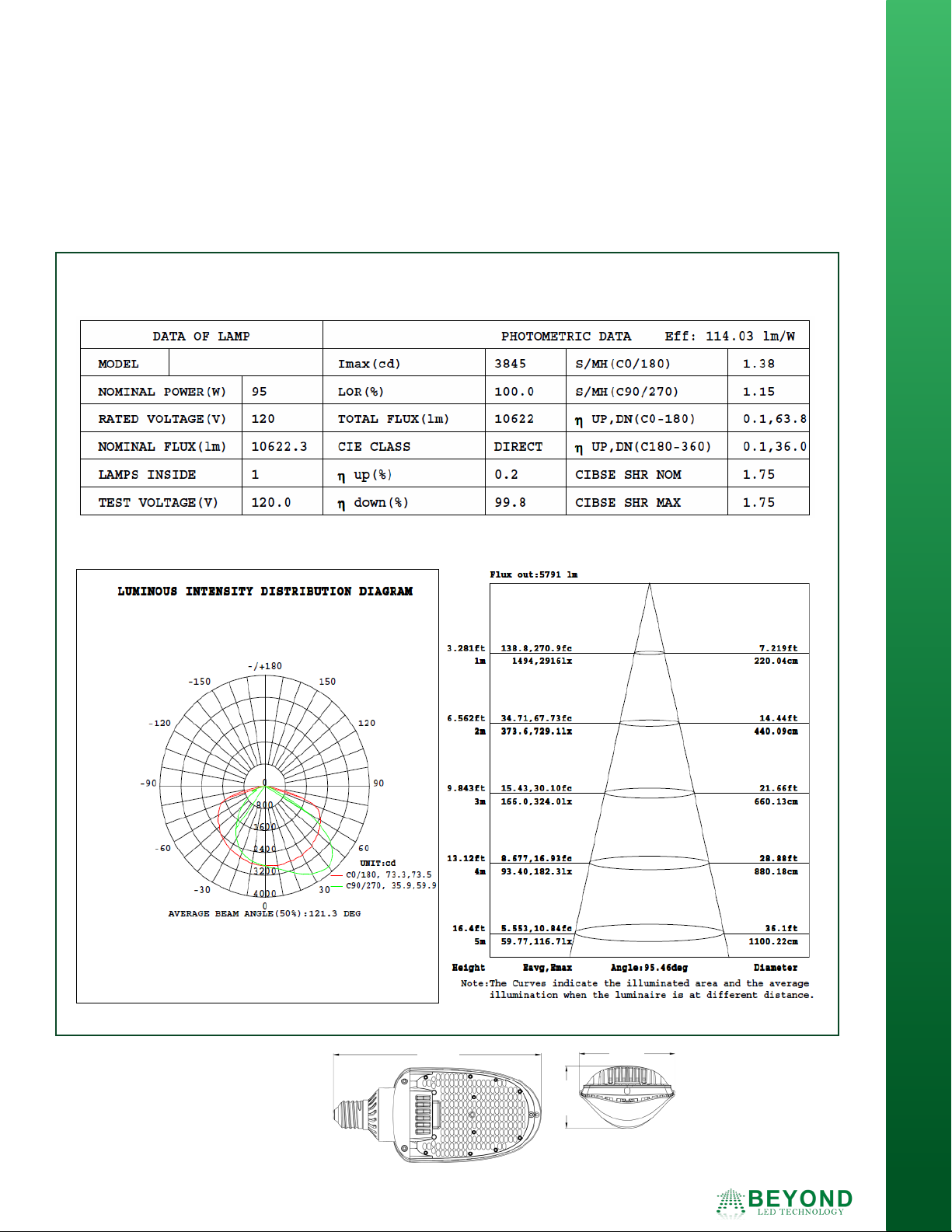

Distribution Diagram
LED CORNCOB BULBS
11.69”
54W - E39/E40
(866) 786-1117 • www.BeyondLEDTechnology.com
Due to continuous product improvement, information in this document is subject to change.
3.42”
5.43”
4
LED Flat Head Corncob Bulb
TECHNICAL DATA SHEET
TECHNICAL DATA SHEET
Package
LED Retrofit Kit
Into PE bag
Into EPE
TECHNICAL DATA SHEET
Into PE bag
Into EPE
Into EPE
L
N
Ballast
Capacitor
Ignitor
HPS
L
N
Ballast
Capacitor
Ignitor
LED
lamp
Replace MHL / HPS
CFL
LED
lamp
MHL
Into inner box
Net Weight/
Carton
Gross Weight/
Carton
1.55 KG
10.5 KG 13.4 KG
Turn off the power and turn on again in 3 minutes. If
same phenomena occur, then call agencies
L
N
Ballast
Capacitor
Ignitor
HPS
L
N
Ballast
Capacitor
Ignitor
LED
lamp
Replace MHL / HPS
L
N
CFL
Replace CFL
L
N
LED
lamp
MHL
Into inner box
Cover inner box
Size
Qty/
Carton
Net Weight/
Carton
Gross Weight/
Carton
340*160*110 MM 1 PC 1.31 KG
1.55 KG
660*355*240 MM 8 PCS
10.5 KG 13.4 KG
Tel: +86-755-29683009 Fax: +86-755-29684853
www.snc-lighting.com E-mail:sales@snc-led.com
Trouble Shootings
Troubles Check points
Flickering of the lamps
Turn off the power and turn on again in 3 minutes. If
same phenomena occur, then call agencies
Out of working Please check the connection
Notice For User
L
N
Ballast
Capacitor
Ignitor
HPS
L
N
Ballast
Capacitor
Ignitor
LED
lamp
Replace MHL / HPS
L
N
CFL
Replace CFL
L
N
LED
lamp
MHL
Into inner box
Cover inner box
Into outer box
Joint sealing
HD 1.2 Series
75W - Specifications
PRODUCT SPECIFICATIONS
Product name
Part No
Lamp Base
Dimension
11.6929” X 5.43307” X 3.4252”
E39 EX39
297*138*87 MM
Technical Characteristic
Color temperature
CRI
Lumen-In Luminaires
Lumen Efficacy-In Luminaires
Input Power
Viewing Angle
Input Voltage
PFC
Equivalent
Waterproof Rating
MATERIALS
LED Brand
LED Type
LED QTY
Housing
Housing color
OTHERS
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
LED CORNCOB BULBS
Application
Replacement Lamps for Outdoor Pole/Arm-mounted Area and Roadway Luminaires
Safety Certification
Warranty Time
LED Retrofit Kit
4000K、5000K、5700K
5700K
＞70
8300-9000 LM
8900Lm
110-120 LM/W
Up to 130 lumens per watt
75W
90*150degree(TypeⅢ)
AC100-277V 50/60Hz
>0.9
150W CFL，250W MHL/HPS/HID
IP51
PHILIPS LUMILEDS
LUXEON 3030 2D（1.5W）
140 PCS
Magnesium Alloy+AL+PC
Black+Silver
-20℃ TO 45℃
-4°F to 113°F
20％-70％ RH
-30℃ TO 80℃
-22°F to 176°F
10％-75％ RH
UL、CUL、DLC
5 Years
SNC-CLH-75W1A1-EXSNC-CLH-75W1A1-E
300*138*87 MM
5
Packaging
SKU # Model # Pcs/Box Dimensions Weight Pallet Quantity Pallet Weight Pallet Dimensions
110668 BLTCLH75WE3957K 1
Into PE Bag Into EPE Into Inner Box Cover Inner Box Into Outer Box Joint SealingLED Retrofit Kit
Beyond LED Technology | 1939 Parker Ct, Stone Mountain, GA, 30087
Due to continuous product improvement, information in this document is subject to change.
14” X 7” X 5”
3 Lb
LED Flat Head Corncob Bulb
TECHNICAL DATA SHEET
Remark: The testing data comes from the product in luminaires.
HD 1.2 Series
Distribution Diagram
LED CORNCOB BULBS
11.69”
75W - E39/E40
(866) 786-1117 • www.BeyondLEDTechnology.com
Due to continuous product improvement, information in this document is subject to change.
3.42”
5.43”
6
LED Flat Head Corncob Bulb
TECHNICAL DATA SHEET
TECHNICAL DATA SHEET
Package
LED Retrofit Kit
Into PE bag
Into EPE
TECHNICAL DATA SHEET
Into PE bag
Into EPE
Into EPE
L
N
Ballast
Capacitor
Ignitor
HPS
L
N
Ballast
Capacitor
Ignitor
LED
lamp
Replace MHL / HPS
CFL
LED
lamp
MHL
Into inner box
Net Weight/
Carton
Gross Weight/
Carton
1.55 KG
10.5 KG 13.4 KG
Turn off the power and turn on again in 3 minutes. If
same phenomena occur, then call agencies
L
N
Ballast
Capacitor
Ignitor
HPS
L
N
Ballast
Capacitor
Ignitor
LED
lamp
Replace MHL / HPS
L
N
CFL
Replace CFL
L
N
LED
lamp
MHL
Into inner box
Cover inner box
Size
Qty/
Carton
Net Weight/
Carton
Gross Weight/
Carton
340*160*110 MM 1 PC 1.31 KG
1.55 KG
660*355*240 MM 8 PCS
10.5 KG 13.4 KG
Tel: +86-755-29683009 Fax: +86-755-29684853
www.snc-lighting.com E-mail:sales@snc-led.com
Trouble Shootings
Troubles Check points
Flickering of the lamps
Turn off the power and turn on again in 3 minutes. If
same phenomena occur, then call agencies
Out of working Please check the connection
Notice For User
L
N
Ballast
Capacitor
Ignitor
HPS
L
N
Ballast
Capacitor
Ignitor
LED
lamp
Replace MHL / HPS
L
N
CFL
Replace CFL
L
N
LED
lamp
MHL
Into inner box
Cover inner box
Into outer box
Joint sealing
HD 1.2 Series
95W - Specifications
PRODUCT SPECIFICATIONS
Product name
Part No
Lamp Base
Dimension
11.6929” X 5.43307” X 3.4252”
E39 EX39
297*138*87 MM 300*138*87 MM
Technical Characteristic
Color temperature
CRI
Lumen-In Luminaires
Lumen Efficacy-In Luminaires
Input Power
Viewing Angle
Input Voltage
PFC
Equivalent
Waterproof Rating
MATERIALS
LED Brand
LED Type
LED QTY
Housing
Housing color
OTHERS
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
LED CORNCOB BULBS
Application
Replacement Lamps for Outdoor Pole/Arm-mounted Area and Roadway Luminaires
Safety Certification
Warranty Time
LED Retrofit Kit
4000K、5000K、5700K
5700K
＞70
10400-11400 LM
11200Lm
110-120 LM/W
Up to 130 lumens per watt
95W
90*150degree(TypeⅢ)
AC100-277V 50/60Hz
>0.9
200W CFL，250W MHL/HPS/HID
IP51
PHILIPS LUMILEDS
LUXEON 3030 2D（1.5W）
168 PCS
Magnesium Alloy+AL+PC
Black+Silver
-20℃ TO 45℃
-4°F to 113°F
20％-70％ RH
-30℃ TO 80℃
-22°F to 176°F
10％-75％ RH
UL、CUL、DLC
5 Years
SNC-CLH-95W1A1-EXSNC-CLH-95W1A1-E
7
Packaging
SKU # Model # Pcs/Box Dimensions Weight Pallet Quantity Pallet Weight Pallet Dimensions
110692 BLTCLH95WE3957K 1
Into PE Bag Into EPE Into Inner Box Cover Inner Box Into Outer Box Joint SealingLED Retrofit Kit
Beyond LED Technology | 1939 Parker Ct, Stone Mountain, GA, 30087
Due to continuous product improvement, information in this document is subject to change.
14” X 7” X 5”
3 Lb
LED Flat Head Corncob Bulb
TECHNICAL DATA SHEET
Remark: The testing data comes from the product in luminaires.
HD 1.2 Series
Distribution Diagram
LED CORNCOB BULBS
11.69”
95W - E39/E40
(866) 786-1117 • www.BeyondLEDTechnology.com
Due to continuous product improvement, information in this document is subject to change.
3.42”
5.43”
8
LED Flat Head Corncob Bulb
TECHNICAL DATA SHEET
TECHNICAL DATA SHEET
Package
LED Retrofit Kit
Into PE bag
Into EPE
TECHNICAL DATA SHEET
Into PE bag
Into EPE
Into EPE
L
N
Ballast
Capacitor
Ignitor
HPS
L
N
Ballast
Capacitor
Ignitor
LED
lamp
Replace MHL / HPS
CFL
LED
lamp
MHL
Into inner box
Net Weight/
Carton
Gross Weight/
Carton
1.55 KG
10.5 KG 13.4 KG
Turn off the power and turn on again in 3 minutes. If
same phenomena occur, then call agencies
L
N
Ballast
Capacitor
Ignitor
HPS
L
N
Ballast
Capacitor
Ignitor
LED
lamp
Replace MHL / HPS
L
N
CFL
Replace CFL
L
N
LED
lamp
MHL
Into inner box
Cover inner box
Size
Qty/
Carton
Net Weight/
Carton
Gross Weight/
Carton
340*160*110 MM 1 PC 1.31 KG
1.55 KG
660*355*240 MM 8 PCS
10.5 KG 13.4 KG
Tel: +86-755-29683009 Fax: +86-755-29684853
www.snc-lighting.com E-mail:sales@snc-led.com
Trouble Shootings
Troubles Check points
Flickering of the lamps
Turn off the power and turn on again in 3 minutes. If
same phenomena occur, then call agencies
Out of working Please check the connection
Notice For User
L
N
Ballast
Capacitor
Ignitor
HPS
L
N
Ballast
Capacitor
Ignitor
LED
lamp
Replace MHL / HPS
L
N
CFL
Replace CFL
L
N
LED
lamp
MHL
Into inner box
Cover inner box
Into outer box
Joint sealing
HD 1.2 Series
115W - Specifications
PRODUCT SPECIFICATIONS
Product name
Part No
Lamp Base
Dimension
11.6929” X 5.43307” X 3.4252”
E39 EX39
297*138*87 MM 300*138*87 MM
Technical Characteristic
Color temperature
CRI
Lumen-In Luminaires
Lumen Efficacy-In Luminaires
Input Power
Viewing Angle
Input Voltage
PFC
Equivalent
Waterproof Rating
MATERIALS
LED Brand
LED Type
LED QTY
Housing
Housing color
OTHERS
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
LED CORNCOB BULBS
Application
Replacement Lamps for Outdoor Pole/Arm-mounted Area and Roadway Luminaires
Safety Certification
Warranty Time
LED Retrofit Kit
4000K、5000K、5700K
5700K
＞70
12500-13500 LM
13100Lm
108-118 LM/W
Up to 130 lumens per watt
115W
90*150degree(TypeⅢ)
AC100-277V 50/60Hz
>0.9
200W CFL，400W MHL/HPS/HID
IP51
PHILIPS LUMILEDS
LUXEON 3030 2D（1.5W）
196 PCS
Magnesium Alloy+AL+PC
Black+Silver
-20℃ TO 45℃
-4°F to 113°F
20％-70％ RH
-30℃ TO 80℃
-22°F to 176°F
10％-75％ RH
UL、CUL、DLC
5 Years
SNC-CLH-115W1A1-EXSNC-CLH-115W1A1-E
9
Packaging
SKU # Model # Pcs/Box Dimensions Weight Pallet Quantity Pallet Weight Pallet Dimensions
110700 BLTCLH115WE3957K 1
Into PE Bag Into EPE Into Inner Box Cover Inner Box Into Outer Box Joint SealingLED Retrofit Kit
Beyond LED Technology | 1939 Parker Ct, Stone Mountain, GA, 30087
Due to continuous product improvement, information in this document is subject to change.
14” X 7” X 5”
3 Lb
LED Flat Head Corncob Bulb
TECHNICAL DATA SHEET
Remark: The testing data comes from the product in luminaires.
HD 1.2 Series
Distribution Diagram
LED CORNCOB BULBS
11.69”
115W - E39/E40
(866) 786-1117 • www.BeyondLEDTechnology.com
Due to continuous product improvement, information in this document is subject to change.
3.42”
5.43”
10
LED Flat Head Corncob Bulb
Carton
1.55 KG
Into EPE
Into inner box
Notice For User
HD 1.2 Series
• Please turn off power before installing or
changing assembly parts.
• The input voltage and lamps should be
matched, after connecting the power line.
Please make sure the wiring section is
Replace CFL
L
CFL
Replace MHL / HPS
Ballast
L
Ignitor
Capacitor
HPS
MHL
insulated.
• Make sure to remove or bypass the ballast in
the fixtures before installing the lamps.
• Suitable for damp locations. Do not use with
dimmers.
• Suitable for use in enclosed luminaires.
• Non-professionals, must not install and
disassemble the lamps.
N
L
LED
lamp
N
N
L
N
Ballast
Capacitor
Ignitor
LED
lamp
Trouble Shooting
Problem Solutions
• Flickering of the light - Turn off the power and turn on again in 3 minutes. If the same
phenomena occurs, then call Support.
• Not working - Please check all power connections.
LED CORNCOB BULBS
54W 75W 95W 115W
E39/E40 Base
11
Beyond LED Technology | 1939 Parker Ct, Stone Mountain, GA, 30087
Due to continuous product improvement, information in this document is subject to change.
LED Flat Head Corncob Bulb
HD 1.2 Series
LED CORNCOB BULBS
(866) 786-1117 • www.BeyondLEDTechnology.com
Due to continuous product improvement, information in this document is subject to change.
12
Loading...
