LED Wall Pack
KLM Series
LED WALL PACKS
1

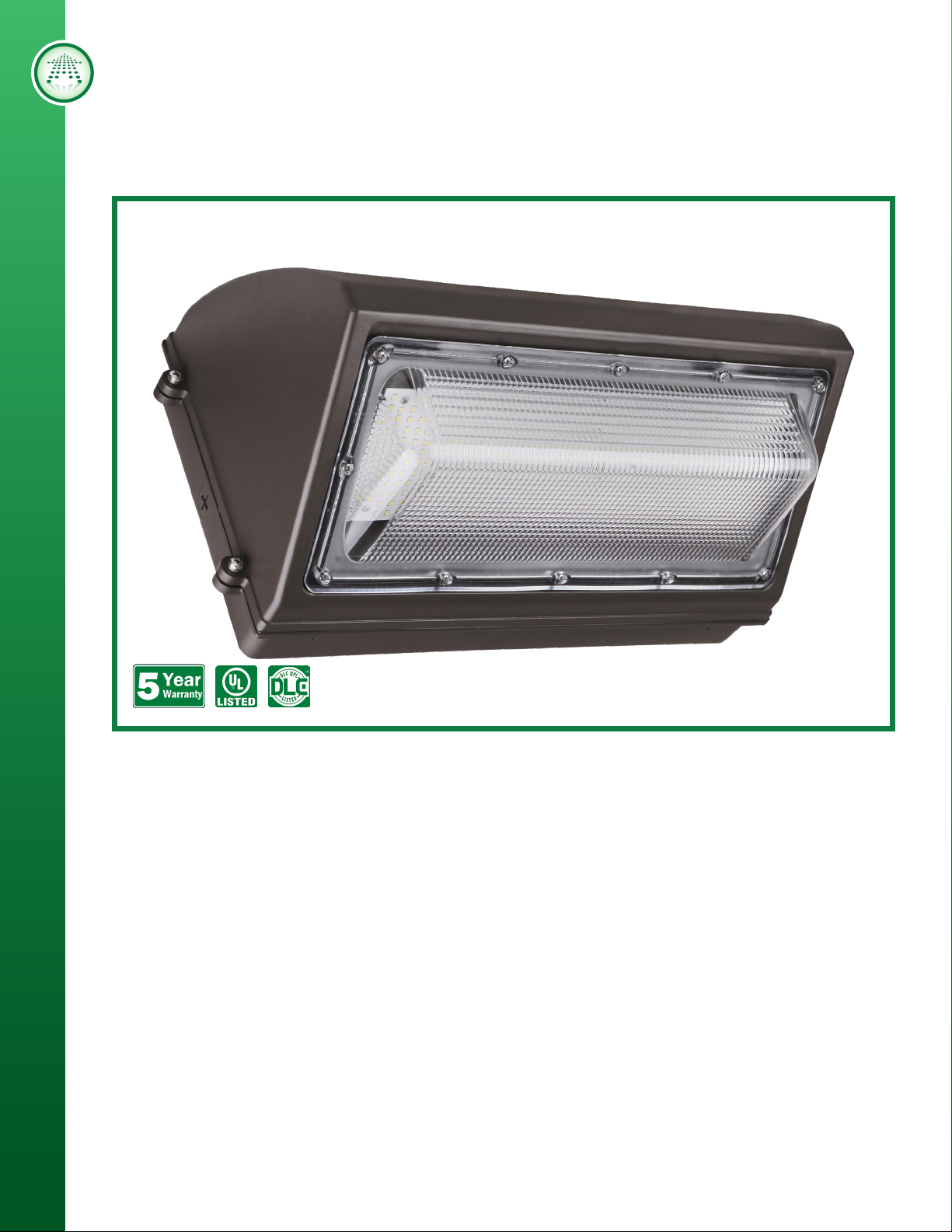

KLM Series
Beyond LED’s KLM Series is fully-featured and the most innovative product of its kind. It
offers a popular, classic appearance with energy-efficient LED technology. Our KLM Wall
Packs come with Built-in photocell on our 55-120 Wattage Models. KLM luminaires come
with die cast aluminum housings and a polycarbonate lens to stand up to many years of
punishing environmental conditions.
• Up to 135 lumens per watt
• Durable die-cast aluminum housing with
dark bronze powder coat finish
• Built-In Photocell
Beyond LED Technology | 1939 Parker Ct, Stone Mountain, GA, 30087
Due to continuous product improvement, information in this document is subject to change.
• IP65 waterproof, sealed, and gasketed
wireway enclosure provides a water-tight seal
• Optional PIR sensor
• Universal 100-277Vac
LED Wall Pack
KLM Series
SKU # Model # Watts Lumens CCT
151390
151392
151391
151207
151388
151389
BLT-SWP01-55BA2-abcdf
BLT-SWP01-80BA2-abcdf
BLT-SWP01-100BA2-abcdf
BLT-SWP01-120BA2-abcdf
BLT-SWP01-150WBA1-abcdf
BLT-SWP01-200WBA1-abcdf
55W 7122Lm 5000K Yes IP65 100-277V UL & DLC
8OW 10474Lm 5000K Yes IP65 100-277V UL & DLC
100W 12947Lm 5000K Yes IP65 100-277V UL & DLC
120W 15517Lm 5000K Yes IP65 100-277V UL & DLC
150W 18932Lm 5000K No IP65 100-277V UL & DLC
200W 25486Lm 5000K No IP65 100-277V UL & DLC
Dimensions
55W / 80W / 100W / 120W
9.25197”
Photocell
IP
Input
Voltage
Certifications
LED WALL PACKS
9.25197”
9.6338583”
CORRELATED COLOR
TEMPERATURE (CCT)
9.92126”
14.2126”
150W / 200W
9.6338583”
9.72441”
18.047244”
(866) 786-1117 • www.BeyondLEDTechnology.com
Due to continuous product improvement, information in this document is subject to change.
2

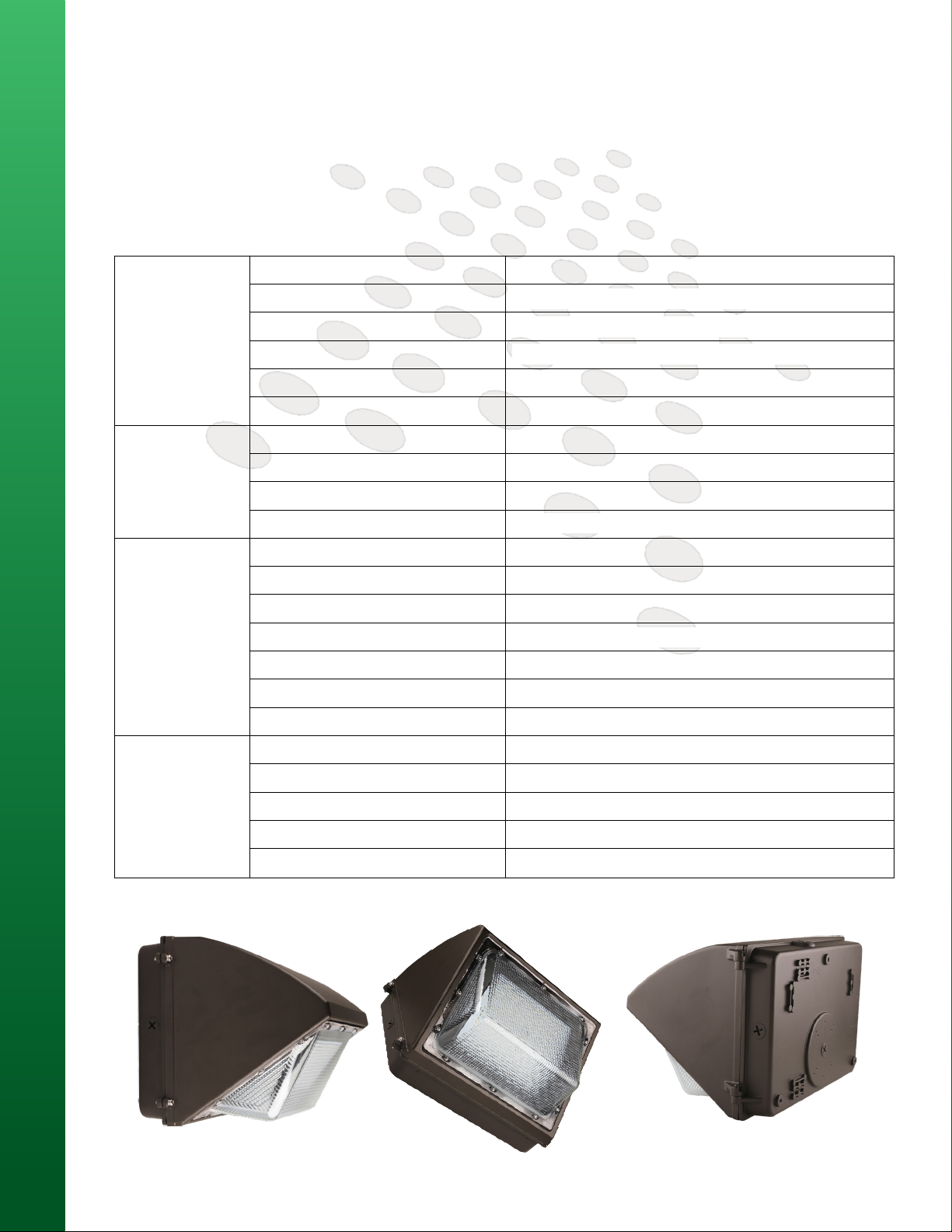

55W Specifications
LED Semi-Cutoff Wall Pack
Page2of
3
SPECIFICATIONS
Input Power 55W
LED Wall Pack
KLM Series
ELECTRICAL
MATERIALS
OPTICAL
Lumen 6800-7600LM
Lumen Efficacy 125-135 LM/W
Color Temperature 4000K,4500K,5000K,5700K
CRI >80
Viewing Angle 110 Degree
Input Voltage 100-277VAC 50/60Hz
PF ≥0.9
THD ≤20%
Driver Model China Brand Driver
LED Type SMD2835 (0.5W)
LED Q TY 200 PCS
Housing Aluminum(ADC12) +PC
Housing Color Brown
Cover Stripe lens
Waterproof Rating
Optional Accessory Photocell / Surge protector / PIR Sensor
Operating Temperature -20℃ TO 45℃
7122Lm
130 Lumens per watt
5000K
Beyond Brand Driver
Bronze
Striped Lens
WET（IP65）
Built-in Photocell
-4°F to 113°F
LED WALL PACKS
3
OTHERS
Operating Humidity
Storage Temperature
Storage Humidity 10％-95％ RH
Warranty Time 5 Years
Beyond LED Technology | 1939 Parker Ct, Stone Mountain, GA, 30087
Due to continuous product improvement, information in this document is subject to change.
10％-90％ RH
-40℃ TO 80℃
-22°F to 176°F
LED Wall Pack
LED Sem i-Cutoff Wall Pack
Page3of
3

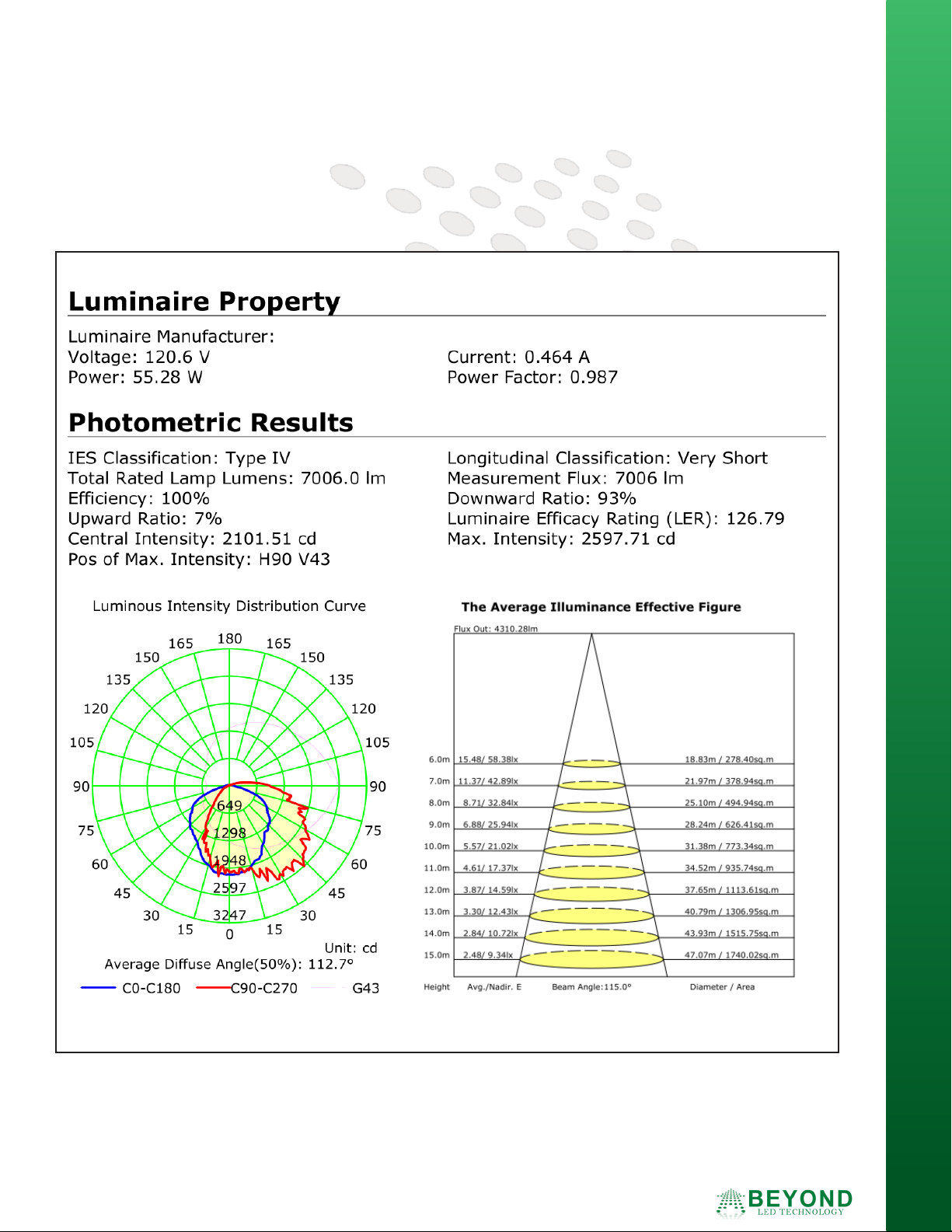

55W Distribution Diagram
KLM Series
LED WALL PACKS
(866) 786-1117 • www.BeyondLEDTechnology.com
Due to continuous product improvement, information in this document is subject to change.
4
80W Specifications
LED Semi-Cutoff Wall Pack
Page2of
3
SPECIFICATIONS
Input Power 80W
LED Wall Pack
KLM Series
ELECTRICAL
MATERIALS
OPTICAL
Lumen 9300-10400LM
Lumen Efficacy 120-130 LM/W
Color Temperature 4000K,4500K,5000K,5700K
CRI >80
Viewing Angle 110 Degree
Input Voltage 100-277VAC 50/60Hz
PF ≥0.9
THD ≤20%
Driver Model China Brand Driver
LED Type SMD2835 (0.5W)
LED Q TY 280 PCS
Housing Aluminum(ADC12) +PC
Housing Color Brown
Cover Stripe lens
Waterproof Rating
Optional Accessory Photocell / Surge protector / PIR Sensor
10474Lm
130 Lumens per watt
5000K
Beyond Brand Driver
Bronze
Striped Lens
WET（IP65）
Built-in Photocell
LED WALL PACKS
5
OTHERS
Operating Temperature
Operating Humidity
Storage Temperature -40℃ TO 80℃
Storage Humidity
Warranty Time 5 Years
Beyond LED Technology | 1939 Parker Ct, Stone Mountain, GA, 30087
Due to continuous product improvement, information in this document is subject to change.
-20℃ TO 45℃
-4°F to 113°F
10％-90％ RH
-22°F to 176°F
10％-95％ RH
LED Wall Pack
LED Semi- Cutoff Wall Pack
Page3of
3
80W Distribution Diagram
KLM Series
LED WALL PACKS
(866) 786-1117 • www.BeyondLEDTechnology.com
Due to continuous product improvement, information in this document is subject to change.
6
100W Specifications
LED Semi-Cutoff Wall Pack
Page2of
3
SPECIFICATIONS
Input Power 100W
LED Wall Pack
KLM Series
ELECTRICAL
MATERIALS
OPTICAL
Lumen 12400-13600LM
Lumen Efficacy 125 -135 LM/W
Color Temperature 4000K,4500K,5000K,5700K
CRI >80
Viewing Angle 110 Degree
Input Voltage 100-277VAC 50/60Hz
PF ≥0.9
THD ≤20%
Driver Model China Brand Driver
LED Type SMD2835 (0.5W)
LED Q TY 340 PCS
Housing Aluminum(ADC12) +PC
Housing Color Brown
Cover Stripe lens
Waterproof Rating
Optional Accessory Photocell / Surge protector / PIR Sensor
Operating Temperature
12947Lm
130 Lumens per watt
5000K
Beyond Brand Driver
Bronze
Striped Lens
WET（IP65）
Built-in Photocell
-20℃ TO 45℃
-4°F to 113°F
LED WALL PACKS
7
OTHERS
Operating Humidity
Storage Temperature
Storage Humidity
Warranty Time 5 Years
Beyond LED Technology | 1939 Parker Ct, Stone Mountain, GA, 30087
Due to continuous product improvement, information in this document is subject to change.
10％-90％ RH
-40℃ TO 80℃
-22°F to 176°F
10％-95％ RH
LED Wall Pack
LED Semi-Cutoff Wall Pack
Page3of
3
LIGHT DISTRIBUTION TESTING PARAMETERS
100W Distribution Diagram
KLM Series
LED WALL PACKS
(866) 786-1117 • www.BeyondLEDTechnology.com
Due to continuous product improvement, information in this document is subject to change.
8
120W Specifications
LED Semi-Cutoff Wall Pack
Page2of
3
SPECIFICATIONS
Input Power 120W
LED Wall Pack
KLM Series
ELECTRICAL
OPTICAL
MATERIALS
Lumen 14700-16300LM
Lumen Efficacy 125 -135 LM/W
Color Temperature 4000K,4500K,5000K,5700K
CRI >80
Viewing Angle 110 Degree
Input Voltage 100-277VAC 50/60Hz
PF ≥0.9
THD ≤20%
Driver Model China Brand Driver
LED Type SMD2835 (0.5W)
LED Q TY 400 PCS
Housing Aluminum(ADC12) +PC
Housing Color Brown
Cover Stripe lens
Waterproof Rating WET（IP65）
Optional Accessory Photocell / Surge protector / PIR Sensor
15517Lm
130 Lumens per watt
5000K
Beyond Brand Driver
Bronze
Striped Lens
Built-in Photocell
LED WALL PACKS
9
OTHERS
Operating Temperature
Operating Humidity 10％-90％ RH
Storage Temperature
Storage Humidity
Warranty Time 5 Years
Beyond LED Technology | 1939 Parker Ct, Stone Mountain, GA, 30087
Due to continuous product improvement, information in this document is subject to change.
-20℃ TO 45℃
-4°F to 113°F
-40℃ TO 80℃
-22°F to 176°F
10％-95％ RH
LED Wall Pack
LED Semi-Cutoff Wall Pack
Page3of
3
120W Distribution Diagram
KLM Series
LED WALL PACKS
(866) 786-1117 • www.BeyondLEDTechnology.com
Due to continuous product improvement, information in this document is subject to change.
10
150W Specifications
LED Semi-Cutoff Wall Pack Page 2 of 3
SPECIFICATIONS
Input Power 150W
LED Wall Pack
KLM Series
ELECTRICAL
MATERIALS
OPTICAL
Lumen 18000-20250LM
Lumen Efficacy 120-135 LM/W
Color Temperature 4000K,4500K,5000K,5700K
CRI >80
Viewing Angle 110 Degree
Input Voltage 100-277VAC 50/60Hz
PF ≥0.9
THD ≤20%
Driver Model China Brand Driver
LED Type SMD2835 (0.5W)
LED QTY 465 PCS
Housing Aluminum(ADC12) +PC
Housing Color Brown,Black
Cover Stripe lens
Waterproof Rating WET（IP65）
Optional Accessory Photocell / Surge protector/PIR Sensor
18932Lm
130 Lumens per watt
5000K
Beyond Brand Driver
Bronze
Striped Lens
LED WALL PACKS
11
OTHERS
ing Temperature -20℃ TO 45℃
Operat
Operating Humidity 20％-90％ RH
Storage Temperature -30℃ TO 80℃
Storage Humidity 10％-95％ RH
Warranty Time 5 Years
Beyond LED Technology | 1939 Parker Ct, Stone Mountain, GA, 30087
Due to continuous product improvement, information in this document is subject to change.
-4°F to 113°F
-22°F to 176°F
LED Wall Pack
LED Semi-Cutoff Wall Pack Page 3 of 3
150W Distribution Diagram
KLM Series
LED WALL PACKS
(866) 786-1117 • www.BeyondLEDTechnology.com
Due to continuous product improvement, information in this document is subject to change.
12
200W Specifications
LED Semi-Cutoff Wall Pack Page 2 of 3
SPECIFICATIONS
Input Power 200W
LED Wall Pack
KLM Series
ELECTRICAL
MATERIALS
OPTICAL
Lumen 24000-27000LM
Lumen Efficacy 120-135 LM/W
Color Temperature 4000K,4500K,5000K,5700K
CRI >80
Viewing Angle 110 Degree
Input Voltage 100-277VAC 50/60Hz
PF ≥0.9
THD ≤20%
Driver Model China Brand Driver
LED Type SMD2835 (0.5W)
LED QTY 600 PCS
Housing Aluminum(ADC12) +PC
Housing Color Brown
Cover Stripe lens
Waterproof Rating WET（IP65）
Optional Accessory Photocell / Surge protector
25486Lm
130 Lumens per watt
5000K
Beyond Brand Driver
Bronze
Striped Lens
LED WALL PACKS
13
OTHERS
Operating Temperature -2
Operating Humidity 20％-90％ RH
Storage Temperature -30℃ TO 80℃
Storage Humidity 10％-95％ RH
Warranty Time 5 Years
Beyond LED Technology | 1939 Parker Ct, Stone Mountain, GA, 30087
Due to continuous product improvement, information in this document is subject to change.
0℃ TO 45℃
-4°F to 113°F
-22°F to 176°F
LED Wall Pack
LED Semi-Cutoff Wall Pack Page 3 of 3
200W Distribution Diagram
KLM Series
LED WALL PACKS
(866) 786-1117 • www.BeyondLEDTechnology.com
Due to continuous product improvement, information in this document is subject to change.
14
Installation
LED Wall Pack
KLM Series
LED WALL PACKS
15
Beyond LED Technology | 1939 Parker Ct, Stone Mountain, GA, 30087
Due to continuous product improvement, information in this document is subject to change.

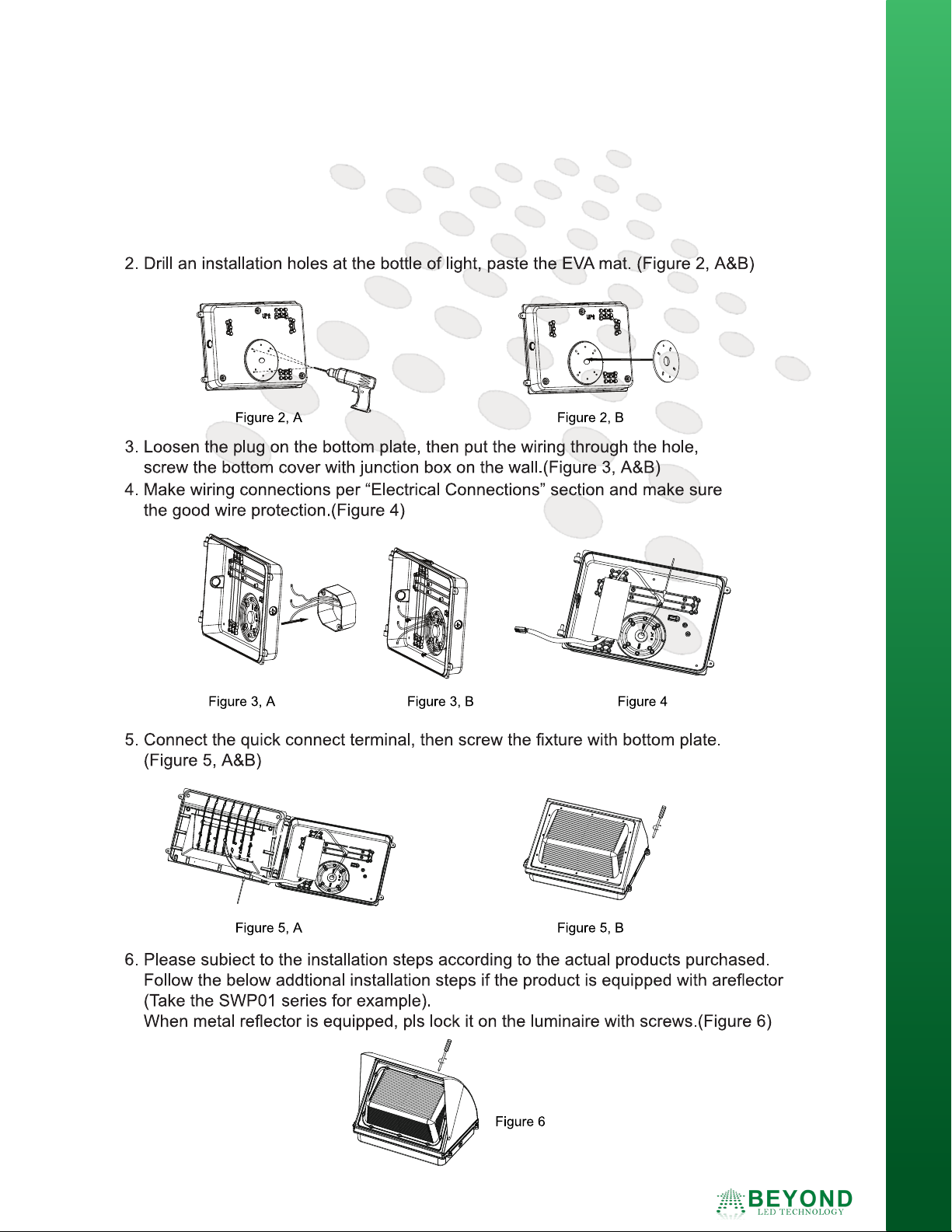

Installation
LED Wall Pack
KLM Series
LED WALL PACKS
(866) 786-1117 • www.BeyondLEDTechnology.com
Due to continuous product improvement, information in this document is subject to change.
16

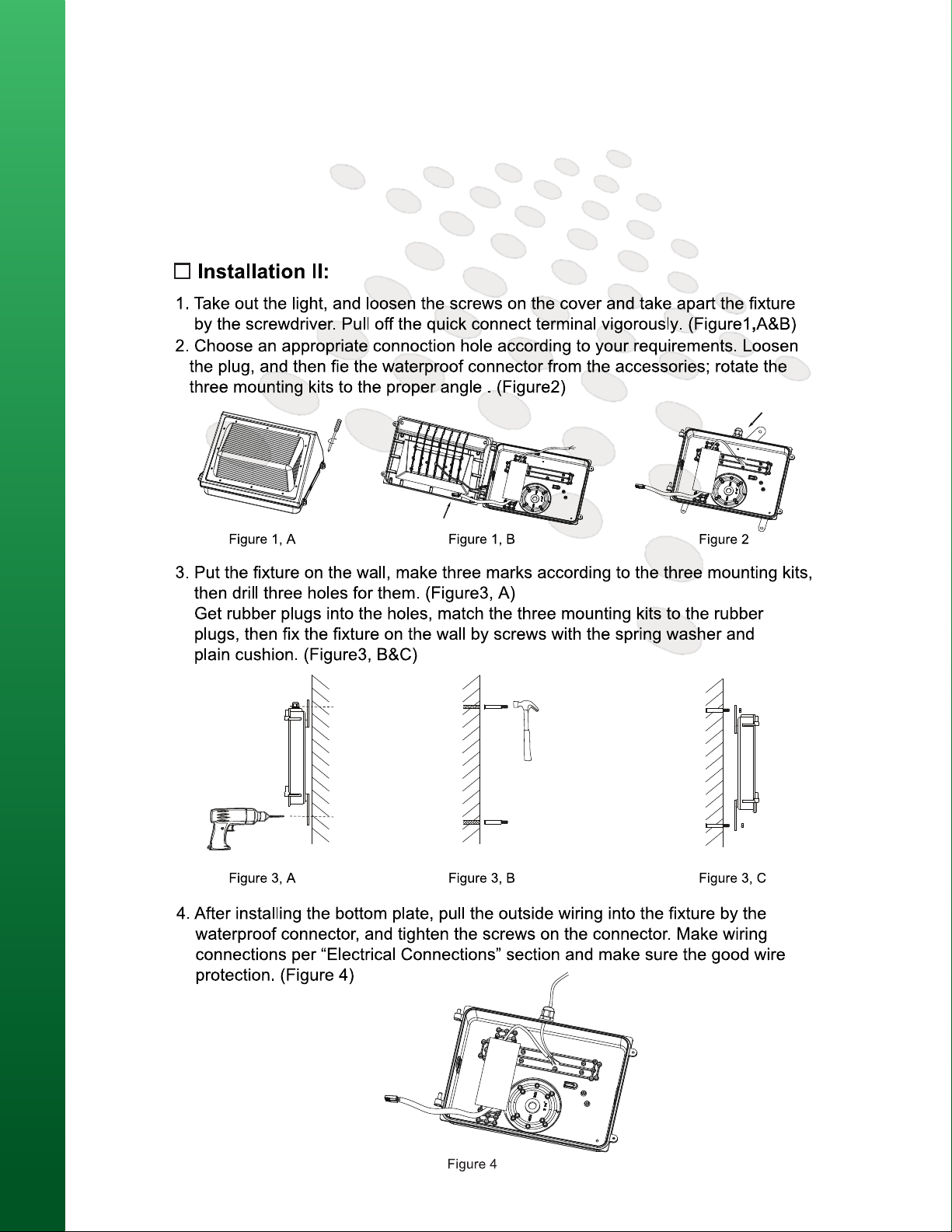

Installation
LED Wall Pack
KLM Series
LED WALL PACKS
17
Beyond LED Technology | 1939 Parker Ct, Stone Mountain, GA, 30087
Due to continuous product improvement, information in this document is subject to change.

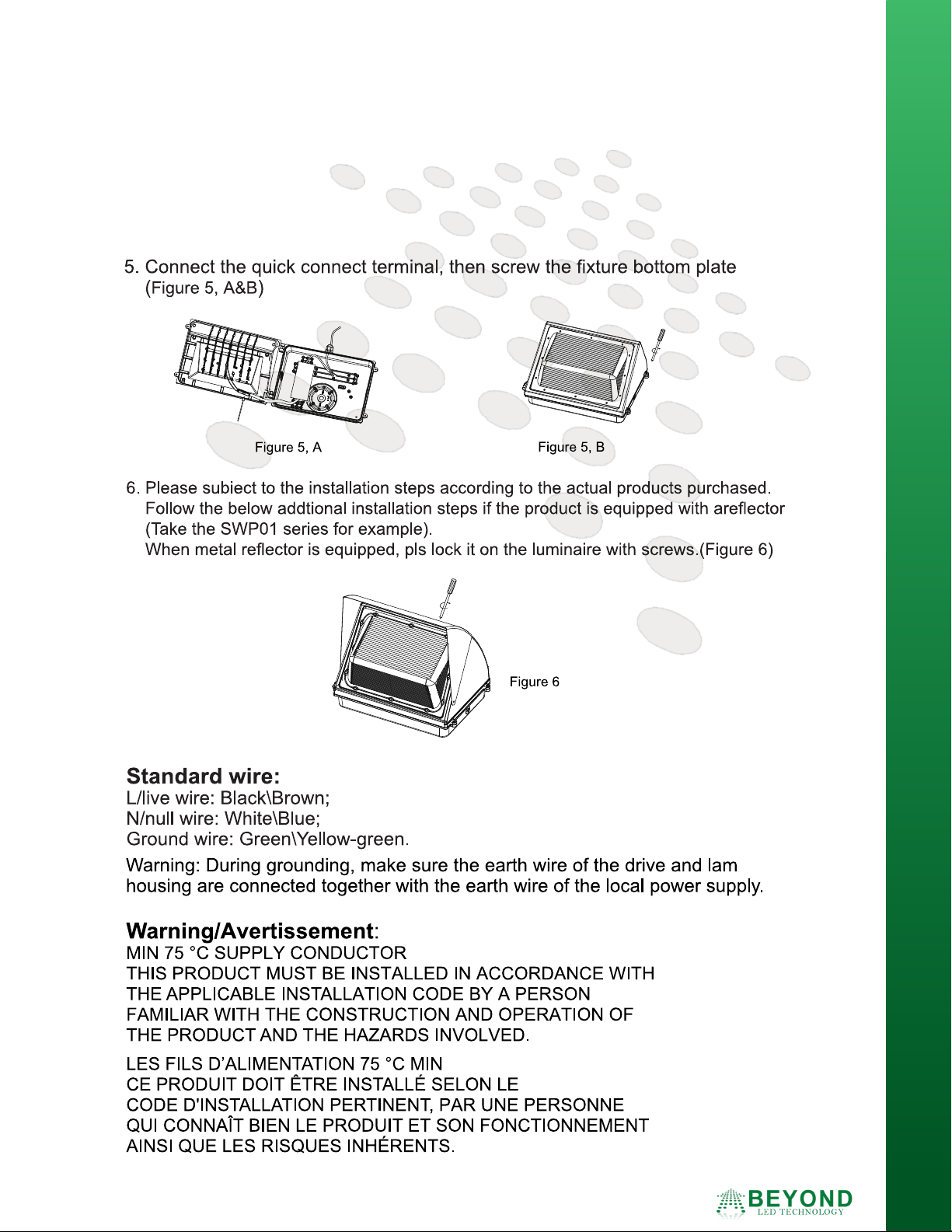

Installation
LED Wall Pack
KLM Series
LED WALL PACKS
(866) 786-1117 • www.BeyondLEDTechnology.com
Due to continuous product improvement, information in this document is subject to change.
18
Packaging
LED Shoebox Light Page 3 of 3
PACKAGE
Mount Type
Carton Size
Qty / Carton
Net Weight / Carton
Gross Weight / Carton
Slip Fitter (AM)
32.28 x 15.35 x 6.49in
1 PC
19.1802 lbs
21.3848 lbs
U Bracket (FM)
23.81 x 15.55 x 6.88in
1 PC
18.2984 lbs
20.503 lbs
Tolerance of Carton Size: ±0.590551 in, Tolerance of Weight: ±10%.
WET（IP65）
10％-90％ RH
-40℃ TO 80℃
Size Qty / Carton Net Weight / Carton Gross Weight / Carton
WET（IP65）
10％-90％ RH
-40℃ TO 80℃
Size Qty / Carton Net Weight / Carton Gross Weight / Carton
Model Pcs/Box Dimensions Weight Pallet Quantity Pallet Weight Pallet Dimensions
LED Wall Pack
KLM Series
55W 1
8OW 1
100W 1
120W 1
150W 1
200W 1
16” X 12” X 13” 7 Lb
16” X 12” X 13” 8 Lb
16” X 12” X 13” 9 Lb
16” X 12” X 13” 9 Lb
20” X 13” X 13” 13 Lb
20” X 13” X 13”
14 Lb
User Notice
LED WALL PACKS
• Please turn off the power before installing or changing assembly parts.
• The input voltage and lamps should be matching. Before connecting the power line, please
make sure the wiring section is insulated.
• Only professionals should install and disassemble the lamps.
Trouble Shooting
• Flickering light - Turn off the power and turn on again in 3 minutes. If the same phenomena
occurs, then call Support.
19
• Not working - Please check all power connections.
Beyond LED Technology | 1939 Parker Ct, Stone Mountain, GA, 30087
Due to continuous product improvement, information in this document is subject to change.
LED Wall Pack
KLM Series

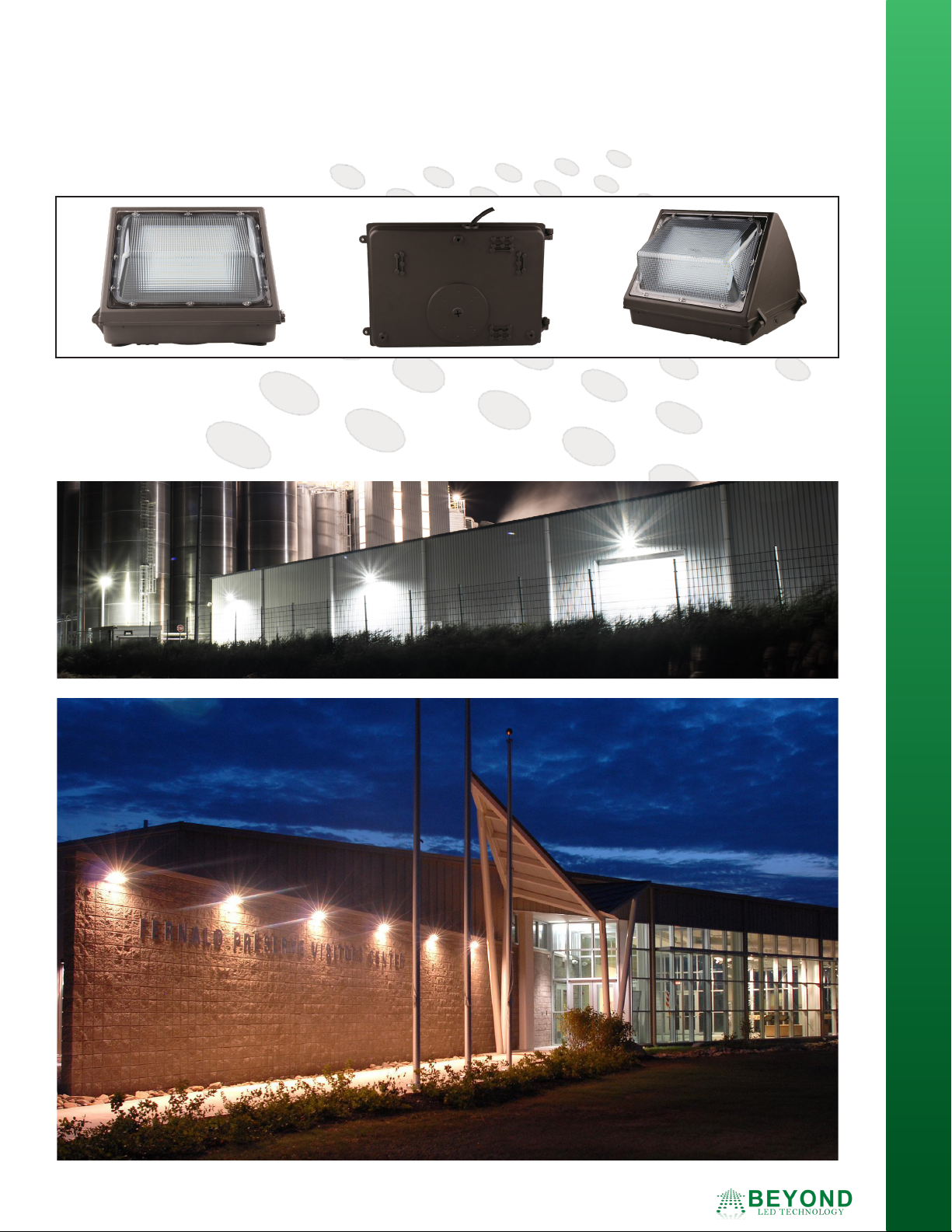

Application
LED WALL PACKS
(866) 786-1117 • www.BeyondLEDTechnology.com
Due to continuous product improvement, information in this document is subject to change.
20
Loading...
