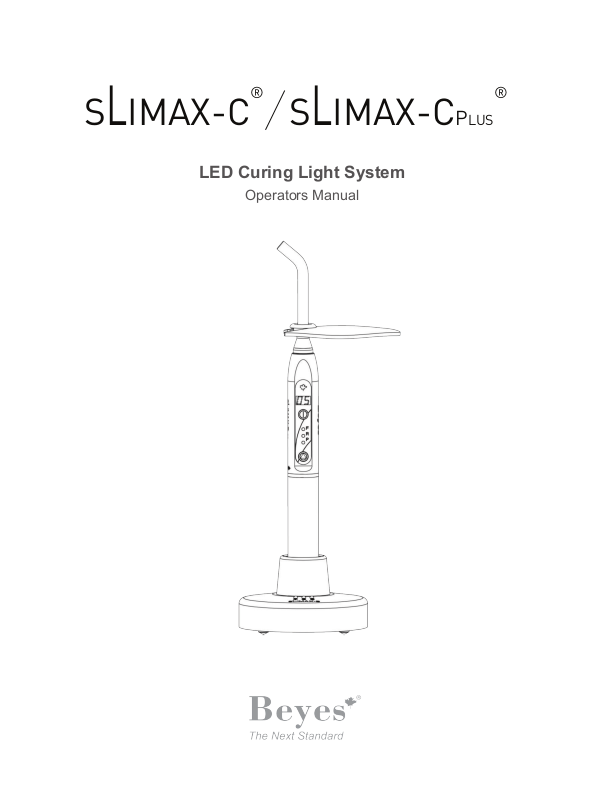

S
L
IMAX-C
®
S
L
IMAX-CPLUS
LED Curing Light System
Operators Manual
®
TABLE OF CONTENTS
SAFETY PRECAUTIONS P2
ASSEMBLY P3
BATTERY P3
MODES P4
EXPOSURE TIME P4
ACTIVATING AND DEACTIVATING THE LIGHT P4
BOOST AND REGULAR LIGHT OUTPUT P5
RECOMMENDED CURING TIMES P5
TROUBLESHOOTING P5
MAINTAINENCE: CLEANING / DISINFECTING / STERILIZATION P6
WARRANTY P7
TECHNICAL SPECIFICATIONS P8
CONTACT INFORMATION P8
..............................................................................................................
.................................................................................................................
.....................................................................................................................
.............................................................................................................
...................................................................................
.................................................................................................
........................................
....................................................
.................................................................
.........................................................................................
......
.......................................................................
.................................................................................
SAFETY PRECAUTIONS
1. is LED curing unit must be used in strict accordance with the following operating instructions. e
manufacturer assumes no liability for any damage resulting from the misuse of this unit or if it is being used
for any other purpose.
2. NOTE: Exercise extreme caution when using this product in the presence of a ammable anesthetic mixture or an oxidizer like oxygen or nitrous oxide.
3. is LED curing unit produces a high-output of light energy. A signicant increase in light energy is possible when compared to equipment previously used. It is important to observe the following precautions and
procedures:
• Do not place light directly on or towards unprotected gingiva or skin.
• Adjust curing techniques in accordance with the increase in light energy.
• Do not look directly at the light emitted from this LED curing unit. Do not use this device without suitable
eye protection for the operator, assistant and patient.
• Person(s) having a history of photosensitive reactions or who are using photosensitizing drugs should not be
exposed to light from this LED curing unit.
4. Use only the Beyes charger provided with this unit; e use of any other charger can result in damage to
th e ba tte r y.
5. Do not allow cleaning agents to enter the unit; is may short-circuit the unit or cause a potentially
dangerous malfunction.
6. Only service centers authorized by Beyes Dental Canada Inc. may open the Curing Light Controller housing and repair the unit.
7. In order to avoid electric shock do not introduce any objects into the unit with the exception of replacement parts in accordance with the Operating Instructions.
8. Person(s) (practitioners or patients) who have previously suered from a retina or crystalline lens condition
or who have undergone eye surgery (in particular for cataracts) must see their ophthalmologist before using
2
the Slimax curing light. Even supposing if the eye specialist agrees; prudence is strongly recommended, For the
reason that the intensity of the light could cause accidents. Class 2M protective eyewear is suitable for use with
units emitting radiation at wavelengths between 420 and 480 nm, should be worn at all times.
IMPORTANT
• Batteries must be charged prior to use.
• e ber-optic light guide is provided in a non-sterile condition and must be sterilized prior to
patient contact.
INTRODUCTION
e Slimax LED (Light Emitting Diode) is a cordless pen style curing light used for the polymerization of
light-cured dental material used by dental professionals. It is powered by a rechargeable Lithium-Ion battery
pack. is curing light system from Beyes Dental Canada Inc. generates a powerful output up to 2000 mW/cm
(± 10%). e curing procedure for composite materials is easier and quicker than ever before with the options
of 5, 10, 15 and 20 seconds curing time. Users can either select Full Power, Ramping Power or Pulse. is slim,
light weight curing light is ergonomically designed for user’s comfort and exibility. It’s solid aluminum body
sets it apart from the mass of plastic competitors. e quality, durability, and ease of applied infection control
techniques make this curing unit a state of the art instrument. e curing light (Slimax-C) comes in four different colors, Pink, Silver, Blue, and Purple.
ASSEMBLY
e box contains:
a. 1 Curing Light Controller
b. 1 Battery (e battery contains Lithium-Ion cells. A new
battery should be charged for 6 hours prior to its rst use.)
c. 1 Tip
d. 1 Battery Charger
e. 1 Power Supply
f. 1 Light Sheild
g. 1 8-mm Curved Light Guide
OPERATION
BATTERY: e battery pack contains a Lithium ion (Li-ion) battery. When the battery is
low, you will see “LO” on the LED display panel along with slow frequency beeps.
INSTALL THE BATTERY
1. Remove the battery and the Curing Light Controller with LED Display from the box
2. Gently screw the battery into the Curing Light Controller
3. To remove the battery, gently unscrew the battery from the Controller
a.
b.
d.
e.
3
c.
f.
g.
CHARGING THE BATTERY
1. Plug the power supply into the charger base. e socket is located at the back of the charger base.
2. Plug the power supply into an electrical outlet.
3. Place curing unit with battery into the charger as shown in Figure 1 or 2.
Please note:
e charging status lights are located on the top of the charger base and indicate the state of battery charge.
• Yellow light—battery is charging
• Green light—battery is fully charged
BATTERY DISPOSAL: e battery pack contains a Lithium ion (Li-ion)
battery. Recycle or dispose of batteries according to national, state and
local regulations.
CURING LIGHT CHARGE BASE
Included with the Slimax-C Plus is a built in radiometer.( See Figure 2) It is located on the Charge base for easy access to measure
the instant output of your curing light. To use the radiometer,
please ensure that the charging base is plugged into a power outlet.
Turn the curing light on and activate the light. en insert the
light guide into A (Seen in Figure 2). e measurement reading
will be shown on the display screen.
MODE
Your New Slimax Curing System oers three dierent operational modes:
F (Full): Provides Maximum Power
R (Ramp): e output gradually reaches Maximum Power
P (Pulse): e Power Pulses ON and OFF
Select Modes: Press button “2” continuously for three seconds
EXPOSURE TIME
F (Full): 5,10 seconds
R (Ramp): 10 and 20 seconds
On/O Button
P (Pulse): 10, 20 and 30 seconds
Figure 1
Figure 2
A
display screen
Display Panel
Select Exposure Time: Press Button “2”
ACTIVATING AND DEACTIVATING THE LIGHT
• Press the button “1”; the light will turn on.
• If desired, the light can be turned o by pressing
the ON/OFF button before the exposure time is over.
Mode Indicator
Time & Mode
Change Button
4
Boost and Regular Light Output :
e Slimax Curing Light oers you two tiers of light intensity to meet your daily needs
LP = Regular Output 1400 mW/cm2 ± 10%
HP = Boost Output 2000 mW/cm2 ± 10%
Select Output:
1. Press button “2” continuously
2. Press button “1” to select HP or LP
RECOMMENDED CURING TIME BASE ON THE BOOST POWER
Due to the high light output of the Slimax Curing Light System, the normal exposure times for conventional
units can be cut in half without compromising polymerization performance.
Beyes Dental Canada TESTING INDICATES THE FOLLOWING RECOMMENDED CURING TIMES:
Universal composite shades A3 and lighter (2-mm depth).....................5 seconds
Universal composite shades A3.5 and darker............................................10 seconds
Bonding agents, universal resin luting cements
and Self-etch, self-adhesive cements....…...................................................5 seconds
Note: It is highly recommended that curing capability be tested using a Hardness Disk
to ensure a complete cure.
CURING LIGHT CONTROLLER:
e eciency of your new Slimax Curing Light is designed to provide an entire days use when fully charged.
A fully charged battery will yield 850 ten-second cures.
TROUBLESHOOTING
Problem
No indicator lights on the controller
e battery does not charge
e controller has not been used for a
long time and will not turn on
Low light intensity • e light guide may be not clean
Cannot activate the light by pressing
the ON/OFF button
Cause(s)
• Battery Not Charged
• Battery is improperly connected
• Check Power Supply and Charger
Base for proper
connections
• Check that Controller is
seated properly in Charger Base
• Battery no charged
• LED light is burned out
5
Solution(s)
√ Recharge the battery
√ Unscrew the battery to clean the
circuit contact dot of the battery and
the two contact pins located at the end
of the unit
√ Ensure there is a good connection
electrical outlet and plug
√ Clean the battery electronic contact
and charge needle inside of the charger
base
√ Place Controller in the charger and
re-charge the battery.
√ Clean the light guide and the
protecting glass in the light guide
mounting hole
√ Call Beyes Dental Canada Inc. for an
authorized service center
MAINTAINENCE: CLEANING / DISINFECTING / STERILIZATION
(Your Slimax unit is maintenance-free. No periodic maintenance is required)
Manual Cleaning and Disinfection of the Light Guide
•
Place the light guide for the specied application time into the solution, making sure that it is
completely covered (as needed, using ultrasonic support or careful brushing with a so brush).
A neutral enzymatic cleaning agent is recommended.
•
Remove the light guide from the solution and rinse thoroughly (at least 10 seconds) in water with
low germ count.
•
To disinfect; place the cleaned light guide for the specied application time into the solution, making sure that it is completely covered. Please note: Disinfectants containing o-phthalaldehyde are
recommended.
•
Remove the light guide from the solution and rinse thoroughly (at least 10 seconds) in water with
low germ count.
•
Dry the light guide with a clean so cloth.
Steam Sterilization
•
Check the light guide.
•
Eective cleaning and disinfection are absolutely essential requirements for eective sterilization.
Only steam sterilization is approved.
•
Maximum sterilization temperature is 134 °C (273 °F)
•
Sterilization time (exposure time at sterilization temperature) at least 20 min. at 121°C (250 °F) or
at least 3 min. at 132 °C (270 °F) /134 °C (273 °F)
Check
•
Before using the light guide again, check it for damaged surfaces and discoloration;
do not use damaged light guides.
How to Clean Charger, Main board, and Glare Shield
•
To disinfect all components, spray the disinfectant on a towel and use it to disinfect the unit. Do
not spray the disinfectant directly on the Curing Light Controller or the Charger.
•
Disinfection agents must not enter the unit.
•
Clean the protecting glass of the Curing Light Controller with a so and lint-free cloth.
•
Dry residual disinfectants on the charger, the Curing Light controller and the glare Shield with a
so and lint-free cloth.
•
Solvents or abrasive cleaners should not be used at any time for cleaning any of the Curing Light
System components!
•
Cleaning agents must not enter the Curing Light Controller.
•
Make sure that the charge contact pins remain dry and are not contacted by metallic or greasy
parts.
•
Care must be taken to avoid bending the charge contact pins during drying. Wet charge contact
pins will cause an operating error (malfunction message: the LED showing the operating status in
the charger glows red steadily).
Storage of the Slimax during Extended Periods of Non-Use
•
If the Slimax is not being used for an extended period of time - e. g., during vacation - fully charge
the battery prior to departure or keep the Curing Light Controller inserted in the operational
charger. A safety switch within the battery prevents a total discharge.
•
Discharged or nearly discharged batteries must be recharged as soon as possible.
6
WARRANTY
Beyes Dental Canada Inc. hereby warrants that for a period of one (1) year from the date of purchase, this instrument shall be free from defects in material and workmanship and will perform satisfactorily under normal
use and service.
Users MUST complete the online Warranty Registration Form within 30 days of the purchase date at
www.beyes.ca in order to qualify the warranty. If multiple units have been purchased, ll out one registration
form per unit. Please keep your dealer invoice. A copy of the invoice will be required should warranty service
be required.
In the event of a breach of this warranty, Beyes liability is limited to, at Beyes option; to replace the defective
product or part thereof, or reimbursement of the actual cost of the defective product. In order to take advantage of this limited warranty, the defective product must be returned to Beyes Dental Canada Inc. In no event
shall Beyes be liable for any indirect, incidental, or consequential damages.
BeyesCanada warrants this product will be free from defects in material and manufacture. Beyes Dental
Canada Inc. Makes no other warranties actual or Implied. User is responsible for determining the suitability
of the product for user’s application. If this product is defective within the warranty period, your exclusive
remedy and Beyes Dental Canada Inc.’s sole obligation shall be to repair or replace the Beyes product.
7
TECHNICAL SPECIFICATIONS
Curing Light Controller
Power Supply Lithium-ion battery (3.7V 2200mAH)
Wavelength Range 430-480 nm
Wavelength Peak 455 nm +/- 10 nm
Light Intensity (between 400 and 515 nm) 2000 mW/cm2 ± 10% (independent of battery power level)
Total Exposure Time ( fully charged battery) 850 Uses at 10-second cures
Charging Time (depleted battery) approximately 3 hours
Dimensions Diameter 23 mm (0.92”), Length 254 mm (10”)
Weight 4.8 oz (0.3 lb) (excludes light guide)
Charger
Voltage rang of the charge 100-230V 50/60Hz
Power input 10 W (5V/2A)
Dimensions Diameter 96 mm (3.8 in), High 75 mm (2.95 in)
Weight 6.4 oz (0.4lb)
Federal law restricts this device to sale by or on the order of a dentist, physician, or any other practitioner
licensed by the law of the states in which he or she practices to use or order the use of this device.
!
Beyes Dental Canada Inc.
23-595 Middleeld Road
Toronto, Ontario, M1V 3S2
Canada
Tel: 1-855-603-1888
Fax: 1-855-720-1228
Email: info@beyes.ca
Web: www.beyes.ca
Lotus NL B.V.
Koningin Julianaplein 10, Ie Verd,
2595AA, e Hague,
Netherlands
Tel : +31645171879 (English)
+31626669008 (Dutch)
0197
Printed in Canada
I115EN.REV2E1903
Loading...
