Unite TH – Handheld Transmitter

Thank you for choosing the Unite TH handheld
transmitter.
To ensure an optimum peormance, we would like to
give you a brief introduction on how to use this handheld
transmitter.
The Unite TH handheld transmitter was designed for
barrier-free use:
– raised symbols or braille on the operating buttons for

the blind

– compatible with the beyerdynamic induction loop for

the hard of hearing

For detailed operating inructions in your language,
please visit: www.beyerdynamic.com/unite

1. Safety instructions

General

• Please READ this user manual before the first use.

• Please KEEP this user manual.

• Please FOLLOW the specified operating and safety
instructions.

Disclaimer

• beyerdynamic GmbH & Co. KG will not be liable for any
damage to the product or injury to persons caused by
negligent, improper, incorrect or inappropriate
operation of the product.

5

english

Troubleshooting / repairs

• Never open the device yourself.

• Refer all service work to authorised professionals only.

Cleaning

• Only clean the device with a dry or slightly damp cloth.
Never use solvents, as these will damage the surface.

Rechargeable battery

• The handheld transmitter is operated with the a
lithium ion battery, which must replaced by trained
service staff only.

• Use only a USB 2.0/3.0 compliant 5V power supply to
charge the battery via the integrated USB
type-C port (power consumption is max. 500 mA).

• High temperatures, paicularly in association with a
high charging atus, result in irreversible damage of
the battery.

• If you are not intending to use the battery for an
extended period or are planning to put it into orage,
it is advisable to lower the battery’s charging level to
around 50% and to ore it at temperatures of maxi­mum 30 °C.

• In order to ensure safe transpo by land, sea and air,
the battery used for the handheld transmitter is teed

6

Unite TH – Handheld Transmitter

according to the UN 38.3 transpo regulation for
lithium-ion batteries.

• Misuse or improper use could damage the battery. In
extreme cases, there is a risk of explosion, heat, fire,
smoke or gas.

• Never expose the battery to excessive heat such as
sunshine, fire or the like.

• Do not expose the battery to mechanical shock.

• Charge the battery before initial use.

• Use the specified chargers for charging the battery.

• Avoid complete draining of the battery. This could
damage the battery and shorten its service life.

• If you do not use the transmitter for several months,
the batteries should be charged at least twice a year
to prevent deterioration in performance due to self­discharge.

• Clean the charging contacts of the transmitter with a
clean dry cloth, if they become dirty.

• Do not short-circuit the battery.

• The charging contacts could cause property damage,
injuries or fire damage if they come into contact with
conductive materials such as jewellery, keys or chains.
This can lead to a closed electric circuit and, therefore,
to the material overheating. To avoid this kind of
unintentional electric circuit, the charging contacts
must be handled with care. This is especially important
if the transmitter is transported in a bag or another
container containing other metallic objects.

Moisture / heat sources

• Keep the battery clean and dry. Never expose the
device to rain or high humidity. Do not install it in the
immediate vicinity of swimming pools, shower
facilities, damp basements or other areas with
unusually high air humidity.

• Never place objects filled with water (e.g. vases or
drinking glasses) on the device. Liquids in the devices
may cause a short circuit.

• Never install or operate the device in the immediate
vicinity of radiators, lighting systems or other heat­ generating devices.

Unite TH – Handheld Transmitter

Disposal

At the end of its operating life this product may
not be disposed of along with normal house­hold waste. Please take it to a designated
recycling point for electric and electronic
appliances. This is indicated by the symbol on
the product, the operating instructions or the
packaging.

Simplified EU declaration of conformity

beyerdynamic hereby declares that the wireless
transmission device complies with the EU Directive
2014/53/EU (RED). The complete text of the EU declaration
of conformity is available online at the following
address: http://www.beyerdynamic.com/cod

2. Supplied accessories

• Unite TH handheld transmitter

• Quick Start Guide

• Coloured rings ( 2 x black, 2 x orange)

• Storage bag

• MA-CL 36 microphone clamp

7

english

8

Unite TH – Handheld Transmitter

3. Operating elements

3.1 Device (refer to the fold-out page)

 Microphone grille, detachable
 Mute button with status indicator light and braille

inscription
With this button you can mute or activate the micro-

phone.

– Status indicator light – during operation:

Indicator light Operating status

Off Device is switched off

Flashing yellow
slowly

Yellow In Request mode:

Green Connection established, audio

Flashing green
slowly

Flashing red slowly Low battery level < 10%

• Ready to operate and
battery status > 10%

• Out of range (in slave
mode only)

Connection established, but
no audio transmission;
battery status > 10 %

transmission running (micro­phone open or another audio
source is used) and battery
status > 10%

Microphone is muted

Red Device is starting

Flashing red/green
rapidly

Flashing red rapidly Critical error

– in the charger:

Indicator light Charging status

Off Device is switched off
Flashing green

slowly
Green Battery is charged
Flashing yellow

slowly
Yellow for

10 seconds

Firmware update is running

Charging 0 - 100%

Pairing information is being
copied from the transmitter

Device information is
copied successfully to
charger/devices

Unite TH – Handheld Transmitter

Indicator light Charging status

Flashes red slowly
for 10 seconds

• Too many transmitters in
the charger when pairing
is initiated

• Other paring error

Flashing green/

Device is being localised

yellow rapidly
Flashing red/green

Firmware update is running

rapidly
Flashing red rapidly Charging error

 Display

The display indicates the channel name, battery
status and different menus.

 On/Off and menu button

Use the on/off button to turn the transmitter on or off.
To switch off the device, hold down the button for 5
seconds. In order to activate the main menu, hold
down the button for 2 seconds. Use the menu button
to confirm settings. For a detailed description of the
individual menus and menu items, please refer to the
Unite manual on the internet at:
www.beyerdynamic.com/unite

 Multifunction button

If you are in a menu, you can scroll through the menu
to make various settings.

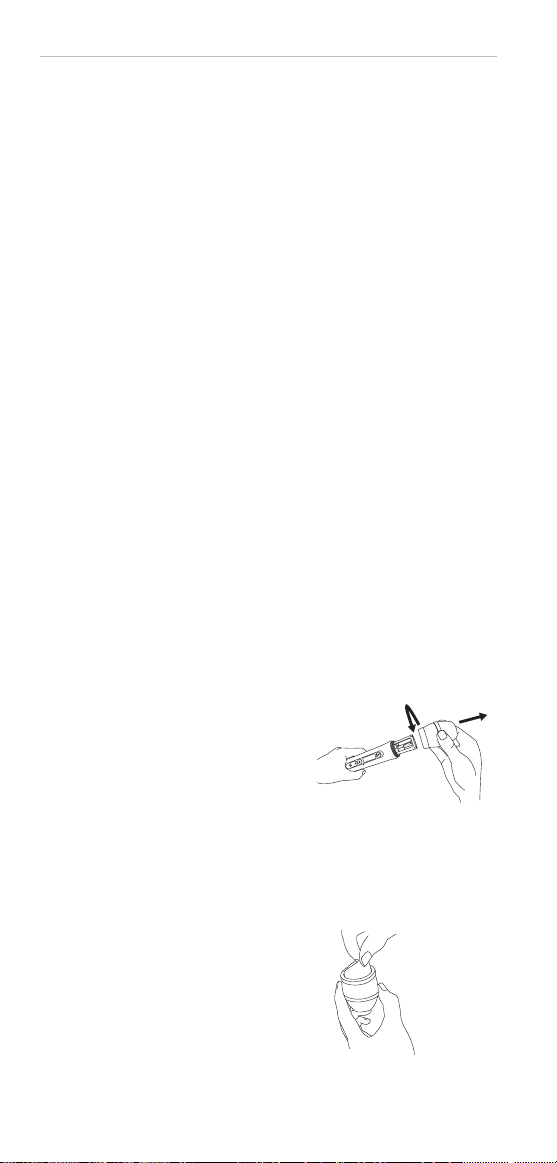

 Coloured ring, replaceable
 Type plate
 Charging contacts

The built-in battery is charged via the charging
contacts when the device is inserted into the char­ger. Make sure to insert the device fully into the char­ging slot so that the charging contacts have proper
contact.

 USB port, Type C

You can use this connector to charge the integrated
battery via a USB power adapter. Furthermore, you
can connect the handheld transmitter to the USB Type
C port on a Unite charger to charge it or to pair it with
other devices.

9

english

0

UNIT

E

M

A

S

T

E

R

80

M

S S

%

1

Unite TH – Handheld Transmitter

3.2Display

The main screen (below) is displayed when the handheld
transmitter is switched on and ready for operation.





 Display of all active speakers

(Master, 1

 Highlighted display of current type of speaker

(Master, 1

 Current channel name
 Bluetooth® status

(various symbols; depending on the status)

 Display of muted microphone or display of source (internal

microphone or Bluetooth® Headset)

 Activated talkback function on receiver
 Display of remaining battery capacity











st

slave, 2ndslave)

st

slave or 2ndslave)



Unite TH – Handheld Transmitter

F
u
n
c

t
i
o
n

M

u
t
e

/
M
e

n
u
/
O
k

4. General operation

• Important: Before using the handheld transmitter for
the first time, you must charge the built-in battery.
Please use an appropriate Unite charger or the USB
connection.

• Switch on the transmitter by pressing the on-off
button .

• In order to establish an audio connection between a
transmitter and one or more receivers, all devices
must be paired together. See chapter 5.

• All devices are supplied with the group ID 256 and
fixed audio encryption allowing quick and easy initial
use.

• The transmitter will only transmit the audio signal on a
channel with a predefined channel name. If there are
several transmitters in a group, the channel for the
respective transmitter can be selected on the receiver.

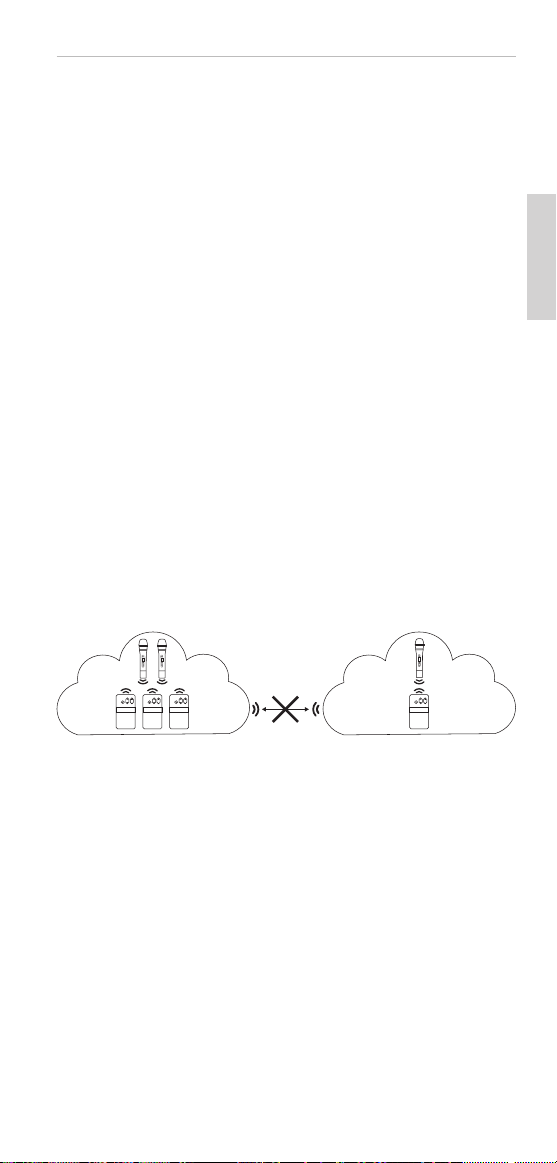

• If you require several device groups or an audio trans­mission even more secure against eavesdropping, to
avoid listening by other groups using Unite devices,
follow the steps in chapter 5 to create a new pairing.

4.1 Maintenance

• Protect the handheld transmitter from humidity, knocks and
shock. Avoid dropping the transmitter at all times.

• For cleaning the plastic surface of the handheld transmitter
use a soft cloth moistened with a solvent-free plastic
cleaner.

11

english

• As soon as your microphone
sounds dull, you should clean
the integrated pop shield:
– Unscrew the microphone



grille

anti-clockwise.

– Pull out the foam pop

shield, if necessary use
tweezers.

Unscrew microphone grille

Pull out the pop shield

2

M
e
n
u

/O
k

M
u
t
e

F
u

n
c
t
i

o
n

/

M

en
u
/
O

k

M

u
t
e

F

u
n
ct
i

on

/

Menu/OkMute

Function

/

1

Unite TH – Handheld Transmitter

– Clean it under clear running water.
– If necessary, use a mild washing-up

liquid.

– Dry it afterwards with a hairdryer or

allow it to dry overnight.

– Clean the microphone grille both

inside and out with a slightly
moistened cloth or a soft brush
under clear running water and

Clean the foam pop

shield

allow it to dry overnight.

– The microphone grille cannot be

cleaned in a dishwasher.

– Place the dry pop shield inside the

microphone grille and replace the
microphone grille by screwing it
on clockwise.

4.2 How to replace the coloured ring

• Press the coloured ring with two fingers slightly together,
grab the small loop and pull the coloured ring carefully from
the transmitter.

Grab the coloured ring

• Slide the new coloured ring from the
bottom onto the transmitter.
Make sure that the coloured ring is not
twisted.

Pull the ring from the transmitter

Slide the coloured ring

onto the transmitter

Unite TH – Handheld Transmitter

F
u
n
c
t
i
o
n

/
M
e
n
u
/
O
k

F
u
n
c
t
i
o
n

M
u
t
e

/
M
e
n
u
/
O
k

M

u
t
e

M
u
t
e

4.3 Tips and Tricks

• Avoid holding the handheld transmitter at the top or bottom.

You could cover the integrated antennae and therefore
reduce the range. Always hold the handheld transmitter in
the middle.

13

english

Wrong hand position

Correct hand position

• At the factory the ALC (Automatic Level Control) and Noise

Gate functions are activated.
With the ALC function the handheld transmitter
automatically adjusts the gain to ensure the signal volume is
as consistent as possible. The intelligibility of speech is
significantly increased.
The Noise Gate function suppresses annoying background
noise.

• If the “ALC” function is deactivated, it is advisable to reduce

the gain for loud speakers and to increase the gain for quiet
speakers. In either case, use the on-off and menu button



to access the “Audio” menu and the “Volume” and “Internal
Mic” submenus. Adjust the volume or microphone gain
accordingly.

• For an optimal speech transmission,

ensure a consistent distance to the
mouth. Avoid holding the microphone
closer or farther to the mouth. Also,
avoid turning your head while
speaking.

Distance to the mouth

4

1

• The Bluetooth® function of the handheld transmitter, which
can be set in the menu, serves as an audio interface for
playing various audio sources as well as for playing back
audio signals. In order to connect the Unite TH handheld
transmitter with another device (e.g. headphone,
smartphone or computer) via Bluetooth®, pairing with the
connecting device must be carried out first. A detailed
description of the procedure can be found in the
comprehensive “Unite” manual on the internet at
www.beyerdynamic.com.

Unite TH – Handheld Transmitter

5. Create / define a new pairing

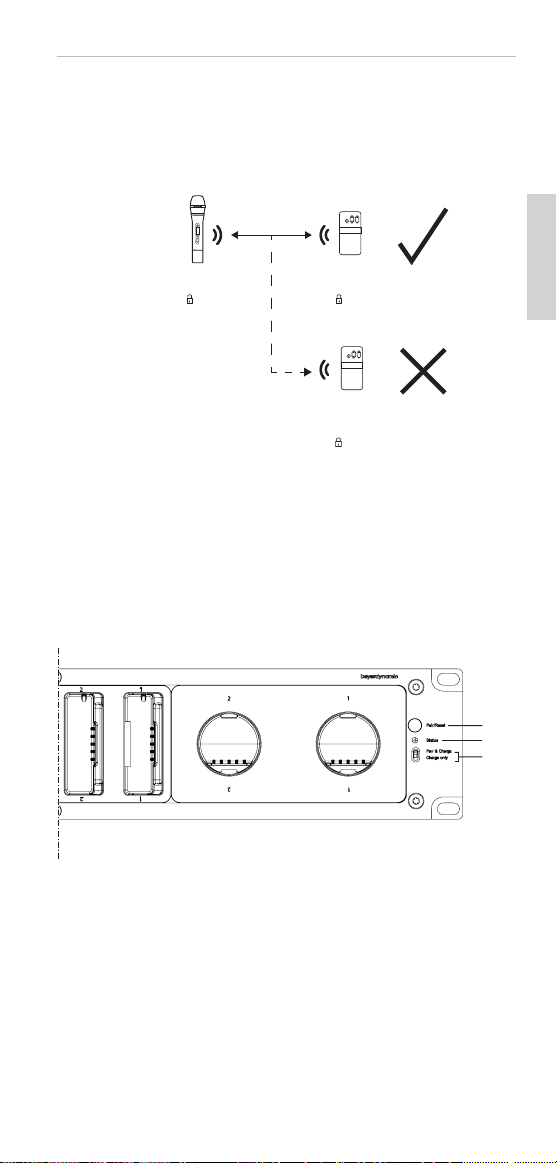

Transmitters and receivers must be paired so that they
can communicate with each other. For a successful
pairing the channel name, group ID and audio encryption
key are required. The required audio encryption key is
generated in the charger or via the Unite Manager soft­ware and during the pairing process it is first stored on the
charger and then it is transferred to the transmitter and
receiver in the charger. In this context, please also note
the position of the switch on the charger. The switch must
be set to the “Pair & Charge” position so that the pairing
information can be transmitted from the charger to the
transmitters and receivers.

There are three different ways to pair the Unite transmitters
with receivers:

1. Via an individual charger (refer to the following

description or system manual online).

2. Using the Unite Manager Software on a PC (refer to

the Unite Manager Software manual or system
manual online).

3. Via dynamic channel search (refer to system manual

online, chapter “Special functions”.

Use with group ID 256

By default, the transmitters and receivers are supplied
with the group ID 256.
A factory-set audio encryption key, which cannot be
changed, is used for the factory-set group ID 256. The
audio encryption key ensures additional security against
unauthorised listening. You can use the group ID 256 for
a system without pairing.
Receivers with the group ID 256 can find and connect to
all transmitters with the group ID 256. This is done via the
dynamic channel search on the receiver.
Attention: When using several transmitters (e.g. Unite AP4
and several Unite TP) with the group ID 256 at the same
time, make sure that the individual channel names differ
from each other! Otherwise this can cause connection
problems with the receivers!
