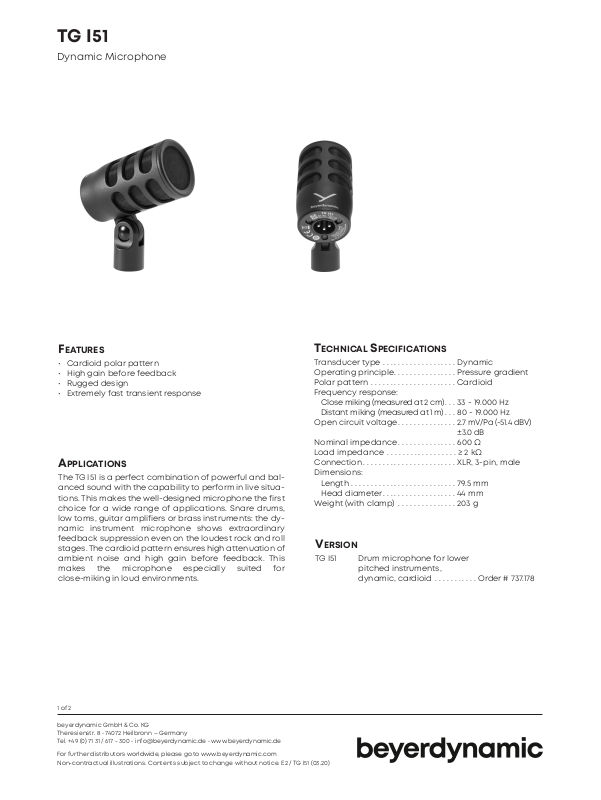

beyerdynamic TG I51 Technical data

TECHNICAL SPECIFICATIONS

Transducer type . . . . . . . . . . . . . . . . . . . Dynamic

Operating principle. . . . . . . . . . . . . . . . Pressure gradient

Polar pattern . . . . . . . . . . . . . . . . . . . . . . Cardioid

Frequency response:
Close miking (measured at 2 cm). . . 33 - 19.000 Hz
Distant miking (measured at 1 m) . . . 80 - 19.000 Hz

Open circuit voltage. . . . . . . . . . . . . . .

2.7 mV/Pa (-51.4 dBV)

±3.0 dB

Nominal impedance . . . . . . . . . . . . . . . 600 Ω

Load impedance . . . . . . . . . . . . . . . . . . ≥ 2 kΩ

Connection . . . . . . . . . . . . . . . . . . . . . . . . XLR, 3-pin, male

Dimensions:

Length . . . . . . . . . . . . . . . . . . . . . . . . . . . 79.5 mm

Head diameter. . . . . . . . . . . . . . . . . . . 44 mm

Weight (with clamp) . . . . . . . . . . . . . . . 203 g

APPLICATIONS

The TG I51 is a perfect combination of powerful and bal­anced sound with the capability to perform in live situa­tions. This makes the well-designed microphone the first
choice for a wide range of applications. Snare drums,
low toms, guitar amplifiers or brass instruments: the dy­namic instrument microphone shows extraordinary
feedback suppression even on the loudest rock and roll
stages. The cardioid pattern ensures high attenuation of
ambient noise and high gain before feedback. This
makes the microphone especially suited for
close-miking in loud environments.

FEATURES

• Cardioid polar pattern

• High gain before feedback

• Rugged design

• Extremely fast transient response

beyerdynamic GmbH & Co. KG
Theresienr. 8 • 74072 Heilbronn – Germany
Tel. [phone] / 617 - 300 • [e-mail] • www.beyerdynamic.de

For fuher diributors worldwide, please go to www.beyerdynamic.com
Non-contractual illurations. Contents subject to change without notice. E2 / TG I51 (03.20)

1 of 2

TG I51

Dynamic Microphone

VERSION

TG I51 Drum microphone for lower

pitched instruments,

dynamic, cardioid . . . . . . . . . . . Order # 737.178

TG I51

FREQUENCY RESPONSE & POLAR PATTERN

This polar pattern and frequency response curve (± 3 dB) correspond to a typical production sample for this microphone.

beyerdynamic GmbH & Co. KG
Theresienr. 8 • 74072 Heilbronn – Germany
Tel. [phone] / 617 - 300 • [e-mail] • www.beyerdynamic.de

For fuher diributors worldwide, please go to www.beyerdynamic.com
Non-contractual illurations. Contents subject to change without notice. E2 / TG I51 (03.20)

2 of 2

Frequency response ± 3.0 dB (at 1 m) TG I51 0 dB = 2.7 mV/Pa

Diance 2 cm

Diance 1 m
