Quinta RS
Digital Control Unit
Order # 710.393
FEATURES
• Optimised for tele / video conferencing applications with a
maximum of 4 microphones in the microphone mode and small
conferences with a maximum of 20 microphones in the
conference mode.
• Can be operated in the conference or microphone mode.
• DSSS modulation to ensure high immunity from interference in
the frequency range of 2.4 / 5.2 and 5.8 GHz
• HD - High Definition audio mode provides an audio bandwidth
of 24 KHz and a sampling rate of 48 KHz
• HQ - High Quality of service mode for a user-optimised
transmitting and receiving performance in difficult
environments in terms of radio transmission
• AVB (Audio Video Bridging) input and output for digital signal
transmission in building networks - compliant to the IEEE 802
standards
• True diversity antenna technology ensures highest transmission
and reception reliability
• Digital 128-bit encryption and additional 24-bit PIN code
protection
• Automatic recognition of interferences in all frequency ranges
• Silent change to an interference-free frequency range automatic or manual according to the EN 300328 ETSI
• Control of a maximum of 20 microphones in the conference
mode and up to 4 in the microphone mode.
• 4 audio up-streams for up to 4 microphone signals
• 2 audio down-streams for loudspeaker transmission and
headphone output
• NOM - Number of open Microphones function allows the
allocation of up to 4 microphone units simultaneously
• Processor-controlled and automatic audio channel allocation of
the microphone units
• Integrated DSP for flexible audio routing
• Zoning – the output channel allocation of individual microphone units can be divided into 4 different audio zones
analogue or digital via AVB
• With the Mix-Minus function the system can be integrated into
tele- and video conferences
• Fully parametrical 4-band equalizer for microphone unit loudspeakers and master output
• NOM attenuation for the master output and individual audio
zone outputs
1 of 5
.1
• Analogue audio input for external signals or digital via AVB
• Operating modes Conference Mode:
– Manually - each participant can turn his or her
microphone on/off
– Voice Activation (not available when using the Quinta TB
boundary microphone) - once someone speaks into the
microphone, it is turned on
– Override - when a microphone is activated, the unit that
was activated beforehand is turned off
– Push-To-Talk - the participant must press the microphone
button as long as he/she speaks
• Operating modes Microphone Mode:
– Push-To-Mute - as long as the participant keeps the
microphone button pressed, the microphone is muted
– Toggle Mute: When briefly pressing the microphone button
for the first time, the microphone is muted; when the
microphone button is pressed once more, the microphone is
open again
– Global Mute: If this function is activated, the selected mute
function refers to all microphones
• System control and configuration via RS 232, USB or Ethernet;
connection to a media control system is possible
• Integrated web server for platform independent system
configuration via Smartphone, tablet PC or laptop/PC
• Connections on the front panel:
1 x USB Type B
• Connections on the rear panel:
1x bal. audio master output via 3-pin XLR;
1x bal. audio master output via Phoenix terminal strip;
1x unbal. audio master output via RCA;
4x bal. audio zone outputs via Phoenix terminal strip,
1x digital AVB (Audio Video Bridging) via RJ45;
1x bal. audio input via Phoenix terminal strip;
1x RS232 via 9-pin Sub-D;
1x TCP/IP via RJ45;
2x antenna connections N(HF)
• 19" desktop housing, 1 U

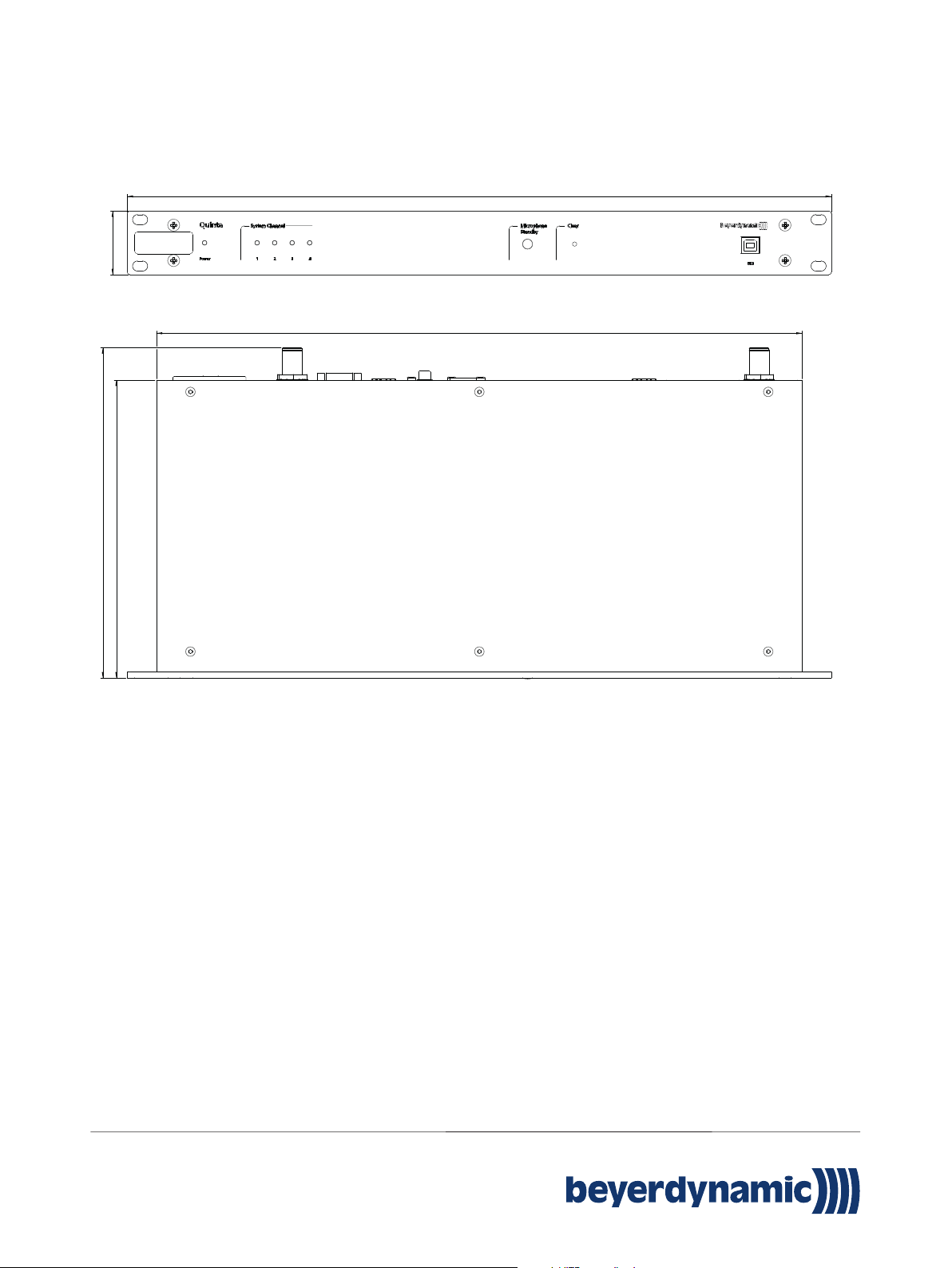

• Dimensions (W x H x D) 440 x 44 x 239 mm
[17.32" x 1.73" x 9.41"]
• Supplied with two angled rod antennas
beyerdynamic GmbH & Co. KG
Theresienstr. 8 | 74072 Heilbronn – Germany
Tel. +49 (0) 71 31 / 617 - 0 | Fax +49 (0) 71 31 / 617 - 204
info@beyerdynamic.de | www.beyerdynamic.com
For further distributors worldwide, please go to www.beyerdynamic.com
Non-contractual illustrations. Contents subject to change without notice. E1 / Quinta RS (05.17)
Quinta RS
DESCRIPTION
The Quinta RS control unit is used to control a maximum of
4 wireless microphones in the microphone mode and up to
20 wireless microphone units with loudspeakers in the conference
mode.
Depending on the settings and selected operating mode up to
4 microphone units can be turned on simultaneously (e.g. 3 delegate
and 1 chairman microphone unit). There is a constant status inquiry,
monitoring or control due to the data connection to the microphone
units. Individual microphone units can be activated via the RS 232
serial interface. The complete discussion system can be switched off
via a control command or by pressing the “Stand-by” button on
the front. The 4 LEDs on the front indicate the assigned transmission
channels of the microphones. For maximum security the control unit
can be protected with a PIN code accepting only microphone units
that have the correct PIN code. In addition to this, the radio
transmission is digitally encrypted.
The Quinta system meets the regulations of the European
Telecommunications Standards Institute (ETSI) and can be integrated
inot existing or new building computer networks that comply
IEEE 802.1 IT standard (AVB). For a safe wireless transmission there
are three frequency bands available: 2.4 / 5.2 / 5.8 GHz. The
switching of the channels is either automatically or manually.
The protection against unauthorised listening is guaranteed by using
128-bit encryption and a 24-bit PIN-code.
The integrated Web server allows configuring the control unit with
a Smartphone, tablet PC or PC via USB, LAN, WLAN.
The system can be connected to a media control system via the
RS 232 interface. This allows a particularly convenient operation
and provides different status indicators e.g. the battery status.
Furthermore, the Quinta system can be integrated into tele and video
conferences.
Conference mode:
• Typically, a large number of microphone units (Quinta CU: up to
150 / Quinta RS: up to 20) are linked to one control unit.
• Up to 4 participants can speak simultaneously.
• In the normal mode of the conference mode, the microphone is
deactivated after the microphone units have been turned on.
When pressing the microphone button at one of the microphone
units, a request is sent to the control unit, the control unit releases
a channel and the microphone is activated.
• In the conference mode, certain rules can also be used to allocate
microphones (e.g. NOM, FiFo, request-to-speak mode, voice
activation).
Microphone mode:
• New operating mode, which is based on a “classic” multi- channel
radio microphone receiver.
• Up to 4 microphones can be used simultaneously.
• These 4 microphones have a permanent audio connection with
the control unit and, if desired, are assigned to a specific audio
channel and an analogue or digital audio output.
• The microphones are activated immediately after the microphone
unit has been turned on (it can be spoken into immediately) and,
if requested, they are muted by operating the microphone
button. Various options are available for this: Global Mute, Pushto-Mute, Toggle Mute.
• If necessary, the number of microphones used can be extended
by cascading several control units.
The conference and microphone mode can be used with both
Quinta CU and Quinta RS.
2 of 5
beyerdynamic GmbH & Co. KG
Theresienstr. 8 | 74072 Heilbronn – Germany
Tel. +49 (0) 71 31 / 617 - 0 | Fax +49 (0) 71 31 / 617 - 204
info@beyerdynamic.de | www.beyerdynamic.com
For further distributors worldwide, please go to www.beyerdynamic.com
Non-contractual illustrations. Contents subject to change without notice. E1 / Quinta RS (05.17)
Quinta RS
RCHITECT’S SPECIFICATIONS
A
The control unit shall be the core of a digital wireless discussion
system. It shall be optimised for tele / video conferencing
applications with a maximum of 4 microphones in the microphone
mode and small conferences with a maximum of 20 miccrophones
in the conference mode. Optionally, it shall be operated in the
conference or microphone mode.
The DSSS modulation shall ensure high immunity from
interference in the frequency range of 2.4 / 5.2 and 5.8 GHz. The
HD- High Definition audio mode shall provide an audio bandwidth
of 24 KHz and a sampling rate of 48 KHz. The HQ- High Quality of
service mode shall be used for a user-optimised transmitting and
receiving performance in difficult environments in terms of radio
transmission. The AVB (Audio Video Bridging) input and output for
digital signal transmission in building networks shall be compliant
to the IEEE 802.1 standards. The true diversity antenna technology
shall ensure highest transmission reliability. The digital 128-bit
encryption shall include an additional 24-bit PIN code.
The control unit shall manage project-related groups of microphone
units and deactivate non-registered microphone unit to ensure
maximum security against unauthorised listening.
There shall be an automatic recognition of interferences in all
frequency ranges. The silent change to an interference-free
frequency range shall be automatic or manual according to the
EN 300328 ETSI.
The control unit shall manage a maximum of 20 microphones in
the conference mode and up to 4 microphones in the microphone
mode. There shall be 4 audio up-streams for up to 4 microphone
signals. There shall be 2 audio down-streams for loudspeaker
transmission and headphone output. The NOM - Number of open
Microphones function shall allow the allocation of up to 4 microphone units simultaneously. The audio channel allocation of the
microphone units shall be processor-controlled and automatic. The
control unit shall feature different operating modes in the
conference mode: Manual – each participant can turn the microphone on and off; Voice Activation – the microphone is turned on
when someone speaks into it; Override – when a microphone unit
is activated, the one that was activated before will be turned off;
Push-To-Talk – as long as the participant speaks into the microphone, he/she must press the microphone button.
The control unit shall feature different operating modes in the
microphone mode: – Push-To-Mute; – Toggle-Mute; – Global-Mute.
For flexible audio routing there shall be an integrated DSP. Zoning
– the outputchannel allocation of individual microphone units shall
be divided into 4 different audio zones analogue or digital via AVB.
With the Mix-Minus function the system shall be integrated into
tele and video conferences. The control unit shall feature a fully
parametrical 4-band equalizer for microphone unit loudspeakers
and master output, a NOM attenuation for the master output and
individual audio zone outputs as well as an analogue audio input for
external signals or digital via AVB. The system control and
configuration shall be done via RS 232, USB or Ethernet. The
connection to a media control system shall be possible. An
integrated web service shall be available for platform independent
system configuration via Smartphone, tablet PC or laptop/PC. The
individual audio channels shall be monitored via adjustable headphone connections with a jog/shuttle button on the front. The OLED
display shall indicate the state and operation of all parameters. The
connection on the front shall be a plug-in type: 1x headphone
output via 1/4" jack (6.35mm); 1 x USB Type B. The connection on
the rear shall be a plug-in type: 1x bal. audio master output via
3-pin XLR; 1x bal. audio master output via Phoenix terminal strip;
1x unbal. audio master output via RCA; 4x bal. audio zone outputs
via Phoenix terminal strip, 1x digital AVB (Audio Video Bridging) via
RJ45; 1x bal. audio input via Phoenix terminal strip; 1x RS232 via
9-pin Sub-D; 1x TCP/IP via RJ45; 2x antenna connections N(HF). The
dimensions of the 19" desktop housing with 1 U shall be (WxHxD)
440 x 44 x 239 mm [17.32" x 1.73" x 9.41"]. The delivery shall
sinclude 2 angled rod antennas.
The price shall include delivery, installation, integration into the
overall system and programming.
The connection of all incoming and outgoing cables via cable
connectors as a professional solder, screw or crimp version shall be
included as well as all necessary cables, connections, components,
connectors and mounting materials, which are necessary for
operation and a standard and professional installation.
Manufacturer: beyerdynamic
Type: Quinta RS
3 of 5
beyerdynamic GmbH & Co. KG
Theresienstr. 8 | 74072 Heilbronn – Germany
Tel. +49 (0) 71 31 / 617 - 0 | Fax +49 (0) 71 31 / 617 - 204
info@beyerdynamic.de | www.beyerdynamic.com
For further distributors worldwide, please go to www.beyerdynamic.com
Non-contractual illustrations. Contents subject to change without notice. E1 / Quinta RS (05.17)
Quinta RS
SUPPLIED ACCESSORIES
1 Power cable
1 USB cable
1 XLR male / XLR female cable, 1.5 m
1 Mini mono jack (3.5 mm) / RCA phono adapter
6 Phoenix terminal strips, 3-pin
2 CA Q11 antennas
1 Unlocking tool
Quinta Software Control and
configuration software. . . . . . Order # 723.991
TECHNICAL SPECIFICATIONS
General
Frequency range. . . . . . . . . . . . . . . . 2400 – 2483.5 MHz
5150 – 5250 MHz
5725 – 5875 MHz
Modulation. . . . . . . . . . . . . . . . . . . DSSS (Direct Sequence
Spread Spectrum) and
QPSK/BPSK (Quadrature/
Binary Phase Shift Keying)
digital signal processing acc.
to own standard
Max. number of audio streams. . . . . 4 useable channels per
system
Signal-to-noise ratio. . . . . . . . . . . . . 80 dB typ., (unweighted
signal-to-noise ratio)
Range between microphone units
and control unit. . . . . . . . . . . . . . . . > 100 m [109.36 yds]
Power supply. . . . . . . . . . . . . . . . . . 100 – 240 V AC 50/60 Hz
Approval. . . . . . . . . . . . . . . . . . . . . world-wide
AVB
Transmission and reception
of audio data. . . . . . . . . . . . . . . . . . acc. to IEC 61883-6
Format of the audio data. . . . . . . . . AM824
Stream ID Quinta CU. . . . . . . . . . . . Bit 63 – 16 / MAC address
Bit 15 – 0 / X
Quinta CU Control Unit
Frequency response. . . . . . . . . . . . . 70 Hz – 22 kHz (-3 dB)
Operation mode. . . . . . . . . . . . . . . . Diversity (receiver), separate
for each channel
Antenna connection. . . . . . . . . . . . . 2 N-connectors (female)
Transmitting power. . . . . . . . . . . . . max. 20 dBm per channel
and region (average, duty
cycle ≤ 30%)*
Connections
Serial control port. . . . . . . . . . . . . . . RS 232, USB
Ethernet port. . . . . . . . . . . . . . . . . . LAN, TCP/IP standard
Master output balanced. . . . . . . . . . 1 x XLR, 1 x 3-pin Phoenix
terminal strip, max. +6 dBu,
level adjustable via software
(range ±15 dB)
OPTIONAL ACCESSORIES
CA Q 13 Planar antenna, 2.4 - 5.8 GHz. . . . . . Order # 724.408
CA Q 14 Omnidirectional antenna for
remote installation. . . . . . . . . . . . . . . Order # 723.894
CA Q 30 System coaxial cable Ecoflex,
sold per metre. . . . . . . . . . . . . . . . . . Order # 724.440
CA Q 31 System coaxial cable Ecoflex, 10 m. . Order # 724.416
CA Q 32 System coaxial cable Ecoflex, 20 m. . Order # 724.424
Master output unbalanced. . . . . . . . RCA, max. +2.2 dBu,
level adjustable via software
(range ±15 dB)
Audio outputs, single channels. . . . . 4 x 3-pin Phoenix terminal
strip, max. +6 dBu, level
adjustable via software
(range 0 ... -50 dB)
Input balanced. . . . . . . . . . . . . . . . . 1 x 3-pin Phoenix terminal
strip, max. +6 dBu, input
adjustable via software
(range 0 ... -50 dB)
Power supply. . . . . . . . . . . . . . . . . . 100 – 240 V AC
50/60 Hz 70 – 150 mA
Fuse. . . . . . . . . . . . . . . . . . . . . . . . . 2 x AL 0.5 A (slow blow)
Power consumption. . . . . . . . . . . . . 10 VA
Temperature range. . . . . . . . . . . . . . +10° – +40 °C
[+50 °F – +104 °F
(at < 90% humidity)
Indication. . . . . . . . . . . . . . . . . . . . . 4 channel LEDs (red/white)
and Power LED (red/white)
Min. depth of Rack. . . . . . . . . . . . . 380 mm
Dimensions (W x H x D). . . . . . . . . . 19", 1HU
(440 x 44 x 239 mm)
[17.32" x 1.73" x 9.41"]
Weight. . . . . . . . . . . . . . . . . . . . . . . 3.2 kg [7.05 lbs]
AVB interface:
MAC address. . . . . . . . . . . . . . . . . . 00:22:BB:00:FF:FF
Stream Suffix. . . . . . . . . . . . . . . . . . 00:00
Stream ID. . . . . . . . . . . . . . . . . . . . . 00:22:BB:00:FF:FF:00:00
Number of channels. . . . . . . . . . . . . 4
Audio format. . . . . . . . . . . . . . . . . . IEC 61883-6/AM824 with
24-bit / 48 kHz
IP configuration. . . . . . . . . . . . . . . . DHCP
*The transmitter power can differ from this value due to specific
regulations in various countries.
4 of 5
beyerdynamic GmbH & Co. KG
Theresienstr. 8 | 74072 Heilbronn – Germany
Tel. +49 (0) 71 31 / 617 - 0 | Fax +49 (0) 71 31 / 617 - 204
info@beyerdynamic.de | www.beyerdynamic.com
For further distributors worldwide, please go to www.beyerdynamic.com
Non-contractual illustrations. Contents subject to change without notice. E1 / Quinta RS (05.17)
Quinta RS
4
82,60
mm [19.00'']
43,60
mm [1.72'']
204
mm [8.03'']
226,20
mm [8.91'']
4
42,60
m
m [17.43'']
DIMENSIONS
All dimension in mm [inch]
5 of 5
beyerdynamic GmbH & Co. KG
Theresienstr. 8 | 74072 Heilbronn – Germany
Tel. +49 (0) 71 31 / 617 - 0 | Fax +49 (0) 71 31 / 617 - 204
info@beyerdynamic.de | www.beyerdynamic.com
For further distributors worldwide, please go to www.beyerdynamic.com
Non-contractual illustrations. Contents subject to change without notice. E1 / Quinta RS (05.17)
Loading...
