Beyerdynamic CA 4146 Operating Instructions Manual

CA 4146

Netzgerät

Power Supply Unit

Alimentation

BEDIENUNGSANLEITUNG

OPERATING INSTRUCTIONS

NOTICE D’UTILISATION

CA 4146 – Contents

english

1. Safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

2. Controls and indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

3. Installation NetRateBus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

4. Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

4.1 MCS-D 200 control unit – CA 4146 power supply unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

4.2 Microphone units – CA 4146 power supply unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

4.3 How to turn on the CA 4146 power supply unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

4.4 Bus-Power out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

4.5 Redundant Operation with CA 4146 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

5. Technical specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

6. Optional accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

7. Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

EC-Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

CA 4146 – Safety Information

Thank you for selecting the CA 4146 power supply unit from beyerdynamic. Please take some time to read through this manual carefully before using this product.

The CA 4146 power supply unit is used when more than 30 devices are to be used with the MCS-D 200 control unit. The CA 4146 power supply unit can be used as a desktop device or mounted into a 19" rack. One CA 4146 power supply unit can power up to 45 devices (e.g. microphone units, adaptors). Please note this is only a theoretical value. The actual number of devices (e.g. microphone units, adaptors) also depends on the cable length.

1. Safety information

General

• READ these instructions.

• KEEP these instructions.

• HEED all warnings and follow all instructions.

Exemption from liability

• beyerdynamic GmbH & Co. KG will not be liable if any damage, injury or accident occurs due to negligent, incorrect or inappropriate operation of the product.

Location

• The equipment must be set up so that the mains switch, mains plug and all connection on the rear of the device are easily accessible.

• If you transport the equipment to another location take care to ensure that it is adequately secured and can never be damaged by being dropped or by impacts on the equipment.

Fire hazard

• Never place naked flames near the equipment.

Humidity / heat sources

• Never expose the equipment to rain or a high level of humidity. For this reason do not install it in the immediate vicinity of swimming pools, showers, damp basement rooms or other areas with unusually high atmospheric humidity.

• Never place objects containing liquid (e.g. vases or drinking glasses) on the equipment. Liquids in the equipment could cause a short circuit.

• Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat.

Ventilation

• This equipment needs adequate ventilation. Do not cover ventilation grilles. If the heat it generates cannot be dissipated, the equipment could be damaged or flammable materials in its immediate vicinity could be ignited. Take care to ensure that the air can circulate freely through the ventilation grilles and keep flammable materials away.

• Do not insert objects into the ventilation grilles or other openings. You could damage the equipment and/or injure yourself.

Connection

• The equipment must be connected to a mains socket that has an earth contact.

• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

• Lay all connection cables so that they do not present a trip hazard.

• Whenever working on the equipment switch off all inputs and outputs to the power supply.

• Check whether the connection figures comply with the existing mains supply. Serious damage could occur due to connecting the system to the wrong power supply. An incorrect mains voltage could damage the equipment or cause an electric shock.

• Unplug the device during lightning storms or when unused for long periods of time.

• If the equipment causes a blown fuse or a short circuit, disconnect it from the mains and have it checked and repaired.

• Do not hold the mains cable with wet hands. There must be no water or dust on the contact pins. In both cases you could receive an electric shock.

• The mains cable must be firmly connected. If it is loose there is a fire hazard.

• Always pull out the mains cable from the mains and/or from the equipment by the plug – never by the cable. The cable could be damaged and cause an electric shock or fire.

• Do not use the equipment if the mains plug is damaged.

• If you connect defective or unsuitable accessories, the equipment could be damaged. Only use connection cables available from or recommended by beyerdynamic. If you use cables you have made up yourself, all claim to warranty is null and void.

Maintenance

• Only clean the equipment with a slightly damp or dry cloth. Never use solvents as these damage the surface.

Trouble shooting and servicing

• Do not open the equipment without authorisation. You could receive an electric shock. Leave all service work to authorised expert personnel.

• Refer all servicing to qualified service personnel.

CA 4146 – Controls and Indicators

english

The label shown on the left is attached to back of the unit. The symbols on this label have the following meaning:

This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit.

This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit.

Safety symbols

2. Controls and indicators



Front view

Rear view

 Mains connector  Fuse holder  Power switch  Ventilation outlet (Do not cover to provide unrestricted circulation.)  NetRateBus sockets, BUS-Power out, 48 V, 6 A max.  EXTENSION PORTS to connect microphone units such as MCS-D 202, Revoluto MCS-D 3173/3171 etc.  DATA PORTS to connect the MCS-D 200 control unit, CA 4146 power supply unit, CA 4522/44/66 digital/analogue interface  Ventilation slots (Do not cover to provide unrestricted circulation.)  Functional earth (avoid connection to earth wire)

3. Installation NetRateBus

• Devices, which are connected to the 6-pin connectors of the NetRateBus (DATA PORT  and EXTENSION PORT ), are supplied with data and current. Each chain may only be powered by one power supply unit (MCS-D 200 control unit or power supply unit of the CA 41xx series). This is the reason why the CA 4146 power supply unit provides active and passive connections. The description “active” or “passive” only refers to the power supply. Independing on the applied connector, the data are allocated to all connectors.

• The two DATA PORT sockets  are passive connectors, i.e. the connected consumers (e.g. microphone units or adapters) are not powered by the internal power pack of the CA 4146.

• The two EXTENSION PORTS  are active connectors, i.e. the connected consumers (e.g. microphone units or adapters) are powered by the internal power pack of the CA 4146.

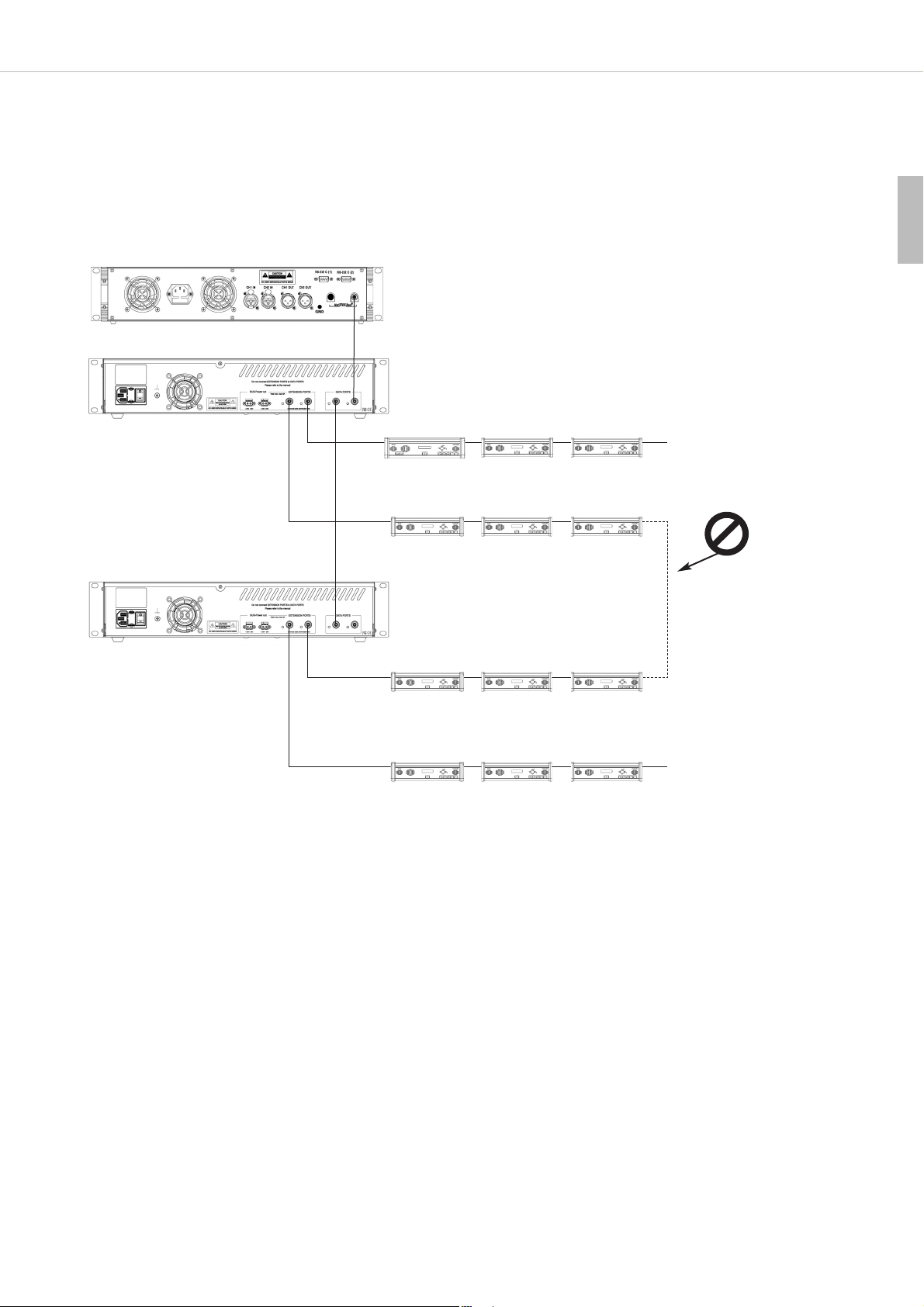

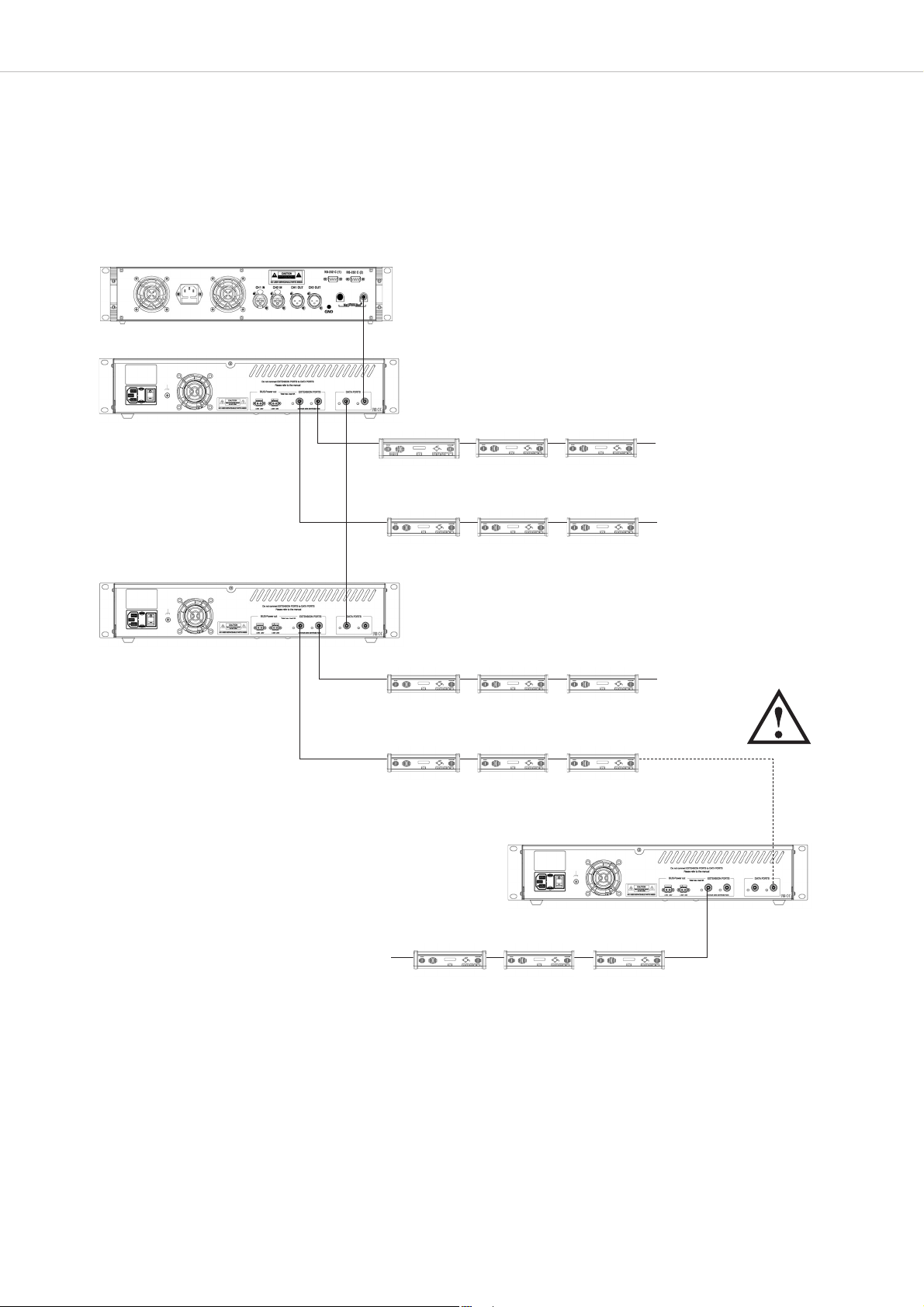

• Within one chain only one active EXTENSION PORT of a power supply unit (MCS-D 200 control unit or power supply units of the CA 41xx series) may be connected. The ring cabling is allowed when it starts and ends at the EXTENSION PORTs of the same CA 4146 power supply unit. Refer also to chapter 7. “Examples”.

 Power LED. LED illuminates green: device is turned on and ready for use

         



CA 4146 – Connections

4. Connections

4.1 MCS-D 200 control unit – CA 4146 power supply unit

• The MCS-D 200 control unit is connected to the DATA PORT  of the CA 4146 power supply unit. Refer also to chapter 7. “Examples”. Warning: Devices connected to the DATA PORT such as adapters or digital/analogue interfaces are powered by the MCS-D 200 control unit and have to be considered for its power calculation.

4.2 Microphone units – CA 4146 power supply unit

• Connect microphone units, digital/analogue interfaces to the EXTENSION PORTS .

• Each device, which is connected to one of the EXTENSION PORTS , is powered by the CA 4146 power supply unit when the MCS-D 200 control unit and the power supply unit are switched on. The illuminated Power LED  displays the power output of the power supply unit.

4.3 How to turn on the CA 4146 power supply unit

• Check all cables before turning on.

• We recommend turning on the devices in the following order.

1. Turn on all power supply units. The Power LED  displays the operational status.

2. Then turn on the MCS-D 200 control unit. The Power LED of the MCS-D 200 control unit will illuminate.

4.4 BUS-Power out

• In special installations it may be necessary to guide the power supply of the microphone units separately from the NetRateBus cable. For this kind of application there are the two BUS-Power out connectors.

• The sum of the currents which are drawn from the BUS-Power out connectors and the EXTENSION PORTs should not exceed 6 A.

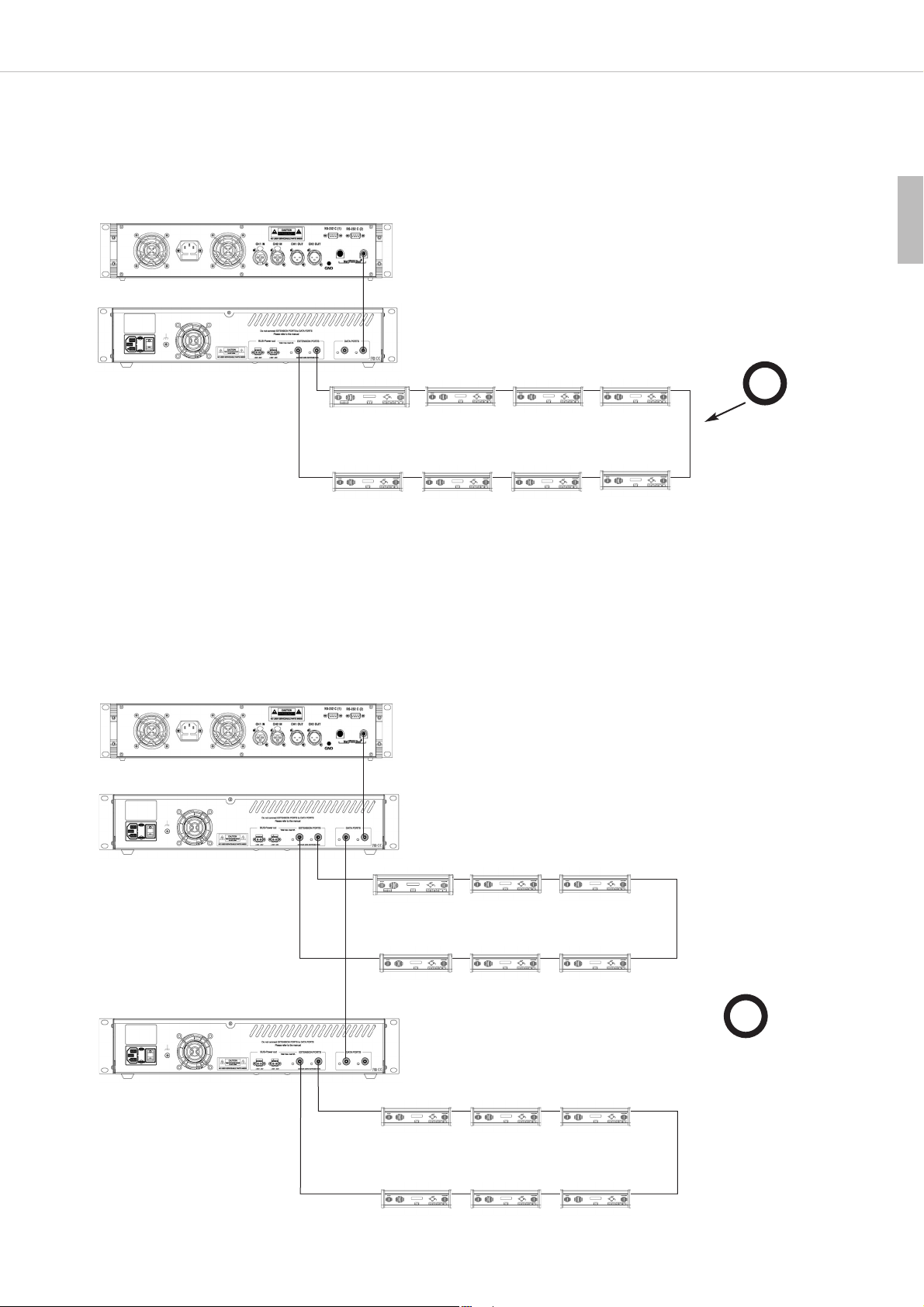

4.5 Redundant Operation with CA 4146

• Use two CA 4146 power supply units in one MCS-D 200 system for redundant operation. Should one CA 4146 power supply unit fail, the system will still operate without any interruption. At maximum you can connect 45 microphone units.

• Keep the subsequent set-up to achieve the desired redundancy.

MCS-D 200 control unit

1. CA 4146 power supply unit

2. CA 4146 power supply unit

MCS-D 31xx

MCS-D 31xx MCS-D 31xx

MCS-D 31xx

max. 45 microphone units in the circle
