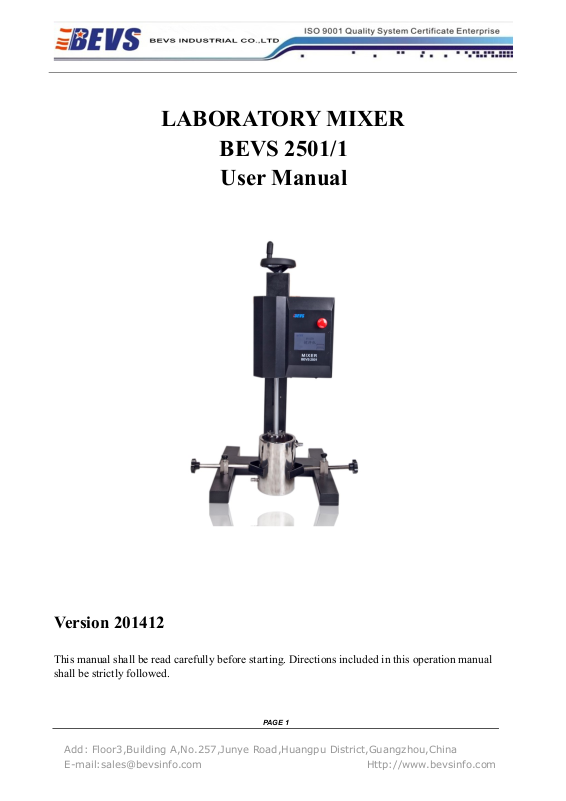

LABORATORY MIXER
BEVS 2501/1
User Manual
Version 201412
This manual shall be read carefully before starting. Directions included in this operation manual
shall be strictly followed.
PAGE 1
Add: Floor3,Building A,No.257,Junye Road,Huangpu District,Guangzhou,China
E-mail:[email protected] Http://www.bevsinfo.com
Page 2
Content
1 INTRODUCTION
1.1 DESTINATION
1.2 CONSTRUCTION & DIMENSIONS
1.3 TECHNICAL PARAMETERS
1.4 APPLICATIONS
2 INSTALLATION
3 WORKING.
3.1 OPERATION
3.2 TOUCH SCREEN OPERATING
3.3 SYSTEM SETTING
4 SHORT MANUAL INSTRUCTION
5 SAFETY INSTRUCTIONS
6 GUARANTEE
7 PACKING LIST
8 ORDER INFORMATION
PAGE 2
Add: Floor3,Building A,No.257,Junye Road,Huangpu District,Guangzhou,China
E-mail:[email protected] Http://www.bevsinfo.com
Page 3
1 Introduction
1.1 Destination
This BEVS2501/1 laboratory mixer has been designed for blending multi – component
formulations. It is really helpful device for dispersing small to medium size quantities of varying
viscosities.
The built in frequencer allows to regulate the RPM of working shaft. The RPM is indicated on
touch screen panel.
There is many impeller configuration available as requirement, and also provide customized
versions upon request.
The necessary for dispersion is optimal circumference velocity. When we use the mixer disc of
different diameter, then circumference velocities may be calculate by the following formula:
υ = (3,14 · d · n) : 60 [m/s]
where:
d = disc diameter [m]
n = RPM of the shaft [RPM]
PAGE 3
Add: Floor3,Building A,No.257,Junye Road,Huangpu District,Guangzhou,China
E-mail:[email protected] Http://www.bevsinfo.com
Page 4

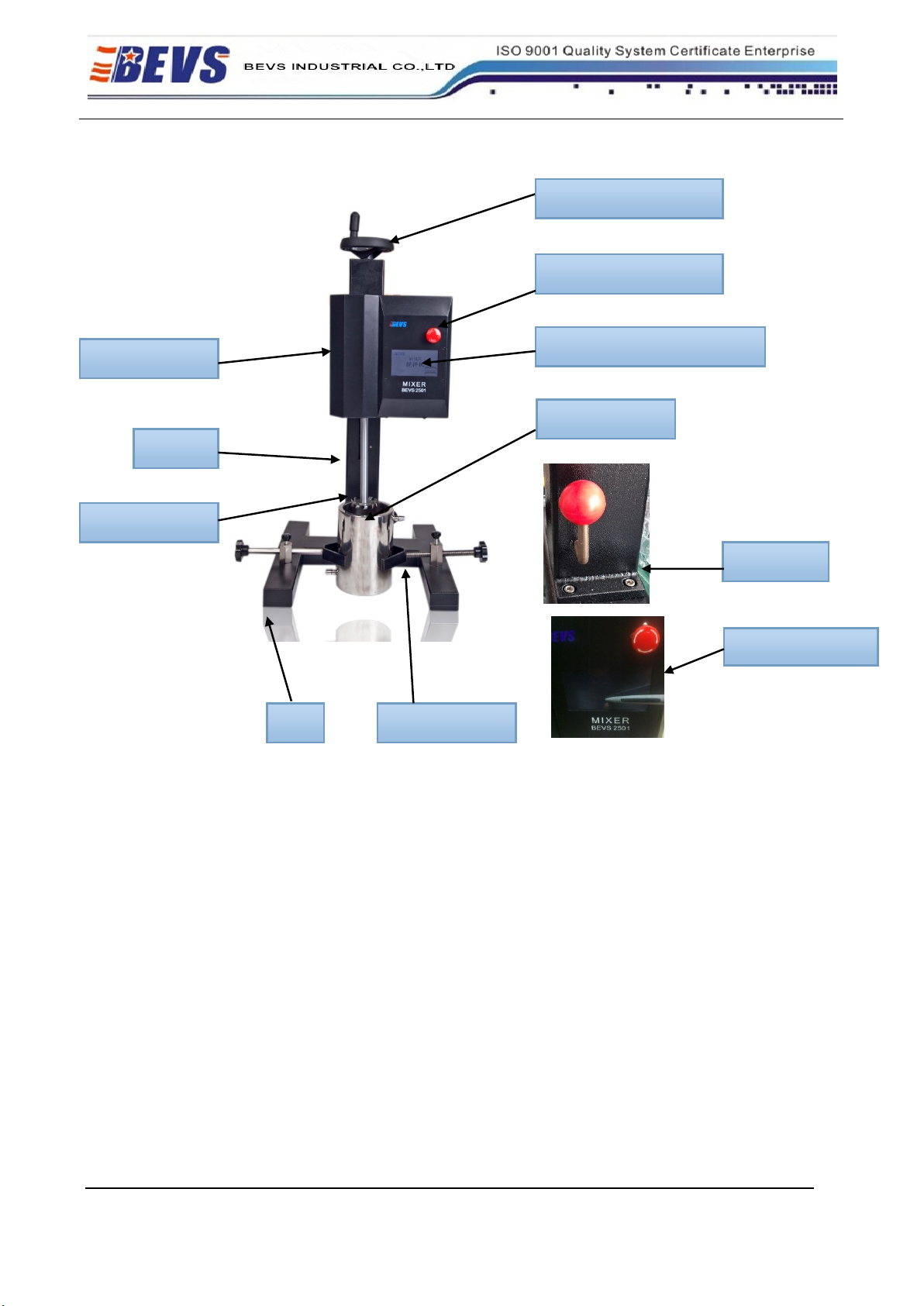

leg
column
working head
working shaft
dispersion disc
vessel holders
touch screen control panel
manual lifting system
emergency switch
shaft lock
pen for touching
1.2 Construction&Dimensions
1.3 Dimension: L 400 x W 430 x H 85 mm
Add: Floor3,Building A,No.257,Junye Road,Huangpu District,Guangzhou,China
E-mail:[email protected] Http://www.bevsinfo.com
PAGE 4
Page 5
Nr
Parameter
Unit
1
Power of engine
P=550W
2
Supply voltage
U=220V (one phase).
3
RPM regulated by frequencer
n=30 – 9000
4
Three dispersion discs
d=35, 50, 60mm.
5
Steel column with powder coating and wheel
Manual lifting.
6
Lifting distance
250mm
7
Volume of working vessel (vessel with cooling
jacket).
V=1.5 liters.
8
Liquid for cooling vessel and basket.
water
9
Weight with 1.5 L vessel
32kg
Technical parameters
1.4 Applications
Paints and varnishes, enamels, pigments, cosmetics, grease additives, waxes, etc.
2 Installation
The BEVS2501/1 mixer is ready to use after connecting to the main power, and other installations
(cooling or heating water) – when necessary.
3 Working
Before start make sure that:
---The dispersion disc is lowered in working vessel – if not then you can not start the engine (safety
requirement).
---On screen should be zero RPM (otherwise the product inside cup can be splashed).
3.1 Operation
Place the vessel between holders, block holders by the screws.
1．Fill the vessel before or after the vessel is placed between holders.
Add: Floor3,Building A,No.257,Junye Road,Huangpu District,Guangzhou,China
E-mail:[email protected] Http://www.bevsinfo.com
PAGE 5
Page 6
2．Rotate the wheel to move down the working head till blocking ring.
3．Clockwise lock the working shaft.
4．Turn on the main switch.
5．Enter touch-screen interface to select operation language (Chinese and English).
6．To set up the RMP and mixing time.
7．Click run button to start dispersion.
8．After complete, click the power off button to turn off the mixer.
10. After each process, clean and dry the shaft, disc and vessel.
11. When press emergency switch or click the stop button, the mixer will be stop automatically.

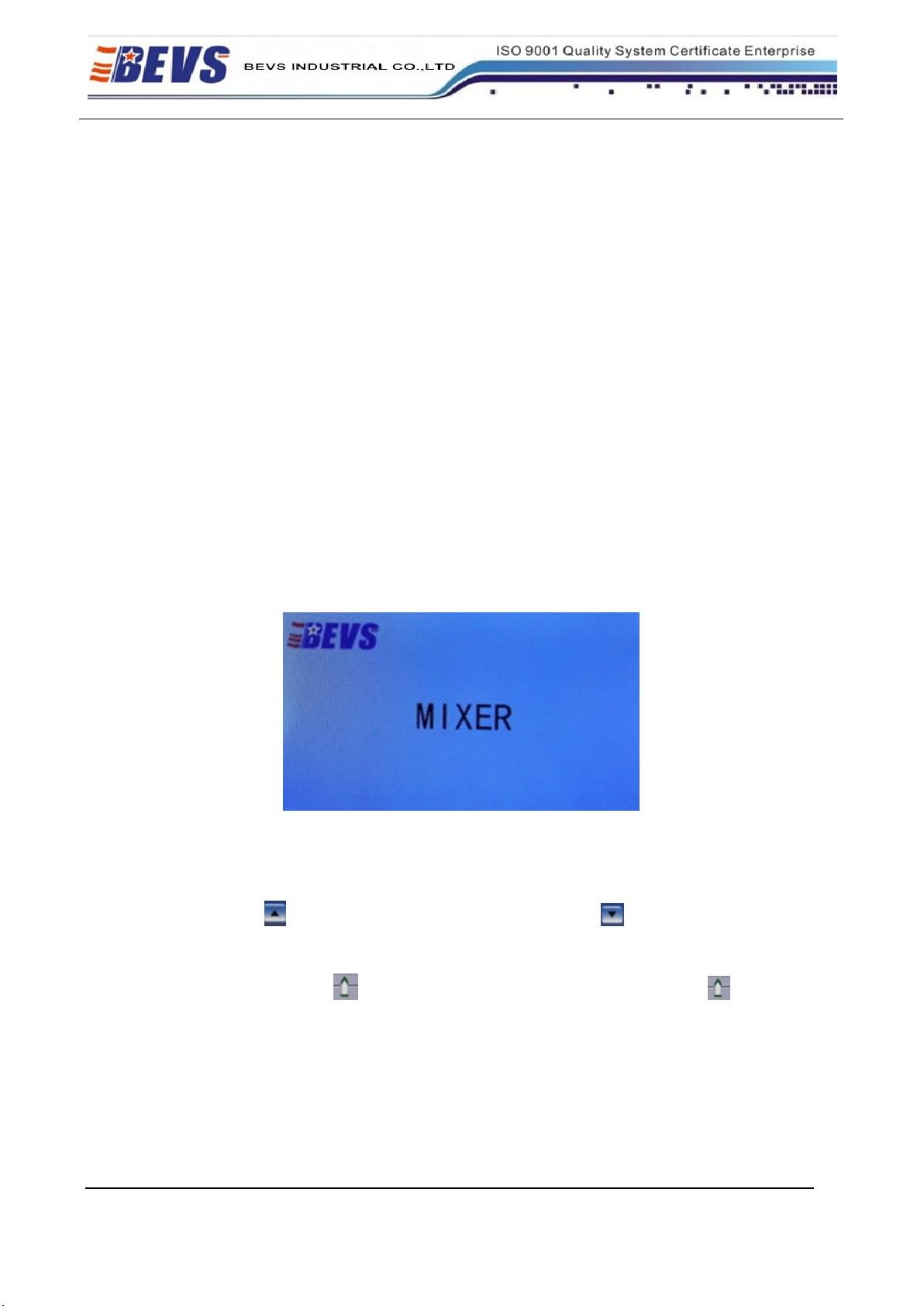

3.2 Operating Touch Screen
3.2.1 Connect to power supply（220V 50Hz）
3.2.2 Turn on the main switch (right side)
3.2.3 Enter interface to select the language
3.2.4 Setting dispersing time and RPM
1）RPM setting：click button to increase dispersing time, click button to reduce dispersing
time.
2）Dispersing time setting：Slip button to right forward to increase time，slip button to left
forward to reduce the running time.
PAGE 6
Add: Floor3,Building A,No.257,Junye Road,Huangpu District,Guangzhou,China
E-mail:[email protected] Http://www.bevsinfo.com
Page 7

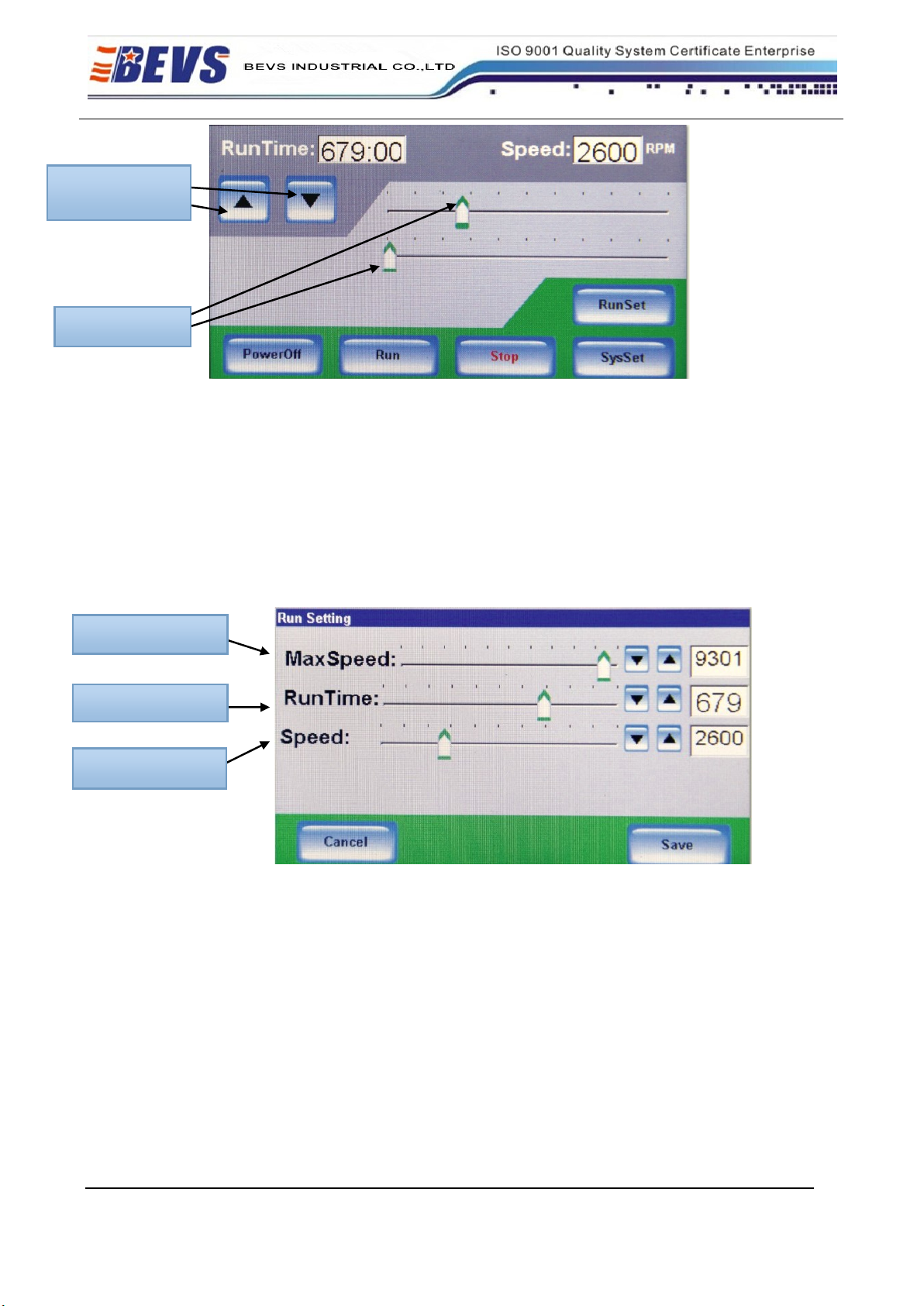

Setting RPM
Increase or reduce
time button
Setting time
Setting Max speed
Setting real speed
3.2.5 Enter Runset menu to quickly set up the time and RPM
Please note: Max speed and speed relationship
In order to protect the machine, the real speed can't excess the max speed, example: when you set
the max speed to 7000 rpm that the real speed is less than 7000 rpm
3.2.6 After carefully check everything are ready that can press Run button to start.
Add: Floor3,Building A,No.257,Junye Road,Huangpu District,Guangzhou,China
E-mail:[email protected] Http://www.bevsinfo.com
PAGE 7
Page 8

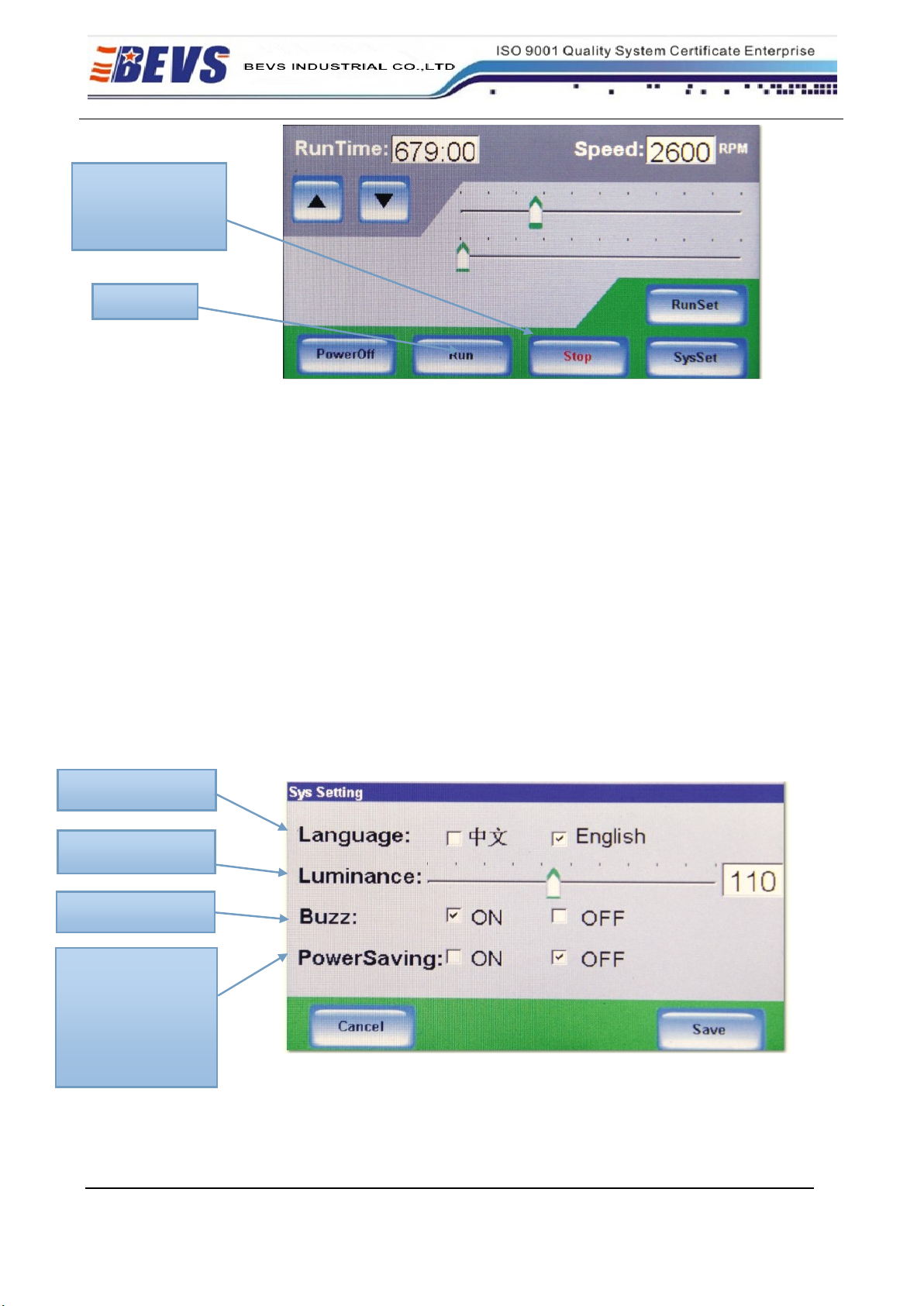

Run button
On or off the Buzz
Change Lum
If select ON when not
operate a period of
time the screen will
into sleeping mode to
save power
Select language
During working you
press Stop button to
stop the machine
3.3 System Setting
1）To adjust screen lightness
2）To select the operation language.
3）Turn on or off the Buzz.
4）When turn on the PowerSaving mode, the screen can enter the sleeping mode.
5）When the screen is in sleeping mode, re-switch on the screen under touch the screen several
minutes.
6) All settings must be saved otherwise invalid function.
Add: Floor3,Building A,No.257,Junye Road,Huangpu District,Guangzhou,China
E-mail:[email protected] Http://www.bevsinfo.com
PAGE 8
Page 9

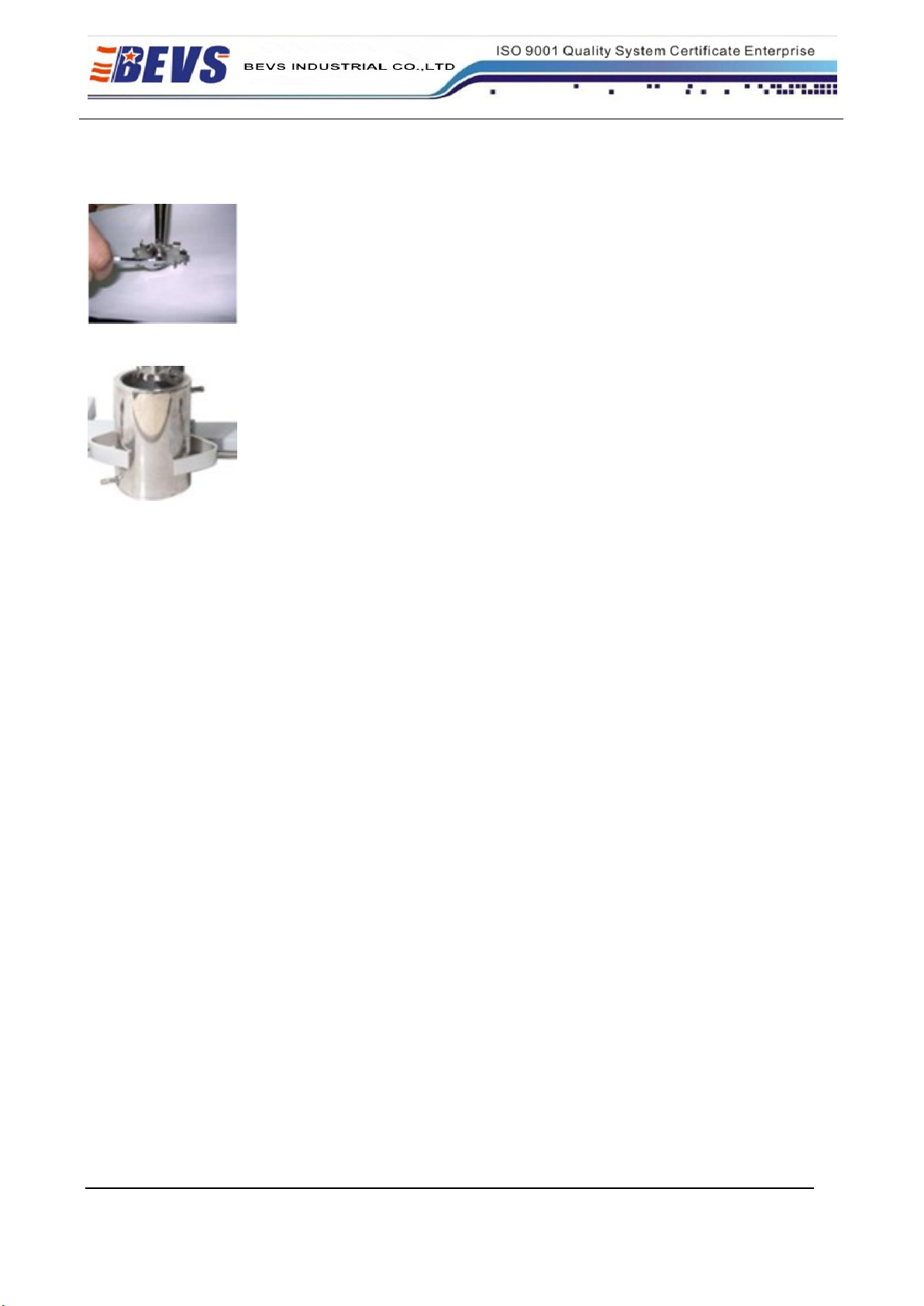

4. Short manual instruction
4.1 Dispersion discs changing
4.2 Connector for cooling water
5 Safety Instructions
5.1 Before start always check if the disc is currently fitted to the shaft.
5.2 Always start from 0 RPM.
5.3 Before start always check if the dispersion disc is inside the cup/vessel.
5.4 Always check if cup is currently handled by the holders.
6 Guarantee
Guarantee card is enclosed to original manual and is excluded due to one or several of the following
reasons:
Undue application of the machine.
Inappropriate mounting, starting, operating and maintaining of the machine.
Using machine in case of defective safety devices.
Unauthorized constructional modifications.
7 Packing List
Main machine 1 set
Power lead 1 pc
Dispersing Vessel 1.5L 1 pc
PAGE 9
Add: Floor3,Building A,No.257,Junye Road,Huangpu District,Guangzhou,China
E-mail:[email protected] Http://www.bevsinfo.com
Page 10
Dispersion discs 35mm 50mm 60mm 1 each
Touch Pen 1 pc
Certificate of conformity 1 pc
User Manual 1 pc
8 Order Information
BEVS 2510/1 Disc（35mm）
BEVS 2510/2 Disc（50mm）
BEVS 2510/3 Disc（60mm）
BEVS 2510/4 Disc（80mm）
BEVS 2510/5 Disc（100mm）
BEVS 2510/6 Disc（120mm）
BEVS 2511/1 Dispersing Vessel（0.5L）
BEVS 2511/2 Dispersing Vessel（1.5L）
BEVS 2511/3 Dispersing Vessel（3.0L）
BEVS 2511/4 Dispersing Vessel（5.0L）
