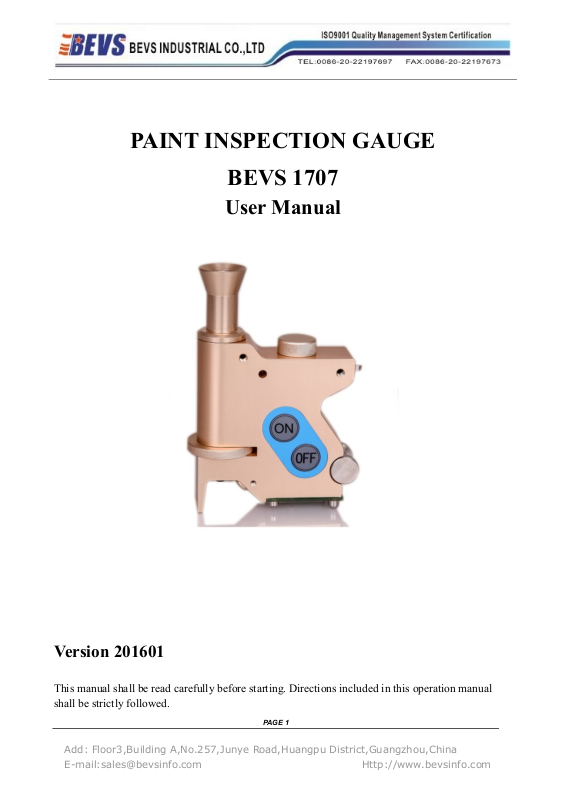

PAINT INSPECTION GAUGE
BEVS 1707
User Manual
Version 201601
This manual shall be read carefully before starting. Directions included in this operation manual
shall be strictly followed.
PAGE 1
Add: Floor3,Building A,No.257,Junye Road,Huangpu District,Guangzhou,China
E-mail:sales@bevsinfo.com Http://www.bevsinfo.com
Cutter No.
Angle
Range
Thickness of Each Scale
NO.1
45
20-1800um
20μm
NO.2
62.4
10-900um
10μm
NO.3
84.3
2-180um
2.0μm
1. Company Profile
BEVS Industrial Co., Ltd is a leading manufacturer that specializes in coatings, ink, painting, resin
testing instruments and laboratory whole solution.
We offer the complete and unique products in this field to meet customer's challenging demands of
today and tomorrow, the products are complied with the standards of ISO, ASTM, DIN, BS, EN etc.
With strong supports and hard work by lots of end-users and worldwide agents, BEVS become
more and more famous in the world and provides more competitive values for our customers.
2. Product Introduction
BEVS 1707 PIG is a destructive precision tool for inspection and thickness measurement on single
or multiple coats on virtually all substrates, including wood, plastics, metals, glass, concrete etc.
Also observes and measures substrate and film defects.
It could use the x 50 magnifier to test the different coating in all kinds of substrates under the light.
2.2 Technical Specification
2.2.1 Dimension: 128x90x25mm
2.2.2 Measure Range
2.2.3 Working Principle
Cut the groove in V shape from the coating to the substrate with the tungsten carbide cutter, test the
thickness with the optical scale of the magnifier.
2.2.4 Configuration
BEVS PIG is made of senior aviation aluminum and includes magnifier with scale, LED light,
cutter and two balancing wheels.
3. Usage
3.1 Select the testing position.
3.2 draw a line with the pen on the testing surface.
3.3 Handle the PIG tightly and cut the coating in the vertical position with the line. Increase the
force till the substrate is scratched.
Add: Floor3,Building A,No.257,Junye Road,Huangpu District,Guangzhou,China
E-mail:sales@bevsinfo.com Http://www.bevsinfo.com
PAGE 2
3.4 Read the coating thickness with the magnifier.
4. Standard
In accordance with ASTM D4138, DIN 50986, BS3900-C5, ISO 2808
5. Order Information
BEVS1707 Paint Inspection Gauge, including 1 pc of No.1 Cutter, battery, marker pen and carrying
case
6. Order Information of Accessories
BEVS1707 PIG/1 Cutter No.1
BEVS1707 PIG/2 Cutter No.2
BEVS1707 PIG/3 Cutter No.3
