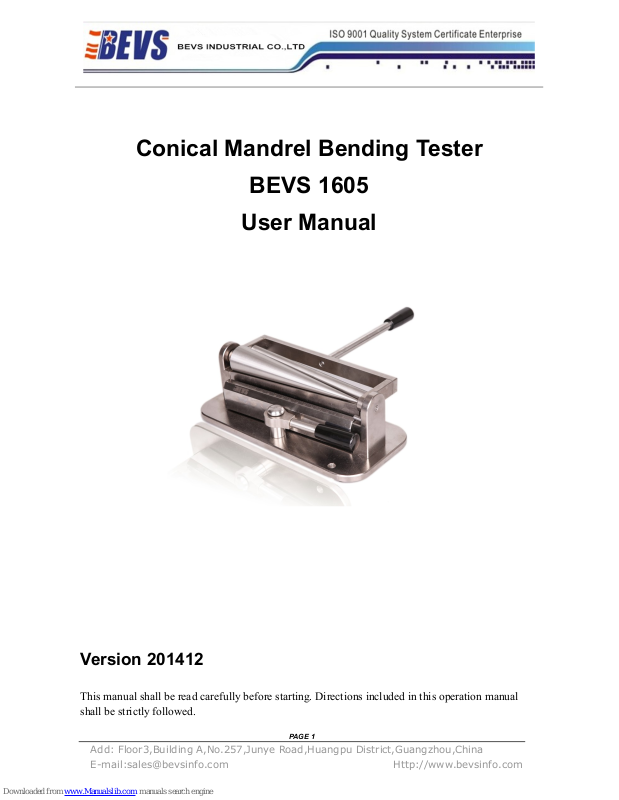

Conical Mandrel Bending Tester
BEVS 1605
User Manual
Version 201412
This manual shall be read carefully before starting. Directions included in this operation manual
shall be strictly followed.
Page 2
PAGE 2
Add: Floor3,Building A,No.257,Junye Road,Huangpu District,Guangzhou,China
E-mail:[email protected] Http://www.bevsinfo.com
Content
1 Company Profile
2 Product Introduction
2.1 Introduction
2.2 Specification
2.3 Construction
3 Product Usage
4 Attention
5 Packing
6 Order Information
Page 3
PAGE 3
Add: Floor3,Building A,No.257,Junye Road,Huangpu District,Guangzhou,China
E-mail:[email protected] Http://www.bevsinfo.com
1. Company Profile
BEVS Industrial Co., Ltd. is a leading manufacturer that specializes in coatings, ink, painting, resin
testing instruments and laboratory whole solution.
We offer the complete and unique products in this field to meet customer's challenging demands of
today and tomorrow, the products are complied with the standards of ISO, ASTM, DIN, BS, EN etc.
With strong supports and hard work by lots of end-users and worldwide agents, BEVS become
more and more famous in the world and provides more competitive values for our customers.
2. Introduction
2.1 Product Introduction
A very robust mechanical unit for determining the elasticity, adhesion and elongation of dried paint
on sheet metal. It can be used in accordance with: GB11185-89、ISO 6860-1984、ASTM D522
The maximum width of the sample can be 70mm.
BEVS1605 conical bending tester is made of stainless steel and high-quality steel, have compact
and firm structure, is suitable for desktop use, have simple and quick operation.
2.2 Specifications
Size: 280*280*95mm（L*W*H）
Gross Weight: 8Kg
The size of the cone axis: small end : ø3.1;big end: ø38, length : 203 mm
Thickness of sample: steel: max. 1mm; aluminum alloy: max.2mm plastic: max. 3mm;
The maximum of sample size： 200*100mm
Page 4
PAGE 4
Add: Floor3,Building A,No.257,Junye Road,Huangpu District,Guangzhou,China
E-mail:[email protected] Http://www.bevsinfo.com

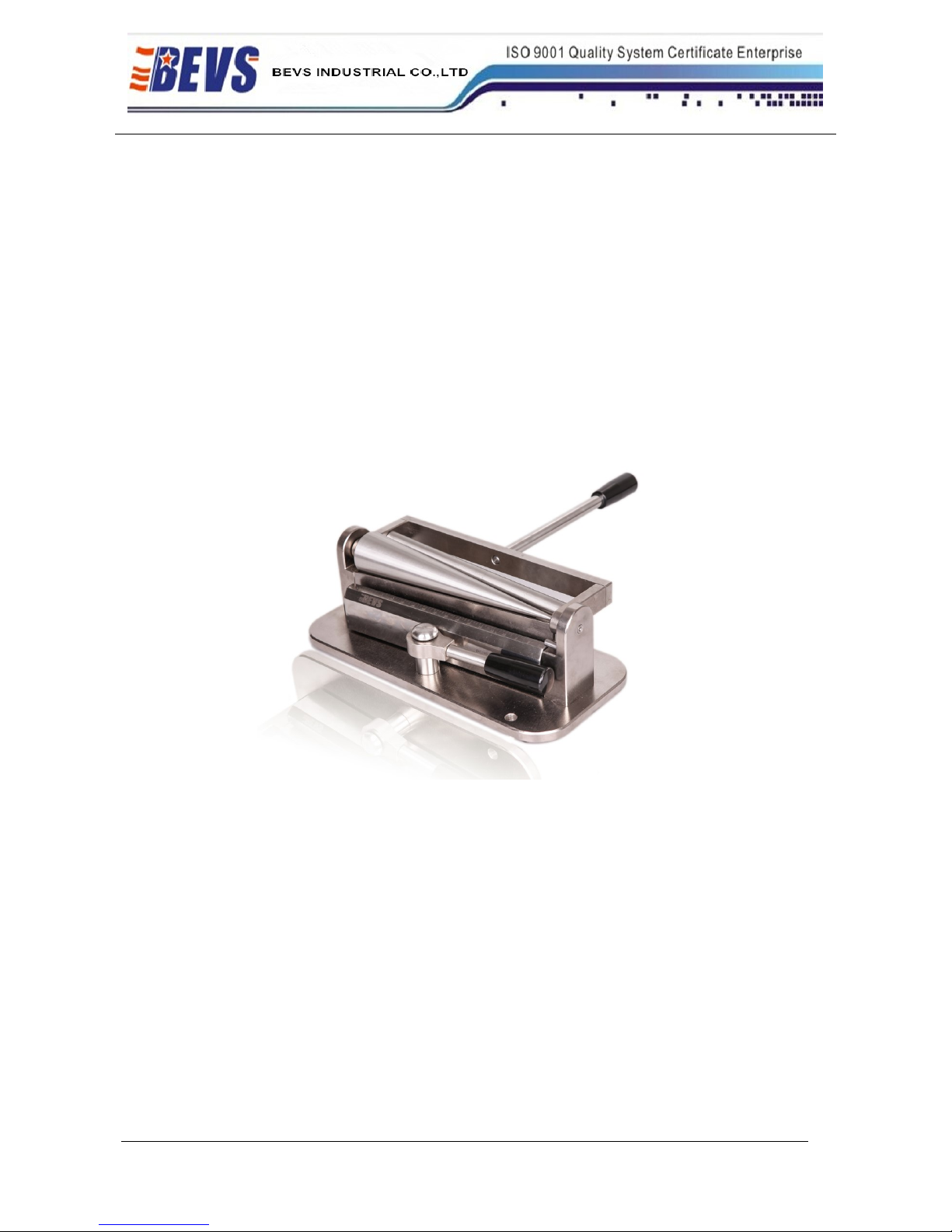

2.3 Construction
3. Product Usages
3.1 Insert the test sample into the Rotation axis, making the film side face the axis. The short side
touches the Tapered shaft 2.
3.2 Turn to the left of the lock handle 4, locking the plate tightly.
3.3 Then turn the Test handle 3 of the rotation 180 DEG.
3.4 Check the paint film status of crack or fall off from the test plate, reading the diameter. The
scale number marked in the crack place shows the taper shaft diameter.
4. Attention
4.1 The thickness of test model cannot exceed the allowance of the device.
5. Packing List
* Main Machine 1pc
* Conformity of Certificate 1pc
* User Manual 1pc
6. Order Information
BEVS 1605 Conical Mandrel Bend Tester

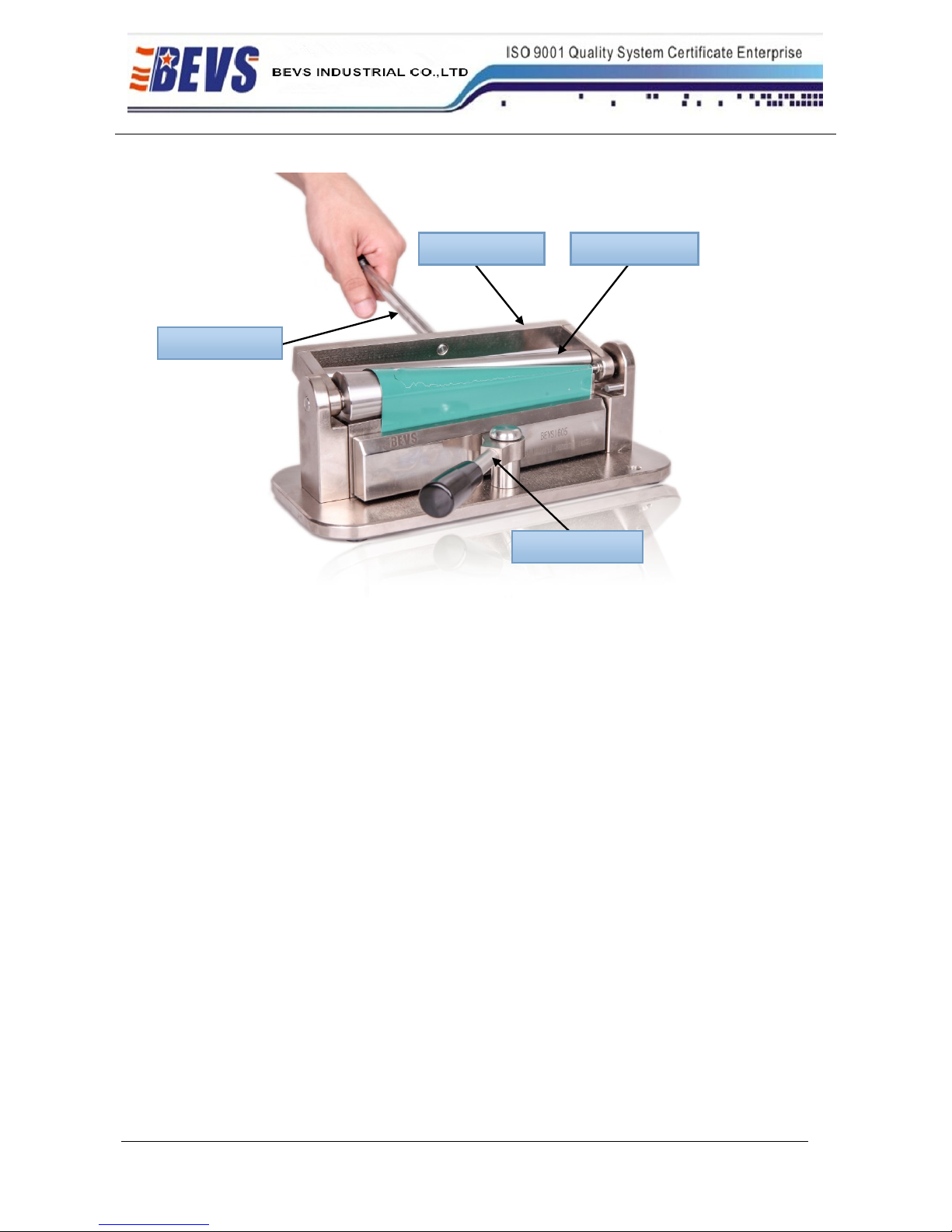

Rotation axis 1
Tapered shaft 2
Test handle 3
Lock handle 4
