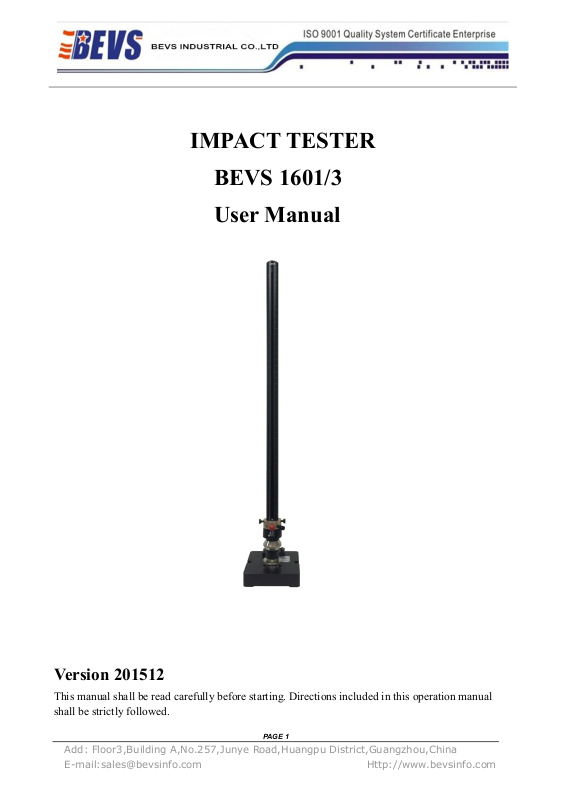

IMPACT TESTER
BEVS 1601/3
User Manual
Version 201512
This manual shall be read carefully before starting. Directions included in this operation manual
shall be strictly followed.
PAGE 1
Add: Floor3,Building A,No.257,Junye Road,Huangpu District,Guangzhou,China
E-mail:[email protected] Http://www.bevsinfo.com
Page 2
1 Company Profile
2 Product Introduction
3 Operation
4 Routine Maintenance
5 Packing List
Content
PAGE 2
Add: Floor3,Building A,No.257,Junye Road,Huangpu District,Guangzhou,China
E-mail:[email protected] Http://www.bevsinfo.com
Page 3
1. Company Profile
BEVS Industrial Co., Ltd. is a leading manufacturer that specializes in coatings, ink, painting, resin
testing instruments and laboratory whole solution.
We offer the complete and unique products in this field to meet customer's challenging demands of
today and tomorrow, the products are complied with the standards of ISO, ASTM, DIN, BS, EN etc.
With strong supports and hard work by lots of end-users and worldwide agents, BEVS become
more and more famous in the world and provides more competitive values for our customers.
2. Product Introduction
Many surface coatings are subject to the risk of damage by impact. Falling-weight testers (Tubular
Impact Testers) allow reproducible conditions of impact to be defined. The BEVS1601/3 allows
pass/fail limits to be established and a classification of the coating to be achieved.
The BEVS1601/3 Tubular Impact Tester is designed to conform to BS3900，DIN55669，ISO6272
Falling Weight Test. We advise customers to obtain and maintain an up to date copy of the relative
specification.
Main features:
Falling weight ( Impactor/indenter) 1kg
Indenter diameter Φ20
Die (Anvil) diameter Φ27
Drop height 100cm
Dimension220*220*1300mm
Net Weight 10kg
PAGE 3
Add: Floor3,Building A,No.257,Junye Road,Huangpu District,Guangzhou,China
E-mail:[email protected] Http://www.bevsinfo.com
Page 4

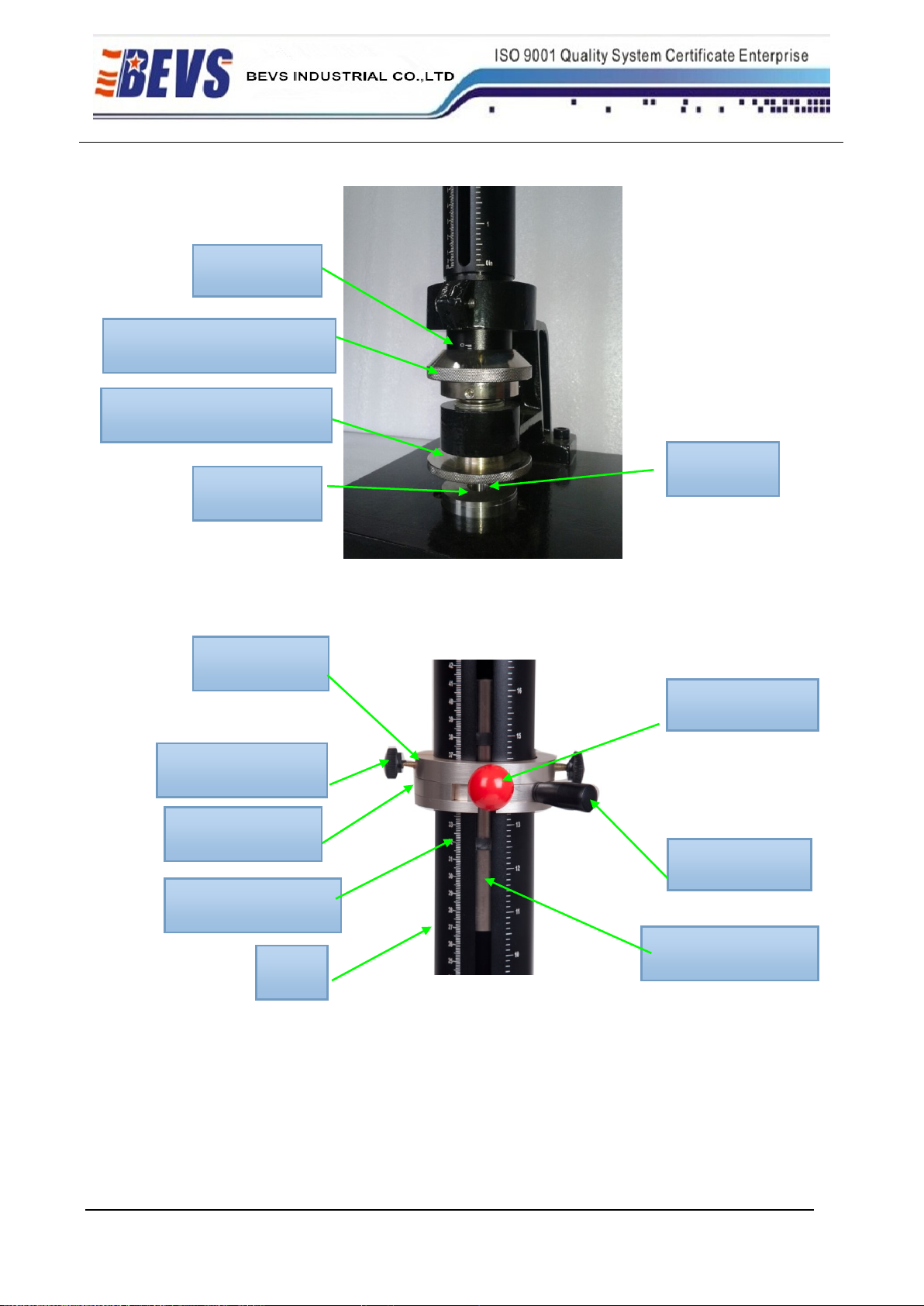

Impact hammer
Release knob
Tube
Fixing ring
Scale indication
Depth scale
Shock depth indication
Test board locking ring
Mold base
Indenter
Lifting handle
Clamping screw
Locking ring
Structure:
Add: Floor3,Building A,No.257,Junye Road,Huangpu District,Guangzhou,China
E-mail:[email protected] Http://www.bevsinfo.com
PAGE 4
Page 5
3. Operation
3.1 Determine if coated face is to be up or down or both.
3.2 Set height for impactor to drop, by loosening the two small knurled clamp screws either
side of the release mechanism mounted on the tube, and slide to the required height (the
lower face of the mechanism is the datum face), then tighten the two screws.
3.3 Raise the falling weight using the falling weight lifting knob, rotate the release ring
handle to capture the falling weight at the required height.
3.4 Rotary impact depth indication ring into the die holder to the desired depth.
3.5 Loosen the test board locking ring, put test board onto the mold base, and then lock test
board.
3.6 Stubbs release handles, so that the impact hammer to free-fall impact test board.
4. Routine Maintenance
4.1 When instrument is not in use keep anvil lightly oiled to prevent corrosion.
4.2 Keep instrument clean.
4.3 Check fixing bolts are still secure.
4.4 Check falling weight lifting knob and handle are secure.
4.5 Check clamp pads are still serviceable.
5. Packing List
* Host 1
* Mold base 1
* Impact hammer 1
* Collar group 1 set
* Certificate 1
* Manual 1
