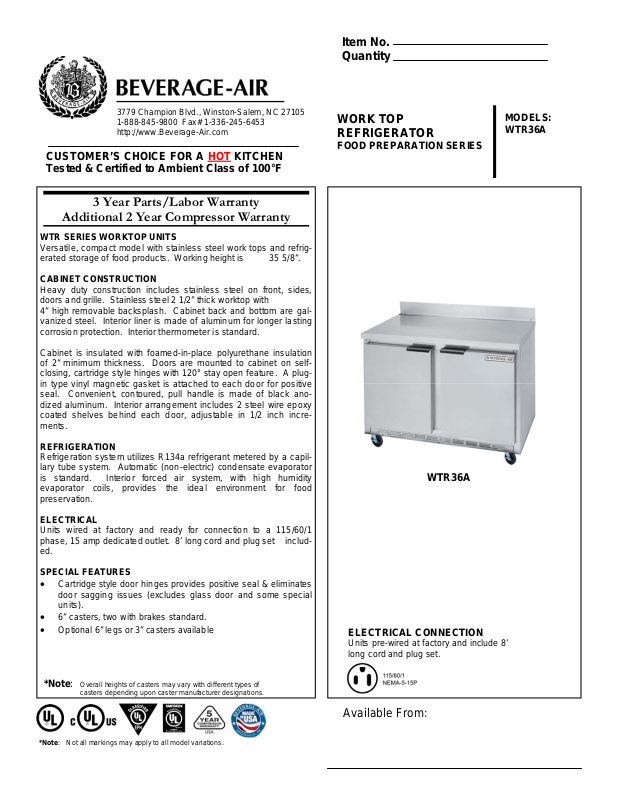

Beverage Air WTR36A User Manual

Item No.
Quantity

3779 Champion Blvd., Winston-Salem, NC 27105
1-888-845-9800 Fax# [phone]
http://www.Beverage-Air.com

CUSTOMER’S CHOICE FOR A HOT KITCHEN
Tested & Certified to Ambient Class of 100°F

3 Year Parts/Labor Warranty

Additional 2 Year Compressor Warranty

WTR SERIES WORKTOP UNITS

Versatile, compact model with stainless steel work tops and refrig­erated storage of food products. Working height is 35 5/8”.

CABINET CONSTRUCTION

Heavy duty construction includes stainless steel on front, sides,
doors and grille. Stainless steel 2 1/2” thick worktop with
4” high removable backsplash. Cabinet back and bottom are gal­vanized steel. Interior liner is made of aluminum for longer lasting
corrosion protection. Interior thermometer is standard.

Cabinet is insulated with foamed-in-place polyurethane insulation
of 2” minimum thickness. Doors are mounted to cabinet on self­closing, cartridge style hinges with 120° stay open feature. A plug­in type vinyl magnetic gasket is attached to each door for positive
seal. Convenient, contoured, pull handle is made of black ano­dized aluminum. Interior arrangement includes 2 steel wire epoxy
coated shelves behind each door, adjustable in 1/2 inch incre­ments.

REFRIGERATION

Refrigeration system utilizes R134a refrigerant metered by a capil­lary tube system. Automatic (non-electric) condensate evaporator
is standard. Interior forced air system, with high humidity
evaporator coils, provides the ideal environment for food
preservation.

ELECTRICAL

Units wired at factory and ready for connection to a 115/60/1
phase, 15 amp dedicated outlet. 8’ long cord and plug s et includ­ed.

SPECIAL FEATURES

 Cartridge style door hinges provides positive seal & eliminat es

door sagging issues (excludes glass door and some special
units).

 6” casters, two with brakes standard.
 Optional 6” legs or 3” casters available

WORK TOP
REFRIGERATOR

FOOD PREPARATION SERIES

WTR36A

ELECTRICAL CONNECTION

Units pre-wired at factory and include 8’
long cord and plug set.

MODELS:
WTR36A

*Note: Overall heights of casters may vary with different types of

casters depending upon caster manufacturer designations.

*Note: Not all markings may apply to all model variations.

Available From:

Model Specified
Location

Store#
Quantity

Standard Worktop
Refrigerator Cabinets

Models: WTR36A

MODEL WTR36A

EXTERNAL DIMENSIONAL DATA

Length Overall (inches)
Length Overall (mm)

Depth Overall (inches) - Less handle
Depth Overall (mm) - Less handle

Height Overall— on 6” casters (inches)*
Height Overall—on 6” casters (mm)*

Depth with Door Open 90
Clear Door Opening (inches) 13 9/16” x 21 5/8”

Number of doors 2
INTERNAL DIMENSIONAL DATA
NET Capacity (cubic ft.)

NET Capacity (Liters)
Internal Length Overall (inches)

Internal Length Overall (mm)
Internal Depth Overall (inches)

Internal Depth Overall (mm)
Internal Height Overall (inches)

Internal Height Overall (mm)
Number of shelves 4
ELECTRICAL DATA
Full Load Amperes 115/60/ 1 3.3

ENERGY CONSUMPTION (KWH) N/A*
REFRIGERATION DATA

Horsepower 1/5
WEIGHT DATA
Gross Weight (Crated lbs) 210
Gross Weight (Crated kg) 95

o

46 1/4”

36”
914

29 1/4”

743

39 1/2”

1003

8.5
241

32”
813

20”
508

23”
584

PLAN VIEWS

*Note: Overall heights of casters may vary with different types of

casters depending upon caster manufacturer designations.

BEVERAGE-AIR® CORPORATION

3779 Champion Blvd. • Winston-Salem, NC 27105 USA • [phone] • Fax [phone] • [phone] • www.beverage-air.com

Specifications are subject to change without prior notice. 06/13
