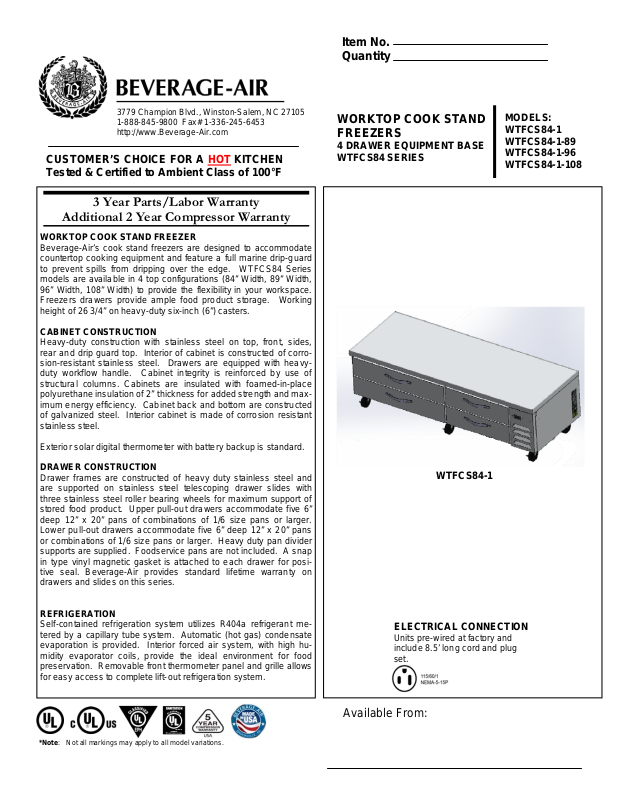

WORKTOP COOK STAND FREEZER

Beverage-Air’s cook stand freezers are designed to accommodate
countertop cooking equipment and feature a full marine drip-guard
to prevent spills from dripping over the edge. WTFCS84 Series
models are available in 4 top configurations (84” Width, 89” Width,
96” Width, 108” Width) to provide the flexibility in your workspace.
Freezers drawers provide ample food product storage. Working
height of 26 3/4” on heavy-duty six-inch (6”) casters.

CABINET CONSTRUCTION

Heavy-duty construction with stainless steel on top, front, sides,
rear and drip guard top. Interior of cabinet is constructed of corro­sion-resistant stainless steel. Drawers are equipped with heavy­duty workflow handle. Cabinet integrity is reinforced by use of
structural columns. Cabinets are insulated with foamed-in-place
polyurethane insulation of 2” thickness for added strength and max­imum energy efficiency. Cabinet back and bottom are constructed
of galvanized steel. Interior cabinet is made of corrosion resistant
stainless steel.

Exterior solar digital thermometer with battery backup is standard.

DRAWER CONSTRUCTION

Drawer frames are constructed of heavy duty stainless steel and
are supported on stainless steel telescoping drawer slides with
three stainless steel roller bearing wheels for maximum support of
stored food product. Upper pull-out drawers accommodate five 6”
deep 12” x 20” pans of combinations of 1/6 size pans or larger.
Lower pull-out drawers accommodate five 6” deep 12” x 20” pans
or combinations of 1/6 size pans or larger. Heavy duty pan divider
supports are supplied. Foodservice pans are not include d. A snap
in type vinyl magnetic gasket is attached to each drawer for posi­tive seal. Beverage-Air provides standard lifetime warranty on
drawers and slides on this series.

REFRIGERATION

Self-contained refrigeration system utilizes R404a refrigerant me­tered by a capillary tube system. Automatic (hot gas) condensate
evaporation is provided. Interior forced air system, with high hu­midity evaporator coils, provide the ideal environment for food
preservation. Removable front thermometer panel and grille allows
for easy access to complete lift-out refrigeration system.

WORKTOP COOK STAND
FREEZERS

4 DRAWER EQUIPMENT BASE
WTFCS84 SERIES

WTFCS84-1

ELECTRICAL CONNECTION

Units pre-wired at factory and
include 8.5’ long cord and plug
set.

MODELS:
WTFCS84-1
WTFCS84-1-89
WTFCS84-1-96
WTFCS84-1-108

*Note: Not all markings may apply to all model variations.

Available From:

Model Specified
Location

Store#
Quantity

Worktop Freezer, Cook Stand Model Series

Models: WTFCS84-1, WTFCS84-1-89, WTFCS84-1-96, WTFCS84-1-108

MODEL WTFCS84-1 WTFCS84-1-89 WTFCS84-1-96 WTFCS84-1-108

EXTERNAL DIMENSIONAL DATA

Length Overall (inches)
Length Overall (mm)

Depth Overall (inches)
Depth Overall (mm)

Height Overall— (inches)
Height Overall— (mm)

Number of drawers 4 4 4 4

Depth with Drawer Open 90 o 55.98 55.98 55.98 55.98
Upper Drawer Pans 5—12” x 20” x 6” 5—12” x 20” x 6” 5—12” x 20” x 6” 5—12” x 20” x 6”
Lower Drawer Pans 5—12” x 20” x 6” 5—12” x 20” x 6” 5—12” x 20” x 6” 5—12” x 20” x 6”
Top Load Rating (lbs)

Top Load Rating (kg)

INTERNAL DIMENSIONAL DATA
NET Capacity (cubic ft.)

NET Capacity (Liters)
ELECTRICAL DATA
Full Load Amperes 115/60/1 15 15 15 15
REFRIGERATION DATA
Horsepower 3/4 3/4 3/4 3/4
WEIGHT DATA
Gross Weight (Crated lbs) 616 616 616 616
Gross Weight (Crated kg) 279 279 279 279

84”

2134

32”
813

26 3/4”

680

1000

454

17.5
496

89”

2261

32”
813

26 3/4”

680

1000

454

17.5
496

96”

2438

32”
813

26 3/4”

680

1000

454

17.5
496

108”
2743

32”
813

26 3/4”

680

1000

454

17.5
496

PLAN VIEWS

Note: Not all markings may apply to all model variations.
*N/A:: Not available at time of printing.

3779 Champion Blvd. • Winston-Salem, NC 27105 USA • [phone] • Fax [phone] • [phone] • www.beverage-air.com

BEVERAGE-AIR® CORPORATION

Specifications are subject to change without prior notice. 08/15
