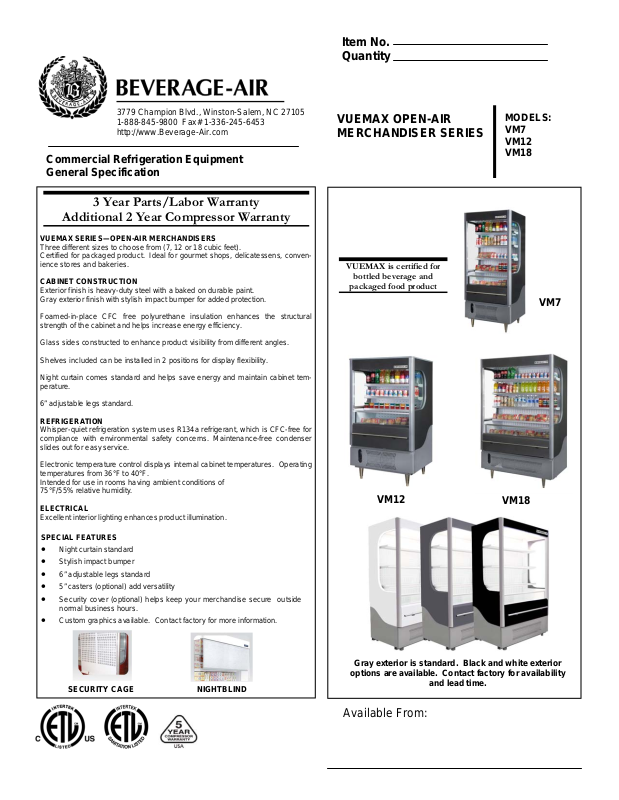

Beverage Air VM7 User Manual
Item No.
Quantity
3779 Champion Blvd., Winston-Salem, NC 27105
1-888-845-9800 Fax# 1-336-245-6453
http://www.Beverage-Air.com
Commercial Refrigeration Equipment
General Specification
3 Year Parts/Labor Warranty
Additional 2 Year Compressor Warranty
VUEMAX SERIES—OPEN-AIR MERCHANDISERS
Three different sizes to choose from (7, 12 or 18 cu bic feet).
Certified for packaged product. Ideal for gourmet shops, delicatessens, convenience stores and bakeries.
CABINET CONSTRUCTION
Exterior finish is heavy-duty steel with a baked on durable paint.
Gray exterior finish with stylish impact bumper for added protection.
Foamed-in-place CFC free polyurethane insulation enhances the structural
strength of the cabinet and helps increase energy efficiency.
Glass sides constructed to enhance product visibility from different angles.
Shelves included can be installed in 2 positions for display flexibility.
Night curtain comes standard and helps save energy and maintain cabinet tem-
perature.
6” adjustable legs standard.
REFRIGERATION
Whisper-quiet refrigeration system uses R134a refrigerant, which is CFC-free for
compliance with environmental safety concerns. Maintenance-free condenser
slides out for easy service.
Electronic temperature control displays internal cabinet temperatures. Operating
temperatures from 36°F to 40°F.
Intended for use in rooms having ambient conditions of
75°F/55% relative humidity.
ELECTRICAL
Excellent interior lighting enhances product illumination.
SPECIAL FEATURES
Night curtain standard
Stylish impact bumper
6” adjustable legs standard
5” casters (optional) add versatility
Security cover (optional) helps keep your merchandise secure outside
normal business hours.
Custom graphics available. Contact factory for more information.
VUEMAX OPEN-AIR
MERCHANDISER SERIES
VUEMAX is certified for
bottled beverage and
packaged food product
VM12
MODELS:
VM7
VM12
VM18
VM7
VM18
SECURITY CAGE
NIGHTBLIND
Gray exterior is standard. Black and white exterior
options are available. Contact factory for availability
and lead time.
Available From:
Model Specified
Location
Store#
Quantity
VueMax Open-Air Merchandisers
Models: VM7, VM12, VM18
MODEL VM7 VM12 VM18
EXTERNAL DIMENSIONAL DATA
Length Overall (inches)
Length Overall (mm)
Depth Overall (inches)
Depth Overall (mm)
Height Overall— (inches)
Height Overall— (mm)
INTERNAL DIMENSIONAL DATA
NET Capacity (cubic ft.)
NET Capacity (Liters)
Number of shelves 3 4 4
ELECTRICAL DATA
Full Load Amperes 115/60/1—Breaker required 15 20 20
Amp Draw 8 11 16
REFRIGERATION DATA
Horsepower 1/3 2 of 1/4 2 of 1/3
WEIGHT DATA
Gross Weight (Crated lbs) 415 507 525
Gross Weight (Crated kg) 188 230 238
35”
889
31”
787
59”
1499
7
198
35”
889
31”
787
79”
2007
12
340
51”
1295
31”
787
79”
2007
18
510
PLAN VIEWS
VM7
VM12
VM18
BEVERAGE-AIR® CORPORATION
3779 Champion Blvd. • Winston-Salem, NC 27105 USA • (336) 245-6400 • Fax (336) 245-6453 • (888) 845-9800 • www.beverage-air.com
Specifications are subject to change without prior notice. 08/13
