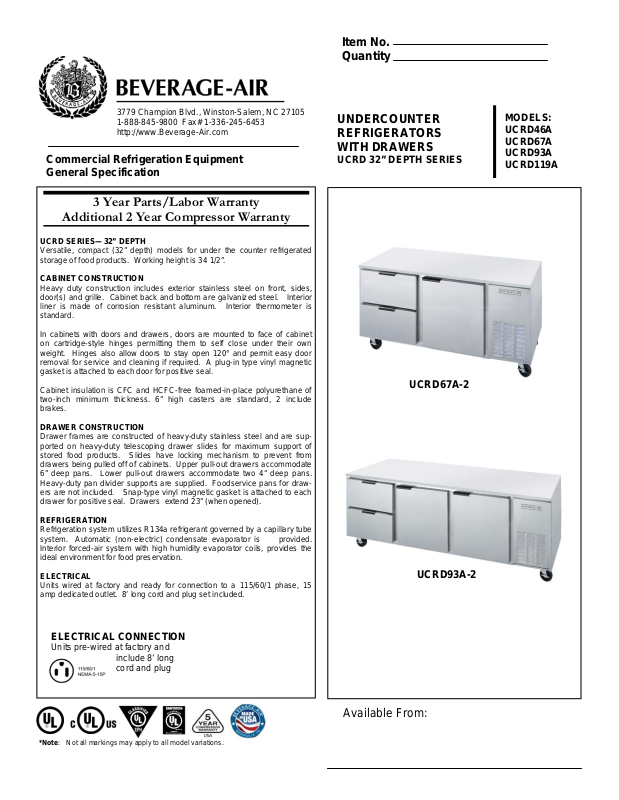

Beverage Air UCRD119A-2 User Manual

Item No.
Quantity

3779 Champion Blvd., Winston-Salem, NC 27105
1-888-845-9800 Fax# [phone]
http://www.Beverage-Air.com

Commercial Refrigeration Equipment
General Specification

3 Year Parts/Labor Warranty

Additional 2 Year Compressor Warranty

UCRD SERIES—32” DEPTH

Versatile, compact (32” depth) models for under the counter refrigerated
storage of food products. Working height is 34 1/2”.

CABINET CONSTRUCTION

Heavy duty construction includes exterior stainless steel on front, sides,
door(s) and grille. Cabinet back and bottom are galvanized steel. Interior
liner is made of corrosion resistant aluminum. Interior thermometer is
standard.

In cabinets with doors and drawers, doors are mounted to face of cabinet
on cartridge-style hinges permitting them to self close under their own
weight. Hinges also allow doors to stay open 120° and permit easy door
removal for service and cleaning if required. A plug-in type vinyl magnetic
gasket is attached to each door for positive seal.

Cabinet insulation is CFC and HCFC-free foamed-in-place polyurethane of
two-inch minimum thickness. 6” high casters are standard, 2 include
brakes.

DRAWER CONSTRUCTION

Drawer frames are constructed of heavy-duty stainless steel and are sup­ported on heavy-duty telescoping drawer slides for maximum support of
stored food products. Slides have locking mechanism to prevent from
drawers being pulled off of cabinets. Upper pull-out drawers accommodate
6” deep pans. Lower pull-out drawers accommodate two 4” deep pans.
Heavy-duty pan divider supports are supplied. Foodservice pans for draw­ers are not included. Snap-type vinyl magnetic gasket is attached to each
drawer for positive seal. Drawers extend 23” (when opened).

REFRIGERATION

Refrigeration system utilizes R134a refrigerant governed by a capillary tube
system. Automatic (non-electric) condensate evaporator is provided.
Interior forced-air system with high humidity evaporator coils, provides the
ideal environment for food preservation.

ELECTRICAL

Units wired at factory and ready for connection to a 115/60/1 phase, 15
amp dedicated outlet. 8’ long cord and plug set included.

UNDERCOUNTER
REFRIGERATORS
WITH DRAWERS

UCRD 32” DEPTH SERIES

UCRD67A-2

UCRD93A-2

MODELS:
UCRD46A
UCRD67A
UCRD93A
UCRD119A

ELECTRICAL CONNECTION

Units pre-wired at factory and

include 8’ long
cord and plug

*Note: Not all markings may apply to all model variations.

Available From:

Model Specified
Location

Store#
Quantity

Undercounter Refrigerator With Drawers

Models: UCRD46A, UCRD67A, UCRD93A, UCRD119A

MODEL UCRD46A-2 UCRD67A-2 UCRD67A-4 UCRD93A-2 UCRD93A-4 UCRD93A-6 UCRD119A-2 UCRD119A-4

EXTERNAL DIMENSIONAL DATA

Length Overall (inches)
Length Overall (mm)

Depth Overall (inches)
Depth Overall (mm)

Height Overall— (inches)
Height Overall— (mm)

Number of doors - 1 - 2 1 - 3 2

Number of drawers 2 2 4 2 4 6 2 4

Drawer Extension (when opened) 23” 23” 23” 23” 23” 23” 23” 23”

INTERNAL DIMENSIONAL DATA

NET Capacity (cubic ft.)
NET Capacity (Liters)

Internal Length Overall (inches)
Internal Length Overall (mm)

Internal Depth Overall (inches)
Internal Depth Overall (mm)

Internal Height Overall—(inches)
Internal Height Overall—(mm)

Number of shelves - 2 - 4 2 - 6 4

ELECTRICAL DATA

Full Load Amperes 115/60/1 6.3 6.3 6.3 8.6 8.6 8.6 8.6 8.6

REFRIGERATION DATA

Horsepower 1/4 1/4 1/4 1/3 1/3 1/3 1/3 1/3

WEIGHT DATA

Gross Weight (Crated lbs) 180 342 342 442 442 535 535 535

Gross Weight (Crated kg) 82 155 155 201 201 243 243 243

46”

1168

32”
813

34 1/2”

876

16.7
473

22”
559

28”
711

24”
610

67”

1702

32”
813

34 1/2”

876

27

765

48”

1219

28”
711

24”
610

67”

1702

32”
813

34 1/2”

876

27

765

48”

1219

28”
711

24”
610

93”

2362

32”
813

34 1/2”

876

39.8
1127

74”

1880

28”
711

24”
610

93”

2362

32”
813

34 1/2”

876

39.8
1127

74”

1880

28”
711

24”
610

93”

2362

32”
813

34 1/2”

876

39.8
1127

74”

1880

28”
711

24”
610

119”
3023

32”
813

34 1/2”

876

52.5
1487

100”
2540

28”
711

24”
610

119”
3023

32”
813

34 1/2”

876

52.5
1487

100”
2540

28”
711

24”
610

UCRD119A-6

119”
3023

32”
813

34 1/2”

876

1

6

23”

52.5
1487

100”
2540

28”
711

24”
610

2

8.6

1/3

535

243

UCRD119A-8

119”
3023

32”
813

34 1/2”

876

-

8

23”

52.5
1487

100”
2540

28”
711

24”
610

-

8.6

1/3

535

243

PLAN VIEWS

UCRD46A-2

UCRD67A-2

UCRD67A-4

Note: Not all markings may apply to all model variations.
*N/A:: Not available at time of printing.

UCRD119A-2

UCRD119A-4

UCRD119A-6

UCRD119A-8

BEVERAGE-AIR® CORPORATION

3779 Champion Blvd. • Winston-Salem, NC 27105 USA • [phone] • Fax [phone] • [phone] • www.beverage-air.com

Specifications are subject to change without prior notice. 06/13

UCRD93A-2

UCRD93A-4

UCRD93A-6
