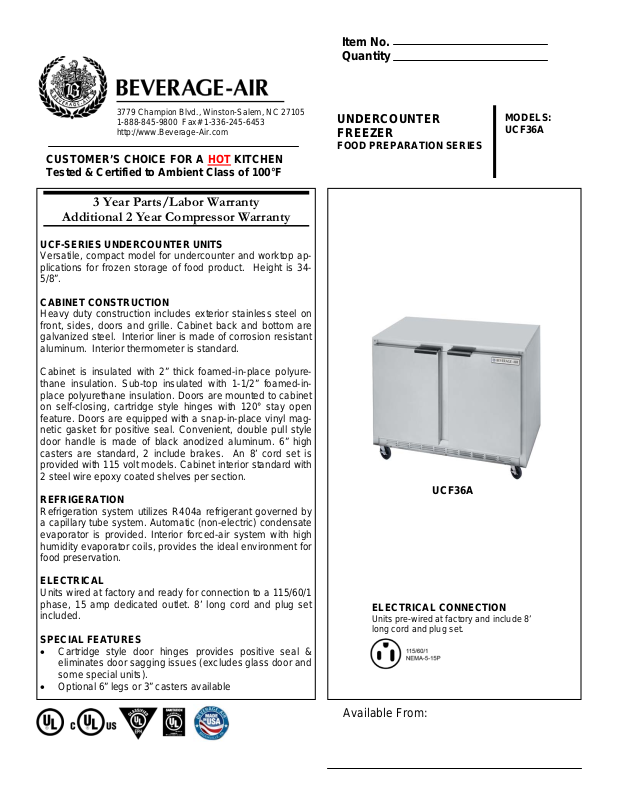

Beverage Air UCF36A User Manual

Item No.
Quantity

3779 Champion Blvd., Winston-Salem, NC 27105
1-888-845-9800 Fax# [phone]
http://www.Beverage-Air.com

CUSTOMER’S CHOICE FOR A HOT KITCHEN
Tested & Certified to Ambient Class of 100°F

3 Year Parts/Labor Warranty

Additional 2 Year Compressor Warranty

UCF-SERIES UNDERCOUNTER UNITS

Versatile, compact model for undercounter and worktop ap­plications for frozen storage of food product. Height is 34­5/8”.

CABINET CONSTRUCTION

Heavy duty construction includes exterior stainless steel on
front, sides, doors and grille. Cabinet back and bottom are
galvanized steel. Interior liner is made of corrosion resistant
aluminum. Interior thermometer is standard.

Cabinet is insulated with 2” thick foamed-in-place polyure­thane insulation. Sub-top insulated with 1-1/2” foamed-in­place polyurethane insulation. Doors are mounted to cabinet
on self-closing, cartridge style hinges with 120° stay open
feature. Doors are equipped with a snap-in-place vinyl mag­netic gasket for positive seal. Convenient, double pull style
door handle is made of black anodized aluminum. 6” high
casters are standard, 2 include brakes. An 8’ cord set is
provided with 115 volt models. Cabinet interior standard with
2 steel wire epoxy coated shelves per section.

REFRIGERATION

Refrigeration system utilizes R404a refrigerant governed by
a capillary tube system. Automatic (non-electric) condensate
evaporator is provided. Interior forced-air system with high
humidity evaporator coils, provides the ideal environment for
food preservation.

ELECTRICAL

Units wired at factory and ready for connection to a 115/60/1
phase, 15 amp dedicated outlet. 8’ long cord and plug set
included.

SPECIAL FEATURES

 Cartridge style door hinges provides positive seal &

eliminates door sagging issues (excludes glass door and
some special units).

 Optional 6” legs or 3” casters available

UNDERCOUNTER
FREEZER

FOOD PREPARATION SERIES

UCF36A

ELECTRICAL CONNECTION

Units pre-wired at factory and include 8’
long cord and plug set.

MODELS:
UCF36A

Available From:

Model Specified
Location

Store#
Quantity

Standard Undercounter
Refrigerator Cabinet

Models: UCF36A

MODEL UCF36A

EXTERNAL DIMENSIONAL DATA

Length Overall (inches)
Length Overall (mm)

Depth Overall (inches) - Less handle
Depth Overall (mm) - Less handle

Height Overall— on 6” casters (inches)
Height Overall—on 6” casters (mm)

Depth with Door Open 90
Clear Door Opening (inches) 13 5/8” x 21 5/8”
Number of doors 2
INTERNAL DIMENSIONAL DATA
NET Capacity (cubic ft.)

NET Capacity (Liters)
Internal Length Overall (inches)

Internal Length Overall (mm)
Internal Depth Overall (inches)

Internal Depth Overall (mm)
Internal Height Overall (inches)

Internal Height Overall (mm)
Number of shelves 4
ELECTRICAL DATA
Full Load Amperes 115/60/ 1 TBA

ENERGY CONSUMPTION (KWH) N/A*
REFRIGERATION DATA

Horsepower 1/3
WEIGHT DATA
Gross Weight (Crated lbs) 218
Gross Weight (Crated kg) 95

o

46 1/4”

36”
914

29 1/4”

743

34 5/8”

880

8.5
241

32”
813

19”
483

23”
584

PLAN VIEWS

*Not available at time of printing

3779 Champion Blvd. • Winston-Salem, NC 27105 USA • [phone] • Fax [phone] • [phone] • www.beverage-air.com

BEVERAGE-AIR® CORPORATION

Specifications are subject to change without prior notice. 08/13
