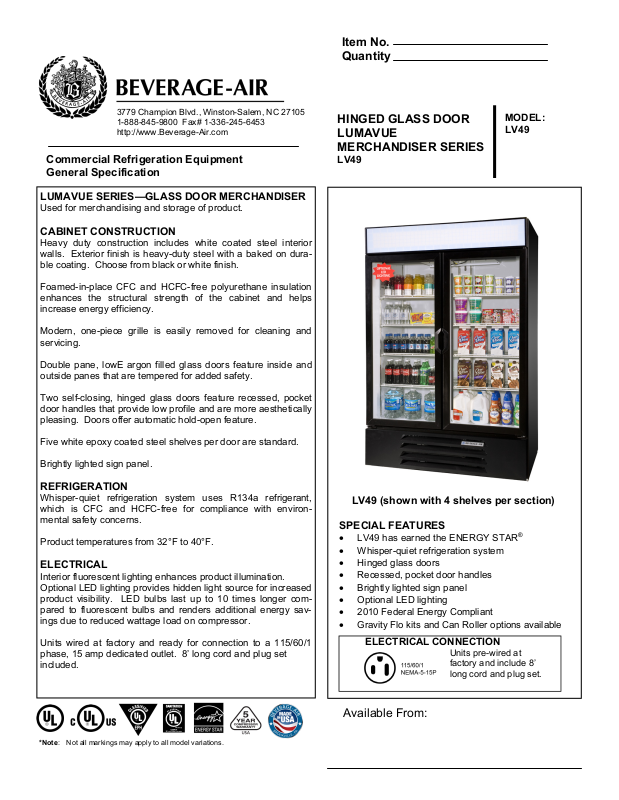

Beverage Air LV49 User Manual

Item No.
Quantity

3779 Champion Blvd., Winston-Salem, NC 27105
1-888-845-9800 Fax# [phone]
http://www.Beverage-Air.com

Commercial Refrigeration Equipment
General Specification

LUMAVUE SERIES—GLASS DOOR MERCHANDISER

Used for merchandising and storage of product.

CABINET CONSTRUCTION

Heavy duty construction includes white coated steel interior
walls. Exterior finish is heavy-duty steel with a baked on dura­ble coating. Choose from black or white finish.

Foamed-in-place CFC and HCFC-free polyurethane insulation
enhances the structural strength of the cabinet and helps
increase energy efficiency.

Modern, one-piece grille is easily removed for cleaning and
servicing.

Double pane, lowE argon filled glass doors feature inside and
outside panes that are tempered for added safety.

Two self-closing, hinged glass doors feature recessed, pocket
door handles that provide low profile and are more aesthetically
pleasing. Doors offer automatic hold-open feature.

Five white epoxy coated steel shelves per door are standard.

Brightly lighted sign panel.

REFRIGERATION

Whisper-quiet refrigeration system uses R134a refrigerant,
which is CFC and HCFC-free for compliance with environ­mental safety concerns.

Product temperatures from 32°F to 40°F.

ELECTRICAL

Interior fluorescent lighting enhances product illumination.
Optional LED lighting provides hidden light source for increased
product visibility. LED bulbs last up to 10 times longer com­pared to fluorescent bulbs and renders additional energy sav­ings due to reduced wattage load on compressor.

Units wired at factory and ready for connection to a 115/60/1
phase, 15 amp dedicated outlet. 8’ long cord and plug set
included.

HINGED GLASS DOOR
LUMAVUE

MODEL:
LV49

MERCHANDISER SERIES

LV49

LV49 (shown with 4 shelves per section)

SPECIAL FEATURES

• LV49 has earned the ENERGY STAR

• Whisper-quiet refrigeration system

• Hinged glass doors

• Recessed, pocket door handles

• Brightly lighted sign panel

• Optional LED lighting

• 2010 Federal Energy Compliant

• Gravity Flo kits and Can Roller options available

ELECTRICAL CONNECTION

Units pre-wired at
factory and include 8’
long cord and plug set.

®

*Note: Not all markings may apply to all model variations.

Available From:

Model Specified

Location

Store#

Quantity

LumaVue Glass Door Merchandisers

Model: LV49

MODEL LV49

EXTERNAL DIMENSIONAL DATA

Length Overall (inches)
Length Overall (mm)

Depth Overall (inches)
Depth Overall (mm)

Height Overall— (inches)
Height Overall— (mm)

Number of doors 2

Depth with Door Open 90 o 60”

INTERNAL DIMENSIONAL DATA

NET Capacity (cubic ft.)
NET Capacity (Liters)

Internal Length Overall (inches)
Internal Length Overall (mm)

Internal Depth Overall (inches)
Internal Depth Overall (mm)

Internal Height Overall—(inches)
Internal Height Overall—(mm)

*Internal Height to Evaporator Housing—(inches)
*Internal Height to Evaporator Housing—(mm)

Number of shelves 10

ELECTRICAL DATA

Full Load Amperes 115/60/1 8.8 A

ENERGY CONSUMPTION 5.82 kWh/Day

REFRIGERATION DATA

Horsepower 1/3

WEIGHT DATA

Gross Weight (Crated lbs) 531

Gross Weight (Crated kg) 241

52”

1321

32”
813

78”

1981

49

1388

47 16/25”

1210

28 1/2”

724

61 3/4”

1569

54”

1372

PLAN VIEWS

Not all markings may apply to all model variations.

Note:
*Internal height to evaporator housing.
