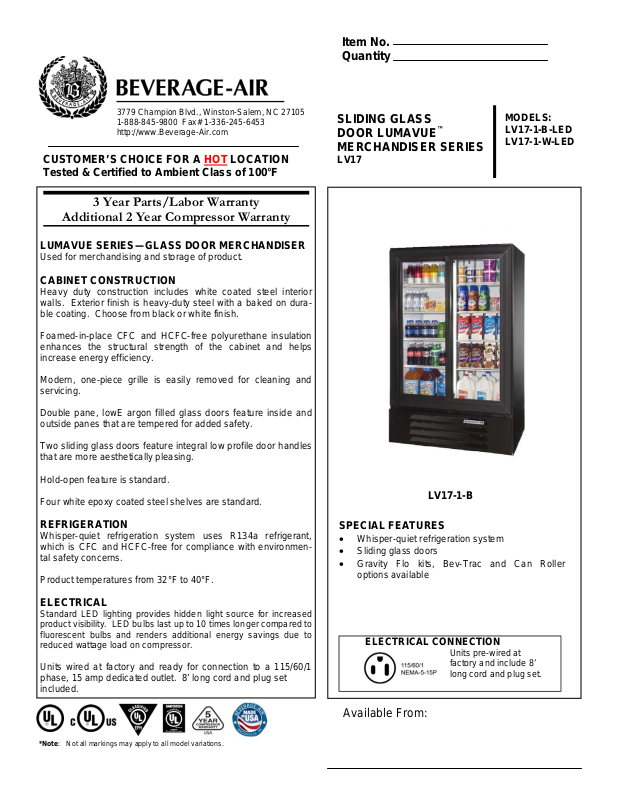

Beverage Air LV17-1-B-LED User Manual

Item No.
Quantity

3779 Champion Blvd., Winston-Salem, NC 27105
1-888-845-9800 Fax# [phone]
http://www.Beverage-Air.com

CUSTOMER’S CHOICE FOR A HOT LOCATION
Tested & Certified to Ambient Class of 100°F

3 Year Parts/Labor Warranty

Additional 2 Year Compressor Warranty

LUMAVUE SERIES—GLASS DOOR MERCHANDISER

Used for merchandising and storage of product.

CABINET CONSTRUCTION

Heavy duty construction includes white coated steel interior
walls. Exterior finish is heavy-duty steel with a baked on dura­ble coating. Choose from black or white finish.

Foamed-in-place CFC and HCFC-free polyurethane insulation
enhances the structural strength of the cabinet and helps
increase energy efficiency.

Modern, one-piece grille is easily removed for cleaning and
servicing.

Double pane, lowE argon filled glass doors feature inside and
outside panes that are tempered for added safety.

Two sliding glass doors feature integral low profile door handles
that are more aesthetically pleasing.

Hold-open feature is standard.
Four white epoxy coated steel shelves are standard.

REFRIGERATION

Whisper-quiet refrigeration system uses R134a refrigerant,
which is CFC and HCFC-free for compliance with environmen­tal safety concerns.

Product temperatures from 32°F to 40°F.

ELECTRICAL

Standard LED lighting provides hidden light source for increased
product visibility. LED bulbs last up to 10 times longer compared to
fluorescent bulbs and renders additional energy savings due to
reduced wattage load on compressor.

Units wired at factory and ready for connection to a 115/60/1
phase, 15 amp dedicated outlet. 8’ long cord and plug set
included.

SLIDING GLASS
DOOR LUMAVUE™
MERCHANDISER SERIES

LV17

MODELS:
LV17-1-B-LED
LV17-1-W-LED

LV17-1-B

SPECIAL FEATURES

 Whisper-quiet refrigeration system
 Sliding glass doors
 Gravity Flo kits, Bev-Trac and Can Roller

options available

ELECTRICAL CONNECTION

Units pre-wired at
factory and include 8’
long cord and plug set.

*Note: Not all markings may apply to all model variations.

Available From:

Model Specified
Location

Store#
Quantity

LumaVue
Glass Door Merchandisers

PLAN VIEWS

Model: LV17

MODEL LV17

EXTERNAL DIMENSIONAL DATA

Length Overall (inches)
Length Overall (mm)

Depth Overall (inches)
Depth Overall (mm)

Height Overall— (inches)
Height Overall— (mm)

Number of doors 2

INTERNAL DIMENSIONAL DATA

NET Capacity (cubic ft.)
NET Capacity (Liters)

Internal Length Overall (inches)
Internal Length Overall (mm)

Internal Depth Overall (inches)
Internal Depth Overall (mm)

Internal Height Overall—(inches)
Internal Height Overall—(mm)

36”
914

24”
610

60”

1524

17.5
481

33”
838

21”
533

46 7/8”

1190

Number of shelves 4

ELECTRICAL DATA

Full Load Amperes 115/60/ 1 6.2 A

REFRIGERATION DATA

Horsepower 1/3

WEIGHT DATA

Gross Weight (Crated lbs) 400

Gross Weight (Crated kg) 182

Note: Not all markings may apply to all model variations.

3779 Champion Blvd. • Winston-Salem, NC 27105 USA • [phone] • Fax [phone] • [phone] • www.beverage-air.com

BEVERAGE-AIR® CORPORATION

Specifications are subject to change without prior notice. 06/13
