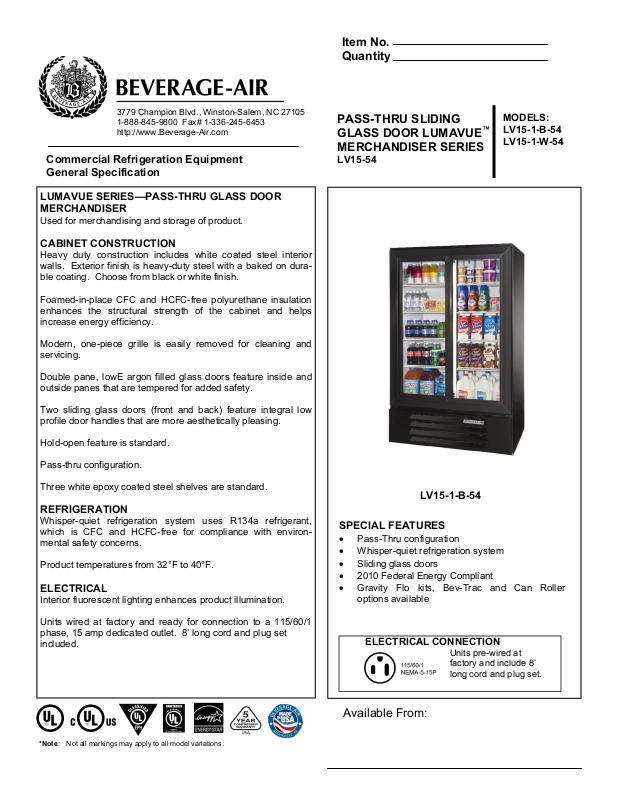

Beverage Air LV15-1-B-54 User Manual

Item No.
Quantity

3779 Champion Blvd., Winston-Salem, NC 27105
1-888-845-9800 Fax# [phone]
http://www.Beverage-Air.com

Commercial Refrigeration Equipment
General Specification

LUMAVUE SERIES—PASS-THRU GLASS DOOR
MERCHANDISER

Used for merchandising and storage of product.

CABINET CONSTRUCTION

Heavy duty construction includes white coated steel interior
walls. Exterior finish is heavy-duty steel with a baked on dura­ble coating. Choose from black or white finish.

Foamed-in-place CFC and HCFC-free polyurethane insulation
enhances the structural strength of the cabinet and helps
increase energy efficiency.

Modern, one-piece grille is easily removed for cleaning and
servicing.

Double pane, lowE argon filled glass doors feature inside and
outside panes that are tempered for added safety.

Two sliding glass doors (front and back) feature integral low
profile door handles that are more aesthetically pleasing.

Hold-open feature is standard.

Pass-thru configuration.

Three white epoxy coated steel shelves are standard.

REFRIGERATION

Whisper-quiet refrigeration system uses R134a refrigerant,
which is CFC and HCFC-free for compliance with environ­mental safety concerns.

Product temperatures from 32°F to 40°F.

ELECTRICAL

Interior fluorescent lighting enhances product illumination.

Units wired at factory and ready for connection to a 115/60/1
phase, 15 amp dedicated outlet. 8’ long cord and plug set
included.

PASS-THRU SLIDING
GLASS DOOR LUMAVUE™
MERCHANDISER SERIES

LV15-54

MODELS:
LV15-1-B-54
LV15-1-W-54

LV15-1-B-54

SPECIAL FEATURES

 Pass-Thru configuration
 Whisper-quiet refrigeration system
 Sliding glass doors
 2010 Federal Energy Compliant
 Gravity Flo kits, Bev-Trac and Can Roller

options available

ELECTRICAL CONNECTION

Units pre-wired at
factory and include 8’
long cord and plug set.

*Note: Not all markings may apply to all model variations.

Available From:

Model Specified

Location

Store#

Quantity

LumaVue Pass-Thru Glass
Door Merchandisers

Model: LV15-54

MODEL LV15-54

EXTERNAL DIMENSIONAL DATA

Length Overall (inches)
Length Overall (mm)

Depth Overall (inches)
Depth Overall (mm)

Height Overall— (inches)
Height Overall— (mm)

Number of doors 4 sliding doors

INTERNAL DIMENSIONAL DATA

NET Capacity (cubic ft.)
NET Capacity (Liters)

Internal Length Overall (inches)
Internal Length Overall (mm)

Internal Depth Overall (inches)
Internal Depth Overall (mm)

Internal Height Overall—(inches)
Internal Height Overall—(mm)

Number of shelves 3

ELECTRICAL DATA

Full Load Amperes 115/60/1 6.2 A

REFRIGERATION DATA

Horsepower 1/3

WEIGHT DATA

Gross Weight (Crated lbs) 350

Gross Weight (Crated kg) 159

36”
914

24”
610

54”

1372

15

425

33”
838

21”
533

40 7/8”

1038

PLAN VIEWS

*Note: Not all markings may apply to all model variations.

3779 Champion Blvd. • Winston-Salem, NC 27105 USA • [phone] • Fax [phone] • [phone] • www.beverage-air.com

BEVERAGE-AIR® CORPORATION

Specifications are subject to change without prior notice. 10/11
