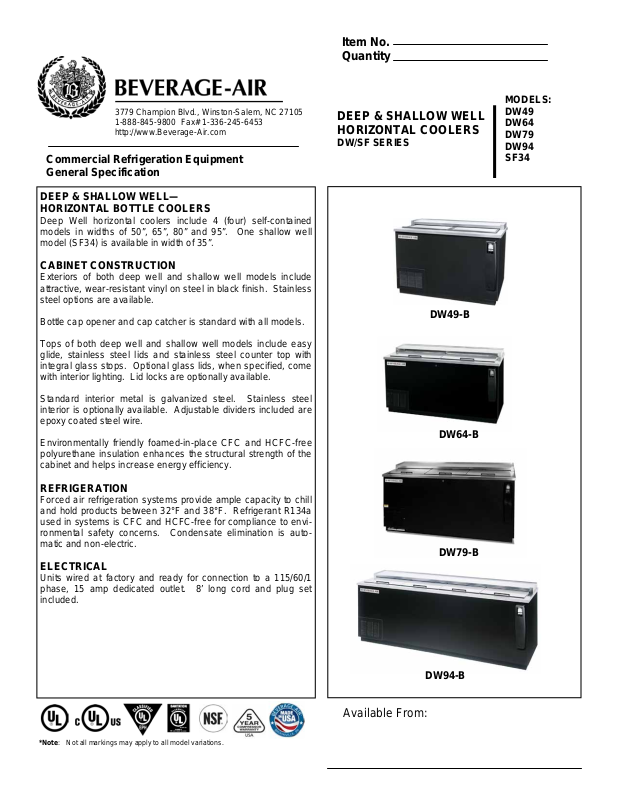

Beverage-Air DW64S, DW49B, DW49S, DW64B, DW79B User Manual
...
3779 Champion Blvd., Winston-Salem, NC 27105
1-888-845-9800 Fax# 1-336-245-6453
http://www.Beverage-Air.com
Commercial Refrigeration Equipment
General Specification
DEEP & SHALLOW WELL—
HORIZONTAL BOTTLE COOLERS
Deep Well horizontal coolers include 4 (four) self-contained
models in widths of 50”, 65”, 80” and 95”. One shallow well
model (SF34) is available in width of 35”.
CABINET CONSTRUCTION
Exteriors of both deep well and shallow well models include
attractive, wear-resistant vinyl on steel in black finish. Stainless
steel options are available.
Bottle cap opener and cap catcher is standard with all models.
Tops of both deep well and shallow well models include easy
glide, stainless steel lids and stainless steel counter top with
integral glass stops. Optional glass lids, when specified, come
with interior lighting. Lid locks are optionally available.
Standard interior metal is galvanized steel. Stainless steel
interior is optionally available. Adjustable dividers included are
epoxy coated steel wire.
Environmentally friendly foamed-in-place CFC and HCFC-free
polyurethane insulation enhances the structural strength of the
cabinet and helps increase energy efficiency.
REFRIGERATION
Forced air refrigeration systems provide ample capacity to chill
and hold products between 32°F and 38°F. Refrigerant R134a
used in systems is CFC and HCFC-free for compliance to environmental safety concerns. Condensate elimination is automatic and non-electric.
ELECTRICAL
Units wired at factory and ready for connection to a 115/60/1
phase, 15 amp dedicated outlet. 8’ long cord and plug set
included.
Item No.
Quantity
DEEP & SHALLOW WELL
HORIZONTAL COOLERS
DW/SF SERIES
DW49-B
DW64-B
DW79-B
MODELS:
DW49
DW64
DW79
DW94
SF34
*Note: Not all markings may apply to all model variations.
DW94-B
Available From:
Model Specified
Location
Deep & Shallow Well Horizontal Bottle Coolers
Models: DW49, DW64, DW79, DW94, SF34
Store#
Quantity
ELECTRICAL CONNECTION
Units pre-wired at factory and include 8’
long cord and plug set.
MODEL DW49 DW64 DW79 DW94
EXTERNAL DIMENSIONAL DATA
Length Overall (inches)
Length Overall (mm)
Depth Overall (inches)
Depth Overall (mm)
Height Overall— (inches)
Height Overall—(mm)
Number of lids 2 2 3 4
INTERNAL DIMENSIONAL DATA
NET Capacity (cubic ft.)
NET Capacity (Liters)
Internal Length Overall (inches)
Internal Length Overall (mm)
Internal Depth Overall (inches)
Internal Depth Overall (mm)
Internal Height Overall (inches)
Internal Height Overall (mm)
Number of dividers 3 4 5 6
12 oz. bottle capacity 17 1/2 cases 25 1/4 cases 32 cases 39 cases
12 oz. can capacity 23 3/4 cases 34 3/4 cases 45 3/4 cases 55 3/4 cases
ELECTRICAL DATA
Full Load Amperes 115/60/1 6.3 6.3 9.5 9.5
ENERGY CONSUMPTION (KWH) 3.0 3.52 3.77 4.32
REFRIGERATION DATA
Horsepower 1/3 1/3 1/2 1/2
WEIGHT DATA
Gross Weight (Crated lbs) 378 331 388 468
Gross Weight (Crated kg) 172 150 176 212
50”
1270
26 1/2”
673
33 7/8”
860
13.3
377
46”
1168
22 1/2”
572
27”
686
65”
1651
26 1/2”
673
33 7/8”
860
18.5
524
61”
1549
22 1/2”
572
27”
686
80”
2032
26 1/2”
673
33 7/8”
860
24.1
682
76”
1930
22 1/2”
572
27”
686
95”
2413
26 1/2”
673
33 7/8”
860
28.5
807
91”
2311
22 1/2”
572
27”
686
SF34
35”
889
26 1
/2”
673
33 7/8”
860
1
7.5
212
31”
787
22 1/2”
572
18 1/2”
470
2
9 1/3 cases
11 1/2 cases
4.5
4.4
1/5
214
97
PLAN VIEWS
DW49 FRONT
DW64 FRONT
*Note: Not all markings may apply to all model variations.
COMMON END
3779 Champion Blvd. • Winston-Salem, NC 27105 USA • (336) 245-6400 • Fax (336) 245-6453 • (888) 845-9800 • www.beverage-air.com
DW79 FRONT
SF34 FRONT
DW94 FRONT
BEVERAGE-AIR® CORPORATION
Specifications are subject to change without prior notice. 06/10
