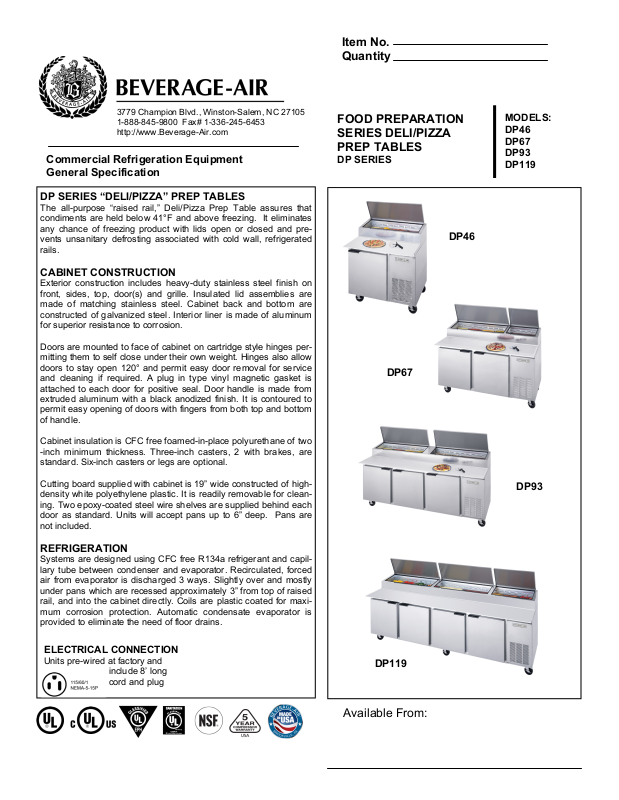

Beverage-Air DP67, DP46, DP93, DP119 Specifications
Item No.
Quantity
3779 Champion Blvd., Winston-Salem, NC 27105
1-888-845-9800 Fax# 1-336-245-6453
http://www.Beverage-Air.com
Commercial Refrigeration Equipment
General Specification
DP SERIES “DELI/PIZZA” PREP TABLES
The all-purpose “raised rail,” Deli/Pizza Prep Table assures that
condiments are held below 41°F and above freezing. It eliminates
any chance of freezing product with lids open or closed and prevents unsanitary defrosting associated with cold wall, refrigerated
rails.
CABINET CONSTRUCTION
Exterior construction includes heavy-duty stainless steel finish on
front, sides, top, door(s) and grille. Insulated lid assemblies are
made of matching stainless steel. Cabinet back and bottom are
constructed of galvanized steel. Interior liner is made of aluminum
for superior resistance to corrosion.
Doors are mounted to face of cabinet on cartridge style hinges permitting them to self close under their own weight. Hinges also allow
doors to stay open 120° and permit easy door removal for service
and cleaning if required. A plug in type vinyl magnetic gasket is
attached to each door for positive seal. Door handle is made from
extruded aluminum with a black anodized finish. It is contoured to
permit easy opening of doors with fingers from both top and bottom
of handle.
Cabinet insulation is CFC free foamed-in-place polyurethane of two
-inch minimum thickness. Three-inch casters, 2 with brakes, are
standard. Six-inch casters or legs are optional.
Cutting board supplied with cabinet is 19” wide constructed of highdensity white polyethylene plastic. It is readily removable for cleaning. Two epoxy-coated steel wire shelves are supplied behind each
door as standard. Units will accept pans up to 6” deep. Pans are
not included.
REFRIGERATION
Systems are designed using CFC free R134a refrigerant and capillary tube between condenser and evaporator. Recirculated, forced
air from evaporator is discharged 3 ways. Slightly over and mostly
under pans which are recessed approximately 3” from top of raised
rail, and into the cabinet directly. Coils are plastic coated for maximum corrosion protection. Automatic condensate evaporator is
provided to eliminate the need of floor drains.
ELECTRICAL CONNECTION
Units pre-wired at factory and
include 8’ long
cord and plug
FOOD PREPARATION
SERIES DELI/PIZZA
PREP TABLES
DP SERIES
DP46
DP67
DP119
MODELS:
DP46
DP67
DP93
DP119
DP93
Available From:
Model Specified
Location
Food Preparation Deli/Pizza Units
Models: DP46, DP67, DP93, DP119
MODEL DP46
EXTERNAL DIMENSIONAL DATA
Length Overall (inches)
Length Overall (mm)
Depth Overall (inches)
Depth Overall (mm)
Height Overall— (inches)
Height Overall— (mm)
Number of doors 1
Depth with Door Open 90 o 57”
Clear Door Opening (inches) 21 1/2” x 23 1/2”
INTERNAL DIMENSIONAL DATA
NET Capacity (cubic ft.)
NET Capacity (Liters)
Internal Length Overall (inches)
Internal Length Overall (mm)
Internal Depth Overall (inches)
Internal Depth Overall (mm)
Internal Height Overall—(inches)
Internal Height Overall—(mm)
Number of shelves 2
ELECTRICAL DATA
Full Load Amperes 115/60/1 6.3
ENERGY CONSUMPTION (KWH) .27
REFRIGERATION DATA
Horsepower 1/4
WEIGHT DATA
Gross Weight (Crated lbs) 338
Gross Weight (Crated kg) 153
46”
1168
38 3/8”
975
43 3/8”
1102
16.7
473
26”
660
28”
711
24”
610
DP67
67”
1702
38 3/8”
975
43 3/8”
1102
2
57”
21 1/2” x 23 1/2”
27
765
48”
1219
28”
711
24”
610
4
6.3
.23
1/4
464
211
DP93
93”
2362
38 3/8”
975
43 3/8”
1102
3
57”
21 1/2” x 23 1/2”
39.8
1127
75 1/4”
1911
28”
711
24”
610
6
8.6
.36
1/3
580
263
Store#
Quantity
PLAN VIEWS
DP46
DP119
119”
3023
38 3/8”
975
43 3/8”
1102
4
57”
21 1/2” x 23
52.5
1487
100”
2540
28”
711
24”
610
8
8.6
.46
1/3
703
319
DP93
DP67
DP119
DP46 TOP
DP93 TOP
DP119 TOP
DP67 TOP
BEVERAGE-AIR® CORPORATION
3779 Champion Blvd. • Winston-Salem, NC 27105 USA • (336) 245-6400 • Fax (336) 245-6453 • (888) 845-9800 • www.beverage-air.com
Specifications are subject to change without prior notice. 10/11
