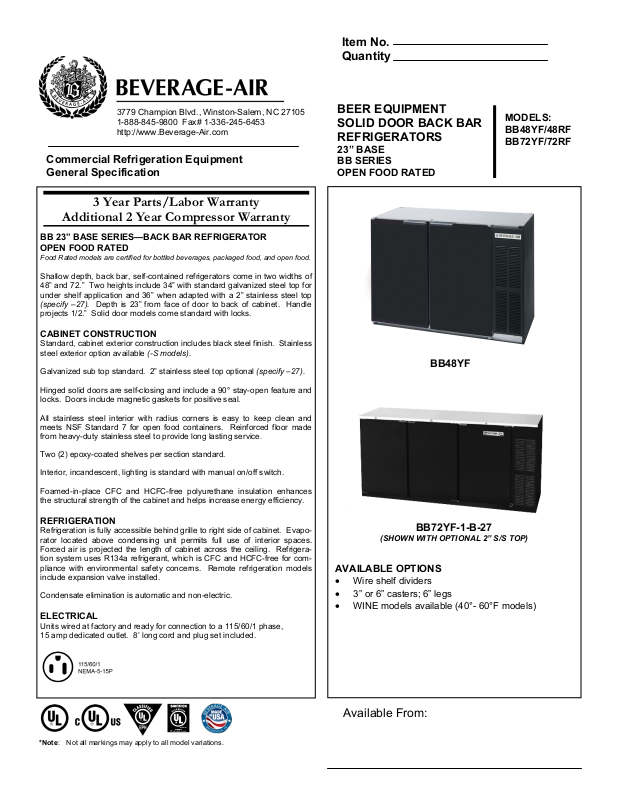

Beverage Air BB48RF User Manual
Item No.
Quantity
3779 Champion Blvd., Winston-Salem, NC 27105
1-888-845-9800 Fax# 1-336-245-6453
http://www.Beverage-Air.com
Commercial Refrigeration Equipment
General Specification
3 Year Parts/Labor Warranty
Additional 2 Year Compressor Warranty
BB 23” BASE SERIES—BACK BAR REFRIGERATOR
OPEN FOOD RATED
Food Rated models are certified for bottled beverages, packaged food, and open food.
Shallow depth, back bar, self-contained refrigerators come in two widths of
48” and 72.” Two heights include 34” with standard galvanized steel top for
under shelf application and 36” when adapted with a 2” stainless steel top
(specify –27). Depth is 23” from face of door to back of cabinet. Handle
projects 1/2.” Solid door models come standard with locks.
CABINET CONSTRUCTION
Standard, cabinet exterior construction includes black steel finish. Stainless
steel exterior option available (-S models).
Galvanized sub top standard. 2” stainless steel top optional (specify –27).
Hinged solid doors are self-closing and include a 90° stay-open feature and
locks. Doors include magnetic gaskets for positive seal.
All stainless steel interior with radius corners is easy to keep clean and
meets NSF Standard 7 for open food containers. Reinforced floor made
from heavy-duty stainless steel to provide long lasting service
Two (2) epoxy-coated shelves per section standard.
Interior, incandescent, lighting is standard with manual on/off switch.
Foamed-in-place CFC and HCFC-free polyurethane insulation enhances
the structural strength of the cabinet and helps increase energy efficiency.
REFRIGERATION
Refrigeration is fully accessible behind grille to right side of cabinet. Evaporator located above condensing unit permits full use of interior spaces.
Forced air is projected the length of cabinet across the ceiling. Refrigeration system uses R134a refrigerant, which is CFC and HCFC-free for compliance with environmental safety concerns. Remote refrigeration models
include expansion valve installed.
Condensate elimination is automatic and non-electric.
ELECTRICAL
Units wired at factory and ready for connection to a 115/60/1 phase,
15 amp dedicated outlet. 8’ long cord and plug set included.
.
BEER EQUIPMENT
SOLID DOOR BACK BAR
REFRIGERATORS
23” BASE
BB SERIES
OPEN FOOD RATED
BB48YF
(SHOWN WITH OPTIONAL 2” S/S TOP)
AVAILABLE OPTIONS
Wire shelf dividers
3” or 6” casters; 6” legs
WINE models available (40°- 60°F models)
BB72YF-1-B-27
MODELS:
BB48YF/48RF
BB72YF/72RF
*Note: Not all markings may apply to all model variations.
Available From:
Model Specified
Location
Store#
Quantity
Back Bar Refrigerators, 23” Base Open Food Rated
Models: BB48YF, BB48RF, BB72YF, BB72RF
MODEL BB48YF BB48RF BB72YF BB72RF
EXTERNAL DIMENSIONAL DATA
Length Overall (inches)
Length Overall (mm)
Depth Overall (inches)
Depth Overall (mm)
Height Overall— (inches)
Height Overall—(mm)
Clear Door Width (inches) 16 7/16” x 29 1/4” 16 7/16” x 29 1/4” 17 7/8” x 29 1/4” 17 7/8” x 29 1/4”
Depth With Door Open 90
Number of doors 2 2 3 3
INTERNAL DIMENSIONAL DATA
NET Capacity (cubic ft.)
NET Capacity (Liters)
Internal Length Overall (inches)
Internal Length Overall (mm)
Internal Depth Overall (inches)
Internal Depth Overall (mm)
Internal Height Overall (inches)
Internal Height Overall (mm)
Number of Shelves 4 4 6 6
Number of Kegs (straight wall) 2 2 3 3
ELECTRICAL DATA
Full Load Amperes 115/60/1 5.0 remote 5.0 remote
REFRIGERATION DATA
Horsepower 1/4 remote 1/4 remote
WEIGHT DATA
Gross Weight (Crated lbs) 269 223 366 330
Gross Weight (Crated kg) 122 101 166 150
o
41 3/8” 41 3/8” 42 3/4” 42 3/4”
48”
1219
23 1/2”
597
34”
864
12.1
343
36”
914
18 1/2”
470
29 1/2”
749
48”
1219
23 1/2”
597
34”
864
12.1
343
36”
914
18 1/2”
470
29 1/2”
749
72”
1829
23 1/2”
597
34”
864
19.4
549
60”
1524
18 1/2”
470
29 1/2”
749
72”
1829
23 1/2”
597
34”
864
19.4
549
60”
1524
18 1/2”
470
29 1/2”
749
PLAN VIEWS
*Note: Not all markings may apply to all model variations.
*N/A: Not available at time of printing.
ELECTRICAL CONNECTION
Units pre-wired at factory and include 8’
long cord and plug set.
3779 Champion Blvd. • Winston-Salem, NC 27105 USA • (336) 245-6400 • Fax (336) 245-6453 • (888) 845-9800 • www.beverage-air.com
BB48YF
BB94
BB72YF
BEVERAGE-AIR® CORPORATION
Specifications are subject to change without prior notice. 07/13
