Bettis QC54 Foundation Fieldbus Installation Guide

Installation guide

DOC.IG.QC54.1 Rev. 3

FieldQ Control Module

QC54 FOUNDATION Fieldbus™

FieldQ

October 2018

FieldQ

FieldQ

October 2018

Installation guide

DOC.IG.QC54.1 Rev. 3

1 Applicable modules

QC54 - FOUNDATION Fieldbus™

- Weather Proof

- Non-incendive/Non-Sparking/FISCO ic

- Intrinsically safe/FISCO

Note:

These variations can be equipped with one or two
pilot valves:

* One pilot valve is default and suitable for normal

operation of double acting or
spring return actuators.

* Two pilot valves are required for Fail in Last

Position function on double acting actuators.
The enclosures have a IP66 or NEMA 4X, ingress
protected rating.

1

2

2 Before starting

* Actuator must be isolated both pneumatically
and electrically before any (dis)assembly

is begun.
* Hazards related to the control of external
processes under measurement, are beyond
the scope of of the content described in

this document.
* Installation, adjustment, putting into service,
use, assembly, disassembly and maintenance
of the control module must be done by

qualified personnel.
* Do not install, operate, or maintain a Q series
control module without being fully trained and
qualified in valve, actuator, and accessory
installation, operation, and maintenance.
* To avoid personal injury or property damage,
it is important to carefully read, understand,
and follow all of the contents of this manual,
including all safety cautions and warnings.
* Be sure that the actuator is correctly mounted
before connecting air supply and electrical
wiring (see Installation & Operation Manual
FieldQ Valve Actuator, DOC.IOM.Q.E)
* Check the module label for the right execution
(see figure 2.2)
* Check the type of actuator: single or double
acting (see figure 2.2).
* For mechanical installation of the module see
installation instruction leaflet DOC.QC4.MTI.1,
as shipped with the module.
* If you have any questions regarding these
instructions, contact your Emerson sales office
before proceeding as shipped with the module.

Control Module Type Label =

QC54..WP.. = FOUNDATION Fieldbus™

Weather Proof

QC54..x4..= FOUNDATION Fieldbus™ Non-
incendive/Non Sparking/FISCO ic

OK

QC54..x1..= FOUNDATION Fieldbus™
intrinsically safe/FISCO

OK

Actuator Type Label =

QS xxxx = Single acting (Spring Return)

QD xxxx = Double acting

Note: x is variable based on the certification type.

Fig. 2.1 Check proper mounting before connecting air

supply and electrical wiring.

2

Fig. 2.2 Identification

Installation guide

DOC.IG.QC54.1 Rev. 3

FieldQ

October 2018

2.1 Mechanical alignment and mounting of
the control module

The control module is equipped with an alignment­edge on top of the module. This allows easy
alignment and mounting of the control module on
to the actuator housing.

Procedure: (see figure 2.3)

1. First take care that both mating faces from the

actuator and control module are clean and free
of dirt.

2. Check if the module has the required function

3. Remove the transparent film from the

control module.

4. Ensure seals are placed correctly.

5. Level the screws with the surface.

6. Place the alignment-edge (1) of the control

module at the top of the pneumatic interface.

7. Flip the module down taking care that the IPT

Probe (2) on the actuator fits in the mating hole
on the control module and loosely place
the screws.

8. Tighten screws according force in sequence.

Alignment-edge

(1)

Alignment-edge

IPT probe

(2)

Fig. 2.3 Alignment and mounting of control

module to actuator

Tightening moments

The Control Module should be fastened by using an
Allen key and applying the following
tightening moments:

- Allen Key No 5: 6.1 to 6.6 Nm
(54 - 58.4 In.lbs)

Terminal
compartment

Lockable
Module cover

Fig. 2.4 Control module overview

Control Module
Type Label

Option: Local Manual Control
Option: Additional Local Manual

Control for “Fail in Last Position”

Option: 1 or 2 speed
control throttles

3

FieldQ

October 2018

3 Pneumatic connections

Installation guide

DOC.IG.QC54.1 Rev. 3

IMPORTANT

1 The actuator/valve combination can move

after connecting the air supply.

2 Ensure that the QC54 control modules are

mounted properly to the actuator to achieve
good functioning and the required ingress
protection, before connecting the air supply.

3 Check that the maximum supply pressure

P

= 8bar/116Psi

max

4 Be sure that the minimum required supply

pressure for the application is available at
the actuator.

5 Take appropriate measures to prevent

condensation or moisture to entering the
actuator or the control module. Condensation
or moisture can damage these components
and can result in failures.

6 The exhaust ports Ra and Rb on the module

(see figure 3.1) are shipped from the factory
with transport protection.

* If ingress protection IP66 or NEMA 4X is

required, appropriate connections must be
used in exhaust ports Ra & Rb.

3.1 Operating media :

* Air or inert gasses.
* Air filtered at 5 micron.
* Dew point 10 K below operating temperature.
* For subzero applications take

appropriate measures.

3.2 Single acting (spring return) or
Double acting actuator :

1 Remove the transport sticker from the

air supply (Ps).

2 Connect air supply to port (Ps).

Single acting

Control

Module cover

Double acting

Fig. 3.1 Pneumatic connections

Fig. 3.2 Install drip loops

OK

Ra

Ps

1/4” BSP or
1/4” NPT

Ra

Rb

Ps

1/4” BSP or
1/4” NPT

5µm

4

Installation guide

DOC.IG.QC54.1 Rev. 3

4 Electric Connections

FieldQ

October 2018

Table 4.1 Electrical data QC54 - FF

Voltage range * 9~32V
Maximum current 18 mA
Reverse polarity

protection
Required external
protection

Environmental conditions :

Temperature *

Humidity

Altitude

Use In- and outdoor.

* In case the Control module is used in Hazardous

locations, check the chapters 10, 11 or 12 for
detailed instructions.

* The current restricted power supply meets NEC

Class 2, as described by the National Electrical
Code® (ANSI/NFPA 70 (NEC®))

Unit is not polarity sensitive.

Restrict the power supply
current to <600mA.

-20°C to +50°C
(-4°F to +122°F)
0 to 85% at 25°C(+77°F)
derate to 50% above 40°C
(104°F) (non-condensing).
Operating full power available
up to 2000 meter (6000 feet).

WARNING

!

* Do not put the Control module and the

Pneumatic module in direct contact with
magnetic material. This can cause damage or
malfunction of the position feedback.

* If the Control Module is used in a manner not

specified by the manufacturer, the protection
provided by the equipment may be impaired.

* If required, mount earth wire (1) between top

(2) and bottom (3) ring of earth wire
connection (see figure 4.1).

Fig. 4.1 Earth wire connections

5

FieldQ

October 2018

Installation guide

DOC.IG.QC54.1 Rev. 3

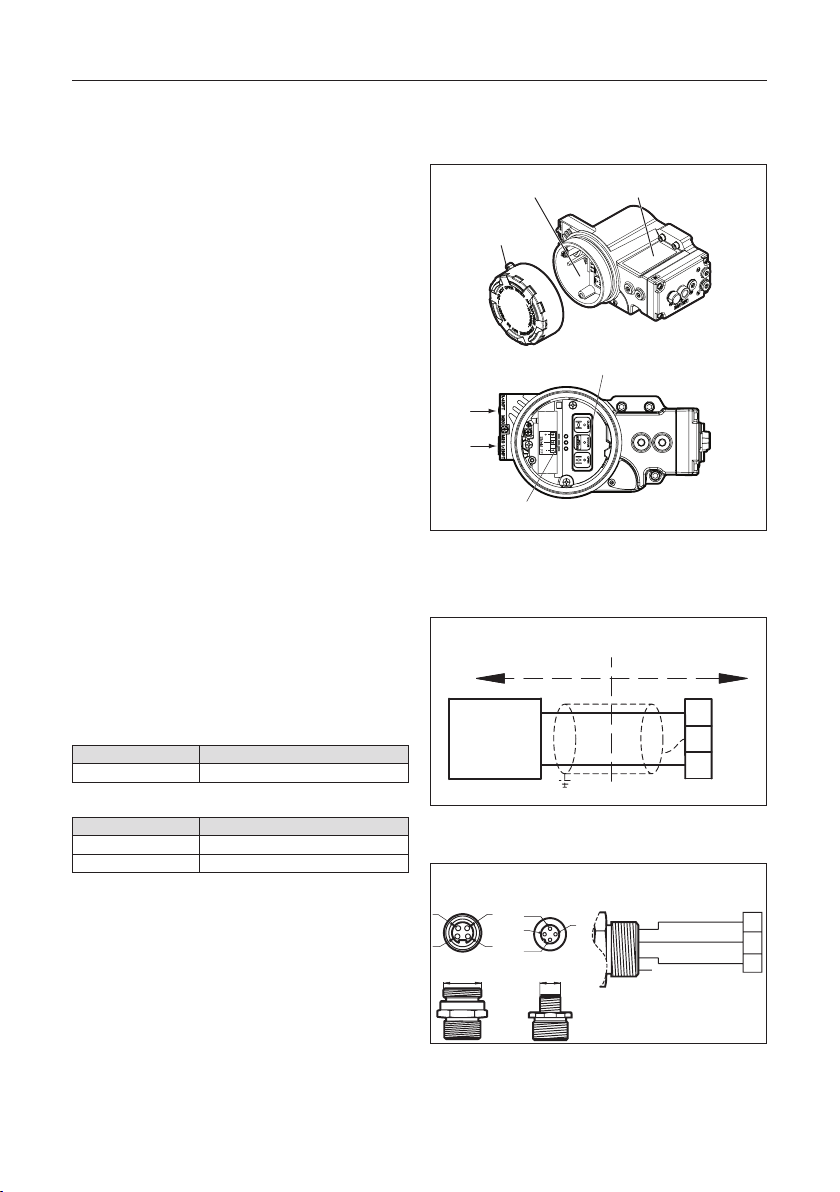

4.1 Procedure

1. Remove control module cover (see figure 4.2)

2. Guide the cable(s) through the electrical

entry(ies).

- Use and mount cable glands as required by

national or local legislation.

- When IP65/NEMA4X ingress protection is

required, the electrical entries must be fitted
with glands rated IP65/NEMA4X or higher.

- Apply minimum thread counts:

For NPT, at least 5 full threads
For Metric, at least 8 full threads for
Group A/B and 5 full threads of Group C/D

3. Connect the FOUNDATION Fieldbus™ signal

to the applicable terminals (see figure 4.3).

- For 7/8” or M12 quick connector pinout,

see figure 4.3 and 4.4.

- For hazardous area connections, see the

wiring instructions in 11.5 and 11.6.

4. Mount the function module cover to the housing

(see figure 4.2) or continue with chapter 5.
Take care that the cover seal is in place to comply

to dust and water tightness according to

IP66/NEMA4X.

4.2 FOUNDATION Fieldbus installation and
wiring guidelines

Please check www.fieldbus.org for various
application guides like installation and wiring
guidelines.

Table 4.2 Wiring dimensions

Wire type Dimensions

Cable range 0.33 to 2.5mm2 or 22 to 12 AWG

Table 4.3 Tools

Too l Dimensions

Cover lock screw Allen key 2mm
Tool for terminals Screw driver 0.6 x 3.5

Terminal
compartment

Lockable
Module cover

Electrical entries:

3/4”NPT

or M20

1/2”NPT

or M20

Wiring Terminals

Control Module
Type Label

Fig. 4.2 Installing wiring

Field wiring Actuator wiring

FF

Power
supply

Fig. 4.3 Terminal connections

Quick connector pinouts:

(male chassis part)

1

3

4

3

2

1

4

2

M127/8" UNC

Button board

Blue

2
4

Brown

1

Green/Yellow

+

1
2

-

3

1

2

3

Quick
connector

Terminal

Fig. 4.4 Quick connector pinouts

6

Installation guide

DOC.IG.QC54.1 Rev. 3

5 Initial setup

FieldQ

October 2018

5.1 Initialization procedure

Initialization sets automatically the switch points for
the position feedback of the actuator (see §5.2)

Additionally, initialization checks if the actuator
and control module configuration match. This
procedure will detect the action type (Fail-Open,
Fail-Close or Fail in last position) and generate an
alert if there is a configuration issue.

This process is done automatically, by the module,
however, the user must start it and the unit must be
wired according chapter 4.
Digital communication is not required but power
supply is necessary (9V to 32V DC).
The initialization process can be started in one of
two ways:

1. Initialization using the local buttons (see §5.2).

2. Initialization using a bus command (see

Reference manual QC54, DOC.RM.QC54.E)

5.2 Initialization using local buttons

Before starting the initialization procedure, make
sure the device is in “Out of Service” (OOS). By
default, the device is shipped with the OOS setting.

To set the device to OOS either use the FF system or
a 475 communication tool.

1 Press the Status/Auto-Initialization button for 3

seconds or hold until the LED starts flashing.

2 Press the Status/Auto-Initialization button for 1

second and the LED starts blinking
3 Actuator will cycle 2 or 3 times.
4 At the end of the routine the Status LED switches

to constant on, meaning the initialization

was successful.

Remark:

- If the button board does not work, see §5.3.1.

- If the Status LED is flashing, the auto

initialization routine has failed, see §5.3.2.

- If the read out in the PLC or DCS is reversed or

readjustment of the exact positions is needed,
or

- If it is not possible to finish the auto-initialization

routine, the limit switch points can be set, by the

bus. In both cases, see Reference manual QC54,

DOC.RM.QC54.E. chapter 3.4

WARNING

!

* During the initialization routine the actuator /

valve combination will cycle several times.

* Before initialization check whether the actuator and

valve have the same “Open” and “Closed” positions.

* Ensure that the valve stroke is not obstructed

before the initialization routine is started.

Table 5.1 Status LED indications

Status Status LED action

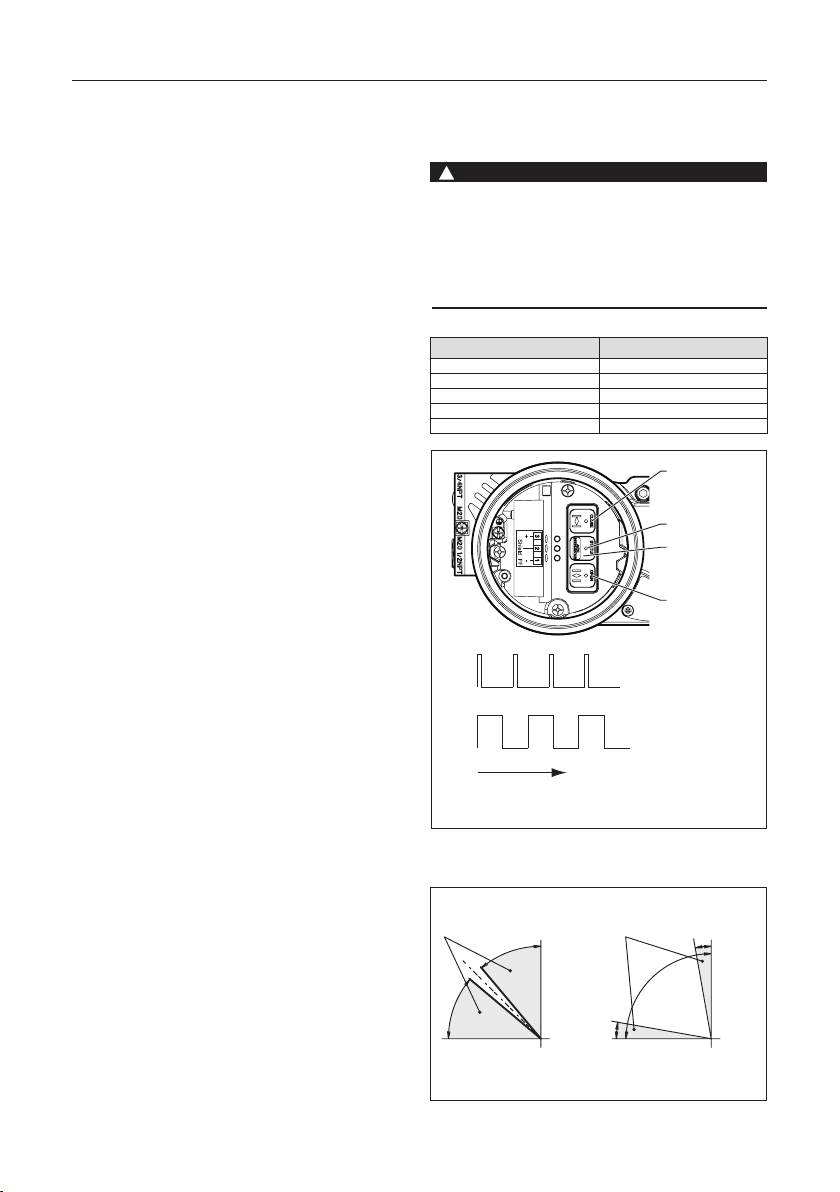

OK (init successful) Constant on
Initializing Blinking (see fig. 5.1)
Init error Flashing (see fig. 5.1)
Init default Flashing (see fig. 5.1)
Identification Flashing for 300 sec.

Closed
reassignment
button

Status LED

Press and
confirm press

Open
reassignment
button

on

off

on

off

Time

* The default setting of the reassignment buttons is:

enabled when the unit is in “Out of Service”.

LED = Flashing

LED = Blinking

Fig. 5.1 Reassignment buttons

(located behind front cover of module).

End stop
offsets

±40°

Factory settings

±40°

End stop
offsets

10°max

“Open”
end position

Setting after initialization

10°max

“Close”
end
position

Fig. 5.2 Feedback characteristic

7

FieldQ

October 2018

Installation guide

DOC.IG.QC54.1 Rev. 3

6 Check functioning

5.3 Troubleshooting

5.3.1 “Factory default settings”, using the

button board.

To set the control module to its factory default
settings, do the following;

1. Power must be connected according chapter 4

and the Status LED is either on or flashing.

2. Disconnect the power.

3. Press both reassignment

(OPEN and CLOSE) buttons.

4. Reconnect power.

5. Status LED goes on.

6. Release the reassignment

(OPEN and CLOSE) buttons.

7. Observe that the Status LED indicates that the

unit is in its “Init Default” state

(Flashing, see §5.2)

5.3.2 If auto initialization procedure has failed

(Status LED is flashing)

1. Check supply pressure

2. Check Actuator assembly code (see Installation

& Operation Manual FieldQ Valve Actuator,

DOC.IOM.Q.E)

3. Repeat the initialization procedure.

4. When the actuator does not move within 10

seconds, the auto initialization will fail.

5. To solve this either;

- Perform the “default setting” procedure

(see §5.3.1) and repeat the initialization
procedure (see §5.2), or

- Set the limit switch points individually by the

bus see Reference manual QC54,
DOC.RM.QC54.E chapter 3.4.

To perform a function test, please see chapter 3 of

Reference manual QC54, DOC.RM.QC54.E.

- After checking the functioning mount the control
module cover to the housing (see figure 3.1).

7 Maintenance

The FieldQ control modules are designed to operate
without maintenance.

For any further maintenance to the actuator see
Installation & Operation Manual FieldQ Valve
Actuator, DOC.IOM.Q.E or contact your local
FieldQ representative.

For any further maintenance to the control module
see Maintenance Manual, DOC.MM.QC54.E or
contact your local FieldQ representative.

Installation, adjustment, putting into service, use,
assembly, disassembly, maintenance and repair of the
control module must be done by qualified personnel.

WARNING

!

• Substitution of components may impair

suitability of the equipment

Closed

Reassignment

button

Status / Auto

Initialization

button

Open
Reassignment
button

Fig. 5.3 Button board functionality

Table 2 Button board functionality (see fig. 5.3)

Action Reassignment buttons

Initialize Press and confirm press the “Status/Auto-Initialization” button.

Set to factory default

Switch point re-adjustment

Push both reassignment buttons and hold while powering up. Release
buttons when Status LED is solid.
A new switch point can be set by pressing and confirm press the
corresponding “Open” or “Closed” button (actuator wil not cycle).

8

Installation guide

DOC.IG.QC54.1 Rev. 3

8 Optional Controls

FieldQ

October 2018

8.1 Manual Control options

(see figure 8.1)

For commissioning, emergency or maintenance
purposes, the FieldQ can be supplied with one or two
Manual Control options. These can operate the spool
valve(s) inside the module and as such operate the
actuator, when there is air pressure available, but no
control signal or power supply.

8.1.1 Mounting Manual Control

1. To add a Manual Control, remove the plug(s) in
front of the module and turn in the
Manual Control.

- For normal operation the module should be

fitted with one Manual Control.

- For Double Acting with a Fail-in-Last-Position

function, two Manual Control can be fitted.

Location for 2nd
Manual Control

45°

On

Off

Fig. 8.1 Local Manual Control options

Default location
of Manual Control

8.1.2 Manual Control operation

1. The Manual Control has a “Push & Lock” function:

- To operate the Manual Control, use a screw
driver, push to activate and release to
de-activate the pilot valves.

- If required turn it 45°, to lock it in position
and keep the actuator in its operated state.

2. In case of a Fail in Last Position configuration
with two manual controls:

- The manual control on the right side (default

location) will pressurize the central air
chamber and cause the actuator to rotate
counter clock wise. For reverse acting
FieldQ actuators (Assembly code CC) the
actuator will rotate clockwise.

- The manual control on the left side (Location for
2nd Manual Control) will pressurize the end cap
air chambers and cause the actuator to rotate
clock wise. For reverse acting FieldQ actuators
(Assembly code CC) the actuator will rotate
counter clock wise.

- In order to operate one of the manual control, be
sure the opposite manual control is de-activated
and unlocked.

9

FieldQ

October 2018

Installation guide

DOC.IG.QC54.1 Rev. 3

9 Related Information

8.2 Speed control option

(see figure 8.2).

The FieldQ can be supplied with a Speed Control
option. One throttle is required for Spring Return
actuators and up to two for
Double Acting actuators.

The speed control throttle controls the air flow
in and out of an air chamber and as such limits
the speed of the “Opening” and “Closing” stroke
simultaneously

8.2.1 Mounting Speed Control throttle(s):

1. Remove the plug(s) at the side of the module
and turn in the throttle (2).

2. Spring Return actuators: Use the top entry only.

3. Double acting actuators: Use both bottom and
top entries.

- For standard actuators, the top entry will

throttle the closing stroke.

- For standard actuators, the bottom entry will

throttle the opening stroke.

- For reverse acting actuators, the opposite

strokes will be throttled.

8.2.2 Adjusting Speed Control throttle(s):

1. Remove the nut cap (1).

2. Clock wise rotation of the adjustment screw
reduces the speed.

3. Counter clockwise rotation of the adjustment
screw increases the speed.

4. Replace the nut cap.

Spring Return:
Top entry only.

Double Acting:
Bottom and/or top
entries.

9.1 FOUNDATION Fieldbus installation and
wiring guidelines

Please check www.fieldbus.org for various
application guides like installation and wiring
guidelines.

9.2 Other Related Information

Other documents containing information related to
the FieldQ module include:

1.604.12 FOUNDATION Fieldbus Control

DOC.RM.QC54.E Refere nce Manual for

DOC.IOM.Q.E Installation Operation &

These documents are available, in multiple
languages, for download from

www.emerson.com/fieldq

Module data sheet

FieldQ with FOUNDATION Fieldbus
Function module.

Maintenance Manual.

9.3 Device driver

The following DD drivers can be downloaded from
www.emerson.com/fieldq:

For general use Q-Series DD Rev. 4
For use in combination
with DeltaV

Q-Series DD Rev. 4 DeltaV

9.4 Applied IECEx standards

The following standards are applied:

- For FieldQ Control Module QC54...P4... ,

IEC 60079-0 Ed. 6.0 : 2011
IEC 60079-15 Ed. 4.0 : 2010
IEC 60079-31 Ed. 2.0 : 2013

- For FieldQ Control Module QC54...P1... ,

IEC 60079-0 Ed. 6.0 : 2011
IEC 60079-11 Ed. 6.0 : 2011
IEC 60079-26 Ed. 3.0 : 2014

2

Fig. 8.2 Speed control operation

10

1

9.5 RoHS Directive

This product is only intended for use in large
scale fixed installation excluded from the scope
of Directive 2011/65/EU on the restriction of
the use of certain hazardous substances in
electrical and electronic equipment (RoHS 2).

Installation guide

DOC.IG.QC54.1 Rev. 3

EU Declaration of Conformity

FieldQ

October 2018

Legal representative entity for the

European Union:

Emerson Process Management, Valve Automation

Asveldweg 11, 7556 BR Hengelo Netherlands

ROC nr 8440
Rev. 2

FieldQ

EU DECLARATION OF CONFORMITY

Issued in accordance with the

EMC Directive 2014/30/EU, Appendix 1

ATEX Directive 2014/34/EU

We hereby declare, that the products specied below meet the basic health and safety requirements of the

above mentioned European Directives.

Product description: QC54 Foundation Fieldbus Control module

Serial number: Each Control module has an identiable serial number
Year of Construction: Each Control module has an identiable Year of Construction
Manufacturer: Emerson Machinery Equipment (Shenzhen) Co. Ltd.

Bao Heng Technology Industry Park Phase 2, North
Hong Lang 2nd Road District 68, Bao’an District,

518101 Shenzhen, China

EMC Directive 2014/30/EU

Typ es: QC54...

Applicable standards: IEC61326-1 : 2012 NAMUR Recommendations : NE21: 2004

ATEX Directive 2014/34/EU

Typ es: QC54...P4...

ATEX Certicate No.: Dekra 16ATEX0006 X

Marking:

Applicable standards: EN 60079-0 : 2012 + A11 EN 60079-15 : 2010 EN 60079-31 : 2014

Typ es: QC54...P1...

ATEX Certicate No.: DEKRA 16ATEX0006 X

Marking:

Ta = -20°C ... +50°C
Applicable standards: EN 60079-0 : 2012 + A11 EN 60079-11 : 2012

Notied body: DEKRA Certication B.V., Notied body no : 0344

Meander 1051, 6825 MJ Arnhem, The Netherlands

II 3 G Ex nA IIC T4 Gc Ta = -20°C ... +50°C
II 2 D Ex tb IIIC T80°C Db

II 1 G Ex ia IIC T4 Ga
II 1 D Ex ia IIIC T80°C Da

EN

Signed:

____________________________
Name:

S. Ooi
Position:

Vice President, Global Marketing
& Pneumatic/Hydraulic SBU
Emerson, Actuation Technologies

Date:

2016-11-25
Place:

Houston TX, U.S.A.

11

FieldQ

October 2018

Installation guide

DOC.IG.QC54.1 Rev. 3

10 Installation instructions for Non Incendive or Non sparking

10.1 Product marking

Terminal
compartment

Lockable
Module cover

Do not open
when an explosive
atmosphere may be present

Fig. 10.1 Product marking

IECEx Hazardous or Classified Location

Certificate : IECEx DEK 16.0032X
Non sparking
Ex nA IIC T4 Gc
Ex tb IIIC T80°C Db

ATEX Hazardous or Classified Location

Certificate : DEKRA 16ATEX0064 X
Non sparking
II 3 G Ex nA IIC T4 Gc
II 2D Ex tb IIIC T80°C Db

FM Hazardous or Classified Location

Non Incendive, Class I, II, III, Division 2,

Groups ABCDEFG, T4,

Class 1, Zone 2 Group IIC T4

CSA Hazardous or Classified Location

Certificate : CSA 17CA70167494X

Class I, Division 2, Groups A, B, C and D, T4;
Class II, Division 1, Group E, F and G, T80°C;
Class III, Division 1, T80°C
Ex nA IIC T4 Gc
Ex tb IIIC T80°C Db

Ambient temperature:

T4 @ Ta = -20°C...+50°C IP66/Nema 4X

Control Module
Type Label

12

10.2 ATEX/IECEx Intended use

• The Control Module QC54..P4.. of the
FieldQ pneumatic actuator is a Group II category
3 equipment with protection level Gc (IECEx).

• The FieldQ pneumatic actuators is a Group II
category 2 equipment.

• Both are intended for use in areas in which
explosive atmospheres caused by mixtures of
air and gases, vapours, mists or by air/dusts are
likely to occur.

• Therefore the assembly may be used in
hazardous area classified Zones 2 (Gasses) and/
or 21, 22 (Dust).

10.3 Safety instructions

WARNING

!

• Personal injury or property damage caused

by fire or explosion may occur if the module
is opened in any area which contains a
potentially explosive atmosphere or has been
classified as hazardous.

• Do not open when module is energized.

• Prevent any kind ignition during installation,

adjustment, putting into service and use.

• Assembly, disassembly and maintenance

must be done in safe area’s without a
poten tial explosion hazard.

• Installation, adjustment, putting into service,

use, assembly, disassembly and maintenance
or repair, shall be carried out in accordance
with the applicable code of practice by
suitably-trained personnel.

• Provisions must be made to prevent the rated

supply voltage being exceeded by more
than 40%.

• Potential electrostatic charging hazard, clean

only with a damp cloth - danger of
propagating discharge.

• The apparatus shall be installed in such a way

that the risk from electrostatic discharges
and propagating brush discharges caused by
rapid flow of dust is avoided.

• Precaution shall be taken to avoid danger of

ignition due to electrostatic charges on the
marking plate of the enclosure.

• Substitution of electronics cartridge, switch

cartridge, pilot valve cartridge, pneumatic
cartridge, enclosure and seals must be with
parts from Emerson else the suitability for
Division 2 will be impaired.

Installation guide

DOC.IG.QC54.1 Rev. 3

FieldQ

October 2018

10.4 CSA safety instructions

• The equipment may be used in zones 2 with ammable gases and vapours with apparatus

groups IIA, IIB & IIC and with temperature classes T1, T2, T3, T4.

• The equipment may be used in zones 21 & 22 with ammable dusts, bres and yings in groups

IIIA, IIB and IIC, with a layer auto-ignition temperature of not less than 75 K above the

maximum surface temperature marked in the dust coding.

• There are no special checking or maintenance conditions other than a periodic check.

• With regard to explosion safety, it is not necessary to check for correct operation.

• If the equipment is likely to come into contact with aggressive substances, e.g. acidic liquids

or gases that may attack metals or solvents that may affect polymeric materials, then it is the

responsibility of the user to take suitable precautions that prevent it from being adversely

affected thus ensuring that the type of protection is not compromised.

10.5 Wiring instructions QC54 Non Incendive / Non Sparking Control Modules

Unclassified or Non

Hazardous Location

FF

Power

supply

Hazardous or
Classified Location

Warning

* Explosion hazard. Do not disconnect

equipment when a flammable or
combustible atmosphere is present.

* Use installation wiring connections

with admitted maximum operating
temperature of at least 20 ºC (68°F)
higher than maximum ambient.

Electrical Input:

Voltage range 9~32V
Current 18 mA maximum

Cable range:

Solid wire 2.5mm2 max
Stranded wire 0.33 - 2.5mm2 or 22 - 12 AWG

Protection:

Reverse polarity Unit is not polarity sensitive.
Required external
Protection

* The current restricted power supply meets NEC

Class 2, as described by the National Electrical
Code® (ANSI/NFPA 70 (NEC®))

Restrict the power supply
current to <600mA.

13

FieldQ

October 2018

11 Intrinsically safe installation instructions

Installation guide

DOC.IG.QC54.1 Rev. 3

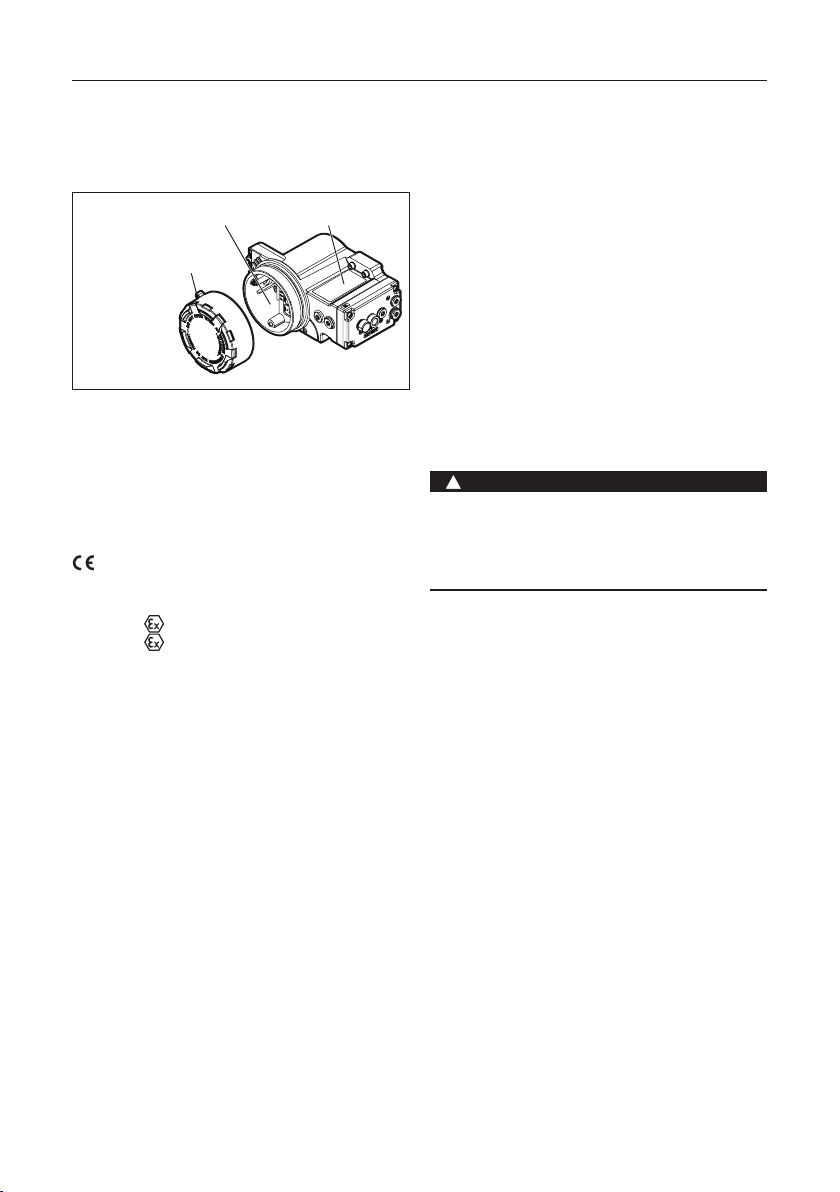

11.1 Product marking

Terminal
compartment

Lockable
Module cover

Fig 11.1 Product marking

IECEx Hazardous or Classified Location

Certificate : IECEx DEK 16.0032X

- Intrinsically safe
Ex ia IIC T4 Ga
Ex ia IIIC T80°C Da

ATEX Hazardous or Classified Location

Certificate : DEKRA 16ATEX0064 X

- Intrinsically safe
II 1 G Ex ia IIC T4 Ga
II 1 D Ex ia IIIC T80°C Da

FM Hazardous or Classified Location

- Intrinsically safe, Class I, II, III Div.1,
Groups ABCDEFG, T4

- Class 1, Zone 0, AEx ia IIC T4 Ga

Zone 20 AEx ia IIIC T80C Da

CSA Hazardous of Classified location

Certificate : CSA 17CA70167494X

- Intrinsically safe

Class I, Division 1, Groups A, B, C and D T4;
Class I, Division 2, Groups A, B, C and D, T4;
Class II, Division 1, Group E, F and G, T80°C;
Class III, Division 1, T80°C
Ex ia IIC T4 Ga
Ex ia IIIC T80°C Da
Ex ic IIC T4 Gc

Ambient temperature:

Control Module
Type Label

T4 @ Ta = -20°C...+50°C IP66

14

11.2 ATEX / IECEx Intended use

The Control Module QC54..P1.. of the
FieldQ pneumatic actuator is a Group II category 1
(ATEX) equipment with protection level Ga (IECEx)
and intended for use in areas in which explosive
atmospheres caused by mixtures of air and gases,
vapours, mists or by air/dusts are likely to occur.

The FieldQ pneumatic actuators is a Group II category
2 equipment and intended for use in areas in which
explosive atmospheres caused by mixtures of air and
gases, vapours, mists or by air/dusts are likely
to occur.

Therefore it may be used in hazardous area classified
Zones 1, 2 (Gasses) and/or 21, 22 (Dust).

11 .3 Safety instruc tions

WARNING

!

• Personal injury or property damage caused
by fire or explosion may occur if the module
is opened in any area which contains a
potentially explosive atmosphere or has been
classified as hazardous.

• The material for the Control Module
housing is an aluminium alloy. When the unit
is used in a potentiality explosive
atmosphere, requiring EPL Ga, the unit must
be installed in such a way, that even in the
event of rare incidents, an ignition source due
to impact or friction between the enclosure
and iron/steel is prevented.

• For applications in explosive atmospheres
caused by air/dust mixtures and where
equipment with EPL Da is required, the
surface temperature has been determined
for a dust layer with a thickness of 5 mm
maximum.

• Potential electrostatic charging hazard, clean
only with a damp cloth - danger of
propagating discharge.

• The apparatus shall be installed in such a way
that the risk from electrostatic discharges
and propagating brush discharges caused by
rapid flow of dust is avoided.

• Precaution shall be taken to avoid danger of
ignition due to electrostatic charges on the
marking plate of the enclosure.

• Substitution of electronics cartridge, switch
cartridge, pilot valve cartridge, pneumatic
cartridge, enclosure and seals must be with
parts from Emerson else the suitability for
Division 2 will be impaired.

Installation guide

DOC.IG.QC54.1 Rev. 3

FieldQ

October 2018

11.4 CSA Safety instructions

• The equipment may be used in zones 0,1

and 2 with ammable gases and vapours

with apparatus groups IIA, IIB & IIC and with
temperature classes T1, T2, T3, T4.

• The equipment may be used in zones 20, 21 &

22 with ammable dusts, bres and yings in

groups IIIA, IIIB and IIIC, with a layer auto­ignition temperature of not less than 75 K
above the maximum surface temperature
marked in the dust coding.

• Installation, adjustment, putting into service,

use, assembly, disassembly and maintenance
or repair, shall be carried out in accordance
with the applicable code of practice by
suitably-trained personnel.

• There are no special checking or maintenance

conditions other than a periodic check.

• With regard to explosion safety, it is not

necessary to check for correct operation.

• If the equipment is likely to come into contact

with aggressive substances, e.g. acidic liquids
or gases that may attack metals or solvents
that may affect polymeric materials, then it is
the responsibility of the user to take
suitable precautions that prevent it from
being adversely affected thus ensuring that
the type of protection is not compromised.

11.5 Dielectric strength

Control Module QC54 complies to the dielectric
strength requirement according IEC 60079-11

Table 11.1 Wiring dimensions

Wire type Dimensions

Cable range 0.33 to 2.5mm2 or 22 to 12 AWG

11.6 Wiring instructions QC54 -
Protection level “ic”

FF

Power

supply

Unclassified or Non

Hazardous Location

Ex ic

approved

Barrier

Hazardous or
Classified Location

Important

* Cable may be disconnected

without gas clearance

+

1

2

-

3

15

FieldQ

October 2018

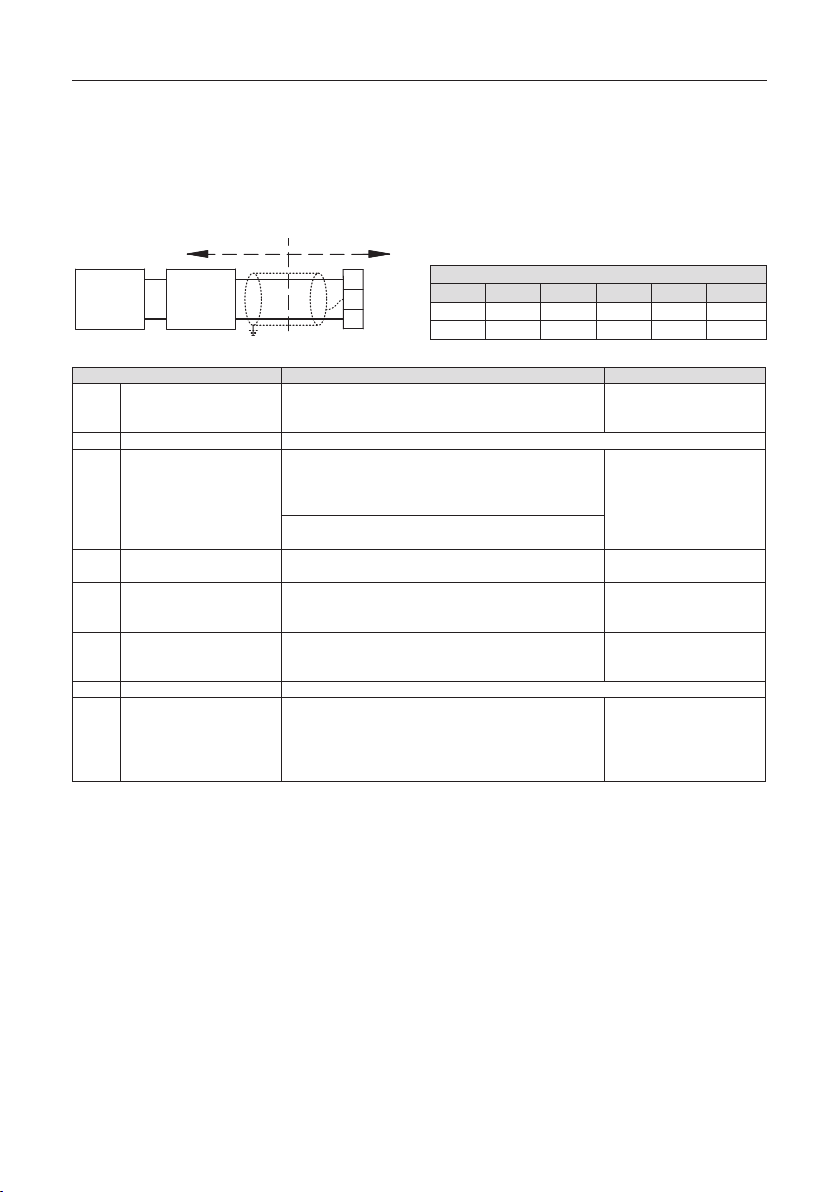

11.7 Wiring instructions QC54 - Intrinsically safe Control Modules

Unclassified or Non
Hazardous Location

Hazardous or
Classified Location

Installation guide

DOC.IG.QC54.1 Rev. 3

FF
Power
Supply

Installation must be in

1

accordance with:

2 Before operation: The control module must be mounted according chapters 2, 3 and 11

3 Barriers:

Intrinsically

4

safe equipment
Barrier I.S. Entity

5

Parameters must meet
the following conditions:
Resistance between

6

intrinsically safe ground
and earth ground

7 For FISCO Follow the instructions as per chapter 12

Hand-held

8

communicator or
multiplexer

I.S. or
FISCO

approved

Barrier

Notes: FM ATEX / IECEx

+

1

2

-

3

National Electrical Code and ANSI/ISA RP12.06.01

Must be FM/CSA Approved and installed in an
enclosure that meets the requirements of ANSI/ ISA
S82.01/CEC part1 and installed per manufacturer’s
installation instructions.
Control equipment connected to the barrier must
not use or generate more than 250Vrms or Vdc.

Must be FM Approved

Io =< Ii

Lo >= Li + Cable

Less than one ohm

Must be FM approved with entity parameters and
installed per the manufacturer’s control drawings.

QC54 Intrinsically Safe Entity Parameters
Circuit Ui Ii Pi Ci Li

Ex ia 30V 380mA 1.5W 5 nF 10µH
Ex ic 30V -/- -/- 5 nF 10µH

The national wiring
practices of the country
of use

Must be certified by a
Certified/European
Notified body and
installed per
manufacturer’s
installation instructions.
Only ATEX/IECEx
Approved

Po =< Pi

Must be ATEX/IECEx
approved with entity
parameters and installed
per the manufacturer’s
control drawings.

16

Installation guide

DOC.IG.QC54.1 Rev. 3

FieldQ

October 2018

12 FISCO Concept

The QC54 module is suitable for use in a FISCO system in accordance with IEC 60079-11 : 2012 for use in
Zone 1 and 2 locations.

12.1 Fieldbus Intrinsically Safe Concept

The FISCO Concept allows the interconnection of intrinsically safe apparatus to associated apparatus not
specifically examined in such combination.

The criterion for such interconnection is that the voltage (Ui or Vmax), the current (Ii or Imax), and the
power (Pi), which intrinsically safe field devices can receive and remain intrinsically safe, considering faults,
must be equal to or greater than the voltage (Uo, Voc), the current (Io, Isc) and the power (Po) levels which
can be delivered by the associated power supply device considering faults and applicable safety factors.
In addition, the maximum unprotected capacitance (Ci) and inductance (Li) of each apparatus (other than
the terminators) connected to the Fieldbus must be less than or equal to 5 nF and 10 µH respectively.

In each I.S. Fieldbus segment only one active device, normally the associated apparatus, is allowed to
provide the necessary energy for the Fieldbus system. The voltage (Uo or Voc) of the associated apparatus,
used to supply the bus, has to be limited to the range of 14VDC to 24VDC.

All other equipment connected to the bus cable has to be passive, meaning that the apparatus is not
allowed to provide energy to the system, except to a leakage current of 50 µA for each connected device.
Separately powered equipment needs a galvanic isolation to insure that the intrinsically safe Fieldbus circuit
remains passive.

12.2 Cable parameters

The cable used to interconnect the devices needs to comply with the following parameters:

Loop resistance Rc: 15 ...150 Ohm/Km
Inductance per unit length Lc: 0.4…1 mH/km
Capacitance per unit length Cc: 80 ...200 nF/km
Cc = Cc line/line + 0.5 Cc line/screen, if both lines are floating or
Cc= Cc line/line + Cc line/screen, if the screen is connected to one line
Length of spur Cable: max. 60 m
Length of trunk cable: max. 1 Km

Length of splice: max. 1

When the cable complies with IEC 60079-11, no further consideration of cable parameters is necessary.
The cable parameters may be determined in accordance with Annex C of IEC 60079-14.

12.3 Terminators

At both ends of the trunk cable, an approved line terminator with the following parameters is suitable:

- R = 90 ...102Ohm

- C = 0 ...2.2 µF

m (T-box must only contain terminal connections
with no energy storage capability)

Note: IEC 61158-2 requires an operational capacitance value of 0,8 µF to 1,2 µF.
The number of passive devices connected to the bus segment is not limited due to I.S. reasons. If the above

rules respected, up to a total length of 1000m (sum of trunk cable and all spur cables), the inductance and
capacitance of the cable will not impair the intrinsic safety of the installation.

17

FieldQ

October 2018

Installation guide

DOC.IG.QC54.1 Rev. 3

18

Installation guide

DOC.IG.QC54.1 Rev. 3

FieldQ

October 2018

19

World Area Confi guration Centers (WACC) offer sales support,
service, inventory and commissioning to our global customers.
Choose the WACC or sales offi ce nearest you:

NORTH & SOUTH AMERICA

19200 Northwest Freeway
Houston TX 77065
USA
T [phone]

Av. Hollingsworth
325 Iporanga Sorocaba
SP 18087-105
Brazil
T [phone]

ASIA PACIFIC

No. 9 Gul Road
#01-02 Singapore 629361
T [phone]

No. 1 Lai Yuan Road
Wuqing Development Area
Tianjin 301700
P. R. China
T [phone]

For complete list of sales and manufacturing sites, please visit
www.emerson.com/actuationtechnologieslocations
or contact us at [e-mail]

MIDDLE EAST & AFRICA

P. O. Box 17033
Jebel Ali Free Zone
Dubai
T [phone]

P. O. Box 10305
Jubail 31961
Saudi Arabia
T [phone]

24 Angus Crescent
Longmeadow Business Estate East
P.O. Box 6908 Greenstone
1616 Modderfontein Extension 5
South Africa
T [phone]

EUROPE

Holland Fasor 6
Székesfehérvár 8000
Hungary
T [phone]

Strada Biffi 165
29017 Fiorenzuola d’Arda (PC)
Italy
T [phone]

www.emerson.com/fieldq

©2018 Emerson. All rights reserved.

The Emerson logo is a trademark and service mark of Emerson
Electric Co. FieldQ
companies. All other marks are property of their respective
owners.

The contents of this publication are presented for information
purposes only, and while every effort has been made to ensure
their accuracy, they are not to be construed as warranties or
guarantees, express or implied, regarding the products or
services described herein or their use or applicability.
All sales are governed by our terms and conditions, which
are available on request. We reserve the right to modify or
improve the designs or specifications of our products at any
time without notice.

TM

is a mark of one of the Emerson family of

FieldQ
