Programming: TEC2 CCM Programming Using RS-485 UART Probe and STC Pins 36 and 38
Manuals & Guides
15 pgs5.21 Mb0

Bettis Programming: TEC2 CCM Programming Using RS-485 UART Probe and STC Pins 36 and 38 Manuals & Guides

Download
Programming Instructions
TEC2-RS485-1001 Rev. 1
TEC2 CCM Programming Instructions
Using RS-485 UART Probe and STC Pins 36 and 38
September 2015
TEC2-RS485-1001 Rev. 1
Table of Contents
Section 1: TEC2 CCM Programming Instructions
1.1 Using RS-485 UART Probe and STC Pins 36 and 38 .........................................1
Table of Contents
September 2015
Table of Contents
I
Section 1: TEC2 CCM Programming Instructions
September 2015
TEC2-RS485-1001 Rev. 1
Section 1: TEC2 CCM Programming
Instructions
1.1 Using RS-485 UART Probe and STC Pins 36 and 38
Figure 1 RS485 Setup
1. Connect USB cable to the RS485 Adapter and plug the other end of the cable into the USB port on the computer. See Figure 1.
2. Connect a two lead cable to the Phoenix connector. See Figure 2.
1
TEC2 CCM Programming Instructions
TEC2-RS485-1001 Rev. 1
3. Connect RS485 cable to STC pins 36 and 38. See Figure 3.
Section 1: TEC2 CCM Programming Instructions
Figure 2 RS485 Adapter Box Connection
September 2015
Figure 3 STC Pins 36 and 38
4. Set all switches on the RS485 Adapter box to ON. See Figure 4.
TEC2 CCM Programming Instructions
2
Section 1: TEC2 CCM Programming Instructions
September 2015
Figure 4 Adapter Switch Settings
5. Go to Windows Control Panel and open device manager. See Figure 5.
TEC2-RS485-1001 Rev. 1
3
TEC2 CCM Programming Instructions
TEC2-RS485-1001 Rev. 1
6. Determine the RS485 Adapter box Com Port Number. See Figure 6.
Section 1: TEC2 CCM Programming Instructions
Figure 5 Windows Control Panel
September 2015
Figure 6 Com Port Number
7. Open the TEC-Flash.exe program. See Figure 7.
TEC2 CCM Programming Instructions
4
Section 1: TEC2 CCM Programming Instructions
September 2015
Figure 7 TEC-Flash.exe Icon
8. Select the correct Comm port and then select Open. See Figure 8.
TEC2-RS485-1001 Rev. 1
Figure 8 Open Comm Port
9. Enter the Modbus Address. Click on Discover. Select Check box for the Actuator, then click on the CCM Tab. See Figure 9.
5
TEC2 CCM Programming Instructions
TEC2-RS485-1001 Rev. 1
10. On the CCM tab, click Read Version button on Step 1. Then Click Read CRC on Step
Section 1: TEC2 CCM Programming Instructions
Figure 9 TEC-Flash Program Discover Tab
2. Then click Open File on Step 3. See Figure 10.
September 2015
Figure 10 Perform Steps 1 and 2 then click Open File
11. Navigate to the directory that holds the BIN file you want to download. Select that file and click open. See Figure 11.
TEC2 CCM Programming Instructions
6
Section 1: TEC2 CCM Programming Instructions
September 2015
Figure 11 Open BIN File
12. Figure 12 below shows that in Step 2 box, the CRC values of the code in the existing board “Stored” is the CRC in the code. Calc is the CRC that TEC-Flash calculated for the code on the board. In the Step 3 box, the Stored is the CRC for the new file that is stored in the new BIN file itself. Calc is the value of the CRC that the TEC-Flash.exe program calculated for the BIN file you selected to download. The Btldr = Bootloader and App = the Target executable file. See Figure 12.
Figure 12 Screen Showing that Target executable and New File to Download are different.
TEC2-RS485-1001 Rev. 1
7
TEC2 CCM Programming Instructions
TEC2-RS485-1001 Rev. 1
13. After the bootloader has started, you should see “Firmware Upgrade in Progress”
Section 1: TEC2 CCM Programming Instructions
September 2015
on the LDM. See Figure 13. You should see that Step 4, Start Bootloader now shows Complete in Green and that Step 5 is now enabled to Upgrade Application. See Figure 14.
Figure 13 Bootloader Running
TEC2 CCM Programming Instructions
8
Section 1: TEC2 CCM Programming Instructions
September 2015
Figure 14 Upgrade in Progress

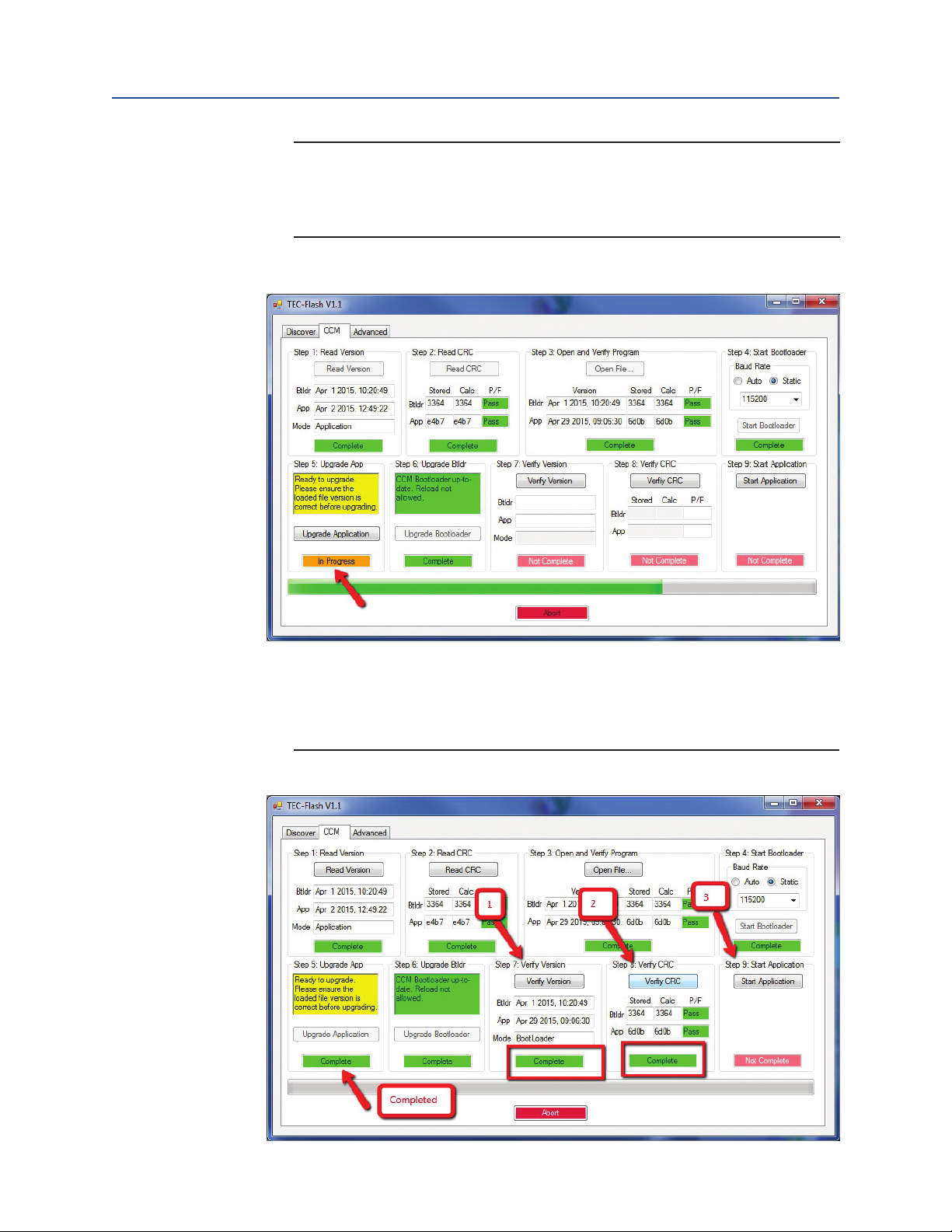

14. You should now see the Step 5 “In Progress” and the green download status bar. See Figure 15.
Figure 15 Download in Progress. Takes 5 to 6 minutes to finish with wired connection.
TEC2-RS485-1001 Rev. 1
15. When the Download has completed, you can now perform Steps 7, 8 and 9. Step 9 restarts the actuator code and should now be running the new code you just downloaded. See Figures 16 and 17.
Figure 16 Start Application
9
TEC2 CCM Programming Instructions
TEC2-RS485-1001 Rev. 1
Section 1: TEC2 CCM Programming Instructions
Figure 17 Application Started
September 2015
16. The code in the Actuator should now be running and the version should be the new version that you downloaded.
TEC2 CCM Programming Instructions
10
