The TEC2 actuator’s Local Display Module (LDM) and Remote Display Module (RDM) provide easy-to-read
actuator information.
The screen graphics will display the mode of operation, valve status, position, torque, and alarm symbols.
The message center will display actuator setup options, data entry feedback, and alarm messages.
LED Indicators
Operating
Mode
Moving Status
Display Diagnostic
Once you follow the simple steps outlined in this guide, the actuator will be ready for normal operation.
The bar graph, position digits, icons, and LEDs will indicate the valve status.
Valve Torque
Welcome to TEC2
1
Welcome to TEC2
September 2018
Quick-Start Guide
E2K-210-05-18 Rev. 3
Factory Settings
The actuator has been congured as specied in the order. No further changes should be necessary other than
setting the position limits, and, if network controlled, setting a unique network address. If full data was not
provided when ordering or if changes are needed, see the TEC2 Installation & Operation Manual
(E2K-405-0117), which can be found at www.emerson.com/bettis.
Power Actuator
Verify the voltage rating on the unit nameplate. Connect power to the unit.
Are Position Limits Set?
Does “SET LIMITS BEFORE OPERATING,” “EE%,” and the alarm icon appear, and is the yellow LED
blinking? If so, then position limits have not been set.
2
Welcome to TEC2
Quick-Start Guide
ST
E2K-210-05-18 Rev. 3
Setting Valve Position Limits Initially
Setting Valve Position Limits Initially
September 2018
1
OP
Place the selector knob in the STOP position. Then toggle the control knob in rapid succession to YES, then
NO, then YES, then NO and release. The Setup icon will be displayed on the display module and “SETUP?” will be displayed on the message center. Rotate the control knob to “YES.” The message center will display “SET
LIMITS BEFORE OPERATING.” Set position limits as described on the next pages.
234
YES,
NO,
YES,
NO
Release
quickly.
YES
LOCAL
Setting Valve Position Limits Initially
3
2
3
4
YES
LOCAL
CLOSE
Hold until
desired
position is
reached.
1
STOP
Setting Position Limits for Electrical Operation
September 2018
Setting Position Limits for Electrical Operation
STEP 1:CLOSED Valve Position
Quick-Start Guide
E2K-210-05-18 Rev. 3
Turn the selector knob to the “LOCAL” position. Hold the control knob in the “CLOSE” position until desired
position is reached. Dis-engage motor drive by setting the declutch lever in “HAND” mode.
Using handwheel, move the valve in the open direction for one handwheel turn to allow for motor coasting.
Re-engage motor drive by setting the declutch lever out of “HAND” mode.
Return the selector knob to the “STOP” position. Select “YES” to set new close limit.
4
Setting Position Limits for Electrical Operation
Quick-Start Guide
2
3
4
YES
LOCAL
OPEN
Hold until
desired
position is
reached.
1
STOP
E2K-210-05-18 Rev. 3
Setting Position Limits for Electrical Operation
Setting Position Limits for Electrical Operation
STEP 2:OPEN Valve Position
September 2018
Turn the selector knob to the “LOCAL” position. Hold the control knob in the “OPEN” position until desired
position is reached. Dis-engage motor drive by setting the declutch lever in “HAND” mode.
Using handwheel, move the valve in the close direction for one handwheel turn to allow for motor coasting.
Re-engage motor drive by setting the declutch lever out of “HAND” mode.
Return the selector knob to the “STOP” position. Select “YES” to set new open limit.
Setting Position Limits for Electrical Operation
5
234
YES
LOCAL
1
STOP
5
Depress
declutch,
rotate
handwheel
until...
declutch is fully
engaged.
Release
declutch,
Setting Position Limits for Manual Operation
September 2018
Setting Position Limits for Manual Operation
STEP 1:CLOSED Valve Position
Quick-Start Guide
E2K-210-05-18 Rev. 3
Turn the selector knob to the LOCAL position. At the “CLOSE VALVE THEN SELECT STOP” prompt, depress the
declutch lever while rotating the handwheel until the clutch is fully engaged. Release the lever.
When the valve is fully closed. Return the selector knob to the STOP position.
At the “ACCEPT CLOSE LIMIT” prompt, select “YES.”
Advance to the “SAVE CHANGES?” prompt and answer YES to save the changes.
6
Setting Position Limits for Manual Operation
Quick-Start Guide
234
YES
LOCAL
1
STOP
5
Depress
declutch,
rotate
handwheel
until...
Release
declutch,
E2K-210-05-18 Rev. 3
Setting Position Limits for Manual Operation
Setting Position Limits for Manual Operation
STEP 2:OPEN Valve Position
September 2018
Turn the selector knob to the LOCAL position. At the “OPEN VALVE THEN SELECT STOP” prompt, depress the
declutch lever while rotating the handwheel until the clutch is fully engaged. Release the lever.
When the valve is fully opened. Return the selector knob to the STOP position.
At the “SAVE LIMITS” prompt, select “YES.”
Advance to the “SAVE CHANGES?” prompt and answer YES to save the changes.
Setting Position Limits for Manual Operation
7
Check the Open/Closed Settings
September 2018
Check the Open/Closed Settings
Quick-Start Guide
E2K-210-05-18 Rev. 3
Valve Closed
As you operate the valve in the close direction, verify
that the green LED is blinking. When fully closed is
reached, verify that the green LED stays ON and 0%
is displayed.
When turning to close,
1
green LED blinks.
When fully closed,
2
green LED remains lit.
Note
It is also congurable to have a red LED for
Valve Closed.
Valve Open
As you operate the valve in the open direction, verify
that the red LED is blinking. When fully open is
reached, verify that the red LED stays ON and 100%
is displayed.
When turning to
1
open, red LED blinks.
When fully open,
2
red LED remains lit.
Note
It is also congurable to have a green LED for
Valve Open.
8
Check the Open/Closed Settings
Quick-Start Guide
ST
E2K-210-05-18 Rev. 3
Changing the Valve Settings
Changing the Valve Settings
September 2018
1
OP
Turn the selector knob to the STOP position then toggle the control knob in rapid succession to YES, then NO,
then YES, then NO and release. The setup icon will be displayed on the display module and “SETUP?“ will be
displayed on the message center. Rotate the control knob to YES. The message center will display “CHANGE
DISPLAY SETTINGS”.
23
YES,
NO,
YES,
NO
Release
quickly.
YES
Changing the Valve Settings
9
Changing the Valve Settings
September 2018
Changing the Valve Settings
Quick-Start Guide
E2K-210-05-18 Rev. 3
45
NO
Until
appears.
Answer NO to the Setup prompts until “CHANGE SETTINGS?” appears. Answer YES. “ACCEPT PASSCODE
CHARACTER 1?X” appears. The factory default passcode is 000. Do not change the password without
recording the new password.
YES
10
Changing the Valve Settings
Quick-Start Guide
6
7
YES
NO
If passcode
character is
correct...
...to advance
to correct
character.
OR
E2K-210-05-18 Rev. 3
Changing the Valve Settings
Enter Passcode
Changing the Valve Settings
September 2018
Use the control knob and answer YES if the passcode character is correct. If not, use NO to advance
incrementally to the correct character. Repeat this process until three passcode characters are entered.
Changing the Valve Settings
11
8
9
YES
NO
Changing the Valve Settings
September 2018
Changing the Valve Settings

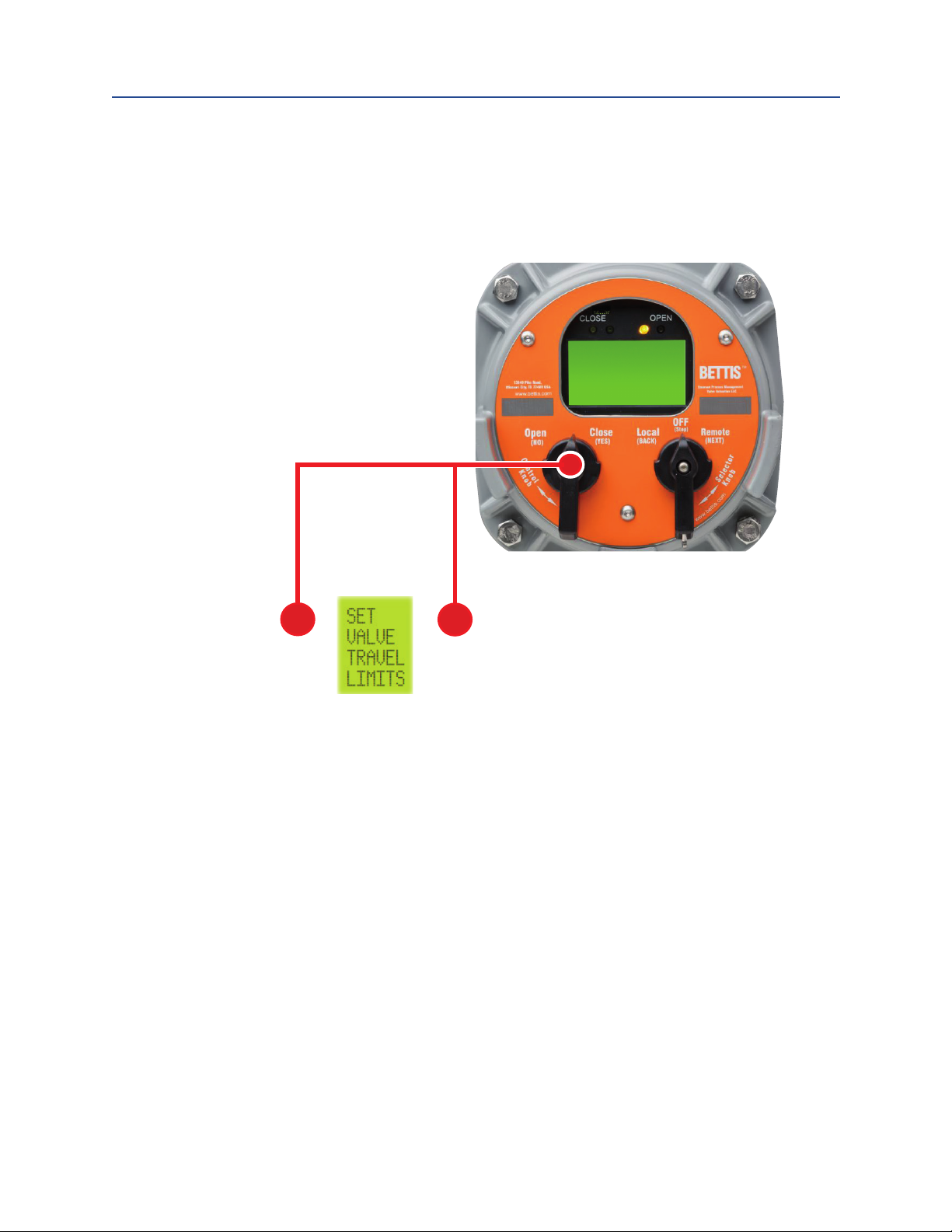

Setting Limits
Quick-Start Guide
E2K-210-05-18 Rev. 3
Advance to the “SET VALVE TRAVEL LIMITS” prompt and answer YES. Proceed to set limits.
12
Changing the Valve Settings
Quick-Start Guide
23
4
YES
NO
Until...
1
REMOTE
5
NO
Until
correct
address...
YES
E2K-210-05-18 Rev. 3
Network Controlled
September 2018
Network Controlled
(CAM and Controlinc® option required)
In the “SETUP” mode advance to “NETWORK SETUP?” using the selector knob in the REMOTE position.
Answer YES. Hold the control knob in the NO position until the correct address appears. Answer YES. Unit
is now network controlled. If other conguration changes are needed, please see the TEC2 Installation &
Operation Manual (E2K-405-0117), which can be found at www.emerson.com/bettis.
Network Controlled
13
C
?
Saving the Changes
September 2018
Saving the Changes
Quick-Start Guide
E2K-210-05-18 Rev. 3
1
YES
Advance to the “SAVE CHANGES?” prompt and answer YES to save the changes.
SAVE
HANGES
2
NO
14
Saving the Changes
